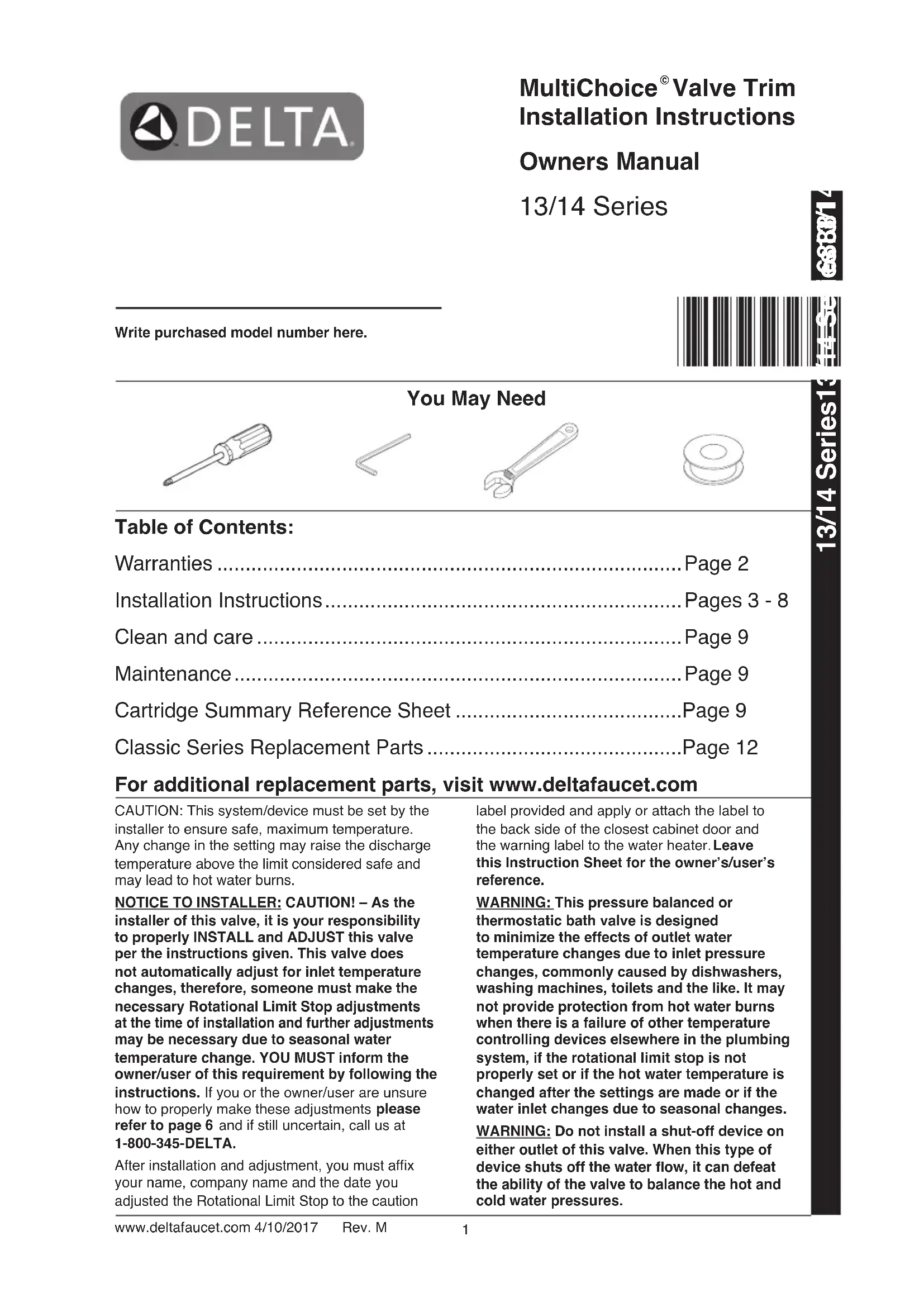

USER MANUAL T14251WE DELTA

CAUTION: To reduce the risk of injury due to hot water burns, make sure the enclosed labels are applied where specied on the label.

You May Need Table of Contents: Warranties ..................................................................................Page 2 Installation Instructions ............................................................... Pages 3 - 8 Clean and care ...........................................................................Page 9 Maintenance ............................................................................... Page 9 Cartridge Summary Reference Sheet ........................................Page 9 Classic Series Replacement Parts .............................................Page 12 For additional replacement parts, visit www.deltafaucet.com CAUTION: This system/device must be set by the installer to ensure safe, maximum temperature. Any change in the setting may raise the discharge temperature above the limit considered safe and may lead to hot water burns. NOTICE TO INSTALLER: CAUTION! – As the installer of this valve, it is your responsibility to properly INSTALL and ADJUST this valve per the instructions given. This valve does not automatically adjust for inlet temperature changes, therefore, someone must make the necessary Rotational Limit Stop adjustments at the time of installation and further adjustments may be necessary due to seasonal water temperature change. YOU MUST inform the owner/user of this requirement by following the instructions. If you or the owner/user are unsure how to properly make these adjustments please refer to page 6 and if still uncertain, call us at 1-800-345-DELTA. After installation and adjustment, you must afx your name, company name and the date you adjusted the Rotational Limit Stop to the caution label provided and apply or attach the label to the back side of the closest cabinet door and the warning label to the water heater. Leave this Instruction Sheet for the owner’s/user’s reference.

WARNING: This pressure balanced or

thermostatic bath valve is designed to minimize the effects of outlet water temperature changes due to inlet pressure changes, commonly caused by dishwashers, washing machines, toilets and the like. It may not provide protection from hot water burns when there is a failure of other temperature controlling devices elsewhere in the plumbing system, if the rotational limit stop is not properly set or if the hot water temperature is changed after the settings are made or if the water inlet changes due to seasonal changes.

WARNING: Do not install a shut-off device on

either outlet of this valve. When this type of device shuts off the water ow, it can defeat the ability of the valve to balance the hot and cold water pressures. www.deltafaucet.com 4/10/2017 Rev. M

Valve Trim Installation Instructions68881 Rev. M Lifetime Faucet and Finish Limited Warranty Parts and Finish All parts (other than electronic parts and batteries) and nishes of this Delta

faucet are warranted to the original consumer purchaser to be free from defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed or, for commercial users, for 5 years from the date of purchase. Electronic Parts and Batteries (if applicable) Electronic parts (other than batteries), if any, of this Delta® faucet are warranted to the original consumer purchaser to be free from defects in material and workmanship for 5 years from the date of purchase or, for commercial users, for one year from the date of purchase. No warranty is provided on batteries. Delta Faucet Company will replace, FREE OF CHARGE, during the applicable warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use and service. If repair or replacement is not practical, Delta Faucet Company may elect to refund the purchase price in exchange for the return of the product. These are your exclusive remedies. Delta Faucet Company recommends using a professional plumber for all installatio and repair.We also recommend that you use only genuine Delta

replacement parts. Delta Faucet Company shall not be liable for any damage to the faucet resulting from misuse, abuse, neglect or improper or incorrectly performed installation, maintenance or repair, including failure to follow the applicable care and cleaning instructions. Replacement parts may be obtained by calling the applicable number below or by writing to: In the United States and Mexico: Delta Faucet Company Product Service 55 E. 111th Street Indianapolis, IN 46280 1-800-345-DELTA (3358) [e-mail] In Canada: Masco Canada Limited, Plumbing Group Technical Service Centre 350 South Edgeware Road St. Thomas, Ontario, Canada N5P 4L1 1-800-345-DELTA (3358) [e-mail] Proof of purchase (original sales receipt) from the original purchaser must be made available to Delta Faucet Company for all warranty claims unless the purchaser has registered the product with Delta Faucet Company. This warranty applies only to Delta

faucets manufactured after January 1,1995 and installed in the United States of America, Canada and Mexico. DELTA FAUCET COMPANY SHALL NOT BE LIABLE FOR ANY

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING LABOR CHARGES) FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THE FAUCET. Some states/provinces do not allow the exclusion or limitation of special, incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you special legal rights. You may also have other rights which vary from state/province to state/province. This is Delta Faucet Company’s exclusive written warranty and the warranty is not transferable. If you have any questions or concerns regarding our warranty, please view our Warranty FAQs at www.deltafaucet.com, email us at [e-mail] or call us at the applicable number above. Delta HDF Limited Warranty All parts of the Delta HDF faucet are warranted to the original consumer purchaser to be free from defects in material and workmanship for a period of ve (5) years. This warranty is made to the original consumer purchaser and shall be effective from date of purchase as shown on purchaser’s receipt. Delta will replace, FREE OF CHARGE, during the warranty period, any part which proves defective in material and/or workmanship under normal installation, use and service. Replacement parts can be obtained from your local dealer or distributor listed in the telephone directory or by returning the part along with the purchaser’s receipt to our factory, TRANSPORTATION CHARGES PREPAID, at the address listed. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY MADE BY DELTA. ANY CLAIMS MADE UNDER THIS WARRANTY MUST BE MADE DURING THE FIVE YEAR PERIOD REFERRED TO ABOVE. ANY

IMPLIED WARRANTIES, INCLUDING THE IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. LABOR CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION, REPAIR OR REPLACEMENT AS WELL AS INCIDENTAL AND

CONSEQUENTIALDAMAGES CONNECTED THEREWITH

ARE EXCLUDED AND WILL NOT BE PAID BY DELTA. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. This warranty is void for any damage to this faucet due to misuse, abuse, neglect, accident, improper installation, any use violative of instructions furnished by us or any use of replacement parts other than genuine Delta parts. www.deltafaucet.com © 2017 Masco Corporation of Indiana 268881 Rev. M Installation

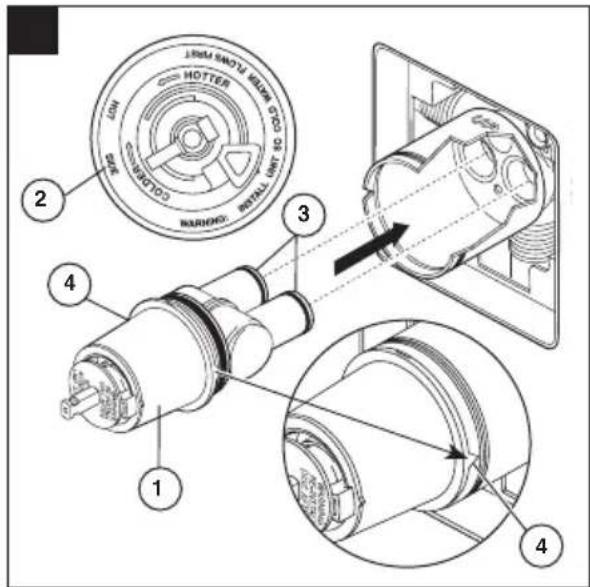

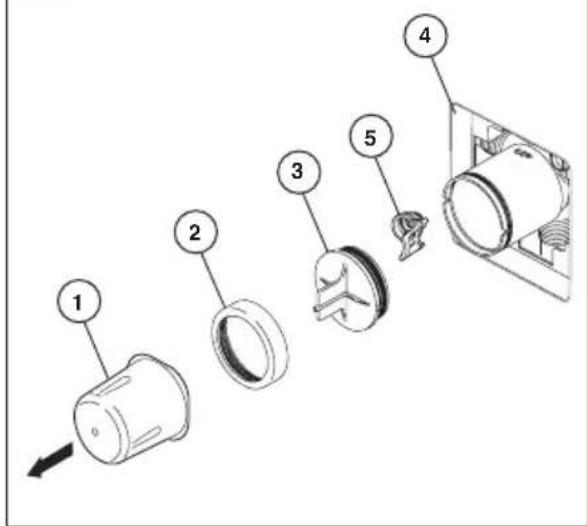

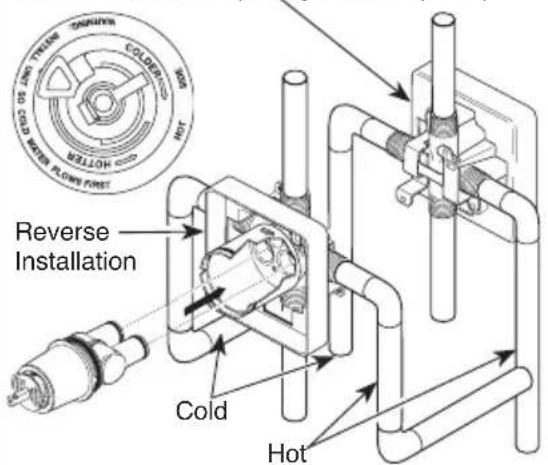

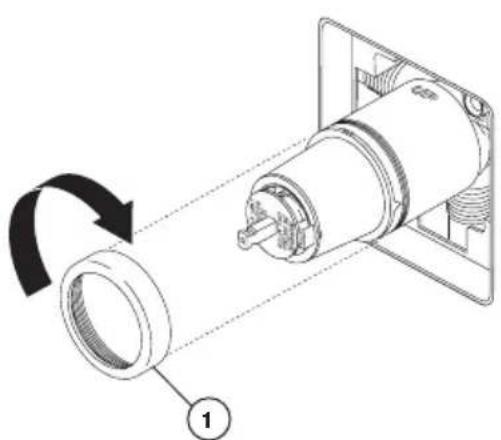

Cartridge Installation Installation A. B. Turn off water supplies. Remove cover (1), bonnet nut (2) and test cap (3) from the body. If this is not a thin wall mounting, the entire plasterguard (4) may be removed. If screen (5) is in place, remove before installing cartridge. Rotate the cartridge (1) so the words “hot side” (2) appear on the left. Insert cartridge into valve body as shown. Make sure the cartridge tubes and O-rings (3) are properly seated in holes at the base of the body. Ensure the keys on the body are fully engaged with the slots in the body (4). Back to back Installation C. For back to back or reverse installations (hot on right and cold on left) insert the cartridge with the “hot side” on the right. If you are not making a reverse or back to back installation skip this step and continue with step 1C. Slide bonnet nut (1) over the cartridge and thread onto the body. Hand tighten securely.

Normal Installation (changes not required) Reverse Installation Cold Hot

Showerhead and Tub Spout Installation

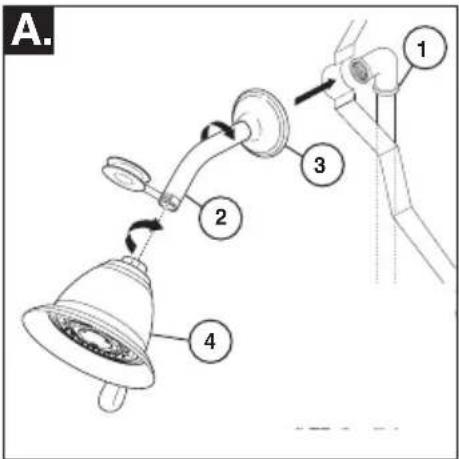

FOR SHOWERHEAD INSTALLATION: Connect top outlet (1) to shower arm (2) with proper ttings. To prevent damage to nish on shower arm, insert wall end of shower arm into shower ange (3) before screwing arm into riser connection. Thread showerhead (4) onto shower arm. Apply plumber tape to pipe threads on both ends. Do not overtighten showerhead.

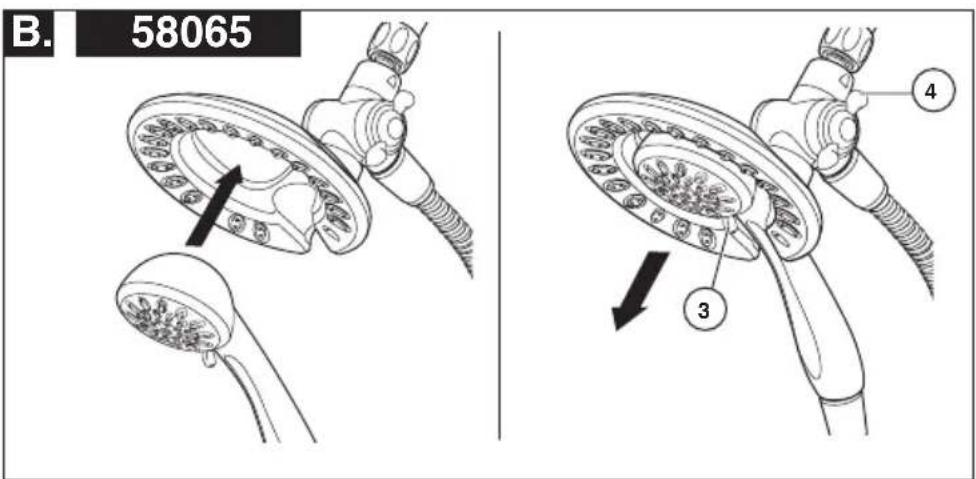

58045: To combine the two showers, insert the top tab (1) on the handshower into the slot (2) of the showerhead. Push the handshower into the showerhead until the two parts snap together. 58065: To combine the two showers, push the handshower into the showerhead, then pull down on the handshower until locked with the showerhead. If the showerhead moves when removing the handshower, hand tighten the connection between the showerhead and the shower arm. To change spray modes, turn the lever (3) left or right to the desired setting. Turn knob (4) to change between showerhead only, showerhead and handshower or handshower only.

468881 Rev. M Installation

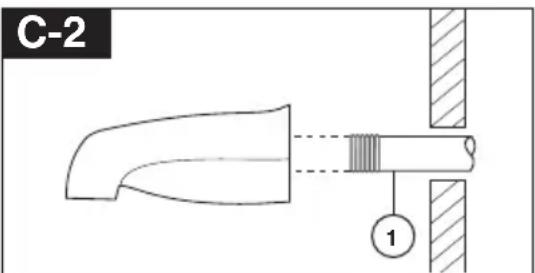

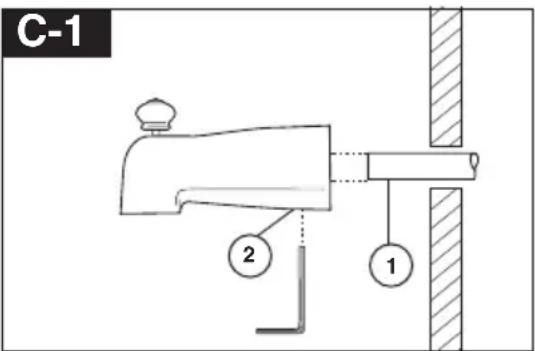

Showerhead and Tub Spout Installation FOR TUB SPOUT INSTALLATION: Refer to the installation instructions supplied with your spout. Do not connect deck mount spouts to in-wall valves. Do not use hand showers connected in lieu of a tub spout to a tub/shower valve. Do not use PEX tubing for tub spout drop.

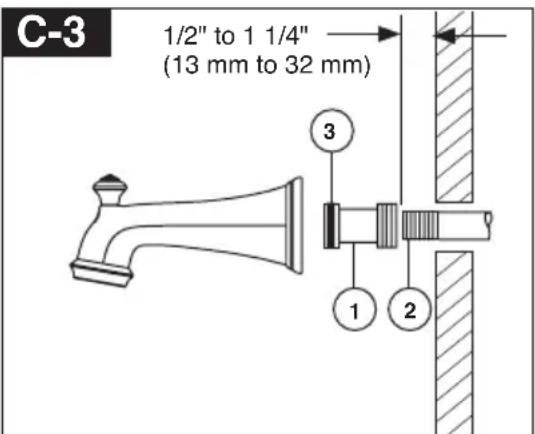

Slip-On Installation The copper tube (1) must be 1/2” nominal copper. Important: If it is necessary to cut the copper tube, the end must be chamfered free of burrs to prevent cutting or nicking O-ring inside the spout. Slide spout over copper tube ush with the nished tub or wall surface. Tighten set screw (2), but do not overtighten. Iron Pipe Installation Install threaded pipe nipple (1) to extend past nished wall. Apply plumber tape to threads on pipe nipple and screw on tub spout. Copper Sweat Installation Install adapter so the end of the adapter is 1/4" to 1" (6 mm to 25 mm) from finished wall. Remove O-ring (1) from adapter (2). Solder adapter to tube taking care to keep solder away from O-ring groove. CAUTION: NO SOLDER PERMITTED ON

OUTSIDE DIAMETER OF ADAPTER ADJACENT

TO O-RING GROOVE. Cut off tube (3) and replace O-ring on groove of brass adapter. Thread tub/spout onto adapter, taking care not to damage O-ring, and hand tighten until spout is firmly against finished wall and all slack is taken up behind wall. Iron Pipe Installation Installation of easy-on universal tub spout Install pipe nipple so that end of nipple projects out from nished wall surface 1/2" to 1 1/4" (13 mm to 32 mm). Apply plumber tape or pipe dope to pipe threads. Hand tighten adapter (1) onto pipe nipple (2). Finish tightening with standard pipe wrench until a positive seal is implemented. Take care not to damage O-Ring (3) groove. Back of adapter (1) must not project more than 1" (25 mm) from nished wall surface.Hand tighten tub spout onto adapter (1) taking care not to damage the O-Ring (3). C-4 C-3 C-2 C-1

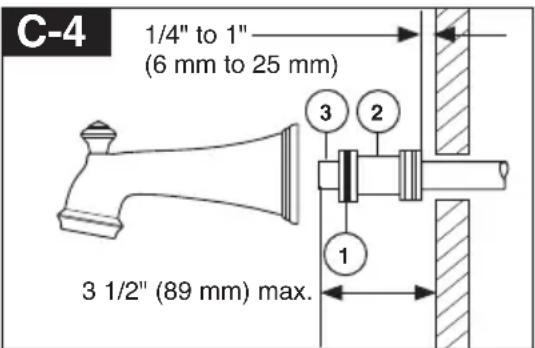

1/2" to 1 1/4" (13 mm to 32 mm)

1/4" to 1" (6 mm to 25 mm) 3 1/2" (89 mm) max.68881 Rev. M Installation

IMPORTANT: The Rotational Limit Stop is used to limit the amount of hot water available such that, if set properly, the user will not be scalded if the handle accidentally is rotated all the way to “hot” when a person is showering or lling a tub. The rst position allows the LEAST amount of hot water to mix with the cold water in the system. In the rst position the water will be the coldest possible when the handle is turned all the way to hot. As you move the Rotational Limit Stop counterclockwise, you progressively add more and more hot water in the mix. The last position to the left will result in the greatest amount of hot water to the mix, and the greatest risk of scald injury if someone accidentally turns the valve handle all the way to the hot side while showering or lling a tub.

WARNING: In some instances, setting the

Rotational Limit Stop in the hottest position (full counterclockwise) could result in scald injury. It is necessary to adjust the Rotational Limit Stop so that the water coming out of the valve will not scald the user when the handle of the valve is rotated to the hot side.

• According to the majority of industry standards, the maximum allowable temperature of the water exiting the valve is 120°F (Your local plumbing codes may require a water temperature less than 120°F).

• The Rotational Limit Stop may need to be re- adjusted seasonally if the inlet water temperature changes. For example, during the winter, the cold water temperature is colder than it is during the summer which could result in varying outlet temperatures. A water temperature for a comfortable bath or shower is typically between 90°F - 110°F.

• Run the water so that the cold water is as cold as it will get and hot water is as hot as it will get. Place the handle on the stem (see page 8, step 4C) and rotate the handle coun- terclockwise until the handle stops.

• Place a thermometer in a plastic tumbler and hold in the water stream. If the water temperature is above 120°F, the Rotational Limit Stop must be repositioned clockwise to decrease valve outlet water temperature to

less than 120°F or to meet the requirements of your local plumbing codes.

• To adjust the temperature of the water coming out of the valve, pull the disc back to a position where it is possible to remove the Rotational Limit Stop and readjust the teeth engagement position to the desired temperature. Clockwise will decrease the outlet temperature, counterclockwise will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. Push disc until fully seated.

WARNING: Failure to re-install Disc after

setting Rotational Limit Stop could result in scald injury.

WATER FLOWING FROM THE VALVE AT

THE HOTTEST FLOW POSSIBLE DOES

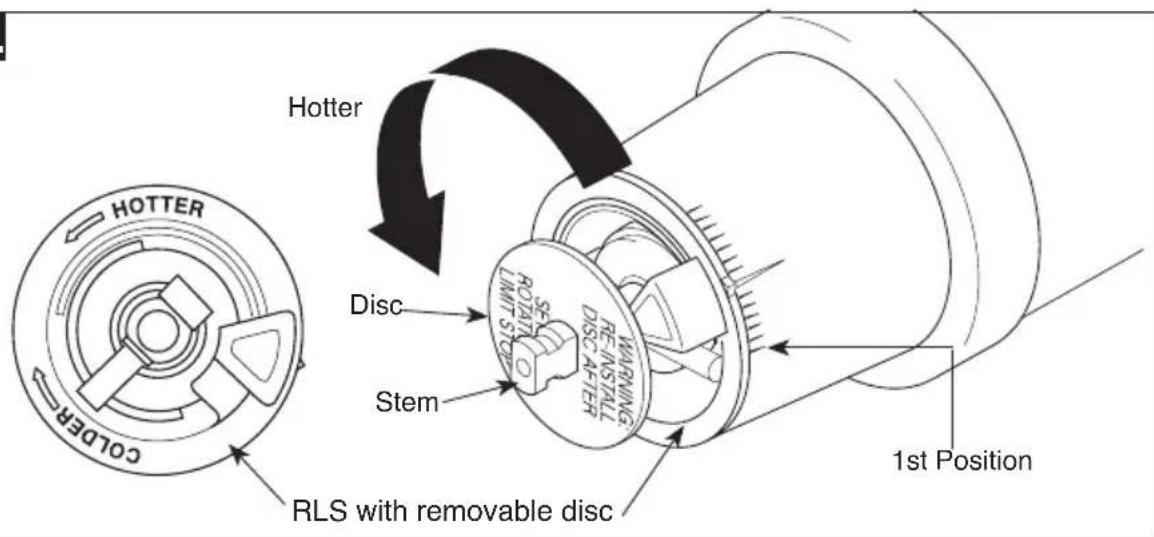

Adjusting the Rotational Limit Stop – Identify RSL type from pages 6-7. Hotter Disc Stem 1st Position

RLS with removable disc68881 Rev. M Installation IMPORTANT: The Rotational Limit Stop is used to limit the amount of hot water available such that, if set properly, a scald injury is less likely to occur if the handle accidentally is rotated all the way to “hot” when a person is showering or lling a tub. The rst position allows the LEAST amount of hot water to mix with the cold water in the system. In the rst position the water will be the coldest possible when the handle is turned all the way to hot. As you move the Rotational Limit Stop counterclockwise, you progressively add more and more hot water in the mix. The last position to the left will result in the greatest amount of hot water to the mix, and the greatest risk of scald injury if someone accidentally turns the valve handle all the way to the hot side while showering or lling a tub.

WARNING: In some instances, setting the

Rotational Limit Stop in the hottest position (full counterclockwise) could result in scald injury. It is necessary to adjust the Rotational Limit Stop so that the water coming out of the valve will not scald the user when the handle of the valve is rotated to the hot side.

• According to the majority of industry standards, the maximum allowable temperature of the water exiting the valve is 120°F (Your local plumbing codes may require a water temperature less than 120°F).

• The Rotational Limit Stop may need to be re- adjusted seasonally if the inlet water temperature changes. For example, during the winter, the cold water temperature is colder than it is during the summer which could result in varying outlet temperatures. A water temperature for a comfortable bath or shower is typically between 90°F - 110°F.

• Run the water so that the cold water is as cold as it will get and hot water is as hot as it will get. Place the handle on the stem (see page 8, step 4C) and rotate the handle coun- terclockwise until the handle stops.

• Place a thermometer in a plastic tumbler and hold in the water stream. If the water temperature is above 120°F, the Rotational Limit Stop must be repositioned clockwise to decrease valve outlet water temperature to

less than 120°F or to meet the requirements of your local plumbing codes.

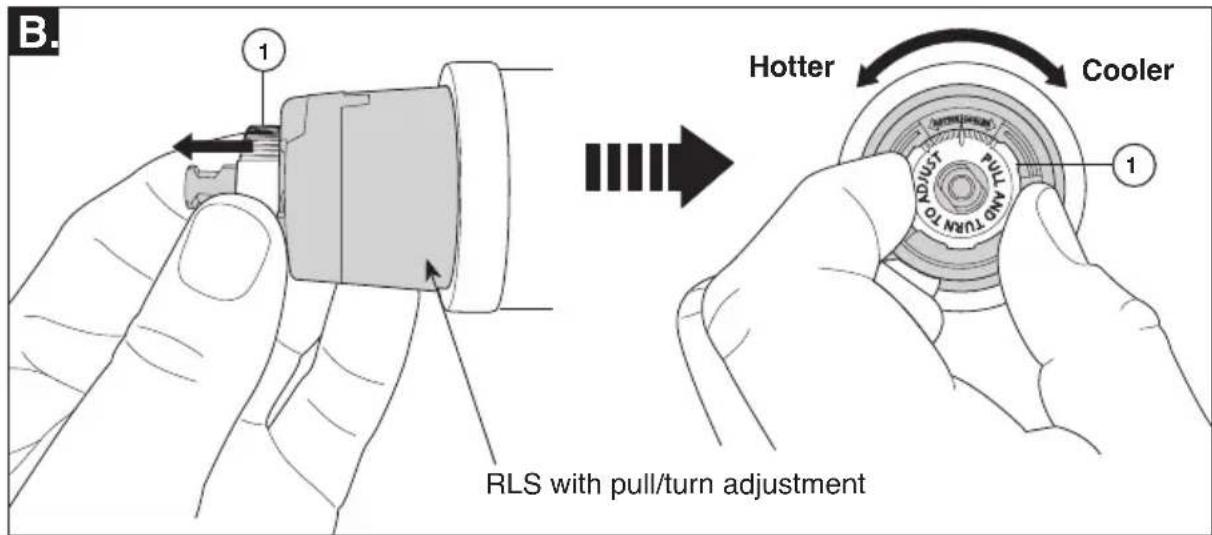

• To adjust the temperature of the water coming out of the valve, pull the white Rotational Limit Stop (1) outward and rotate. Clockwise rotation will decrease the outlet temperature, counterclockwise rotation will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. When nished, make sure that the Rotational Limit Stop is fully retracted into the seated position.

WARNING: Do not take the

WATER FLOWING FROM THE VALVE AT

THE HOTTEST FLOW POSSIBLE DOES

RLS with pull/turn adjustment68881 Rev. M Installation

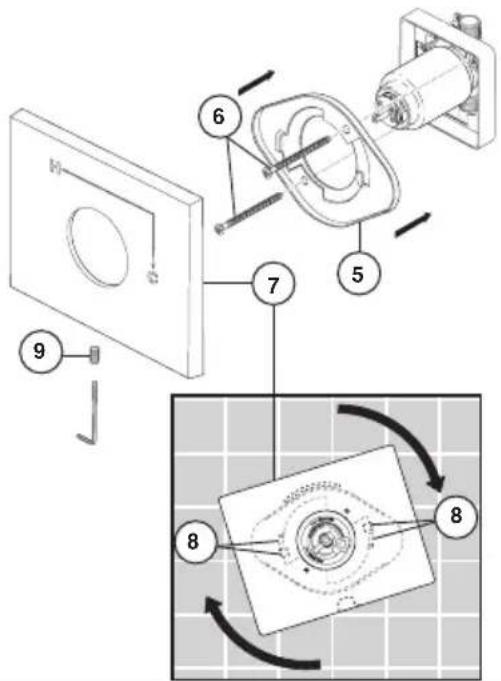

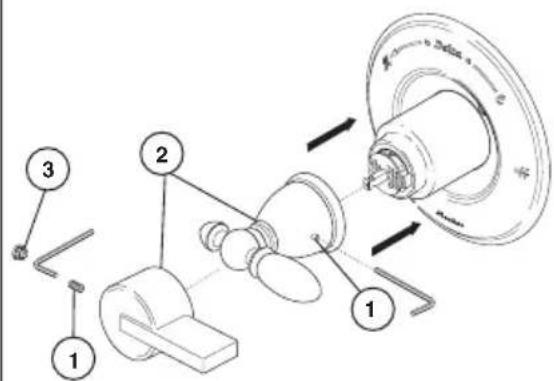

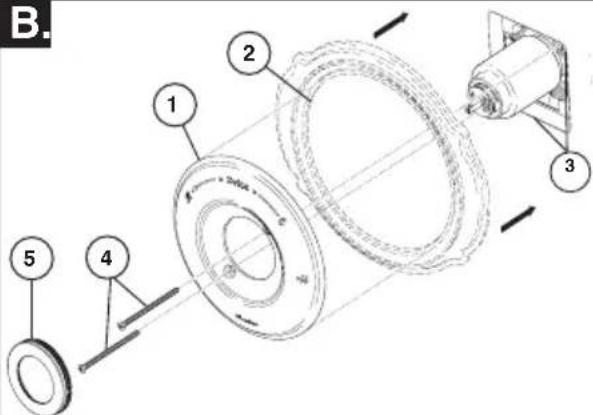

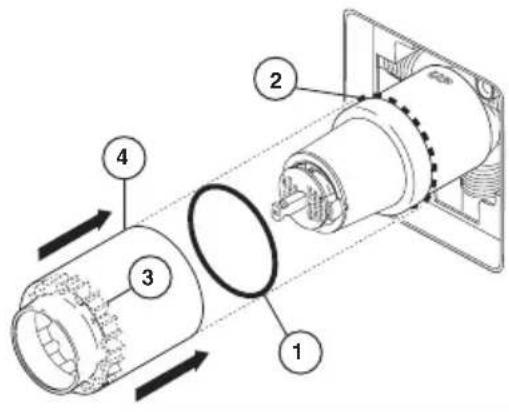

Escutcheon Installation for Models T14053, T14253, T14453, T14067, T14267 & T14467. Slide O-ring (1) over cartridge and the bonnet nut (2). The O-ring, which acts asa spacer to steady the sleeve, should restbehind the bonnet nut.If your model requires a spacer (3), insertit into the sleeve (4) and push it to thefront. Slide the sleeve over the cartridge,body and O-ring.Using an Allen wrench to secure the setscrew (1), install the handle (2) onto thestem. Insert plug button (3) (if your modelhas one) into set screw hole.Secure the escutcheon (1) and backplate (2)(if your model has one) to the bracket (3) usingthe 2 screws provided (4). Do not overtightenescutcheon screws. If you are installing theCassidy models T14097, T14297 & T14497:Thread the cover (5) onto the escutcheon (1).For models T14053, T14253, T14453, T14067, T14267 & T14467:Install bracket (5) over the cartridge body usingthe 2 screws provided (6). Install escutcheon (7)by placing it over the bracket as shown androtating it to lock the tabs (8). Secure the escutcheon to the bracket using set screw (9).

868881 Rev. M Clean and Care Care should be given to the cleaning of this product. Although its nish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.

Bathroom Cleaner and Lysol

Basin Tub and Tile Cleaner must not be used on the clear knob handles and levers. Use of these cleaners can result in cracked or severely damaged handles. If overspray gets onto the handles, immediately wipe them dry with a soft cotton cloth. Maintenance Faucet leaks from tub spout/showerhead: SHUT OFF WATER SUPPLIES. Replace seats and springs–Repair Kit RP4993. Check condition of lower O-rings and replace if necessary RP14414. See Helpful Hints 1, 2, & 3. If leak persists: SHUT OFF WATER SUPPLIES. Replace valve cartridge RP46074. See Helpful Hints 1, 2, 3, 4 & 5 Unable to maintain constant water temperature: Replace housing assembly with RP46074 or follow instructions in Helpful Hints 1, 2, 3, 4 & 5. Helpful Hints:

1. Before removing valve cartridge assembly for any

maintenance, be sure to note the position of the rotational limit stop on the cap. The valve cartridge assembly must always be put back in the same position. BE SAFE! After you have nished the installation, turn on valve to make sure COLD WATER FLOWS FIRST.

2. To remove valve cartridge from body, shut off

water supplies and remove handle and bonnet nut. Do not pry the valve cartridge out of the body with a screwdriver. Place handle on stem and rotate counterclockwise approximately 1/4 turn after the stop has been contacted. Lift valve cartridge out of body.

3. To remove seats and springs.

Remove valve cartridge. Separate cap assembly from the housing assembly by rotating the cap assembly counterclockwise 90 o (degrees). Separate cap and housing assemblies.

4. If the water in your area has lime, rust, sand

or other contaminants in it, your pressure balance valve will require periodic inspection. The frequency of the inspection will depend on the amount of contaminants in the water. To inspect valve cartridge remove it and follow the steps in note 1 above. Turn the valve to the full mix position and shake the cartridge vigorously. If there is a rattling sound, the unit is functional and can be reinstalled following instructions given in note 1 above. If there is no rattle, replace the housing assembly with the proper RP.

5. Push disc until fully seated. See page 6 for

more details 968881 Rev. M Cartridge Summary Reference Sheet Monitor

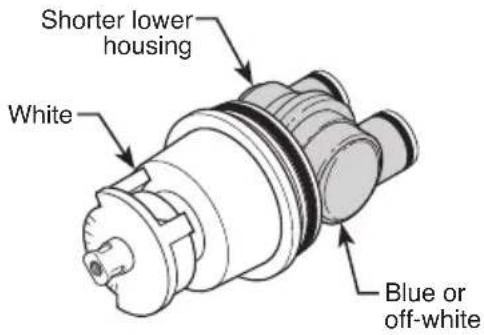

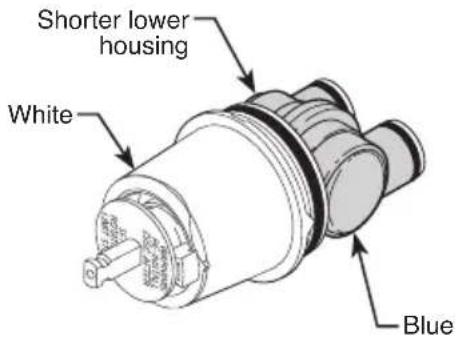

Series 1300/1400 Cartridge shipped before March 2006. Cartridge shipped in July 2006 and after (prior to MultiChoice

transition). Shorter lower housing Blue or off-white White Shorter lower housing White Blue Order RP19804 to replace cartridge. Order RP19804 to replace cartridge. MultiChoice

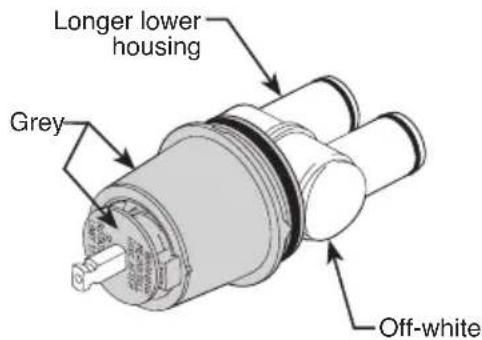

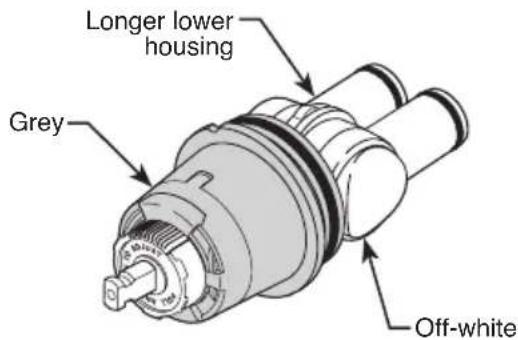

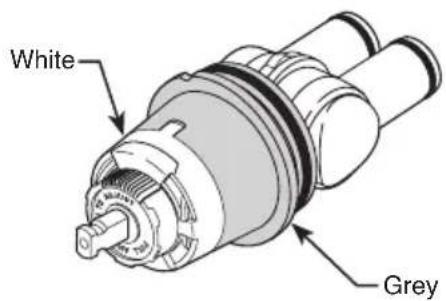

13/14 Cartridge shipped from March 2006 to August 2014. Cartridge shipped in August 2014 and after. Longer lower housing Grey Off-white Longer lower housing Grey Off-white Order RP46074 to replace cartridge. Order RP46074 to replace cartridge. NOTE: A running change for MultiChoice

13/14 valves began August 2014, and features a new Rotational Limit Stop. MultiChoice

468881 Rev. M Installation
