USER MANUAL DIVO W20CMB CANDY

Microwave Oven Instructions

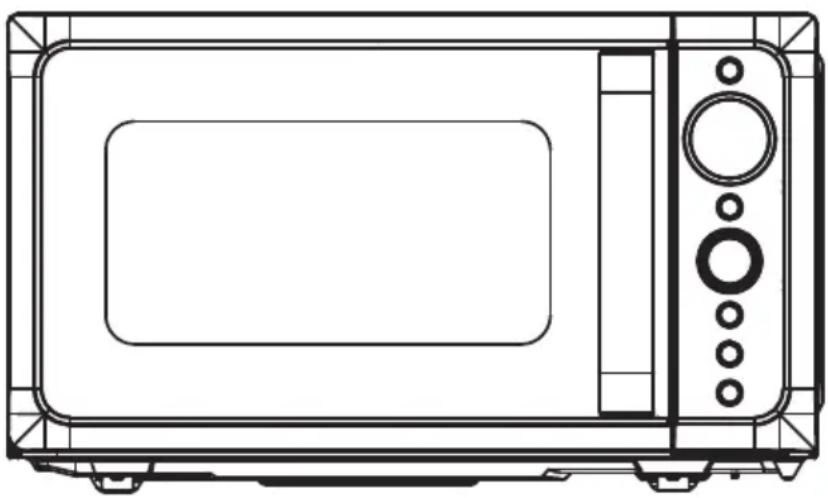

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Model: DIVO W20CMB

DIVO W20CC

Please read these instructions carefully before installing and operating the oven.

CE

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

WASTE MANAGEMENT AND ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused.) It's important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- The WEEE should not be treated as domestic waste; - The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Content

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY 2

IMPORTANT SAFETY INSTRUCTIONS.... 2

INSTALLATION GUIDE....5

GROUNDING INSTRUCTIONS.... 5

RADIO INTERFERENCE 6

BEFORE CALLING FOR SERVICE....6

COOKING TECHNIQUES 7

COOKING UTENSILS GUIDE......7

SPECIFICATIONS......8

PRODUCT DIAGRAM 8

CONTROL PANEL 9

OPERATION INSTRUCTIONS.... 10

SETTING THE CLOCK....10

TIMER FUNCTION....10

QUICK START....10

MICROWAVE COOKING....11

SPEED DEFROST 11

MULTI-STAGE COOKING....11

MUTE FUNCTION 11

CHILD LOCK....12

AUTO COOK....12

CLEANING AND CARE 13

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the
   a) Door (including any dent),
   b) Hinges and latches (broken or loosened),
   c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.
2. Press this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING!--Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING!--Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

8. Utensils should be checked to ensure that they are suitable for use in microwave oven.

9. WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

10. This Microwave complies with EN 55011/CISPR 11, in this standard it belong to Class B Group 2 classification. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power

supply network which supplies buildings used for domestic purposes.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the appliance.

3. The microwave oven is only used in freestanding.

4. WARNING!--Do not install oven over a range cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.

5. The microwave oven shall not be placed in a cabinet.

6. The door or the outer surface may get hot when the appliance is operating.

7. Warning: Accessible parts may become hot during use. Young children should be kept away.

8. During use the appliances becomes hot. Care should be taken to avoid pressing heating elements inside the oven, for cooking ranged and ovens.

9. The temperature of accessible surfaces may be high when the appliance is operating.

10. The appliance shall be placed against a wall.

11. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

12. WARNING!--If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

13. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

14. The microwave oven is for household use only and not for commercial use.

15. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

16. Please secure the turn table before you move the appliance to avoid damages.

17. CAUTION!--It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

18. The microwave oven is intended for defrosting, cooking and steaming of food only.

19. Press gloves if you remove any heated food.

20. Caution! Steam will escape, when opening lids or wrapping foil.

21. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Installation Guide

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING!--Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING!--Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Radio Interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Before Calling For Service

Before asking for service, please check each item below:

• Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure the control panel is programmed correctly and the timer is set.
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Cooking Techniques

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

oN yarT lateM
oN kcaR lateM
oN sreniatnoC lioF & lioF mu
The list below is a general guide to help you select the correct utensils.

Cookware	Microwave Cooking
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper	YesoN yarT lateM
	oN kcaR lateM
	oN sreniatnoC lioI

Specifications

Power Consumption	230V/50Hz, 1200W(microwave)
tuptuO	007
Operation Frequency	2450MHz
Outside Dimensions	262mm(H)×452mm(W)×358mm(D)
Oven Cavity Dimensions	198mm(H)×315mm(W)×297mm(D)
Oven Capacity	Compact 20Litres
Net Weight	Approx.10.8kg

007
2450MHz

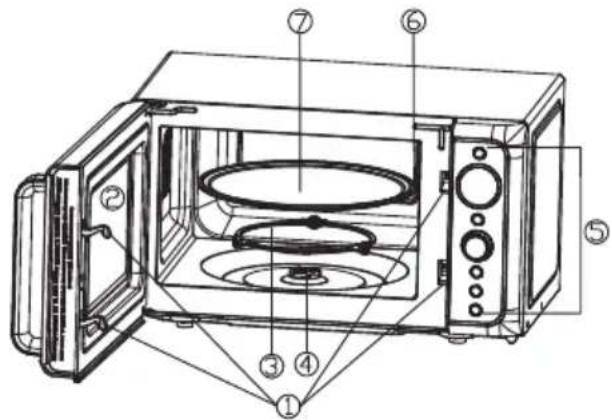

Product Diagram

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide (Please do not remove the mica plate covering the wave guide)
7. Glass Tray

Technical diagram of a microwave oven with numbered components for identification

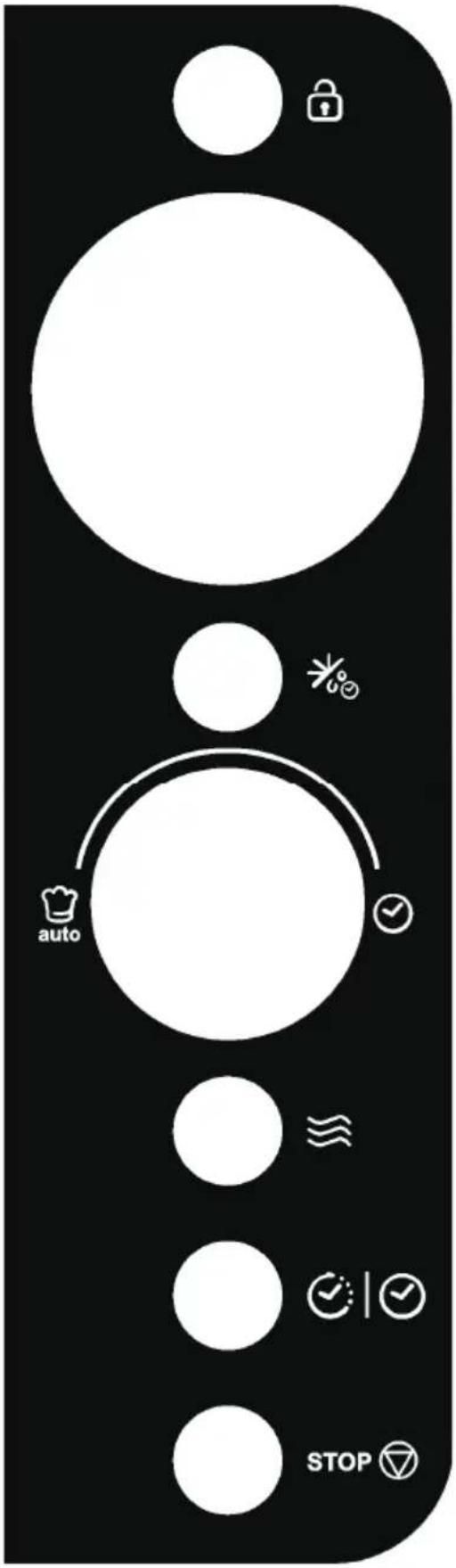

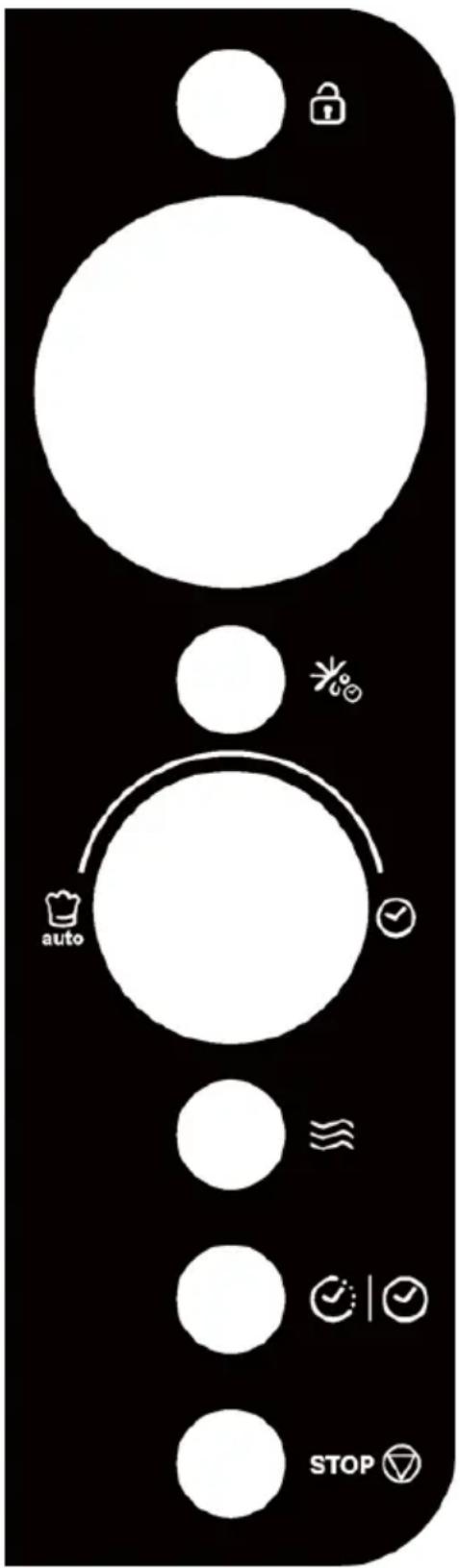

Control Panel

auto STOP

- DISPLAY

Cooking time, power, indicators and clock time are displayed.

- LOCK

Press to set mute function.

Use to set child lock.

- SPEED DEFROST

Press to set defrost program based on time.

- MENU/TIME (knob)

Turn to set time or select auto cook menu.

● START/QUICK START (the knob)

Press the knob to start cooking or defrosting program.

Simply press it a number of times to set cooking time and cook immediately at full power level.

- POWER

Press to select microwave power level.

- TIMER/CLOCK

Press to set timer function.

Press to set clock time.

- STOP/CANCEL

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

Operation Instructions

When the oven first plugged in, beep will sound and the display will show "1:00" and "☐".
In the process of setting, broke about 30 seconds the oven will return to standby mode.
During cooking, if press STOP/CANCEL button once, the program will be paused, then press START/QUICK START button to resume, but if press STOP/CANCEL button twice, the program will be canceled.
➢ After cooking end, the screen will display End with sound every two minutes until user press any button or open the door.

SETTING THE CLOCK

This is a 12- or 24- hour clock. You can choose to set the clock time in 12- or 24- hour by pressing the TIMER/CLOCK button in standby mode.

1. In standby mode, press and hold TIMER/CLOCK button for 3 seconds to select 12-hour clock, press it again to select 24-hour clock.
2. Turn MENU/TIME knob to set hour digit.
3. Press TIMER/CLOCK button once.
4. Turn MENU/TIME knob to set minute digit.
5. Press TIMER/CLOCK button to confirm.

TIMER FUNCTION

1. In standby mode or during cooking, press TIMER/CLOCK button once.
2. Turn TIME/MENU to enter desired time. The longest time is 95 minutes.
3. Press START/QUICK START button to confirm.

NOTE: When the countdown ends, the buzzer will beep to remind you. You can check the countdown time by pressing TIMER/CLOCK button once, but if STOP/CANCEL button is pressed when the display shows the time, the function can be cancelled.

QUICK START

Use this feature to program the oven to start at 100% power conveniently. In standby mode, press START/QUICK START button repeatedly to enter cooking time (each press to increase 30 seconds, and up to 10 minutes), the oven will start automatically at 100% power level.

NOTE: During cooking, you can add cooking time by pressing START/QUICK START button.

MICROWAVE COOKING

1. In standby mode, press POWER button repeatedly to select power level.
2. Turn MENU/TIME knob clockwise to enter cooking time. The longest time is 95 minutes.
3. Press START/QUICK START button to confirm.

Press POWER button to set a cooking power level:

Press POWER button	Cooking Power (Display)
Once 100% (100)
Twice 80% (80)
3 times 60% (60)
4 times 40% (40)
5 times 20% (20)
6 times 0% (00)

NOTE: During cooking, the current power level can be seen by pressing POWER.

SPEED DEFROST

1. In standby mode, press SPEED DEFROST button once.
2. Turn MENU/TIME knob to enter defrosting time. The longest time is 95 minutes.
3. Press START/QUICK START button to confirm.

NOTE: During defrosting program, the system will pause and sound to remind user to turn food over, and then press START/QUICK START button to resume.

MULTI-STAGE COOKING

Your oven can be programmed for up to 3 automatic microwave cooking sequences. Suppose you want to set the following cooking program:

Microwave-cooking

Microwave-cooking (with lower power level)

1. Input the first microwave cooking program. Do not press START/QUICK START.
2. Input the second microwave cooking program.
3. Press START/QUICK START button to confirm.

NOTE: Quick start, speed defrost and auto cook menus can't be set in multi-stage cooking.

MUTE FUNCTION

To Set: In standby mode, press LOCK button once, the display will show "oFF" for 3

seconds. At this time, all programs and buttons have no prompt sound, and then the oven will return to standby mode.

To Cancel: In mute mode, press LOCK button once, the display will show "on" for 3 seconds, a beep will sound. At this time, the sound of all programs and buttons return to normal, and then the oven will return to standby mode.

CHILD LOCK

Press to prevent unsupervised operation of the oven by children.

To set: In standby mode, press and hold LOCK button for 3 seconds, then a beep will sound, the oven will auto enter child lock mode and the lock indicator light will turn on. In the lock state, all buttons are disabled.

To cancel: In child lock mode, press and hold LOCK button for 3 seconds, then a beep will sound and the indicator light will come off.

AUTO COOK

For the following foods or cooking operation, you do not need to input cooking power and time. It is sufficient to indicate the type of food that you want to cook as well as the weight or servings of the food.

1. In standby mode, turn MENU/TIME knob anti-clockwise once, and then turn it to select food code.
2. Press START/QUICK START button once.
3. Turn MENU/TIME knob to select food weight or servings.
4. Press START/QUICK START button to confirm.

Auto cook menus:

Code	Menu	Notes
A-1	Milk/Coffee (200 ml/cup, 1-3 cups)	For Milk/Coffee and Potatoes, the display will show the number of servings instead of food weight.The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any
A-2	Rice (150-600 g)
A-3	Spaghetti (100 g, 200 g, 300 g)
A-4	Potatoes (230 g/serving, 1-2 servings)
A-5	Auto Reheat (200-800 g)
A-6	Fish (200-600 g)
A-7 Pizza (150 g, 300 g, 450 g)	rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
A-8 Popcorn (99 g)

Cleaning and Care

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. If the light bulb burns out, please contact customer service to have it replaced.
12. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a

hazardous situation.

1. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Line drawing of a microwave oven with control panel and door (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

SCHEMA DU PRODUIT....12

PANNEAU DE COMMANDE....13

INSTRUCTIONS D'UTILISATION....14

REGLAGE DE L'HORLOGE....14

FONCTION MINUTERIE....14

MISE EN MARCHE RAPIDE 15

CUISSON AU MICRO-ONDES 15

DECONGELATION RAPIDE 15

LA CUISINE EN PLUSIEURS ETAPES ....16

FONCTION DE MISE EN SOURDINE....16

VERROUILLAGE ENFANT 16

CUISSON AUTOMATIQUE....17

NETTOYAGE ET ENTRETIEN ....18

LES PRÉCAUTIONS À PRENDRE POUR ÉVITER UN EXCÈS D'EXPOSITION AUX MICRO-ONDES

Marron = SOUS TENSION

Interférences radio

Technical diagram of a microwave oven with numbered components for identification

Panneau de commande

auto STOP

- AFFICHAGE
