PAWS 2 A1 - Battery and alternator tester POWERFIX - Free user manual and instructions

Product type	12 V Battery and Alternator Tester
Brand	Powerfix
Model	PAWS 2 A1
Category	Battery and Alternator Tester
Nominal voltage	12 V
Main functions	Battery charge test (LED 11.5 V, 12 V, 12.6 V); Alternator test (LED 13.2-14.5 V OK, 15.5 V fault)
Indicators	LEDs for charge levels and alternator voltage
Included accessories	2 connection clamps (red and black), instruction manual
Housing material	Plastic with magnets on the back for attachment
Dimensions (approx.)	10 x 5 x 2 cm
Weight (approx.)	200 g
Power supply	Directly from the tested battery (12 V)
Maintenance and cleaning	Clean with a slightly damp cloth; never immerse
Safety	Do not use if cables are damaged; avoid short circuit; wear acid protection
Spare parts and repairability	Not repairable; replace the device if cables are damaged
Customer service France	Tel. [phone], email [e-mail]
Customer service Switzerland	Tel. [phone] (0.08 CHF/min), email [e-mail]
IAN number	91620
Disposal	Do not dispose of with household waste; follow Directive 2012/19/EU

Frequently Asked Questions - PAWS 2 A1 POWERFIX

How to test the battery with the PAWS 2 A1?

First connect the red clamp to the positive terminal (+) of the battery, then the black clamp to the negative terminal (-). The LEDs indicate the charge level: 11.5 V (low, recharge), 12 V (half charged), 12.6 V (full charge).

What does the 11.5 V LED alone mean?

This indicates that the battery charge level is low. You must recharge the battery before use.

How to test the alternator with this device?

Connect the device to the battery, start the engine and turn on all consumers (headlights, radio, etc.). On recent vehicles, briefly rev to 2500 rpm. If the 13.2-14.5 V LED lights up, the alternator is working correctly. If the 15.5 V LED lights up, the alternator or regulator is defective.

Can I use the tester on a 24 V battery?

No, the tester is designed exclusively for 12 V batteries. Use on 24 V could damage the device or pose a safety risk.

What to do if the 15.5 V LED lights up during the alternator test?

This indicates a defect in the alternator or voltage regulator. Contact your mechanic for inspection and repair.

How to clean the tester?

First disconnect the battery. Clean the exterior with a slightly damp cloth. Never immerse the device in water and do not use harsh chemicals.

Where can I find customer service for the PAWS 2 A1?

In France: phone [phone], email [e-mail]. In Switzerland: phone [phone] (0.08 CHF/min), email [e-mail]. Service available Monday to Friday from 8 am to 8 pm (CET).

Is the device repairable if the cables are damaged?

No, the test cables are not repairable. If damaged, the device must be disposed of and replaced according to Directive 2012/19/EU.

Can I leave the tester permanently connected to the battery?

It is not recommended to leave the device permanently connected. Use it only for tests and disconnect it after use to avoid any risk of discharge or short circuit.

What to do if the clamps are damaged?

Do not use the device with damaged clamps. The clamps are not replaceable separately. You must replace the entire tester.

USER MANUAL PAWS 2 A1 POWERFIX

BATTERIE-UND LICHTMASCHINENTESTER PAWSB 12 A1

DE AT CH

Operating instructions

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Introduction

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Introduzione

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inleiding

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

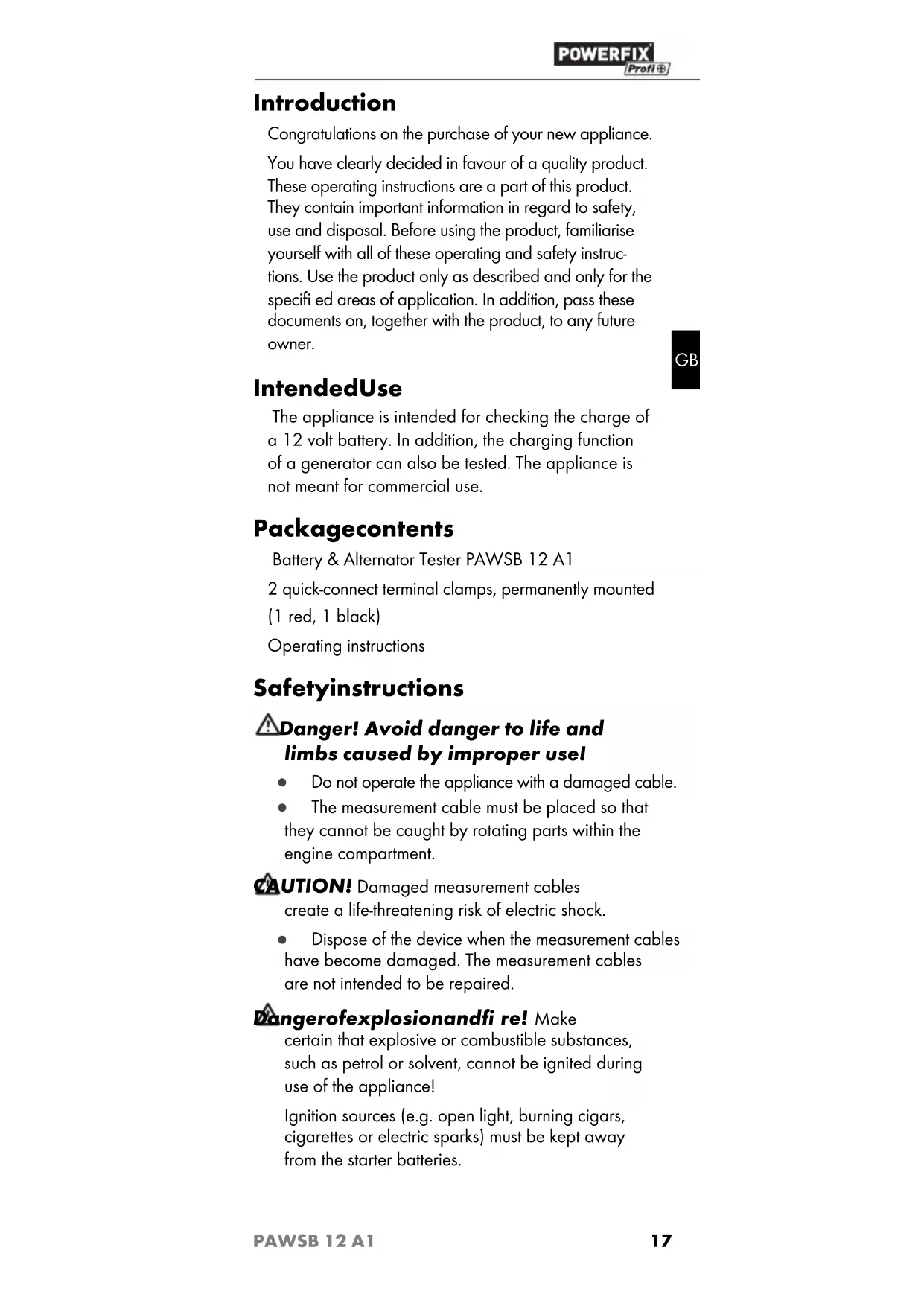

IntendedUse

The appliance is intended for checking the charge of a 12 volt battery. In addition, the charging function of a generator can also be tested. The appliance is not meant for commercial use.

Packagecontents

Battery & Alternator Tester PAWSB 12 A1

2 quick-connect terminal clamps, permanently mounted (1 red, 1 black)

Operating instructions

Safetyinstructions

⚠️Danger! Avoid danger to life and limbs caused by improper use!

• Do not operate the appliance with a damaged cable.
• The measurement cable must be placed so that they cannot be caught by rotating parts within the engine compartment.

CAUTION! Damaged measurement cables create a life-threatening risk of electric shock.

- Dispose of the device when the measurement cables have become damaged. The measurement cables are not intended to be repaired.

Dangerofexplosionandfi re! Make certain that explosive or combustible substances, such as petrol or solvent, cannot be ignited during use of the appliance!

Ignition sources (e.g. open light, burning cigars, cigarettes or electric sparks) must be kept away from the starter batteries.

GB

Danger of chemical burns! Protect your eyes and skin against chemical burns caused by acid (sulphuric acid) upon contact with the battery! Do not look directly at the connected battery and use the following: acid-resistant safety glasses, clothing and gloves! If your eyes or skin come into contact with sulphuric acid, rinse the affected part of the body with plenty of clear running water and seek immediate medical assistance!

• Avoid an electric short-circuit when connecting the appliance to the battery. Connect the positive pole terminal clamp only to the positive pole of the battery. Connect the negative pole terminal clamp only to the negative pole of the battery.
• Connect the terminal clamps ("-" and "+" only to the insulated area!

⚠ Attention! Avoid damage caused by improper use!

• Only use the appliance with the included original parts!
• Protect the contact surfaces of the battery.

Connection

• First connect the red quick-connect terminal clamp to the positive pole (+) of the battery.
• Then connect the black quick-connect terminal clamp to the negative pole (-) of the battery.

The appliance can be fastened to the vehicle chassis during the measurement using the magnetic strip on the back of the appliance.

Testing a battery and generator

Battery test / start capacity

• If only the 11.5 volt LED lights up, the charge of the battery is weak. The battery must be recharged.
• If the 12 volt LED also lights up, the battery is half charged. Recharging of the battery is recommended.
• If the 12.6 volt LED also lights up, the battery is fully charged and capable of starting.

Attention! Property damage! Before charging, learn about how to maintain the battery by reading its operating instructions!

Generatortest

• Connect the appliance to the battery as described above under "Connection".
• Start the engine and switch on all consumers (headlights, radio, rear window heating, etc.).
• For newer vehicles, briefly increase the engine speed up to 2500 rpm.
• If the 13.2 volt to 14.5 volt LED lights up, the generator or the voltage regulator is in good condition.
• If the 15.5 volt LED lights up, the generator or voltage regulator is defective. In this case, contact your automotive mechanic.

Cleaning

Dangerofelectricshock!Alwaysdisconnect the appliance from the battery before cleaning it. Under no circumstances may the appliance be immersed in water or held under running water during cleaning.

Attention!Propertydamage! Do not use aggressive or abrasive cleaning agents, as these can damage the upper surfaces.

- Clean the outside of the appliance with a slightly damp cloth.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility.

Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 91620

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)
