IAN 331575 - Fan SILVERCREST - Free user manual and instructions

Brand	SilverCrest
Model	IAN 331575
Product type	Floor fan
Intended use	Domestic ambient air circulation
Power supply	220-240 V AC, 50 Hz
Power consumption	100 W
Standby power	0 W
Speed levels	3 (950, 1100, 1250 rpm)
Max. air speed	4.26 m/s
Max. air flow	7367.4 m³/h
Tilt angle	130°
Grille diameter	45 cm
Sound power level	63 dB
Service value	1.29 (m³/min)/W
Protection class	I (grounding protection)
Control	Speed buttons on the device
Materials	Synthetics, metal, plastic
Weight (approx.)	About 3.5 kg (estimate)
Dimensions (height x diameter)	About 130 cm x 45 cm (estimate)
Cable length	About 1.5 m (estimate)
Cleaning	Damp cloth, do not immerse
Minimum age of use	8 years (with supervision)
Warranty	2 years (conformity and hidden defects)
Spare parts available	Yes, during the warranty period
After-sales service	Teknihall (BE) - see manual

Frequently Asked Questions - IAN 331575 SILVERCREST

How to adjust the fan speed?

Press the speed buttons (marked 2) on the device to choose from 3 levels: 950, 1100 or 1250 rpm.

Can I tilt the fan?

Yes, the fan can be manually tilted up to 130° to direct the airflow.

Does the fan come with a remote control?

No, this model does not have a remote control. Operation is only via the buttons on the device.

How to clean the fan?

Unplug the device, then clean it with a damp cloth. Never use abrasive cleaners and do not immerse the fan in water.

What is the power of the fan?

The power consumption is 100 W when operating, and 0 W on standby.

Is the fan noisy?

The sound power level is 63 dB, which corresponds to normal conversation.

Can I use the fan outdoors?

No, this fan is designed only for indoor domestic use. Do not use it outdoors or in a cabinet.

What to do if the power cord is damaged?

To avoid any risk, replacement of the cord must be carried out exclusively by the manufacturer, its after-sales service, or a similarly qualified person.

How to safely use the fan with children?

Children aged 8 years and above may use the device under supervision. Never let children play with the fan and keep packaging out of reach.

Where can I find spare parts?

Essential spare parts are available during the warranty period. Contact Teknihall after-sales service (coordinates in the manual).

USER MANUAL IAN 331575 SILVERCREST

Operation and safety notes

NL BE

VLOERVENTILATOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and safety notes Page 9

Exterior view of a silver Silver Crest electric fan with visible blades and mounting base (no text or symbols on the fan itself)

Close-up of a black industrial fan or electrical enclosure with numbered pins, mounted on a metal grid-patterned roof (no visible text or symbols)

List of pictograms used
	Read the instructions!		Danger to life and risk of accidents for infants and children!
	Volt (alternating voltage)		Avoid the risk of fatal injury from electric shock
	Hertz (frequency)		Protection class I (protective grounding)
	Observe the warnings and safety instructions!		Dispose of the packaging and device in an environmentally friendly manner!

Floor fan

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal.

Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for use as a floor fan, for the purpose of indoor air circulation. Any use other than that described or any product modification is prohibited and will result in damage. The manufacturer assumes no liability for damages due to improper use. This product is not intended for commercial use.

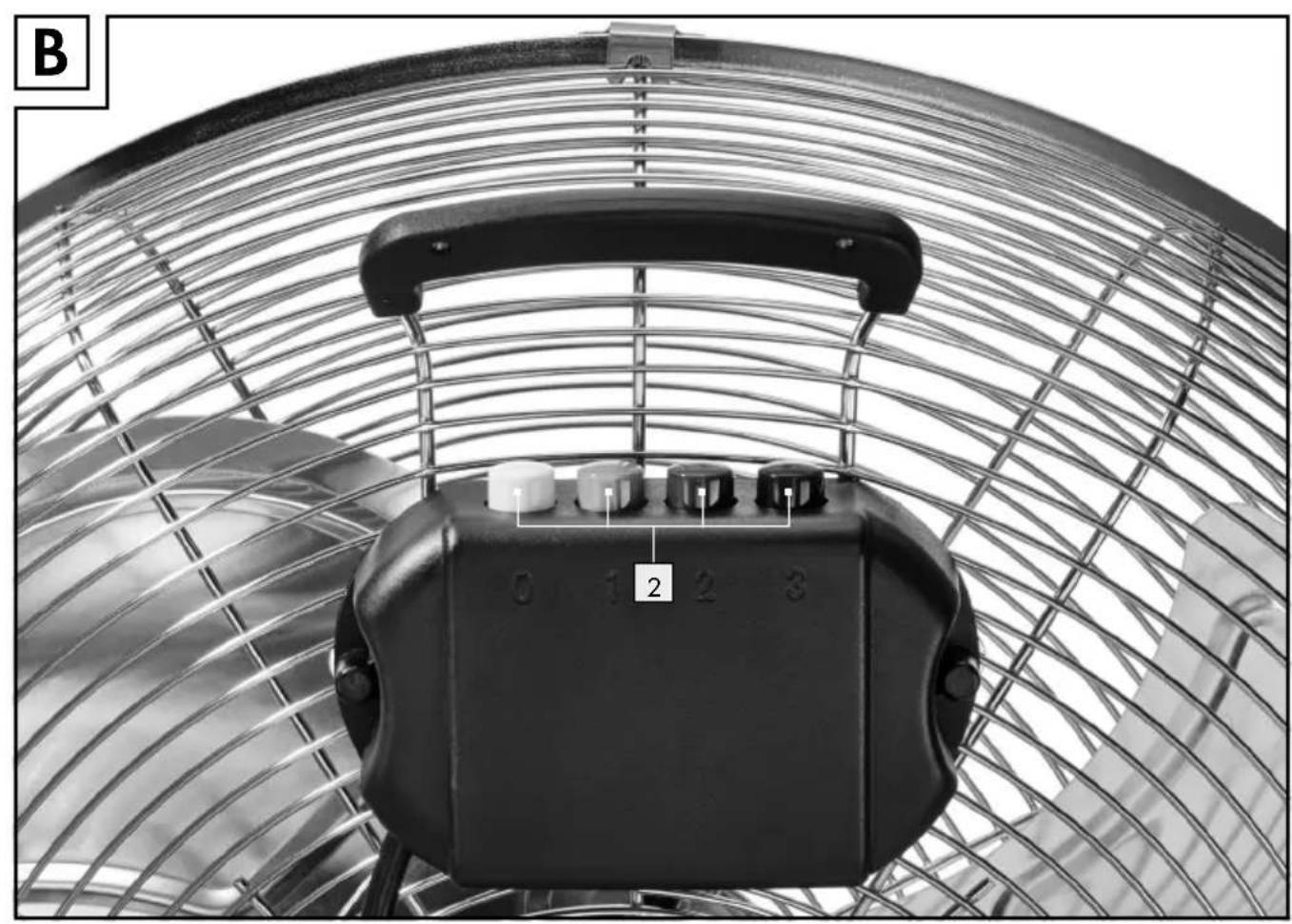

Partsdescription

1 Fan

2 Speed buttons

●Technicaldata

Type designation: VE-6030SCR,

VE-6031SCR,

VE-6050SCR

Operating voltage: 220-240 V AC 50 Hz

Fan power consumption: 100 W

Power consumption

in standby mode: 0 W

Speed levels: 950-1100-1250 rpm

max. speed: 1250U/min

(+ / - 50 U / min)

max. air velocity: 4.26 m/s

max. volumetric flow rate: 7367.4 m³/h

(+/-10%)

(122.79 m³/min.)

Tilt angle: 130°

Diameter: 45 cm

Service value: 1.29 ( m^3/min )/W

Fan sound power level: 63 dB

Measurement standard

for determining the

service value: IEC 60897:1986

(corr. 1992)

- Delivery contents

1 Floor fan

1 Set of operating and safety instructions

Safety notes

WARNING!

DANGER TO LIFE

AND RISK OF ACCIDENTS FOR INFANTS AND CHIL-

DREN! This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

Do not leave the product or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.
■ The product must be placed on a flat, stable surface.
This product may only be used for household use and for the purpose for which it was manufactured.

AVOID THE RISK OF FATAL INJURY FROM ELECTRIC SHOCK

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the product if it is damaged in any way. Always check the product and the mains cable with the plug for any damage before connecting it to the mains.
■ Never open any of the electrical equipment or insert any objects into this equipment. This will pose the risk of fatal injury from electric shock.
■ Only touch the insulated part of the plug when connecting or disconnecting it from the mains supply!
To prevent hazards, if the flexible lead on this product is damaged, it may only be replaced by the manufacturer, their service representatives or an equivalent professional!
■ Before use, ensure that the available mains voltage matches the required operating voltage of the product (220-240 V AC 50 Hz).

■ Never move the product by pulling on the mains cable, and ensure that the mains cable does not become tangled.
■ The product must not be left unattended whilst it is connected to the mains supply.
■ To prevent an electric shock, never immerse the mains cable, the plug or the product in water or other liquids.

- Before first use

☐ Remove the product and the accessories from the packaging.
☐ Remove the adhesive label, the protective film and the plastic packaging from the product.
Place the product on a flat and stable surface and ensure that there is a minimum of 10 cm of clear space around the product. This product is not suitable for connection or use in a cupboard or outdoors.
□ Connect the mains cable to the socket.

Note: Before connecting the product, ensure that the mains voltage specified on the product matches the local line voltage (Voltage: 220-240V AC 50Hz).

- Initial use

☐ Select your desired ventilation strength by pressing the corresponding speed button 2.

- Cleaning and care

- Never use strong or abrasive cleaning agents, scourers or steel wool. These would damage the product.

■ Never immerse the product in water or other liquids. The product is not dishwasher safe.
□ Clean the product with a damp cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Service address

Please have your receipt and the item number (IAN 331575_1907) ready as your proof of purchase when enquiring about your product.

relation de service : IEC 60897:1986

(corr. 1992)

serviceverhouding: IEC60897:1986

(corr. 1992)
