Brand	SilverCrest
Model	HG04771
Product type	Digital luggage scale
Weighing capacity	0.2–50 kg / 0.5–110 lb
Accuracy (increments)	0.05 kg / 0.1 lb
Display	LCD
Power supply	1 CR2032 battery (3 V)
Main functions	Weighing with hold (HOLD), unit change, zero setting, automatic shut-off
Overload indicator	Yes (Err)
Low battery indicator	Yes (Lo)
Power on	ON/OFF/ZERO button
HOLD display duration	Approx. 1 minute
Automatic shut-off	Yes, after approx. 1 minute of inactivity
Intended use	Weighing luggage, private use
Package contents	Luggage scale, CR2032 battery, instruction manual
Warranty	3 years
Cleaning	Slightly damp lint-free cloth
Safety instructions	Keep out of reach of children, do not immerse, use only for luggage
Battery type	CR2032
Number of batteries	1
Polarity	Observe the diagram in the compartment

Frequently Asked Questions - HG04771 SILVERCREST

How to change the weight unit?

Press the UNIT button (1) to select the weight unit among the different units offered (kg or lb).

What to do if the screen displays 'Err'?

The 'Err' display indicates overload. Remove the excess load. If the message persists, turn off the scale and turn it on again.

What to do if the screen displays 'Lo'?

The 'Lo' display indicates the battery is low. Replace the CR2032 battery observing polarity.

How to replace the battery?

Open the battery compartment cover (10), remove the old battery and insert a new CR2032 battery observing the polarity indicated in the compartment.

How to use the luggage scale?

Thread the strap through the luggage handle, close the buckle, then press the ON/OFF/ZERO button (5) to turn on. Lift the scale slightly, read the weight on the LCD display. The weight locks after 2-3 seconds and stays displayed for about 1 minute.

What is the maximum capacity?

The maximum capacity is 50 kg (110 lb). Do not exceed this limit to avoid damaging the device.

How to clean the device?

Clean the housing with a slightly damp lint-free cloth. Do not use abrasive cleaners or solvents.

The device does not turn on, what to do?

Check that the battery is correctly inserted and is new. If the problem persists, contact customer service.

Can I weigh something other than luggage?

This device is designed only for weighing luggage. Do not use it to weigh people, animals, or food.

How long does the display stay after weighing?

After weighing, the weight stays displayed (HOLD) for about 1 minute, then the device turns off automatically.

USER MANUAL HG04771 SILVERCREST

Operation and Safety Notes

FI

MatKaLauKKuvaaKa

Intended use...... Page 6

Description of parts ...... Page 6

Technical data......Page 7

Included items...... Page 7

Safety instructions......Page 8

Safety instructions for batteries ...... Page 9

Preparing for use ...... Page 11

Inserting / replacing batteries...... Page 12

Operation

Weighing......Page 12

Changing the unit of weight......Page 14

Troubleshooting Page 15

Cleaning...... Page 17

Disposal Page 17

Warranty Page 19

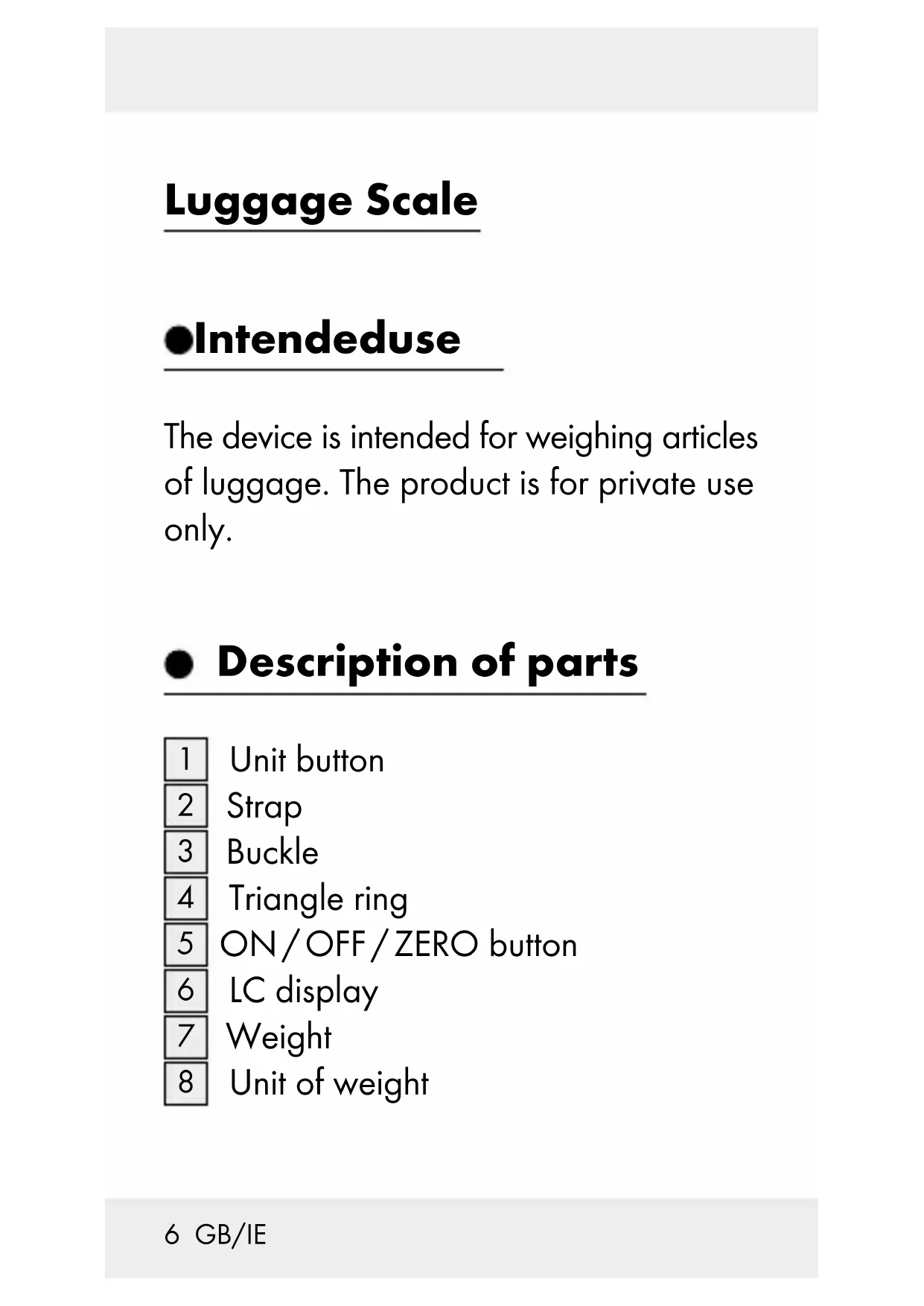

Luggage Scale

Intendeduse

The device is intended for weighing articles of luggage. The product is for private use only.

• Description of parts

1 Unit button
2 Strap
3 Buckle
4 Triangle ring
5 ON/OFF/ZERO button
6 LC display
7 Weight
8 Unit of weight

9 HOLD display (H)
10 Battery compartment cover
11 Battery compartment
12 Insulation strip

- Technical data

Measuring range: 0.2–50 kg/

0.5 - 110 lb

Gradation: 0.05 kg / 0.1 lb

Battery: 1 x 3 V

CR2032

- Included items

1 Luggage scale
1 3V=CR2032
1 Instructions for use

Safety instructions

WARNING!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Check the product for damage before use. Never use a damaged product.

Safetyinstructions for batteries

WARNING!

Keep batteries away from children. Do not leave batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately.

Never recharge, short-circuit

and/ or open non-recharge- able batteries. Never throw batteries into fire or water. Otherwise there is danger of explosion.

When inserting the battery, ensure the correct polarity! The correct polarity is

shown inside the battery compartment.

Otherwise there is danger of explosion.

• Do not subject the batteries to extreme environmental conditions or temperatures, such as those near heating radiators. There is then a danger of leaking.
  ■ Remove spent batteries from the device immediately. Otherwise the battery is more likely to leak!
  Check regularly to make sure the batteries in the device are not leaking.

Spent or damaged batteries may irritate the skin on contact; so always wear suitable protective gloves in these circumstances!

- Do not let the fluid from a leaking battery come into contact with your skin, eyes or mucous membranes. In the event of contact with fluid leaking from a battery, thoroughly flush the

affected area with water and / or seek the advice of a doctor!

If necessary, clean the contacts on the batteries and on the device itself before inserting them.
■ Remove the batteries from the device if it will not be used for a prolonged period.
■ Dispose the batteries according to the disposal instructions.

• Preparing for use

Note: Before first use remove the insulation strip 12 (see Fig. A).

- Inserting/replacing batteries (s. Fig. C)

Note: Make sure you insert the batteries with the correct polarity.

Operation

Weighing

☐ Unlock the buckle 3 and guide the strap 2 through the grip of the article of luggage and then lock the buckle.
Before lifting the article of luggage, press the ON/OFF/ZERO button 5 to switch on the device. The strap must not be under tension when the device is switched on. After switching on, a signal tone is sounded.

Note: In the LC display 6, the weight "0.00 kg/0.0 lb" should appear. If it does not, you can reset the display to "0.00 kg/0.0 lb" by pressing the ON/OFF/ZERO button again.

Now slightly raise the scale with the article of luggage. Make sure the scale is horizontal and balanced. The LC display now shows the weight of the article of luggage; after 2–3 seconds the display is frozen and displayed for approx. 1 minute. During this time the word HOLD (H) 9 appears in the display. Then the device switches off by itself.

Note: The heavier the article of luggage, the longer the weighing process lasts.

☐ Press the ON/OFF/ZERO button while the weight is being displayed

to reset the display to "0.00 kg / 0.0 lb". You will hear a signal. Now you may start another weighing process.

☐ Press the ON/OFF/ZERO button and hold for approx. 3 seconds to switch off the device. After switching off, a signal tone is sounded.

- Changing the unit of weight

☐ Press the UNIT button 1 to change the unit of weight between kg and lb.
☐ Begin the weighing process as described in section "Weighing".

- Troubleshooting

● = Fault

= Reason

O = Solution

● = Err

● = The scale is overloaded.

O = Remove the overload.

● = E stays on in the LC display.

● = The overload has caused a malfunction of the weighing process.

O = Switch the scale off and then on again.

= Lo

● = The batteries are too weak. You cannot bring the scale into use.

O = Replace the batteries (see section "Inserting/ replacing batteries").

● = The device cannot be switched on.
© = The batteries may be spent.
O = Exchange the batteries (see section "Inserting/ replacing batteries"). If the device still cannot be switched on, please contact the service centre.

Note: This device has delicate electronic components. Therefore interference may occur when it is near devices which transmit radio signals.

If errors occur in the display, remove any such devices from the vicinity of the product. In the case of such malfunctions, remove the batteries briefly and then insert them again.

- Cleaning

□ Clean the product using a slightly moist, fluff-free cloth.

- Disposal

Abstract black and white circular logo with curved arrows (no text or symbols)

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Simple black-and-white diagram of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not

in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC. Return the batteries and / or the device through the appropriate collection facilities.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium,

Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Abstract black and white circular logo with curved arrows (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Abstract black and white circular logo with two curved arrows (no text or symbols)

Simple black-and-white diagram of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

$$ \bullet = E r r $$

Abstract black and white circular logo with curved arrows (no text or symbols)

Simple line drawing of a trash bin with crossed handle and base (no text or symbols)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)

Fourniture......Page 71

● = Erreur
© = Source
O = Solution

Abstract black and white circular logo with curved arrows (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

© = de weger is overbelast.

O = neem de overbelasting weg.

Abstract black and white circular logo with curved arrows (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, representing waste or discharge (no text or numbers present)

$$ \bullet = E r r $$

Abstract black and white circular logo with curved arrows (no text or symbols)

Simple line drawing of a trash bin with crossed handle and base (no text or symbols)

Simple line drawing of a trash bin with two crossed x-axes (no text or symbols)
