Product type	Garden fire pit with BBQ function
Brand	Blumfeldt
Model	Savage 2.0
Use	Outdoor only
Fuel	Wood or charcoal
Main material	Steel
Included accessories	Round cooking grid, bamboo board (cover and center), hook, handle, 4 wheels, screws and nuts
Dimensions (approx.)	Height approx. 80 cm, diameter approx. 60 cm
Weight (approx.)	Approx. 15 kg
Load capacity	Up to 0.5 kg of charcoal for BBQ
Number of wheels	4
Main features	Fire pit for heating, grid for cooking, bamboo board as tabletop
Safety	Do not use indoors, keep away from children and pets, do not use alcohol or gasoline, do not extinguish with water
Maintenance and cleaning	Allow to cool completely before cleaning, use a damp cloth and mild dish soap, do not use abrasives
Spare parts and repairability	Base, fire pit, grid, boards, hook, handle, wheels, screws available
Warranty	Standard manufacturer's warranty
General information	Manufactured by Chal-Tec GmbH, Germany

Frequently Asked Questions - Savage 2.0 Blumfeldt

How to assemble the Savage 2.0 fire pit?

Attach the 4 wheels to the base using M8 screws and M8 nuts. Place the central bamboo board on the base. Attach the handle and hook using M6 screws and M6 nuts. Then place the fire pit on the base.

What type of fuel to use?

Use dry wood or charcoal. Never use gasoline, alcohol, or other flammable liquids to light the fire.

How to safely light the fire?

Place paper or kindling in the center of the fire pit. Light with a lighter or match. Do not pour fuel directly into the fire pit, only onto the paper or kindling. Start with a small fire and gradually increase.

Can the fire pit be used as a barbecue?

Yes, place the included cooking grid on the fire pit. Put about 0.5 kg of charcoal on the charcoal grid and light it. Only start cooking when the charcoal is covered with ash.

What are the essential safety precautions?

Use only outdoors, away from flammable materials. Wear heat-resistant gloves. Do not leave the fire unattended. Keep children and pets away. Never extinguish the fire with water.

How to properly extinguish the fire?

Stop adding fuel and let the fire go out naturally, or smother it with sand. Never use water, as it could damage the fire pit and cause dangerous projections.

How to clean the fire pit after use?

Wait until the fire pit is completely cool. Remove ashes and clean the inside with a damp cloth. For the outside, use water and mild dish soap. Do not use abrasive or oven cleaners.

Can the fire pit be left outside in bad weather?

It is recommended to store the fire pit under cover when not in use, especially in rain or snow, to prevent rust and extend its lifespan.

Are spare parts available?

Yes, parts such as the base, fire pit, grid, bamboo boards, handle, wheels, and screws are available from the manufacturer or authorized dealers.

What to do in case of damage?

Inspect the fire pit regularly. If you notice cracks, rust, or loose parts, stop using it and have it repaired by a professional before reuse.

USER MANUAL Savage 2.0 Blumfeldt

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SICHERHEITSHINWEISE

WARNING

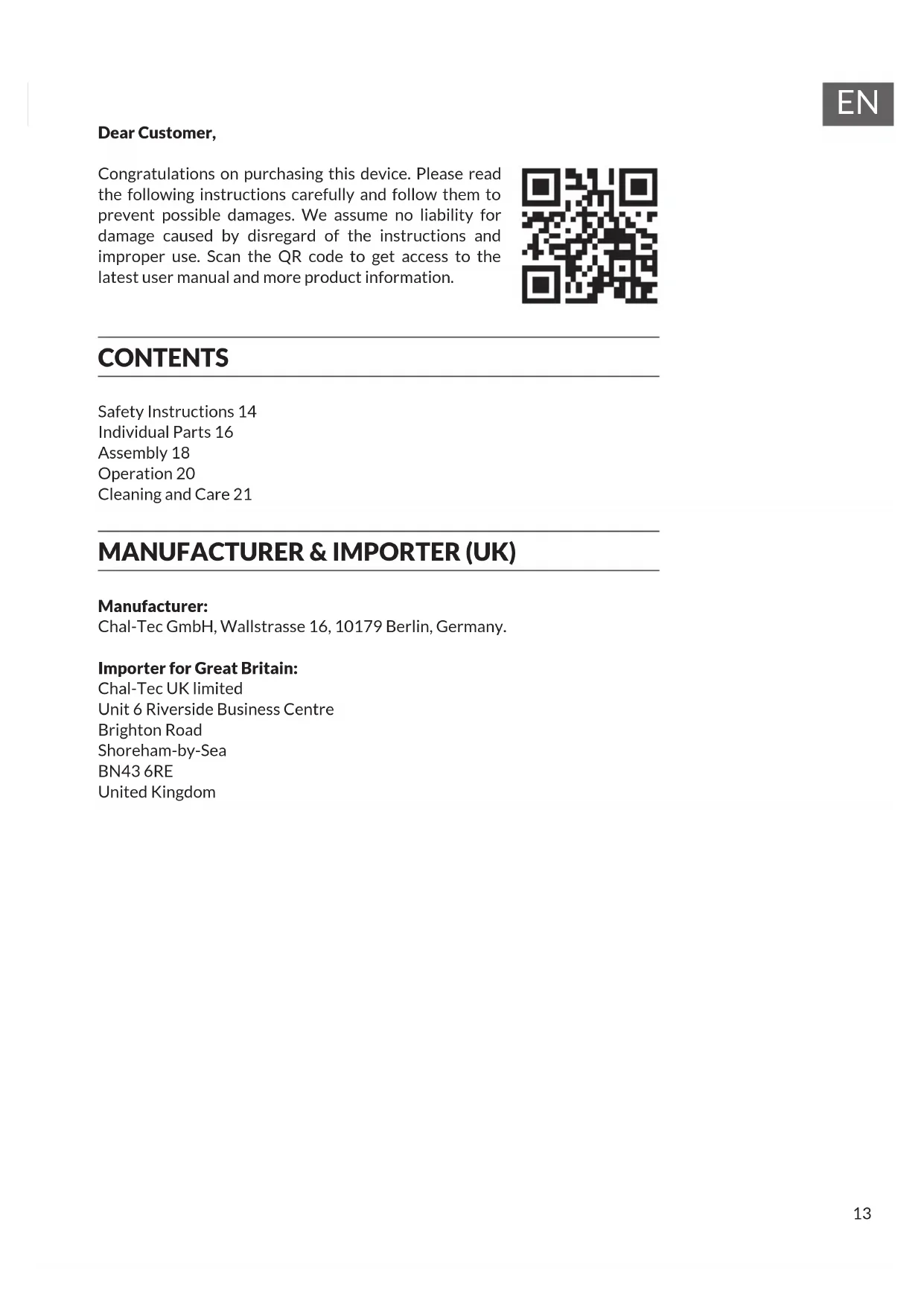

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14

Individual Parts 16

Assembly 18

Operation 20

Cleaning and Care 21

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

WARNING

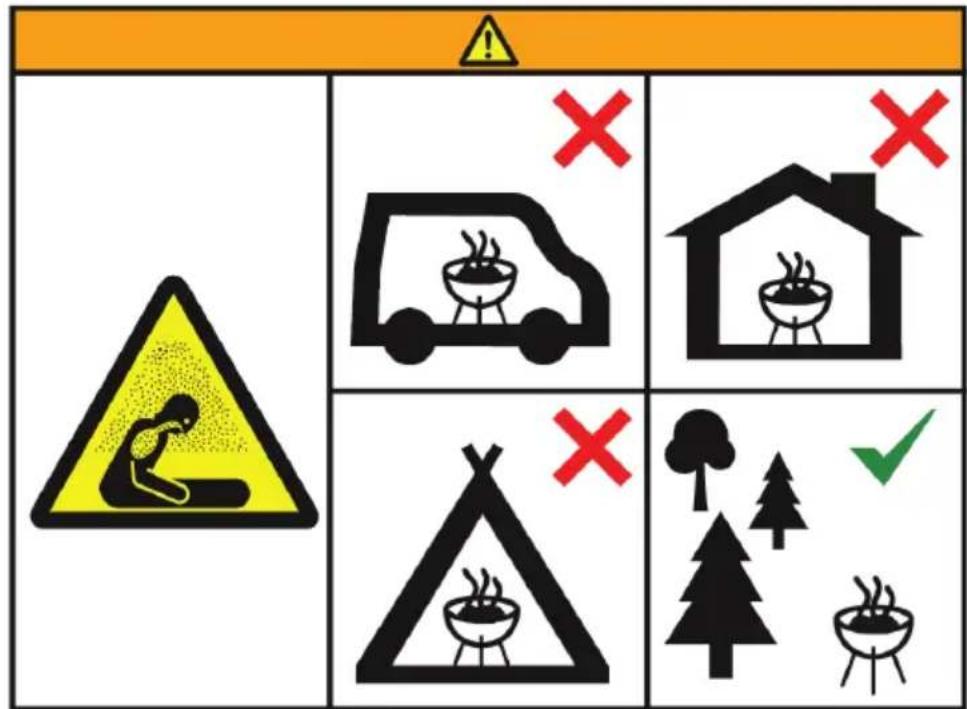

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoal are completely extinguished.
• Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
• Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special Instructions for Grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

INDIVIDUAL PARTS

No.	Quantity Description Picture
A 1 Base
B 1 Fire bowl
C 1 Grill ring
D 1 Bamboo cutting board
E 1 Middle bamboo board
F 1 Hook
G 4 Wheels
H 1 Handle
I 16 Screws M8
J 16 Nuts M8
K 9 Screws M6
L 6 Nuts M6

ASSEMBLY

1	2
G A E	A E
Connect the 4 wheels (G) and the base (A) with screws M8 (I) and nuts M8 (J).	Put the middle bamboo board (E) on the base (A).

3	4
H A A	A F F
Connect the handle (H) and the base (A) with 2 screws M6 (K) and 2 nuts M6 (L).	Connect the hook (F) and the base (A) with 2 screws M6 (K) and 2 nuts M6 (L).

OPERATION

Ignite Fire

1. Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2. Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

1. Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

Use as a Grill

• The grill and the equipment must be clean and free of residues before grilling.
• Put approx. 0.5kg of coal on the coal grid and ignite the coal according to the instructions above.
• Place the grill on the fire bowl. Make sure that the grille is firmly in place.
• Start grilling when the fuel has an ash layer.
• The food must be completely cooked before consumption.
• Do not remove the grate until the grill has completely cooled down.
• Always clean the grill rack and cutlery after grilling.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the Fire Bowl for Damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
