| Brand | Switel |
| Model | M222 |
| Product type | Mobile phone |
| Dimensions | 102.5 x 52 x 17 mm |
| Weight | 93.7 g (with battery) |
| Power supply | Input: 100-240 VAC, 50/60 Hz; Output: 5 VDC, 500 mA |
| Battery | Lithium-ion, 600 mAh |
| Talk time | Up to 5-6 hours |
| Standby time | Up to 340 hours |
| Display | 2.2 inches, 176 x 220 pixels |
| Network | GSM 900/1800 MHz |
| Main functions | Calls, SMS/MMS, phonebook, FM radio, camera, video/sound recorder, Bluetooth, SOS function, alarm, calculator, calendar, universal clock |
| Maintenance and cleaning | Keep dry, avoid smoke, dust, vibrations, chemicals, humidity, excessive heat and direct sunlight. Clean with a soft dry cloth. |
| Safety | SOS button with emergency call and SMS sending; use hands-free mode with caution; keep away from pacemakers; turn off in restricted areas. |
| Spare parts and repairability | Use only original accessories. Repairs must be carried out by qualified personnel. The battery is replaceable. |
| General information | 24-month warranty; CE declaration of conformity; recycling via collection points; technical support at www.switel.com |
Frequently Asked Questions - M222 SWITEL
User questions about M222 SWITEL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mobile Phone in PDF format for free! Find your manual M222 - SWITEL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M222 by SWITEL.
USER MANUAL M222 SWITEL
Line drawing of a smartphone casing with internal compartments and ventilation slots (no text or symbols)
Signalstärke
Akkuladezustand
SD-Karte eingesetzt
Verpasste Anrufe
Telgo AG, Route d'Agy 16, 1763 Granges-Paccot, Switzerland
Technische Daten
GSM 900/1800 MHz

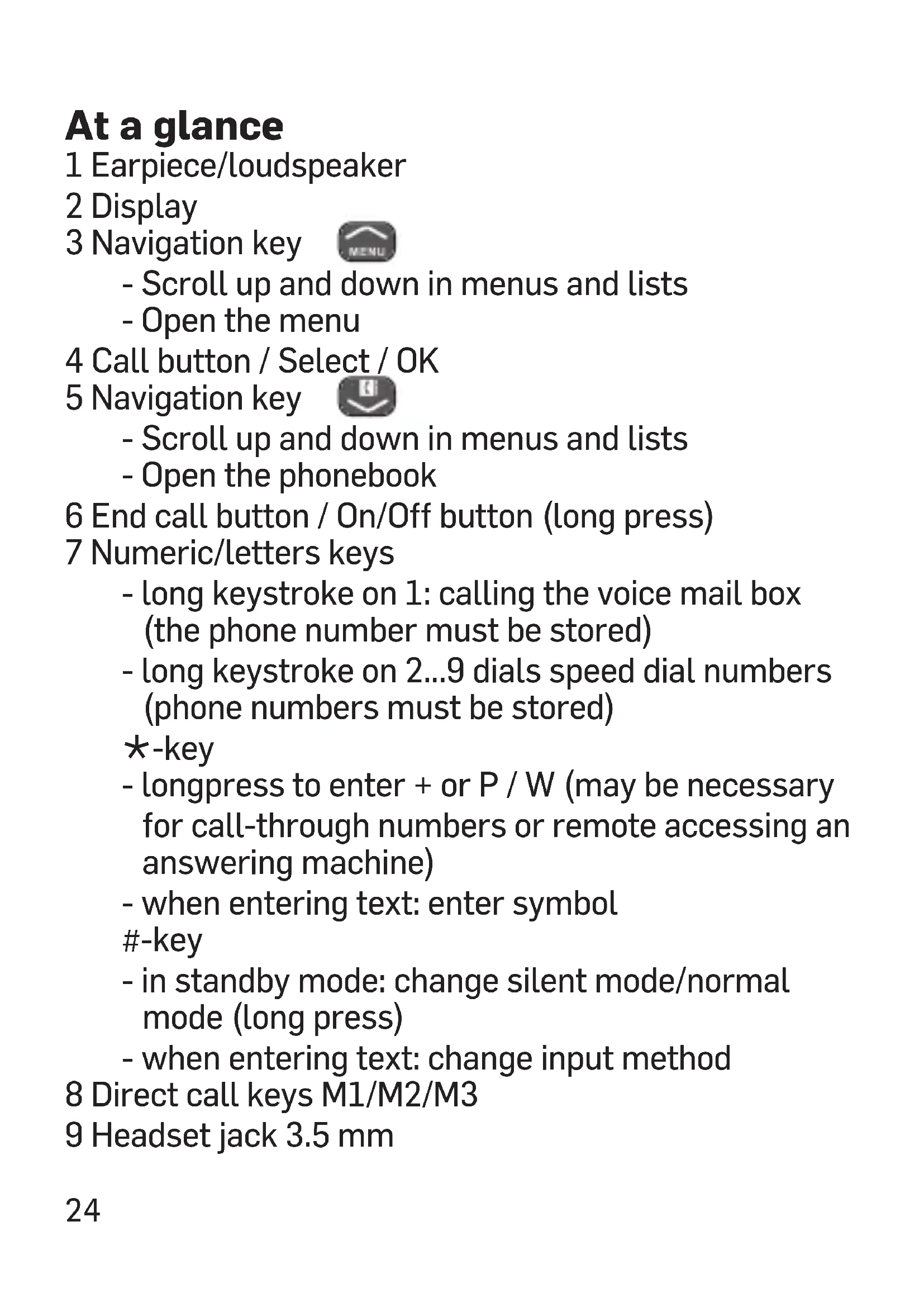

1 Earpiece/loudspeaker
2 Display
3 Navigation key
- Scroll up and down in menus and lists
- Open the menu
4 Call button / Select / OK
5 Navigation key
- Scroll up and down in menus and lists
- Open the phonebook
6 End call button / On/Off button (long press)
7 Numeric/letters keys
- long keystroke on 1: calling the voice mail box (the phone number must be stored)
- long keystroke on 2...9 dials speed dial numbers (phone numbers must be stored)
*-key
- longpress to enter + or P / W (may be necessary for call-through numbers or remote accessing an answering machine)
- when entering text: enter symbol
-key
- in standby mode: change silent mode/normal mode (long press)
- when entering text: change input method
8 Direct call keys M1/M2/M3
9 Headset jack 3.5 mm
10 Lanyard hole
11 Volume control (+/-)
12 Camera (requires micro SD card / 16 GB max.)
13 LED "SMS"
14 LED "Missed calls"
15 LED "Charging"
16 USB port (Charging/data transfer)
17 SOS button
18 Loudspeaker
Scope of delivery
1 mobile phone 1 rechargeable battery
1 USB cable 1 desktop charger
1 user guide
Installation
Installing SIM card, memory card and battery
To store photos or music (audio files) on your phone, you need to insert a microSD card (16 GB max.). If the micro SD card is not FAT formatted, you can format it as you insert it.
1 Remove the battery cover.
3 Slide the micro SD card holder to the left to unlock it and open it. Insert the micro SD card (not supplied) in a form-fitting manner (contacts downwards), fold down the card holder and slide it to the right for locking.
4 Insert the battery (contacts up on the left).
5 Replace the battery cover and press it all the way round.


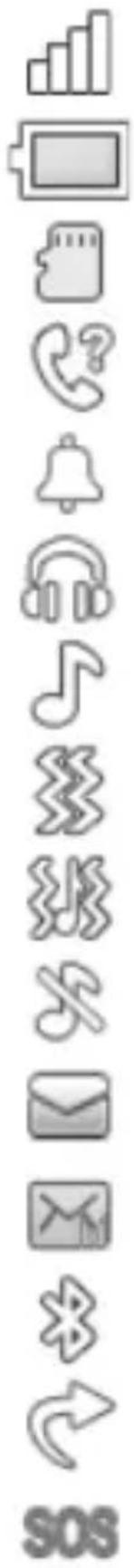

Signal strength
Battery charging status
Memory card inserted
Missed calls
An alarm time is set
Headset connected
Ring only
Vibration only
Sound and vibration
Ringer off
Unread SMS
Unread MMS
Bluetooth activated
Call forwarding
SOS button pressed.
Activating the phone
1 Hold the red button on the telephone for approx. 3 seconds to turn it on/off. If the SIM card is valid but protected with a PIN code (Personal Identification Number), Input PIN is displayed. 2 Enter the SIM PIN code and press OK (green call key). Delete with Delete (red end call key).
Setting the language
The default language of the telephone menu, messages and so on is determined by the SIM card used (setting: Automatic). You can always switch between the languages supported by the telephone.
1 Press, scroll to Settings and press OK.
2 Select Phone settings and press OK.
3 Select Language and press OK.
4 Select a language from the list and press OK.
Setting date and time
1 Press, scroll to Settings and press OK.
2 Select Phone settings and press OK.
3 Select Time and date and press OK.
4 Select Set time/date and press OK.
5 Enter the time and press .
6 Enter the date and press Save.
Making a call/taking a call Making a call
1 In standby mode, input phone number including the area code.
2 Press .
3 Press to end the call.
Taking a call
1 Press Call .
Handsfree
1 Whilst in a call: Options -> Handsfree -> Select -> H-Free -> Select.
2 Deactivating: Options -> Handsfree -> Select -> H-Held -> Select.
Redial
1 In standby: press .
2 Select an entry, Options -> Call -> Select.
Phonebook Add new contact
1 In standby:
Press
or
press
select
Phonebook and press OK.
2 Select Add new contact and press Options/Add/Select.
3 Select the location (phone or SIM) and press OK.
4 Enter name and telephone number (press each time Options -> Edit -> Select).
5 Press Options, select Save and press Select.
6 Press to return to standby.
Note: Always add + (longpress key) in front of the country code for making international calls.
Calling from the phonebook
1 In standby: press .
2 Select an entry, Options -> Call -> Select.
Setting speed dial numbers
1 In standby: press .
2 Press Options, select Phonebook settings and press Select.
3 Select Speed dial and press OK.
4 Select Status/OK and activate the function if necessary.
5 Select Set numbers and press OK.
6 Select a digit key and press Edit.
7 Select an entry and press OK.
To dial with speed dialing, press and hold the respective button in idle status.
Messages
Writing and sending SMS
1 In standby: press, select Messages and press OK.
2 Select Write message and press OK.
3 Select Text message (SMS) or Multimedia message (MMS) and press OK.
4 Enter the text.
Press the -key to display symbols, use the navigation key to select a symbol and press OK. Press the # -key to change the input method.
5 Press Options, select Send to, enter the telephone number or select an entry from the phonebook and press OK.
6 Press Send.
Note: with an MMS, you can use Options to attach, for example, a picture, a sound, or a movie.
Viewing a SMS/MMS
1 In standby: press, select Messages and press OK.
2 Select Inbox and press OK.
3 Select an entry and press Options -> View details.
Further options:
- Reply by SMS/by MMS: enter your message and send to the sender.
- Call sender: to call the sender.
- Forward: to forward message to other recipients.
- Delete: delete the message.
- Delete all: delete all messages.
- Save to phonebook: save the number to the phonebook (offered only if there is no entry for this number yet).
- Advanced:
- Use number: dial the number, save it in the phonebook or send a SMS/MMS to this number.
- Use URL: if the SMS contains an URL, you can use it (depending on your provider/data account etc.).
Message settings
1 In standby: press, select Messages and press OK.
2 Select Message settings and press OK.
3 Select Text message (SMS) or Multimedia message (MMS) and press OK.
- SMS settings
- SIM: Among other things, settings for the phone number of the SMS center (is taken from the SIM card and should only be changed after consultation with your provider)
as well as changing / entering the phone number for the voicemail server.
- Memory status: number of stored SMS.
- Save sent messages: turn the function on / off.
- Preferred storage: select the location for storing SMS.
- MMS settings
- Data account: management of the data account.
- Common settings: basic settings for MMS.
Call history
1 In standby: press, select Call history and press OK.
2 Select the desired list and press OK to check the calls (press Options for select calling back, sending a SMS/MMS to the caller or view details) or
Select Delete call logs to delete all entries.
Multimedia
1 In standby: press, select Multimedia and press OK.
2 To choose from:
- Image viewer: with Options you can, for example, view photos, transfer an image via
Bluetooth, rename, delete or view image information.
- Video recorder: Press button 5 to start recording. Press Options to switch to the camera function or make settings for the video recorder.
- Video player: playback of video files. Press the # button to start and the ✦ button to stop. Full screen display with button 1, volume adjustment with the side volume buttons.
- Audio player: playback of audio files. Press the # button to start and to stop.
Create a music playlist with different settings, volume adjustment with the side volume buttons.
- Sound recorder: You can record sounds using the phone's microphone.
SOS settings (see also on page 38)
1 In standby: press, select SOS setting and press OK.
2 To choose from:
- Owner info: Input of information about the user for emergencies (name, diseases, allergies, blood type).
-
SOS contacts: Enter up to 5 emergency numbers that are dialed when the emergency button is pressed.
-
SOS key: turn the SOS function on / off.
- SOS message: turn on / off the emergency SMS and/or edit the text.
- Emergency alarm: If this function is activated, a siren sound will be given on the mobile phone when the SOS function is triggered.
FM radio
For a better reception, the use of a headset is recommended as the cable acts as an antenna.
1 In standby: press, select FM radio and press OK.
- Press button # to switch on/off and press the button * for channel search.
- Press Options e.g. to start an automatic channel search run or to enter channel frequencies manually.
- Volume adjustment with the side volume buttons.
Camera
1 In standby: press, select Camera and press OK.
- Press button 5 to make a photo.
- Press Options to switch to the video recorder function or make settings for the camera and the photos.
Extras
1 In standby: press, select Extras and press OK.
2 To choose from:
- Calendar: today is marked. Use the navigation key to select a day (or press and use "Jump to Date").
- Calculator: enter the first number (decimal point with the # key), select the calculation operation with the navigation key, press and enter the next number. To display the result, press OK.
- Alarm: you can enter up to 5 different alarm times.
- World clock: Use the navigation key to see the current time around the globe.
- Services:
- Internet service: scope and offer depending on the SIM card used (provider / network operator).
- SIM toolkit: scope and offer depending on the SIM card used (provider / network operator).
- File manager: manage files on the memory card.
Settings
1 In standby: press, select Settings and press OK.
2 To choose from:
- Profiles: Select one of the displayed profiles (ring tone, ringer volume, alert tones, etc.) and use Options to activate, adjust or reset to the factory settings.
- Phone settings: settings for time and date, language, display (LCD backlight, wallpaper), flight mode.
- Call settings: settings for caller ID, call waiting, call divert, call barring, auto redial, call time reminder (signal), answer mode etc.
- Family number: Editing the direct dialing keys (red = M1 / green = M2 / blue = M3).
- Network settings: network selection automatically or manually and settings for GPRS (data connection).
- Connectivity
- Switch on or off the Bluetooth function and use the search function for pairing other Bluetooth devices.
- Edit the data accounts.
- Security settings: settings for SIM security (PIN lock / PIN change) and phone security (phone lock / lock code available on request from your network operator).
- Restore settings: reset the device to factory settings (lock code 0000).
The SOS function IMPORTANT!
Always inform recipients in the emergency number list that they are listed as your emergency contacts.
CAUTION
When an emergency call is activated the phone is pre-set to handsfree mode. Do not hold the device near your ear when the handsfree mode is in use, because the volume may be extremely loud.
Using the emergency call button, you can easily call preset numbers.
The emergency call function must be activated in the "SOS setting -> SOS key" menu if you want to use it.
1 Press the emergency call button on the back of the telephone and hold it down for 3 seconds. A loud signal will sound (if "Emergency alarm" in the menu "Emergency call settings" is switched on) and the emergency message (SMS) is sent to all emergency numbers in the list (if "status" = on).
2 The signal sounds again and the first emergency number from the list is dialed. The phone switches to handsfree mode.
3 If the call is not answered within 30 seconds, the signal sounds again and the next emergency number is dialed. If the call is answered, you can talk to the person called for 30 seconds before the connection is automatically disconnected.
4 All emergency numbers from the list are called consecutively one after the other until either the battery of your telephone is empty or the emergency call button is pressed and hold down again for approx. 5 s.
Note: Pressing the end call key skips to the next emergency number.
Appendix
Safety Information
- Prevent exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. The phone is not waterproof; therefore, keep it dry.
- Only use original accessories and batteries. Never attempt to connect other products.
- If you want to connect the phone to another device, read the manual supplied with that device with regard to any detailed safety information.
- Never attempt to connect incompatible products.
- Repairs to this device may only be completed by qualified service personnel.
- All mobile communication equipment is subject to interference which may impair its performance.
- Keep the phone and accessories out of the reach of children.
- The SIM card can be removed. Caution! Small children can swallow them.
- The ringing tone is issued via the loudspeaker. Take an incoming call first and then hold the phone to your ear. This prevents any possible hearing damage.
- Only use the phone while driving or riding a transport vehicle in road traffic when using the approved handsfree equipment and appropriately positioned holders. Ensure that no safety-related functions are interfered with when operating the phone. It is essential to observe the applicable national laws and regulations.
- Always maintain a distance of at least 15 cm to implanted heart pacemakers to prevent any possible interference. If you have had a pacemaker implanted, do not carry the phone in a breast pocket when switched on. Always hold the phone to the ear furthest away from the pacemaker during calls.
Switch the phone off immediately if you notice or suspect any adverse effects.
- Do not rely on the mobile phone as a safeguard for emergencies. For a variety of technical reasons, it is not possible to guarantee a reliable connection under all circumstances.
- Ensure access to the power adapter plug is not obstructed by furniture or such.
Intended use
This mobile phone is designed for use when connected to a mobile phone network. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.
Areas of use
- Do not use the phone in prohibited areas.
- Switch the phone off in the vicinity of medical equipment (e.g. in hospitals).
- Do not use the phone in petrol stations or near fuels and chemicals.
- Check with the airline whether mobile phones may be used on board.
Tips on the battery
- Only use batteries, cables and charging unit approved by the manufacturer, otherwise the battery could be damaged.
- Never throw batteries into the fire or water.
- Do not short circuit the battery
• Always leave the battery in the phone to avoid accidentally short circuiting the battery contacts. - Keep the battery contacts clean and free of dirt.
- The battery can be charged/discharged hundreds of times but its service life is limited.
- Replace the battery when the battery power has decreased noticeably.
Disposal
In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste!
Batteries represent a hazard to health and the environment!
Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers
provided at collection points by local public waste authorities.
Disposal is free of charge. The symbols indicate that the batteries must not be disposed of in normal domestic waste and that they must be brought to collection points provided by local public waste authorities.
Packaging materials must be disposed of according to local regulations.
Declaration of Conformity
This device fulfils the requirements stipulated in the EU directive: 2014/53/EU. Conformity with the above mentioned directive is confirmed by the CE mark on the device. To view the complete Declaration of Conformity, please refer to the free download available on our web site www.switel.com.
Telgo AG, Route d'Agy 16, 1763 Granges-Paccot, Switzerland
Technical data
GSM 900/1800 MHz
Additional functions emergency call function
Display 2.2" / 176 x 220 px
Battery Li-Ion, 3.7 V, 800 mAh
Talk time up to 5-6 hrs
Standby time up to 340 hrs
Dimensions 102.5 x 52 x 17 mm
Weight 93.7 g (incl. battery)
Power supply Plug-in power supply
USB connection USB, type C
SAR values GSM 900 Head 0.239 W/kg / Body 0.746 W/kg
DCS 1800 Head 0.168 W/kg / Body 0.934 W/kg
Guarantee
SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply when a device malfunction was caused by the mobile telecommunications network operator/provider. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase. All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge.
Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage 44
caused as a result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of Gods and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defective parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer. If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the SWITEL device together with the purchase receipt.
All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet.
No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.
Notice succincte
1 Ecouteur
2 Ecran
3 Touche de navigation
6 Touche raccrocher / Touche ON/OFF (appui long)
7 Clavier
Line drawing of a smartphone rear panel with visible internal components (no text or symbols)
Raccordement USB USB, type C
Valeurs SAR GSM 900 Head 0,239 W/kg / Body 0,746 W/kg
DCS 1800 Head 0,168 W/kg / Body 0,934 W/kg
Garantie
Dati tecnici
GSM 900/1800 MHz
Datos técnicos
GSM 900/1800 MHz
Oplaadstatus batterij
SD-kaart aanwezig
Gemiste oproep
Alarm is ingesteld
Telgo AG, Route d'Agy 16, 1763 Granges-Paccot, Switzerland
Technische gegevens
GSM 900/1800 MHz
In the case of technical questions, please use the service form on our website: http://www.switel.com/en/product-information-technical-support/
