Product Type	LED recessed or junction box luminaire
Brand	NUVO
Model	621788
Available sizes	Round: 12 in, 15 in, 19 in; Square: 12 in; Rectangular: 5 ft 5 in x 24 in, 5 ft 5 in x 36 in, 5 ft 5 in x 48 in, 1 ft x 2 ft, 2 ft x 2 ft, 1 ft x 4 ft
Power supply	120/277 V, protected circuit, class 2
Selectable color temperature	2700K, 3000K, 3500K, 4000K, 5000K
Dimmer compatibility	Yes, see list of compatible dimmers at www.Satco.com
Use	Indoor, damp locations
Installation	By a qualified electrician, turn off power before
Material	Not specified, but damp location rated
Maintenance	Unplug before cleaning, do not modify, hold by base
Safety	Risk of fire or electric shock if incorrectly installed; do not expose to water
Warranty	5 years, details at www.Satco.com
Standards	FCC Part 15, Class B
Package contents	Luminaire, mounting bracket, wire connectors, anchors

Frequently Asked Questions - 621788 NUVO

How to install the NUVO 621788 luminaire?

Turn off power, select color temperature (2700K-5000K) using the switch, screw the mounting bracket onto the junction box, connect wires with provided wire connectors, then attach the luminaire by aligning clips and turning or sliding until locked.

What tools are needed for installation?

Basic tools like a screwdriver, wire stripper, and wrench may be needed. Mounting hardware (anchors, wire connectors) is provided.

Is the luminaire compatible with dimmers?

Yes, it is compatible. See the list of compatible dimmers at www.Satco.com to avoid any malfunction.

What is the power supply voltage and wattage?

The power supply is 120/277 V, on a protected class 2 circuit. The exact wattage is not specified, but the product is designed for efficient LED lighting.

Can I use this luminaire outdoors?

No, it is for indoor use only, but it is suitable for damp locations (e.g., bathroom). Protect it from direct water contact.

How to select the color temperature?

Before installation, set the switch to the desired position: 2700K (warm white), 3000K, 3500K, 4000K, or 5000K (cool white). This is done with power off.

What to do in case of radio or TV interference?

Try reorienting the receiver antenna, moving the luminaire away, plugging into a different circuit, or consult a technician. The device complies with FCC Part 15.

What is the warranty period?

This product is warranted for 5 years. For more details, visit www.Satco.com.

Can I replace the LED myself?

No, the LED is integrated. If it stops working, contact customer service or replace the luminaire. Do not modify the device.

How to clean the luminaire?

Unplug the power before cleaning. Use a soft dry cloth. Do not press on the lens. Avoid chemical products.

USER MANUAL 621788 NUVO

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing fixture. Retain for future reference.

WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or maintenance of the fixture.
• To avoid damage, falling, electric shock or fire, do not modify the fixture or replace accessories without confirming with the supplier first.
• Only authorized, qualified personnel should install this fixture and should follow the owner's manual. Any improper installation might cause failure, electric shock, fire or other injury, damage or hazard.
• To prevent fire, this fixture is rated for use in 120/277V.
• The product is purported for interior use only, suitable for damp locations.
• Suitable for use with dimmers. Visit www.Satco.com for a list of compatible dimmers.
• Protect the product against direct contact with water.
• For use in environments where an accumulation of non-conductive dust on the fixture may be expected.
• Clean with a soft or damp cloth, making sure the power is OFF.
• Assemble the product only with the use of parts provided and the housing; improper assembly may result in device failing which could damage the product, personal property or cause injury.
• CAUTION: When handling the fixture, do not apply pressure to the lens. Hold the fixture by the base only.

The circuit is intended for connection to an external Class 2 supply. Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

WARRANTY: This product is warranted for a 5 year period. For full warranty details visit www.Satco.com.

All Models: CCT Selectable

2700K/3000K/3500K/4000K/5000K

Wiring Diagram

INSTALLATION - 12", 15", 19" Round

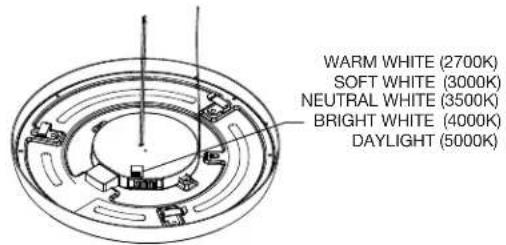

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

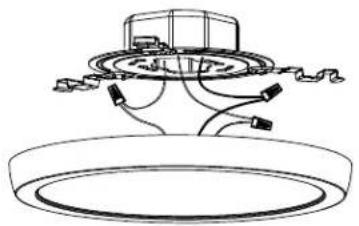

STEP 3: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

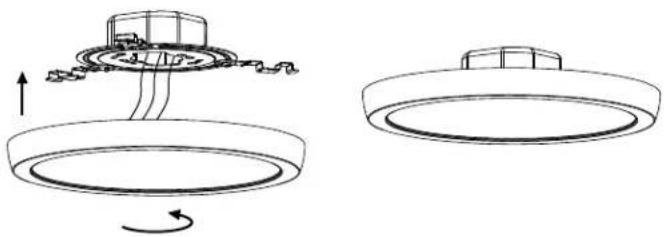

STEP 4: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and twist clockwise to lock the fixture into the mounting bracket. Turn ON power. Installation is complete.

INSTALLATION - 12" Square

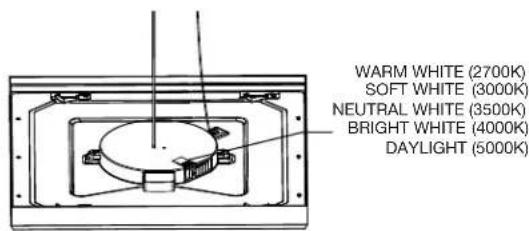

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

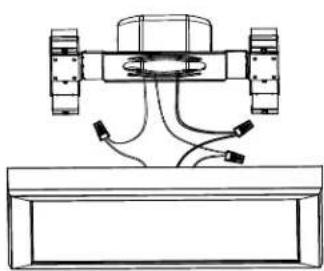

STEP 3: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

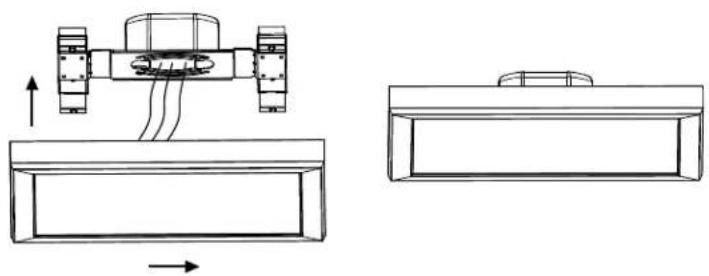

STEP 4: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and slide fixture into the mounting bracket to lock it in place. Turn ON power. Installation is complete.

INSTALLATION-5'.5"x24",5'.5"x36",5'.5"x48",1'x2',2'x2',1'x4'

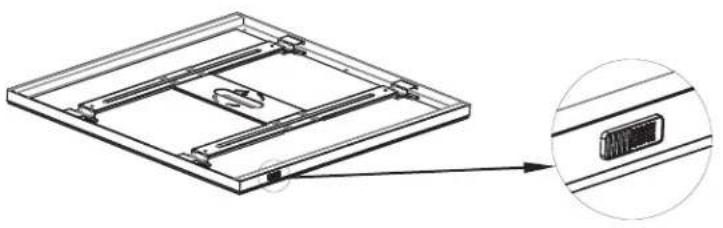

STEP 1: Turn OFF power prior to installation. Before installation, select your preferred CCT by moving the switch to either 2700K, 3000K, 3500K, 4000K or 5000K.

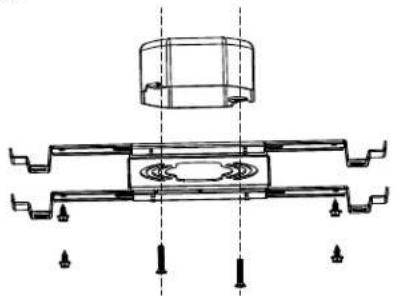

STEP 2: Screw the mounting bracket on the junction box. Use supplied anchors for additional support for the bracket.

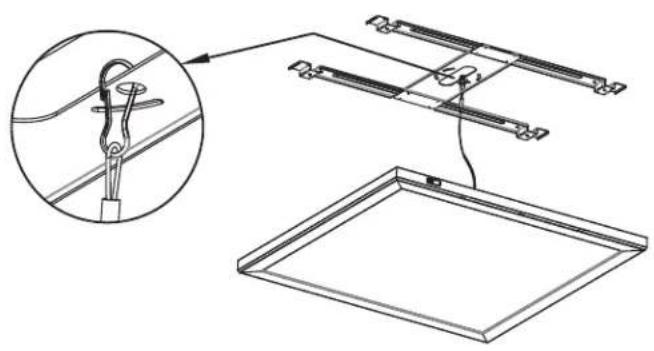

STEP 3: Connect the safety cable to the mounting bracket.

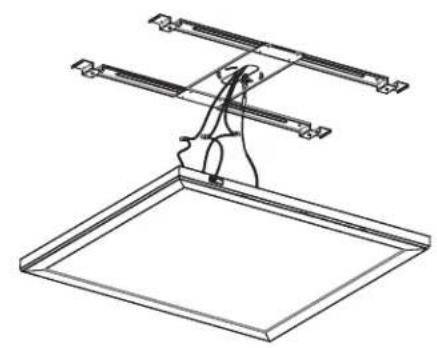

STEP 4: Connect the wires with supplied wiring caps. See wiring diagram on page 1.

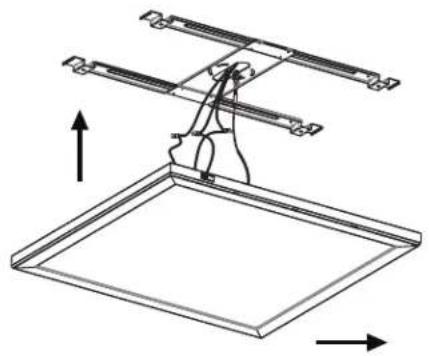

STEP 5: Align the clips with the mounting bracket (using the arrow stickers on frame for guidance) and push the fixture up and slide fixture into the mounting bracket to lock it in place. Turn ON power. Installation is complete.
