USER MANUAL CR640 LENCO

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:

• If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
- Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.

• Unplug this device during lightning storms or when unused for a long period.
• The socket outlet must be installed near the equipment and must be easily accessible.
• Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
• Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
• Devices with class 2 construction do not require a earthed connection.
- Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
• Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

1. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

• “Do not ingest battery, Chemical Burn Hazard” or equivalent working.
• [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
  • If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Caution about the use of Batteries:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
• Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
  • Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
  • Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

WARNING

WARNING: When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

ACCESSORIES

• AC/DC power adaptor


Line drawing of a mechanical device with a coiled cable and two terminal ports (no text or symbols)

Instruction manual

Simple line drawing of an open book with no text or symbols visible

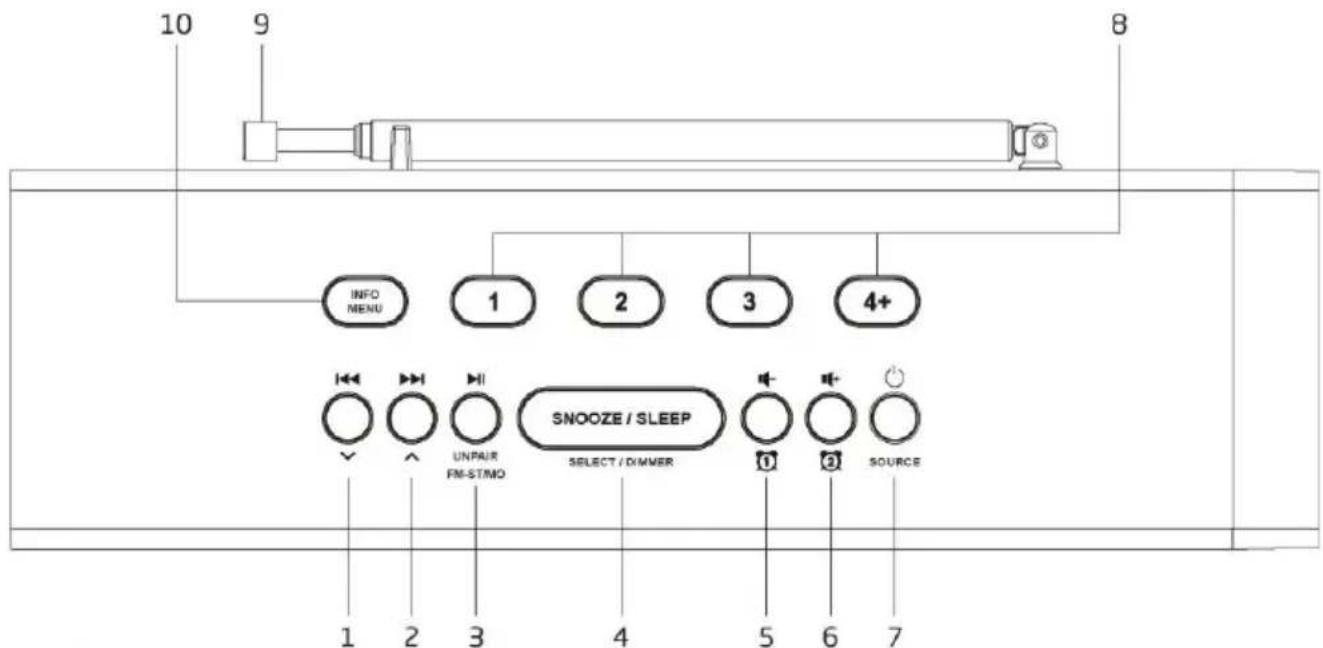

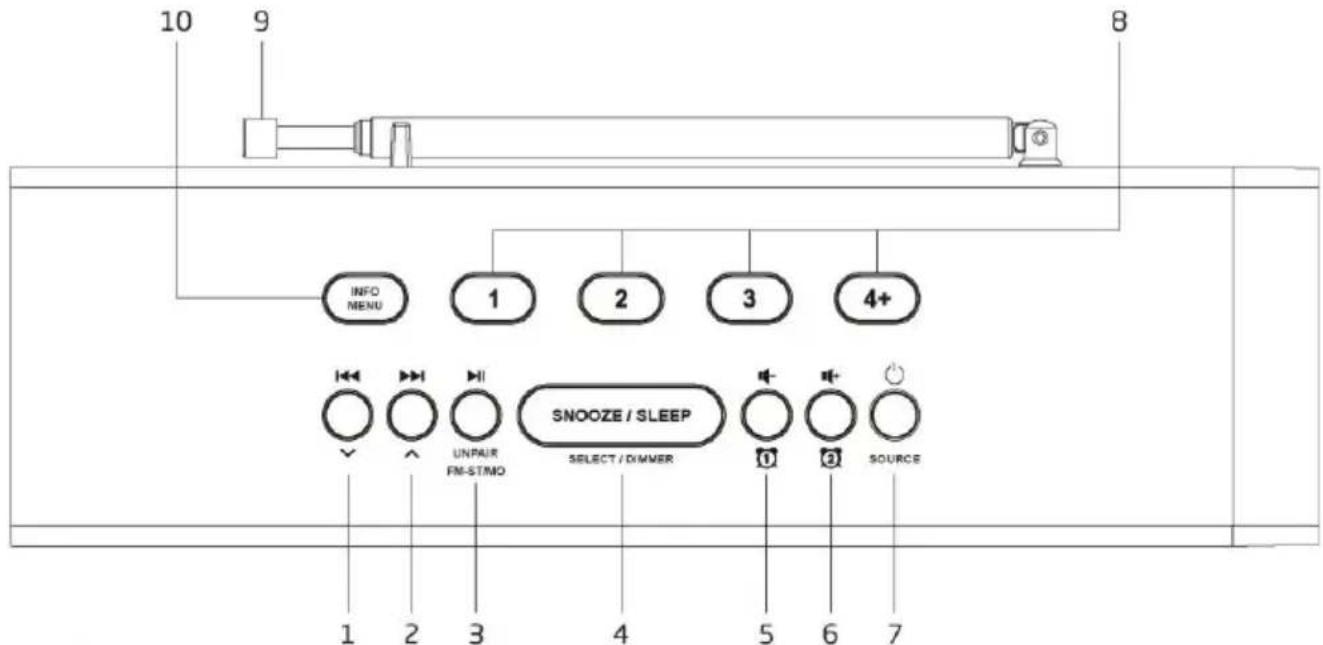

TOP & REAR PANEL

10 9 8 INFO MENU 1 2 3 4+ SNOOZE / SLEEP UNPAIR FM-STMO SELECT / DIMMER n a source 1 2 3 4 5 6 7

1. / ◀ ∨

DAB+: After scanning all the available DAB stations, press to display the station list.

FM: Press to fine tune to the lower frequency. Press and hold to search the next lower frequency station.

Bluetooth: Press to skip to the previous track.

2. / ▶ | ∧

DAB+: After scanning all the available DAB stations, press to display the station list.

FM: Press to fine tune to the higher frequency. Press and hold to search the next higher frequency station.

Bluetooth: Press to skip to the next track.

3. PLAY-PAUSE ▶// UNPAIR / FM-ST/MO

FM: Press and hold to start auto-scan and save the available stations. Press this button and followed by pressing the SELECT buton to toggle between stereo and force mono.

Bluetooth:

Press to pause the playback. Press again to resume the playback.

Press and hold to unpair the current Bluetooth connection and start to search another new Bluetooth device.

4. SNOOZE / SLEEP / SELECT / DIMMER

When it is in the menu operation, press to select different options to set or to confirm.

When it is not in the menu operation, press it repeatedly to select different sleep timer. Press and hold to set different display brightness level.

When the alarm is activated, press it to enable the snooze function.

5. VOLUME - / ALARM 1

During normal operation, press to volume down.

In Standby, press and hold to setup the alarm 1.

1. VOLUME + / ALARM 2

During normal operation, press to volume up.

In Standby, press and hold to setup the alarm 2.

1. STANDBY / SOURCE

Press to turn on the unit. Press and hold to turn off and go to Standby mode.

Press this button to choose different modes of operation DAB+, FM, Bluetooth and Aux.

1. RADIO STATION NUMBERIC BUTTONS

Press these buttons will recall the stored radio station directly. Press and hold to save the radio station.

1. ANTENNA

The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good reception. Alter the antenna position for the best reception.

1. INFO / MENU

DAB+/FM: Press repeatedly to display different radio station information. Press and hold to enter the setup menu. In Standby, press and hold to enter the system menu.

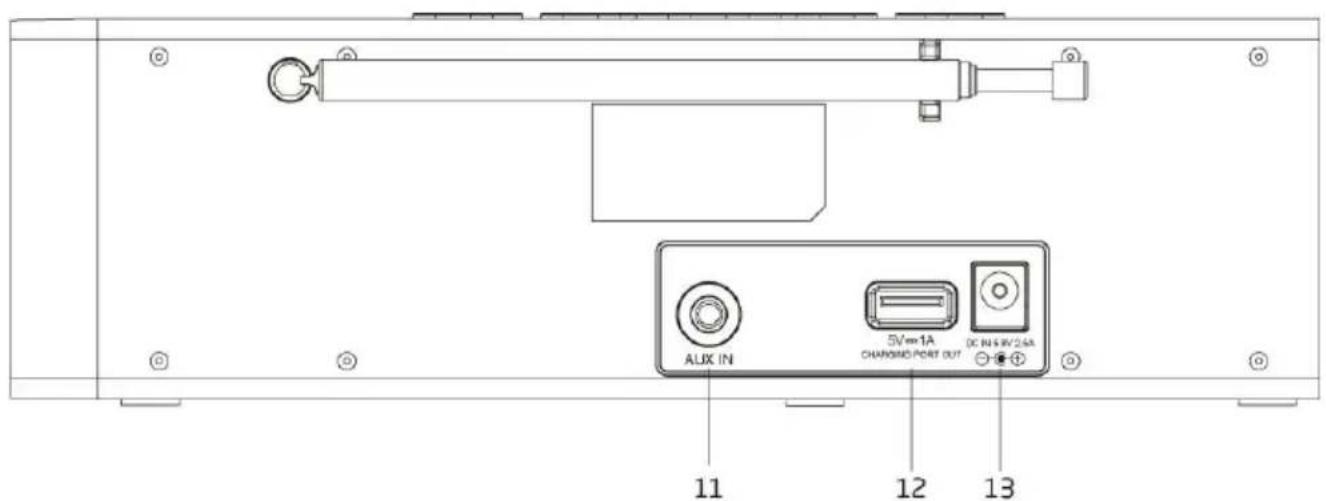

ALIX IN 5V=1A CHARGO/PORT OUT DC IN & RV 2.6A 11 12 13

1. AUX IN

Connect to an external audio player.

1. CHARGING PORT OUT

Connect to charge the external device.

1. DC IN

Connect to the AC/DC power adaptor.

BASIC OPERATION

Plug the AC/DC power adaptor into the AC mains outlet and the other end of the cable into the DC IN jack at the back of the unit. The display will show "SCAN TIME", meaning that the user needs to set the unit to receive the broadcast radio station. Then the unit will update the time. Alternatively the user can manually set the time.

Press the STANDBY ⏻ button to turn on the unit. To turn off, press and hold the STANDBY ⏻ button again.

DAB+ / FM / Bluetooth / Aux

When the unit is turned on, press the SOURCE button to toggle between DAB+, FM, Bluetooth and Aux mode.

Volume Control

Press the buttons to change the volume.

Adjusting the Antenna

The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good DAB+/FM reception. Alter the antenna position for the best reception.

DAB+ OPERATION

The first time the DAB+ mode is selected, it will automatically scan for available DAB+ stations. Wait until the scanning has finished. The display will show the scanning progress.

Full Scan

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until the "FULL SCAN" is shown.
3. Then press the SELECT button to start auto-scanning the available stations.

Manual Scan

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀ or ▶ button until the "MANUAL" is shown and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button to select the desired channel (5A-13F).
4. Press the SELECT button to confirm.
5. To quit the menu control, press the MENU button repeatedly.

Tuning

After scanning all the available DAB stations, press the ◀◀ or ▶▶ button to display the station list. Then press the SELECT button to tune to the station.

Storing DAB+ Presets

You can save up to 30 DAB+ stations.

1. Tune to the station you wish to store.
2. To save it to the preset channel 1 or 2 or 3, press and hold the numeric button respectively. Then it will save to that preset channel.
3. To save it to other preset channel from 4 to 30, press and hold the numeric button "4+".
4. Press the ◀◀ or ▶▶ button to select the desired preset channel to save.
5. Press the SELECT button to save.

Recall Stored DAB+ Presets

1. To recall the preset channel 1 or 2 or 3, press the numeric button respectively. Then it will tune to that preset channel.
2. To recall other preset channel from 4 to 30, press the numeric button "4+".
3. Press the ◀◀ or ▶▶ button to select the desired preset channel to recall.
4. Press the SELECT button to recall.

Note:

- The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good reception. Alter the antenna position for the best reception.

Displaying DAB+ Station Information

There are several types of information provided by the radio station. To display the information, press the INFO / MENU repeatedly.

OTHER DAB+ MENU OPERATIONS

Press and hold the INFO / MENU button to access the menu control. Then press the ◀ or ▶ button for different options as described below.

IMPORTANT INFORMATION REGARDING DAB+ RECEPTION

DAB+ radio reception is different from FM radio reception.

• In FM, you can often still receive a weak station, but probably with a rustling or crackling sound.
- DAB + reception works digitally and if there is not enough signal you hear nothing. No hiss or crackle as with FM. This is not due to the radio, but to the fact that there is not enough DAB+ signal at that location.
- DAB + rule is: no or weak reception = no sound.

What can you do if you do not have direct DAB+ reception.

• Always point the antenna straight up vertically first.
- Move the radio a few meters.
- Turn on the radio and activate a full scan in the DAB+ menu

- Do not place the radio too close to potential sources of interference such as, battery chargers, rotating machinery, computers, large metal surfaces, etc.

- In the display of the radio you will see the progress of the scan and the number of stations found in the current position of the radio.

Important

• With DAB+ reception, there can be a very big difference in reception level between one location and "a few meters away". In case of a local weak DAB+ signal, move the radio to find a stronger signal.
• If you take the radio to another location, perform a full scan again. This will show you which DAB+ stations can be received there.

Dynamic Range Control (DRC)

DRC can make quieter sounds easier to hear when the unit is used in a noisy environment. The DRC level of a broadcast is set by the selected radio station and transmitted with the service. Changing the DRC value on your unit enables you to apply a scaling factor to this level.

There are three levels of compression:

DRC OFF No compression

DRC HIGH Maximum compression as sent with the transmitted service

DRC LOW Set to 1/2 that of the sent transmitted service

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until the "DRC" is selected and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button to select "DRC OFF", "DRC HIGH", "DRC LOW".
4. Press the SELECT button to confirm.
5. To quit the menu control, press the MENU button repeatedly.

Note:

• Not all DAB+ radio stations are able to use DRC function. If the station does not support DRC then the DRC setting will have no effect.
  • After you have adjusted the DRC level the sound may be louder.

Prune Invalid

This function removes inactive stations.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀ or ▶ button until the "PRUNE" is selected and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button to select "YES".
4. Press the SELECT button to confirm.
5. To quit the menu control, press the MENU button repeatedly.

EWF (Emergency Warning & Alert Functionality)

You can enable or disable the reception of EWF.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until the "EWF" is selected and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button to select "YES" to enable the reception of EWF message and alarm. Please note that the EWF reception is still active while the unit is in standby mode. It will automatically wake up when the EWF message and alarm is received.

FM RADIO OPERATION

Auto Scan

1. Turn on the unit in FM mode.
2. Press and hold the ▶ button to start auto-scan and save the available stations (max. 30 storage).

Manual Scan

1. Turn on the unit in FM mode.
2. Press the ◀◀ or ▶▶ button repeatedly to manually tune to a different frequency.
3. Or press and hold the ◀ or ▶ button to automatically search to the next available channel.

Storing FM Presets

You can save up to 30 FM presets.

1. Tune to the station you wish to store.
2. To save it to the preset channel 1 or 2 or 3, press and hold the preferred preset number. Then it will save to that preset channel.
3. To save it to other preset channel from 4 to 30, press and hold the numeric button "4+".

4. Press the ◀ or ▶ button to select the desired preset channel to save.

5. Press the SELECT button to save.

Recall Stored FM Presets

1. To recall the preset channel 1 or 2 or 3, press the preferred preset number. Then it will tune to that preset channel.
2. To recall other preset channel from 4 to 30, press the numeric button "4+".
3. Press the ◀◀ or ▶▶ button to select the desired preset channel to recall.
4. Press the SELECT button to recall.

Stereo / Force Mono Selection

When receiving a Stereo FM radio channel, pressing the FM-ST/MO button and followed by pressing the SELECT button will toggle between stereo audio and force mono audio.

Note:

- The telescopic antenna at the rear panel of the unit should be fully extended to ensure a good reception. Alter the antenna position for the best reception.

Displaying FM Station Information

There are several types of information provided by the radio station. To display the information, press the INFO / MENU repeatedly.

OTHER FM MENU OPERATIONS

Press and hold the INFO / MENU button to access the menu control. Then press the ◀ or ▶ button for different options as described below.

Scan Setting

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until the "SCAN SET" is shown and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button to show "STRONG" or "ALL" and then press the SELECT button to confirm. When the "STRONG" is selected, only the strong stations are scanned. Scanning will ignore the noisy stations. When "ALL" is selected, all stations will be scanned even it is noisy.
4. The next time doing the FM scan the unit will search for the stations based on this confirmed setting.
5. To quit the menu control, press the MENU button repeatedly.

Audio Setting

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀ or ▶ button until the "AUDIO SET" is shown and then press the SELECT button.
3. Press the ◀ or ▶ button until to show "STEREO" or "MONO" and then press the SELECT button to confirm.
4. To quit the menu control, press the MENU button repeatedly.

BLUETOOTH AUDIO

Please follow the pairing instructions below to link the unit to your Bluetooth device.

1. Press the SOURCE button to enter the Bluetooth mode. The display will show "BT". It will start searching and the display will show "BT NOT CONNECTED".
2. Turn on the Bluetooth function of your device and enable the search until "Lenco CR-640" is found. Select "Lenco CR-640" on the Bluetooth device to make connection. Enter the pass code "0000" if required.
3. After successfully paired the display will show "BT CONNECTED".
4. You can now start playing music from your smartphone wirelessly to the speaker.
5. You can press the ▶ button to pause or resume the playback.
6. You can press the ◀◀ or ▶▶ button to skip to the previous or next song.

Note:

• Press and hold the UNPAIR button will disconnect the connection and start to search another new Bluetooth device.
- Due to ErP stage 2 requirement and protect the environment, the unit will turn off in standby mode automatically once no music has been playing for around 15 minutes in Bluetooth mode. When the unit is power off due to ErP, press and hold the STANDBY button to turn on the unit again.

"This product has a bluetooth reception function, you can not transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone."

AUX IN

This allows you to connect an external player's sound through your unit.

1. Plug a 3.5mm audio cable (not included) into your external player line out and the other end into the AUX IN terminal.
2. Press the SOURCE button to enter AUX mode. Display shows "AUX".
3. Start your external player to play music.
4. The unit will output the sound.

SYSTEM SETTINGS

There are several system settings available for user to select their preference. Press and hold the INFO / MENU button to access the menu control. Press the ◀◀ or ▶▶ button until "SYSTEM" is displayed and then press the SELECT button. Then press the ◀◀ or ▶▶ button for different selections as shown below.

- Alarm Setup

- Time Setup

- Language Setup

- Reset

- Software Version Check

Alarm Setup

There are 2 alarms that can be set independently. Alarm source can be Buzzer, DAB or FM. Alarm loudness can also be set.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until "SYSTEM" is displayed and then press the SELECT button.
3. The display will show "ALARM". Press the SELECT button.
4. The display will show "ALARM 1". Press the ◀ or ▶ button to set the Alarm 1 or Alarm 2. Press the SELECT button.
5. Press the ◀ or ▶ button to set the alarm ON. Press the SELECT button to confirm.
6. Hours digits will be flashed. Press the ◀◀ or ▶▶ button to set the hour value. Press the SELECT button to confirm.
7. Minutes digits will be flashed. Press the ◀◀ or ▶▶ button to set the minute value. Press the SELECT button to confirm.
8. It will display the wake up source. Press the ◀◀ or ▶▶ button to set the alarm on source (BUZZER, DAB or FM). Press the SELECT button to confirm. If radio station (DAB or FM) is selected as the alarm source, you need to set the wake up radio station as well.
9. Press the ◀◀ or ▶▶ button to set alarm cycle type (Daily, Weekends, Weekdays, Once). Press the SELECT button to confirm.
10. It will display the wake up volume level. Press the ◀◀ or ▶▶ button to set the alarm on volume level. Press the SELECT button to finish the alarm setup.
11. The alarm schedule is now activated. The alarm symbol will be shown on the display.

Note:

- When the alarm starts, press the STANDBY 🔊 or ALARM ⏻ / 📋 button to stop the alarm.

Time Setup

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀ or ▶ button until "SYSTEM" is displayed and then press the SELECT button.
3. Press the ◀◀ or ▶◀ button until "TIME" is displayed and then press the SELECT button. Under the Time menu, there are several setups as described below.

- Set Time/Date

You can manually set the time and the date under this menu.

- Auto Update

You can set the Auto update condition as listed below.

Update from Any
Time/Date will be updated by either DAB or FM broadcast
Update from DAB
Time/Date will be updated by DAB broadcast only
Update from FM
Time/Date will be updated by FM broadcast only
No Update
Time/Date will never be updated by radio station

• 12/24 Hour

You can set the time display format as 12 or 24 Hour display.

1. To quit the menu control, press the MENU button repeatedly.

Note:

- When the power is dis-connected, the time and date could not be maintained.

Language Setup

You can set the language of the unit.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until "SYSTEM" is displayed and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button until "LANGUAGE" is displayed and then press the SELECT button.
4. Press the ◀◀ or ▶◀ button to toggle between different languages. Select your desired language and then press the SELECT button to confirm.
5. To quit the menu control, press the MENU button repeatedly.

Reset

This function resets the unit to the original factory settings.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀◀ or ▶▶ button until "SYSTEM" is displayed and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button until "RESET" is displayed and then press the SELECT button.
4. Press the ◀◀ or ▶▶ button until "YES" is displayed and then press the SELECT button to reset the unit.

Software Version Check

You can check the software version of the unit.

1. Press and hold the INFO / MENU button to access the menu control.
2. Press the ◀ or ▶ button until "SYSTEM" is displayed and then press the SELECT button.
3. Press the ◀◀ or ▶▶ button until "SW VER" is displayed and then press the SELECT button to show the software version number.
4. To quit the menu control, press the MENU button repeatedly.

SLEEP FUNCTION

When the unit is switched on, press the SLEEP button repeatedly to select different sleep duration 90, 80, 70, 60, 50, 40, 30, 20, 10, 05 or 00 minutes. 00 means no sleep function.

1. During the sleep timer count down, there is an icon shown on the display.
2. When the sleep timer is zero, the unit will be turned off automatically.
3. To cancel the sleep function, press and hold the STANDBY ⏻ button to turn off the unit. Or press the SLEEP button repeatedly to select "00 MINUTES".

SNOOZE FUNCTION

You can activate the snooze function by pressing the SNOOZE button when the alarm starts. The alarm sound will be muted and you can sleep for another 9 minutes. During snooze, the snooze count down time will be shown on the display. After the snooze time, the alarm will sound again. To stop the snooze function, press the STANDBY button.

There are 4 display brightness levels.

1. Press and hold the DIMMER button, the current brightness level will be displayed.
2. Press the DIMMER button will toggle the brightness 1, 2, 3 or 4. Brightness 4 is the most brightness level.

ENERGY SAVING

Due to ErP requirement and protect the environment, the unit will turn off to the standby mode automatically once no music has been playing around 15 minutes.

When the unit is power off due to ErP, you can press the STANDBY ⏻ button to turn on the unit again.

Trouble Shooting

No power

• Ensure that the mains cable is connected securely.
• Ensure that the unit is switched on.

The unit does not respond when pressing any buttons.

- In some situations, the unit may freeze during use. To reset the unit, pull the plug from the mains socket, wait a few seconds and then plug it in again.

No sound output

• Make sure that the unit is not muted.

I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing

• Ensure that the unit is switched on.
  • Ensure that the Bluetooth function is activated on your Bluetooth device.
  • The unit has a Bluetooth function that can receive a signal within 10 meters.

DAB+/FM reception

• Ensure the telescopic antenna at the rear panel should be extended fully to improve the DAB+/FM reception.
- Electrical interference in your home can cause poor reception. Move the unit to another location and check the reception again.

Interferences in Speakers

- Check that you have not left a mobile phone near the unit.

TECHNICAL SPECIFICATIONS

DAB+ radio frequency range	174.928-239.2 MHz
FM radio frequency range	87.5 - 108 MHz
Bluetooth frequency range	2.402-2.480 GHz
Transmitter output power	Less than 10mW
AC/DC power adaptor input	100-240V~ 50/60Hz 1.0A MAX
AC/DC power adaptor output	DC 5.9V 2.5A
Charging port out	DC 5V 1A
Speaker output power	2 x 4W RMS
Bluetooth version	V5.0
Dimension	225 (L) x 65 (D) x 65 (H) mm
Weight	396g

• The specification presents only as a reference. The value of weight and size are approximation.
• Our product is improved ceaselessly and the specification and function may be changed without prior notice.

Power supply adaptor: (For EU only)

Manufacturer: DongGuan Obelieve Electronic Co., Ltd.

Model Number: OBL-0592500E

Use only original AC adaptor

Use only the power supply listed in the user instructions.

Information	Value and precision
Manufacturer's name or trade mark commercial registration number and address	DongGuan Obelieve Electronic Co., Ltd.HuaZhaoXin Industrial Park B-4/F, Golden Phoenix Industrial Zone,Fenggan Town, Dongguan, Guangdong Province, P.R. China
Model identifier	OBL-0592500E
Input voltage	100-240V
Input AC frequency	50/60Hz
Output voltage	5.9V
Output current	2.5A
Output power	14.8W
Average active efficiency	≥ 81.3%
Efficient at low load (10%)	≥ 75%
No-load power consumption	≤ 0.1W

GUARANTEE

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

DISCLAIMER

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

DISPOSAL OF THE OLD DEVICE

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco CR-640] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/cr-640_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	< 6
DAB	174-240	-
FM	87.5-108	-

SERVICE

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands

VOORZICHTIG:

Line drawing of a cable and plug device (no text or symbols)

Gebruiksaanwijzing

Simple line drawing of an open book with no text or symbols visible

BOVEN- EN ACHTERPANEEL

10 9 8 INFO MENU 1 2 3 4+ UNPAIR FM-STMO SNOOZE / SLEEP SELECT / DIMMER + SOURCE 1 2 3 4 5 6 7

1. / ◀ ∨

Dynamic Range Control (DRC)

AFVOER VAN HET OUDE APPARAAT

Line drawing of a Netzteil electrical plug with coiled cable (no text or symbols)

EWF (Emergency Warning Functionality)

Line drawing of a mechanical device with a coiled cable and two terminal ports (no text or symbols)

Mode d'emploi

Simple line drawing of an open book with no text or symbols visible

PANNEAU SUPÉRIEUR & ARRIÈRE

10 9 8 INFO MENU 1 2 3 4+ UNPAIR FM-STMO SNOOZE / SLEEP SELECT / DIMMER + SOURCE 1 2 3 4 5 6 7

1. / ◀ ∨

DÉCLARATION DE CONFORMITÉ

Line drawing of a plug and cable assembly (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

PANEL SUPERIOR Y POSTERIOR

10 9 8 INFO MENU 1 2 3 4+ UNPAIR FM-STMO SNOOZE / SLEEP SELECT / DIMMER n a source 1 2 3 4 5 6 7

1. / ◀ ∨

1. REPRODUCIR-PAUSAR ▶/ UNPAIR / FM-ST/MO
