Click & Mix 700 HB8041 - Hand blender TEFAL - Free user manual and instructions

Product type	Immersion blender
Brand	Tefal
Model	Click & Mix 700 HB8041
Power	700 W (estimated)
Number of speeds	2 (speed 1 and 2 via button pressure)
Beaker capacity	0.8 L
Included accessories	Blending shaft, crushed ice filter, 0.8 L beaker, Mixer accessory (green), Emulsion accessory (yellow), Crushed ice accessory (blue), Chopping accessory (red)
Functions	Blend, emulsify, crush ice, chop
Cleaning the shaft and accessories	Dishwasher (tools upright)
Cleaning the motor unit	Damp sponge, do not immerse
Power supply	Mains, check voltage on rating plate
Cable length	Approximately 1.2 m (estimated)
Weight	Approximately 1 kg (estimated)
Dimensions (height)	Approximately 40 cm (estimated)
Safety	Do not use for more than 45 seconds; do not leave children unattended; disconnect before cleaning
Available spare parts	Mini chopper 150 ml (ref. 5981760)
Warranty	2 years (standard)
Maximum continuous use	45 seconds
Recommended container	Fill up to 2/3 maximum
Starting	Press button (B): lightly for speed 1, firmly for speed 2
Disassembling the shaft	Press the EJECT button (C)
Disassembling the accessories	Press the P1 and P2 tabs simultaneously after removing the shaft and unplugging the appliance

Frequently Asked Questions - Click & Mix 700 HB8041 TEFAL

How to assemble the accessories on the blender?

Fit the desired accessory onto the shaft in the indicated direction and press until the 'Click' sound. Then fit the shaft onto the motor unit until it locks.

How long can I use the appliance continuously?

Do not use the appliance for more than 45 seconds at a time. After whisking egg whites, rinse the shaft under water for 30 seconds to cool it before reuse.

Can I put the motor unit in the dishwasher?

No, never put the motor unit (A) in the dishwasher. Clean it with a damp sponge. The shaft, beaker, and accessories (tools upright) are dishwasher safe.

What is the maximum recommended volume in the container?

The container should be filled up to a maximum of 2/3 to avoid overflow. The preparation must cover the accessory at least to ensure efficient blending.

How to use the crushed ice function?

Fit the filter (E) onto the 0.8 L beaker (F), place a maximum of 3 ice cubes in the filter, then firmly crush at speed 2. Repeat until desired quantity.

What is the difference between the two speeds?

Press lightly on the start button (B) for speed 1, and firmly for speed 2. A sound difference is audible.

How to disassemble the shaft from the appliance?

Press the EJECT button (C) to disassemble the shaft after use. To remove the accessory from the shaft, press the P1 and P2 tabs simultaneously after removing the shaft from the motor unit and unplugging the appliance.

Can I chop meat with this appliance?

Yes, use the Chopping accessory (red). Bone and remove sinew from meat before chopping. Place it in a tall container and chop at speed 2 while moving around the container.

What to do if foods have colored the plastic parts?

Rub the colored parts with a cloth soaked in cooking oil, then proceed with regular cleaning.

Where can I buy additional accessories?

You can purchase accessories from your retailer or an authorized service center. For example, the mini chopper 150 ml (ref. 5981760) can chop 35 g of pork in 8 seconds.

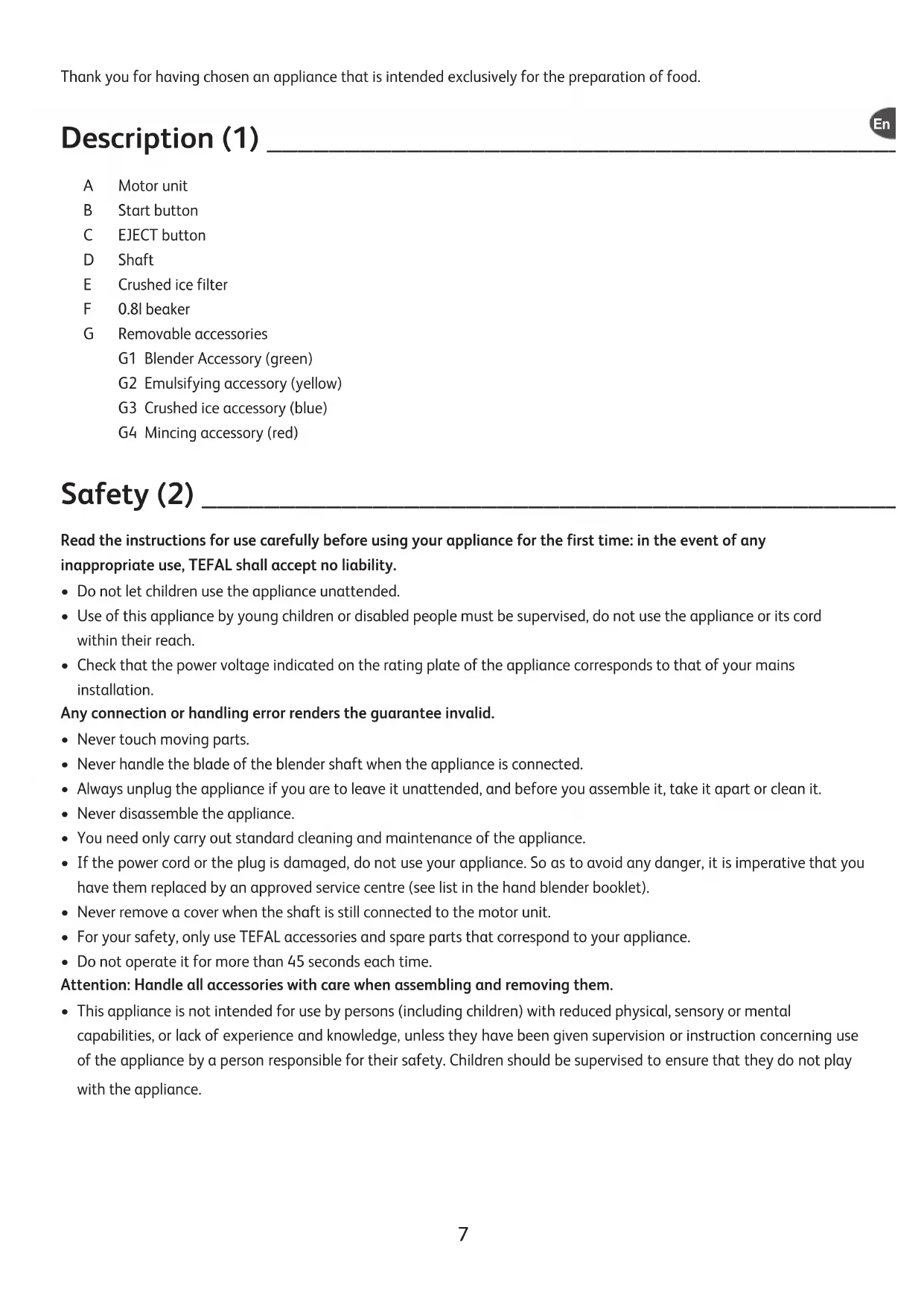

USER MANUAL Click & Mix 700 HB8041 TEFAL

A Motor unit
B Start button
C EJECT button
D Shaft
E Crushed ice filter
F 0.81 beaker
G Removable accessories

G1 Blender Accessory (green)
G2 Emulsifying accessory (yellow)
G3 Crushed ice accessory (blue)
G4 Mincing accessory (red)

Safety (2)

Read the instructions for use carefully before using your appliance for the first time: in the event of any inappropriate use, TEFAL shall accept no liability.

• Do not let children use the appliance unattended.
• Use of this appliance by young children or disabled people must be supervised, do not use the appliance or its cord within their reach.
• Check that the power voltage indicated on the rating plate of the appliance corresponds to that of your mains installation.

Any connection or handling error renders the guarantee invalid.

• Never touch moving parts.
• Never handle the blade of the blender shaft when the appliance is connected.
  Always unplug the appliance if you are to leave it unattended, and before you assemble it, take it apart or clean it.
• Never disassemble the appliance.
• You need only carry out standard cleaning and maintenance of the appliance.
• If the power cord or the plug is damaged, do not use your appliance. So as to avoid any danger, it is imperative that you have them replaced by an approved service centre (see list in the hand blender booklet).
• Never remove a cover when the shaft is still connected to the motor unit.
• For your safety, only use TEFAL accessories and spare parts that correspond to your appliance.
• Do not operate it for more than 45 seconds each time.

Attention: Handle all accessories with care when assembling and removing them.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Use (3) (4)

• Before using for the first time, clean the accessories in soapy water. Rinse and dry thoroughly.
• Fit the required accessory onto the shaft in the direction shown (see diagram 2) and push until you hear a "click".
• Fit the shaft onto the motor unit until it clicks in.
• Plug the appliance in and press the start button (B) (diagram 5) gently for speed 1, hard for speed 2. There is an audible difference between the two speeds.
• Turn the appliance on before placing the tool into your mixture.
• Turn the appliance on and press the start button (B).
• Press the Eject button (C) to remove the shaft once you have finished.
• Press on tabs P1 and P2 simultaneously to eject the accessory once you have removed the shaft (D) from the motor unit (A) and unplugged your appliance from the mains.
• Do not use the appliance for more than 45 seconds at any one time.
  After you have whisked egg whites to the stiff peak stage, run the shaft under cold water for 30 seconds to cool it down before using again.

Practical advice (5)

• The container that you are using should be a maximum of 2/3 full to avoid any overflow. The mixture should at least cover the accessory to ensure efficient blending.
• For fruit-based preparations, chop and stone the fruit beforehand.
• For the Mincing accessory (RED), remove bones and tendons from the meat before mincing.
• Use the appropriate accessory for each kind of preparation.

Cleaning

Always unplug the appliance before cleaning it.
- Never put the appliance, the power cord or the plug in water or any other liquid.
- Never put the motor unit (A) in the dishwasher. Never immerse it in water or put it under running water. Clean it with a damp sponge.
- The shaft (blade pointing upwards), the beaker and the accessories (tools pointing upwards) are dishwasher safe.
We advise you to quickly clean the blender shaft as well as the covers after each use, once you have taken them apart.
- Should the plastic parts become stained with foodstuffs such as carrots, rub over them with a cloth dipped in a little cooking oil and then clean and dry as usual.

Accessories

You can purchase the following accessory from your retailer or an approved centre:

• Mini-chopper 150 ml; ref. 5981760

This accessory will allow you to mince 35 g of pork (belly pork) in 8 seconds.

ACCESSIONS PREP	ARATION INGREDIENTS TIPS
GREEN	Soup 500 g potatoes, 400 g	carrots,1 leek, 1.8 L water	At speed 2, fill your container up to at least 2/3 of its height in order to ensure efficient blending.
	Mayonnaise 1 whole egg, 1	teaspoonmustard, 1 tablespoon vinegar,250 ml oil, salt, pepper	Place all of the ingredients in the0.1 beaker (F) then blend for a few seconds at speed 2.
	Pancake mixture 200 g flour	a pinch of salt,200 ml milk, 40 g melted butter,3 eggs.	At speed 2, fill your container up to at least 2/3 of its height in order to obtain a smooth mixture.
BLUE	Crushed ice 3 ice-cubes max	mum Fit the filter (E) and the 0.8 L	beaker (F),place 3 ice cubes maximum in the filter and then crush at speed 2.Carry on until you have obtained the quantity desired. For the Margarita, add the ingredients to the crushed ice.
	Margarita(Drink AwarenessPlease drink alcohol in moderation)	3 ice cubes, 60 ml tequila, 30 ml cointreau, 10 ml lemon juice.
	Gaspacho 4 tomatoes, 1/2 c	love ofgarlic, 60 g sliced bread,100 g cucumber, 1 red pepper and 1 green, 150 ml water,1 tablespoon of vinegar, salt,5 ice cubes.	At speed 2, fill your container up to at least 2/3 of its height in order to ensure efficient blending. If you want a finer mixture, you can finish off using the mincer (red).
YELLOW	Stiff peak egg whites 1 pinch	of salt, 2 egg whitesfresh from the refrigerator.	Place the ingredients in the 0.8 L beaker and then stir, moving the blender up and down, at speed 1,imperatively.
RED	Meats 100 g raw or cooked	meat. In a container with steep sides, place the chunks of meat and mince for a few seconds, moving the hand blender around the container at speed 2.
	Baby food 50 g ham, 50 g carrots, 50 gpotato, 50 g water	Place all the ingredients into a wide-bottomed container and mince at speed 2.
	Köfte (minced meat balls)	For 10 meatballs: 100 g lamb,150 g veal, 1/4 onion, 2 slices of stale bread.	Place all the ingredients into a wide-bottomed container and then mince at speed 2. By hand, roll out the meatballs and then cook them in a frying pan.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

If you have any product problems or queries, please visit our website - www.tefal.co.uk
