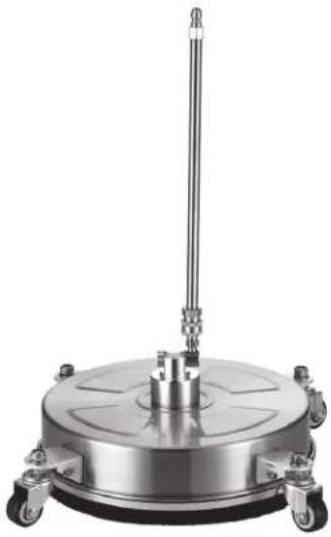

Metallic circular industrial component with a vertical rod and flanged base (no visible text or symbols)

THANK YOU FOR YOUR PURCHASE!

SCAN

REGISTER

ONLINE TODAY

Place UPC sticker here

ACTIVATE YOUR 2 YEAR WARRANTY
RECEIVE 90 DAYS BONUS COVERAGE
VISIT SHOPJOE.COM/REGISTER

+EXTENDED WARRANTY

UPGRADE YOUR COVERAGE AT SHOPJOE.COM/REGISTER

FOR UP TO 3, 4, OR 5 YEARS OF TOTAL TOOL COVERAGE

When we say we stand behind our product, we mean it! Now you can blow, mow, cut, saw or tend to any other yard task with confidence, knowing that if there is a problem with your tool within the warranty period, we will gladly solve it.

HAS YOUR SNOW JOE

EXPERIENCE LEFT

YOU SMILING?

TELL YOUR FRIENDS

AND TAG US!

We love to hear your feedback! Share your experience by writing comments and reviews on shopjoe.com, or connect with us on social media!

@ SNOWJOECO

GOWITHJOE

OR HAS SOMETHING

LEFT YOU LESS

THAN SATISFIED?

WE'RE SORRY

ABOUT THAT!

Our friendly customer service team is ready to help you with any issues you may have.

CALL US

1-866-225-9723

For fastest response

CHAT WITH US

SHOPJOE.COM/CHAT

Model SPX-SC14

Form No. ASP-SPX-SC14-880E-M (Q)

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

⚠ WARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
⚠️CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
⚠️DANGER! This indicates a hazardous situation, which, if not followed, will result in death or serious injury.

General Safety

WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your surface cleaner, please check it carefully for any defects. If you find any, do not start up your machine. Contact your authorized Snow Joe ^® + Sun Joe ^® dealer or call the All Season Power customer service center at 1-866-225-9723.

⚠ WARNING! Read and understand all instructions before use. Failure to follow these instructions may result in serious injury or property damage.

The warnings, cautions, and instructions in this manual cannot cover every possible situation. Always use common sense and caution when operating this tool. Stay alert to your surroundings and ensure the tool is used safely and responsibly.

Do not allow anyone to operate or assemble this product without first reading this manual thoroughly and understanding how the tool works.

Do not modify this product. Any unauthorized modification may impair function, reduce safety, and shorten the product's lifespan.

Use the right tool for the job. Do not force small equipment to perform tasks intended for larger industrial tools. This product is designed for specific applications and will perform safely and efficiently only within its intended capacity. Do not use this tool for purposes for which it was not designed.

Work Area Safety

Inspect the work area before each use. Keep the area clean, dry, well lit, and free of clutter. Cluttered, wet, or dark workspaces increase the risk of injury. Avoid using the product in confined spaces, as this may place you dangerously close to other cutting tools or rotating parts.

• Do not operate the product near flammable liquids, gases, or dust. Sparks from the tool could ignite these materials and cause a fire or explosion.
• Keep the product away from electrical sources. The tool is not insulated, and contact with electricity can result in shock.
• Keep children and bystanders at a safe distance while operating the tool. Never allow children to handle the product.
• Identify and avoid hazards in your work area, including power lines, electrical circuits, water pipes, and other mechanical risks. Some hazards may be hidden and could cause serious injury or property damage if contacted.

Personal Safety

Stay alert, pay attention to your surroundings, and use common sense when operating the tool. Never use the tool if you are tired or under the influence of drugs, alcohol, or medication. Even a brief moment of inattention can lead to serious injury.

• Dress appropriately. Avoid loose clothing, dangling objects, and jewelry. Keep long hair, clothing, and gloves away from moving parts. Loose items can get caught in the tool. Avoid covering or contacting air vents, as they often conceal moving parts.
• Wear appropriate personal protective equipment. Use ANSI Z87.1-compliant safety goggles with side shields or a face shield when needed. In dusty environments, wear a dust mask. Additional equipment such as non-skid safety shoes, gloves, hearing protection, hard hats, and dust collection systems should be used when appropriate. These precautions apply to everyone in the work area.
• Maintain proper balance and footing at all times. Do not overreach when using the tool.
• Remove all keys and wrenches before connecting the tool to a power or air supply or turning it on. Tools left attached to moving parts can cause injury.
• Whenever possible, secure workpieces with clamps or a vise instead of holding them by hand. This allows safer, more controlled operation using both hands.

SAVE THESE INSTRUCTIONS

Clear Use And Care

Do not force the cleaner. Tools perform best and safest when used as designed. Plan your work carefully and always use the correct tool for the job.

• Inspect the cleaner before each use and before connecting it to a pressure washer. Make sure it is in proper working condition and capable of performing its intended function. Replace any damaged or worn parts immediately. Never operate the cleaner with damaged components.
• Store the cleaner in a dry, secure location out of the reach of children when not in use. Inspect it for proper condition before storage and again before reuse.
• Use only replacement parts recommended by the distributor. Parts that may fit one cleaner could pose a safety risk when used with another. Never install a part with a lower pressure rating than the cleaner itself.
• Never leave the cleaner unattended while pressurized.
• Do not turn the cleaner over when it is connected to an operating pressure washer, as this could release high-pressure water and cause injury.

Specific Operation Warnings

• Do NOT exceed the rated PSI capacity.
• Keep hands, feet, and all body parts away from the nozzle heads and skirt during operation.
• Never lift the machine off the surface or point the nozzle heads toward people while operating.
• Always wear appropriate safety gear, including ANSI Z87.1-approved safety glasses.
• Operate only on hard, level surfaces.
• Do NOT modify or alter the product in any way.
• Use only attachments and adapters supplied by the manufacturer.
  • This product is not intended for use by or around children.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

Symbols	Descriptions
	SAFETY ALERT – Indicates a precaution, a warning or a danger.
	Risk of injection and serious injury. Keep hands and feet clear of the deck while the pressure washer is operating.
	Wear eye and ear protection.
	WARNING! High-pressure fluid from this equipment can penetrate the skin and underlying tissue, causing serious injury and possible amputation.
	READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate.

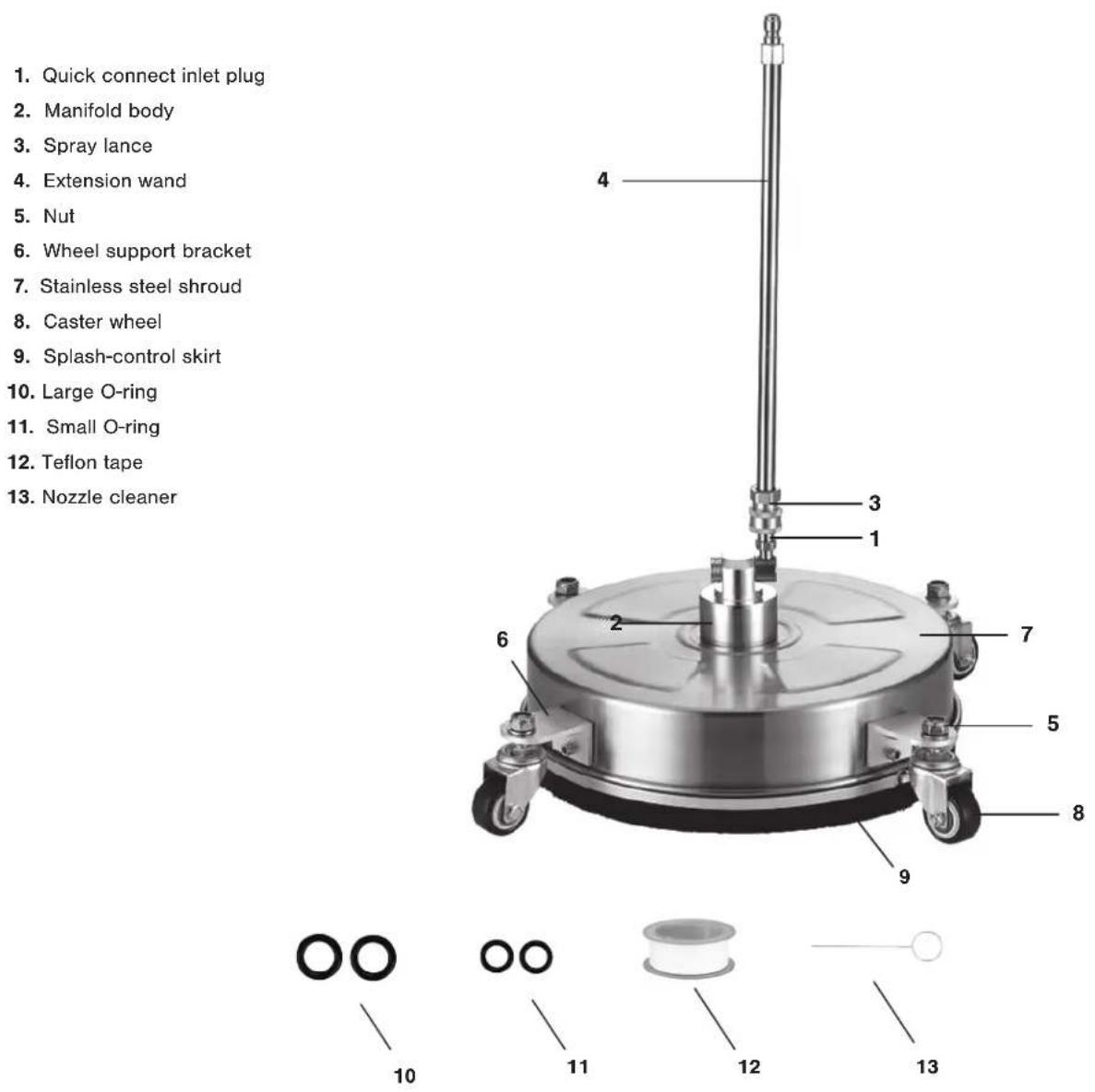

Know Your Surface Cleaner

Read the owner's manual and safety instructions carefully before operating the surface cleaner. Compare the picture below to the surface cleaner in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Quick connect inlet plug
2. Manifold body
3. Spray lance
4. Extension wand
5. Nut
6. Wheel support bracket
7. Stainless steel shroud
8. Caster wheel
9. Splash-control skirt
10. Large O-ring
11. Small O-ring
12. Teflon tape
13. Nozzle cleaner

Technical Data

Max Pressure 4000 PSI

Product Dimension....13.4 in. x 6.1 in. x 13.2 in.

(34 cm × 15.5 cm × 33.53 cm)

Max Flow Rate....4.0 GPM (15 l/min)

Max Temperature.... 300 °F (149 °C)

Extension Wand Length....13 in. (33 cm)

Wheel Size 1.9 in. (4.8 cm)

Net Weight....6.8 lbs (3.08 kg)

Unpacking

Carton Contents

• Pressure washer extension wand X 2
• Pressure washer surface cleaner
- Replacement nozzles X 2
- Teflon tape
• Large O-rings X 2
- Small O-rings X 2
- Nozzle cleaner
- Manual

1. Carefully remove the surface cleaner and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the All Season Power customer service center at 1-866-225-9723

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new surface cleaner. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

⚠ WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

Preparation + Operation

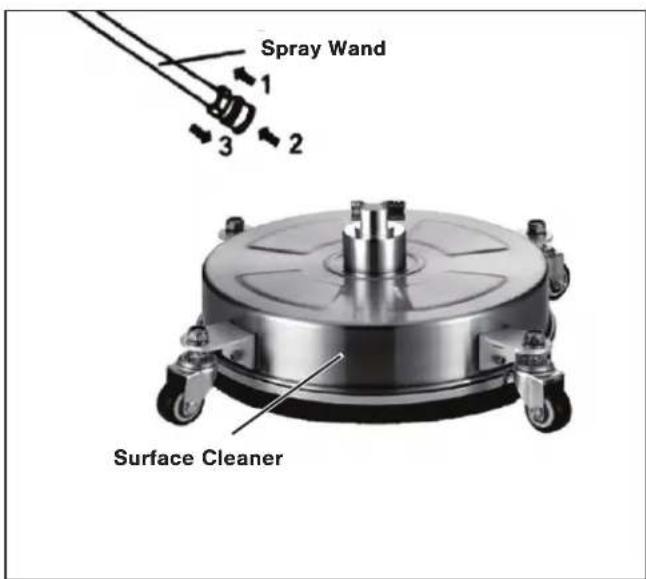

Set-Up

1. Pull back collar on quick-connect end of wand.
2. Push the surface cleaner into place.
3. Push the collar forward, insert the surface cleaner and release the collar. Ensure the collar slides all the way forward. Tug on surface cleaner to make sure it is securely in place.

Spray Wand 1 2 3 Surface Cleaner

Surface Preparation

1. Clear any loose debris from the area to be cleaned.
2. Never attempt to clean surface with objects that protrude from the surface being cleaned. Striking any raised obstacle during operation will damage machine. If contact does occur and results in vibration when operating machine, STOP cleaning and check the spray bar.

Start-Up

1. Make sure all connections are tight and secure.
2. Unlock the trigger gun and squeeze the trigger while starting the pressure washer.
3. Water will begin to flow from the surface cleaner nozzles. Make sure the nozzles are clear and the spray pattern is consistent.
4. Walk slowly behind the unit while cleaning. If striping appears, reduce your walking speed. Do not leave the machine stationary on soft surfaces, such as wood.

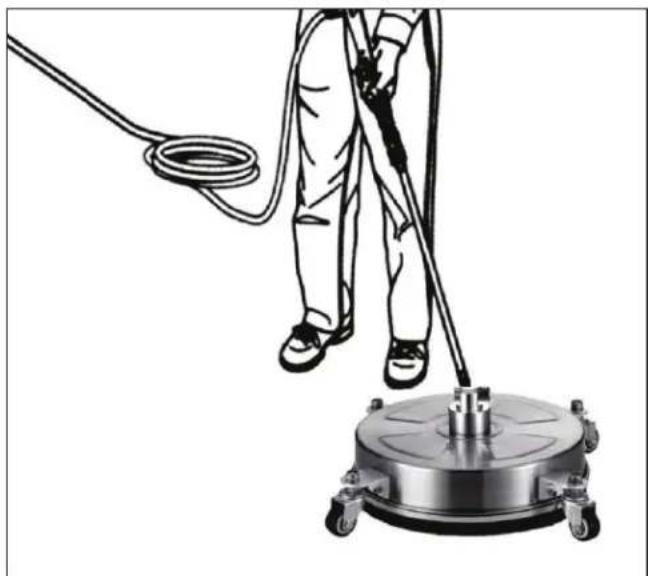

Person cleaning a tiled floor with a hose and power tool (no text or symbols visible)

Shut Down

1. Turn the pressure washer off.
2. Turn the water supply off.
3. Press the trigger gun to release any built-up water pressure.
4. Disconnect the pressure washer handle, wipe down the unit, and store it in a dry location.

After Each Use

• Perform the following inspections after each use to clean the cleaner and ready it for the next use.
• Clean out any dirt or foreign material from under the housing and the casters. If necessary, use a cloth or sponge to wash the surface cleaner and rinse it with tap water.
• Check for loose parts and any damage.

Nozzle Cleaning + Replacement

1. Disconnect the pressure washer — never attempt this mid-wash. Use the appropriate wrench to remove the nozzle. (11 mm)
2. Rinse holes with fresh water to clean impurity.
3. Wrap the nozzle threads with the attached teflon tape.
4. Align the nozzle openings and reinstall the nozzles onto the spray bar. Tighten securely.

NOTE: If the nozzle is difficult to remove, please heat it with a hot blower before removing.

1 11 mm

Close-up of a mechanical component with a curved arrow indicating a process or operation (no visible text or symbols)

3 Teflon Tape

Close-up of a metallic cylindrical object with a spherical end and a small protrusion, labeled '4' in the corner (no text or symbols on the object itself)

Pivot Maintenance

If the pivot connection leaks, replace the O-rings.

Please refer to the following steps:

1. Remove the screw from the body by using a 5 mm hex wrench
2. Replace the original broken O-ring with new O-rings.
3. Reinstall the screw by using a 5 mm hex wrench.
4. Dispose of O-rings as instructed by local regulations. It is NOT accepted at the curbside recyclables, MUST take to landfills for proper disposal.

Close-up of a mechanical component with a cylindrical body and lever, no visible text or symbols

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a metallic mechanical component with a central shaft and circular base (no visible text or symbols)

Troubleshooting
PROBLEM	PROBABLE CAUSE CORRECTIVE ACTION
Missing parts	Damaged package	Contact our All Season Power Customer Service team for assistance at 1-866-225-9723
Inadequate cleaning power	Not enough PSI from pressure washer	Ensure the unit operates with a minimum pressure of 1500 PSI
	Nozzle blocked or damaged	Clean or replace the nozzles
Spray bar does not rotate	Defective, snap ring dislodged	DO NOT USE! Contact our All Season Power customer service team for assistance at 1-866-225-9723
	Unstable connection + spray ball fell off
	Seal malfunction: water is spraying from the swivel
Excessive vibration of surface cleaner	Nozzle clogged	Clean or replace the nozzles
Streaked cleaning pattern	Nozzle clogged	Clean or replace the nozzles
	Cleaning too fast	Clean or replace the nozzles
Top leaks The O-ring is damaged Refer to page 7

Service and Support

If your Sun Joe ^® surface cleaner requires service or maintenance, please call the All Season Power customer service center at 1-866-225-9723.

Model and Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Model #:

Serial 并:

Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this universal surface cleaner. Contact All Season Power if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories Item Model

Illustration of three containers labeled SUNJOE 30JNS, showing different sizes and shapes (no text or symbols beyond labels)

Sun Joe ^® House + Deck All-Purpose Pressure Washer Rated Concentrated Cleaner

Sun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + Cleaner

Sun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser

SPX-HDC1G

SPX-FCS1G

SPX-APC1G

Sun Joe ^ 's complete line of premium pressure washer accessories and attachments make it easy to get your dirty work done, and also help you get the most out of your model! SHOP ONLINE now at shopjoe.com

NOTE: Accessories are subject to change without any obligation on the part of All Season Power to provide notice of such changes. Accessories can be ordered online at shopjoe.com or via phone by contacting the All Season Power customer service center at 1-866-225-9723.

OUR CUSTOMER PROMISE + LIMITED WARRANTY

ABOVE ALL ELSE, All Season Power, LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® or Auto Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase or delivery by the original, end-user purchaser when purchased from All Season Power or from one of All Season Power's authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If you have any questions about how to buy from an authorized seller, chat with us at shopjoe.com/support or call us at 1-866-225-9723. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product (which may include a refurbished, like-new product) at no charge, or (3) repair the Product. How cool is that!

PRODUCT REGISTRATION:

All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, by chatting with us at shopjoe.com/support or calling our Customer Service Department at 1-866-225-9723. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by All Season Power to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com or by calling 1-866-225-9723.

CERTIFIED AUTHENTIC

We encourage you to use CERTIFIED AUTHENTIC Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® + Auto Joe ^® replacement parts + accessories. Damage caused by the use of any other parts + accessories on your Product will not be covered under the warranty. Genuine parts + accessories can be found and purchased here by entering the model number of your product.

When you register your powered or non-powered Product with All Season Power at shopjoe.com/register, you will receive an additional 90 days of warranty coverage. In addition, you will have the option of purchasing extended warranty coverage beyond the standard 2-year manufacturer's warranty. Choose from one, two, or three years of extended coverage through Extend, Inc. Additional charges apply. When you Go With Joe®, you're not just buying an extended warranty; you're buying total peace of mind to know that you can rely on our top-notch tools, top-tier customer support, complete product coverage + no hassle return policy. Chat with us at shopjoe.com/support or call us at 1-866-225-9723 7 days a week 10AM-6PM EST. We've got you covered!

There are no warranties which extend beyond those stated herein. ANY IMPLIED WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. This warranty supersedes those printed in product manuals.

Metallic circular industrial component with a vertical rod and mounting feet (no visible text or symbols)

(34 cm × 15.5 cm × 33.53 cm)

Caudal Máximo 4.0 GPM (15 l/min)

Temperatura Máxima....300 °F (149 °C)

Longitud De La Varilla....13 in. (33 cm)

Person cleaning a tiled floor with a hose and power tool (no text or symbols visible)

Apagado

Close-up of a mechanical component with a curved arrow indicating a turning point (no text or symbols visible)

3 Cinta de teflón

Close-up of a metallic cylindrical object with a spherical protrusion, possibly a knob or knob (no text or symbols visible)

Mantenimiento del pivote

Close-up of a mechanical component with a metallic cylindrical body and attached lever (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a metallic cylindrical component with a protruding rod, possibly a valve or pump (no visible text or symbols)

Illustration of two containers labeled 'SUNJOE' with no visible text or symbols on the containers themselves.

Metallic circular industrial component with a vertical rod and mounting feet (no visible text or symbols)

MERCI POUR VOTRE ACHAT!

SCANNEZ

ENREGISTREZ

EN LIGNE AUJOURD'HUI

ACTIVEZ VOTRE GARANTIE DE 2 ANS

RECEVEZ EN PRIME UNE EXTENSION DE 90 JOURS

RENDEZ-VOUS SUR LE SITE SHOPJOE.COM/REGISTER

Débit Maximal....4,0 GPM (15 l/min)

Person cleaning a tiled floor with hoses and a power tool (no text or symbols visible)

Arrêt

Close-up of a mechanical component with a curved arrow indicating a process or insertion (no visible text or symbols)

Ruban de téflon 3

Close-up of a metallic cylindrical object with a spherical protrusion and a small inset showing a knob (no text or symbols visible)

Entretien du pivot

Close-up of a mechanical device with a metallic cylindrical component and a black lever, no visible text or symbols.

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a hand holding a cylindrical object with a brush, mounted on a metal surface (no visible text or symbols)

Service et assistance
