USER MANUAL DMP-UB900, DMP-UB900EGK PANASONIC

Basic Operating Instructions

Blu-ray Disc™ Player

OPTICAL/COAXIAL (DIGITAL AUDIO OUT)

2ch AUDIO OUT (Analog-AUDIO OUT)

COAXIAL/OPTICAL (DIGITAL AUDIO OUT)

	Buchse	“Digital Audio Ausgang”
		“Bitstream”	“PCM”
Ausgang skanal	HDMI OUT	Original-Ton verwendende Ausgänge1	BD-Video: 7.1ch PCM12DVD-Video: 5.1ch PCM
	COAXIAL/OPTICAL (DIGITAL AUDIO OUT)	Dolby Digital/ DTS Digital SurroundTM	Heruntergemis cht 2ch PCM

Analog-AUDIO OUT

Ausgangskanal	2ch AUDIO OUT	2ch
	7.1ch AUDIO OUT	BD-Video: 7.1ch*1*2 DVD-Video: 5.1ch

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Master Audio | Essential

Java™

POWERED

DOLBY

AUDIO

CERTIFIED

Quick Start Guide

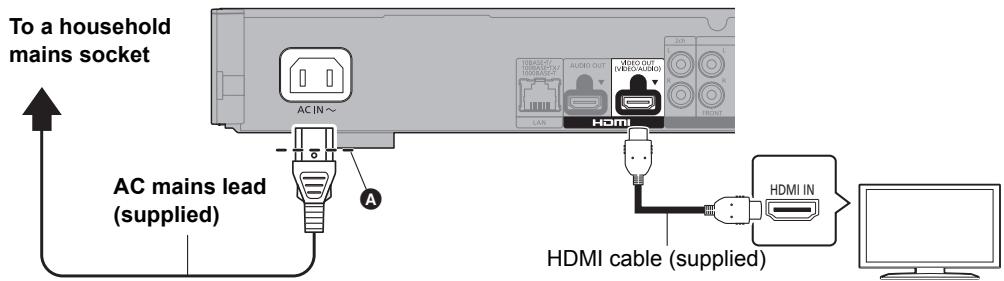

STEP 1: Connecting to a TV

Use HDMI VIDEO OUT terminal with the supplied HDMI cable.

• Insert the AC mains lead up to A, a point just before the round hole.
• To enjoy 4K output, you need to connect this unit to a 4K compatible TV.
• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps.

A High Speed HDMI-compliant cable that supports 18 Gbps is supplied with this unit. Part number : K1HY19YY0048

• When you connect to a 4K-compatible TV, 4K (50p/60p) will be automatically selected.
• To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.

STEP 2: Connecting to the network

Wireless LAN connection

Wireless router, etc.

Internet

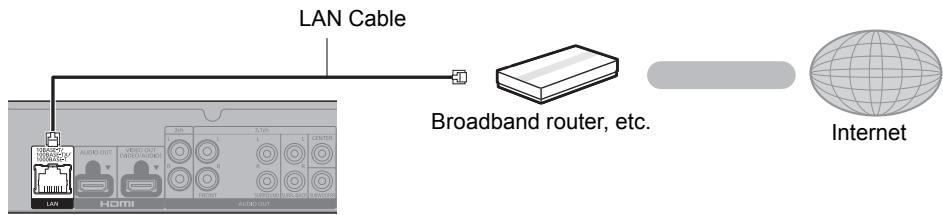

LAN cable connection

Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

STEP 3: Settings

Turn on the TV and select the appropriate video input.

Touch [山 / I]^*2

Follow the on-screen instructions to continue with the settings.

These buttons work just by touching the marks.
Do not place any objects on or around the buttons.
2 Standby/on switch (D/I)

Touch to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

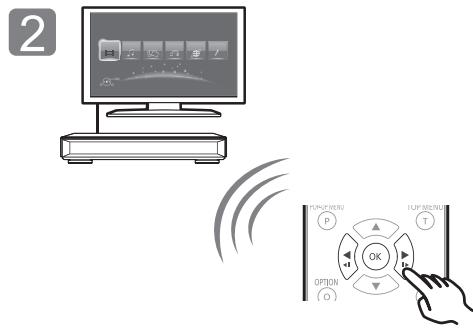

STEP 4 : Playing a disc

Insert the disc.

Select the item to play and press [OK].

Firmware updates

Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

For details, refer to the operating instructions (PDF format).

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Reading the Operating Instructions

This document explains basic operations of the unit. For more detailed explanation, please refer to "Operating Instructions (PDF format)" which is recorded in the enclosed CD-ROM.

How to open the Operating Instructions (PDF format)

When you insert the CD-ROM and open the [INDEX.pdf] in the CD-ROM, the Operating Instructions list will be displayed. Click the document name of the Operating Instructions you would like to open.

• Adobe Reader is required to view the PDF file. Please download it from the homepage of Adobe Systems Incorporated.

Operating Instructions (PDF format) cannot be played back on the player itself.

Accessories

Check the supplied accessories before using this unit.

1 Remote control
(N2QAYA000128)
2 Batteries for remote control
1 AC mains lead
1 HDMI Cable
1 CD-ROM

• Product numbers are provided in these operating instructions correct as of March 2016. These may be subject to change.

• Do not use AC mains lead with other equipment.

• Using the remote control

R03/LR03, AAA
(Alkaline or manganese batteries)

• Insert the batteries to the terminal so that it (+ and -) matches those in the remote control.

Point it at the remote control signal sensor on this unit.

Playable media

Ultra HD Blu-ray: Video

BD-Video: Video

BD-RE: Video, JPEG, MPO

BD-R: Video, MKV, JPEG, MPO

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

Music CD: Music [CD-DA]

CD-R/CD-RW: MKV, JPEG, MPO, AAC, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

SD Memory Card (from 8 MB to 2 GB)/

SDHC Memory Card (from 4 GB to 32 GB)/

SDXC Memory Card (48 GB, 64 GB)/

Compatible with both mini and micro types): AVCHD, AVCHD 3D, MP4, JPEG, MPO

USB devices (up to 2 TB): MKV, MP4, MPEG2, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. For details, refer to the operating instructions (PDF format).

• The operation history may be recorded in the memory of this unit.

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage,
- Ensure that the power supply voltage corresponds to the voltage printed on this unit.
- Insert the mains plug fully into the socket outlet.
- Do not pull, bend, or place heavy items on the lead.
- Do not handle the plug with wet hands.
- Hold onto the mains plug body when disconnecting the plug.
- Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

Keep the Memory Card and the batteries out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

Data transmitted and received over radio waves may be intercepted and monitored.
- This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

• Do not expose this unit to high temperatures or direct sunlight.
• Do not bend, or subject this unit to strong impacts.
• Keep this unit away from moisture.
• Do not disassemble or alter this unit in any way.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Para eliminar o transferir estaunities

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

R03/LR03, AAA
(Alkali-mangan element)

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

AVCHD, AVCHD 3D, MP4, JPEG, MPO

USB-laite (jopa 2 Tt): MKV, MP4, MPEG2, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Declaration of Conformity (DoC)

Hereby, "Panasonic Corporation" declares that this product is in compliance

with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 11, 22525 Hamburg, Germany

This product is in compliance with the radio standards of the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

The WLAN feature of this product shall exclusively be used inside buildings.

This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

Français

"Panasonic Corporation"

timi prohlaujie, ze tento vyrobek spinju zakladni pozadavsku da alsi relevar

Ustanovi Smernice 1999/5/EU.

Zakaznici si mohul stahnout kopii originalu deklarace shody (DoC) pro naše vrobyk R&TZ n šaheho serveru DoC:

http://www.doc.panasonic.de

"Panasonic Corporation"

"Panasonic Corporation"

"Panasonic Corporation"

declarçacprodusuleste

C€1731①

conform ci cerintele esentiale si ci alte norme corespunzatoare Directive 1999/5/EC.

Clienti pot descarca o copie a DoC-ului original al produselor noastre R&TTE de la adressa noastrà DoC din Internet: http://www.doc.panasonic.de

CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN,DO NOT STARE INTO BEAM, FOA21CRCLASS Ⅰ(1a)
CAUTION - CLASS 2 VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, DO NOT STARE INTO THE BEAM, IC008025-ⅠCLASS 2
ATTENTION - RAYONNEMENT LAYER VISIBLE ET INVISIBLE CLASSES 2,EN CAS D'OUVERTURE,NE PAS REÇARDS DARIO NÉS LA FIÈSECAUL
FORSIGHT - YNLYG OS USYNL USYNL LASER STANDING KLASSE 2, NAR LAGET ER ALD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAB, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAC, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LAD, UNI LASER SATEFULA, ALA TUILOT A SATESEEN
VARIO - AVIAETTA OLET ALTTINA UINLOKAN 2 NAKYAA JN A NAKYMATONTA LASERSATEFULA, ALA TUILOT A SATESEEN
VARING - KLASZ 2 NLYNG OCH QSNYL2 LASER STRALNING NEN DENNA DEL AR OPPND, STRIRA EJ IN1 STRALEN.
VORSICH - SICHTBARE UNSUNISCHT BARE LASER STRAHILLING KLASSE 2, WENN BEACKUNG GOEFFNET, NINT IN DEN STRAHL BLICKEN.
注意 - 打开时有可见及不可见激光辐射。避免光束照射。
注意 - ごをきんにウリスの可视及び不可視一レ放射が出る リムをのを令まりますご

DANGER - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSUR TO BEAM. FDA21 CFR/CLASS III b

CAUTION - CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. IEC60825-1/CLASS 3B

ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE,CLASSE 3B, EN CAS D'OUVERTURE, EVITER UNE EXPOSITION AU FAISCEAU.

FORSIGHT - SYNGL NG USYNLG IR LASER STRALING KLASSE 3B, NAR LAGET ER ABENT, UNDA G AT BLY UDSAT FOR STRALEN.

VARO - AVTAETA SOLE AT ALTTINA UOKAN 3B NAKYVAJ JA NKAYMATONTA LASERSATEYILY, VARO ALTISTUMISTA SATELELLA.

VARNING - CLASS 3B SYNGL NG OCH OSYNLG IR LASER STRALING NEN DENNA DELR APNOND, UNDVIK EXPONERING FOR STRALEN.

VORSICH - SICHBARU AND UNSICHTARE LASER STRALING KLASSE 3B, WENN BEADOCKING GOEFNET, NICT HER STRAHL AUSSETZEN.

注意 - 打开时有可见及不可见激光辐射。避免光束照射。

注意 - ごをきしくごフクス3Bの可视及不可観し一はが射出る ミムの目及皮膚の被には状態！ 觺かの効力はうじてはい。VQL2Q40

Either of these labels is affixed to this unit.

(Inside of product)

Importer for Europe:

Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 11, 22525 Hamburg, Germany

EU

Panasonic Corporation

Web Site: http://www.panasonic.com
