Product Type	Drop-in food warming well (commercial cooking equipment)
Brand	Vollrath
Model	FC4DH03120I
Item Number	FC-4DH-03120-I
Number of compartments	3
Maximum pan capacity	Gastronorm pans up to 6 inches (15.2 cm) deep
Power supply	230 V / 400 V (depending on configuration)
Temperature range	Thermostat adjustment (position 0 = off)
Recommended holding temperature	At least 60 °C (140 °F) for food safety
Material	Stainless steel (estimated)
Intended use	Holding hot already cooked or prepared foods. Do not use to cook or reheat prepared dishes.
Controls	Rotary thermostat and power indicator light
Preparation before use	Preheat at maximum temperature for 30 minutes with compartments covered
Cleaning	Daily manual cleaning with soapy water. Remove bottom screen for cleaning. Do not use steel wool or caustic products.
Safety	Do not use unsupervised. Do not spray liquids on controls. Use only on a flat, horizontal surface. Do not use an extension cord.
Spare parts	Available at Vollrath.com
Repairability	Do not attempt to repair yourself. Contact Vollrath technical services.
Warranty	Vollrath warranty for professional use (see full statement on Vollrath.com)

Frequently Asked Questions - FC4DH03120I Vollrath

How to preheat the Vollrath FC4DH03120I unit?

Plug the unit into a suitable outlet. Turn the thermostat to maximum. Cover the compartments and let preheat for 30 minutes before placing food inside.

What is the maximum depth of Gastronorm pans can I use?

The manual states not to use pans deeper than 6 inches (15.2 cm). Deeper pans may damage the unit or cause injury.

Can I use plastic pans in this unit?

No, do not use plastic pans. They may melt or deform under heat. Use only suitable metal Gastronorm pans.

How to clean the unit?

After unplugging and letting the unit cool, remove the bottom screen. Wash it by hand in soapy water. Wipe the interior and exterior with a damp cloth or sponge. Do not use steel wool, caustic products, or descalers. Rinse thoroughly with clean water.

What to do if the unit does not heat enough?

Check that the supply voltage matches the rating plate. If correct, contact a qualified electrician. If the problem persists, do not repair the unit yourself; contact Vollrath technical services.

Can I use an extension cord?

No, the manual strongly advises against using extension cords. Plug the unit directly into a suitable grounded outlet. Do not use a power strip either.

What is the recommended holding temperature for food?

For food safety, keep food at a temperature of at least 60 °C (140 °F). US health services recommend this minimum temperature to prevent bacterial growth.

How to install the unit correctly?

The unit must be installed by qualified personnel. Place it on a flat, horizontal surface. Plug it only into a grounded outlet matching the rated voltage on the rating plate. Do not modify the cord or plug.

What to do in case of breakdown or malfunction?

Unplug the unit and let it cool. Do not attempt any repairs yourself. For assistance, contact Vollrath technical services with the item number, model, serial number, and proof of purchase.

Where to find spare parts for this unit?

Spare parts are available at Vollrath.com. Never send the unit directly to Vollrath without prior instructions from their technical service.

USER MANUAL FC4DH03120I Vollrath

HotDrop-inswithDryWells

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment.readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmentrifrepairssareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

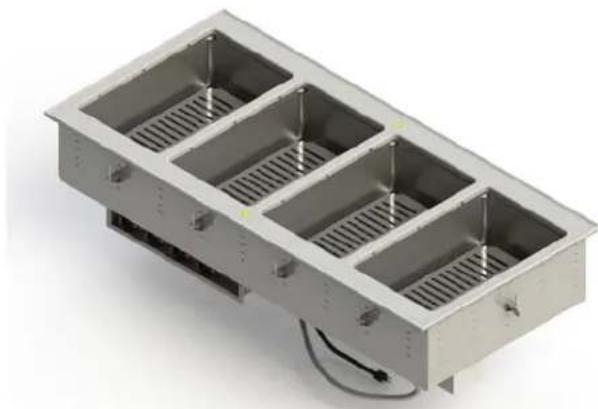

Toreduceriskofinjuryordamageototheequipment:

• Thisequipmentmustbeinstalledbyaqualifiedperson.
• Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify thecordorplugonthedrop-in. Modifying any component may damage the drop-inor cause injury, and will voidthewarranty. Seethespecifications sheeton Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
  -Thisequipmentshouldonlybeusedinaflat,levelposition
• Donotspraythecontrolsortheoutsideofquipmentwithliquidsor cleaningagents.
• Keep the equipment and powercord away from open flames, electric burners, excessive heat.
• Donotusefoodpansdeeperthan6"(15.2cm).
  -Notforusewithplasticpans.
• Donotoperateequipmentitifitisdamagedormalfunctioning.
• Donotoperatunattended
• Unplugandallowtheequipmenttocooolbeforecleaningormoving.
• Donotcleanthisequipmentwithsteelwool.

ItemNo. No.ofWells
FC-4DH-01120-I	One
FC-4DH-01208-I
FC-4DH-01120-T
FC-4DH-01208-T
FC-4DH-02120-I	Two
FC-4DH-02208-I
FC-4DH-02120-T
FC-4DH-02208-T
FC-4DH-03120-I	Three
FC-4DH-03208-I
FC-4DH-03120-T
FC-4DH-03208-T
FC-4DH-04208-I	Four
FC-4DH-04208-T
FC-4DH-05208-I	Five
FC-4DH-05208-T
FC-4DH-06208-I	Six
FC-4DH-06208-T

FUNCTIONANDPURPOSE

Thisdrop-inisintendedanddesignedtoholdcontainersoffoodat proprieterservingtemperatures.Hotfoodstationsarenotintendedor designedtocookrawfoodortoreheatpreparedfood.Foodmustbe preparedandplacedinfoodstationsatproperservingtemperatures. Thisequipmentisnotintendedforhousehold,industrialorlaboratory use.

A THUMBSCREW.Securesthedrop-intothemountingsurface.
B TEMPERATURECONTROL. Used to setor adjust the temperature of the well. The larger thenumber the higher the temperature, the smaller thenumber the lower the temperature. The "0" position is off.
C POWERINDICATORLIGHT.Illuminateswhenthewellisinthe heatingmode.

警告	WARNING
	ElectricalShockHazard Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Liquidinsidetheunitcouldcauseanelectricalshock.
Donotoverfillpansortrays.Liquidcouldcontacttheelectrical componentsandcauseashortcircuitoranelectricalshock.
警告	CAUTION
	BurnHazard Donottouchhotfood,liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Donotusefoodpansdeeperthan6'(15.2cm).

NOTICE: Donutuseplasticpans.

1. Plugelectricalpowercordintoaoutletthatmatchsterated voltageonthenameplate.
   2.Turnthetemperaturecontroltothemaximumheatsetting.Coverthe well(s).Preheatfor30minutes.
2. Placecontainersofhotfood, above 140^(60^) , intopreheated equipment.
   4.Reduceheatsettingtoalevelthatwillmaintinasafeholding temperatureandmaintainfoodquality.

NOTICE: Monitor food temperature closely for foodsafety. The United States Public Health Service recommends that food be held at a minimum of 140^(60^) to help prevent bacteria growth.

1. Usegloves, mittsorpotholderstoprotechandswhenremoving hotfoodcontainers.

CLEANING

CAUTION

BurnHazard Hotsurfacedsandfoodcanburnskin.Allowthehotsurfacedoolbeforehandling.

Tomaintaintheappearanceand increasetheservice life, clean your equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals,steelwoolor commerciallimeremovalproductstocleanthequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Remove hot food containers. Use gloves, mitts or holderstro protecthands
   2.Turnthetemperaturecontroltothe"0"setting.
   3.Unplugthedrop-in.
2. Allowthedrop-intocoolcompletely.
3. Removetheshieldfromthebottomofthewell.
   6.Handwashtheshieldinsoapywater.
   7.Drytheshield.
   8.Useadampclothspongedippedinsoapywatertocleanthe insideofthewellandtheoutsideofthecquipment.
4. Useadampclothspongeto thoroughlywipeoffthesoapywater.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Drop-indoesnotheattothe correcttemperature.	Loworincorrectvoltagetounit.	Verifythatvoltageratingonthedrop-inmatchesthesourcevoltage.If not,havealicensed发电lectricianinstallpropersourcevoltage.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation/productregistrationandnewproductannouncement,visitwww.vollrath.com.
