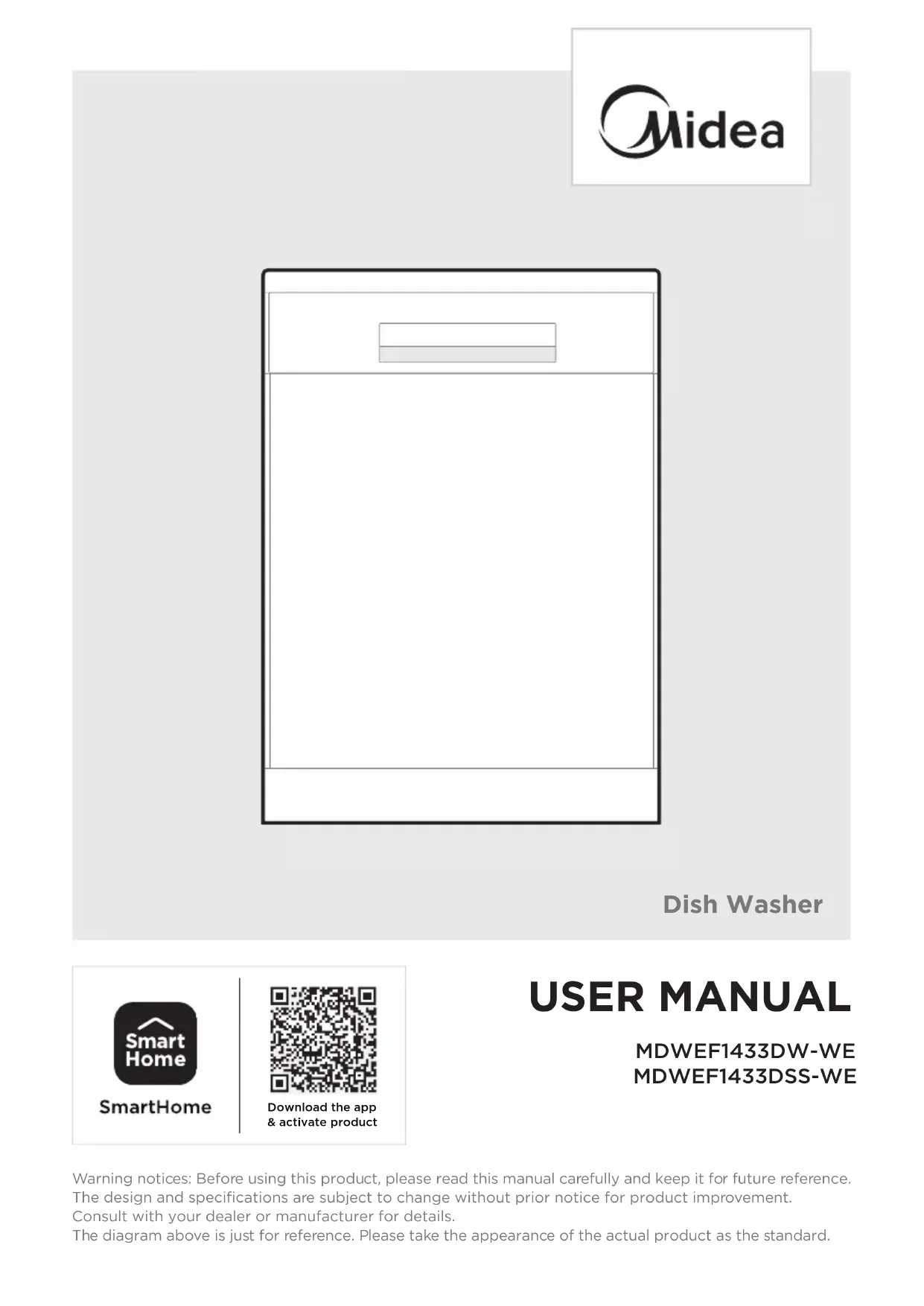

USER MANUAL MDWEF1433DSSWE MIDEA

PLACEHOLDERFOR QR CODETHANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and CONTENTS

CLEANING AND MAINTENANCE

DISPOSAL AND RECYCLING

DECLARATION OF CONFORMITY

ENIntended Use Explanation of Symbols SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Danger This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas. Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage. Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury. ENRead these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury. Attention The signal word indicates important information (e.g. damage to property), but not danger. Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions. EN04

When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1) Packaging material could be dangerous for children! Children should be supervised to ensure that they do not play with the appliance. This appliance is for indoor household use only. ENEarthing Instructions

To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance if it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is EN06

operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Warning: Knives and other utensils with sharp

points must be loaded in the basket with their points facing down or placed in a horizontal position. Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that there are no detergent residues after completion of the wash cycle. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. ENDisposal

To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction. The maximum number of place settings to be washed is 14. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa. For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. EN08 SPECIFICATIONS 845 mmHeight (H) Width (W) Depth (D1) Depth (D2) 598 mm 600 mm (with the door closed) 1175 mm (with the door opened 90°)

ENProduct information sheet (EN60436) (a) for the eco program.(b) changes to these items shall not be considered relevant for the purposes of paragraph4 of Article 4 of Regulation (EU) 2017/1369.(c) if the product database automatically generates the definitive content of this cell thesupplier shall not enter these data. Additional information:Minimum duration of the guarantee offered by the supplier ( ):B ( ) 1,00 2,00

1,065 9,8 Supplier's name or trade mark: Midea Europe GmbHSupplier's address ( ): Ludwig-Erhard-Straße 14 – 65760 Eschborn, DeutschlandModel identifier:MDWEF1433DW-WE/MDWEF1433DSS-WEGeneral product parameters:EEI ( )Cleaning performance index ( )Energy consumption in kWh [per cycle], based on the eco program using cold water fill. Actual energy consumption will depend on how the appliance is used.Program duration ( ) (h:min)Airborne acoustical noise emissions ( ) (dB(A) re 1 pW)Off-mode (W)Delay start (W) (if applicable) Water consumption in litres [per cycle], based on the eco program. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water. Type HeightWidthDepthEnergy efficiency class ( )Drying performance index ( )Free standingAirborne acoustical noise emission class ( )Standby mode (W)Networked standby (W) (if applicable)Dimensions in cmC ( )1,1250,747

3:40 1,00 N/A (d) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco designrequirements for household dishwashers pursuant to Directive 2009/125/EC of theEuropean Parliament and of the Council amending Commission Regulation (EC)No 1275/2008 and repealing Commission Regulation (EU) No 1016/2010(see page 267 of this Official Journal).Rated capacity ( ) (ps)

24 MonthsWeblink to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 ( ) ( ) is found:

www.midea.com ENPRODUCT OVERVIEW

Product IMPORTRANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. NOTE Pictures are only for reference, different models may be different. Cutlery rack Lower basket Upper spray armCup rack Upper basket Cutlery basket Inner pipe Salt container Dispenser Lower spray arm Filter assembly Top spray arm 360°Water spray system The breakthrough innovative spray arm uses two separate rotating axes to maximize water spray to all corners of the dishwasher, ensuring every item receives an exceptional clean.

Please read the corresponding content in the instruction manual for detailed operating method.

1.Install the dishwasher

3. Load the baskets.

5. Select a suitable program

and start the dishwasher.

4. Fill the dispenser with

detergent and rinse aid.

2. Remove larger residue

from dishes. Avoid pre-rinsing. ENAbout Power Connection Water Supply And Drain Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. The installation of the pipes and electrical equipments should be done by professionals. Electrical requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. Electrical connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. Ensure that proper earthing exists before use ordinary supply hosesafety supply hose WARNING WARNING Attention PRODUCT INSTALLATION

ENInsert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it. About the safety supply hose The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose

1. Pull the safety supply hoses out from storage compartment located at

2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn the water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.

2. Unscrew the safety supply hose from the faucet.

Connection Of Drain Hoses Please securely fix the drain hose in either position A or position B

MAX 1000 mm Counter Drain hose Back of dishwasher Water Inlet Drain Pipe Mains Cable 40 mm Drain Pipe

ENFree Standing Installation Type 1: Fitting between existing carbinets The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached. The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof. Extension hose If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.ance. Positioning The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Syphon connection The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dishwasher. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2° How to drain excess water from hoses If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. It will be necessary to drain excess water from the hose into a bowl or suitable container that is held outside and lower than the sink. Water outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ENType 2: Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). After removing the work top, the screws must be screwed again under the rear edge of the top (b). Attention

Selecting the best location for the dishwasher The installation position of the dishwasher should be near the existing inlet and drain hose and power socket. Illustrations of cabinet dimensions and installation position of the dishwasher.

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door

aligned to cabinet. 90 °90 °580mm820mm Electrical, drain and water supply line connectionSpace between cabinet bottom and floor600 mm(for 60cm model) 450 mm(for 45cm model)

2. If dishwasher is installed at the corner of the cabinet,

there should be some space when the door is opened. Depending on where your electrical outlet is, you may need tocut a hole in the opposite cabinet side. DishwasherDoor of dishwasherCabinetMinimum spaceof 50mm

Press the button for more than 3 seconds. After a short bleeping and the icon starts to blink slowly, it's in the network linking status to APP. Indicator light flashing slowly shows DW is waiting for connection. Indicator light flashing quickly shows DW is connecting. Indicator light always on shows DW is connected to your wireless router. Turn off the wireless: When the dishwasher is powered off, press the Connect button for 10 seconds to turn off the wireless. Repeat this operation to turn on wireless. Unbinding device: When the dishwasher is powered on, press the Connect button for 15 seconds to unbind the device. Connect indicator: If the network connection is not successful, the hotspot and Connect indicator will be automatically turned off after 10 minutes.

No.1 Press this button to turn on your dishwasher.Power This function allows you to lock the buttons on thecontrol panel, so children cannot accidently start thedishwasher by pressing the buttons on the panel.Only the Power button remains active.To lock or unlock the buttons on the control panel,press and hold the Program

buttons for3 seconds simultaneously. No.4 No.2 Connect Press these buttons to select the appropriatewashing program, the corresponding programindicator will be lit. No.3 ProgramChild lock

This program refers to a variety of washing programs that can be selected in the APP. Select the last washing program that was started in the APP, If the washing program has not been activated in the APP, the Glass will be activated by default. Glass For lightly soiled crockery and glass.

No.6 Press the button to select either upper basket or lower basket loaded, and the corresponding indicator will light up. Alt

No.10 After completing program and function selection or delay time setting, press this button to start. When the washing program is running, after the program is suspended by opening the door, press and hold this button for 3 seconds to cancel the current program and function. Start/Pause

Press the button to increase the delay start time. Delay a cycle for up to 24 hours in one-hour increments. No.5 Delay

No.7 After washing, the door will open automatically to achieve better drying effect.(It can't be used with Rapid) Press and hold the Delay button + Alt button for 3 seconds simultaneously to select or cancel this function. You can press the button to activate or remove the Auto Open option. The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality. Auto open No.11 Program indicators Rapid

A shorter wash for lightly soiled loads that do not need drying. 90 min

For normally soiled loads that need 90 min wash. IntensiveCare+

For the heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. Auto

Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.

This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware. ECO Whisper

Lower noise and normally energy consumption, used for washing in evening. No.12

No.8 To wash very dirty, hard to clean dishes. (It can't be used with Auto, Rapid, MachineCare+) Power Wash

No.9 Press the button to choose the time of 30min, 45min and 60min for Ion Dishfresh running seperately and the corresponding icon on the panel will be lit. Ion Dishfresh ENDescription

When you select Upper, only the dishes in the upperrack will be washed. The spray system of the lowerbasket will not operate.UpperChild lock When you select Lower, only the dishes in the lowerrack will be washed. The spray system of the upperbasket will not operate.Lower No.12No.13ScreenNo.14 Alt indicators To show the reminding time, delay time, error code etc.

Rinse AidIf the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.

Salt If the “ ” indicator is lit, it means the dishwasher islow on dishwasher salt and needs to be refilled. Child lock indicator. Water FaucetIf the “ ” indicator is lit, it means the water faucet closed. The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except for the ECO program. Programs ( )indicates that the program uses rinse aid in the last rinse. Program Description Of Cycle Running Time(min) Energy (kWh) Water (L) Rinse Aid Detergent Pre/Main Wash Auto Pre-wash (45

IntensiveCare+ This program provides an effective cleaning of the dishwasher itself.MachineCare+HygieneCare+Use to sanitize your dishes and glassware. Maintains the water temperature at 72°C.Cloud Wash EN: The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation. (*EN60436) NOTE Program Description Of Cycle Running Time(min) Energy (kWh) Water (L) Rinse Aid Detergent Pre/Main Wash Rapid HygieneCare+ MachineCare+

0.820Pre-washWash (72

Drying14.51.485159 Wash (45

Glass Pre-washWash (50

Drying14.91.415270 Whisper 4/18g1 or 2 tabs EN20 Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres Very small items should not be washed in the dishwasher as they could easily fall out of the basket. NOTE Are of limited suitability Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolor during washing Glazed patterns may fade if machine washed frequently Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in the following way: tems such as cups, glasses, pots, pans, etc. must face downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. ENRemoving the dishes To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. Loading the lower basket We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. Loading the cutlery rack Cutlery should be placed in the cutlery rack separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

EN22 LOADING THE BASKETS ACCORDING TO EN60436: Loading the dishwasher to its full capacity will contribute to energy and water savings. Number Item

Cups Saucers Glasses Mugs Small pot 1.Upper basket: 2.Lower basket: Number Item

Oven pot Dessert plates Dinner plates Soup plates Oval platter Melamine dessert plates Melamine bowls Glass bowl Dessert bowls

Soup spoons Forks Knives Tea spoons Dessert spoons Serving spoons Serving fork Gravy ladle 3.Cutlery rack: Information for comparability tests in accordance with EN60436 Capacity: 14 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

1. Lift the right basket up, both left and right baskets

2. Move the right basket from right to left, two basket

3. Remove the right basket from the tray, only has the

left basket. EN25 Easy removal of cutlery Using the principle of crank slider mechanism, the cutlery are suspended. Convenient finger goes deep under the knife and fork, and holds several cutlery at a time. Make the most of space It can accommodate dishes such as egg beaters, cups, etc., and does not affect the upper basket. Adjust the height of the rack Loosen the four buttons on the tray and press down gently. EN26 Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards Basket Loading Tips Adjusting the upper basket lower position

1. Pull out the upper basket. 2. Remove the upper basket.

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: upper position

4. Push in the upper basket.

Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. ENIf your model does not have any water softener, you may skip this section.Always use salt intended for dishwasher use. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. The salt container is located beneath the lower basket and should be filled as explained in the following: Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. NOTE Loading The Salt Into The Softener Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will turn off after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. WARNING The salt container must only be refilled when the salt warning light in the control panelcomes on. Depending on how well the salt dissolves, the salt warning light may still be oneven though the salt container is filled.If there is no salt warning light in the control panel (for some models), you can estimatewhen to fill the salt into the softener by the cycles that the dishwasher has run.If salt has spilled, run a soak or quick program to remove it. NOTE

EN1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes.

Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;

2. Within 60 seconds after the appliance was switched on press the Program

button for more than 5 seconds to enter the water softener setting mode.

button again to select the proper setting according to your local water hardness, the setting will change in the following sequence: H3->H4->H5->H6->H1->H2->H3;

4. Without operation in 5 seconds or press the Power button to complete the setup

British Clarke Mmol/l The factory setting: H3

EN29 Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. The Low Rinse Aid indicator ( )will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser. Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Do not fill detergent into the dispenser until you are ready to start the dishwasher. Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children. WARNING WARNING ENAdjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Close the door, switch on the appliance.

2. Within 60 seconds after the appliance was switched on press the Program

button for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

button again to select the proper set according to your using habits, the setting will change in the following sequence: d3->d4->d5->d1->d2->d3. The higher the number, the more rinse aid the dishwasher uses.

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setting mode.

Filling The Rinse Aid Reservoir The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

3. Close the cap after all.

1. Remove the rinse reservoir cap by

lifting up the handle .

2. Pour the rinse aid into the dispenser,

being careful not to overfill. EN31 Filling The Detergent Dispenser Please observe the manufacturer's recommendations on the detergent packaging. NOTE

1. Open the cap by pressing in the

2. Add detergent into the larger cavity

(A) for main wash. For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

3. Close the flap by sliding it to the front

and then pressing it down. Press in ENSaving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption

and is not recommended.

2. Washing tableware in a household dishwasher usually consumes less energy and

water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions. A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

Start/Pause button for more than 3 seconds the machine will be in program selection mode.

3. Press the Program “ < ” or “ > ” button to select the desired program.

4. Press the Start/Pause button, the dishwasher will start after a few seconds.

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.

Make sure that the water supply is turned on to full pressure.

4. Close the door, press the Power button.

5. Choose a program, the response light will turn on. Then press the Start/Pause

button, the dishwasher will start its cycle after a few seconds. Changing The Program Mid-cycle 3 sec

ENForget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.

2. After the spray arms stopped working, you can open the door completely.

3. Add the forgotten dishes.

5. Press the Start/Pause button, the dishwasher will continued to run.

It is dangerous to open the door mid-cycle, as hot steam may scald you. WARNING After 5 sec

How to use Ion Dishfresh? Ion Dishfresh sterilize the dishwasher and also keep it odor-free. It can work individually or within whole drying phase.

1. It works during the drying phase of a cycle. You don’t need to be set and it will keep

working at whole drying phase of a washing cycle acquiescently except for Rapid Cycle.

2. You can also run Ion Dishfresh function individually. You can set the time with 30 min,

45 min or 60 min on APP or and on dishwasher. After setting the time, the corresponding indicator on the panel will be lit. Press Start/Pause button, it will run. Inner door EN34

APP SETUP AND OPERATION

How to connect with SmartHome APP Before you start, make sure that:

1. Your smartphone is connected to home wireless network, and you know the

2. You are next to the appliances.

3. The 2.4GHz band wireless signal is enabled on your wireless router.

4. Turn on your mobile phone’s Bluetooth and allows the APP to discover the

smart device nearby. Connect your devices to SmartHome Washing machineConnect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation. If a message of "Smart devices discovered nearby" appears, click to add. Download the SmartHome app On an app market (Google Play Store, Apple App Store), search for SmartHome* and find the SmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below. Register and log in Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in. Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.Please power on your devices.Open SmartHome app on your phone.If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.Download the app & activate product EN35 NOTE

Make sure your devices are powered on.

Keep your mobile phone close enough to your device when you are connecting your device to the network.

Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.

Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, pleasecontact the router manufacturer.

The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels,restaurants, etc. Please connect to a wireless network that does not require authentication.

Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.

In the case that your device connected to a wireless network before but it needs to reconnect, please click "+" on the app Home page, andadd your device again by the device category and model according to the instructions on app. EN36 External Care

CLEANING AND MAINTENANCE

The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits.When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed. Internal Care Filtering system The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter. The control panel If cleaning is required, the control panel should be wiped with a soft damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. WARNING Pictures are only for reference, different models of the filtering system and spray arms may be different.

1. Hold the coarse filter and rotate

it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

2. The fine filter can be pulled off the

bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away. WARNING Main filterCoarse filterFine filter ENEN

3. Larger food remnants can be

cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

4. Reassemble the filters in the reverse

order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: Spray arms Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1. To remove the upper spray arm, hold

the nut in the center still and rotate the spray arm counterclockwise to remove it.

2. To remove the lower spray arm, pull

out the spray arm upward.

3. Wash the arms in soapy and warm

water and use a soft brush to clean the jets. WARNING ENFrost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump. After every wash, turn off the water supply to the appliance and leave the door slightly open for a while so that moisture and odors are not trapped inside. Before cleaning or performing maintenance, always remove the plug from the socket. To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Caring For The Dishwasher After every wash Remove the plug No solvents or abrasive cleaning When not in use for a long time Moving the appliance Seals EN39

TROUBLESHOOTING Possible reason SolutionProblem Dishwasher doesn't start Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Stained tub interior Spilled rinse aid. Always wipe up rinse aid spills immediately. Detergent with colourant may have been used. Make sure that the detergent has no colourant. Water not pumped form dishwasher Check that the water supply is connected properly and the water is turned on. Door of dishwasher not properly closed. Make sure to close the door properly and latch it. Twisted or trapped drain hose. Check the drain hose. Filter clogged. Check the filter system. Foam in the tub Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers. Fuse blown, or the circuit break tripped.

Power supply is not turned on.

Water pressure is low

Kitchen sink clogged.

Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 liter of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. EN40 Possible reason SolutionProblem There are rust stains on cutlery The affected items are not corrosion resistant. Avoid washing items that are not corrosion resistant in the dishwasher. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Knocking noise in the dishwasher Rattling noise in the dishwasher The lid of the softer is loose. Check the softener lid is secure. Interrupt the program and rearrange the items which are obstructing the spray arm. Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes The dishes are not clean This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. See the “Preparing And Loading Dishes”. Select a more intensive program. Not enough detergent was dispensed. Use more detergent, or change your detergent.

A spray arm is knocking against an item in a basket

Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.

White spots appear on dishes and glasses. Hard water area can cause limescale deposits. Check water softener settings or fill status of salt container.

The dishes were not loaded correctly. The program was not powerful enough.

EN41 Possible reason SolutionProblem Black or grey marks on dishes Detergent left in dispenser Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't drying Use gloves if detergent residue can be found on dishes to avoid skin irritations. With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.

Dishes are removed too soon Wrong program has been selected.

Use of cutlery with a low-quality coating.

Seven years after placing the last unit of the model on the market: Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software. Ten years after placing the last unit of the model on the market: Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids. Availability Of Spare Parts Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty. Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. WARNING EN42 Possible reason SolutionProblem

Faucets is not opened, or water intake is restricted, or water pressure is too low. Not reaching required temperature. Malfunction of heating element. Overflow. Some element of dishwasher leaks. Failure of orientation of distributary valve. Open circuit or break of distributary valve. Longer inlet time.

Failure of communication between main circuit board with display circuit board. Open circuit or break wiring for the communication

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. If there is an error code that cannot be solved, please request professional assistance. ERROR CODES If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. WARNING EN43 logo, word marks, trade name, trade dress and all versions thereof are trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs. TRADEMARKS, COPYRIGHTS

ENImportant instructions for environment Compliance with RoHS Directive Package information

DISPOSAL AND RECYCLING

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environ- ment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. EN45

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer, we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR). Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area. Further information are provided on request. You can contact our Data Protection [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code. ENRED Declaration of Conformity (DoC)

DECLARATION OF CONFORMITY

We, Midea Europe GmbH Ludwig-Erhard-Straße 14 – 65760 Eschborn, Deutschland Declare under our sole responsibility that the product: Product name: Dishwasher Trade name: Midea Type or model: WQP12-W7633D(MDWEF1433DW-WE/MDWEF1433DSS-WE) Relevant supplementary information: .............................................................................. (e.g. lot, batch or serial number, sources and numbers of items) To which this declaration relates is in conformity with the essential requirements and other relevant requirements of the RE Directive (2014/53/EU). The product is in conformity with the following standards and/or other normative documents: HEALTH & SAFETY (Art. 3(1)(a)): EN 62311:2008, EN 50665:2017, EN 60335-2-5:2015, EN 60335-1:2012/A2:2019, EN 62233:2008 EMC (Art. 3(1)(b)): ETSI EN 301 489-17 V3.2.4 (2020-09) , ETSI EN 301 489-1 V2.2.3 (2019-11) , EN 55014-1:2017, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013/A1:2019 SPECTRUM (Art. 3(2)): ETSI EN 300 328 V2.2.2 (2019-07) OTHER (incl. Art. 3(3) and voluntary specs):

(title and/or number and date of issue of the standard(s) or other normative document(s)) Limitation of validity (if any): .............................................................................................................. Supplementary information: Notified body involved:............................................................................. Technical file held by:. Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd. Place and date of issue (of this DoC): .Foshan/2020-12-25............................. Signed by or for the manufacturer: ................................... (Signature of authorised person) Name (in print):.............Ke Ningsheng...................... Title:............................Product Engineer.................. ENWarranty policy / service We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance. However, if you recognize a reason for a complaint, please contact us: Midea Europe GmbH Phone: [phone] - 0 Ludwig-Erhard-Str. 14 Fax: [phone] 65760 Eschborn In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device). A precise fault description saves you time and money. For special questions, please contact the customer service center. Before calling for service: Please check whether there is an operating error or a cause that has nothing to do with the function of your device. Please observe the note in the user manual and check whether: - The power plug is connected - The power plug may be damaged - Electricity is available Warranty terms This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 24 months from the date of sale to the end user. The unit is not suitable for commercial use. The claim under guarantee lapses in the event of intervention by the Buyer or by a third party. Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [...] of God or other external factors shall not be covered by this warranty. When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device. Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase. Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence. The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany. Importer by: Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn Germany Email: [e-mail] Homepage: www.midea.com/de In case of service: Phone: [phone] - 0 Fax .: [phone] Email: [e-mail]

INSTALLATION DU PRODUIT

INSTALLATION DU PRODUIT
