Product Type	Industrial Computer
Brand	Advantech
Model	UTC307G
Power Supply	UL certified power adapter 12 V DC, 3 A minimum (DC input) or 56 V DC, 0.5 A minimum (PoE input), LPS marking or limited power source
Internal Battery	Battery for real-time clock circuit, replacement by qualified technician only
Cleaning	Damp cloth, no liquid detergents or sprays, avoid moisture
Repairs	Trained service personnel only, Advantech service contract recommended
Electrical Safety	Do not open while powered, unplug before cleaning, do not expose to moisture
Maximum Ambient Temperature	40°C (Tma)
Main Functions	Industrial computer for embedded applications, real-time clock, PoE power supply
Maintenance	Have checked by qualified service in case of damage, fall, liquid, malfunction
Battery Disposal	In accordance with manufacturer's instructions

Frequently Asked Questions - UTC307G Advantech

What power supply should I use for the Advantech UTC307G?

Use a certified UL power adapter with an output of 12 V DC, 3 A minimum or a PoE power source of 56 V DC, 0.5 A minimum, with LPS marking or limited power source.

Can I replace the battery myself?

No, do not replace the battery yourself. Contact a qualified technician or your distributor. There is a risk of explosion if the battery is replaced incorrectly.

How to clean the industrial computer?

Unplug the device before cleaning. Use a damp cloth without liquid detergents or sprays. Avoid any contact with moisture to prevent short circuits.

What to do if liquid enters the equipment?

Take the device out of service as soon as possible and contact service personnel to ensure safety is not compromised.

Can I use the device without the provided power adapter?

Yes, the device can be powered via PoE (Power over Ethernet) with a UL certified source of 56 V DC, 0.5 A minimum.

The computer clock does not keep the correct time, what to do?

This may indicate that the battery of the real-time clock is discharged. Please contact a qualified technician to replace it.

Is it safe to open the device cover?

No, never remove the cover when the device is operating or plugged in, due to risk of electric shock. Repairs must be performed by trained personnel.

What is the recommended maximum temperature for use?

The maximum ambient temperature (Tma) is 40°C.

What to do if the power cable is damaged?

Have the equipment checked by service personnel. Do not use a damaged cable to avoid electrical hazards.

Where can I get a copy of the manual in French?

You can download the manual in PDF format for free on notice-facile.com. If it is not available in French, you can request a translation by providing your email.

USER MANUAL UTC307G Advantech

Before you start to set up UTC-307, please make sure that the following items have been shipped:

UTC-307

1 x UTC-307 unit
1 x Power Adaptor 12V/3A (36WITE adaptor)*[1]

If any of these items are missing or damaged, please contact your distributor or sales representative immediately.

*[1] There is no Power Adapter included for PoE SKU.

Caution!

• UTC-307 (PoE) – A PoE Powered Device (PD) is a device powered by a PSE and thus consumes energy. Always use Power Sourcing Equipment (PSE) which follows IEEE 802.3at PoE standard, also known as PoE + or PoE plus, which provides up to 30W of DC power output. Only 25.5 W input is assured to be available at the powered. The equipment is only to be connected to PoE networks without routing to outside plants.

Family models:

UTC-307GP-ATBOE
UTC-307GP-ATB1E
UTC-307GP-ATW0E
UTC-307GP-ATW1E
UTC-307GG-ATBOE
UTC-307GG-ATB1E
UTC-307GG-ATW0E
UTC-307GG-ATW1E

Technical Support and Assistance

Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product.

Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

Product name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages

VESA mount dimension: 75mm× 75mm

Screw size: M4*4L R/S(W) D=9 H=3

For more information on this and other Advantech products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our support website at:

http://service.advantech.com.tw/eservice/

This manual is for the UTC-307 series Rev. A.

Part No. 2048030700

1st Edition

Printed in China

December 2018

Specifications

Processor System	CPU	Intel® Celeron® N3350 (UTC-307G)	Intel® Pentium® N4200 (UTC-307G)
	Base Frequency 1.10 GHz	(Dual-Core) 1.10 GHz (Quad-Core)
	Cache L2 Cache 1MB L2	Cache 2MB
	Memory	1 x SO-DIMM DDR3L 1866 MHz up to 8 GB	1 x SO-DIMM DDR3L 1866 MHz up to 8 GB
	Storage 1 x M.2 2242 SSD
	Network (LAN) 2 x Gigabit	Ethernet ports (Supports Wake on LAN)
	I/O ports	2 x RS-232 COM (COM2 RS-232/422/485 with surge protect)2 x USB3.0 / 2 x USB3.0 (optional)2 x Gigabit Ethernet ports (1 with PoE)
	Stereo Speaker 1 x 2W
	Bus expansion 1 x M.2 key	2230, 1 x M.2 key2242
	Mounting VESA 75 x 75 mm
	Dimensions (W x H x D) 18	3 x 120 x 31 mm
	Weight 0.95kg (2.09lbs)
OS Support	Win 10 IoT Enterprise 64bit Android 6.0 Linux Ubuntu 18.04
Environmental Specifications	Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F)
	Relative Humidity 10 ~ 95% @ 40 °C non-condensing
	Vibration 1G*
	Shock 10G peak acceleration (11 msec. duration)
	Certification	CE, FCC, CB, UL, CCC, BSMI
	Front Panel Protection	IP 65 Compliant
Power Supply	DC Input Rating	12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter
	PoE	Optional IEEE 802.3at/30W
	Power consumption	Typical: 10WMax.: 20W
LCD Display	Size/Type	7" TFT LCD with LED backlight
	MaxResolution 800 x 480
	Max. Color	262K
	Pixel Pitch (um)	192.6 x 179
	Brightness (cd/m2)	450
	View Angle	140°/ 160°
Touch Screen Option (PE/GE)	Type	Projected Capacitive. Glass Panel
	Light Transmission	80% ± 5% / 90%
	Controller	USB Interface

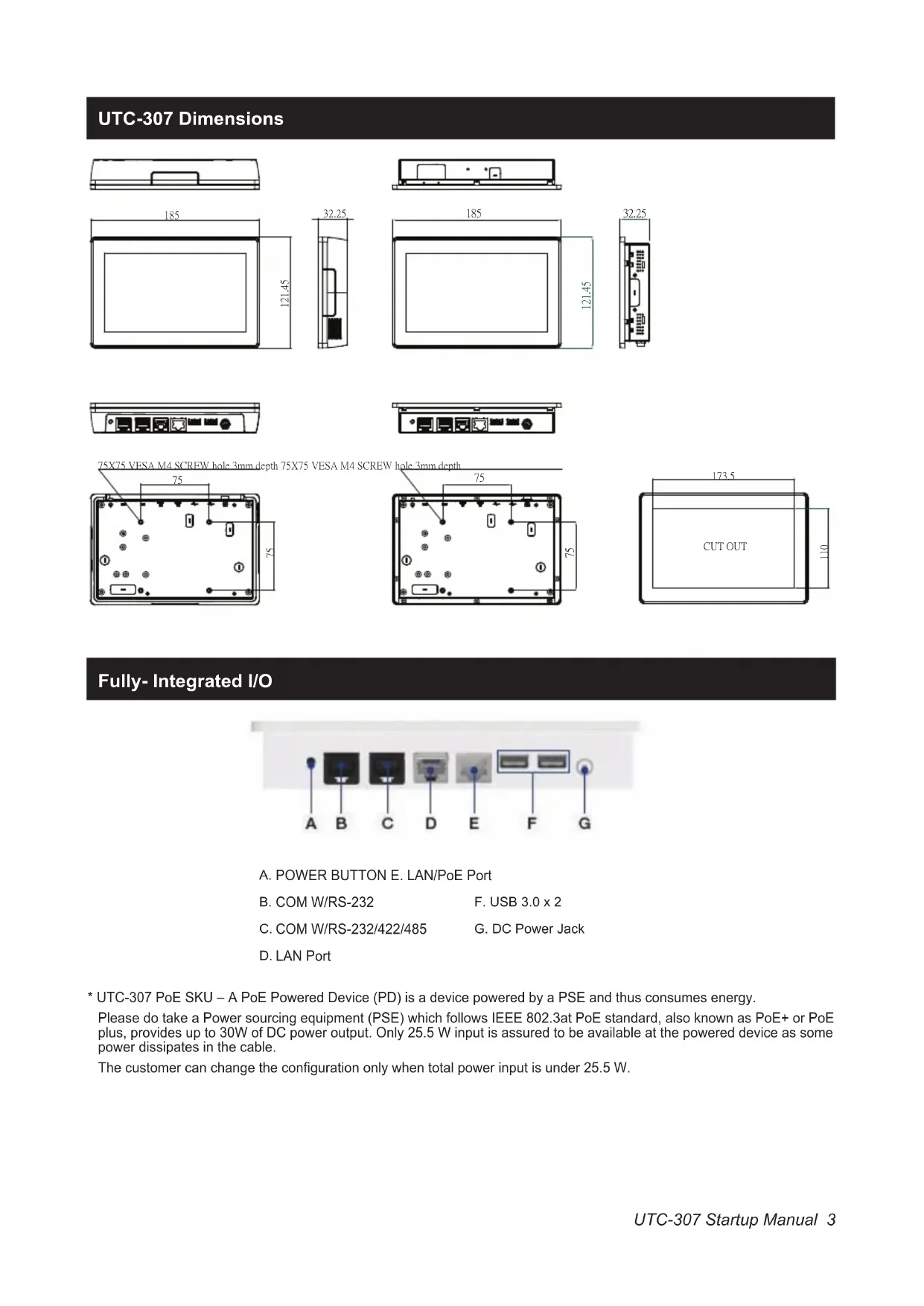

UTC-307 Dimensions

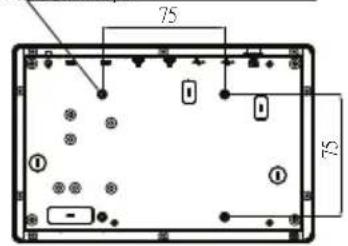

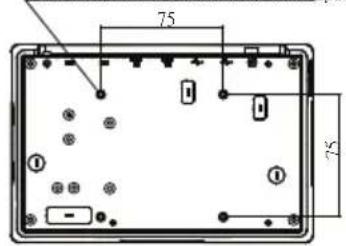

75X75 VESA M4 SCREW hole 3mm depth 75X75 VESA M4 SCREW hole 3mm depth

Fully- Integrated I/O

A. POWER BUTTON E. LAN/PoE Port

B.COM W/RS-232

F. USB 3.0 × 2

C.COM W/RS-232/422/485

G. DC Power Jack

D.LAN Port

• UTC-307 PoE SKU - A PoE Powered Device (PD) is a device powered by a PSE and thus consumes energy.

Please do take a Power sourcing equipment (PSE) which follows IEEE 802.3at PoE standard, also known as PoE+ or PoE plus, provides up to 30W of DC power output. Only 25.5 W input is assured to be available at the powered device as some power dissipates in the cable.

The customer can change the configuration only when total power input is under 25.5 W.

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

15. The power cord or plug is damaged.

16. Liquid has penetrated into the equipment.
17. The equipment has been exposed to moisture.
18. The equipment does not work well, or you cannot get it to work according to the user's manual.
19. The equipment has been dropped and damaged.

20. The equipment has obvious signs of breakage.

21. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -10°C OR ABOVE 60°C. THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

22. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Follow these simple precautions to protect yourself from harm and the products from damage.

1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it.
2. For the sake of the equipment, disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.
3. Electronic components are also vulnerable to damage by electrostatic discharge. An electrostatic charge can build up on the human body, especially where the air is dry. At minimum, dissipate potential body charge before handling any electronic board by touching a conductive surface on the chassis. Only then remove circuit boards from their antistatic bags. Handle boards by the edges or mounting brackets only; do not touch components or connecting pins.

This product is intended to be supplied by an UL certified power adapter or UL certified DC source rated 12Vdc, 3A minimum (DC IN) or 56Vdc, 0.5A minimum (PoE IN), Tma 40 degree C, marked LPS or Limited Power Source, if need further assistance, please contact Advantech for further information.

• Replacement of a BATTERY with an incorrect type that can defeat a SAFEGUARD (foreample,in the case of some lithium BATTERY types).
• Disposal of a BATTERY into fire or a hot oven,or mechanically crushing or cutting of aBATTERY,that can result in an explosion.
• Ensure to connect the power cord to a socket-outlet with earthing connection
