| Product Type | Wireless gaming headset |
| Brand | SteelSeries |
| Model | Arctis Nova 3P Wireless |
| Connectivity | Wireless 2.4 GHz (USB-C dongle) + Bluetooth 5.0 |
| Compatibility | PlayStation 5, PC, Nintendo Switch, Quest, Android, iOS |
| Estimated Weight | ~300 g |
| Estimated Dimensions | 180 x 200 x 80 mm |
| Power | Rechargeable lithium-ion battery via USB-C |
| Estimated Battery Life | 20 hours (depending on usage) |
| Microphone | Detachable ClearCast microphone with pop filter |
| Audio Features | ChatMix, Quick-Switch (2.4 GHz/Bluetooth), media controls, equalizer via SteelSeries GG |
| Controls | Volume/multifunction wheel, mute button, power button |
| LED Display | LED ring for connection and battery status |
| Included Accessories | USB-C dongle, USB-C to USB-C cable (30cm), detachable microphone, pop filter |
| Companion Software | Arctis Companion App (mobile) and SteelSeries GG (PC) |
| Maintenance | Clean with a soft, dry cloth. Avoid moisture and extreme temperatures |
| Safety Instructions | Risk of hearing loss at high volume. Do not expose to water. Use recommended battery |
| Repairability | Spare parts available from manufacturer. Battery replaceable only by a professional |
Frequently Asked Questions - Arctis Nova 3P Wireless STEELSERIES
User questions about Arctis Nova 3P Wireless STEELSERIES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Headphones in PDF format for free! Find your manual Arctis Nova 3P Wireless - STEELSERIES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Arctis Nova 3P Wireless by STEELSERIES.
USER MANUAL Arctis Nova 3P Wireless STEELSERIES
PRODUCT INFORMATION GUIDE GUIDE D'INFORMATION SUR LE PRODUIT
TABLE OF CONTENTS
General 3
Product Overview 4
Quick Start Guide 6
Setup 7
Power 8
Dongle Pairing 8
Bluetooth 9
Quick-Switch 9
ChatMix 9
Multimedia Controls 10
Microphone 11
Perfect Fit 12
Français 14
Regulatory//Réglementaire 26
GENERAL
PACKAGE CONTENTS
Arctis Nova 3P Wireless Headset
Detachable ClearCast Microphone
Microphone Pop Filter
USB-C Wireless 2.4 GHz Dongle
USB-C to USB-C Charging Cable
(30cm/12°)
SYSTEM COMPATIBILITY
PlayStation 5
PC
Nintendo Switch
Handheld
Android
Quest
ARCTIS COMPANION APP
Complete your setup with fast access to custom sound settings from your smartphone with the Arctis Companion App. Enjoy over 100+ game audio presets in-game or on the go.
DOWNLOAD NOW - steelseries.com/arctis-companion
app
STEELSERIES GG
Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic.
GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools.
DOWNLOAD NOW - steelseries.com/gg

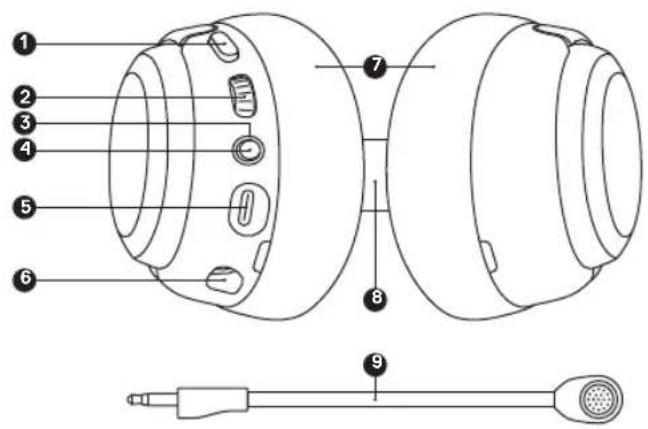

HEADSET
1 Microphone Mute Button
2 Volume Wheel and Multi-Function Button
3 LED Ring
4 Power Button
5 USB-C Charging Jack
6 Detachable ClearCast Microphone Jack
7 Airweave Ear Cushions
8 Elastic Headband*
9 Detachable ClearCast Microphone
USB-C WIRELESS 2.4 GHZ DONGLE
10 Pairing Button
ACCESSIONS
11 USB-C to USB-C Charging Cable*
12 Microphone Pop Filter

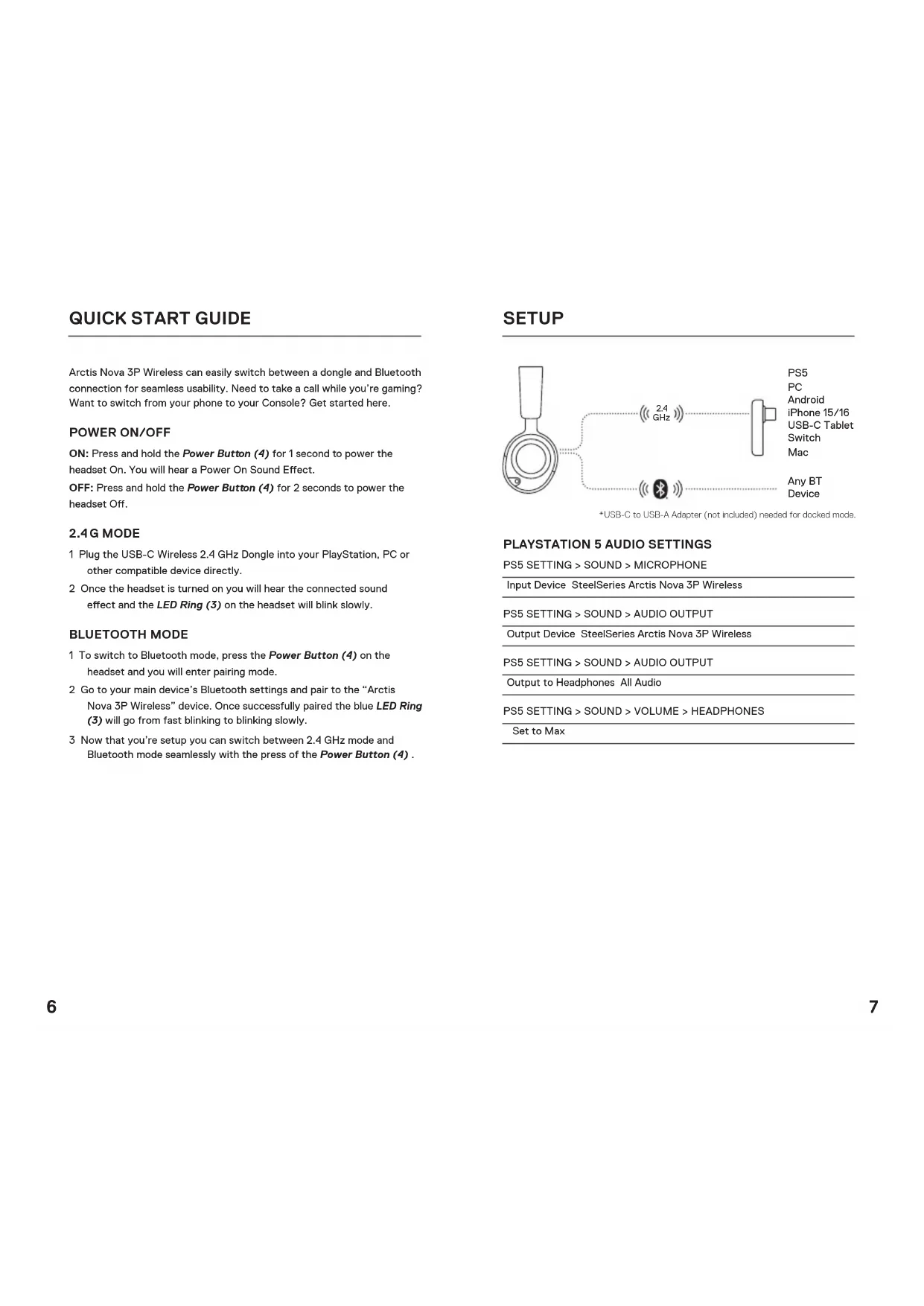

QUICK START GUIDE
Arctis Nova 3P Wireless can easily switch between a dongle and Bluetooth connection for seamless usability. Need to take a call while you're gaming? Want to switch from your phone to your Console? Get started here.
POWER ON/OFF
ON: Press and hold the Power Button (4) for 1 second to power the headset On. You will hear a Power On Sound Effect.
OFF: Press and hold the Power Button (4) for 2 seconds to power the headset Off.
2.4G MODE
1 Plug the USB-C Wireless 2.4 GHz Dongle into your PlayStation, PC or other compatible device directly.
2 Once the headset is turned on you will hear the connected sound effect and the LED Ring (3) on the headset will blink slowly.
BLUETOOTH MODE
1 To switch to Bluetooth mode, press the Power Button (4) on the headset and you will enter pairing mode.
2 Go to your main device's Bluetooth settings and pair to the "Arctis Nova 3P Wireless" device. Once successfully paired the blue LED Ring (3) will go from fast blinking to blinking slowly.
3 Now that you're setup you can switch between 2.4 GHz mode and Bluetooth mode seamlessly with the press of the Power Button (4).

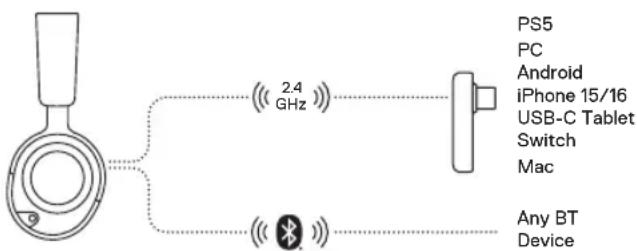

SETUP
*USB-C to USB-A Adapter (not included) needed for docked mode.
PLAYSTATION 5 AUDIO SETTINGS
PS5 SETTING > SOUND > MICROPHONE
Input Device SteelSeries Arctis Nova 3P Wireless
PS5 SETTING > SOUND > AUDIO OUTPUT
Output Device SteelSeries Arctis Nova 3P Wireless
PS5 SETTING > SOUND > AUDIO OUTPUT
Output to Headphones All Audio
PS5 SETTING > SOUND > VOLUME > HEADPHONES
Set to Max
POWER
CHARGING
To charge the headset, connect the USB-C to USB-C Charging Cable* (11) from the Headset's USB-C Charging Jack (5) to any USB power source.
The color of the power LED indicates the battery level.
Green 100-51%
Yellow 50-15%
Orange 14-6%
Red 5-1%
DONGLE PAIRING
Note: The headset and dongle come paired.
If you need to re-pair:
1 Connect the USB-C Wireless 2.4 GHz Dongle to your gaming device.
2 Press and hold the Dongle's Pairing Button (10) for 4s.
3 Headset On - Press the Power Button (4) 3 times until you hear "2.4 G Pairing Mode" and the Headset's LED Ring (3) blinks rapidly. Headset Off - Press and hold the power button for 4s until the Headset's LED Ring (3) blinks rapidly.
4 When pairing is successful you will hear the Connected Sound Effect and the LED Ring (3) will blink slowly.
BLUETOOTH
Bluetooth can be used independently from 2.4 GHz Wireless by pressing the Power Button (4) and hearing "Bluetooth Mode".
PAIRING
Headset on - Press the Power Button (4) 3 times until you enter pairing mode and the Headset's LED Ring (3) blinks rapidly blue. To switch between dongle and BT pairing mode, press the Volume Wheel and Multi-Function Button (2).
Headset off - Press and hold the Power Button (4) for 4s until the Headset's LED Ring (3) blinks rapidly. If the headset is in dongle pairing mode, press the Power Button (4) to switch to Bluetooth pairing mode.
QUICK-SWITCH
Switch between 2.4 G & Bluetooth mode by pressing the Power Button (4).
CHATMIX
Note: ChatMix on PC only works via Sonar ChatMix not supported on PlayStation
To toggle between Volume control and ChatMix press the Volume Wheel and Multi-Function Button (2) for 2 seconds. You will hear a sound effect indicating you have switched modes. Sound effects play for Maximum Game and Chat levels, a different sound effect plays for the middle level between Game and Chat.
MULTIMEDIA CONTROLS
Play/Pause Music
Single · press the Volume Wheel and Multi-Function Button (2)
SKIPTRACK
Double...press the Volume Wheel and Multi-Function Button (2)
Previous Track
Triple...press the Volume Wheel and Multi-Function Button (2)
Answer/End Voice Call
Single · press the Power Button (4)
(If a call is answered in 2.4 GHz mode, the Headset will switch to
Bluetooth mode and will return back to 2.4 GHz mode after the call.)
ignore Call
Double...press the Power Button (4)
Increase Call volume
Rotate the Volume Wheel and Multi-Function Button (2) up
Decrease Call Volume
Rotate the Volume Wheel and Multi-Function Button (2) down
MICROPHONE
DETACHABLE MICROPHONE
Out of the box, the Detachable ClearCast Microphone (9) is detached. To use the Microphone, put it in the Detachable ClearCast Microphone Jack (6).

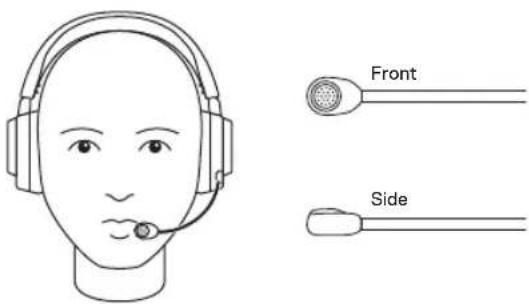

POSITIONING
Position the Detachable ClearCast Microphone (9) close to the corner of your mouth with the front surface facing you.

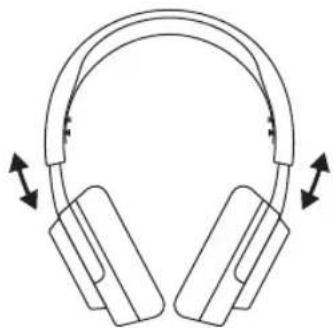

PERFECT FIT
There are two ways to adjust the fit of your headset.
Slide the Earcups up or down to change the overall height.
Change the position of the Elastic Headband (8) on one or both sides to achieve the desired tension and flex.
TABLE DES MATIÈRES
Général 15
Apercu produit 16
Vert 100-51%
Jaune 50-15%
Orange 14-6%
Rouge 5-1%
APPAIRAGE DU DONGLE
Europe - EU Declaration of Conformity
Hereby, GN Hearing A/S, declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/63/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/36000125611-Other-Stuff
GN Hearing A/S, hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for all of products.
Operating Temperature: 0^ to +40^
Frequency bands and Powers (Earbuds and Transceiver)
a Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
EIRP: GFSK: 9.19 dBm (Headset)
EIRP: /4 -DQPSK:6.70dBm(Headset)
EIRP:8DPSK:6.62dBm(Headset)
EIRP:GFSK:9.28dBm(Transceiver)
EIRP: /4 -DQPSK:7.33dBm(Transceiver)
EIRP:8DPSK:7.63 dBm (Transceiver)
c Firmware Version: V0.0.7
The power delivered by the charger shall be between min 0.25 Watts required by the radio equipment, and max 2.5 Watts in order to achieve the maximum charging speed.
Charging Care
If product is charged with a USB cable, use only a suitable USB cable which is in good condition and charge/power the product according to the instructions.
The power delivered by the charger shall be between min 0.25 Watts required by the radio equipment, and max 3.5 Watts in order to achieve the maximum charging speed.
AUDIO PRODUCT WARNING!
PERMANENT HEARING LOSS MAY RESULT FROM LONG-TERM EXPOSURE TO SOUNDS AT HIGH VOLUMES. USE AS LOW A VOLUME AS POSSIBLE.
WEEE
European Union: Product, Batteries, battery packs, and accumulator should not be disposed of as unsorted household waste.
Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Safety Guideline for Using Lithium Battery Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.
Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user's manual should be noted.
Keep this equipment away from humidity and high temperature.
- Do not leave the equipment in an unconditioned environment with a storage temperature above 60^ ( 140^ ) or below
0^ (32°F), which may damage the equipment.
This unit should be operated under maximum ambient temperature of 40^ (104°F).
To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.
Always keep the battery in a safe place.
Caution: Do not continue using the battery if it is
swollen. UK Declaration of Conformity
Hereby, GN Hearing A/S. declares that the following equipment, which is compliance with Electromagnetic Compatibility Regulations 2018, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy.
The full text of the UK declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement: the device can be used in portable exposure condition without restriction.
The portable device is designed to meet the requirements for exposure to radio waves established by the FCC. These requirements set a SAR limit of 0.21/fg (W/Kg) (Headset), 0.66 w/kg (Transceiver) averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.
FCC ID:ZHK-HS40
FCC ID: ZHK-HS40TX (Transceiver)
Product Name: Wireless Headset
Product Name: Transceiver
Model No.: HS40TX
Model No.: H340
Rated:
5V=
500mA
Rated: 5V 50mA
Made in Vietnam
Accessories Information:
Product: Rechargeable Lithium-Ion Battery
Rated Capacity: 490mAh
Model No.:432932
Rated Energy:1.87Wh
Rated Voltage: 3.8V
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
1 this device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
The County Code Selection feature is disabled for products marketed in the US/ Canada.
The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.
The portable device is designed to meet the requirements for exposure to radio waves established by the ISFD. These requirements set a SAR limit of 0.21/1g (W/Kg) (Headset), 0.66 w/kg (Transceiver) averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.
ACCA Compliance Australia/New Zealand)
Malaysie Approval (SIRIM)
Sringapcre aporova (IMDA) R-NZ Complianee (New-Zeaand)
| Region Address Telephone | ||
| Asia | GN Audio Taiwan Ltd. 4F and 4F-4, No. 186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) | +886 2 8227 1999 |
| Europe | GN Hearing A/S Lautrupbjerg 7, 2750 Ballerup Denmark Havneholmen 8, 1st floor 2450 Copenhagen SV Denmark | +45 702 500 75 |
| USA | GN Hearing Care Corporation 656 W Randolph St., Suite 3E Chicago, IL 60681, USA 8001 Bloomington Freeway Bloomington, MN 55420, USA 900 Chelmsford Street, Tower II, 8th Floor, Lowell, MA 01851, USA. | +1 312 258 9467 |
More information and support from steelseries.com
FRANÇAIS
AUDIO PRODUKTWARNUNG!
DAUERHAFT HOHE LAUTSTARKEN KONNEN ZU PERMANENTEM HÖRVERLUST Führen. BESCHRÄNKEN SIE DAHER DIE LAUTSTARKE AUF EIN MINIMUM.
ADVARSEL OM LYDPRODUKT!
PERMANENT TAB AF HORELSE KAN KOMME AF LANGVARIG USDAETTELSE FOR HOJE LYDE. BENVT EN SA LAV LYDSTYRKE SOM MULIGT.
Produkt skal bortskaffes I overensstemmelse med lokale bestemmelser og love.
SVENSKA
- 3A/3A GN Audio A/S/China
日本語
才一才製品二周告！
| 型号名称: 总线工控型货(格式): HS40(工控)Equipment name: Wireless HeadsetType designation: HS/DTX (收货器) | ||||||
| 单元Unit | 限用物料及其化管理Restricted substances and its chemical symbols | |||||
| 铅Lead(Pb) | 汞Mercury(Hg) | 镉Cadmium(Cd) | 六角络Hexavalentphnomum(Cr+1) | 多溴联苯Poly-brominated biphenyls(HBH) | 多溴二苯醚Poly-brominated diphenyl ethers(PSDE) | |
| 塑膜部件Plastic | ○ | ○ | ○ | ○ | ○ | ○ |
| 灌胶板及元件PCBA | × | ○ | ○ | ○ | ○ | ○ |
| 规模Cables | × | ○ | ○ | ○ | ○ | ○ |
| 金属部件Metal | × | ○ | ○ | ○ | ○ | ○ |
| 符号1 “超出0.1 wt %”及“超出0.01 wt %”指除限用物质之百分比含量超出百分之百计含量基辛值。Note 1 “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition。符号2 “附着该项限用物第/百分之百比含量未超出百分之百计含量基辛值。Note 2 “indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence。符号3 “除非该项限用物第/百分之百计含量排除任何。Note 3 “Indicates that the restricted substance corresponds to the exemption | ||||||
产品名称：無綠耳機
产品名称：接收器
型號：
HS40
型号：HS40TX
規格：
5V=
規格：5V 50mA
配件讯息
產品：可充電式處理離子電池組
标称重座：3.8V
型號：432932
充电限制电压：4.35V-
All SteelSeries products have parts that can be recycled and repurposed. You can help by taking your electronic, not just SteelSeries products, to local retailers and drop-off points to ensure they are processed properly.
For more information on recycling your SteelSeries product visit steelseries.com/sustainability/ recycling
