CTD570 - Vacuum Cleaner Numatic - Free user manual and instructions

Product Type	Wet and dry vacuum cleaner with spray and extraction function
Brand	Numatic
Model	CTD570
Usage	Indoor; suitable for commercial use (hotels, schools, hospitals, factories, etc.)
Power Supply	Mains, voltage 230 V – Power cable 10 m (HO5VV-F 2×1.5 mm²)
Frequency	50/60 Hz
Power	Not specified (estimated: 1200 W)
Tank Capacity	Approximately 30 L (estimated)
Gross Weight	Approximately 15 kg (estimated)
Dimensions	Not specified
Filtration Type	Filter bag and suitable filter; filtration system for fine dust
Main Functions	Dry vacuuming, liquid vacuuming, spray and extraction for carpet and upholstery cleaning
Safety	Safety float valve limiting water level; automatic shut-off in case of foam or liquid overflow
Routine Maintenance	Regular cleaning of the machine, tubes, hose, accessories; frequent emptying of the container; checking the bag and filter
Repairability	Original Numatic spare parts required; repairs by a qualified person; cable replacement with original part
Electrical Protection	Double insulation (Class II)
Environment	Compliant with WEEE directive (2012/19/EU); do not dispose of with household waste
Included Accessories	Tube, hose, floor tool, power brush
Compatible Detergent Products	NuChem 4 (recommended); do not use other products without approval
Usage Conditions	Room temperature, indoor; do not use in rain
Important Precautions	Do not vacuum hot ashes, cigarette butts, hazardous or explosive dusts; do not leave children unattended

Frequently Asked Questions - CTD570 Numatic

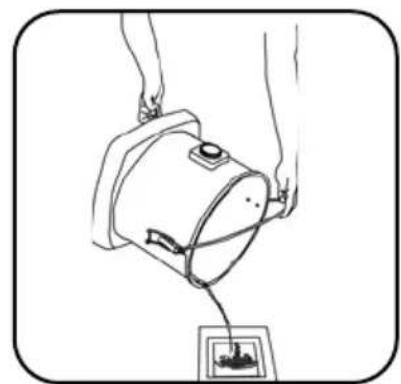

How to use the vacuum cleaner in wet mode?

Before vacuuming liquids, empty the dust from the container and ensure the float valve is installed and working. Plug in the appliance, select wet mode (if applicable) and vacuum. If foam or liquid comes out of the exhaust port, stop immediately, empty and check the float.

What to do if the vacuum cleaner stops working?

Stop the machine and unplug it. Check if the filter bag is full, if the filter is clogged, or if the hoses are blocked. In wet mode, the float valve may have activated: empty the container and check its proper operation.

How to maintain the filter?

Clean the filter regularly according to the instructions. Replace it if worn or damaged. Always use a filter bag in dry mode to protect the filter.

Can I use detergents other than NuChem 4?

It is recommended to use exclusively cleaning preparations approved by Numatic, such as NuChem 4. Using other products may damage the machine or void the warranty.

What to do if foam comes out of the exhaust port?

Immediately stop the machine and unplug it. Let the liquid drain through the port, check the float and clean it. Empty the container and restart. A small amount of residual liquid may come out at restart, this is normal.

How to clean the float valve?

Regularly clean the safety float valve to prevent blockages. Ensure it is not damaged and moves freely. A blocked float can cause overflow.

The power cable is damaged, what to do?

If the power cable is damaged, it must be replaced by a qualified person with an original Numatic part. Do not use the machine before replacement.

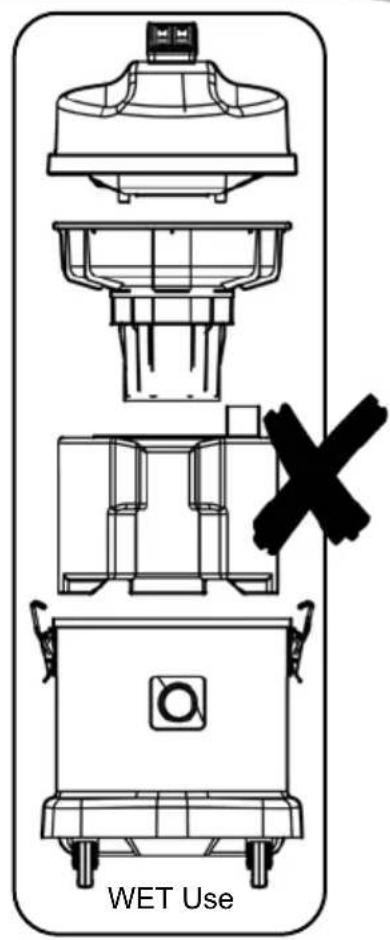

How to switch the machine between dry/wet mode?

To switch from dry to wet mode, completely empty the dust container and install a wet filter if necessary. Ensure the float valve is in place. For dry mode, use a filter bag.

Can I vacuum ashes or cigarette butts with this vacuum cleaner?

No, never vacuum hot ashes or lit cigarette butts. This could damage the filter and create a fire hazard. Let them cool completely before vacuuming.

How to move the machine safely?

Take into account the weight of the machine (estimated at 15 kg). Use the handles provided. Before moving, unplug and empty the container if necessary. Do not roll the machine over the cable.

USER MANUAL CTD570 Numatic

CT 570CT 570
CTD 570CTD 570
CT 750CT 750
CTD 750CTD 75
CT 900CT 900
CTD 900CTD 90

Numatic

numatic.comnummatic.d

Original Instructions

CAUTION, Read instructions before using the machine.

40mls per 5L of cold water

Vac
2 Pump

CT 570

CTD 570

CT 900

CTD 900

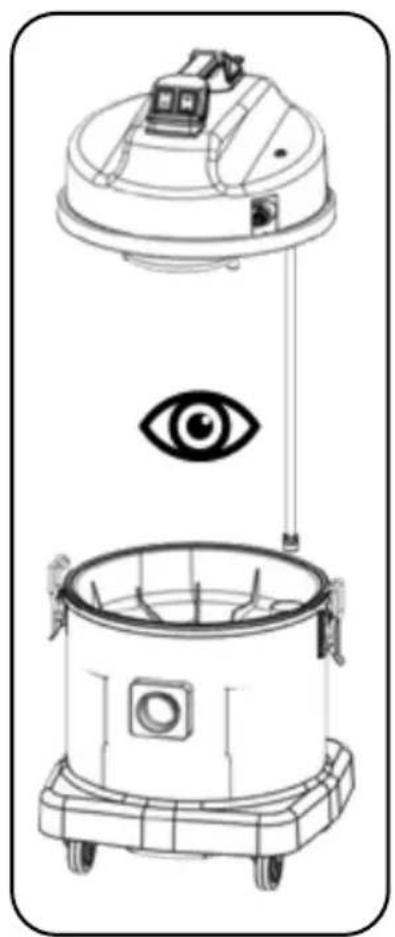

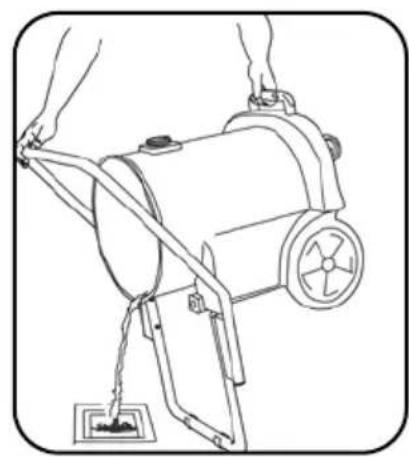

Cleaning the machine --- Reinigung der Maschine Nettoyage de la machine --- De machine reinigen

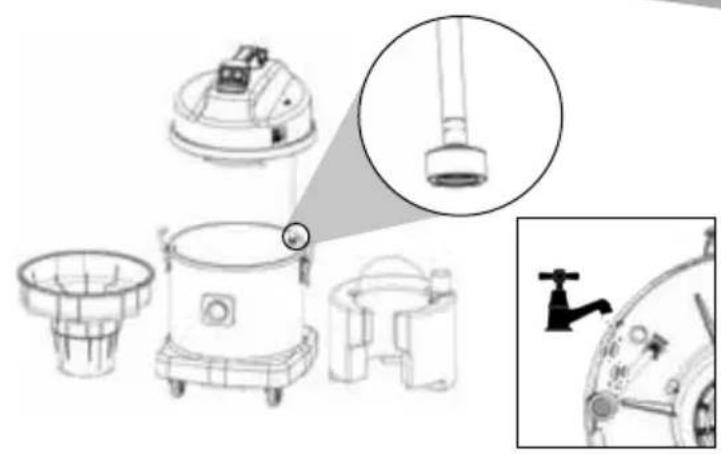

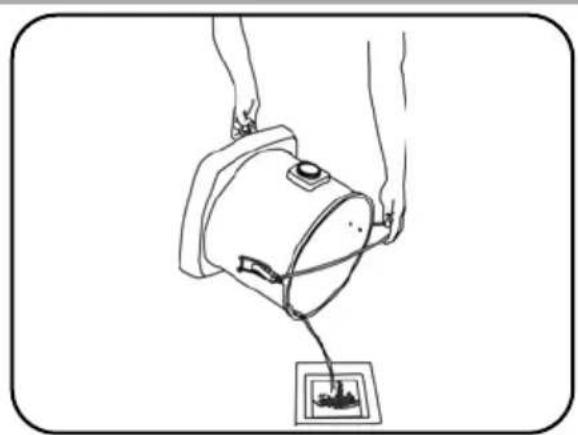

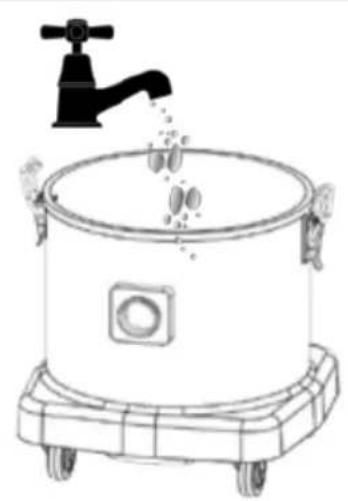

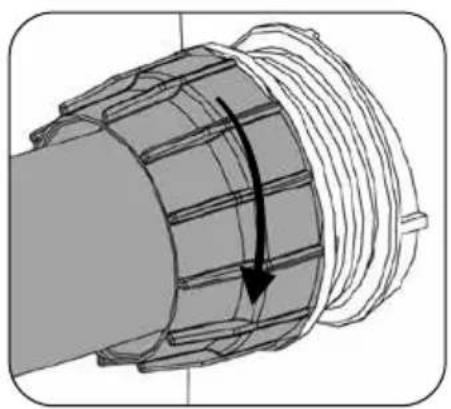

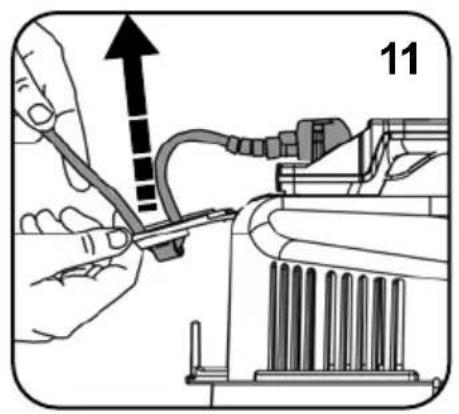

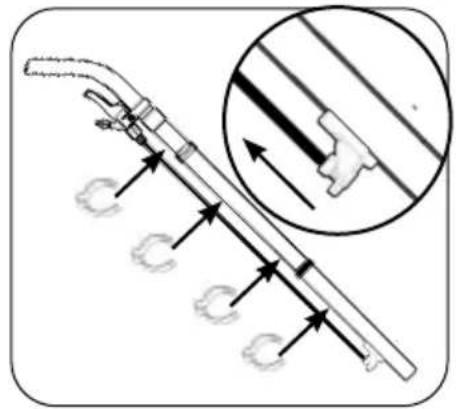

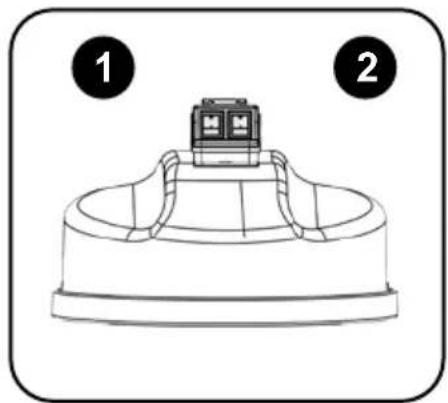

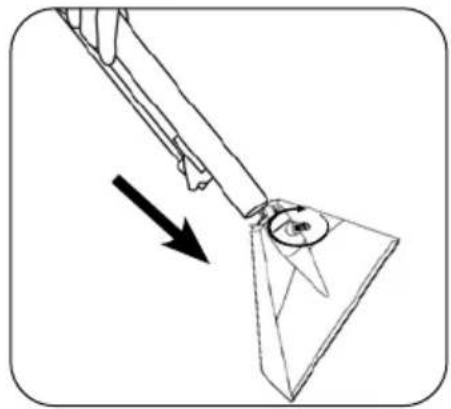

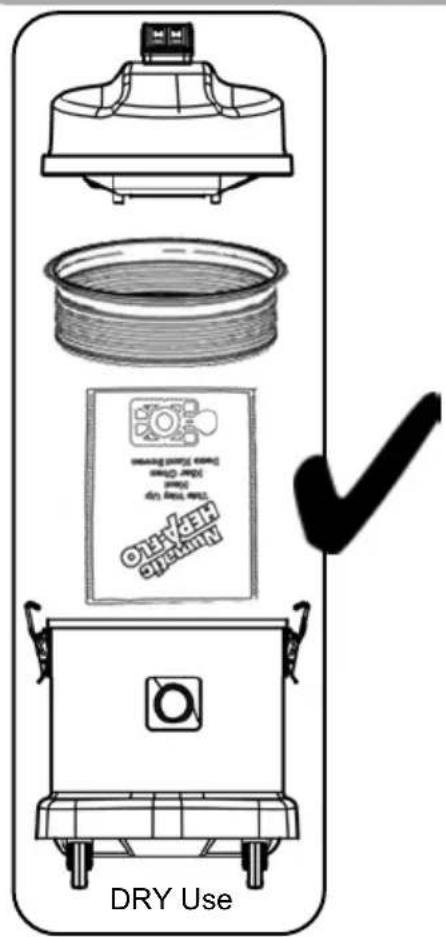

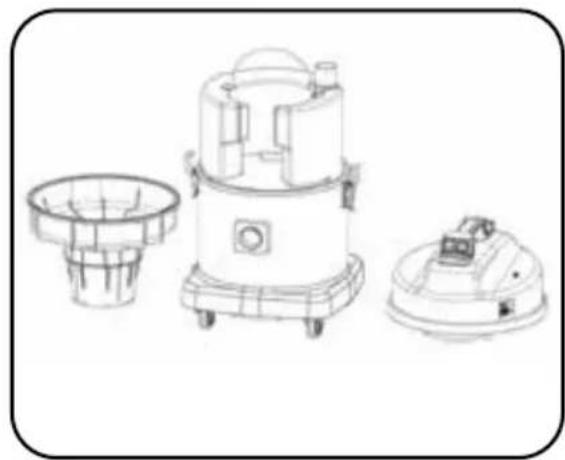

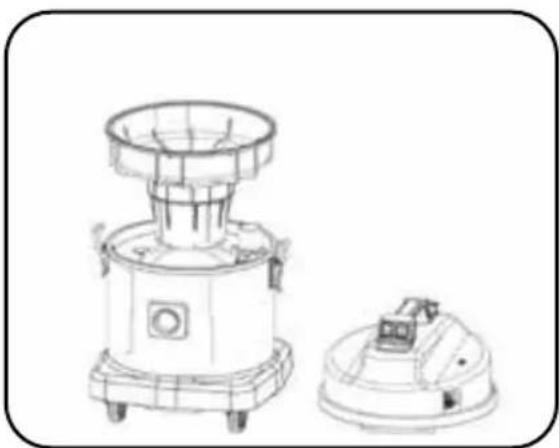

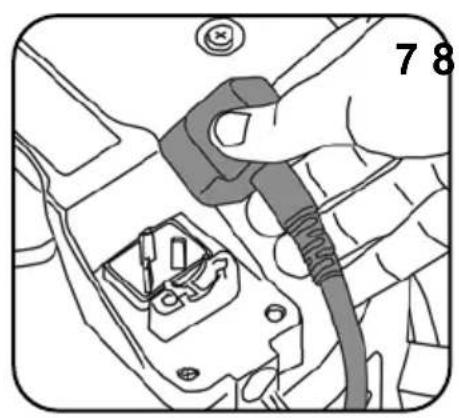

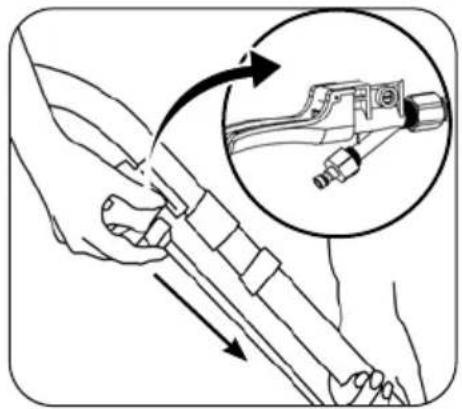

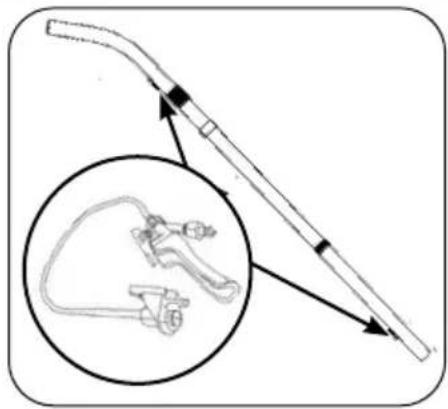

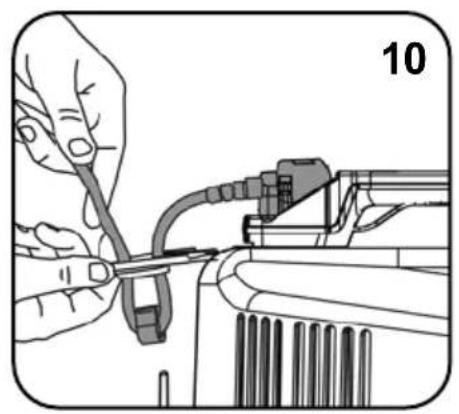

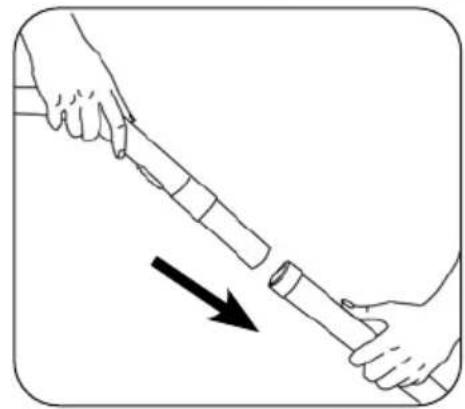

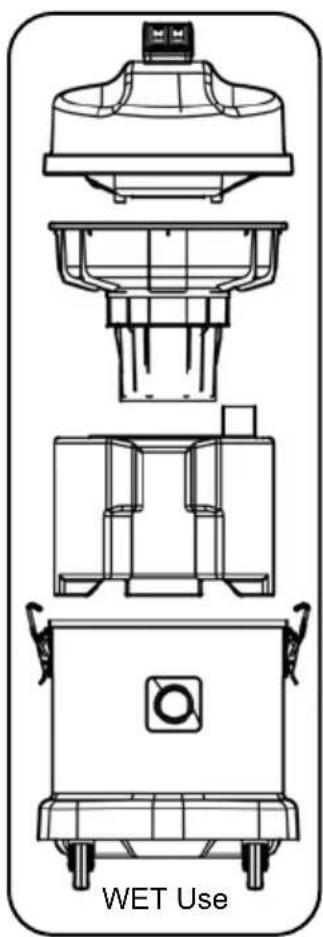

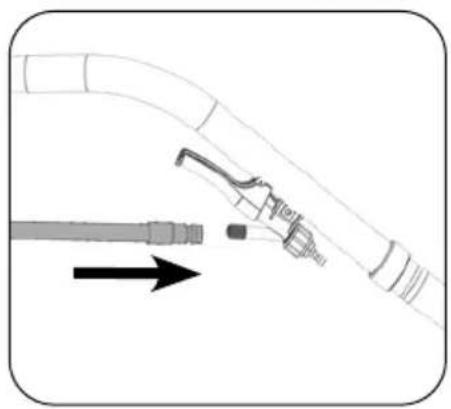

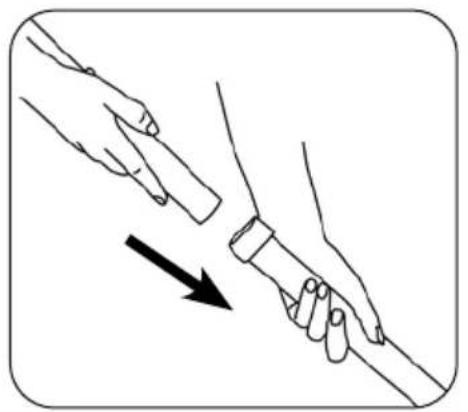

Dry- Assembling the machine - Montage der Maschine - Montage de la machine - Machine samenstellen / opbouwen

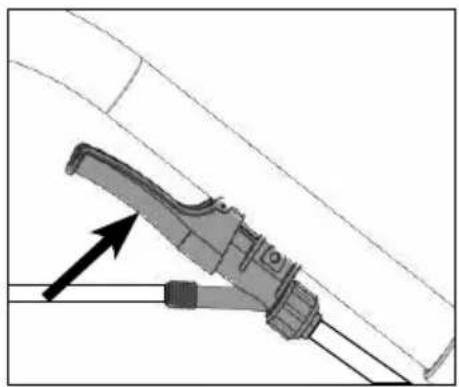

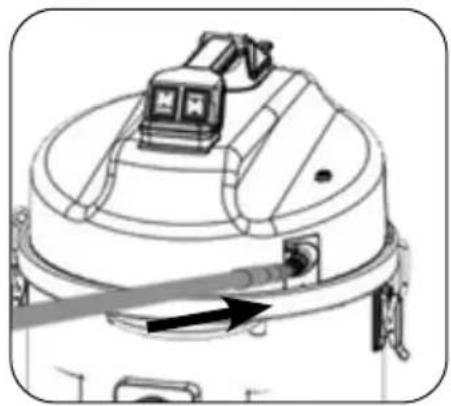

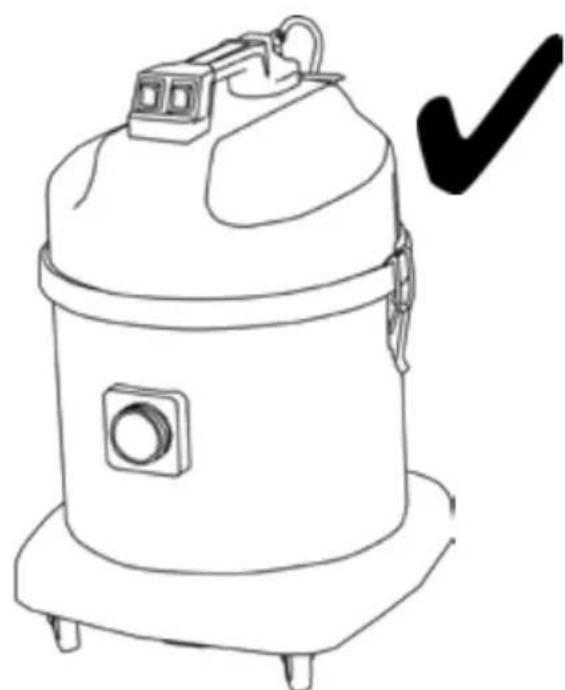

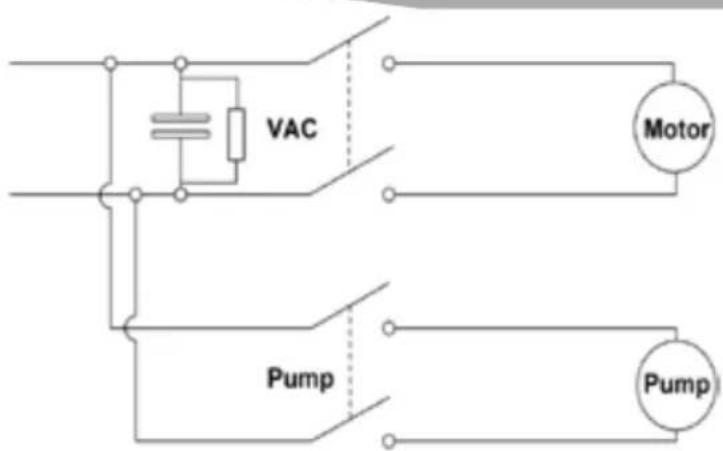

Schematic diagram

12345
CT 570 CTD 570	1000W 1000W x 2		42 L/sec 96 L/sec	2400 mm w.g.	26.8m
678910
CT 570 CTD 570	23 Ltrs	15L 415	415 x 645 mm	19.0 kg 20.0 kg	77 - 79 dB (A) 0.5dB

12345
CT 750 CTD 750	1000W 1000W x 2		42 L/sec 96 L/sec	2400 mm w.g.	26.8m
678910
CT 750 CTD 750	35 Ltrs	25L 680	x 550 x 940 mm	21.4 kg 23.9 kg	77 - 79 dB (A) 0.5dB

12345
CT 900 CTD 900	1000W 1000W x 2		42 L/sec 96 L/sec	2400 mm w.g.	26.8m
678910
CT 900 CTD 900	40 Ltrs	32L 800 x	490 x 880 mm	25.3 kg 27.8 kg	77 - 79 dB (A) 0.5dB

1	Motor Motor	Moteur Vermogen
2	AirFlo Luffür demenge Volume d'air		AirFlow
3	Suction	UnterDrunk	Dépression	Zuigkracht
4	Cleaning Range Reinigungsbereich		Gamme de lavage	Bereik
5	Class	Schutzklasse	Classe de protection	Beschermings klasse
6	Capacity Dry	Behälterinhalt	Capacité	Capaciteit
7	Capacity Wet	Behälterinhaltnass	Capacité d'eau	Watercapaciteit
8	Size	Abmessungen	Dimensions	Afmeting
9	Weight	Gewicht	Poids	Gewicht
10	Sound Pressure	Schalldruck (LpA)	Niveau sonore (LpA)	Geluidsniveau (LpA)

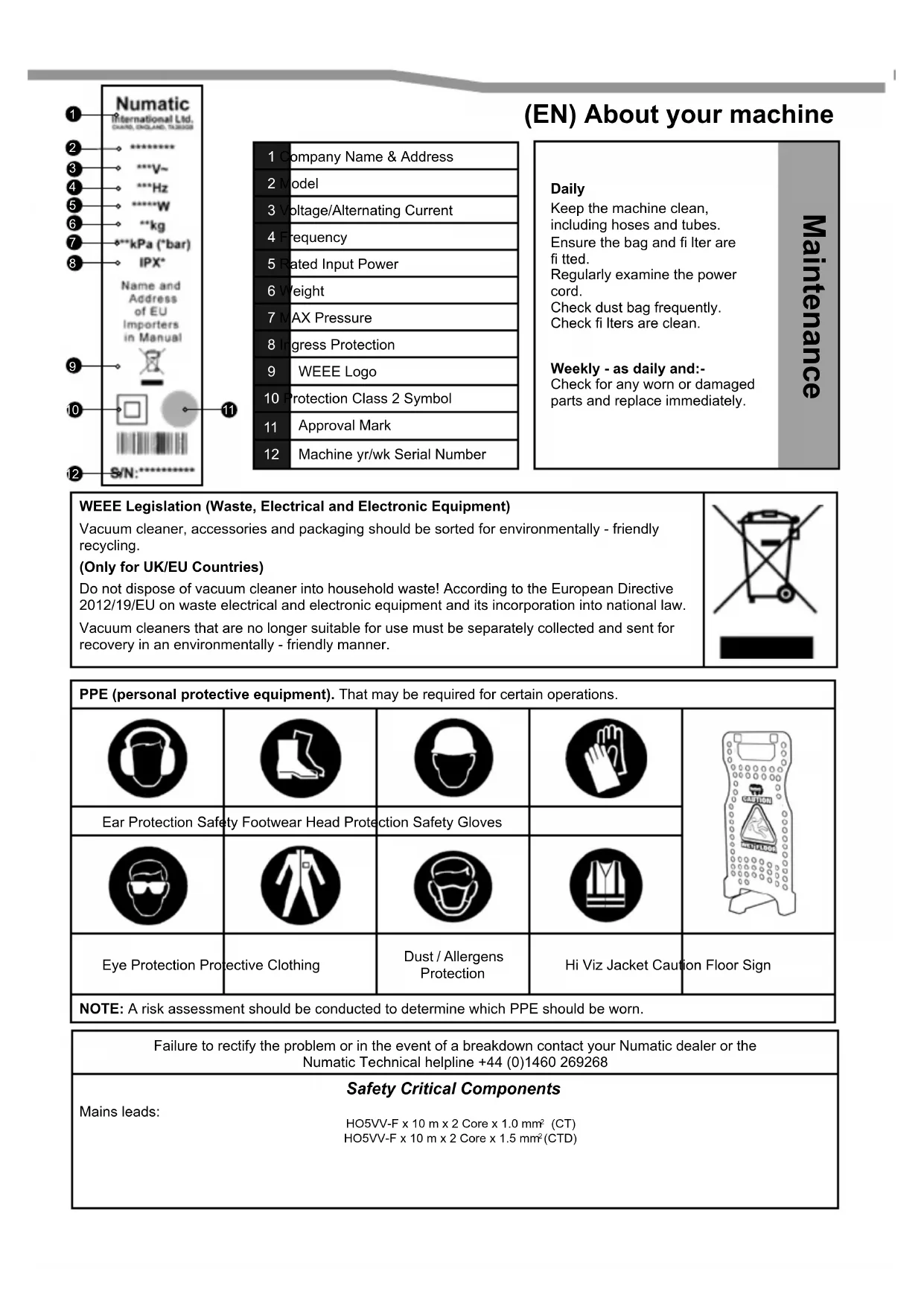

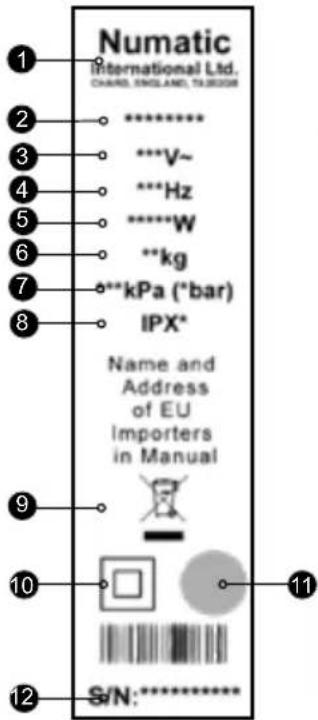

(EN) About your machine

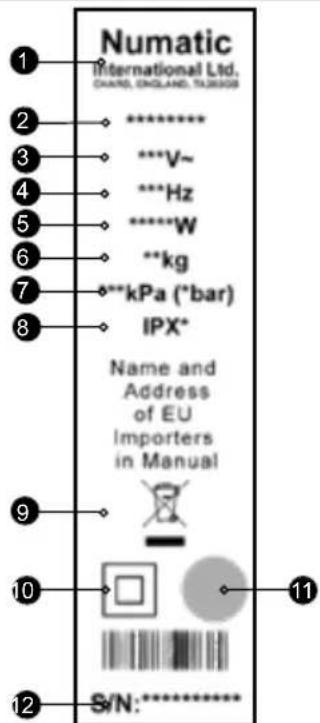

1 Company Name & Address

2 Model

3 Voltage/Alternating Current

4 Frequency

5 Rated Input Power

6 Weight

7 MAX Pressure

8gress Protection

9 WEEE Logo

10 Protection Class 2 Symbol

11 Approval Mark

12 Machine yr/wk Serial Number

Daily

Keep the machine clean, including hoses and tubes. Ensure the bag and fi tter are fitted.

Regularly examine the power cord.

Check dust bag frequently. Check fi Iters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Maintenance

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for UK/EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

PPE (personal protective equipment). That may be required for certain operations.
Ear Protection Safety Footwear Head Protection Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

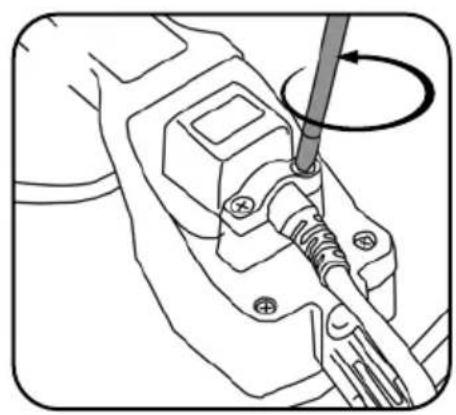

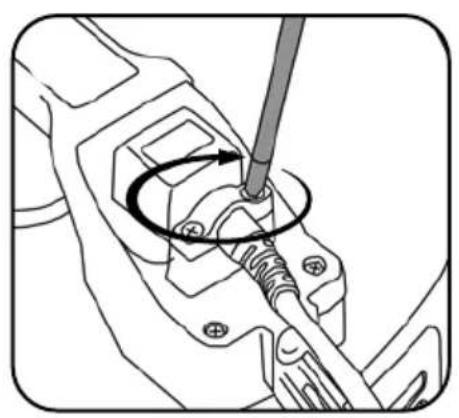

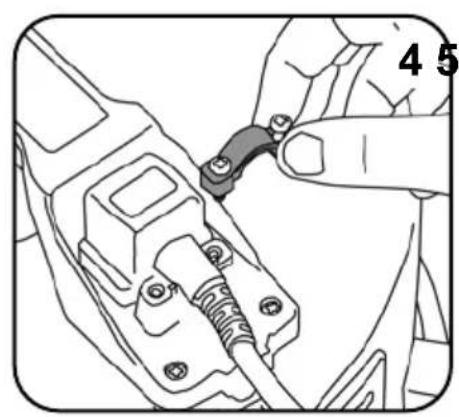

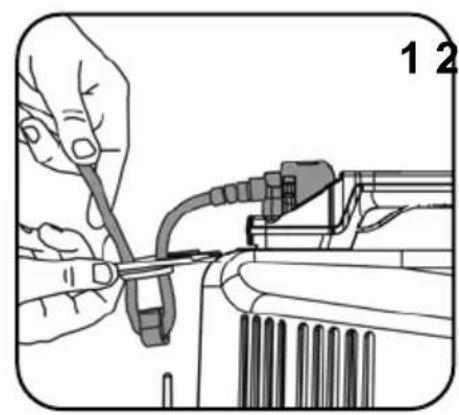

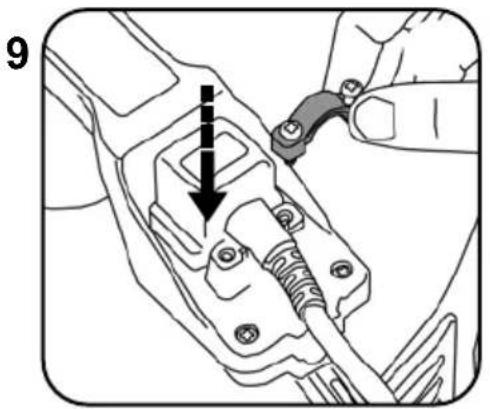

Safety Critical Components

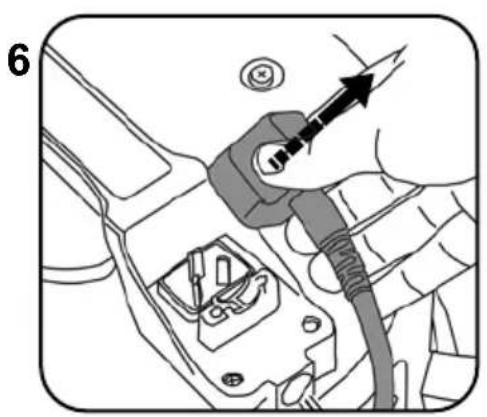

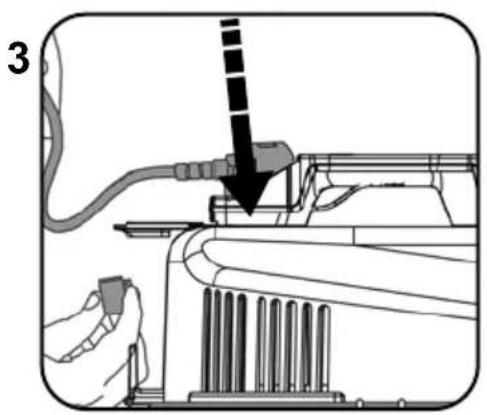

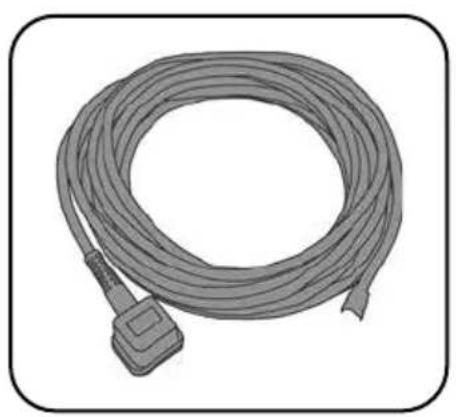

Mains leads:	HO5VV-F x 10 m x 2 Core x 1.0 mm² (CT) HO5VV-F x 10 m x 2 Core x 1.5 mm² (CTD)

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

If foam/liquid comes out of machine exhaust, switch off immediately.

Allow the accumulated liquid to drain out through the machine exhaust, check the fl oat assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

Caution

Ensure that the fi ltration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

You must ensure that the fi ltration system fitted to the machine is suitable for the material being collected.

This product complies with the requirements of IEC/EN 60335-2-68.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 for Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Use a bag and filter at all times when using 'dry'.
• Keep your machine clean.
• Keep fi tters clean.
  Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
  Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.

Don't

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
• Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.
• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top fiiter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

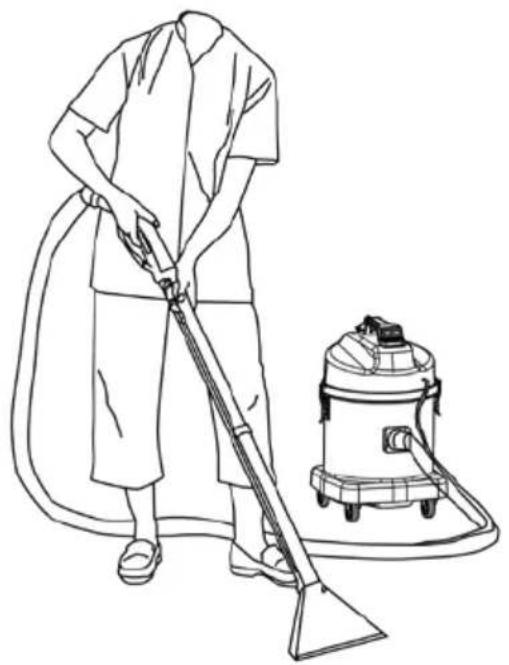

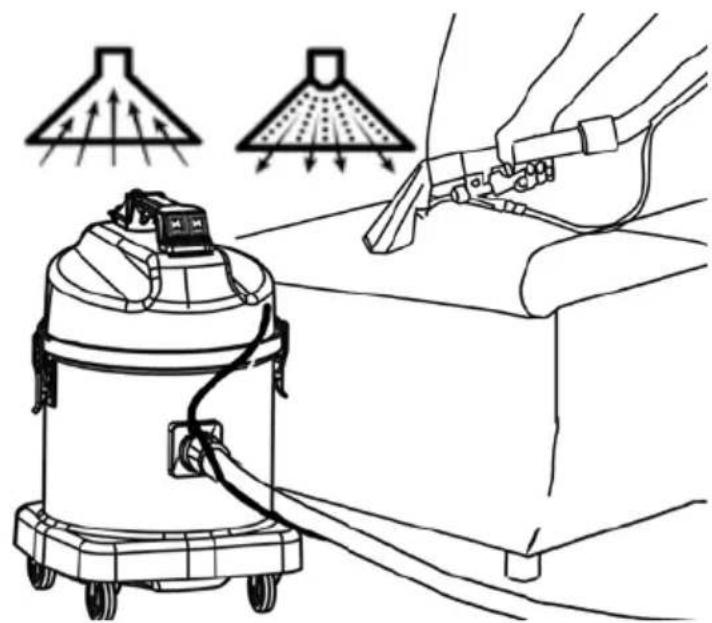

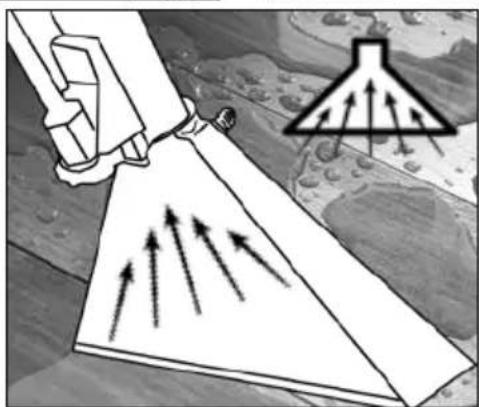

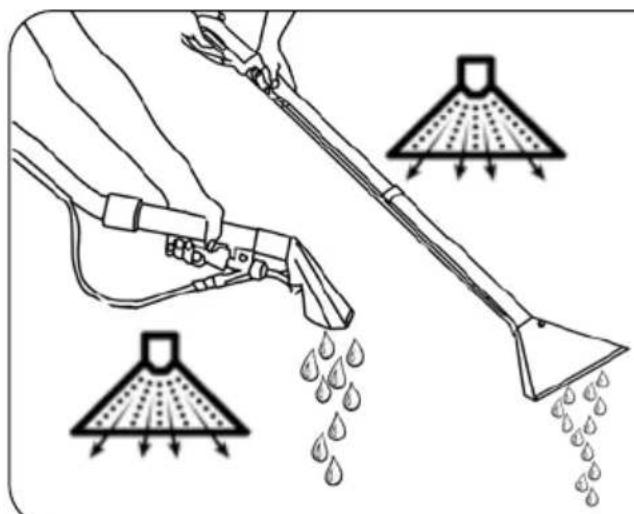

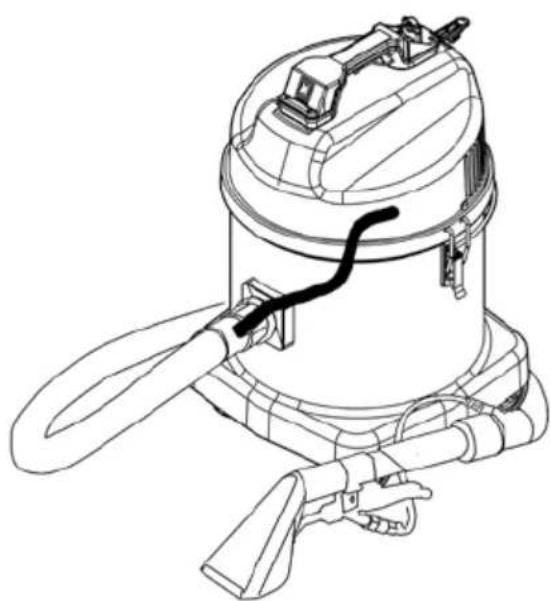

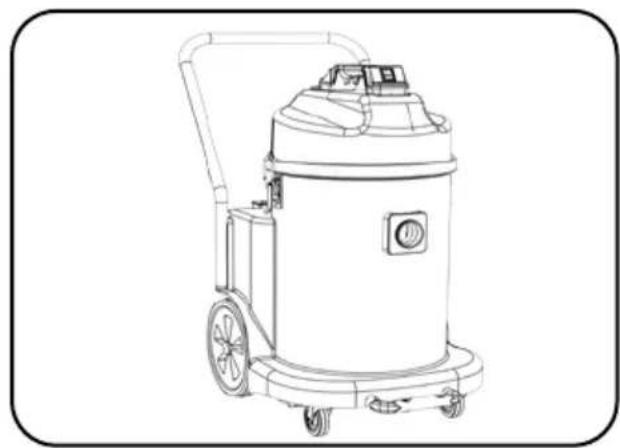

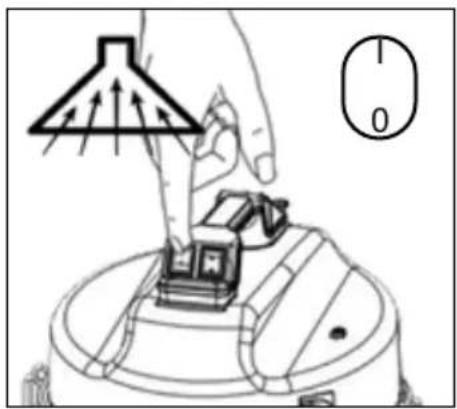

This machine can be used for dry pick up, wet pick up and cleaning carpet and upholstery

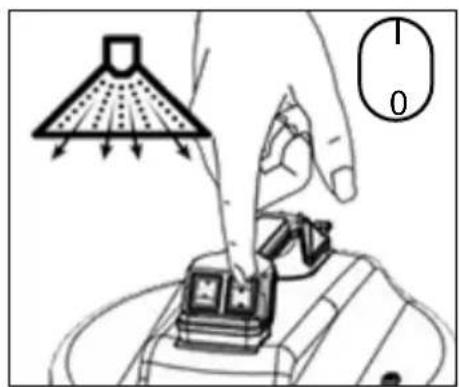

Spray extraction machines only

• Use only approved cleaning preparations.

• Use defoamer if necessary.

Use of detergents

When using any detergent with this machine, please ensure you have read the safety data on the container and you are familiar with the procedures to clear up spills, inhalation, skin and eye contact.

Dry Mode maintenance/fault finding

If the vacuum cleaner stops working switch off and remove the plug from the power supply before investigating were the fault lies.

If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug

from the power supply, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the fiiter may be blocked.

Wet mode / Spray extraction maintenance/fault fi nding

If the vacuum cleaner stops working switch off and remove the plug from the power supply before investigating were the fault lies.

If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the power supply, has the fl oat valve operated, this will shut off the suction and the pitch of the vacuum motor will change.

Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

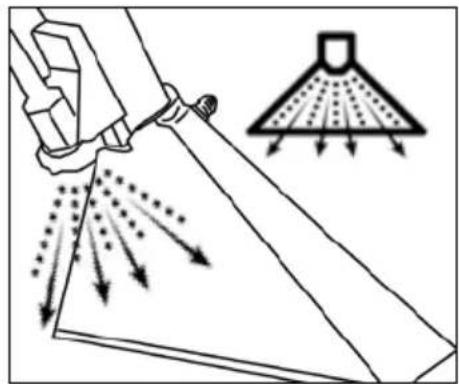

If the spray nozzle is blocked a pin maybe used to clear the blockage.

No spray from nozzle and the pump tone changes, the solution tank is empty, refill the solution tank.

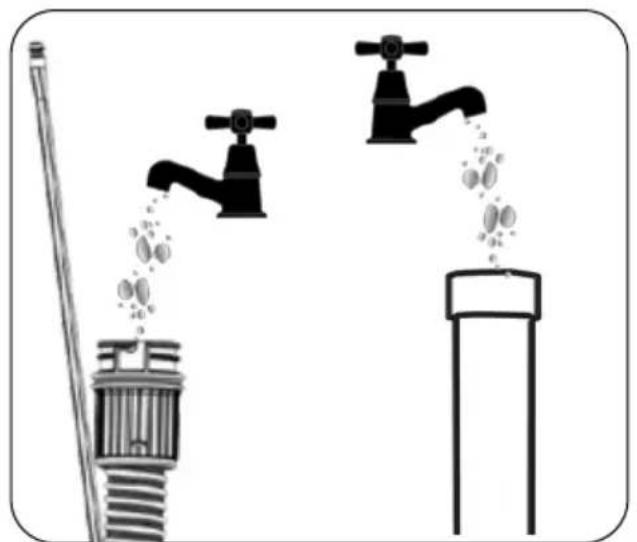

Flush the system with clean water after use.

After use always inspect the machine for damage.

NuChem 4

INSTRUCTIONS FOR USE

TEST FOR COLOUR FASTNESS

Find an out of the way place which is not normally in view and test the carpet / fabric for colour fastness by rubbing the cloth dampened with correctly diluted NuChem 4.

Do not use on velvet type materials or any materials not suitable for wet cleaning according to fabric manufacturers cleaning instructions.

For Normal soiling:

Pour one 40ml Measure into 5 litres of cold water.

For Heavy Soiling:

Pour two 40ml Measure into 5 litres of cold water.

NuChem 4 is non-foaming, bactericidal, contains optical brightners and leaves no tacky residues in the fabric and is enhanced with both a delicate and discreet verbena scent.

HEALTH AND SAFETY

Caution:

Keep out of the reach of children and pets.

Wear suitable gloves.

Aviod contact with skin and eyes.

In case of eye contact flush with clean water seek medical attention.

In case of contact with the skin rinse with plenty of clean water.

CONTENTS:

Composition:

Greater than 30% = among other ingredients water

Less than 5% = SODIUM XYLENE SULPHONATE

CAC:1300-72-7

Classified as Irritant

[X] r36/37/38

Risk Phrases: R36 / 38: irritating to eyes and skin Safety Phrases: S2: Keep out of the reach of children

S24: Avoid contact with skin and eyes

S37: Wear suitable gloves

Numeric International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Numatic International Denmark

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Rua Francisco da Silva Duarte, n°79,

4475-269 Santa Maria de Avioso, Castelo da Maia, PORTUGAL

Tel: [phone] numatic.pt

NUMATIC INTERNATIONAL SPAIN, S.L.U.

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it

Specification subject to change without prior notice
