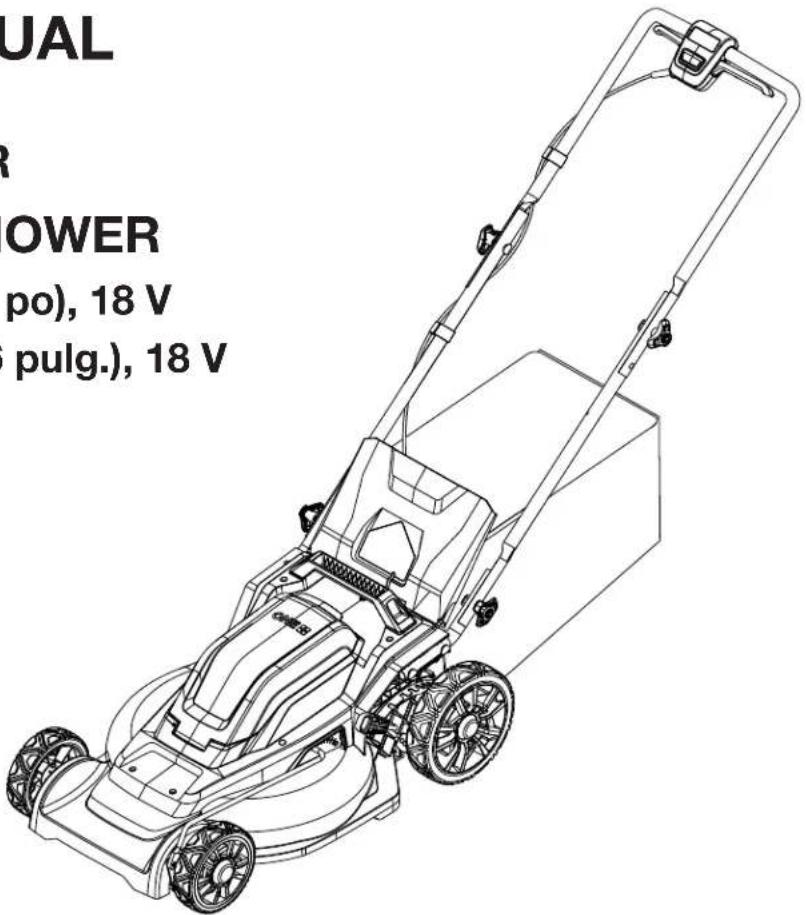

USER MANUAL One+ P1190 RYOBI

18 VOLT 16 in. LAWN MOWER

TONDEUSE DE 406,4 mm (16 po), 18 V PODADORA DE 406,4 mm (16 pulg.), 18 V

P1109

WARNING: To reduce the

risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

TABLE DES MATIÈRES

See this fold-out section for all of the figures referenced in the operator's manual.

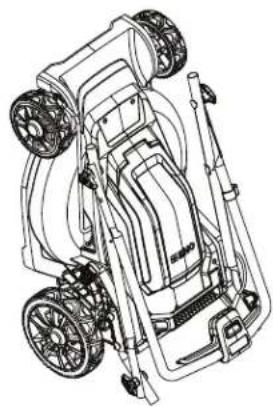

Technical diagram of a lawn mower with labeled parts including lift, frame, and housing components

A - Battery cover (couvercle des piles, tapa de las baterías)
B - Motor/blade control assembly (dispositif de commande du moteur/de la lame, conjunto de control del motor/hoja)
C - Start button (bouton « Start » [démarrer], botón de arranque)
D - Upper handle (poignée supérieure, mango superior)
E - Blade Control Levers (levier de commande de la lame, palanca de control de la hoja)
F - Upper handle lock (verrou de la poignée supérieure, seguro del mango superior)

G - Lower handle (poignée inférieure, mango inferior)
H - Lower handle lock (verrou de la poignée inférieure, seguro del mango inferior)
- Height adjustment lever (levier de réglage de la hauteur, palanca de ajuste de altura)
J - Mulching plug (insert broyeur, tapón para trituración)
K - Start key (clé de démarrage, llave de arranque)
L - Grass catcher (collecteur d'herbe, receptor de hierba)
M - Carrying handle (poignée de transport, mango de acarreo)

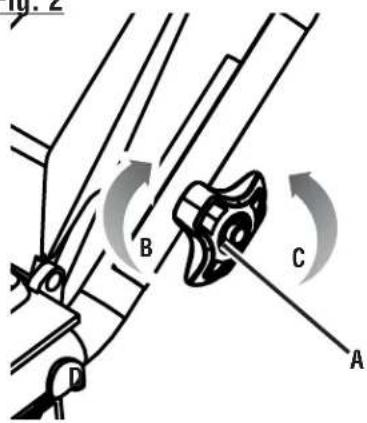

Fig. 2

B C A

A - Lower handle lock (verrou de la poignée inférieure, seguro del mango inferior)
B - Tighten (serrer, apriete)
C - Loosen (desserrer, aflojar)

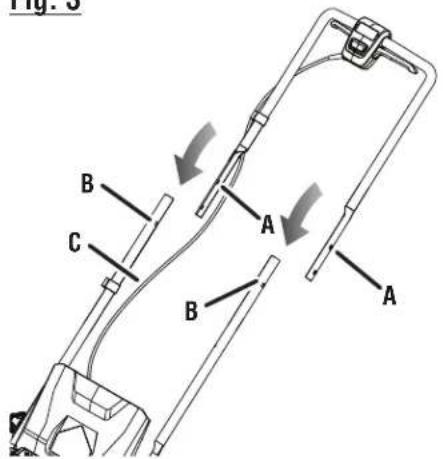

Fig. 3

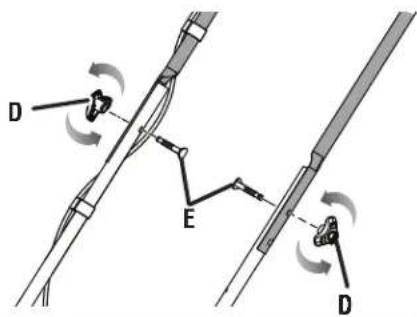

Fig. C B C A B A

A - Hole on the upper handle (trou de poignée supérieure, orificio del mango superior)
B - Hole on the lower handle (trou de poignée inférieure, orificio del mango inferior)
C - Starter cable (câble de démarreur, cable del arrancador)
D - Handle lock (verrou de la poignée, seguro del mango)
E - Lock knob (bouton de verrouillage, perilla de fijación)
F - Washer (rondelle, arandela)

D E D

Two diagrams showing mechanical linkage or cable assembly with rotational motion indicators (no text or symbols)

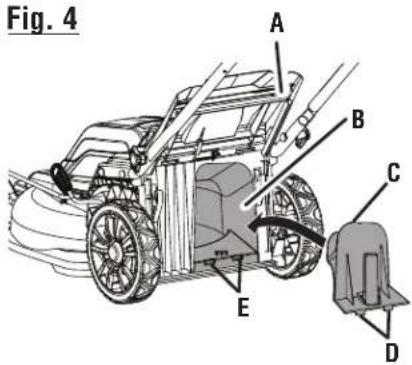

Fig. 4 A B C D E

A - Rear discharge door (couvercle d'éjection arrière, puerta de descarga posterior)
B - Rear discharge opening (ouverture d'éjection arrière, abertura de descarga posterio)
C - Mulching plug (insert broyeur, tapón para trituración)
D - Tabs
E - Slot (fente, ranura)

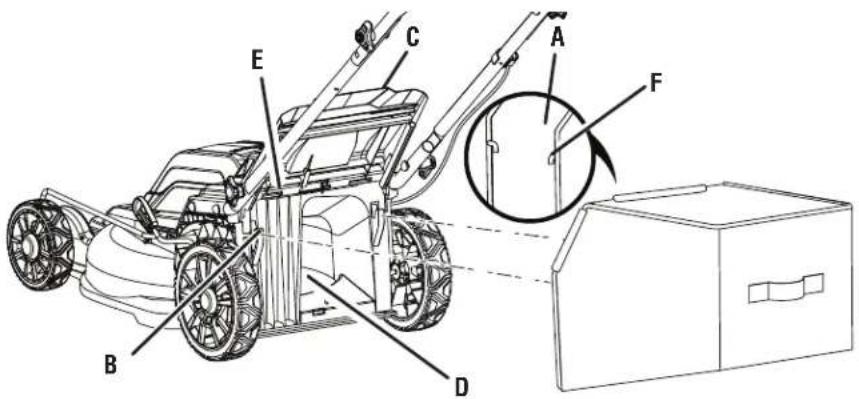

Fig. 5

Technical diagram of a lawn mower system with labeled components A through F, including a zoomed-in box and mechanical parts.

A - Grass catcher handle (poignée de collecteur d'herbe, mango del receptor de hierba)
B - Slots (fentes, ranuras)
C - Rear discharge door (couvercle d'éjection arrière, puerta de descarga posterior)

D - Rear discharge opening (ouverture d'éjection arrière, abertura de descarga posterio)
E - Door rod (barre de couvercle, barra de la puerta)
F - Hooks (crochets, ganchos)

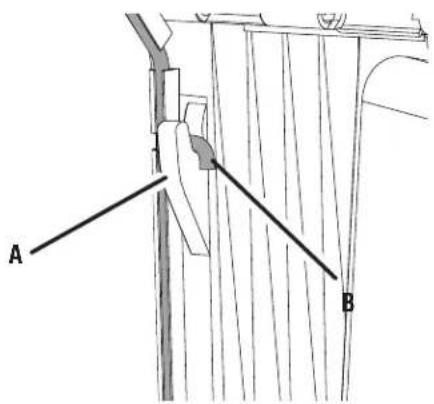

Fig. 6

A B

A - Slots (fentes, ranuras)
B - Hooks (crochets, ganchos)

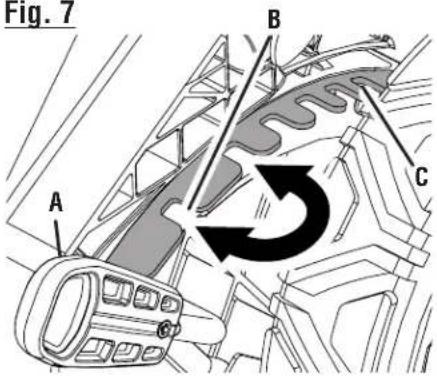

Fig. 7

Fig. 7 A B C

Illustration of a hand pouring granular material into a container with a pile of small debris (no text or symbols)

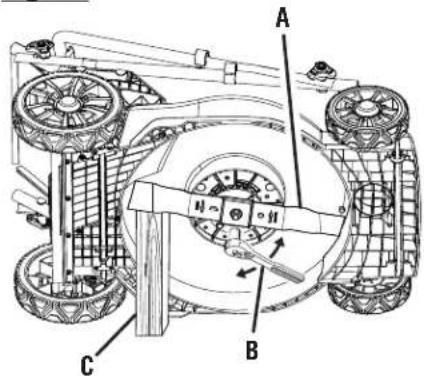

Fig. 13

A B C

A - Blade (lame, hoja)
B - Wrench (clé, Ilave)
C - Block of wood (pièce de bois, bloque de madera)

Fig. 14

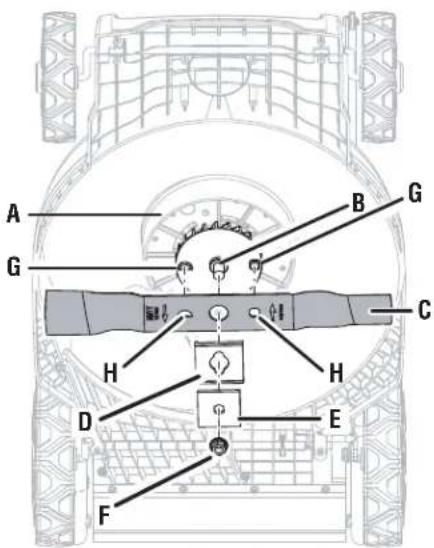

A G B G C H D E F

Line drawing of a lawn mower with visible frame, wheels, and structural components (no text or symbols)

Technical line drawing of a lawn mower with wheels and frame structure (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

READ AND UNDERSTAND ALL INSTRUCTIONS.

Failure to follow all instructions listed below and on the machine may result in electric shock, fire, and/or serious personal injury.

READ ALL INSTRUCTIONS

This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe all safety instructions could result in serious injury or death.
■ Avoid dangerous environment — Do not use the lawn mower in damp or wet conditions or operate in the rain.
- Keep children away — Keep all bystanders, children, and pets at least 100 ft. away. Stop machine if anyone enters the area.
■ Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.
- Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
- Be alert and turn mower off if a child enters the area.
- Never allow children to operate the machine.
- Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.
■ Dress properly — Wear heavy, long pants, long sleeves, boots, and gloves. Do not wear loose fitting clothing, short pants, sandals, or go barefoot. Do not wear jewelry of any kind. They can be caught in moving parts.
- Don't overreach — Keep proper footing and balance at all times. Overreaching can result in loss of balance.
■ Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
- Do not leave the mower unattended while running or with the start key installed.
- Keep hands and feet away from cutting area. Keep clear of the discharge opening at all times.
■ Operate the lawn mower only in daylight or good artificial light.
■ Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operation is dusty.
■ Use safety glasses — Always wear eye protection with side shields marked to comply with ANSI Z87.1. Use face mask if operation is dusty.
■ Use the right appliance — Do not use the lawn mower for any job except that for which it is intended.

■ Do not force the lawn mower — It will do the job better and safer at the rate for which it was designed.
■ Do not charge lawn mower in rain, or in wet locations.
■ Stay alert — Watch what you are doing and use common sense when operating the lawn mower. Do not operate the mower while tired, upset or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the lawn mower may result in serious personal injury.
- Maintain lawn mower with care — Keep machine in good working condition. Keep blades sharp and guards in place and in working order. Replace damaged or unevenly worn blades before using mower for best performance.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to be sure the equipment is in safe working condition. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
- Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
■ Stop the motor, wait until the blade comes to a complete stop, and remove the start key and battery pack before performing any maintenance, cleaning the lawn mower, removing the grass catcher, or removing the mulching plug.
■ Never use a hose, water, or any liquids to clean or rinse off the lawn mower. Corrosive liquids, water, fertilizers, and chemicals used to treat lawns can enter the lawn mower and/or battery compartment and damage electronic components and/or the battery pack, which can result in a short circuit, increased risk of fire, and serious personal injury. Remove any buildup of grass and leaves on or around the mower housing and/or underneath the mower deck. Wipe the mower clean with a dry cloth occasionally.
- Replace blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal injury. Sharpen a dull blade equally at each end to maintain the balance. Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through its center hole. The nail should be in a horizontal position. If either end of the blade rotates downward, remove some metal from the heavy of lower end until the blade is balanced. It is balanced when neither end drops.
■ When not in use, mower should be stored indoors in a dry, locked up place — out of the reach of children. The start key should also be removed and stored in a separate location out of the reach of children.
■ Always use safety protective devices. Do not operate the mower without the entire grass catcher, mulching plug and in place and working properly.

IMPORTANT SAFETY INSTRUCTIONS

■ Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

- Follow manufacturer's instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.

Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

- Clear the work area before each use. Remove all objects such as rocks, sticks, metal, wire, bones, toys, or other objects which can be thrown by the blade. Stay behind the handle when the motor is running.

- Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip and fall accident.

■ Do not mow near drop-offs, ditches, or embankments.

■ Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.

Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction, which may cause the material to ricochet back toward the operator.

■ Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident. Walk, never run.

■ Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view.

- Do not pull the mower backward unless absolutely necessary. If you must back the mower away from a wall or obstruction, first look down and behind to avoid tripping or pulling the mower over your feet.

■ Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blade when crossing gravel surfaces.

■ Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

■ If the lawn mower strikes a foreign object, follow these steps:

- Stop the lawn mower by releasing the blade control lever, wait until the blade comes to a complete stop, and then remove start key.

- Thoroughly inspect the mower for any damage.

- Replace the blade if it is damaged in any way. Repair any damage before restarting and continuing to operate the mower.

- Stop the motor, wait until the blade comes to a complete stop, and remove start key before unclogging the chute. The cutting blade continues to rotate for a few seconds after the motor is shut off. Never place any part of the body in the blade area until you are sure the blade has stopped rotating.

If the mower should start to vibrate abnormally, stop the motor and check immediately for the cause. Replace the blade if it is unevenly worn or damaged in any way. Vibration is generally a warning of trouble.

■ Service on the product must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.

■ Use only authorized replacement parts when servicing the product. Use identical replacement blades only. Use of unauthorized parts may create a risk of serious injury to the user, or damage to the product.

- Maintain or replace safety instructions labels, as necessary.

■ Disconnect batteries and remove start key- Disconnect battery packs and remove start key from the appliance before storing, servicing, or changing accessories such as blades. Such preventive safety measures reduce the risk of starting the tool accidentally.

- Stop the unit and disconnect battery packs and start key when not in use. Carry or push the unit with the motor stopped and the start key removed from the mower.

■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

■ Do not use battery-operated appliance in rain.

■ Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.

■ Use this product only with batteries and chargers listed in tool/appliance/battery pack/charger correlation supplement 987000-432.

■ Store idle lawn mower indoors — When not in use, mower should be stored indoors in a dry, locked place out of the reach of children. The start key and battery packs should also be removed and stored in a separate location out of the reach of children.

■ Follow instructions for lubricating and changing accessories.

- Keep guards in place and in working order.

- Keep blades sharp.

- Keep hands and feet away from cutting area.

■ Only allow responsible adults, who are familiar with the instructions, to operate this machine.

■ Never operate machine in a closed area.

IMPORTANT SAFETY INSTRUCTIONS

■ Never tamper with safety devices. Check for proper operation regularly.
The grass catcher assembly is subject to deterioration and wear and should be checked each time the mower is used. If replacement is needed, make sure the new grass catcher meets original manufacturer's recommendations and specifications.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F may cause explosion.

• Do not charge battery tool in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50°F or more than 100°F. Do not store outside or in vehicles.
  ■ Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this tool, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential	personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert	Risk of fire and burns. Do not expose battery, battery compartment, or electronic components to rain, water, or liquids. Close cover during use. Do not operate on wet ground.
	Electric Shock	Failure to use in dry conditions and to observe safe practices can result in electric shock.
	Keep Hands and Feet Away Keep hands and feet away from blade and cutting area.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	No Reach Do not reach hands or feet under mower deck.
	No Slope	Do not operate on inclines greater than 15°. Mow across the face of slopes, never up and down.
	Keep Children and Bystanders Away	Keep all children and bystanders at least 100 ft. away.
	Ricochet	Thrown objects can ricochet and result in personal injury or property damage.
	Recycle Symbol	This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time

FEATURES

PRODUCT SPECIFICATIONS

Battery....18 Volt

Cutting Path 16 in.

KNOW YOUR LAWN MOWER

See Figure 1.

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

BATTERY COVER

The battery cover protects the battery port from moisture and debris.

Height Adjustments....1.5 in. to 4 in.

Wheel Size....6 in. front, 8 in. rear

BRUSHLESS MOTOR

This product features a brushless motor that maximizes power and performance as well as battery run time.

CARRYING HANDLE

The lawn mower has a carrying handle for easy transport.

GRASS CATCHER

The grass catcher collects grass clippings and prevents them from being discharged across your lawn as you mow.

FEATURES

HEIGHT ADJUSTMENT LEVER

The height adjustment lever provides seven cutting height adjustments.

MOTOR/BLADE CONTROL ASSEMBLY

The motor/blade control assembly, located on the upper handle of the mower, engages and disengages the motor and blade.

MULCHING PLUG

Your mower is equipped with a mulching plug that covers the rear discharge opening, which allows the mower blade to cut and recut for finer clippings.

START KEY

The start key must be inserted before the mower can be started.

VERTICAL STORAGE CAPABILITY

The folding handles allow for compact, upright storage in your garage.

ASSEMBLY

UNPACKING

This product requires assembly.

- Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

WARNING:

Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
■ If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

WARNING:

If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not insert start key or battery pack until assembly is complete and you are ready to mow. Failure to comply could result in accidental starting and possible serious personal injury.

WARNING:

To prevent accidental starting, do not make any adjustments or installations with the start key or battery pack inserted. Accidental starting of the mower during assembly could result in serious personal injury.

WARNING:

Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Operating the mower with missing or damaged parts can result in serious personal injury.

ASSEMBLY

PACKING LIST

Lawn Mower

Start Key

Mulching Plug

Grass Catcher

Operator's Manual

UNFOLDING AND INSTALLING HANDLE

See Figures 2 - 3.

To raise the lower handle:

■ Loosen the lower handle lock knobs by turning them counterclockwise.
■ Pull up and back on the lower handle until the bars on the mower housing are seated inside the grooves in the lower handle.
■ To secure the lower handle in place, tighten the lower handle lock knobs.

To install upper handle:

■ Position the upper handle as shown and insert the bolt through the matching holes at the bottom of the upper handle and the top of the lower handle.

NOTE: The upper handle has two hole settings for height adjustment. Make sure you use the same height setting for each side.

- Thread the upper handle lock knob onto the bolt.

■ Repeat for other side.

■ Pull up on the upper handle to raise it into operating position. Make sure that the lower handle is seated in the grooves at the bottom of the upper handle.

NOTICE:

Do not allow the starter cable to become pinched or trapped when aligning the handles.

■ To secure the upper handle in place, tighten the upper handle lock knobs.

NOTE: If the upper handle is loose or separated from the lower handle, tighten the lock knobs on the upper handle by turning them clockwise.

To lower the handle assembly:

• Loosen the upper handle lock knobs by turning them counterclockwise.
  ● Lower the upper handle.
• Loosen the lower handle lock knobs by turning them counterclockwise.
• Push outward on the lower handle until it is free from the bars on the mower deck. Then, fold the handle to the front of the unit. Avoid pinching or trapping any cables.

INSTALLING THE MULCHING PLUG (FOR MULCHING OPERATION)

See Figure 4.

NOTE: When using the mulching plug, do not install the grass catcher.

■ Remove start key and battery pack.
■ Lift and hold the rear discharge door.
- Grasp the mulching plug by its handle and insert it at a slight angle, as shown.
■ Push the mulching plug securely into place. The tabs on the mulching plug should be seated in the slots at the bottom of the rear discharge opening, and the slot on the mulching plug should go over the tab in the center of the discharge opening.
■ Lower the rear discharge door.
■ Reinstall start key and battery pack when you are ready to mow.

INSTALLING THE GRASS CATCHER (FOR REAR BAGGING OPERATION)

See Figures 5 - 6.

NOTE: When using the grass catcher, do not install the mulching plug.

■ Remove start key and battery pack.
■ Lift the rear discharge door.
■ Lift the grass catcher by its handle and place under the rear discharge door so that the hooks on the grass catcher are seated onto the slots on the mower housing.
■ Release the rear discharge door.
■ Reinstall start key and battery pack when you are ready to mow.

SETTING BLADE HEIGHT

See Figure 7.

When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1-1/2 in. to 2 in. during cool months and between 2 in. and 3-1/4 in. during hot months.

To adjust the blade height:

■ Remove start key and battery pack.
■ To raise the blade height, grasp the height adjustment lever and move it toward the back of the mower.
■ To lower the blade height, grasp the height adjustment lever and move it toward the front of the mower.
■ Reinstall start key and battery pack when you are ready to mow.

OPERATION

WARNING:

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Always inspect mower for missing or damaged parts and blade for damage, uneven, or excessive wear prior to use. Use of the mower with damaged or missing parts can result in serious personal injury.

WARNING:

Always remove battery pack and start key from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack and start key will prevent accidental starting that could cause serious personal injury.

APPLICATIONS

You may use this product for the purpose listed below:

■ Mowing your lawn

TO INSTALL BATTERY PACK

See Figure 8.

■ Raise the battery cover.
- Place the battery pack in the mower. Align raised ribs on battery pack with grooves in the mower's battery port.

WARNING:

Make sure the latches on the battery pack snap in place and the battery pack are fully seated and secure in the battery port before beginning operation. Failure to securely seat the battery pack could cause the battery pack to fall out, resulting in serious personal injury.

■ Lower the battery cover.

TO REMOVE BATTERY PACK

See Figure 8.

■ Raise the battery cover.
■ Depress the latches on each side of the battery pack.
■ Remove battery pack from the mower.

WARNING:

To avoid accidental starting that could result in serious personal injury, always remove the start key when moving or transporting the mower.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

STARTING/STOPPING THE MOWER

See Figures 9 - 10.

■ Raise the battery cover.
■ Install battery pack.

NOTE: The unit will run with only one battery pack installed. Operating the unit with one battery pack will significantly decrease run time.

■ Insert the start key into the slot beside the battery port.
■ Lower the battery cover.
■ Press and hold the start button. Pull the blade control levers toward the handle and release the button to start the mower.
■ To stop the mower, release the blade control levers.

MOWING TIPS

■ Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor. Do not mow over property stakes or other metal posts. Such objects could damage the blade or be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
■ For a healthy lawn, always cut off one-third or less of the total length of the grass.
■ When cutting heavy grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
- Do not cut wet grass. It will stick to the underside of the deck and prevent proper bagging or mulching of grass clippings.
■ New or thick grass may require a narrower cut or a higher cutting height.
■ Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt, and any other accumulated debris.

NOTE: Always stop mower, allow blades to completely stop, remove the start key and remove the battery pack from the battery port before cleaning underneath the mower.

OPERATION

SLOPE OPERATION

See Figure 11.

WARNING:

Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.

■ Mow across the face of slopes, not up and down. Exercise extreme caution when changing direction on slopes.
■ Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over or thrown by the blade.
■ Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your balance, release the upper blade control lever immediately.
■ Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.

EMPTYING THE GRASS CATCHER

See Figure 12.

■ Stop the mower and allow blades to completely stop.
■ Open battery cover.
■ Remove start key and battery pack.
■ Lift the rear discharge door.
■ Lift the grass catcher by its handle to remove from mower.
■ Empty grass clippings.
■ Lift the rear discharge door and reinstall the grass catcher as described earlier in this manual.
■ Reinstall start key and battery pack when you are ready to mow.

MAINTENANCE

WARNING:

Before performing any maintenance or cleaning the lawn mower, make sure the mower blades come to a complete stop and the batteries and start key are removed to avoid accidental starting and possible serious personal injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING:

When servicing, use only authorized replacement parts. Use of any other parts can create a hazard or cause product damage.

WARNING:

Never use a hose, water, or any liquids to clean or rinse off the lawn mower. Corrosive liquids, water, fertilizers, and chemicals used to treat lawns can enter the lawn mower and/or battery compartment and damage electronic components and/or the battery pack, which can result in a short circuit, increased risk of fire, and serious personal injury. Remove any buildup of grass and leaves on or around the mower housing and/or underneath the mower deck. Wipe the mower clean with a dry cloth occasionally.

NOTICE:

Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or an authorized service center for assistance.

MAINTENANCE

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which can result in serious personal injury.

LUBRICATION

All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.

WARNING:

Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. Contact with the blade could result in serious personal injury.

REPLACING THE CUTTING BLADE

See Figures 13 - 14.

NOTE: Only use authorized replacement blades.

• Stop the motor and remove the start key. Allow blade to come to a complete stop.
  ■ Remove start key and battery pack.
  ■ Turn the mower on its side.
  ■ Wedge a block of wood between the blade and mower deck to prevent the blade from turning.
  ■ Loosen the blade nut by turning it counterclockwise (as viewed from bottom of mower) using a 15 mm wrench or socket (not provided).
  ■ Remove the blade nut, metal spacer, plastic spacer, and then the blade.
  Place the new blade on the shaft against the fan assembly. Ensure blade is properly seated with shaft going through center blade hole and the two blade posts inserted into their respective holes on the blade. Make sure it is installed with the curved ends pointing up toward the mower deck and not down toward the ground. When seated properly, the blade should be flat against the fan assembly.

■ Replace the blade, plastic spacer, metal spacer, and then thread the blade nut on the shaft and finger tighten.

NOTE: Make certain all parts are replaced in the exact order in which they were removed.

■ Torque the blade nut down clockwise using a torque wrench (not provided) to ensure the bolt is properly tightened. The recommended torque for the blade nut is 26-29.5 ft-lbs.

WARNING:

Ensure blade is properly seated and the blade nut is tightened to the torque specifications above. Failure to peroperly attach the blade could cause it to come loose and result in possible serious personal injury.

STORING THE MOWER

See Figure 15.

■ Remove the batteries and start key and store in a secure location out of the reach of children.
■ Mower can be stored vertically, if desired, to save space.
■ Before storage, wipe any dirt or debris from the battery area.
■ Raise the mower into the vertical storage position and clean grass clippings that have accumulated on the underside of the mower deck.
■ Wipe the mower clean with a dry cloth.
- Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
■ Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or missing parts. Check blade for damage, uneven, or excessive wear and replace blade if these conditions exist.
■ Lower the handle assembly as described earlier in this manual.
■ Store mower indoors in a clean, dry place out of the reach of children.
■ Do not store near corrosive materials such as fertilizer or rock salt.

TROUBLESHOOTING

IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER.

PROBLEM POSSIBLE CAUSE SOLUTION
Handle not in position. Handle locks not locked. Lock upper and lower handle locks.
Mower not starting. Battery is low in charge.Battery pack is overheated.		Charge the battery.Try a different battery pack or allow the battery pack to cool.
Mower cutting grass unevenly. Lawn is rough or cutting height not set properly.		Adjust the cutting height.
Mower not mulching properly. Wet grass clippings sticking to the underside of the deck.		Wait until the grass dries before mowing.
Mower hard to push. High grass, rear of mower housing and blade dragging in heavy grass, or cutting height too low.		Raise cutting height.
Mower not bagging properly. Cutting height set too low. Raise cutting height.
Mower vibrating at higher speed. Blade is unbalanced, excessively or unevenly worn.Bent motor shaft.		Replace the blade.Stop the motor, remove start key and battery. Inspect for damage. Have repaired by an authorized service center before restarting.
Motor stops while cutting. Cutting height set too low. Raise the cutting height.

NEED HELP ? CALL 1-800-525-2579 www.ryobitools.com

MAKE THE MOST OF YOUR PURCHASE!

Your product has been fully tested prior to shipment to ensure your complete satisfaction.

For any questions about operating or maintaining your product, call the RYOBI Help Line!

This product has a Three-year Limited Warranty for personal, family, or household use (90 days for business or commercial use).

For warranty details, visit www.ryobitools.com or call (toll free) 1-800-525-2579.

INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ

AVERTISSEMENT :

CARACTÉRISTIQUES DU PRODUIT

Pile....18 V

REPLACEMENT DE LA LAME

18 VOLT 16 IN. LAWN MOWER

TONDEUSE DE 406,4 MM (16 PO), 18 V

PODADORA DE 406,4 MM (16 PULG.), 18 V

P1109

- PARTS AND SERVICE: Prior to requesting service or purchasing replacement parts, please obtain your item, manufacturing, and serial numbers from the product data plate.

ITEM NO.* MANUFACTURING NO.

SERIAL NO.

* Model/item number on product may have additional letters at the end. These letters designate manufacturing information and should be provided when calling for service.

HOW TO OBTAIN REPLACEMENT PARTS: Replacement parts can be purchased online at www.ryobitools.com or by calling 1-800-525-2579. Replacement parts can also be obtained at one of our service centers.

HOW TO LOCATE A SERVICE CENTER: Service centers can be located online at www.ryobitools.com or by calling 1-800-525-2579.

HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT: To obtain customer or technical support please contact us at 1-800-525-2579.

RYOBI is a registered trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
