Express Ava 18615 - Electric water heater UNOLD - Free user manual and instructions

Product type	Electric hot water dispenser
Brand	Unold
Model	Express Ava 18615
Dimensions (W x D x H)	Approximately 28.2 x 14.8 x 30.2 cm
Weight	Approximately 2.2 kg
Power supply	220-240 V, 50-60 Hz, 2200-2600 W
Tank capacity	2.5 liters
Main materials	Plastic and stainless steel
Adjustable temperatures	6 levels: 100°C, 85°C, 75°C, 65°C, 55°C, 37°C
Preset water quantities	150 ml, 250 ml, 350 ml
Heating time	Approximately 5 seconds
Display and controls	Digital screen with touch buttons
Power cord length	Approximately 90 cm
Included accessories	Drip tray, reset key, instruction manual
Safety	Overheat protection with reset button, automatic shutdown in standby mode, control panel lock
Descaling function	Automatic reminder after 12 hours of use at high temperature, integrated descaling cycle
Cleaning and maintenance	Removable tank, residual water drain via bottom cap, exterior cleaning with damp cloth
Warranty	24 months for domestic use (valid in Germany and Austria)
Intended use	Heat water only, do not use for other liquids
Color	White

Frequently Asked Questions - Express Ava 18615 UNOLD

How to turn on the appliance?

Hold down the unlock button (button B) for about 3 seconds. All symbols light up briefly, then the appliance is ready.

How to select the desired temperature?

Press the "°C" button several times until the desired temperature (100°C, 85°C, 75°C, 65°C, 55°C or 37°C) flashes on the screen. The temperature remains displayed continuously during heating.

How to choose the water quantity?

Press twice briefly on the button corresponding to the desired quantity (150 ml, 250 ml or 350 ml). The water then flows at the selected temperature. A long press on the 350 ml button empties the entire tank.

What to do if the appliance does not heat?

Check that the appliance is plugged in and that the tank contains enough water (at least up to the Min mark). If the problem persists, the overheat protection may have activated: unplug the appliance, remove the tank and use the provided key to press the reset button on the back of the housing.

How to descale the appliance?

Use a commercial kettle descaling product. Fill the tank according to the descaling product instructions. Place a container under the water outlet. Make sure the appliance is not in standby, then press the 150 ml and 250 ml buttons simultaneously. The descaling cycle starts. Once finished, rinse by running fresh water completely through.

How to drain residual water?

Unplug the appliance. Remove the water tank and empty it. Carefully turn the appliance upside down over a sink, remove the residual water cap located underneath the appliance and let the water drain. Put the cap back on after draining.

The appliance beeps and the 150 ml and 250 ml buttons flash, what to do?

This is the descaling reminder that appears after 12 hours of use above 85°C. You can ignore this reminder for 6 seconds, but it is recommended to descale to maintain the appliance's performance.

Can I use the appliance to heat milk or other liquids?

No, the appliance is designed exclusively to heat water. Heating milk or other liquids can cause malfunction and damage the appliance.

How to clean the appliance?

Allow the appliance to cool down completely. Unplug it. Clean the housing and the tank with a damp cloth and possibly a mild detergent. Never use abrasive products, steel wool or harsh detergents. Never immerse the appliance in water.

What to do in case of overheating or malfunction?

The appliance turns off automatically. Unplug it. Remove the water tank. Use the provided reset key (or a pointed non-metallic object) to press the reset button located on the back of the housing until you hear a click. Replace the tank and the appliance is operational again.

USER MANUAL Express Ava 18615 UNOLD

Instructions for use Model 18610/18615

Foreword. 21
Technical data. 21
Explanation of symbols 22
For your safety. 22
Display and control panel 25
Before first use.. 26
Operation 27
Overheating protection 28
Removing residual water. 29
Dscaling. 29
Cleaning and care. 30
Guarantee Conditions 31
Waste Disposal / Environmental Protection..31
Service 20

1 Water tank lid
2 Water tank
3 Display/control element
4 Water outlet
5 Drip tray

FR Page 32

Thank you for having chosen a quality product from the Unold range. We ask that you read these operating instructions carefully. They will familiarise you with the functions of your new water heater (hereinafter "appliance").

Please ensure that the user manual is read and observed by everyone who uses, cleans or maintains the appliance. When handing over the appliance to a new owner, always include the user manual.

If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our Customer Service department or your specialist dealer.

TECHNICAL DATA

Power: 2,200-2,600 W

,220-240-60,50

Hz

Volume: 2.5 litres

Colour: 18610 white,

b86k5

Material: Plastic inlesa

s steel

Dimensions: pprox. 2 8.214. 8 x 30.2 cm (WxH)

Cable length: approx. 90 cm

Weight: app2ox.2.kg

Features: Highly efficient hot water dispenser heats water in about 5 seconds; 6 temperature settings: 100^ , 85^ , 75^ , 65^ , 55^ and 37^ , 3 quantity settings: 150ml , 250ml , 350ml , easy-to-clean 2.5 litre water tank, descale reminder function

Accessories: O peratg instructions

Features, technology, colours, and design are subject to change without notice; errors excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

Please read this instruction manual carefully and keep it for future reference.

Persons in household

1. This appliance can be used by children aged 8 years or more and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
2. The appliance is not a toy. Children must not be allowed to play with the appliance.
3. Children from the age of 8 may be permitted to clean or maintain the appliance, provided they are supervised.
4. Keep the appliance and its power cable out of the reach of children under the age of 8.
5. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing water – danger of scalding!
6. After heating, the water is very hot – always check the temperature of the water before drinking it.

7. Special caution is necessary if the water is to be used for preparing baby food. In this case, check the temperature of the water on the back of your hand first.

8. The appliance is designed for domestic use only, or for use in similar facilities, such as

9. tea kitchens in businesses, offices or other workplaces,
   agricultural enterprises,

10. kitchenettes for guests in hotels, motels, hostels,
    bed and breakfast accommodations or holiday homes.

Safety information for set-up and operation of the appliance

1. The appliance is not intended for installation in furniture or other objects.

2. Connect the appliance only to an AC power source as specified on the rating plate.

3. Use a power socket that is within easy reach, so you can unplug the appliance quickly in the case of a malfunction, etc.
4. The power cable should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.
5. Do not clean the appliance in the dishwasher.
6. Never touch the appliance or the cable with wet hands.
7. The appliance is intended for household use only.
8. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
9. Do not operate the appliance near open flames, gas and electric burners, or in heated ovens.
10. Do not place the appliance in a disinfecting device or refrigerator.
11. Always use the water heater on a level, uncluttered and heat-resistant surface beyond the reach of children.
12. Do not allow the power cable to hang over the edge of the work surface, as this could result in accidents, for example if pulled on by small children.
13. Route the power cable safely so that it cannot be pulled on or tripped over.

14. To prevent damage to the power cable, never wrap the power cable around the appliance.

15. Use the water heater indoors only.

16. If you intend to use the appliance at a non-stationary location, such as on a boat, first consult an electrician.
17. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since this would damage the appliance.
18. Make sure that the lid of the appliance is always completely closed.
19. Never switch the appliance on if there is no water in the tank or if the water level is too low; this will prevent damage to the heating element.
20. Never fill the water tank past the 2.5 litre mark.
21. To avoid scalding from splashing water, do not move the appliance whilst it is in operation.
22. During and after use, never touch the hot parts of the appliance, such as the water outlet – danger of scalding!
23. Never check the temperature of the water by touching the water outlet with any part of your body – danger of scalding!
24. To prevent damage, do not operate the appliance with accessories from another manufacturer or brand.
25. Unplug the appliance from the power socket and allow it to cool after use and before cleaning. Never leave the appliance unattended while it is connected to the power socket.
26. Regularly check the appliance, the power cable and the plug for wear and damage. If the power cable or other parts of the appliance are damaged, return the appliance to our customer service department for inspection and repair. Unauthorized repairs can result in serious risks to the user and void the warranty.
27. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or his after sales service department or person with similar qualifications, to prevent hazards.

Caution!

The appliance is very hot during and after use! Hot water can cause scalding!

Never open the appliance housing. Risk of injury from electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

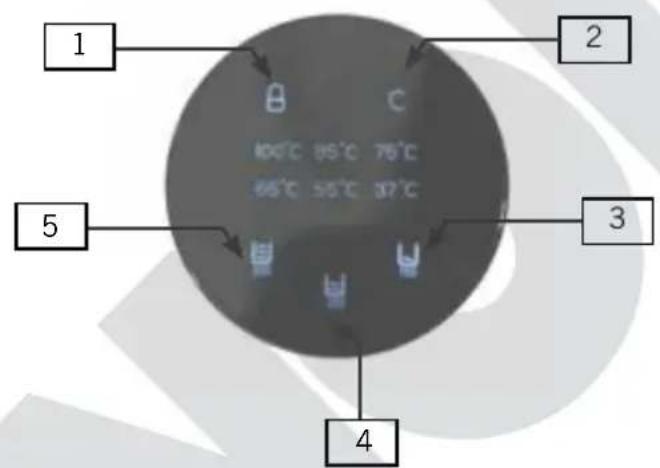

DISPLAY AND CONTROL PANEL

1	8 button	Unlocks the control panel
2 °C but ton		For selecting the temperature: 100 °C, 85 °C, 75 °C, 65 °C, 55 °C and 37 °C, and temperature off (no heating of water)
3	150 ml button prepa-riang 150 ml of water
4 250	ml button For prepa-riang 250 ml of water
5 350	ml button	For preparing 350 ml of water, and for starting the rinsing process (circulation through the entire water tank)

BEFORE FIRST USE

CAUTION: The appliance becomes very hot during operation! Boiling water can cause scalding. Therefore, always handle the appliance with caution.

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choking hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations. Tip: Keep the original package for safe storage of the appliance when not in use, or if you ever have to ship the appliance.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our Customer Service department.
3. Clean all parts with a damp cloth, as described in chapter „Cleaning and maintenance".
4. Check to make sure that the appliance is stable and the plug for the residual water drain on the bottom of the appliance is in place.
5. Push the drip tray into the holder on the appliance.
6. Fill the water tank to the "Max" marking (about 2.5 litres), place the lid on the water tank, and place the water tank in the housing, by positioning it above and letting it glide down into the guide that is provided.
7. Place a sufficiently large empty container under the water outlet.
8. Insert the plug into a power socket.
9. All icons light up briefly afterwards, the button lights up continuously.
10. Press and hold the button for 巴 about 3 seconds, to switch on the appliance.
11. Press the "°C" button until the display flashes 100^ , if this is not already displayed.
12. Press the button for 350ml about 3 seconds and the rinsing process starts.
13. The water is heated and collects in the container under the water outlet. To interrupt the water outlet (e.g. to empty the appliance), press the button for 350ml again.
14. The appliance is now ready for operation.

C

again, press the button for the water quantity twice, or change the selected temperature, as desired.

1. The water quantity that flows out of the appliance can vary due to changing ambient conditions, so it may be lower or higher.
2. If you do not press any buttons within about 30 seconds, the appliance automatically switches to standby mode, for safety reasons. You must press the 已 button again, to continue entering the settings.
3. Notice: If the appliance is in standby mode, the set temperature is retained until you disconnect the appliance from the power supply.
4. When the water tank is empty, the appliance stops heating and the button flashes briefly. The appliance returns to standby mode. Add fresh water and start the process again.
5. When you have finished preparing water, unplug the appliance from the power socket.

OVERHEATING PROTECTION

This water heater is equipped with overheating protection. In case of malfunctions or overheating of the appliance, it will switch off.

1. Disconnect the plug from the power socket.
2. Remove the water tank.
3. Pull the small key from the holder on the bottom of the appliance.
4. Use this key to press the reset button, which is on the back of the housing (see illustration), until you hear a soft click.
5. Alternatively, you can use a pointed object, such as a toothpick; for electrical safety reasons, however, do not use metal objects.

6. We recommend that you return the key to the holder on the bottom of the appliance, to keep it from being lost.

7. Then insert the water container back into the appliance.

Reset opening

REMOVING RESIDUAL WATER

1. The residual water that collects in the appliance must be drained regularly.
2. To do so, disconnect the plug from the power socket.
3. Remove the water tank and empty it.
4. The plug for residual water is on the bottom of the appliance.
5. Hold the housing over a sink, for example.
6. Carefully turn the appliance over and remove the plug cap.
7. Allow the residual water that has collected to drain.
8. While draining the water, take care not to misplace the plug, since without the plug, the water will exit the residual water drain instead of the water outlet.
9. After draining is complete, close the residual water drain with the plug and make sure that it is attached properly, to prevent accidental leaking of water.

Residual water drain

DESCALING

CAUTION: The appliance becomes very hot during operation! Boiling water with descaler solution can cause scalding. Therefore, always handle the appliance with caution.

Descending reminder function

1. To maintain the lifespan and performance of the appliance, please descale it regularly depending on the water hardness. For this purpose, the appliance has a reminder function which always appears after 12 hours of operation when the water temperature is above 85^ . As soon as you have pressed the

button to end stand-by mode, the buttons for 150 ml and 250 ml flash to remind you to descale. After six seconds, this reminder disappears, and you can operate the appliance as usual. However, the reminder disappears permanently after descaling has been carried out.

Dscaling

1. Use a commercially available descaler for kettles and follow the manufacturer's instructions and fill the water tank accordingly.
2. Place a sufficiently large container under the water outlet or place the appliance in a stable position on the edge of a sink.
3. Ensure that the appliance is not in stand-by mode. Now press the 150 ml and 250 ml buttons simultaneously, the descaling process starts and both buttons flash.
4. When the descending process is complete, both buttons go out and the button lights up.
5. Complete the descaling process by filling the water tank completely up to the ,Max.' mark with fresh water and allowing this water to run through completely.
6. Then rinse the water tank with clean water.
7. Note: If you want to interrupt the descending process, briefly press the 150 ml or 250 ml button. The appliance stops immediately.

CLEANING AND CARE

Let the appliance cool down before cleaning it. Before cleaning, always unplug the appliance from the power socket!

1. Do not immerse the appliance or its single components in water or other liquids or wash them in the dishwasher.
2. Wipe off the housing and the water tank with a damp cloth and a little washing-up liquid. Do not use scouring cleaners, steel wool, metal objects, harsh cleaners or disinfectants, since they can damage the appliance.
3. The appliance must be completely dry on the outside before you may use it again.
4. If the appliance is not used for an extended period, we recommend storing it in a protected, dust-free area. Tip: Store it in the original package.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website https://unold.de/pages/rucksendungen. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste equipment by the crossed-out wheeled bin symbol (WEEE symbol).

Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.
