Product type	Range hood
Brand	CATA
Model	BETA PRO 7000 X
Power supply	230 V ~ 50 Hz
Lighting power	2 x 1.5 W LED, 12 V AC
Speeds	3 levels: low (1), medium (2), high (3)
Timer	9 minutes, automatic shut-off
Grease filter	Washable mesh filter
Charcoal filter	Optional, replace every 3-6 months
Mounting distance	65-75 cm above cooking surface
Exhaust diameter	150 mm
Material	Stainless steel
Automatic shut-off function	Yes, after 7 minutes at high speed (boost)
Backdraft damper	Included
Cleaning	Clean grease filters regularly; surface with soft cloth and neutral detergent
Lamp replacement	By a professional only (ILCOS D code: DSR-1.5/65-S-64)

Frequently Asked Questions - BETA PRO 7000 X CATA

How to install the BETA PRO 7000 X range hood?

Installation must be carried out by a qualified electrician. The hood must be fixed at a distance of 65 to 75 cm above the cooking surface. Use the supplied wall bracket and a 150 mm exhaust duct. Follow the manual instructions for mounting the backdraft damper and electrical connection.

How to clean the grease filters?

The mesh grease filters can be cleaned by hand by soaking them in mild soapy water for about 3 minutes, then gently brushing them. Let them air dry, away from sunlight. Do not wash them with dishes and do not use rinse aid.

How to replace the charcoal filter?

Warning: disconnect the hood before any operation. Remove the grease filter, then turn the charcoal filter counterclockwise to unlock it. Replace the new filter and put back the grease filter. Replace the charcoal filter every 3 to 6 months depending on usage.

How to use the timer?

The timer is activated by pressing the 'Timer' button when the hood is running. The default time is 9 minutes. The screen displays the countdown. At the end, the motor and lighting turn off automatically. Press the button again to exit the timer.

What to do if the hood does not work?

First check that the hood is plugged in and the fuse has not blown. If the light comes on but the motor does not, the switch or motor may be faulty. Contact an authorized repair center. Do not attempt to repair it yourself.

How to replace the LED lamp?

The lamp replacement must be carried out by a professional. Disconnect the hood, remove the grease filter, then press the side springs to extract the LED module. Disconnect the connector and replace it with an identical lamp (ref. DSR-1.5/65-S-64).
Do not touch the lamp with bare hands.

What is the recommended mounting distance?

The hood must be installed at a distance of 65 to 75 cm above the cooking surface. This distance is necessary for optimal performance and to comply with safety instructions.

Why is the hood not extracting well?

Possible causes: distance too large from the cooktop, dirty grease filter, obstructed or too long exhaust duct, or tilted installation. Check these points and clean the filter. If the problem persists, contact technical service.

How to clean the stainless steel surface?

Use a soft, clean cloth slightly dampened with a neutral detergent. Wipe in the direction of the steel grain to avoid scratches. Do not use abrasive or chlorine-containing products.

Where can I download the manual for the CATA BETA PRO 7000 X range hood?

The PDF manual is available for free on notice-facile.com or on the official CATA website. You can also request a translation in your language by providing your email address.

USER MANUAL BETA PRO 7000 X CATA

Modern kitchen interior with white cabinetry, glossy flooring, and a black overhead menu (no visible text or symbols)

ESMANUAL DE INSTRUCCIONES
ENINSTRUCTIONS FOR USE
FRMANUEL D'UTILISATION
PTMANUAL DE INSTRUÇÕES
DEGEBRAUCHSANWEISUNG

cata

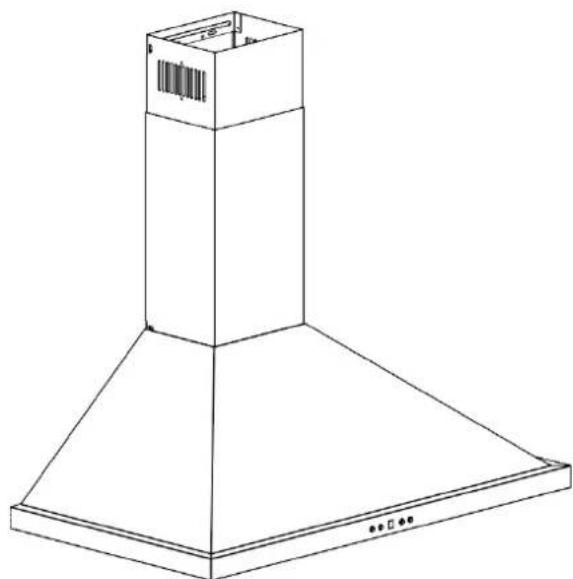

Line drawing of a double-bell kitchen chimney with ventilation duct and base plate (no text or symbols)

Hacer siempre:

INSTALACIÓN

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with a chimney and a water tank, showing airflow direction (no text or symbols)

Technical line drawing of a chimney structure mounted on a brick wall, with directional arrows indicating movement (no text or symbols)

Technical line drawing of a brick chimney mounted on a wall, showing structural details without any text or symbols.

Pic4 Pic5

Technical line drawing of two conical air ducts with mounting holes, labeled X and √ (no text or symbols on the shapes themselves)

Correcto
Incorrecto

ADVERTENCIA:

Simple line drawings of five simple geometric shapes: a light bulb, a square, a light bulb with a butterfly, and two circles (no text or symbols)

Simple line drawing of a hand holding a rectangular object with an arrow, no text or symbols present

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Diagram of a ceiling lamp with adjustable arm and base, showing no text or symbols

Imagen 2

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a double-bell kitchen chimney with a base plate and ventilation duct (no text or symbols)

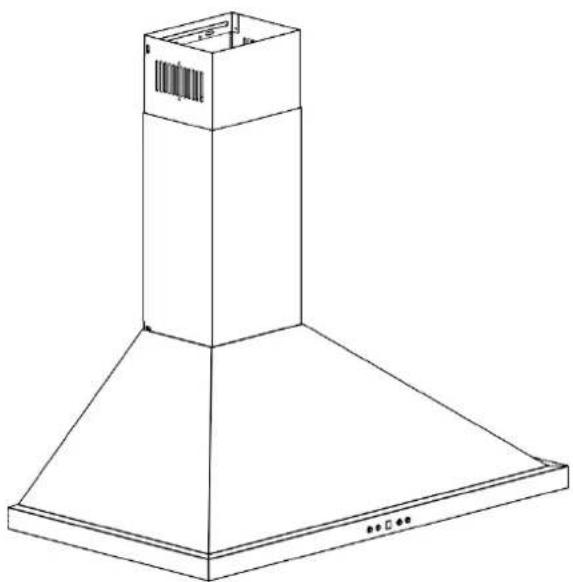

Cooker Hood Instruction Manual

Content

1....Safety instructions
2....Installation
3.... Start using your cooker hood
4....Troubleshooting
5 Maintenance and cleaning
6 Environment protection

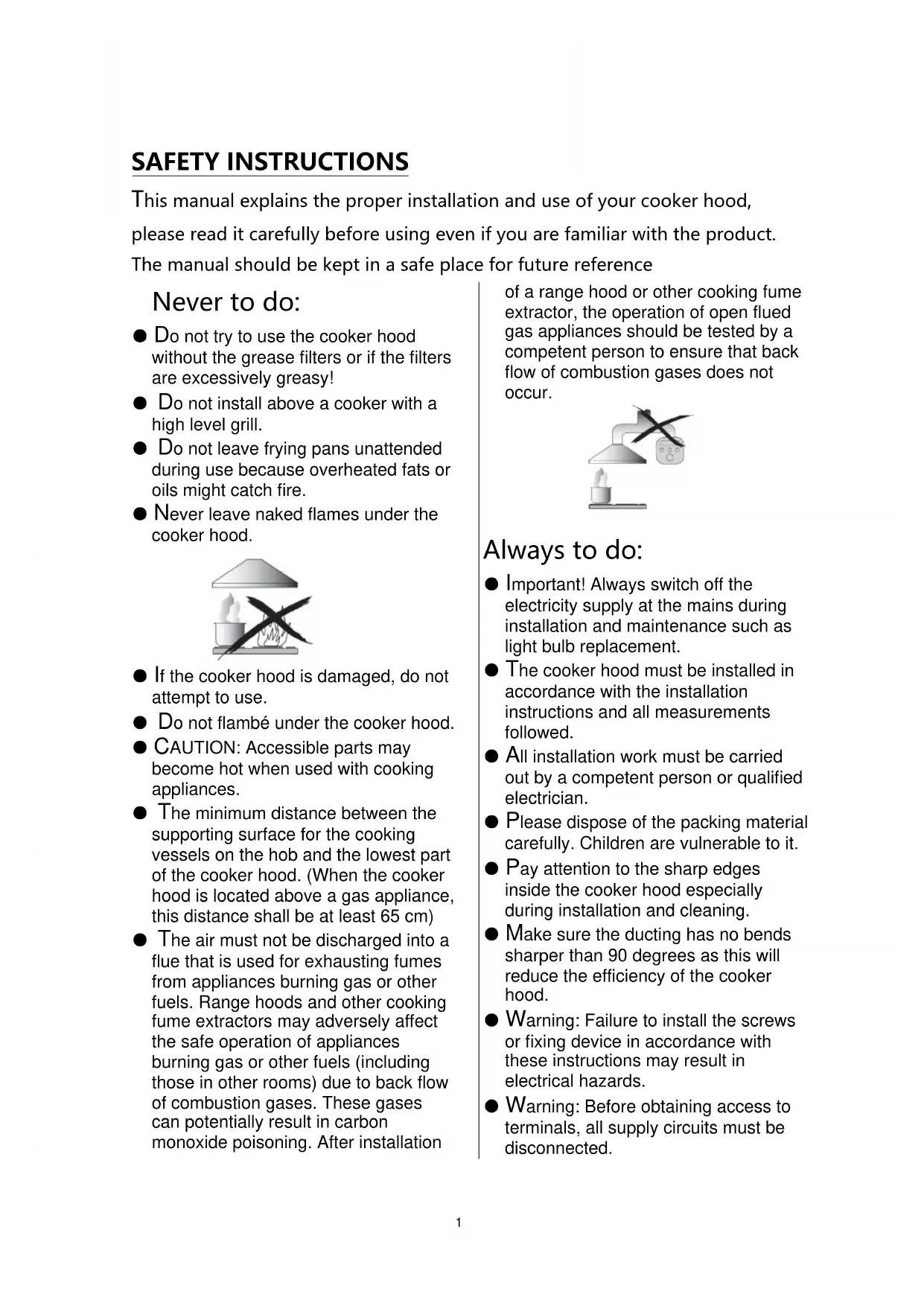

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product.

The manual should be kept in a safe place for future reference

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
• Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation

of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

- If the voltage rating of the lamp is less than the rated voltage of the appliance, the voltage rating of the lamp shall also be marked on or near the lamp holder.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.

- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.

● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

● Cooker hood is for domestic use only.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

● Children should be supervised to ensure that they do not play with the appliance.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

● There is a fire risk if cleaning is not carried out in accordance with the instructions.

● Regulations concerning the discharge of air have to be fulfilled.

● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

- Regarding the information about how the appliance is to be fixed to its support, please refer to Operation section, the Installation procedures in this manual.

● Cleaning and user maintenance shall not be made by children without supervision.

- When the cooker hood and appliances supplied with energy other

than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa(4 x 10 ^-5 bar).

● WARNING: Danger of fire: do not store items on the cooking surfaces.

● A steam cleaner is not to be used.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

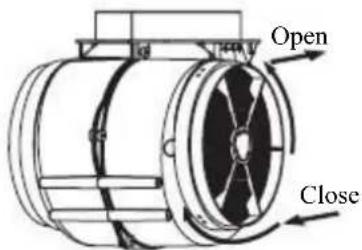

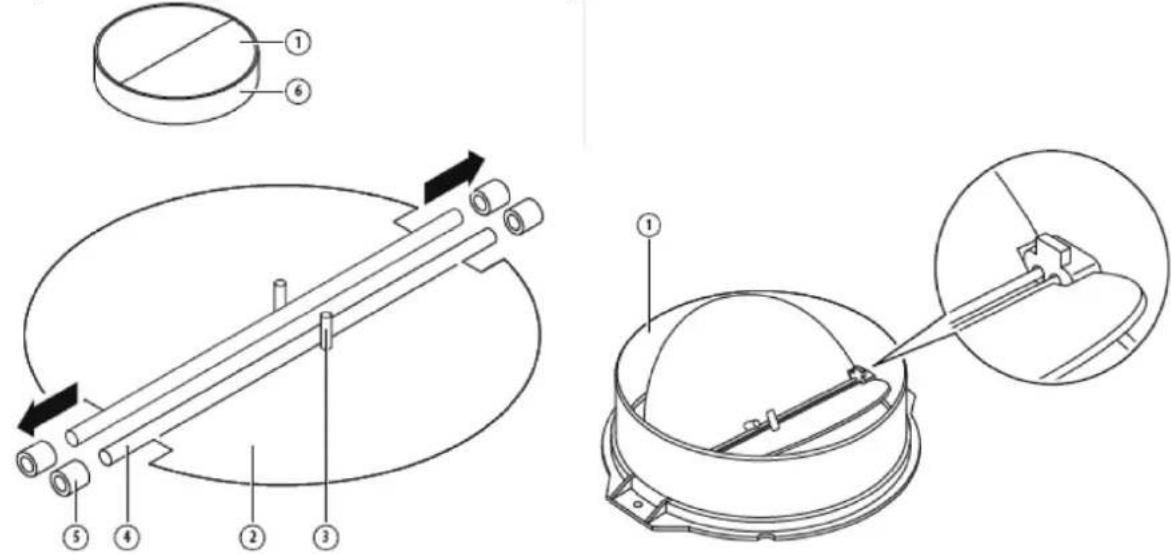

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

Pic1

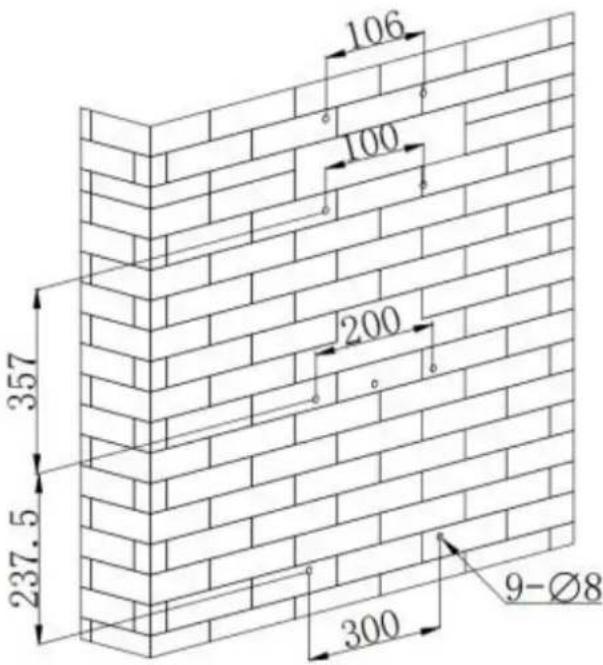

1. After deciding the position of cooker hood, drill 9pcs holes and insert wall plugs in each holes. Use 2pcs rows ST4*40mm to fix inside chimney bracket on the wall and 3pcs screws ST4*40mm to fix hook on the wall. Each row of screws should I level to ensure that the hood is secured horizontally. See pic 2.

Hole for inside chimney bracket

Hole for outside chimney bracket

hole for hook

hole for safety screw

Pic2

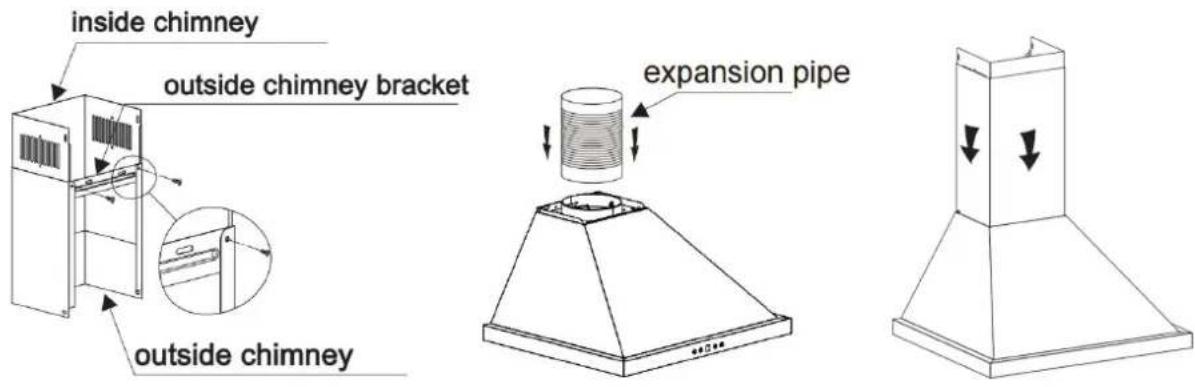

1. Fix the outside chimney bracket on the outside chimney with 2pcs screws ST4*8mm, and be sure that the inside chimney be adjusted in it freely. Afterwards, install the expansion pipe and chimney on the cooker hood. Fix the expansion pipe with the cable tie on the outlet and fix the outside chimney of the cooker hood body with 2pcs screw ST4*8mm. Note: The expansion pipe is no included in the product. See pic 3&5.

Pic3

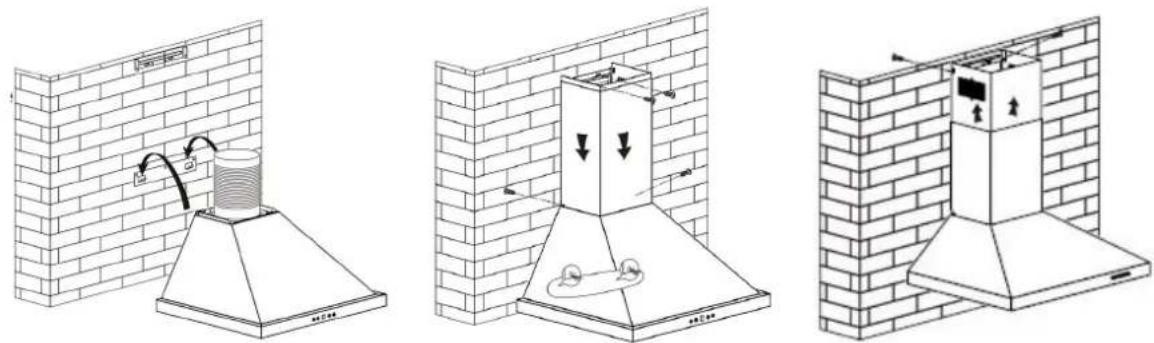

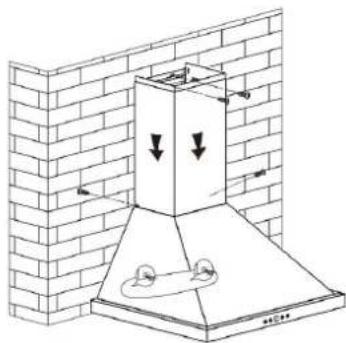

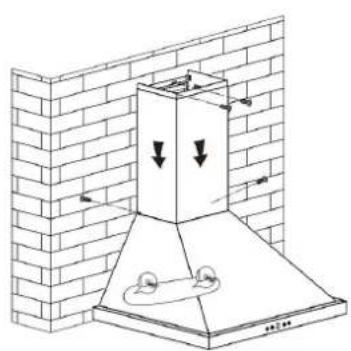

1. Put the ooker hood on the hook. See pic 4.

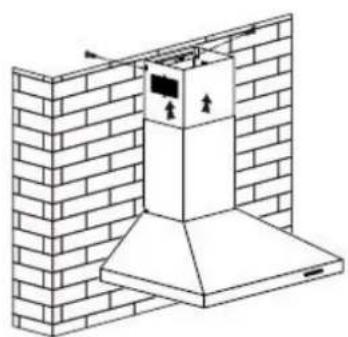

2. Adjust the height of the inside chimney to the position of the inside chimney bra and fix it on the bracket with 2pcs screws ST4*8mm. After adjusting the position, fix the body with safety screws ST4*30mm. Note: The two safety vents are positioned on the back housing, with diameter of 6mm. Lay the expansion pipe to the wall outlet. See pic 5.

Three technical line drawings of a brick chimney installation, showing ventilation and mounting details (no text or symbols)

Pic4 Pic5

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.

- Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

- Any installation work must be carried out by a qualified electrician or competent person.

- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

- The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

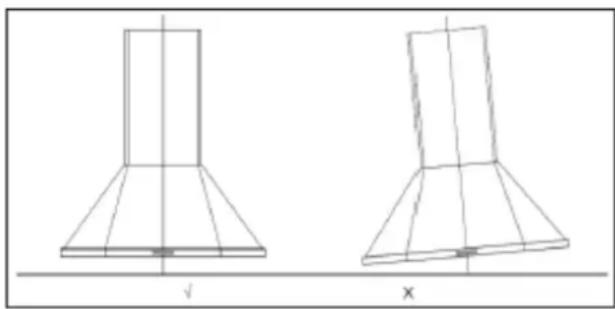

- After the installation, make sure that the cooker hood is level to avoid grease collection at on end.

- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Technical line drawing of two conical heat exchangers with mounting holes, shown from different angles (no text or symbols)

Right
Wrong

WARNING:

For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Electronic button with LED display

Simple line drawings of simple geometric shapes: circles, a light bulb, a square, and three icons (hair, lightbulb, circle) — no text or symbols present.

1. Power-on: After connecting the cooker hood to the main supply, the backlight of all buttons will turn on and the buzzer sounds for once. The LED display is closed. The cooker hood doesn't work and enters into stand-by mode.

2. (Lamp) button:

Press (lamp) button, the lights will be on. Press again, the lights will be off. The above steps can be repeated operating. The lamp function could be operated without pressing the (Power) button.

1. (Power) button:

3.1 Press (Power) button, the cooker hood starts to work at the low speed and the LED display will display "1". Press again, the cooker hood will stop. The cooker hood speeds can only be adjusted when starting the power button.
3.2 After switching off the speeds of cooker hood by power button, when press the power button again to start-up the hood, motor will work at the speed before the last exit.

1. (Speed) button:

The cooker hood has three speed levels, they are low, mid, high, and the corresponding LED display will be "1", "2", "3".

4.1 After switching on the power button, the hood starts to work at low speed and the LED display will display "1".
4.2 Press (Speed) button again when it works at low speed, the cooker hood

works at mid speed and the LED display will display "2".

4.3 Press (speed) button again when it works at mid speed, the cooker hood at the high speed and the LED display will display "3". After working at high speed (boost) for 7mins, the cooker hood will switch to mid speed automatically.

4.4 During the working, you can press (Speed) button to change the speed circularly: "low→mid→high→low→mid……"

5. (Timer) button:

The timer button is only used for the timer function when the hood is working. (Press the button will be invalid when the hood is under standby mode or open the lamp separately).

5.1 Press the timer button, the hood enter into the timer function. The timer setting is 9mins and the display shows "9".

5.2 After the timing function starts, the display shows "9", "8", "7"..., decreasing by minute. After the timing is completed, the motor will automatically cut off the power immediately and the motor output will be turned off. The lights are off at the same time.

5.3 Press the timer button once to enter the timer function. Press again to exit the timer function. The above steps can be operated repeatedly. In the timing state, pressing

the speed button will automatically exit the timing function.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken or faulty bulbs	Replace bulbs as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much

pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.

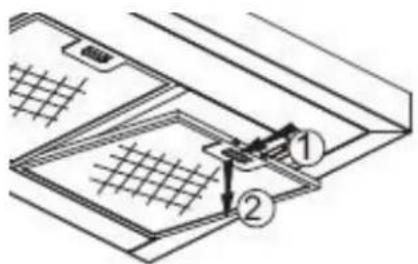

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, disconnect the mains power to the unit.
2. Press the filter lock and remove the mesh filter.

Illustration of a hand holding a pen over a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

1. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
2. Place the mesh filter.
3. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause danger.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note:

● Before Replacement light that the cooker hood can be isolated from the supply mains by means of a plug or an all-pole switch.
● Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

Remove the grease filter.
Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1. Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. See pic 2.
➢ Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DSR-1.5/65-S-64
- LED modules -round lamp
- Max wattage: 2×1.5 W
- Voltage range: DC 12V
- Dimensions:

Mechanical component diagram showing a lever and adjustment mechanism (no text or symbols)

Pic1

Diagram of a ceiling lamp with hanging components and directional arrows indicating motion (no text or symbols)

Pic 2

ENVIRONMENTAL PROTECTION:

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.

cata

Line drawing of a double-bell kitchen chimney with base and top plate (no text or symbols)

INSTALLATION

Diagram of airflow around a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of two conical exhaust fans (no text or symbols)

Correct
Incorrect

AVERTISSEMENT :

Simple line drawings of circles and icons (no text or symbols)

Simple line drawing of a hand holding a rectangular object with an arrow pointing downward (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Mechanical component diagram showing a lever and base with arrows indicating direction (no text or symbols)

Fig. 1

Diagram of a ceiling lamp with adjustable arm and base, showing internal components and airflow direction (no text or labels)

Fig. 2

PROTECTION DE L'ENVIRONNEMENT :

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

INFORMATIONS RELATIVES AU DÉMONTAGE

Line drawing of a kitchen chimney with ventilation duct and base plate (no text or symbols)

A fazer sempre:

INSTALAÇÃO

Diagram of airflow around a mechanical component with directional arrows indicating motion (no text or symbols)

Pic4

Technical line drawing of a brick chimney with directional arrows indicating airflow or movement (no text or symbols)

Pic5

Architectural diagram of a brick chimney with mounting fixtures (no text or symbols)

Technical line drawing of two conical heat exchangers with mounting holes, shown from different angles (no text or symbols)

Correto
Errado

Simple line drawings of five simple geometric shapes: a light bulb, a square, a butterfly, and two circles (no text or symbols)

Simple line drawing of a hand holding a rectangular object with an arrow pointing downward (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion direction (no text or symbols)

Imagem 1

Diagram of a ceiling lamp with hanging components and directional arrows indicating motion (no text or symbols)

Imagem 2

PROTEÇÃO AMBIENTAL:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Line drawing of a kitchen chimney with ventilation duct and base plate (no text or symbols)

Immer tun:

INSTALLATION

Diagram of airflow around a mechanical component with directional arrows indicating motion (no text or symbols)

Simple line drawings of five symbols: a lightbulb, a square, an umbrella, and two circles (no text or labels)

EINBAU VON FETTSIEBFILTERN

Simple line drawing of a hand holding a rectangular object with an arrow pointing downward (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Mechanical component diagram showing a lever and base with arrows indicating direction (no text or symbols)

Abb. 1

Diagram of a ceiling lamp with hanging components and directional arrows indicating motion (no text or symbols)

Abb. 2

UMWELTSCHUTZ:

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.
