USER MANUAL Telios Extra TXL80PET 011 HOOVER

*Certain Models Onl y **May vary according to models

*Certain Models Only **May vary according to models *Certain Models Only **May vary according to models

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord. Keep hands, feet, loose clothing and hair away from rotating brushes. Use only attachments, consumables or spares recommended or supplied by HOOVER. Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health. Do not use your appliance out of doors or on any wet surface or for wet pick up. Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. Do not spray with or pick up ammable liquids, cleaning uids, aerosols or their vapours. Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord. Do not continue to use your appliance if it appears faulty. HOOVER service: To ensure the continued safe and efcient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer. Do not stand on or wrap the cord around arms or legs when using your appliance. Do not use the appliance to clean animals or people. Do not position the appliance above you when cleaning the stairs. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU. CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy GB2

GETTING TO KNOW YOUR CLEANER

A. Hose B. Bag Door C. Exhaust Filter Cover D. Main Cleaner E. Carry Handle F. Bag Door Release Latch G. Mechanical Bag Check Indicator H. On/off Pedal

W. Accessory Set W1. Crevice Tool W2. Furniture Nozzle W3. Dusting Brush

Remove all components from the packaging.

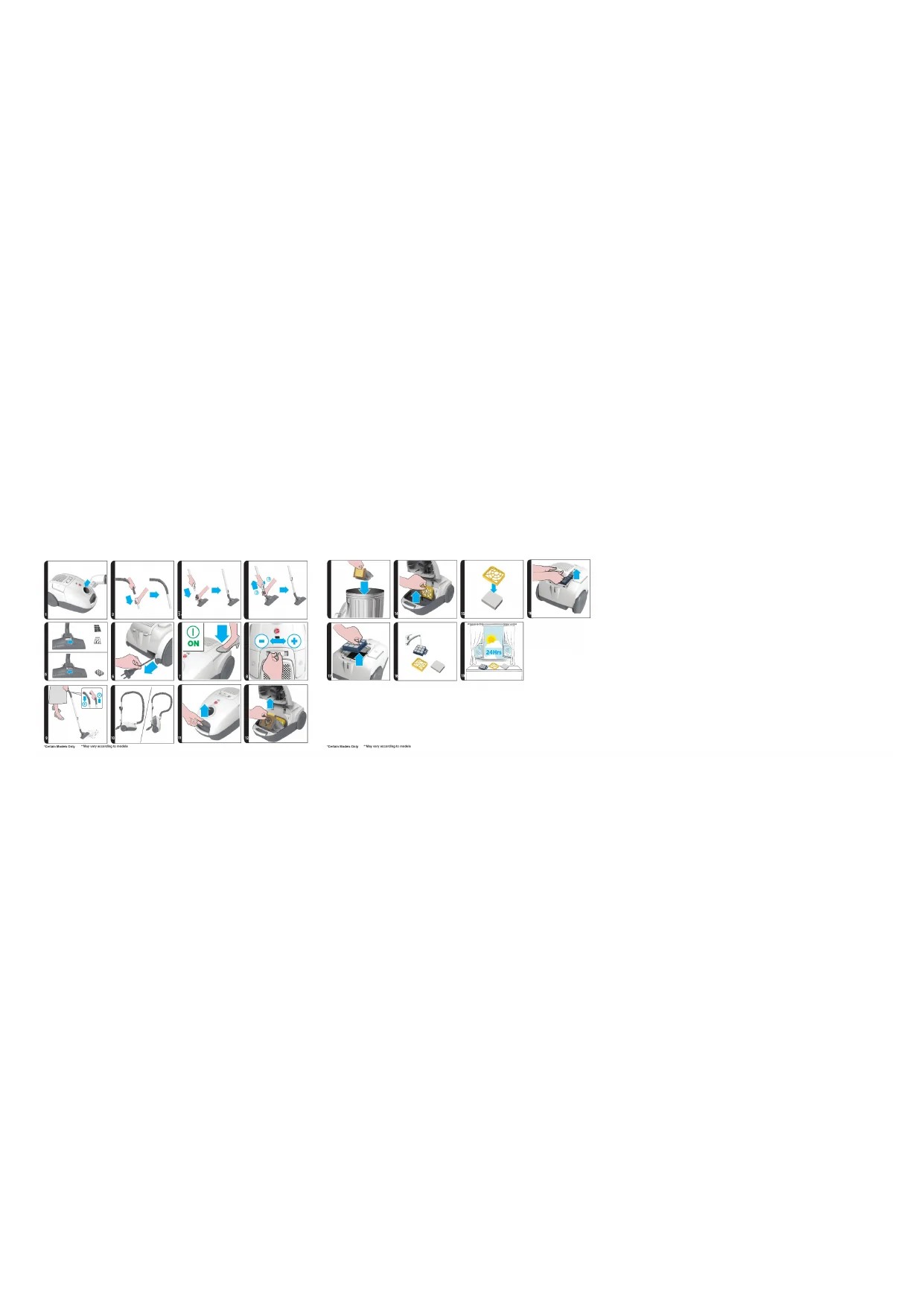

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position.

To release the hose: simply press the two latches on the hose end and pull. [1]

2. Connect the hose handle to the upper tube end. [2]

3. Connect the tube lower end to the carpet and oor nozzle**. [3]

4. Put the accessory holder on the extension tube, then x furniture tool, crevice tool,

dust brush on the holder.

1. Extract power cord and plug it into the power supply. Do not pull the cord beyond

2. Adjust the telescopic tube to the desired height and raise or lower the tube to the most

comfortable cleaning position. [4]

fter connecting the telescopic tube to the Carpet and Floor Nozzle, adjust the suction control slider on the nozzle according to your cleaning needs [5]: Hard Floor Cleaning: Adjust the suction control slider on the nozzle to the symbol. [5] Standard Carpet: Adjust the suction control slider on the nozzle to the symbol. [5] Long Pile Carpet: Adjust the suction control slider on the nozzle to the symbol. [5] To obtain the best performance and efciency on Carpet adjust the suction control slider on the nozzle to the symbol. [

The suction control can also be used to reduce the operating push force.

4. Switch the cleaner on by pressing the On/Off Pedal on the cleaner main body. [7]

5. Adjust the power level by moving the variable power control slider. [8]

6. Adjust the suction regulator to the desired level. [9]

7. Switch off at the end of use by pressing the On/Off Pedal. Unplug and extract power

cord again to wind the power cord back into the cleaner.

8. Parking and Storage - The tube can be parked for temporary storage while in use,

or in the storage position when not in use

[10] ACCESSORIES The Crevice tool, Furniture nozzle and Dusting brush are stored on the accessory holder. All accessories can be tted to the end of the handle or the end of the telescopic tube. Crevice Tool – For corners and hard to reach areas. [W1] Furniture Nozzle – For soft furniture and fabrics. [W2] Dusting Brush – For bookshelves, frames, keyboards and other delicate areas. To extend the brushes push the button on the body of the tool. [W3] Parquet Nozzle

• – For parquet oors and other delicate oors. [Z] IMPORTANT: Do not use mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while brush is rotating.

• Certain Models Only ** May vary according to model GB3 CLEANER MAINTENANCE Replacing the Dust Bag If the Mechanical Bag Check Indicator is red, please check and, if necessary, replace the bag.

1. Lift the bag door release latch, open the bag door and remove the bag.

[11,12] The full dust bag should be disposed correctly and carefully. [13]

2. Fold a new bag as shown on the bag and t by inserting the collar into the bag holder.

3. Close the bag door.

WARNING: The bag door will NOT close if the dust bag and/or the bag holder are not

assembled to the cleaner. Always ensure the bag is present when closing the bag door. REMEMBER: The Mechanical Bag Check Indicator may be red, also if an obstruction has occurred. In this case refer to ‘Remove a blockage from the system’. Cleaning the lters: To maintain optimum performance of your cleaner, please wash the lters after each 5 bag changes. Cleaning the pre-motor lter:

1. Lift the bag door release latch to open the cover and remove the bag. [11,12]

2. Remove the pre-motor lter frame from the cleaner. [14]

3. Remove the lter from the pre-motor lter frame. [15]

4. Wash the pre-motor lter using warm water [18] and allow it to dry [19] thoroughly

before inserting it into the cleaner. Cleaning the exhaust lter:

1. Unclip the exhaust lter cover and remove the exhaust lter pack.

2. Wash the exhaust lter using warm water [18] and allow it to dry [19] thoroughly

before inserting it into the cleaner. REMEMBER: Do not use hot water or detergents. In the unlikely event of the lters becoming damaged, t a Genuine Hoover replacement. Do not try and use the product without a dust bag or lter tted. Cleaning the permanent cloth dust bag* (* Certain model only) To maintain optimum performance we recommend that you wash the permanent cloth dust bag after every 5 full bags. Empty the contents of the bag into a bin, wash the bag under warm water, remove excess water and leave to dry fully before replacing. Removing a blockage from the system If the Mechanical Bag Check Indicator is red:

1. Check if the bag is full. If so refer to ‘Replacing the Dust Bag’.

2. If it is not full, then:

A. Do the lters need cleaning? If so refer to ‘Cleaning the Filters’. B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from telescopic tube or exible hose.

WARNING: The Mechanical Bag Check Indicator will remain red if the cleaner is

used when the bag is full, if there is a blockage or if the lters are dirty. If the cleaner is used for a signicant period with the bag check indicator in red, a thermal cut out will switch the cleaner off to prevent overheating. The bag check indicator turns off once the cleaner has switched off to signal that the thermal cut out has been activated. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 30 minutes for the cut out to automatically reset. USER CHECKLIST Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.

• Is the dust bag over-lled? Please refer to ‘Cleaner Maintenance’.

• Is the Filter blocked? Please refer to ‘Cleaner Maintenance’.

• Are the hose or nozzle blocked? Please refer to ‘Removing a blockage from the system’.

• A thermal cut out switches off the cleaner to prevent overheating if it is used when full or there is a blockage or dirty lters. If this should happen: switch off, unplug and correct the fault. It will take about 30 minutes for the cut out to automatically reset. IMPORTANT INFORMATION Hoover spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. Hoover Service Should you require service at any time, please contact your local Hoover Service Ofce. Quality Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.
