XGM27PRO4 - Monitor KeepOut - Free user manual and instructions

Product Type	Monitor
Brand	KeepOut
Model	XGM27PRO4
Screen Size	27 inches (68.6 cm)
Resolution	1920 × 1080 pixels (Full HD)
Refresh Rate	200 Hz
Response Time	1 ms
Video Connectivity	1 × HDMI 2.0, 1 × DisplayPort 1.2
USB Port	1 × USB 5V/1A
Audio Output	3.5 mm Jack
Power Supply	12V DC, 2.5A (power adapter included)
Maximum Power Consumption	30 W
Special Features	Blue light filter, flicker-free, FreeSync, MPRT, HDR, Overdrive, DCR
OSD Settings	Brightness, contrast, color temperature, language, OSD position, transparency
OSD Languages	Multilingual (French included)
Dimensions (without stand)	Approximately 615 × 365 × 50 mm
Weight	Approximately 5 kg
Included Accessories	User manual, base and screws, power adapter, HDMI cable
Maintenance	Unplug before cleaning, use a soft cloth
After-Sales Service	[e-mail]
Recycling	WEEE compliant, recyclable packaging

Frequently Asked Questions - XGM27PRO4 KeepOut

How to connect my monitor?

Connect the HDMI (or DisplayPort) cable between your PC and the monitor. Then, plug the included power adapter into the monitor's DC input and into an electrical outlet. Press the Power button to turn it on.

What to do if the screen remains black?

Check that the monitor is on, cables are properly connected, and the input source is selected (HDMI or DP). Try changing the cable or port.

How to adjust brightness?

Press the M button to open the OSD menu. Navigate with the Up/Down keys to LUMINANCE, then adjust BRIGHTNESS using the Up/Down keys.

How to activate the blue light filter?

In the OSD menu, go to COLOR then BLUE FILTER and select ON.

Can I use a different power adapter?

No, use exclusively the included adapter (12V/2.5A). An unsuitable adapter may damage the monitor or cause a fire.

The sound does not work. What to do?

Check that the volume is not on mute mode (option MUTE in the OSD menu) and that the volume is adjusted. Make sure the headphone cable is properly plugged in if using headphones. The monitor does not have built-in speakers.

What to do in case of unusual smell or noise?

Immediately unplug the power adapter from the electrical outlet and contact after-sales service ([e-mail]). Do not use the device anymore.

How to clean the screen?

Turn off and unplug the monitor. Use a soft, dry or slightly damp cloth (no chemicals). Gently wipe the screen.

What are the recommended settings for gaming?

In the OSD menu, enable OVERDRIVE to reduce blur, and set ECO to Game. You can also enable FreeSync and HDR according to your preferences.

Where to find the complete user manual?

The guide is included in the packaging as a paper format. You can also download the PDF version on the website notice-facile.com.

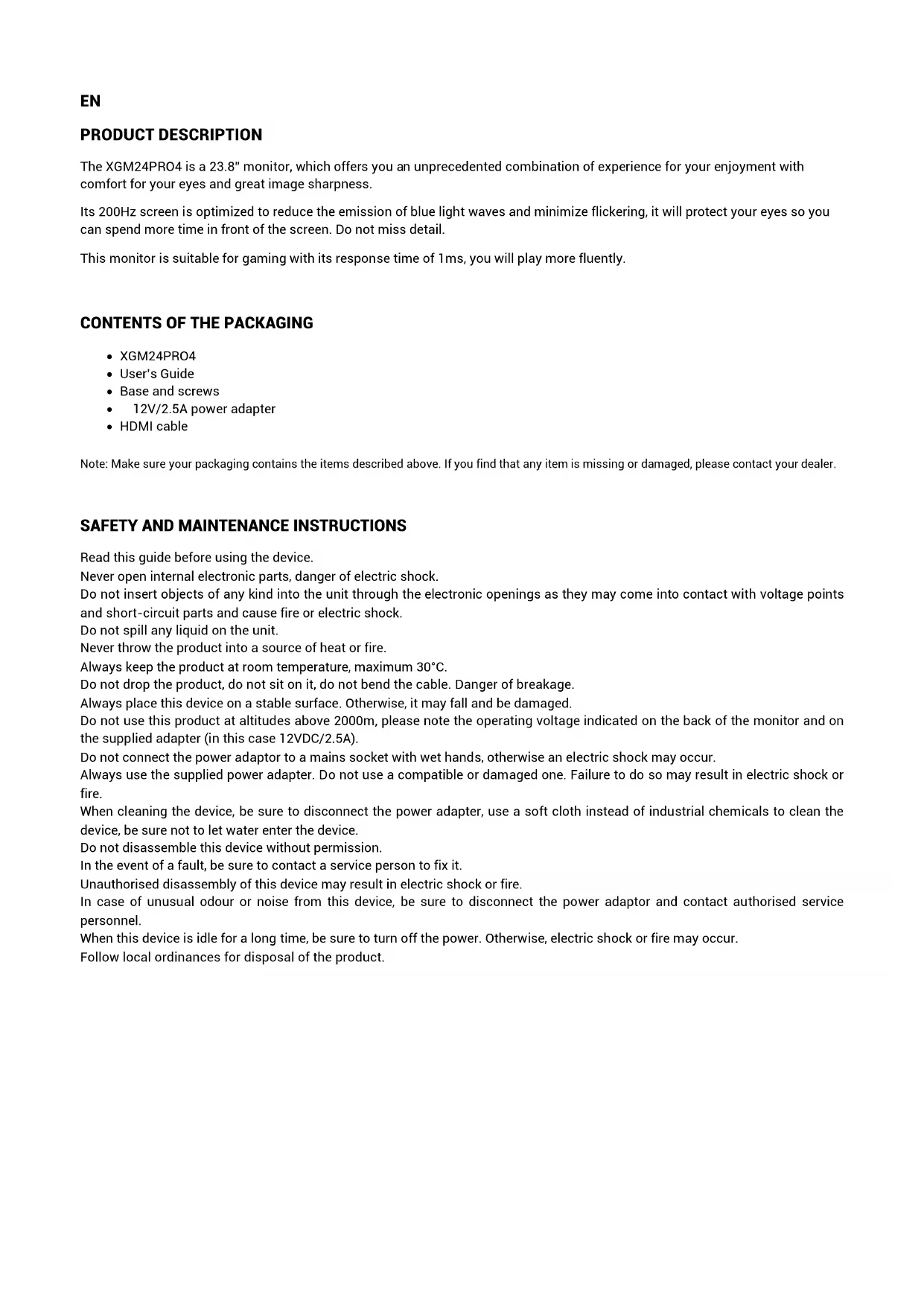

USER MANUAL XGM27PRO4 KeepOut

The XGM24PRO4 is a 23.8" monitor, which offers you an unprecedented combination of experience for your enjoyment with comfort for your eyes and great image sharpness.

Its 200Hz screen is optimized to reduce the emission of blue light waves and minimize flickering, it will protect your eyes so you can spend more time in front of the screen. Do not miss detail.

This monitor is suitable for gaming with its response time of 1ms, you will play more fluently.

CONTENTS OF THE PACKAGING

• XGM24PRO4
• User's Guide
• Base and screws
  • 12V/2.5A power adapter
• HDMI cable

Note: Make sure your packaging contains the items described above. If you find that any item is missing or damaged, please contact your dealer.

SAFETY AND MAINTENANCE INSTRUCTIONS

Read this guide before using the device.

Never open internal electronic parts, danger of electric shock.

Do not insert objects of any kind into the unit through the electronic openings as they may come into contact with voltage points and short-circuit parts and cause fire or electric shock.

Do not spill any liquid on the unit.

Never throw the product into a source of heat or fire.

Always keep the product at room temperature, maximum 30°C.

Do not drop the product, do not sit on it, do not bend the cable. Danger of breakage.

Always place this device on a stable surface. Otherwise, it may fall and be damaged.

Do not use this product at altitudes above 2000m, please note the operating voltage indicated on the back of the monitor and on the supplied adapter (in this case 12VDC/2.5A).

Do not connect the power adaptor to a mains socket with wet hands, otherwise an electric shock may occur.

Always use the supplied power adapter. Do not use a compatible or damaged one. Failure to do so may result in electric shock or fire.

When cleaning the device, be sure to disconnect the power adapter, use a soft cloth instead of industrial chemicals to clean the device, be sure not to let water enter the device.

Do not disassemble this device without permission.

In the event of a fault, be sure to contact a service person to fix it.

Unauthorised disassembly of this device may result in electric shock or fire.

In case of unusual odour or noise from this device, be sure to disconnect the power adaptor and contact authorised service personnel.

When this device is idle for a long time, be sure to turn off the power. Otherwise, electric shock or fire may occur.

Follow local ordinances for disposal of the product.

INPUTS AND OUTPUTS

HDMI input

If your PC has HDMI video output, connect the supplied HDMI cable between the HDMI input of the monitor and the HDMI output of the PC. This input is HDMI version 2.0.

DisplayPort input

If your PC has a DP video output, purchase a DP cable and connect it between the DP input of the monitor and the DP output of the PC. This input is DP version 1.2.

DC input

Connect the supplied power supply cable to the DC input of the Monitor and plug the adaptor into a household electrical outlet. 12V/2.5A power supply.

USB output

If you wish to charge or power a device such as smartphones, tablets, etc. you can do so using its 5V/1A USB output.

3.5mm jack output

Plug a headphone into the 3.5mm jack output of the monitor to listen to audio directly from this output.

FUNCTIONS OF THE BUTTONS

On/Off button: If you want to turn on the monitor press the on/off button, if you want to turn off the monitor press it again.

M button: The OSD menu is displayed on the screen. Once inside, it also has the function to accept or access the interior functions.

E button: Exits the current menu or exits the OSD menu.

Up / Down direction buttons: The up and down direction button allows you to move between the different menus and modify values.

The OSD menu of the monitor provides various settings for the monitor, such as colour, brightness and contrast, etc.

Main Menu	Icon	Submenu	Sub-submenu	Description
LUMINANCE		BRIGHTNESS Adjust brightness
		CONTRAST Adjust contrast
		ECO	Standard	Adjust lighting adapted to normal use
			Game	Adjust lighting adapted to use in games
			Movie	Adjust lighting adapted to Movie
			Internet	Adjust lighting adapted for internet
		DCR	On Enable DCR
			Off Disable DCR
		OVERDRIVE	On	Enable Overdrive
			Off	Disable Overdrive
		HDR	On	Enable HDR
			Off	Disable HDR
IMAGE ASPECT RA			Wide Adjust the wide in the image
			4:3	Automatically adjusts the image ratio to 4:3
COLOR		COLOR TEMP	Normal	Adjust the color in standards tones
			Warm	Adjust the color in warm tones
			Cool	Adjust color in cool tones
			User	Enable custom color adjustment
		RED		Adjust red values
		BLUE		Adjust blue values
		GREEN		Adjust green values
		BLUE FILTER	On	Enable Low blue filter
			Off	Disable Low blue filter
SETUP		LANGUAGE		Select the language displayed in the OSD menu
		HORIZONTAL		Adjust OSD menu position horizontally
		VERTICAL		Adjust OSD menu position vertically
		TIMEOUT		Adjust the OSD menu time
		TRANSPARENCY		Adjust OSD menu transparency
RESET		FACTORY RESET		Restore to default settings
		BLACK LEVEL		Adjust the black level
OTHERS		INPUT SELECT	HDMI Select HDM	input
			DP	Select the DP input
		MUTE	On	Enable audio output
			Off	Disable audio output
		VOLUMEN		Adjust the volume output
		FREESYNC	On	Enable FreeSync
			Off	Disable FreeSync
		MPRT	On	Enable Mprt
			Off	Disable Mprt

TECHNICAL SUPPORT

For more information about the installation of this product, please visit our website keepoutgaming.com or send an email to [e-mail].

TECHNICAL SPECIFICATIONS EXTERNAL POWER SUPPLY

Name or brand KEEP OUT GAMING
Commercial registration number	B-91202499
Manufacturer's address	C/ Tecnología, 5 Gelves Sevilla (Spain)
Model ID	DC-852-1202500V
Description Model identifier	AC/DC adapter for XGM24PRO4
Input voltage 100-240VAC
Input AC frequency 50/60Hz
Output voltage 12VDC
Output Current max 2.5A
Output power max 30W
Average active efficiency 88.22%
Low-load efficiency (10%)	86.31%
Consumption without load 0,08W

RECYCLING

AEE RII-RAEE 5548. In this manual, the crossed-out WEEE symbol indicates that the product is subject to a European directive, 2012/19/UE, electrical or electronic products, batteries, and accumulators and other accessories necessarily must be subject to selective collection.

At the end of the device's useful life, make use of the recycling containers. This gesture will help reduce health risks and preserve the environment.

Town halls and distributors will provide you with the essential details regarding the recycling of your old device. If this device has an internal battery, it must be removed and deposited separately for proper management.

Please recycle, the packaging of this product is recyclable. The product box is made of cardboard and must be recycled in the blue container or intended for cardboard and the internal protections and bags are made of plastic and must be recycled in the yellow container or intended for plastic. Among all we can help conserve the planet.

NOTE: The content of this guide is subject to typographical errors.

ES

Keep Out is a registered brand of Approx Iberia S.L. C/Tecnología 5, 41120 Gelves, Sevilla (Spain). Keep Out is not associated to any manufacturer. All brands and registered trademarks are the property of their respective owners and are used for descriptive purposes only. Made in China.

[e-mail].

The content of this guide is subject to typographical errors.
