16760051 - Heated blanket/cushion Melissa - Free user manual and instructions

Product Type	Heating blanket/pad
Brand	Melissa
Model	16760051
Power Supply	230 V, 50 Hz
Heat Settings	4 levels: off (0), low (I), medium (II), high (III)
Automatic Shut-off	Yes, after approximately 1 hour 30 minutes of operation
Intended Use	Relieve sore muscles and joints, provide warmth on a chair, sofa or bed
Cleaning	Machine washable at 30°C with mild detergent. Remove the control panel before washing. Dry completely flat before reuse.
Usage Precautions	Do not use with pins, do not fold sharply, do not place under a pillow, do not use with waterbeds or adjustable beds
Child and Pet Safety	Not suitable for babies, children, people highly sensitive to heat, or pets
Compatibility with Timers	Do not use with an external timer or remote control
Operation Indicator	Indicator light on the control panel
Control Panel	Provided, must stay outside the bedding, do not expose to water
Repairs	Have it repaired by an approved repairer; any modification voids the warranty
Warranty	Valid subject to compliance with instructions; void in case of misuse
Disposal	Do not dispose of with household waste; take to a WEEE recycling center

Frequently Asked Questions - 16760051 Melissa

How to use the Melissa 16760051 heating pad?

Plug the connector of the control panel into the connection point of the pad, then plug the plug into a 230V outlet. Turn on the device via the control panel and select the desired heat level (I, II or III). The indicator light turns on to indicate operation.

How long does the heating pad stay on?

The device automatically turns off after approximately 1 hour 30 minutes of operation. You can turn it back on if needed.

Can I leave the heating pad on all night?

No, it is not recommended to leave the device unattended. Although it turns off automatically, do not use it while sleeping.

How to wash the heating pad?

First remove the cord and control panel. Machine wash the pad at 30°C with mild detergent. Let it dry completely flat before reuse. Do not use it while damp.

Can I use the pad with a pillow or duvet?

Do not place the pad under a pillow. You can place a duvet on top of the pad. Make sure the cord and control panel remain outside the bedding.

Is the heating pad safe for children?

No, it is not suitable for babies, children, or people highly sensitive to heat. Prolonged use can cause irritation or burns.

What if the cord or plug is damaged?

Do not use the device if it is damaged. Have it inspected and repaired by an approved repairer. Do not attempt to repair it yourself.

Can I use an extension cord with the heating pad?

Yes, you can use an extension cord, but make sure it does not pose a tripping hazard and is suitable for the device's power.

What are the different heat settings?

The control panel offers 4 positions: 0 (off), I (low heat), II (medium heat), III (high heat).

How do I know if the heating pad is working?

An indicator light on the control panel turns on when the device is on and a heat level is selected.

USER MANUAL 16760051 Melissa

Medical device with labeled parts, no visible text or symbols on the device itself

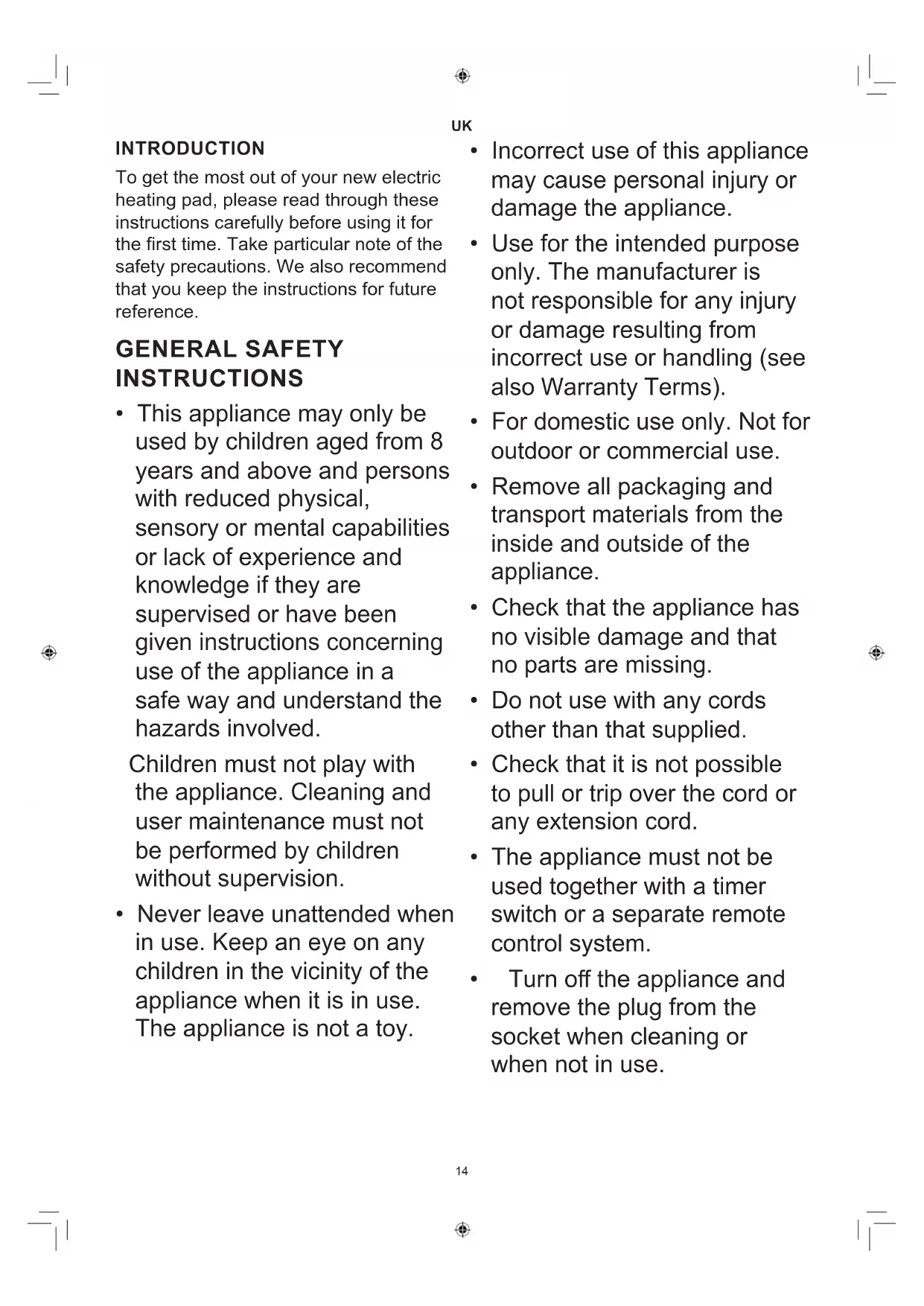

To get the most out of your new electric heating pad, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Never leave unattended when in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

UK

• Incorrect use of this appliance may cause personal injury or damage the appliance.
• Use for the intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).
• For domestic use only. Not for outdoor or commercial use.
• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Do not use with any cords other than that supplied.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• The appliance must not be used together with a timer switch or a separate remote control system.
• Turn off the appliance and remove the plug from the socket when cleaning or when not in use.

UK

• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.
• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.

• Connect to 230 V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.

• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.

• Unauthorised repairs or modifications will invalidate the warranty.

SPECIAL SAFETY INSTRUCTIONS

• This appliance is designed to relieve sore muscles and joints and to warm yourself on when sitting on a chair or sofa or lying in bed.
• Babies, children and persons highly sensitive to heat must not use or lie on the appliance. Prolonged use may cause skin irritation or scalding.
• Bed-wetters must not use the appliance. The appliance is not intended for use with pets.
• The appliance must be fully unfolded during use. Do not use pins as they may damage the appliance.

UK

• The appliance must not be placed under pillows. The quilt must be placed loosely over the appliance.
• The appliance is not intended for use with water beds, adjustable beds, folding beds, futons, etc.
• The cord and control panel must remain outside the bedding.
• The appliance must not be folded into sharp creases, ironed, rolled, twisted, squeezed or handled in any way that may damage the built-in heating wires.
• The appliance may only be used with the control panel supplied. The control panel must not be exposed to water or any other liquid.

KEY

Medical device with labeled parts (1, 2, 3) showing a grid background and medical probe setup (no text or symbols on main body)

1. Heating pad
2. Control panel
3. Connection point

USE

Plug the control panel's connector (4) into the connection point (3).

4 3

Plug in the mains plug and switch the appliance on using the control panel (2). The indicator light comes on when the appliance is on.

The control panel (2) must be easily accessible during use.

There are 4 settings on the control panel:

0: Off

1/I: Low heat
2/II: Medium heat
3/III: High heat

The appliance switches off automatically after having been on for about 1.5 hours.

CLEANING

The appliance can be washed at 30 °C , as all electrical parts are sealed. The appliance should not be washed too often, since too many washes cause wear on the appliance.

• Remove the cord and control unit from the connector on the appliance before cleaning.
• Allow the appliance to cool down completely before washing.
• Wash the appliance in a washing machine at 30 °C using a mild washing powder.
• Place the appliance on a flat surface and leave it to dry until completely dry.
• IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste.

Private households in the EU can take used equipment to special recycling stations free of charge. In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products.

UK

Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.commaxx.nl.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED IN CHINA FOR

Commaxx B.V.

Wiebachstraat 37,

NL-6466 NG Kerkrade

Netherlands

www.commaxx.nl

We cannot be held responsible for any printing errors
