USER MANUAL Royal Line 27 Premium MEGASAT

7. Basic functions in the main menu

Please check whether the following parts are included in the packaging. If any parts are missing or damaged, please contact your dealer.

7. 12 Volt car connection cable

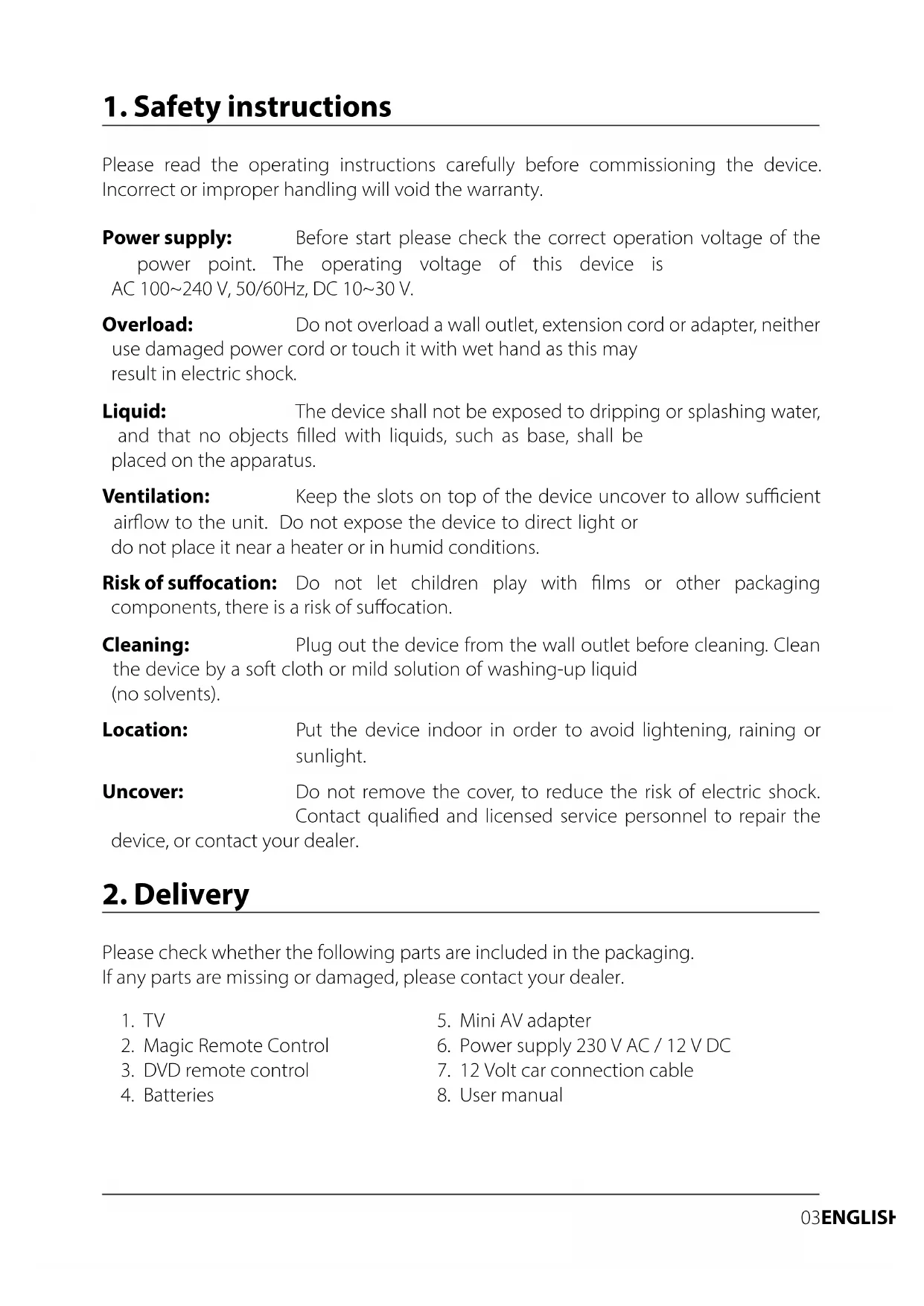

Please read the operating instructions carefully before commissioning the device. Incorrect or improper handling will void the warranty. Power supply: Before start please check the correct operation voltage of the power point. The operating voltage of this device is AC 100~240 V, 50/60Hz, DC 10~30 V. Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock. Liquid: The device shall not be exposed to dripping or splashing water, and that no objects lled with liquids, such as base, shall be placed on the apparatus. Ventilation: Keep the slots on top of the device uncover to allow sucient airow to the unit. Do not expose the device to direct light or do not place it near a heater or in humid conditions. Risk of suocation: Do not let children play with lms or other packaging components, there is a risk of suocation. Cleaning: Plug out the device from the wall outlet before cleaning. Clean the device by a soft cloth or mild solution of washing-up liquid (no solvents). Location: Put the device indoor in order to avoid lightening, raining or sunlight. Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualied and licensed service personnel to repair the device, or contact your dealer.04 ENGLISH To mount the stand

3. Stand mounting (optional)

Television Stand Screws Note: Before assembling the feet, please check that all parts are complete and that there is no visible damage. If any part is missing or damaged, please contact your dealer.05ENGLISH

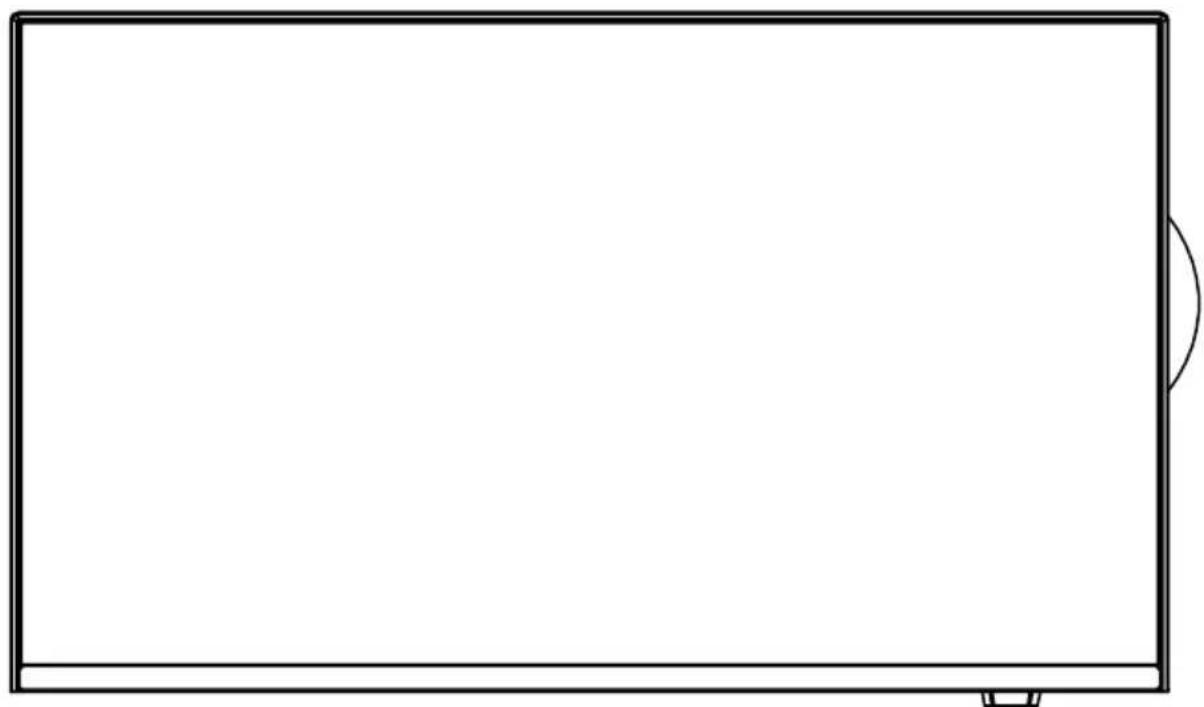

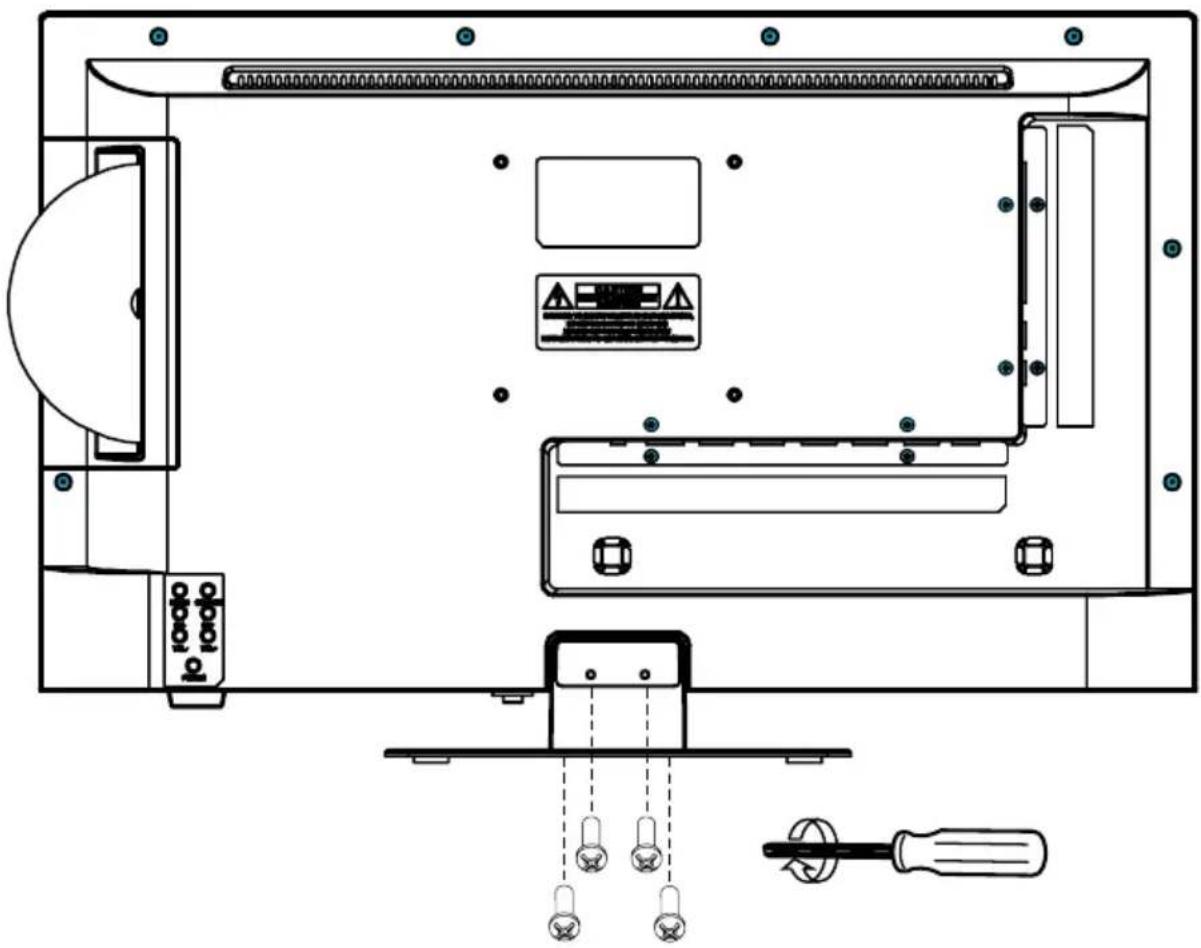

3. Stand mounting (optional)

1. Place the TV on a at, soft surface (e.g. blanket, foam) to prevent damage to the TV

2. Attach the stand to the TV as shown.

3. Fasten the stand with the enclosed screws.06

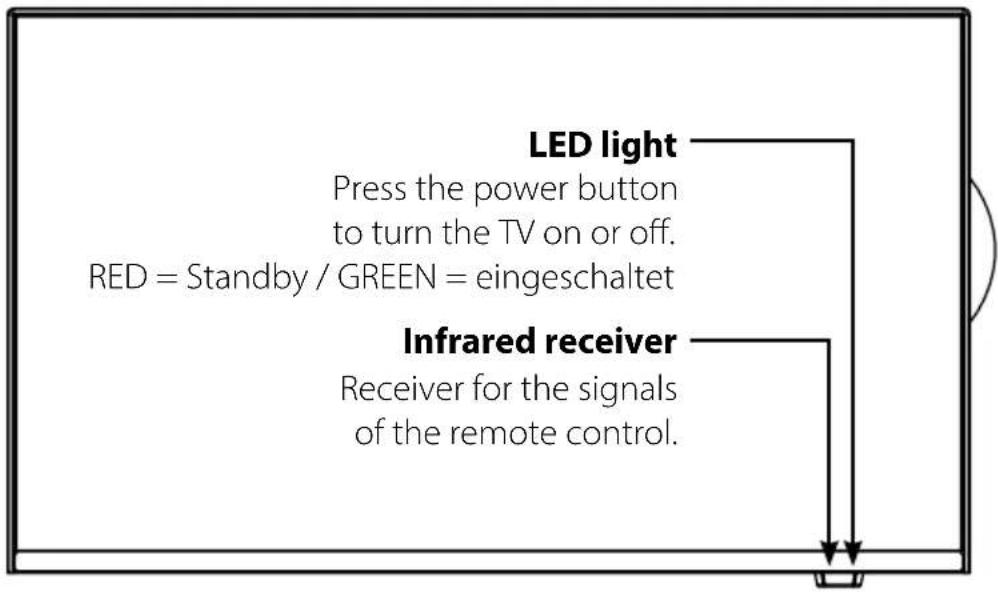

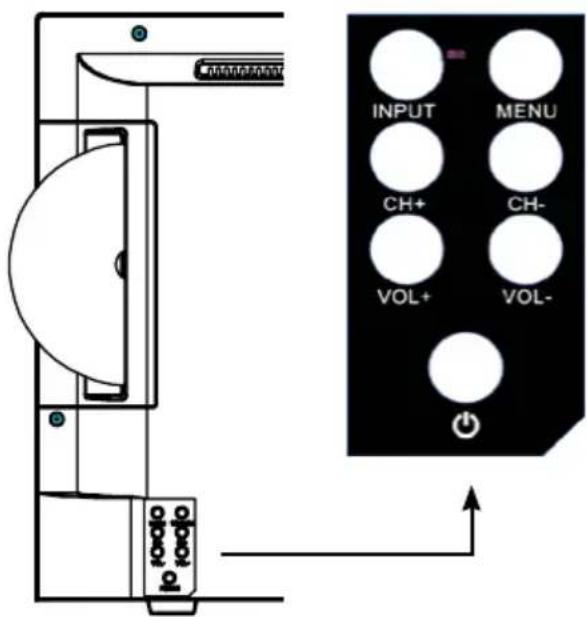

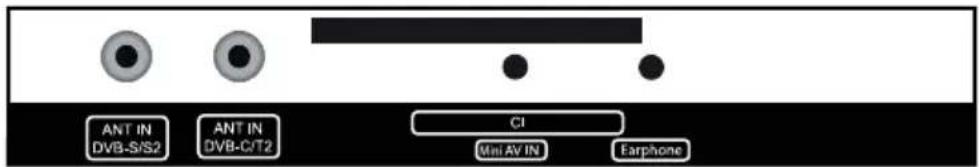

4.1 Front and rear view

LED light Press the power button to turn the TV on or o. RED = Standby / GREEN = eingeschaltet Front view Rear view Infrared receiver Receiver for the signals of the remote control. INPUT Press the button to select the signal source (e.g. DTV, DVD, HDMI, ...) MENU Press the key to enter the menu. CH +/- Switches the programs up / down. VOL +/- Adjusts the volume louder / softer. Turns the TV on or o (standby).07ENGLISH

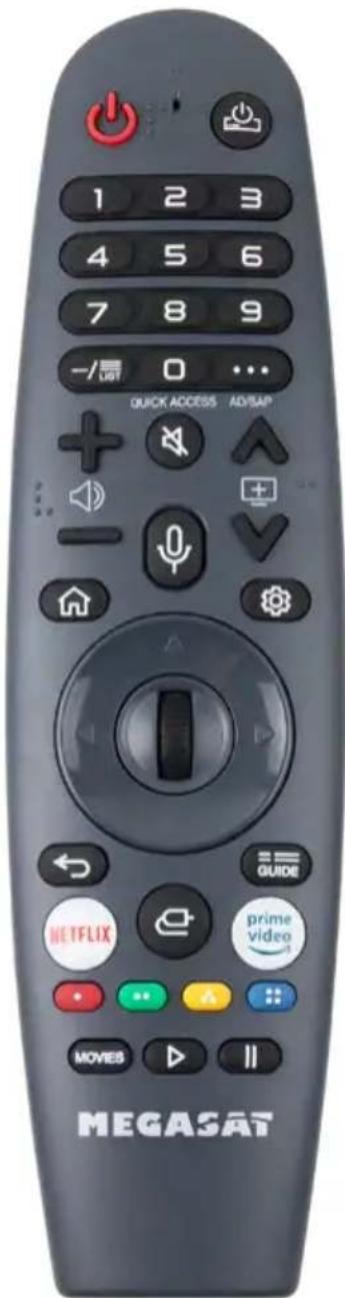

Press briey: On-screen remote control Long press: Switch audio description on / o VOL +/- Increase / decrease volume MUTE Mute sound CH +/- Change programs Activate voice assistant Smart-TV main menu Quick settings ARROW KEYS To navigate the main menu and DVD menu OK / SCROLLRAD OK: conrm selection SCROLLWHEEL: Page scroll and program change Return to previous menu / Exit menu GUIDE Opens the electronic program guide NETFLIX Opens the Netix app Input selection PRIME VIDEO Opens the Prime Video app COLOR KEYS Dierent functions in respective menus MOVIES Retrieve movies from the Internet u TV mode: live playback USB mode: playback I I Pause Magic & intuitive remote control The magic remote oers motion-controlled point-and-click functionality that makes navigating menus easy; you can select an option by pointing and clicking on it, just like a computer mouse. Just „Say“, not „ Type“. webOS TVs that come with the Magic Remote have voice control. In the cen- ter of the remote is a large microphone button that, when pressed, displays the search interface. It‘s useful to search for content as it cycles through most of your apps and even allows you to search for actors. Enjoy the easy access Enjoy smart and user-friendly experiences by assigning your favorite content provider and channels. Access your favorite apps by long pressing the numbers on the remote so you can skip the menu screens (shorten access process). 1.) Press and hold the „0“ key on the Magic Remote to open the Quick Access Setup. 2.) Select the number you want to set for quick access. For this example, select „6“. 3.) Select what you want to set for the number you want to open. For this example, select Channels. 4.) Press and hold the „6“ key to open the app with an action.09ENGLISH

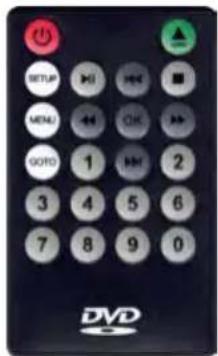

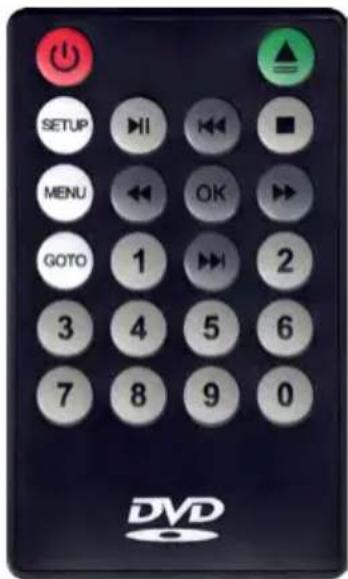

4.4 DVD remote control

Previous chapter / Next chapter OK Conrm selection To play a DVD, please use the DVD remote control included in the delivery contents. You can use it to switch to DVD mode or back to TV mode via the power button on the DVD remote control. In addition, the device automatically switches to DVD mode when you insert a DVD into the DVD slot provided for this purpose. Operation in DVD mode depends on the data structure on the DVD. For example, an original purchased movie will immediately switch to the main over- view for playback. Note: To put the DVD remote control into operation, please remove the battery contact foil by pulling it out.10 ENGLISH

5. Initial installation

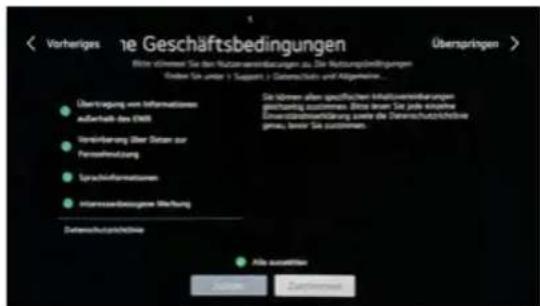

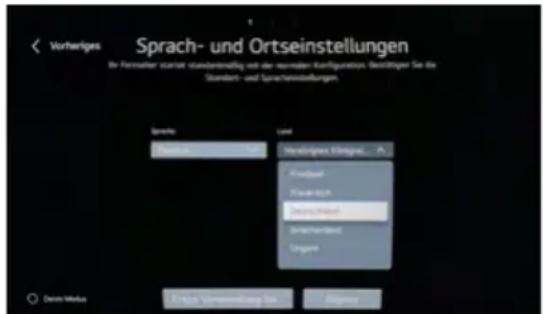

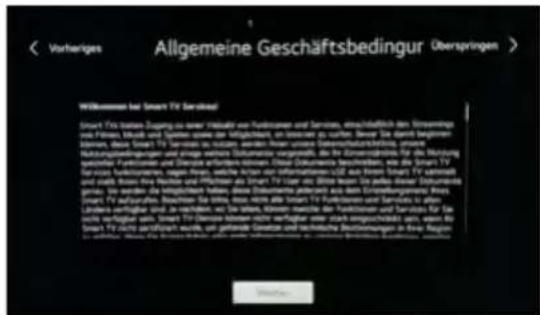

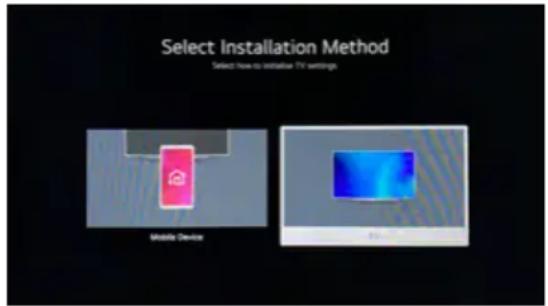

Connect the TV to the power supply. Then it will turn on automatically and the initial installation will appear on the screen. Step 1 - Teach remote control Point the Magic Remote at the TV and conrm with the OK button. Step 2 - Installation method Select the „TV“ installation method and conrm with OK. Step 3 - Set language Select your language and the corresponding country. Then click on „Next“. Step 4 - Internet connection Select a Wi-Fi network from the list to connect the TV to the Internet wirelessly. Alternatively, you can connect the TV with a LAN cable. Conrm the selection by clicking „Connect“. Now enter the password for the Wi-Fi network and conrm by clicking „Enter“.Step 5 - General terms and conditions After a successful Internet connection, the „General Terms and Conditions“ must be conr- med. To do this, click on „Next“. Select the items you want to conrm from the list. Alternatively, click „Select all“ at the bottom of the screen, then click „More“ or „Agree“. Step 6 - User analysis If you have connected external devices (recei- ver, DVD player, etc.) to the TV, they will be detected here. Click on „Next“. Step 7 - Check settings Select how you want to use the TV:

1. Only with external receiver (set-top box)

3. TV and external receiver

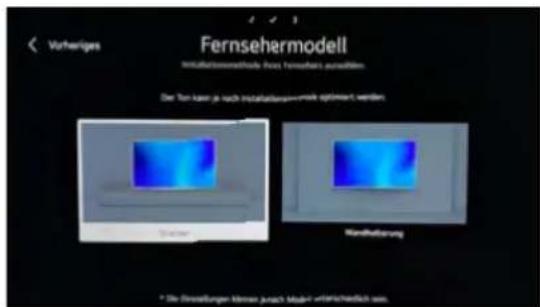

Step 8 - TV model Select the installation method of the TV. Use the TV on a stand or mount it on a wall bracket. Depending on the mounting, the sound of the speakers can be optimized.

5. Initial installation

11ENGLISHStep 9 - Channel Setting Select the transmission of the TV signal. Via DVB-T antenna, cable or satellite. The following procedure describes the setting via satellite. This is similar to antenna or cable reception. Select „Astra“ to search for German-language programs via satellite. Alternatively, select „Sky-D“ to also receive programs from the provi- der Sky (subscription required).

As a rule, you do not need to make any further settings now and can conrm the search with „Next“. If you use a DiSEqC switch or special LNBs on your satellite system, you can adjust the settings or transponders accordingly. Select „Astra 19.2 Search“ to install a predened channel list. Or select „Full Search“ to search the complete satellite for channels. Step 10 - LG Account After successful program search, you can login with your LG account or skip this step.

5. Initial installationThe TV oers a factory channel list for satellite reception if you set the Astra satellite and

performed a satellite search during initial installation. You can adapt this to your needs if necessary.

6. Update channel list

13ENGLISH Transfer channel list from USB to TV On our homepage www.megasat.tv we provide you with a user-friendly channel list. You can conveniently download this and copy it to a suitable USB stick. Important: The le must be located in the root directory of the USB stick! Do not crea- te subfolders and do not rename the le! Then insert the USB stick into the TV and follow the steps below:

A message appears asking whether you really want to copy the channel list to the TV. The existing channel list will be irrevocably overwritten. Conrm with „YES“ to start the process or „NO“ to cancel. Add stations to the favorites list In the menu Edit stations, you can create your own station list by selecting the desired stations. (more information can be found in the help function of the device). Sort all channels In the Edit Transmitters menu, you also have the option of sorting all transmitters. The numbering of the transmitters is then consecutive according to your sorting. (for more information, see the help function of the device).14 ENGLISH

7. Basic functions in the main menu

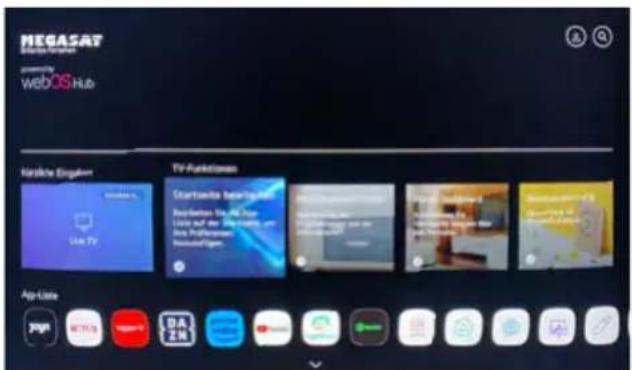

Edit Home Page In this menu, you can customize and sort the apps on the Home screen of the Smart TV interface to suit your needs. Program Guide Opens the electronic program guide for the saved channels. Home Dashboard The Home Dashboard shows you all devices connected to the TV (e.g. DVD player, receiver, etc.). You can switch between playback sources by clicking on the respective icon. User guide This menu provides detailed instructions on the respective functions of the TV. You can view the instructions simultaneously while watching TV or running an app. Opens the App Store to continue downloading apps. Opens the media player to play audio and video les via a USB stick. Web browser for surng the Internet. Press the „Home button“ on the remo- te control, to enter the Smart menu. There are several options or apps availab- le on this page.

7.1 Smart-TV main menu

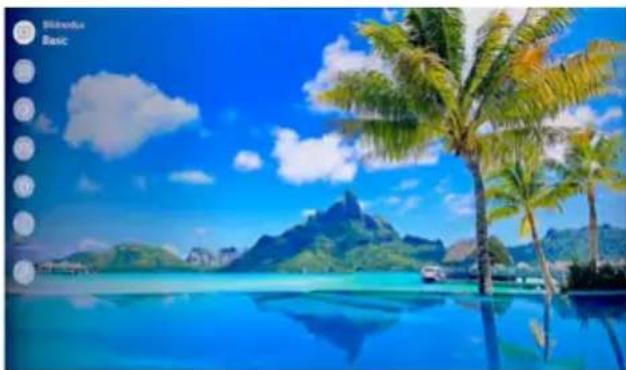

Useful apps7. Basic functions in the main menu 15ENGLISH Image mode Adjust the picture and select any picture mode (default: Basic). Sound mode Adjust the sound and select any sound option (for example, Clear Voice). Audio Output Select here what the TV should output the sound through. To connect to a Bluetooth soundbar, select the soundbar you want to connect to from the „Device List“. Game Optimizer This option is only available when a game console is connected via HDMI. Network In this menu you can adjust the WLAN connection or search for new networks. All Settings In this menu you can adjust advanced settings of the TV. A detailed description of the respective functions can be found on the Smart TV interface under the item „User guide“. Press the „Settings button“ on the re- mote control, to enter the settings menu. In this menu you can make the basic settings of the TV.

7. Basic functions in the main menu

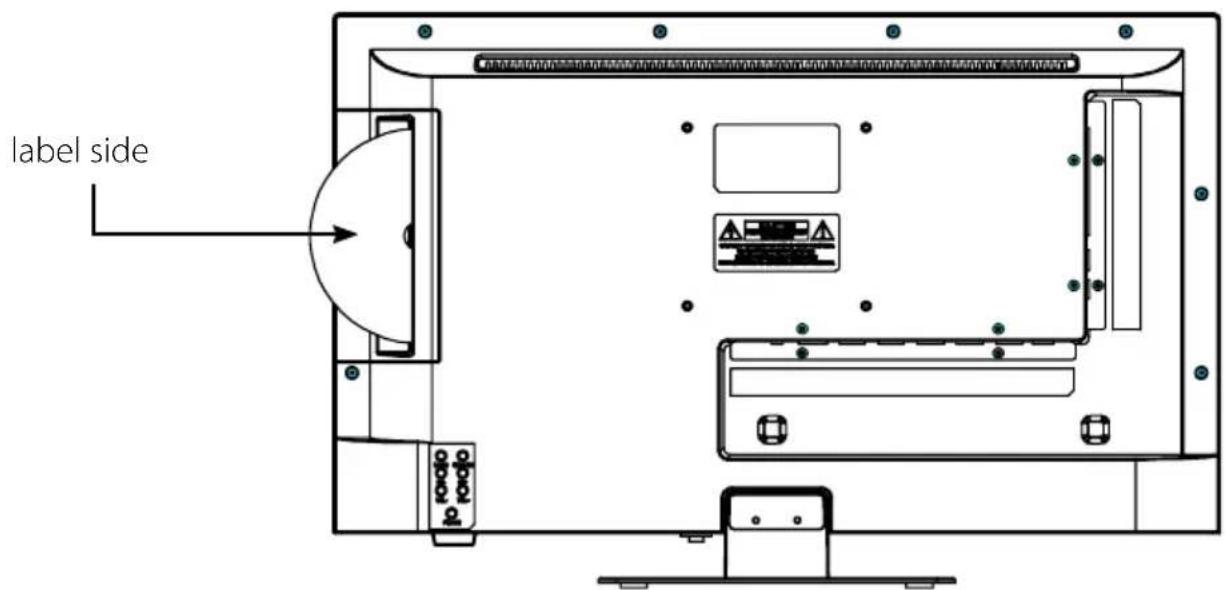

Note: DVD mode is only possible if a suitable disc has been inserted. You can also switch to DVD mode via the power key of the DVD remote control. The DVD drive has an automatic feed. Insert the DVD into the opening of the drive with little eort. It will then be pulled in automatically. Make sure that the reective side of the DVD is facing the screen. The labeled side (label) points towards the back. After the DVD or CD has been inserted, the TV automatically starts playback or, in the case of a DVD, displays the respective on-screen menu. To control the DVD and CD playback, please use the enclosed remote control! label side

7.3 DVD operation17ENGLISH

Please read the following information to nd out the possible cause to a problem before contacting customer service. No power • Check if the power cord is fully plugged into the electrical outlet and the power adapter.

• Check if the cable of the power adapter is properly connected to the TV unit.

• The electronic circuit was possibly reset. Disconnect the power supply from the power source, wait 1 minute, and then connect the electrical connector. No picture • Check if the antenna cable is properly connected.

• Verify that the correct input is selected; Use the INPUT button.

• Check the brightness and contrast settings in the Picture settings. No sound • Check if the sound is turned o or Mute is activated.

• Carefully increase the volume.

• Check if the audio cables are connected to the correct inputs. Bad picture quality • Check whether the correct input is selected; Use the INPUT button.

• Check the connection to the TV.

• Check the video settings. Image too large/small or distorted

• Use the ASPECT button to change the appearance of the image. Remote control does not respond

• Change the batteries.

• Use the remote control in the specied range (max. 5 meters and 30 °)

• Avoid direct exposure to light in the infrared sensor.18 ENGLISH

[e-mail] PRODUCT REGISTRATION Registering your Megasat product gives you access to our automatic e-mail notications. If your product requires new rmware, you will be notied by e-mail. For registration please visit our homepage www.megasat.tv You can nd the form in Support
