Product Type	Multifunction Electric Fryer
Brand	Brentwood
Model	AF2400SI
Capacity	Approximately 4-6 liters (not exactly specified)
Temperature Range	Up to 450°F (232°C)
Timer	0-30 minutes (approximate, audible alert at end of cooking)
Power	Approximately 1500W (estimated)
Power Supply	120V ~ 60Hz (USA/Canada)
Dimensions (L x W x H)	Approximately 30 x 30 x 30 cm (estimated)
Weight	Approximately 4 kg (estimated)
Main Functions	Frying, baking, grilling, reheating
Included Accessories	Baking tray, cooking rack, tray handle
Maintenance and Cleaning	Unplug and let cool; clean with a soft cloth and mild detergent; do not immerse in water
Safety	Automatic thermostat shutdown in case of overheating; mechanical timer; hot surfaces
Spare Parts and Repairability	Contact manufacturer or a professional for parts; service by qualified personnel
General Information	Indoor household use only; do not use with an external timer

Frequently Asked Questions - AF2400SI Brentwood

Before first use, do I need to do anything special?

Yes, remove all accessories, clean them with hot water and wipe the interior with a soft soapy cloth. Then preheat the oven to maximum temperature (450°F) for 10-15 minutes to remove residual manufacturing oil. It is normal to see some smoke.

What types of food can I cook in this fryer?

You can cook steaks, ribs, shrimp, sausages, beef patties, egg tarts, donuts, fries, toast, and chicken wings. Consult the cooking guide for recommended temperatures and times.

How do I set the temperature and timer?

Turn the temperature knob to select the desired temperature (up to 450°F). Turn the timer knob clockwise to set the cooking time. An audible alert sounds when cooking is complete.

Why is there smoke during first use?

It's normal. The smoke comes from the evaporation of protective oil applied to the heating elements. Make sure to preheat the appliance empty for 10-15 minutes before first cooking.

Can I use glass or ceramic utensils?

No, only use the provided accessories (tray and rack). Avoid plastic, paper, wood or any flammable material. Use the tray handle to remove hot food.

How do I clean the appliance after use?

Unplug the appliance and let it cool completely. Clean the interior and exterior surfaces with a soft cloth or sponge soaked in soapy water (mild detergent). Do not use hard brushes, gasoline or thinners. Never immerse the appliance in water.

Does the appliance turn off automatically?

Yes, a built-in thermostat cuts off power if the internal temperature becomes too high. After cooling, the appliance can be reused. The mechanical timer also stops cooking after the set time has elapsed.

How much space should I leave around the appliance?

Leave at least 10 cm (4 inches) of space around the appliance for proper air circulation. Do not place anything on top and do not block the heat dissipation openings.

Can I cook fatty foods without a tray?

For very fatty foods (meat), place a baking sheet on the lower rack to catch drippings. Do not let oil drip directly onto the heating tube to avoid fire hazard.

What should I do if the power cord is damaged?

Immediately stop using the appliance. The cord must be replaced by the manufacturer, its service agent, or a qualified professional to avoid any danger.

USER MANUAL AF2400SI Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

RAPID AIR FRYER OVEN

HORNO DE FREIDORA DE AIRE RÁPIDO

FOUR FRITEUSE À AIR RAPIDE

INSTRUCTION MANUAL

ITEM NO: AF-2400SI

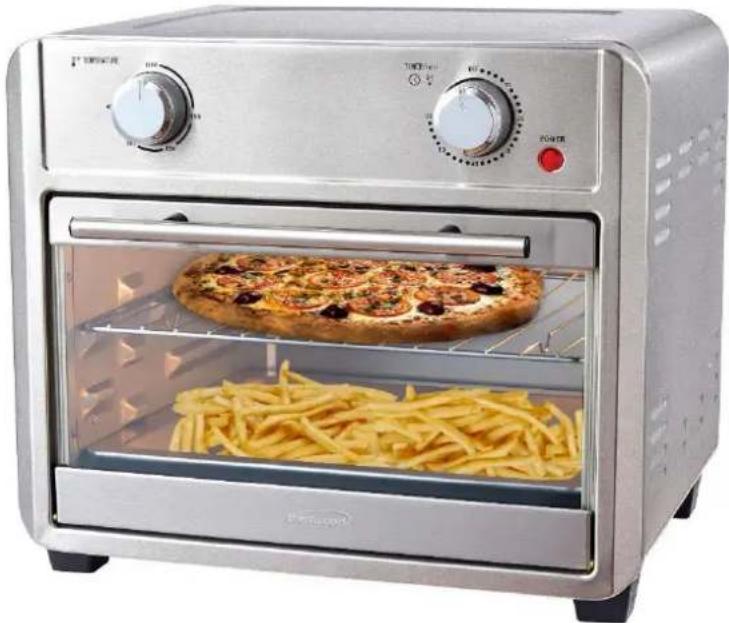

Exterior view of a modern kitchen toaster oven with a slice of pizza on the front and a French fries in the foreground (no visible text or symbols)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

This product is an electric heating appliance. For your safety and convenience, please read this Manual carefully and follow the steps. Please keep it for future reference.

I. Before Use

Please observe the following safety precautions before using this product:

1. Please read this user manual carefully before using the product.
2. Do not immerse the power cord, plug and oven in water in case of electric shock.
3. Before using this oven, be sure to untie all the power cords wrapped around the back to avoid the accident.
4. When the electric oven is working or after use, the external surface temperature is high, and touch is not allowed to prevent burns.

5. Use this product with extra care when children are around. Children are not allowed to use this product on their own or keep it out of reach of children.

6. When the timer is on, do not swing the plug or socket to avoid strong currents and injuries by sparks.

7. Never hang the power cord on the edge of a cabinet/table or on a hot surface.

8. If the power cord or plug is damaged, or the oven fails, stop using it and seek a professional to repair or replace it.

9. If the power cord is damaged, it shall be replaced by the manufacturer or a professional to avoid danger.

10. Do not damage, bend, stretch, or twist the power cord; do not place heavy objects on the power cord or clamp the power cord.

11. When the electric oven is not in use, the plug shall be pulled out of the socket to avoid electric shock or electric leakage fire due to insulation aging.

12. The matching accessories shall be used correctly to avoid fire or injuries caused in operation.

13. The electric oven shall be placed in a dry environment and shall not be used outdoors.

14. During the use of the electric oven, it is necessary to keep a distance of at least 4 inches.

15. Keep the electric oven in a stable place and keep it away from flammable materials.

16. Only consumable food can be baked in the oven. Do not put large pieces of food or metal objects in the electric oven in case of fire or danger.

17. To bake greasy oily foods (such as meat), put the bake tray on the bottom layer to prevent the oil from falling onto the bottom heating tube to cause a flame.

18. Do not place the following items in the oven for grilling, such as paper, cards, plastic, cloth, and flammable items.
19. When moving or repairing the electric oven, unplug the power cord and wait for the electric oven to cool before proceeding.
20. When the electric oven is working, do not open the oven door to move the bake tray or other accessories to avoid burns caused by high temperature or high-temperature liquid.
21. Avoid sharp edges when using electric ovens.
22. Do not place anything on the electric oven. Do not cover or obstruct the heat dissipation position of the electric oven.
23. No items are allowed on the glass door.
24. Bake trays or other items are not allowed to be put directly on the heating elements of the electric oven.
25. Please watch out for starchy foods (such as bread) to avoid fire.
26. Once the set cooking time is done, it will beep notifying you it is complete and safe to open the oven door.
27. This product is for home use only. Do not use this oven for any other purpose not specified.
28. All maintenance must be carried out by professional personnel.
29. This appliance cannot be operated with an external timer or a separate remote control.
30. This device cannot be used by children, mental patients, people with physical challenges and those who are slow to respond unless guided by a person who is able to use it.

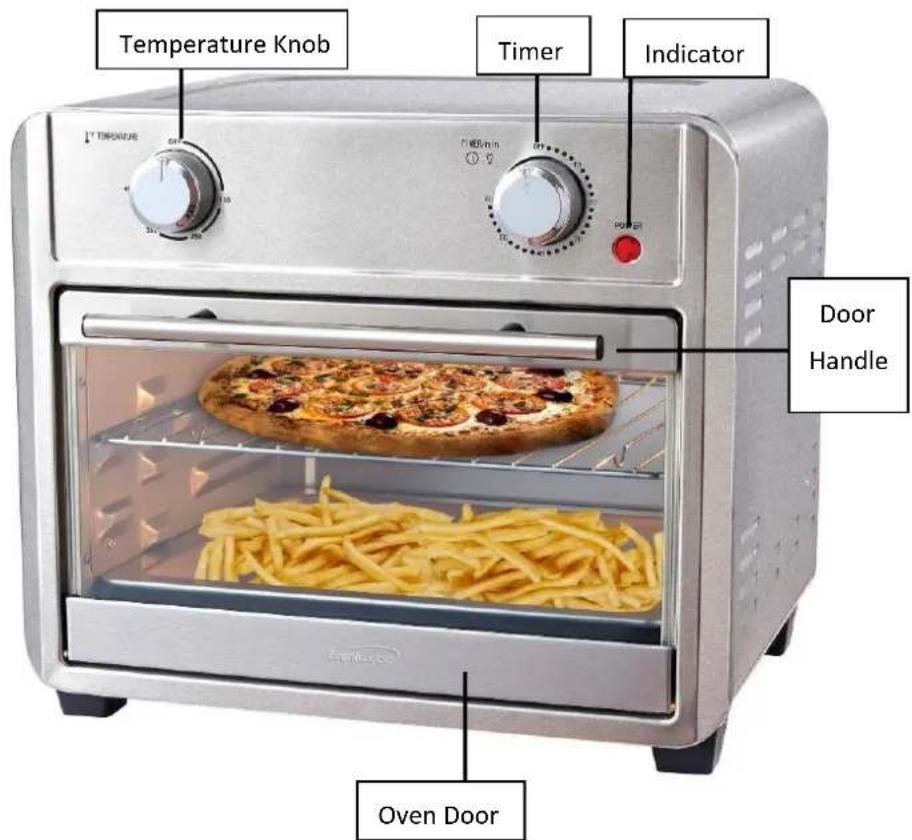

II. Names of Main Parts

Bake tray

Line drawing of a rectangular tray with evenly spaced circular indentations (no text or symbols)

Bake rack

Pure wire mesh diagram of a rectangular grid structure (no text or symbols)

Tray handle

Line drawing of a mechanical tool or clamp (no text or symbols)

III. User Guide

Note before using electric oven for the first time:

1. Read the User Manual carefully.
2. Remove all accessories and parts from the oven or package.
3. Use warm water to clean accessories. Wipe the inside of the oven with a soft, soapy cloth and wait until it is completely dry.
4. There shall be enough space around the oven and make sure the surface of the oven is more than 4 inches from the other objects. No objects shall be put on the top of the oven.
5. Before using the electric oven for the first time, set the temperature knob to the maximum (450°F scale mark), preheat it for 10-15 minutes to remove the machine oil from the electric oven. It is normal if smoke appears when used.

1. Accessories

Bake tray: used to bake the food.

Bake rack: used to bake the food.

Tray handle: used to take out the bake tray and bake rack.

2. General Steps

① Put the bake tray or bake rack on the appropriate layer of the chamber, depending on the size of the food.
② Put the food on the bake tray or bake rack.
③ Use the Temperature knob to select the desired temperature.
④ Turn the Timer clockwise to set the baking time according to the size of the food and baking color preferred.
⑤ When finished, turn the Timer to "OFF".
⑥ Remove food with oven gloves or tray handle.

Tips: Do not use flammable materials such as plastic or paper; do not use glass or ceramic plates or lids; do not let the grease drip directly to the bottom of the oven. When baking foods with much fat, place the bake tray on the grill and place aluminum foil on the bottom rack; set the desired temperature according to the recipe or personal preference.

IV. Cooking Guide

1. Cooking time varies according to the temperature, quantity, and weight of the food. Please refer to the recipe table.
2. For continuous cooking, since the starting temperature inside is high, cooking time can be shorter than the time when used for the first time. Please make adjustment according to the actual food.
3. When the heating temperature in the oven is too high, the built-in thermostat will automatically shutoff and the heating tube will stop working. Once cooled, the oven will be operatable again.

Always use a food thermometer to check internal food temperature. The following cooking times are estimates and food may require additional cooking time.

Types of Food	Temperature inside Oven	Cooking Time
Steak	450°F	10-20 minutes
Ribs	450°F	20-30 minutes
Prawn	355°F	10-12 minutes
Sausages	355°F	12-15 minutes
Beef cake	450°F	15-17 minutes
Egg tart	450°F	18-20 minutes
Doughnut	450°F	7-10 minutes
Chips	450°F	25-30 minutes
Toasts	450°F	5-8 minutes
Chicken wings	450°F	15-18 minutes

V. Clean and Maintenance

1. Unplug the power cord before cleaning the oven and allow the oven to cool down completely.
2. The inner and outer surfaces of the electric oven and accessories can be cleaned with a soft cotton cloth or sponge with a neutral detergent and cleaned with water.
3. Do not use hard brushes or articles for cleaning to avoid damaging the inner surface of the electric oven and the protective layer of accessories.
4. Do not use toxic and corrosive cleaning agents such as gasoline, thinners, or polish.
5. The cleaned parts must be wiped dry before plugging in.
6. Please do not clean the heating tube, the heating tube cleans itself.
7. Do not immerse the electric oven in a liquid such as water.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of

Purchase Store/Dealer

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
