| Product Type | Gas grill plate |
| Brand | CHAR BROIL |
| Model | Performance 463259223 |
| Power Source | Propane gas (LPG) – natural gas use possible via conversion kit |
| Number of Burners | 6 main burners (5 tubular + 1 bar) + 1 side burner + 1 sear burner (if equipped) |
| Cooking Surface | Approximately 4000 cm² (estimate) |
| Approximate Dimensions | Width: 140 cm, Depth: 75 cm, Height: 120 cm (lid open) |
| Approximate Weight | 55 kg |
| Materials | Stainless steel, porcelain, painted steel |
| Ignition Type | Electronic (AAA 1.5V battery) and match |

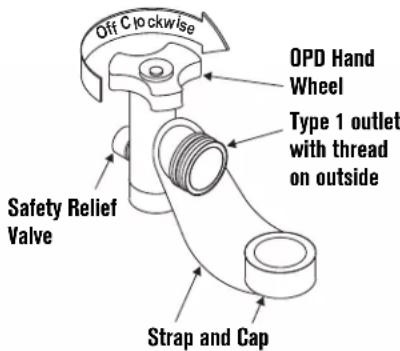

| Safety | Safety valve, overfill protection device, leak test recommended before each use |
| Warranty | Stainless steel burner: 5 years; firebox and lid: 2 years; other parts: 1 year |
| Routine Maintenance | Clean grates and burners after each use, check flames, clean grease tray |
| Included Accessories | Match holder, grease tray, grease container |

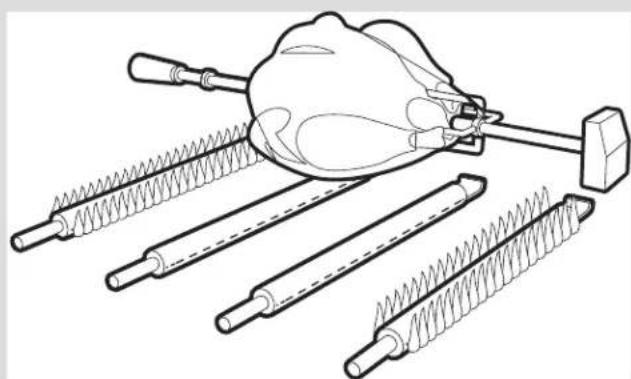

| Options | Rotisserie motor (not included), natural gas conversion kit |
| Country of Manufacture | China |
Frequently Asked Questions - Performance 463259223 CHAR BROIL
How do I install my CHAR BROIL Performance 463259223 grill?

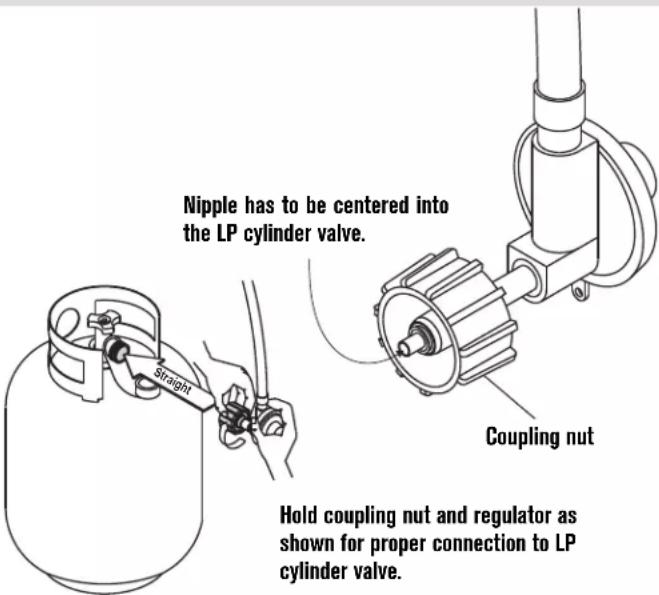

Follow the assembly instructions provided in the manual. Make sure the LPG tank is properly connected and perform a leak test with soapy water before first use.
How do I light the grill?
Open the lid, open the LPG tank valve, push and turn the burner knob to HIGH, then press the electronic ignition button. If the burner does not light within 5 seconds, turn off the gas, wait 5 minutes, and try again.
What should I do if the grill is not heating enough?
Check that the LPG tank is not empty. If gas is present, the regulator may have activated its safety: close all knobs, close the tank valve, disconnect the regulator, wait 30 seconds, reconnect, and slowly open the valve. If the problem persists, check that the burners are not obstructed.
How do I clean the burners?
Turn off the gas and remove the grates. Use a stiff wire (unfolded hanger) or a pipe cleaner to unclog the burner tubes. Clean the ports with a paper clip. Check for spider webs. Reassemble and perform a leak test.
How do I store the grill?
Clean the cooking grates. If the LPG tank is connected, store the grill outdoors in a well-ventilated area out of reach of children. If storing the grill indoors, the tank must be closed, disconnected, and stored outdoors. Use a protective cover if stored outside.

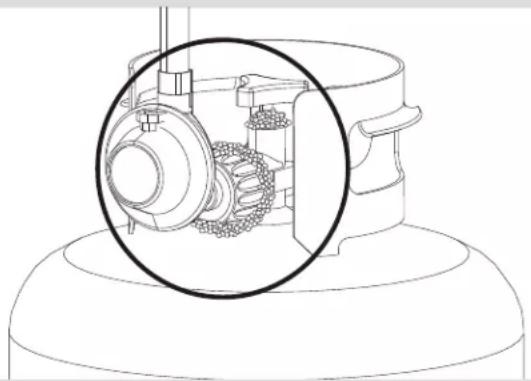

How do I perform a leak test?
Mix water and mild soap. Apply the solution to all gas connections (valve, regulator, hose). Open the LPG tank valve. If bubbles appear, there is a leak: immediately turn off the gas and tighten the connections. If the leak persists, do not use the appliance and contact a professional.
Can I use charcoal or briquettes in this grill?
No. Using charcoal or briquettes voids the warranty and significantly increases fire risk. This grill is designed for gas only. For a smoky flavor, use a smoker box with wood chips.
How do I change the battery of the electronic igniter?
Locate the ignition module (usually under the control panel). Remove the button cap. Replace the AAA battery, observing polarity (+ and -). Replace the cap. Test the ignition. If no click is heard, check the wiring.
What should I do in case of a grease fire?
Never use water. Immediately close all control knobs and the LPG tank valve. Leave the lid open – let the fire burn out. After cooling, thoroughly clean the surfaces. Schedule regular cleaning to prevent grease buildup.
What is the warranty coverage?
The limited warranty covers: the stainless steel burner for 5 years (perforation, manufacturing defects), the firebox and lid for 2 years, and other parts for 1 year. The warranty starts on the date of purchase and requires proof of purchase.
