USER MANUAL AD 2934 ADLER

Two black cylindrical objects, one upright and one vertically closed, against a white background (no text or symbols visible)

AD 2934

(GB) user manual - 3

Technical diagram of a spray gun with numbered parts for identification

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

5

Diagram showing two mechanical components with directional arrows indicating motion or force (no text or symbols)

(GB) ENGLISH

GENERAL SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions.
   The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

4.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision

of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. Never put whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

2. Never use the product if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Damaged device always turn to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

3. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

4. Never use the product close to combustibles.

5. Never use this device close to water, e.g.: Under shower, in

bathtub or above sink filled with water.

1. Do not touch the device with wet hands.
2. The device should be turned off each time it is put aside.
3. The device is intended only for cutting natural human hair.
4. To remove hair from inside the clippers, use only the supplied brush.
5. The cutting blades are extremely sharp. Use caution when assembling, disassembling and cleaning. Do not touch the moving blades during operation!
6. Do not wash the blades in water.
7. Only change attachments when the device is turned off.
8. Use only original accessories.

1 DESCRIPTION OF THE DEVICE

1. Trimmer blade 2. Blade release button
2. Power switch 4. Battery compartment
3. Protective cap 6. Cleaning brush
4. Eyebrow comb (3.5mm, 1.5mm)

2 BATTERY REPLACEMENT

Open the battery compartment cover (4). Remove the old batteries and replace with new ones, paying attention to the indicated pole directions. Close the

battery compartment (4).

3 USING THE DEVICE

1. Remove the protective cap (5).
2. Prior to using the trimmer ensure that skin and hair are completely dry.
3. Turn the device on by sliding the power switch (3) up.
4. Place the end of the trimmer lightly on the area you want to trim. Gently move the trimmer against hair growth. Do not move it too fast. Slow and steady movement gives the best results.

Using the eyebrow comb

Select the side of the comb that you want to use. Insert the eyebrow comb (7) into the trimmer blade (1). Side that you want to use should match the trimmer blade (1).

4 CLEANING AND MAINTENANCE

1. Be sure that device is switched off before cleaning.
2. Clean the device surface with a dry cloth or with a cloth moistened with water.
3. To clean trimmer more thorough open blade cover by moving the button downwards (2). Clean with cleaning brush (6).

5 DISASSEMBLING AND ASSEMBLING THE BLADE

1. To disassemble the blade open blade cover by moving blade releasing button downwards (2).
2. To assemble the blade insert the small hook on the appliance trimmer head into the small hole on the trimmer blade (1) so they are aligned.
3. Connect both parts and slide the blade release button(2) upwards to lock the trimmer blade in place.
4. Press both sides of the head to ensure that they are properly fit.

TECHNICAL DATA:

Battery: 1xAAA (1.5V)

Please transfer cardboard packaging to waste paper. Pour the polyethylene bags (PE) into the plastic container Worn device should be returned to the appropriate point storage because it is dangerous in the device ingredients may pose a threat to the environment. The electrical device should be handed over to limit its reuse and use. If in the device there are batteries you have to take out and give to the point stored separately.

(DE) DEUTSCH

1 POPIS PŘÍSTROJE (obr. 1)

5 DEMONTÁŽ A MONTÁŽ NOŽE

1 BESCHRIJVING VAN HET APPARAAT (Fig. 1)

1. Trimmerblad 2. Ontgrendelingsknop mes

2. Aan/uit-schakelaar 4. Batterijcompartiment

3. Beschermkap 6. Reinigingsborsteltje

4. Wenkbrauwkam (3,5 mm, 1,5 mm)

2 BATTERIJ VERVANGING

Modern silver kettle with blue liquid, no visible text or symbols on the kettle itself

Electric Kettle
AD 1282

Close-up of a black and white coffee graser with a spool of brown granular powder nearby (no text or symbols visible)

Burr Coffee Grinder
AD 4450

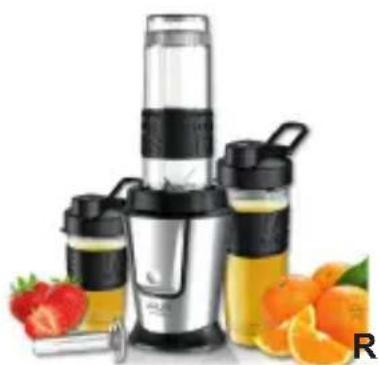

Product photo of a blender with various beverages including a strawberry, orange slices, and fruit (no visible text or labels)
