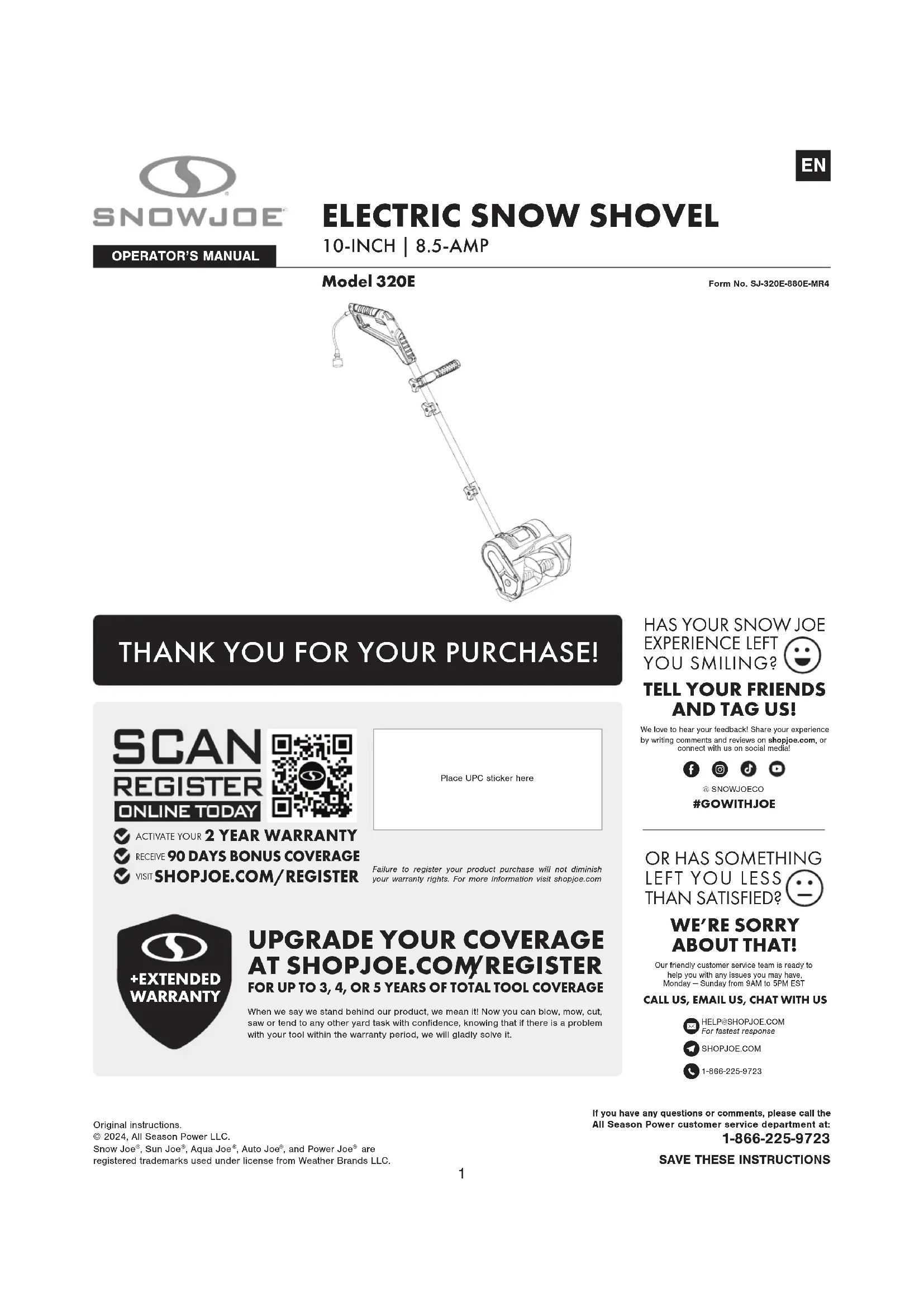

USER MANUAL 320E Snow Joe

Original instructions.© 2024, All Season Power LLC.Snow Joe , Sun Joe , Aqua Joe , Auto Joe , and Power Joe are registered trademarks used under license from Weather Brands LLC. THANK YOU FOR YOUR PURCHASE! Failure to register your product purchase will not diminish your warranty rights. For more information visit shopjoe.comPlace UPC sticker here

REGISTER FOR UP TO 3, 4, OR 5 YEARS OF TOTAL TOOL COVERAGE When we say we stand behind our product, we mean it! Now you can blow, mow, cut, saw or tend to any other yard task with confidence, knowing that if there is a problem with your tool within the warranty period, we will gladly solve it. +EXTENDED WARRANTY ACTIVATE YOUR 2 YEAR WARRANTY

RECEIVE 90 DAYS BONUS COVERAGEVISIT

SHOPJOE.COM/REGISTERTELL YOUR FRIENDSAND TAG US!We love to hear your feedback! Share your experience by writing comments and reviews on shopjoe.com, or connect with us on social media!HAS YOUR SNOW JOE EXPERIENCE LEFT YOU SMILING? #GOWITHJOE E Q OR HAS SOMETHING LEFT YOU LESS THAN SATISFIED?WE’RE SORRY ABOUT THAT!Our friendly customer service team is ready to help you with any issues you may have, Monday — Sunday from 9AM to 5PM EST CALL US, EMAIL US, CHAT WITH US 1-866-225-9723 [e-mail] fastest response

SHOPJOE.COM@ SNOWJOECO

10-INCH | 8.5-AMPForm No. SJ-320E-880E-MR4If you have any questions or comments, please call the All Season Power customer service department at: 1-866-225-9723 SAVE THESE INSTRUCTIONSOriginal instructions.© 2024, All Season Power LLC.Snow Joe , Sun Joe , Aqua Joe , Auto Joe , and Power Joe are registered trademarks used under license from Weather Brands LLC.

ELECTRIC SNOW SHOVEL

10-INCH | 8.5-AMP Form No. SJ-320E-880E-MR4If you have any questions or comments, please call the All Season Power customer service department at: 1-866-225-9723

SAVE THESE INSTRUCTIONS

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Read all instructions before using this electric snow shovel. Basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. General Safety WARNINGS! You and any other operator of this snow shovel must read, understand and follow these instructions in their entirety, and should reread them at the start of each snow season. Failure to follow these instructions may result in ELECTRIC SHOCK, FIRE and/or serious PERSONAL INJURY. Notice the personal safety alert symbol m used in this manual to draw your attention to a WARNING given along with the particular operating instruction. This means that the operation requires special ATTENTION, CAUTION and AWARENESS.

1. Keep work area clean and well lit – Cluttered, dark areas

2. Use the right product – Do not use this machine for any

job except that for which it is intended.

3. Replacement parts – When servicing this unit, use only

identical replacement parts. Replace or repair damaged cord immediately. Do not use on gravel surfaces unless the snow shovel is adjusted for such surfaces in accordance with the operator’s manual.

4. Keep children, bystanders and pets away –

All spectators, including pets, should be kept a safe distance away from the work area.

5. Dress properly – Do not wear loose articles of clothing or

jewelry. They can become caught in moving parts. Wear rubber boots. The electric snow shovel should not be operated in the handheld position except when the instructions provided in this manual deem such use permissible.

6. Avoid accidental starting – Do not carry the electric snow

shovel with your finger on the switch. Make sure the switch is off before plugging in the unit. If the cord is damaged in any manner during operation, pull the extension cord from the wall receptacle.

7. Moving parts – Keep hands and feet away from moving

parts. Keep guards in place and in proper working order.

mCAUTION! Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

9. Use safety glasses – Also use safety footwear,

snug-fitting clothing, protective gloves, hearing and head protection.

10. Stay alert – Watch what you are doing. Use common

sense. Do not operate the electric snow shovel when you are tired or under the influence of alcohol or drugs.

11. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at the rate for which it was designed.

12. Do not overreach – Keep proper footing and balance

13. If the electric snow shovel strikes a foreign object,

• Stop the electric snow shovel.

• Repair any damage before restarting and operating the snow shovel.

14. Disconnect the tool – Disconnect the electric snow shovel

from the power supply when it is not in use, before servicing it, when changing accessories and when performing any other maintenance task.

15. Store idle tool indoors – When not in use, the electric

snow shovel should be stored indoors in a dry, locked place out of the reach of children.

16. Maintain the electric snow shovel with care –

Follow the applicable maintenance instructions for replacing parts and changing accessories. Lubrication is not required. mThis is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Improperly using or maintaining this electric snow shovel could result in injury or death. To reduce this potential, comply with the following safety instructions.3 This electric snow shovel can amputate hands and feet if used incorrectly. It can also pick up foreign objects, which can become dangerous projectiles when thrown into the air. Failure to observe the following safety instructions could result in serious personal injury. Training

• Read, understand and follow all instructions on the machine and in the manual before operating this unit. Thoroughly familiarize yourself with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

• Children should never be allowed access to the equipment. Adults should never operate the equipment without carefully reading and understanding these instructions.

• Keep the area of operation clear of all persons, particularly small children and pets.

• Exercise caution to avoid slipping or falling. Preparation

• Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires and other foreign objects.

• Do not operate the equipment without wearing adequate winter garments. Avoid loose-fitting articles of clothing that can become caught in moving parts. Wear footwear that will improve footing on slippery surfaces.

• Do not attempt to clear snow from a gravel or crushed rock surface. This product is intended for use only on paved surfaces.

• Never attempt to make any adjustments while the motor is running (except when specifically recommended by the manufacturer).

• Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect your eyes from foreign objects that may be thrown from the machine. Operation

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

• Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic.

• After striking a foreign object, stop the motor. Thoroughly inspect the electric snow shovel for any damage, and repair the damage before restarting and operating the electric snow shovel.

• If the unit should start to vibrate abnormally, stop the motor and check the unit immediately to ascertain the cause. Vibration is generally a sign of trouble.

• Stop the motor and disconnect the electric snow shovel from the power supply whenever you leave the operating position, when transporting the unit, before unclogging the rotor blade housing and when making any repairs, adjustments or inspections to the unit.

• When cleaning, repairing or inspecting the electric snow shovel, make sure that all moving parts have come to a complete stop before beginning work.

• Exercise extreme caution when operating on slopes.

• Never operate the electric snow shovel without proper guards and other safety devices in place and in proper working order.

• Never direct the discharge toward people or areas where property damage can occur. Keep children, pets and other bystanders away from the work area.

• Do not overload the machine capacity by attempting to clear snow at too fast a rate.

• Look behind and use care when backing up with the electric snow shovel.

• Never operate the electric snow shovel without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk, never run, with the unit. Clearing a Clogged Rotor Housing Hand contact with the rotating rotor blades inside the rotor housing is the most common cause of injury associated with electric snow shovels. Never use your hands to clear a clogged rotor housing. To clear the rotor housing:

• Shut the motor off and disconnect the unit from the power supply.

• Wait 10 seconds to be sure the rotor blades have come to a complete stop.

• Always use a clean-out tool, not your hands, to free the rotating blades. Maintenance and Storage

• Check all fasteners at frequent intervals for proper tightness to ensure that the equipment is in safe working condition.

• Always refer to the operator's manual for important details, such as how to properly store your electric snow shovel for an extended period of time.

• Maintain or replace safety and instruction labels as needed.

• Run the machine a few minutes after throwing snow to prevent the rotor blades from freezing. Double-Insulated Appliances In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double- insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe

dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace.4 A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol (square within a square) may also be marked on the appliance. DOUBLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.This electric snow shovel is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this snow shovel only as described in this manual. Electrical Safety 1. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for this electric snow shovel. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.2. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A. Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating.3. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized UL-, CSA-, or ETL-listed extension cord recommended for outdoor, all-weather use. The appliance plug will fit into a polarized extension cord only one way. If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.5. Do not abuse the cord. Never pull the snow shovel by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges. m WARNING m Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:• Do not allow any part of the electric snow shovel to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting. • Use only a UL-, CSA- or ETL-rated extension cord for outdoor, all-weather use. • Do not use an extension cord over 100 ft (30 m).• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection. EXTENSION CORD CHARTExtension CordLengthWire Gauge (A.W.G.):Up to 50 ft(15 m)+50 ft - 100 ft(+15 m - 30 m)16 14(B) Connect plug and receptacleCord set Appliance cord(A) Tie cord as shownTable 1. Method of Securing Extension Cord5 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Wear safety footwear at all times to provide protection against objects that may accidentally fall on feet. The rotating part will continuously run for several seconds after you turn off the machine. Keep the flexible power supply cord away from the cutting blades. Always keep the power cable away from heat sources, oils or sharp edges. Immediately remove plug from the mains if the cable is damaged, frayed or entangled.

MANUAL(S) – Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning or a danger. Wear hearing protection. Wear eye protection. Wear breathing protection. Keep bystanders and children a safe distance (at least 11 yd/10 m) away from the work area. Double Insulation. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. CAUTION! Beware of stones and other foreign objects that could be thrown from the appliance. DANGER! Cutting/dismemberment hazard - Keep hands away from the rotating auger. Do not use hands to unclog rotor housing. Stop motor before removing debris. DANGER! Cutting/dismemberment hazard - Keep feet away from the rotating auger. WARNING! Electrical shock hazard. WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories or conducting any other maintenance task. Symbols Symbols Descriptions Descriptions Wear safety gloves during use to protect hands.6 Know Your Electric Snow Shovel Read the owner’s manual and safety rules carefully before operating your electric snow shovel. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

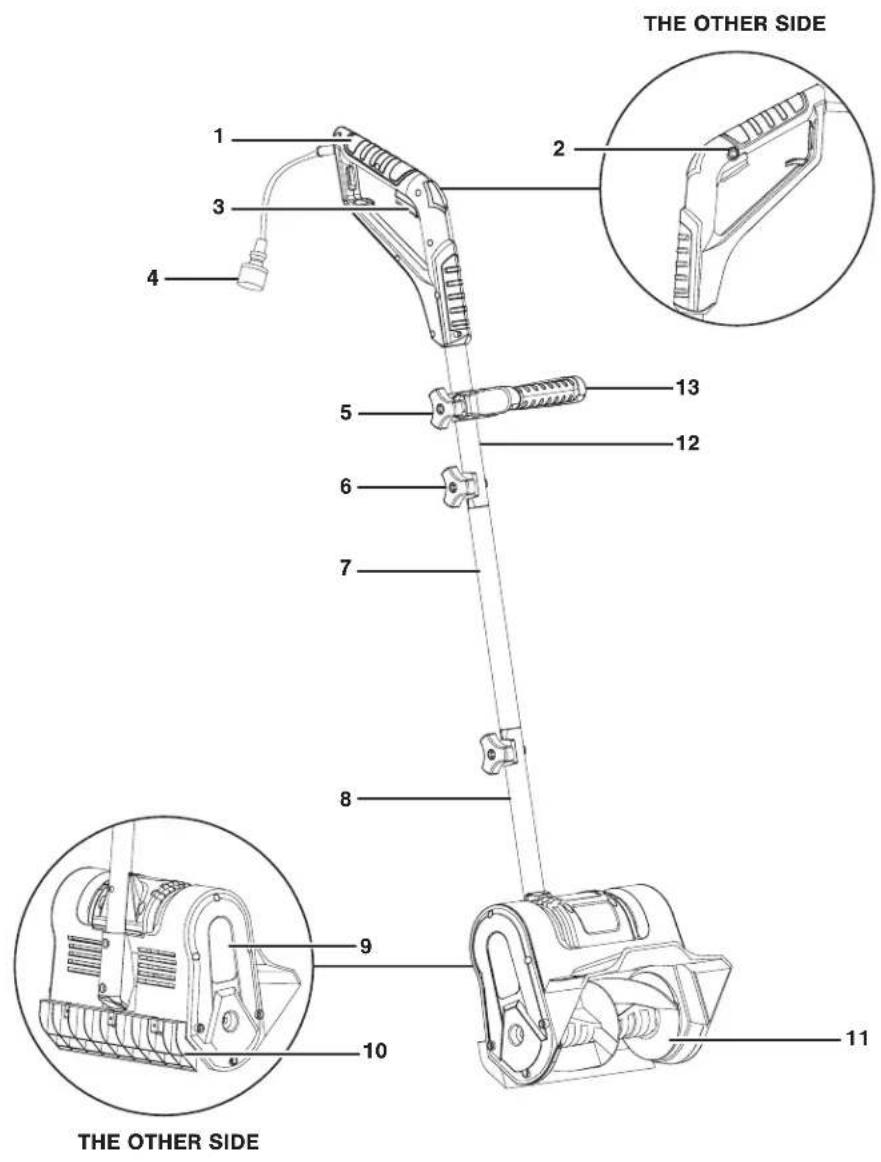

13. Auxiliary handle

1. Carefully remove the electric snow shovel and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the All Season Power customer service center at 1-866-225-9723. NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric snow shovel. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suffocation risk! Assembly Connecting the Poles

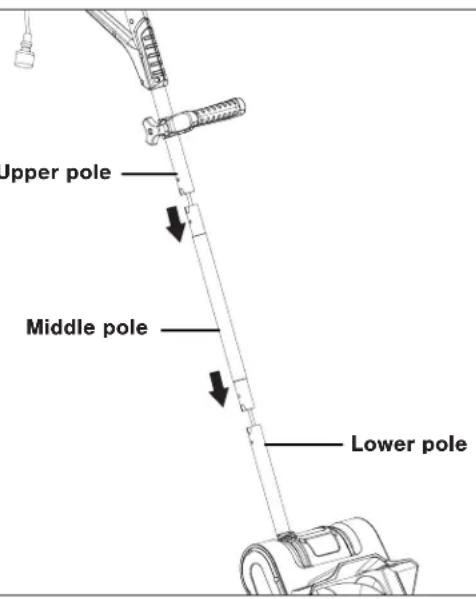

1. Slide the upper pole into the middle pole and the middle

pole into the lower pole. Align the screw holes (Fig. 1).

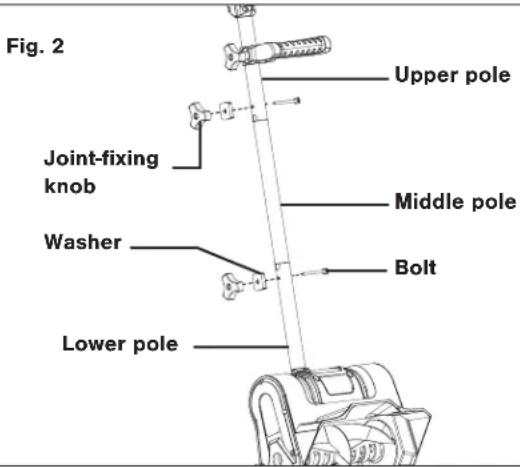

2. Insert the bolts through the aligned holes in the poles and

secure the other end with the washers and the joint-fixing knobs (Fig. 2). Twist until tight. NOTE: You may have to carefully move the wiring inside the tube to one side if it blocks the path of the bolt. Handle Adjustment

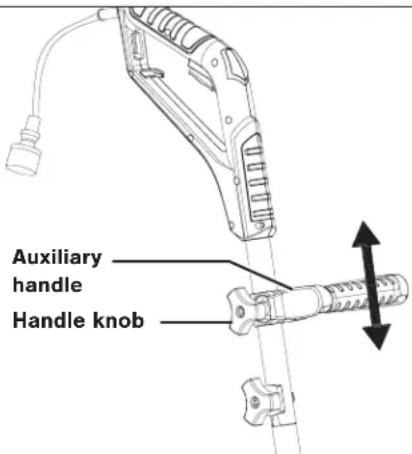

1. To adjust the angle of the auxiliary handle, loosen

the auxiliary handle by turning the handle knob counterclockwise.

2. Rotate the auxiliary handle to a comfortable position

3. Retighten handle knob securely by turning it clockwise

(Fig. 3). NOTE: In order to prevent the auxiliary handle from moving around or sliding on the pole, be sure to tighten securely. Fig. 1 Lower pole Middle pole Upper pole Fig. 2 Upper pole Middle pole Lower pole Joint-fixing knob Washer Bolt Fig. 3 Handle knob Auxiliary handle8 Operation IMPORTANT: This electric snow shovel is intended for outdoor, residential use only. Do not use this appliance indoors or for commercial or industrial purposes. Connecting to a Power Source To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other; see Fig. 4). Use this appliance only with a polarized UL-, CSA- or ETL-listed extension cord recommended for outdoor, all-weather use. The appliance plug will fit into a polarized extension cord only one way. If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle or extension cord plug in any way. IMPORTANT: Check the extension cord frequently during use for holes or cracks in the insulation. Do not use a damaged cord. Do not run the cord through standing water or wet grass. Use only an extension cord recommended for outdoor use. Securing the Extension Cord

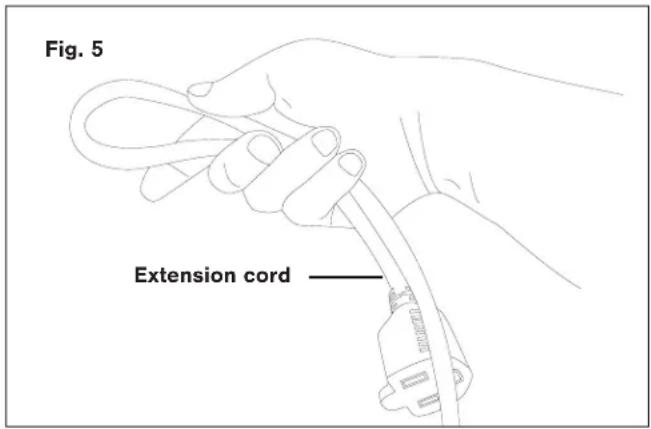

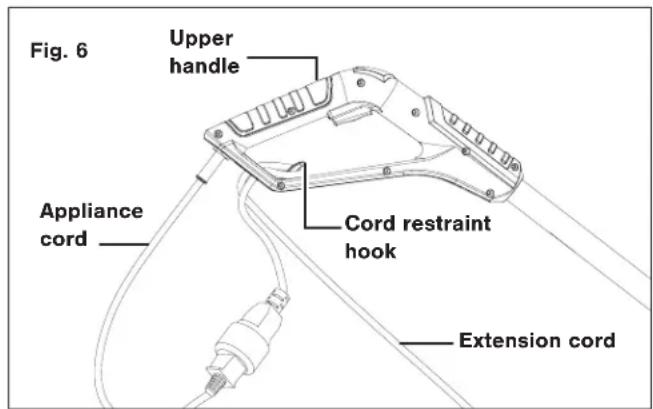

1. Make a loop with the extension cord (Fig. 5).

2. Insert the loop through the opening in the back of the

upper handle and secure the loop onto the extension cord restraint hook (Fig. 6).

3. Connect the extension cord to the appliance cord (Fig. 6).

NOTE: Securing the extension cord in this way helps to prevent you from accidentally disconnecting the extension cord from the appliance during operation.

4. Plug the extension cord into a wall outlet.

mWARNING! Keep the area to be cleared free of stones, toys or other foreign objects that the rotor blades might pick up and throw. Such items could be covered by snow and are easy to overlook, so be sure to conduct a thorough inspection of the area before beginning work. Starting + Stopping

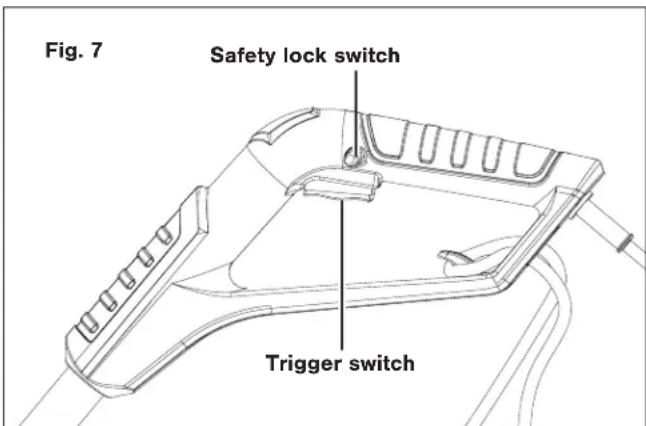

1. To start the electric snow shovel, push and hold the safety

lock switch on the side of the handle grip with your thumb and then squeeze the trigger switch with your fingers. Once the machine powers on, you can release the safety lock switch and proceed with operation (Fig. 7). Polarized plug Fig. 4 Extension cord Fig. 5 Fig. 6 Upper handle Extension cord Appliance cord Cord restraint hook9

2. To stop the electric snow shovel, release the trigger switch.

• Ensure that the scraper blade at the base of the unit contacts the ground and start the electric snow shovel. Push the shovel forward at a comfortable rate, yet slow enough to clear the path completely. The clearing width of the snow shovel and the depth of snowfall should dictate your forward speed.

• Direct the snow discharge to the right or to the left by holding the electric snow shovel at a slight angle.

• To remove snow most efficiently, throw the snow downwind and slightly overlap each swath.

• If you need to clear snow from a crushed rock or gravel surface, tilt the handle down to raise the scraper bar up enough to clear any loose material that could be picked up and thrown by the auger.

• This electric snow shovel cuts a path 10 in. (25.4 cm) wide and up to 6 in. (15 cm) deep in one pass.

• When clearing deeper drifts, hold the electric snow shovel by the upper and lower handles and use a swinging or sweeping motion. Remove up to 6 in. (15 cm) of snow with each pass and repeat as many times as needed.

• Keep the cord clear of obstructions, sharp objects and the rotating auger. Do not pull sharply on the cord or abuse it in any manner. Frequently inspect the cord for signs of damage. If damage is found, replace the cord immediately.

• Disconnect the extension cord after using the electric snow shovel. Hang the extension cord with the shovel so it will not be misplaced or damaged. Maintenance To order genuine replacement parts or accessories for the Snow Joe

320E Electric Snow Shovel, please visit shopjoe.com or contact the All Season Power customer service center at 1-866-225-9723. mWARNING! Disconnect the extension cord before performing any maintenance task. If the extension cord is plugged into the appliance, someone could accidentally turn on the unit while you are performing maintenance on it, which could result in serious personal injury. Lubricating the Electric Snow Shovel This electric snow shovel does not need lubrication. All bearings are lubricated at the factory for the life of the product. Storage

1. Examine the electric snow shovel thoroughly for worn, loose

or damaged parts. Should you need to repair or replace a part, contact an authorized Snow Joe

dealer or call the All Season Power customer service center at 1-866-225-9723 for assistance.

2. Examine the extension cord thoroughly for signs of excess

wear or damage. If it is worn or damaged, replace it immediately.

3. Disconnect the extension cord from the electric snow shovel

4. Store the cord with the electric snow shovel indoors in a

clean, dry and locked location out of the reach of children and animals. NOTE: Devices for retaining extension cords are commercially available, should you wish to purchase one.

5. For added protection against snow, ice, sun damage, rain,

dust, tree sap and birds, cover your electric snow shovel with the Snow Joe

Universal Fit Snow Shovel Cover (Model SJCVR-13). To order this cover online, visit shopjoe.com or, to order by phone, call 1-866-225-9723. Service and Support If your Snow Joe

320E Electric Snow Shovel requires service or maintenance, please call the All Season Power customer service center at 1-866-225-9723. Model and Serial Numbers When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Fig. 7 Trigger switch Safety lock switch Record the following numbers from the housing or handle of your new product: Model #: Serial #: 3 2 0 E10 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric snow shovel. Contact All Season Power if you are unsure whether it is safe to use a particular replacement part or accessory with your electric snow shovel. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of All Season Power. Accessories can be ordered online at shopjoe.com or via phone by contacting the All Season Power customer service center at 1-866-225-9723. Universal 13-inch snow shovel protective cover SJCVR-13 ModelAccessories Item

OUR WARRANTY: All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of delivery of the Product to the original, end-user purchaser when purchased from All Season Power or from one of All Season Power’s authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-225-9723, or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by All Season Power to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com/support or by calling 1-866-225-9723. Keep your warranty intact. Only use CERTIFIED AUTHENTIC Snow Joe

replacement parts + accessories. Use of any other parts + accessories will void the warranty. Genuine parts + accessories can be found and purchased online at shopjoe.com/support by entering the model number of your product. ABOVE ALL ELSE, All Season Power LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products. ENInstrucciones originales.© 2024 All Season Power, LLC.Snow Joe , Sun Joe , Aqua Joe , Auto Joe y Power Joe son marcas registradas utilizadas bajo licencia de Weather Brands LLC. ¡GRACIAS POR TU COMPRA!
