RTP12x2 - Subwoofer MTX Audio - Free user manual and instructions

Product Type	Powered Subwoofer
Brand	MTX Audio
Model	RTP12x2
Subwoofer	2 x 12 inches (2 x 30 cm)
Amplifier	Mono Class-D
Maximum Power	840 W
RMS Power	280 W
Remote Control	EBC (External Bass Control) included
Audio Inputs	RCA (low level) and high level (adapters included)
Dimensions (L x W x H)	43 x 79 x 43 cm
Power Supply	12 V DC (vehicle battery)
Recommended Power Cable	6 mm² 100% copper
Input Sensitivity Range	0.2 to 6 V
Protection	Thermal (red LED)
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use chemical products.
Safety	Disconnect the battery before installation. Use a fuse within 20 cm of the battery.
Spare Parts and Accessories	EBC remote and high-level adapters included.
Repairability	Entrust installation to a specialized installer.

Frequently Asked Questions - RTP12x2 MTX Audio

How to adjust the gain (sensitivity) of the amplifier?

Turn the GAIN potentiometer to minimum (counterclockwise). Set the source to 3/4 of maximum volume with a dynamic song. Increase the gain until you hear distortion, then reduce slightly.

What cable gauge to use for power?

MTX recommends a 6 mm² 100% copper cable for power and ground.

How to connect high-level input if the source has no RCA outputs?

Use the included high-level adapters. Connect the source's speaker wires to the adapters, then connect the adapters to the High Level Input terminal.

What to do if the protection light (Prot.) lights up red?

This indicates thermal protection (overheating). Let the amplifier cool down and check that ventilation is adequate.

Can I use a non-twisted RCA cable?

It is recommended to use quality twisted RCA cables to avoid interference. MTX recommends StreetWires cables for example.

How to install the fuse?

Install a fuse holder with an appropriate fuse within 20 cm of the battery's positive terminal.

Where to connect the Remote (REM) wire?

Connect the blue (remote) wire from the source to the Rem. terminal of the amplifier. This wire is usually marked 'Remote' or 'Power Antenna'.

What is the RMS power of this subwoofer?

The RMS power is 280 W and the maximum power is 840 W.

How to clean the subwoofer?

Use a dry, soft cloth. Do not use chemical or abrasive products.

What to do if the sound is distorted?

Check the gain setting: it should not be too high. Adjust it following the adjustment procedure. Also make sure the cables are properly connected.

USER MANUAL RTP12x2 MTX Audio

twitter.com/MTXEurope

facebook.com/MTXEurope

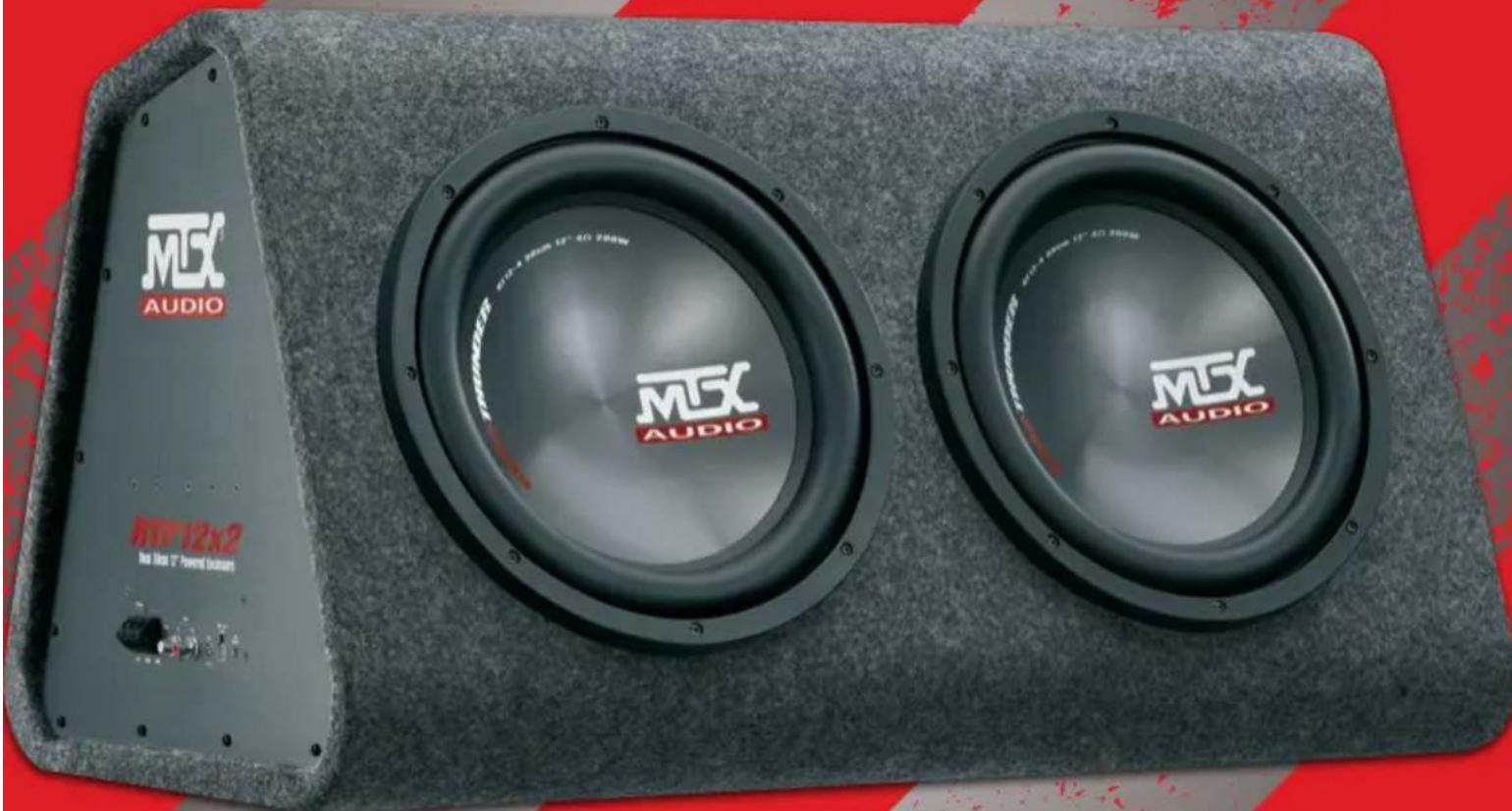

RTP12x2

Dual 30cm (2x12") Class-D Powered Vented Enclosure

840W Peak, 280W RMS CEA

Designed by MTX in Phoenix, AZ - USA

Thank You!

Thank you for purchasing an MTX Audio High-End amplifier. Proper installation matched with MTX speakers and subwoofer provide superior sound and performance for endless hours of waking the neighbors, slammin' your friends or flat out stomping wanna-be players. Congrats and enjoy the ultimate audio experience with MTX!

Specifications :

• Powered vented enclosure
• Mono block class-D amplifier
• Subwoofer: 2 × 30 ~cm (2x12")
• Amplifier Max Power : 840W
• Amplifier RMS Power : 280W
  High and low level inputs
• EBC (External Bass Control) remote included
• Dimensions: 43 × 79 × 43 ~cm

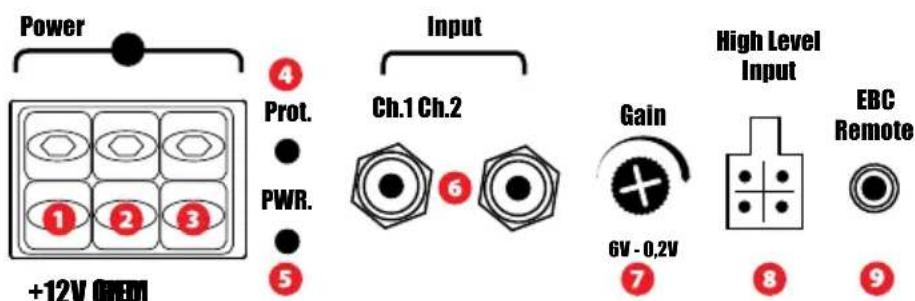

Control Panel on the Amplifier :

Power Terminal (+12V) : This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12V) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using a minimum of 6mm2 full copper power wire with the MTX RTP12x2.

Remote Terminal (REM): The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked "remote" or "power antenna".

Ground Terminal (GND): A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.

Protection LED (Prot.) : When the amp is in thermal protection, the LED turns to red.

PowerOn LED (PWR.) : The LED illuminates red when the amp is switched on.

RCA Inputs (Input): These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 200mV output for proper operation of the amplifier). MTX recommends only high quality RCA cables to decrease the possibility of radiated noise entering the system.

Gain Control (Gain) : The gain control matches the input sensitivity of the amplifier to the source unit being used.

The operating range varies from 200mv to 6V. Adjusting the gain:

1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.

Speaker level inputs (High Level Input) : This input will allow the amplifier to operate from source units with speaker-level outputs. Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier. Note : When speaker level inputs are used, a remote turn on wire must used to switch the amplifier on and off.

Remote bass control port (EBC) : use this port to connect the optional MTX EBC. It allows you to control the output level siting at the front of the car.

Installation & Mounting :

MTX recommends your new MTX RTP12x2 to be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicles electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to turn on your system!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX RTP12x2. Keep in mind there should be sufficient air flow for proper cooling.
3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier (+12V) terminal (1). Do Not connect to the battery at this time.

Note : Use only proper gauge wire for both positive and negative connections.

1. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuit breaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.
2. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the amplifier (3).
3. Connect a remote turn-on wire from the source unit to amplifier remote terminal (2). If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit's Power Antenna lead.
4. Connecting signal cables to the amplifier : There are two ways to supply the signal to your MTX RTP12x2.
   To get maximum performance, we suggest connecting a high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier.
5. If a source unit is being used without RCA outputs, use the included high-level amplifier's speaker terminals (8) using the right gauge speaker wire.
6. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

How To Stay Tuned :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Merci!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Muchas Gracias!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Vielen Dank!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Grazie!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Obrigado!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Bedankt!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Cnacn6o!

Cnacn6o, yTo BbIbpaHn ycunntenM Tx Audio Hi-Performance. PpaBnHna YcTaHOBka, a TaKke KonoHKn u Ca6Byepebl oecneayat HnpeB30nDHHb 3Byk n DOnrme YacbI c3a Ira BaWnx cOceJe, a TAKKe 3actabT BaWnx npy3e 3aBnObaT b He ocTabT shAcoB coepnKaM. Po3dpabnE! HaclaxJaTeCb lyuWMm 3ByaHMe CMTX Audio!

» Texnueckne xapaKTepeNTuKn :

KopnyacakTBHORoc6Bycpepa0a30HNBHeTpEOM.
- MoHObIok, yCnIMTeB knacca D
- Ca6BvΦep: 2x30cm (2x12 JIOHMOB)
yCNInTeB, MaKcMmAbHbHaA MoUHocTb: 840W
yCmHnTeIb,RMSMoUHocTb:280W
Iyblt dctaHIOOHORo ynpabneHnEBC
BbICOKOBONtHbIeNINHeHbIeBXOdbI
- Ra6apntb: 43x79x43cm

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Multumesc!

V a multumim penta unui amplificator audio MTX High-End. Instalare corecta, impreuna cu difuoarele si subwooerele MTX va vor oferi un sunet si o performanta de exceptie pentru nenumarate ore de trezire a vecinilor. Felicitari si sa va bucurati de inalta experienta audio cu MTX!

Specificatii:

• Subwoofer activ in bass reflex
• Amplificator monobloc Clasa-D
• Subwoofer: 2 × 30 ~cm (2 × 12^ )
• Putere MAX amplificata: 840W
• Putere RMS amplificata: 280W
  Telecomanda EBC inclusa
• Intrare de nivel High/Low
• Dimensiuni: 43x79x43cm

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Wprowadzenie

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Esipuhe

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

MTX is proud to be an American Audio Company since 1971.

Mitek

Corporation

Designed and Engineered by MTX in Phoenix - AZ, USA.

© 2015 Mitek. All rights reserved.

MTX is a registered trademark of Mitek.

Due to continual product development, all

specifications are subject to change without notice.

Mitek - MTX

4545 East Baseline Rd. Phoenix, AZ 85042, USA

mtxaudio.eu

twitter.com/MTXEurope

facebook.com/MTXEurope
