RTT12P - Subwoofer MTX Audio - Free user manual and instructions

Product Type	Amplified subwoofer (bass tube)
Brand	MTX Audio
Model	RTT12P
Speaker Diameter	30 cm (12 inches)
Amplifier	Class D, monophonic
Max Power	660 W
RMS Power	220 W
Dimensions (W x D x H)	34.5 x 35 x 54.5 cm
Weight	Approximately 15 kg
Power Supply	12 V DC (vehicle battery)
Recommended Fuse	To be installed within 30 cm of the battery (cable gauge 6 mm²)
Audio Inputs	RCA inputs (0.1V-4V) and high-level input (adapters included)
Controls	Gain (sensitivity), EBC remote control included (subwoofer level adjustment)
LED Indicators	Power (red) and protection (red)
Protection	Thermal protection (red LED)
Enclosure Material	Composite material tube (unspecified, likely reinforced plastic)
Installation	Mounting in the vehicle, requires cooling space in front of the amplifier and subwoofer
Maintenance and Cleaning	Clean with a dry cloth, avoid moisture and abrasive products
Spare Parts / Repairability	Contact an authorized installer or MTX customer service for replacement parts

Frequently Asked Questions - RTT12P MTX Audio

How to connect the power supply of the RTT12P?

Connect the +12V connector directly to the positive terminal of the battery with a 6 mm² cable. The GND connector must be connected to a good ground (bare metal) with the same cable. Install a fuse within 30 cm of the battery.

Where to connect the Remote wire?

Connect the Remote wire (often blue) from your car stereo to the REM terminal of the amplifier. This +12V signal turns the amplifier on and off automatically.

How to adjust the Gain (sensitivity)?

Set the gain to minimum (counterclockwise). Turn the source volume up to 3/4. Slowly increase the gain until you hear distortion, then reduce it by one notch. The gain is not a volume control, do not set it to maximum.

My car stereo has no RCA outputs, what to do?

Use the supplied High Level Input adapters. Connect the speaker wires from the source to the adapters, then plug them into the High Level Input connector on the amplifier.

What does the red Protection indicator mean?

The Prot. LED lights up red when the amplifier is in thermal protection (overheating). Let the device cool down and check the ventilation.

What are the dimensions of the RTT12P?

The dimensions are: 34.5 cm width, 35 cm depth, and 54.5 cm height. Make sure you have enough space for installation.

Where to place the subwoofer in the vehicle?

Place the RTT12P in the trunk or an open area. Allow air around the amplifier section and in front of the subwoofer for cooling and good sound reproduction.

What type of fuse to use?

Install a fuse suitable for the power (not specified in the manual, typically 30-40A) in a fuse holder within 30 cm of the battery. Use 6 mm² copper power cable.

How to clean the subwoofer enclosure?

Use a soft, dry cloth to dust the enclosure. Avoid chemicals, water, and abrasive cleaners that could damage the finish.

Where to find spare parts or have the device repaired?

Contact an authorized MTX installer or MTX customer service. The manual recommends calling a professional for any repairs.

USER MANUAL RTT12P MTX Audio

30cm (12") Class-D Powered Tube - 220W RMS - 660W Peak Designed by MTX in Phoenix, AZ - USA

Thank You!

Thank you for purchasing an MTX Audio High-End amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of waking the neighbors, slammin' your friends or flat out stomping wanna-be players. Congrats and enjoy the ultimate audio experience with MTX!

Specifications :

• Powered vented tube enclosure
• Mono block class-D amplifier
• Subwoofer: 30cm (12")
  • Amplifier Max Power : 660W
  • Amplifier RMS Power : 220W
  • High and low level inputs
  • EBC (External Bass Control) remote included
  • Dimensions : 34,5x35x54,5cm

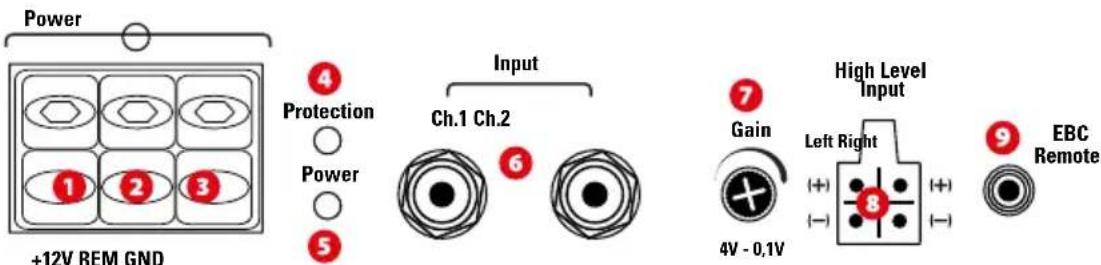

Control Panel on the Amplifier :

Power +12V REM GND 4 Protection Power 5 Input Ch.1 Ch.2 6 7 Gain 4V - 0.1V High Level Input Left Right 8 9 EBC Remote

1 Power Terminal (+12V): This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12V) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using a minimum of 6mm2 full copper power wire with the MTX RTT12P.
2 Remote Terminal (REM): The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked "remote" or "power antenna".
3 Ground Terminal (GND) : A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.
4 Protection LED (Prot.) : When the amp is in thermal protection, the LED turns to red.
5 PowerOn LED (PWR.) : The LED illuminates red when the amp is switched on.
6 RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 100mV output for proper operation of the amplifier). MTX recommends only high quality RCA cables to decrease the possibility of radiated noise entering the system.
7 Gain Control (Gain): The gain control matches the input sensitivity of the amplifier to the source unit being used.

The operating range varies from 100mv to 4V. Adjusting the gain:

1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.

Speaker level inputs (High Level Input) : This input will allow the amplifier to operate from source units with speaker-level outputs. Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier. Note : When speaker level inputs are used, a remote turn on wire must used to switch the amplifier on and off.

9 Remote bass control port (EBC) : use this port to connect the optional MTX EBC. It allows you to control the output level siting at the front of the car.

Installation & Mounting :

MTX recommends your new MTX RTT12P to be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicles electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to turn on your system!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX RTT12P. Keep in mind there should be sufficient air flow for proper cooling.

3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier (+12V) terminal (1). Do Not connect to the battery at this time.
   Note : Use only proper gauge wire for both positive and negative connections.

4. Install a circuit breaker or fuse within 30cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuitbreaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.

5. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the amplifier (3).

6. Connect a remote turn-on wire from the source unit to amplifier remote terminal (2). If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit's Power Antenna lead.

7. Connecting signal cables to the amplifier: There are two ways to supply the signal to your MTX RTT12P.

- To get maximum performance, we suggest connecting a high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier.

- If a source unit is being used without RCA outputs, use the included high-level amplifier's speaker terminals (8) using the right gauge speaker wire.

1. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

How To Stay Tuned :

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Merci!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Muchas Gracias!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Vielen Dank!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Grazie!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Obrigado!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Bedankt!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Спасибо!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Multumesc!

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Wprowadzenie

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

Esipuhe

https://www.facebook.com/MTXEurope

https://twitter.com/MTXEurope

http://www.mtxaudio.eu

MX®

AUDIO

MTX is proud to be an

American Audio Company since 1971.

Black and white image of the United States flag (no text or symbols)

MTX is a proud member of Mitek Corp high quality consumer audio product lines.

MiTek Corporation

Designed and Engineered by Mitek in Phoenix - AZ, USA

Assembled in PRC. © 2017 Mitek. All rights reserved.

MTX is a registered trademark of Mitek.

Due to continual product development, all specifications are subject to change without notice.

Mitek - MTX

4545 East Baseline Rd. Phoenix, AZ 85042, USA
