Brand	TFA
Model	60.4001.10
Product type	Digital bathroom/kitchen clock with timer
Housing dimensions	106 x 41 (52) x 109 mm
Weight	140 g (unit only)
Power supply	2 x 1.5 V AAA batteries (not included)
Display	Time, indoor temperature, humidity, timer
Temperature measurement range	-10 °C to 50 °C (14 °F to 122 °F)
Humidity measurement range	20% to 99% RH
Timer	Up to 99 minutes, countdown with circulating display
Mounting	Stand and suspension eyelet, suction cup for smooth surfaces
Protection	Splash-resistant (not waterproof)
Time setting	12/24 h system, via TIME, UP/CF, DOWN buttons
Timer setting	10 and 1 buttons in steps of 10/1 minute, CLEAR button
RESET button	Yes, for reset in case of incorrect display
Care and cleaning	Soft damp cloth, without solvents or abrasives
Safety	Keep away from children, do not immerse in water
Battery replacement	Remove used batteries, observe polarity, use alkaline batteries
Manual available	French, German, English, Spanish, Italian, Dutch and other languages on request

Frequently Asked Questions - 60.4001.10 TFA

How to set the time on the TFA 60.4001.10 clock?

Press and hold the TIME button for 3 seconds. The hour display flashes. Use the UP/CF or DOWN buttons to set the hour, then confirm with TIME. The minutes then flash, proceed similarly.

How to set the timer?

Use the 10 button to add increments of 10 minutes and the 1 button for increments of 1 minute, up to 99 minutes. After 3 seconds of inactivity, the countdown starts and a circulating display shows the remaining time.

How to stop the timer alarm?

Press the CLEAR button. The time reappears in large format.

What to do if the screen shows nothing?

Check the battery polarity and replace them if necessary. Use alkaline AAA batteries.

How to change the temperature unit between °C and °F?

Press the UP/CF button to switch between Celsius and Fahrenheit.

Is the clock waterproof?

It is splash-resistant but not waterproof. Do not immerse it in water and protect it from direct water jets.

How to clean the clock?

Use a soft damp cloth. Do not use solvents or abrasive products.

How to switch from 12h to 24h display?

Briefly press the TIME button to toggle between 12-hour (with AM/PM) and 24-hour formats.

What to do in case of incorrect display?

Press the RESET button with a pointed object (e.g., a paperclip). If the problem persists, replace the batteries.

Where can I find the complete manual?

The manual is available for free download in PDF format on notice-facile.com and on the manufacturer's website www.tfa-dostmann.de after entering the article number 60.4001.10.

USER MANUAL 60.4001.10 TFA

24°C 24.5 95% 8:45 (10) CLEAR 1

Instruction manuals

Kat. Nr. 60.4001.10

www.tfa-dostmann.de/en/service/downloads/instruction-manuals

CE

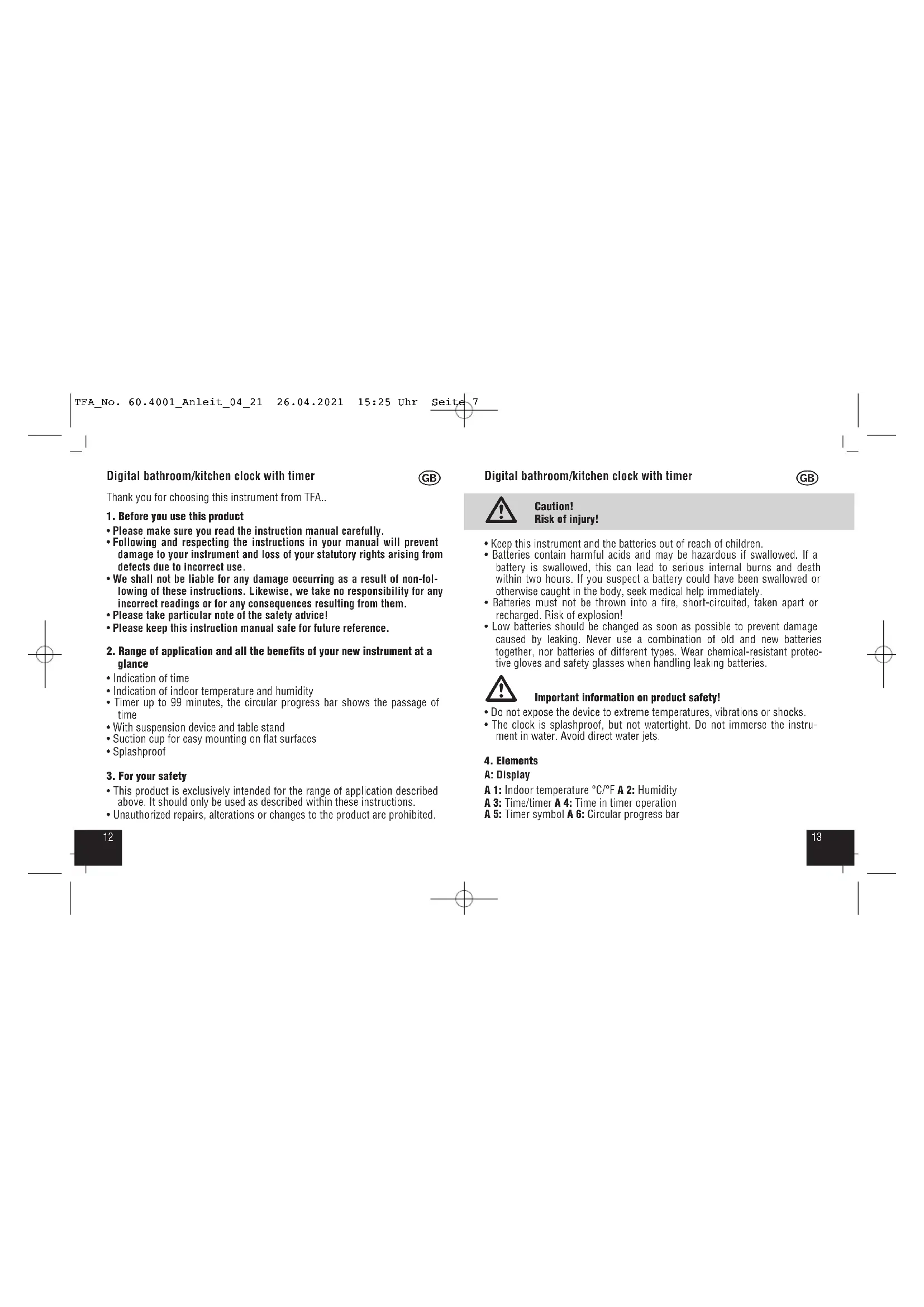

Digital bathroom/kitchen clock with timer

Thank you for choosing this instrument from TFA..

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Range of application and all the benefits of your new instrument at a glance

• Indication of time
• Indication of indoor temperature and humidity
• Timer up to 99 minutes, the circular progress bar shows the passage of time
• With suspension device and table stand
• Suction cup for easy mounting on flat surfaces
• Splashproof

3. For your safety

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are prohibited.

Digital bathroom/kitchen clock with timer

Caution! Risk of injury!

• Keep this instrument and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• The clock is splashproof, but not watertight. Do not immerse the instrument in water. Avoid direct water jets.

4. Elements

A: Display

A 1: Indoor temperature °C/°F A 2: Humidity

A 3: Time/timer A 4: Time in timer operation

A 5: Timer symbol A 6: Circular progress bar

Digital bathroom/kitchen clock with timer

B: Sensor buttons timer

B 1: 10 button B 2: CLEAR button

B 3:1 button

C: Housing

C 1: Screw cover C 2: Suspension device

C 3: Suction cup C 4: Build-in stand

C 5: Battery compartment

D: Buttons

D 1: TIME button D 2: UP/CF button

D 3: DOWN button D 4: RESET button

5. Getting started

• Remove the protective film from the display.
• Open the screw cover and insert two new AAA 1.5 V batteries, polarity as illustrated.
• When the unit is switched on, a signal tone sounds and all segments are briefly displayed.
  • The indoor temperature and humidity appear on the display.
• Press and hold the TIME button for three seconds to enter the setting mode.
  • The hour digit flashes.
• Press the UP/CF or DOWN button to adjust the hours.
• Confirm the hours setting by pressing the TIME button.
• The minute digits flash on the display. Set the minutes in the same way.

Digital bathroom/kitchen clock with timer

• Press and hold the UP/CF or DOWN button for fast mode.
• Confirm the setting with the TIME button.
• Press the TIME button briefly to choose 12 HR or 24 HR system. In the 12-HR system AM (before noon) or PM (after noon) appears on the display.
• Press the UP/CF button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.
• Close the screw cover again.

6. Setting of the timer

• Press the 10 button to set the desired time duration in steps of 10 minutes and the 1 button in steps of 1 minutes (maximum 99 minutes).
• Press and hold the 10 or 1 button for fast mode.
• If no entry is made for 3 seconds, the function is activated and the time display counts down. The timer symbol flashes.
  • The time now appears in the lower left corner of the display.
• The circular progress bar shows the passage of time.
• An alarm will sound when the set minutes expire.
• Press the CLEAR button and the function will stop.
  • The time appears again in large format.

7. Care and maintenance

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.
• Store the device in a dry place.

Digital bathroom/kitchen clock with timer

7.1 Battery change

- If the functions become weaker, please change the batteries.

8. Trouble shooting

Problem Solution

No display → Ensure the batteries' polarities are correct → Change the batteries

Incorrect indication → Use a pin to press the RESET button → Change the batteries

If your device fails to work despite these measures, contact the retailer where you purchased the product.

9. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are:

Cd=cadmium, Hg=mercury, Pb=lead

Digital bathroom/kitchen clock with timer

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

1. Specifications

Power consumption 2 x 1,5 V AAA batteries (not included)Use alkaline batteries

Measuring range - temperature -10°C...50 °C (14 °F...122°F)

Measuring range - humidity 20...99 %rH

Housing dimension 106 x 41 (52) x 109 mm

Weight 140 g (device only)

Digital bathroom clock with timer and room climate

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de
