Product Type	Electric Burr Coffee Grinder
Brand	KitchenAid
Model	KCG8433
Power Supply	120 V AC, 60 Hz, 150 W
Hopper Capacity	10 oz (283 g) coffee beans maximum
Grind Settings	70 settings, from coarse (1) to fine (70)
Compatible Brewing Methods	French Press, Percolator, Drip Coffee, Espresso
Dose Selector	1-12 cups (drip/percolator/French press) or 1-2 shots (espresso)
Adjustable Timer	Time adjustment knob to customize quantity
Program Function	Saves custom doses for each brew method
Micro-adjustment of Burrs	Yes, adjustable top burr (8 positions)
Direct Grind into Portafilter	Support for 54 mm or 58 mm portafilter
Grind into Lower Hopper	Yes, with removable lower hopper
Automatic Stop	Yes, after programmed time elapses
Overload Protection	Error sensor Er2 (cleaning required) and Er3 (overheating)
Cleaning	Removable parts washable with soapy water; body and burrs not immersible
Plug Type	Polarized (standard US plug)
Warranty	1 year, free replacement within first year
Included Accessories	Upper hopper with lid, lower hopper, grind tray, portafilter support, cleaning brush

Frequently Asked Questions - KCG8433 KITCHENAID

What types of coffee can I grind with the KitchenAid KCG8433?

The grinder supports grinding for French press (coarse), percolator (medium to coarse), drip coffee (medium), and espresso (fine).

How do I adjust the grind?

Turn the grind adjustment knob to choose among 70 positions. The displayed number corresponds to fineness: 1 = coarse, 70 = fine.

Can I grind directly into my portafilter?

Yes. Remove the grind tray, insert the included portafilter support, then place your portafilter. For a residential portafilter (54 mm), use the upper guides; for a commercial portafilter (58 mm), use the middle guides.

How do I program a custom dose?

After setting the grind and dose, adjust the time with the time adjustment knob, then press Program to save. The grinder will automatically adjust the other doses for the same brew method.

What should I do if the grinder displays '---'?

This indicates that the upper hopper is not properly locked. Turn it until it clicks.

What does error 'Er2' mean?

Er2 indicates an overload protection mode. Unplug the appliance, clean the burrs, reassemble, and plug back in.

How do I clean the grinder burrs?

Remove the upper hopper, empty any remaining beans, then disassemble the top burr using the metal handle. Brush the burrs with the included brush or a vacuum. Never immerse the burrs or body.

What is the maximum hopper capacity?

The upper hopper can hold up to 10 oz (283 g) of coffee beans. Capacity may vary depending on coffee type and roast.

Can the grinder grind for a single cup?

Yes. For drip coffee, select 1 cup; for espresso, select 1 or 2 shots. Use the time adjustment knob to fine-tune the quantity.

How do I reset to factory settings?

Press and hold the Program button for 3 seconds. All custom dose settings will be erased and factory values restored.

USER MANUAL KCG8433 KITCHENAID

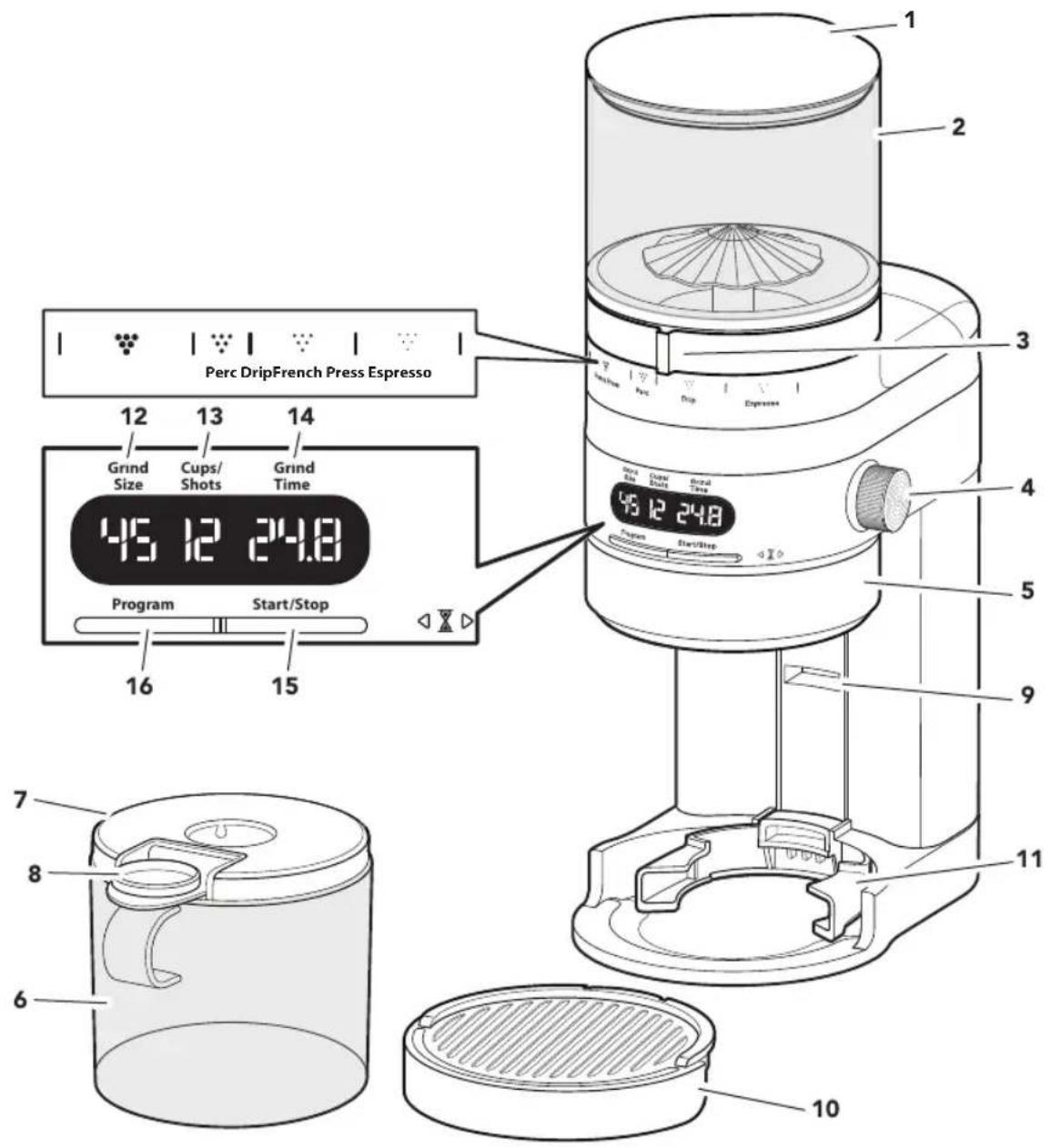

PARTS AND FEATURES

NOTE: The Top hopper holds a maximum of 10 oz (283 g) of coffee beans.*

1 Top hopper lid
9 Portafilter holder guide
2 Top hopper
10 Grounds catcher tray
3 Grind size knob
11 Portafilter holder
4 Dose selection knob
12 Grind size indicator
5 Time adjustment knob
13 Dose selection indicator
6 Bottom hopper
14 Grind time indicator
7 Bottom hopper lid
15 Start/Stop button
8 Rubber stopper
16 Program button

*Capacity may vary depending on coffee type and roast.

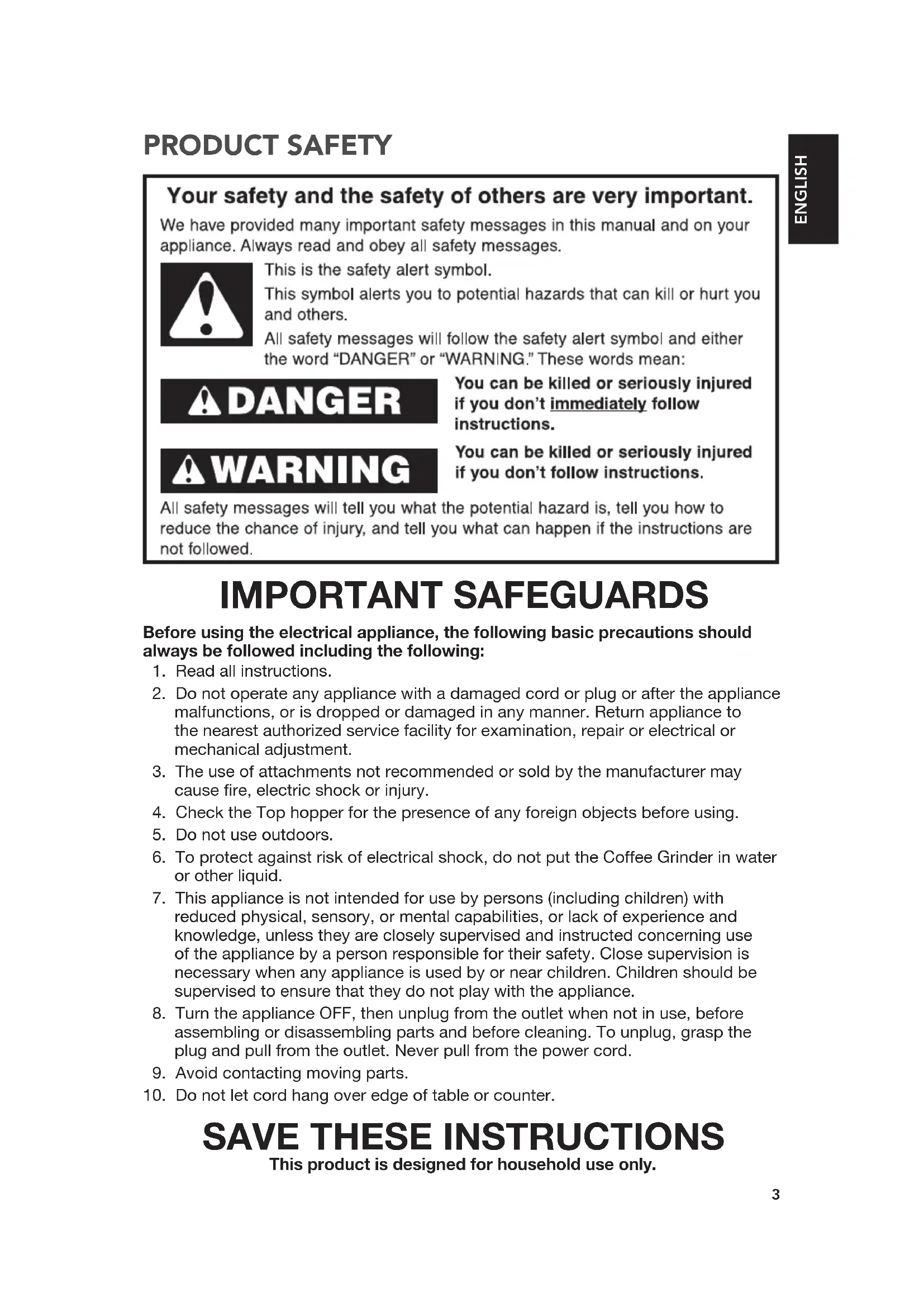

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
3. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
4. Check the Top hopper for the presence of any foreign objects before using.
5. Do not use outdoors.
6. To protect against risk of electrical shock, do not put the Coffee Grinder in water or other liquid.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
8. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
9. Avoid contacting moving parts.
10. Do not let cord hang over edge of table or counter.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

PRODUCT SAFETY

ELECTRICAL REQUIREMENTS

Voltage: 120 VAC

Frequency: 60 Hz

Wattage: 150 Watts

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

Do not modify the plug in any way. Do not use an adapter.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service person to install an outlet near the appliance.

The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

PRODUCT OVERVIEW

Your Burr Grinder has 70 unique grind size settings that are suitable for a range of brewing methods, from the finest setting for espresso to the coarsest setting for french press.

By adjusting the Dose selection knob, you can choose from 1 to 2 shots of espresso or 1 to 12 cups of coffee.

COFFEE GRIND SETTING CHART

Coffee Type French Press	Perc (Percolation)	Drip coffee Espresso
Grind Size	Coarse Medium Coarse Medium Fine
Dose Selection	1 - 12 cups 1 - 12 cups 1 - 12 cups 1-2 shots
Use setting with	Bottom hopper	Bottom hopper	Portafilter holder

PRODUCT ASSEMBLY

First, clean all parts and accessories. (See "Care and Cleaning" section). Place the product on a dry, flat, level surface such as a countertop or table.

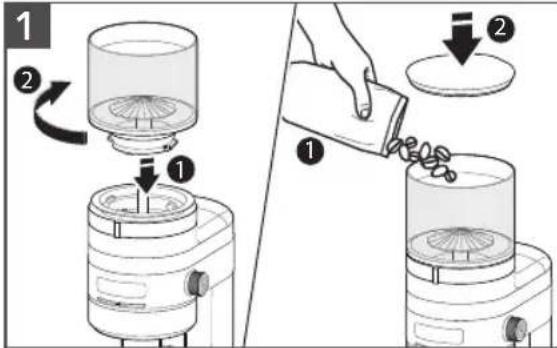

Place the Top hopper onto the machine with the 'Lock icon' facing front. Rotate the Top hopper until it clicks into place.

Add whole coffee beans. Place the Top hopper lid onto the Top hopper.

Diagram showing a hand operating a water dispenser into a container, with no visible text or symbols.

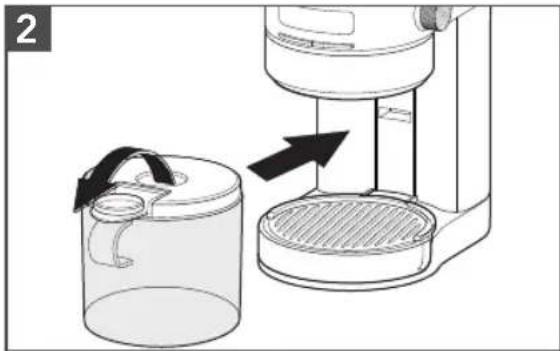

For grinding into the Bottom hopper: Open the Rubber stopper and slide the Bottom hopper into position.

Diagram of a mechanical component with arrows indicating flow or movement, no visible text or symbols

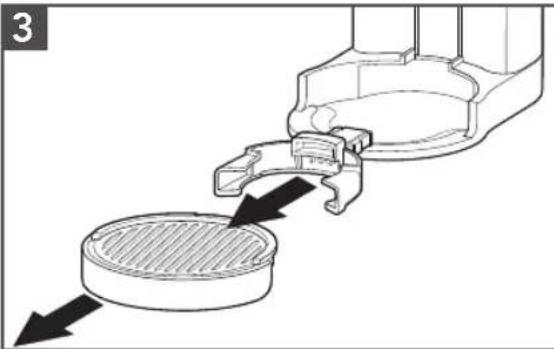

For grinding into a Portafilter: Remove the Grounds catcher tray and then remove the Portafilter holder from its storage location. Insert Portafilter holder into Portafilter holder guide. Replace the Grounds catcher tray.

Technical illustration of a mechanical device with two views showing internal components and mounting features (no text or symbols)

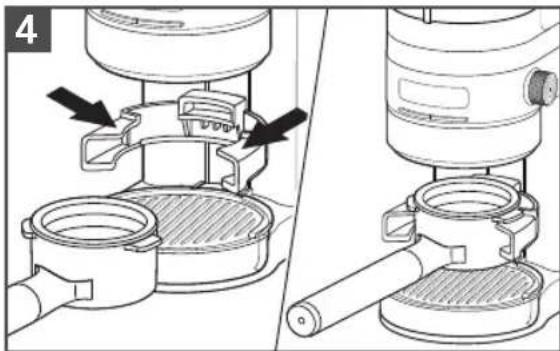

For grinding into the Portafilter: If using a standard residential Portafilter (54 mm), insert it along the top guides of the Portafilter holder.

Technical diagram showing two views of a mounted appliance with internal components and directional arrows (no text or symbols)

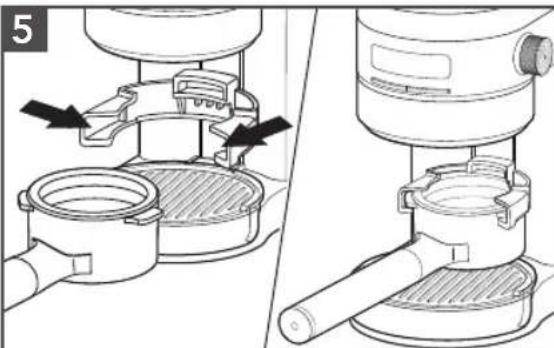

For grinding into the Portafilter: If using a commercial Portafilter (58 mm), insert it into the middle guides of Portafilter holder.

PRODUCT USAGE

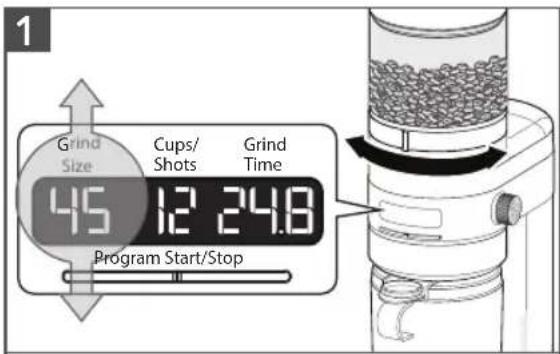

Select Grind Size: Refer to the Brew method icons on the machine. Rotate the Grind size knob to select a grind size within the brew method range you are using. The selected grind size will be shown on the display.

NOTE: As grind size number increases the actual grind size decreases (1 is Coarse and 70 is fine).

Select Coffee Dose:

Rotate the Dose selection knob for the number of cups or shots.

French press, Perc, Drip coffee: Select between 1 - 12 cups.

Espresso: Select between 1 - 2 shots.

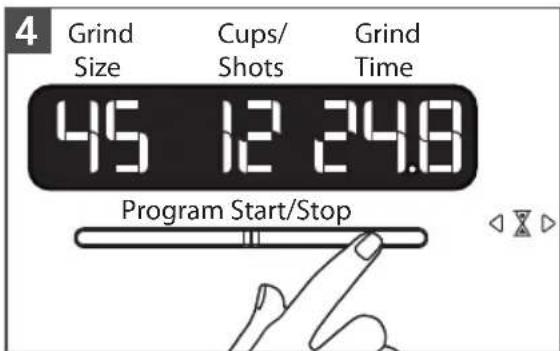

To start grinding:

Press Start/Stop to begin grinding.

Grinder will stop automatically when the time reaches 0 on the display.

To pause during grinding:

Press Start/Stop. To resume grinding press Start/Stop.

NOTE: Grinder can remain paused for up to 15 seconds. After 15 seconds, the cycle will cancel and display will show the current selection.

To cancel the grinding cycle: Press and hold Start/Stop for 3 seconds.

TIP: If Grind size knob is hard to rotate, run the machine while adjusting the size to remove any coffee grounds caught between the burrs.

PRODUCT USAGE

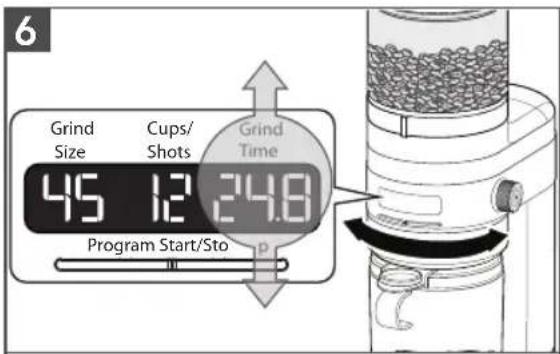

To change coffee amount for a dose: If desired, rotate the Time adjustment knob to customize the desired amount of coffee for a particular selected dose. Increase the grinding time to increase the coffee ground amount or decrease the grinding time to decrease the coffee ground amount.

PROGRAM FUNCTION

The Burr Grinder is equipped with programing functionality. This functionality allows you to save customized doses for each brew methods, based on grinding time.

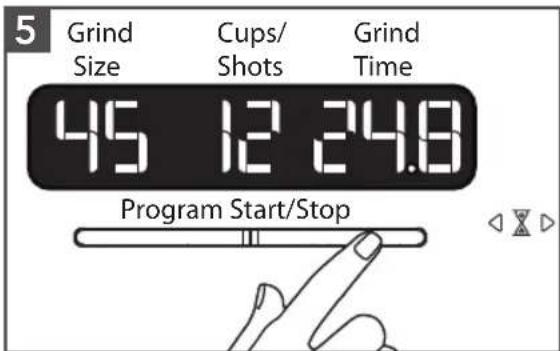

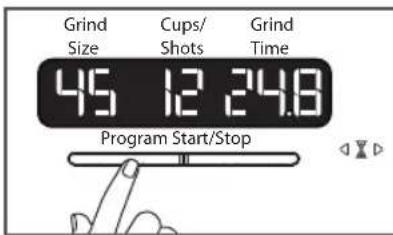

To save dose setting: Once you have identified a desire dose time, press Program button to save the grind time you have selected.

Once a new grind time for a dose within a brew method is saved, the Burr Grinder will automatically adjust the grind time up or down for all other doses within the brew method accordingly.

NOTE: To restore all factory dose settings, press and hold the Program button for 3 seconds.

PRODUCT USAGE

MICRO-ADJUSTING THE CONICAL BURRS

The Burr Grinder is equipped with an adjustable Upper burr. Making adjustments to this Burr expands the grind size range, allowing you to customize even further to meet your taste preference.

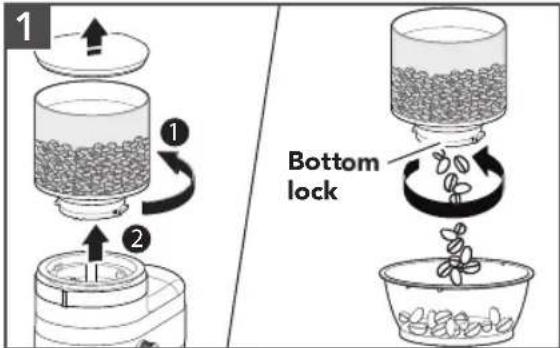

Twist and lift the Top hopper to remove. Twist the bottom lock to empty the Top hopper into another container.

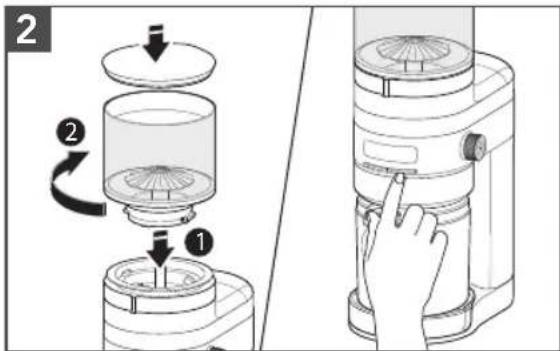

Replace the empty Top hopper with Lid and twist to lock in place. Press Start/Stop to run the grinder until empty.

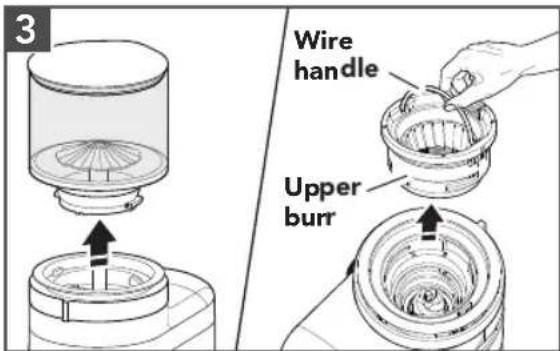

Unplug the Burr Grinder. Remove the Top hopper and discard of any remaining coffee beans in the machine.
Lift the Wire handle of the Upper burr. Twist to unlock and lift the Upper burr by using the Wire handle.

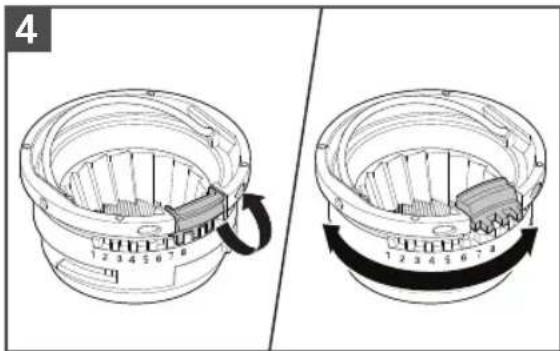

Lift the Upper burr micro adjustment latch. Then, rotate the Upper burr to desired setting and engage adjustment latch back into position.

Return the Upper burr to the machine and twist to lock into position. Reattach the Top hopper.

CARE AND CLEANING

CLEANING THE BURRS

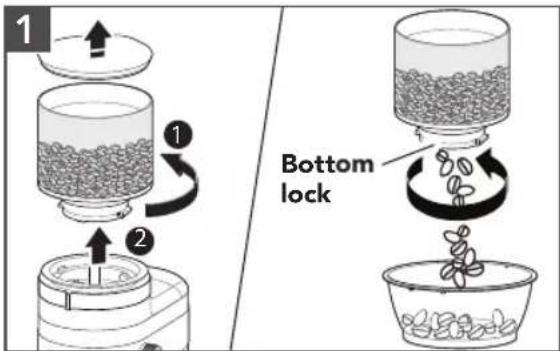

Twist and lift the Top hopper to remove. Twist the bottom lock to empty the Top hopper into another container.

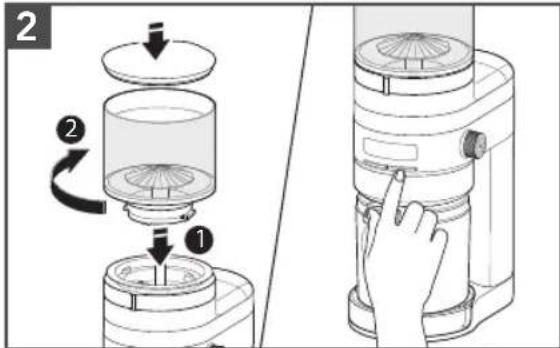

Replace the empty Top hopper and Lid. Press Start/Stop to run the grinder until empty. Then, unplug the burr grinder.

Diagram of a mechanical device with a top component and internal structure, showing no text or symbols

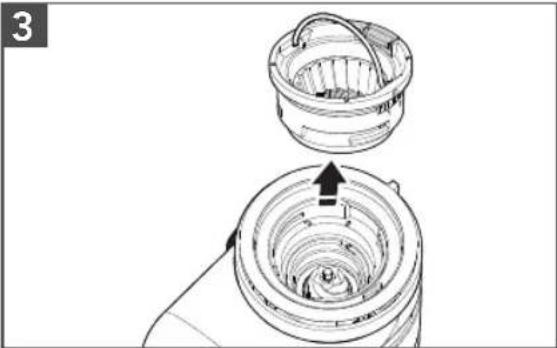

Remove the Top hopper, locate the wire handle on the Upper burr, rotate and lift the handle to remove Upper burr.

Illustration showing hands using a tool to clean or prepare food inside a steamer basket (no text or symbols)

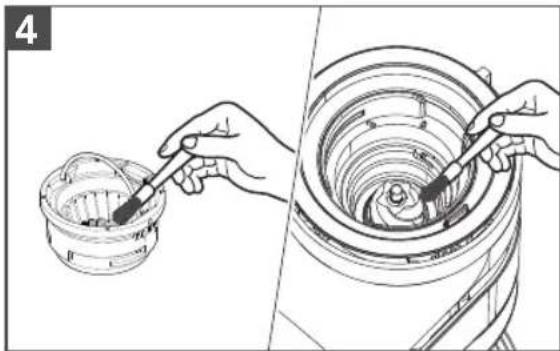

Clean the Upper burr with the cleaning brush. Clean the Lower burr with a brush or use a vacuum cleaner to remove coffee residue.

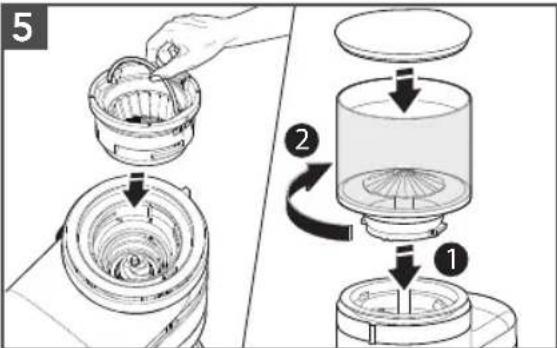

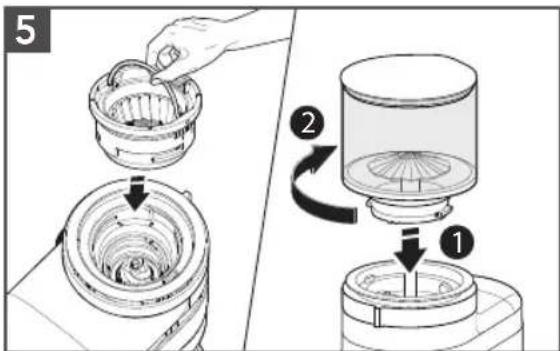

Align the Upper burr back in place and twist clockwise to secure. Replace the Top hopper and the Lid.

CARE AND CLEANING

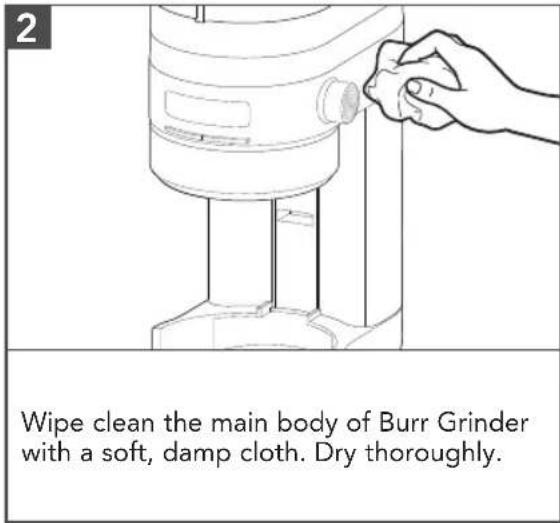

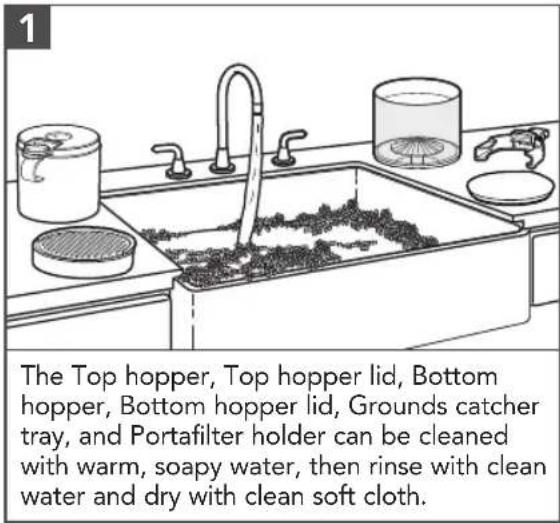

IMPORTANT: To avoid damage, never wash or immerse the main body of Burr Grinder, burrs, or power cord in water, or place in the dishwasher.

TROUBLESHOOTING GUIDE

Problem Solution
The Burr Grinder display is not illuminated.	Your machine might be in stand by mode. Press any button or turn any knob to wake up the machine.
The Burr Grinder does not turn start.	Check if the Burr Grinder is securely plugged into a grounded outlet.
	If you have a circuit breaker box, make sure the circuit is closed.
If the Burr Grinder shows 3 dashes (---) on display.	It indicates the that Top hopper is not locked in place. See product assembly instructions for proper installation.
If the Burr Grinder does not turn on and display shows "Er2".	Your Burr Grinder is in a motor overload protection mode. Unplug the Burr Grinder, clean the burrs, reassemble the machine and securely plug into a grounded outlet.
If the Burr Grinder does not turn on and display shows "Er3".	Your Burr Grinder is in protection mode. Unplug the Burr Grinder and allow it to cool for 10 minutes before turning it back on.
If Coffee is not coming out from the grind outlet.	Ensure fresh coffee beans are in the Top hopper.
If the Burr Grinder is operating normally, but stops abruptly.	Stop the Burr Grinder. A coffee bean, may have jammed the burrs. Refer to "Care and Cleaning" section for details on cleaning the burrs.
The automatic dosing quantity is not to your liking.	Doses of coffee are programmable refer to the programming section for reference.
If the problem cannot be corrected.	See the "KitchenAid® Warranty and Service" sections. Do not return the Burr Grinder to the retailer – retailers do not provide service.NOTE: Any other servicing should be performed by an authorized service representative.

WARRANTY AND SERVICE

KITCHENAID® BURR GRINDER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Burr Grinders operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:[IMAGE]	Hassle-Free Replacement of your Burr Grinder. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Burr Grinder is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Burr Grinder to an Authorized Service Center.D. Replacement parts or repair labor costs for Burr Grinder attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Burr Grinder should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Burr Grinder returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Burr Grinder should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Burr Grinder, use the carton, packing materials, and prepaid shipping label to pack up your original Burr Grinder and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY—CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Burr Grinder should fail within the first year of ownership, we will replace your Burr Grinder with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Burr Grinder should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at

1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Burr Grinder, use the carton, packing materials, and prepaid shipping label to pack up your original Burr Grinder and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Burr Grinder for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

PIÈCES ET CARACTÉRISTIQUES

FRANCIALS

ASSEMBLAGE DU PRODUIT

Diagram showing a hand pouring liquid into a container with an arrow indicating flow direction (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a circular plate (no text or symbols)

Technical diagram showing two mechanical assembly setups with arrows indicating components (no text or symbols present)

Technical illustration of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a top component and internal structure, showing no text or symbols

Illustration showing hands using a tool to clean or prepare food in a bamboo steamer (no text or symbols present)

Line drawing of a hand operating a cylindrical tool on a base (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Diagram showing a hand pouring liquid into a container with a lid, illustrating a process (no text or symbols present)

Diagram of a mechanical component with a circular plate and directional arrows indicating flow or movement (no text or symbols)

Technical diagram showing two views of a mechanical device with arrows indicating assembly or connection points (no text or symbols present)

Technical diagram showing two views of a mounted appliance with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a top component and internal structure, showing no text or symbols

Illustration showing hands using a tool to clean or inspect a circular mechanical component (no text or symbols present)

Line drawing of a kitchen sink with water-filled basin, no text or symbols present

Line drawing of a hand operating a cylindrical device with a handle, no text or symbols present

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

www.kitchenaid.com.mx

www.kitchenaid-ca.com

Colombia

web: www.kitchenaid.com.do

DISCOVER MORE. DÉCOUVREZ PLUS. DESCUBRA MÁS. KITCHENAID.COM/QUICKSTART

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

KitchenAid®

®/TM ©2020 KitchenAid. All rights reserved. Used under license in Canada.
