USER MANUAL NutriFresh 78220 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Exterior view of a vacuum cleaner with open bag of meat wrapped in plastic wrap (no text or symbols visible)

Vacuum Sealer Scelleuse sous vide Selladora al Vacío

English....2 Français....19 Español....37

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Never let the vacuum sealer run unattended. Disconnect the vacuum sealer from the power source before leaving the work area.
5. To protect against risk of electric shock, do not immerse cord, plug, or vacuum sealer in water or other liquid.

6. Unplug from outlet when not in use and before cleaning.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.
11. Do not disassemble this appliance. Doing so may result in personal injury.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Do not use for other than intended purpose.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

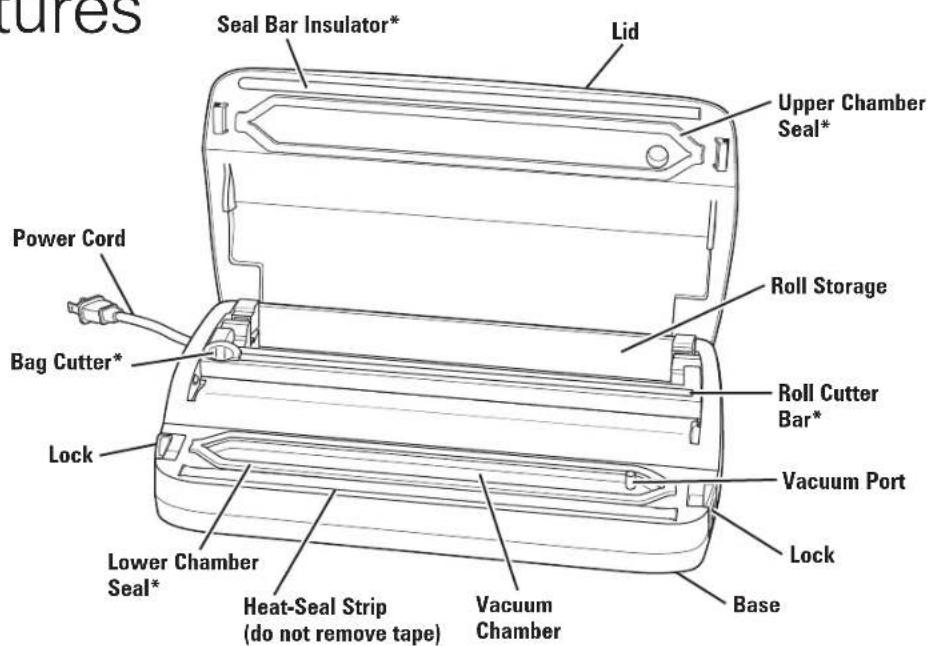

Parts and Features

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

NOTE: Not all available parts and accessories are shown here. Please visit our website or call for a complete list.

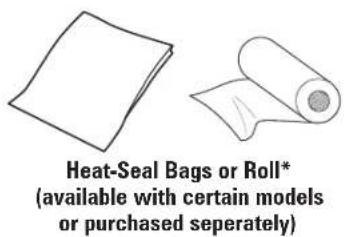

Heat-Seal Bags or Roll* (available with certain models or purchased separately)

Seal Bar Insulator* Lid Upper Chamber Seal* Power Cord Bag Cutter* Lock Lower Chamber Seal* Heat-Seal Strip (do not remove tape) Vacuum Chamber Roll Storage Roll Cutter Bar* Vacuum Port Lock Base

Accessory Port DC Jack (DC adapter not available with this model)

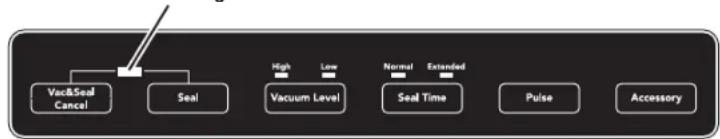

Control Panel

Power Light: The power light will remain illuminated when the vacuum sealer is plugged into an outlet. Power light is green when unit is ready and red when in operation.

Vac&Seal/Cancel Button: Press this button to start vacuum and seal operation. This button will stop operation at any time.

Seal Button: Press this button to start heat-sealing operation. Use to make bags from rolls.

Vacuum Level Button:

• Select High for maximum air removal.
• Select Low for softer/delicate foods.

Seal Time Button:

• Select Normal when vacuum-sealing dry items.
• Select Extended when vacuum-sealing moist items.

Pulse Button: Press, hold, and release this button to control air removal for delicate or crushable items. Press Seal button when proper amount of air is removed.

Accessory Button:

• Press this button to operate accessory port on the side of the appliance.
• Use with vacuum hose, special canisters, and zipper bags (not included).

Power Light

Before You Start Vacuum-Sealing

1. The vacuum sealer is intended to be used only with heat-seal bags which have at least one side that is textured for air flow. Do not use household plastic bags.

2. A vacuum bag is sealed when the two layers of the bag are heated from the heat-seal strip, causing the bag to be permanently sealed.

3. Wait at least 20 seconds between operations for heat-seal strip to cool to prevent overheating and premature melting of the bag.

4. There are two ways to close the vacuum sealer to start the vacuum or sealing process:

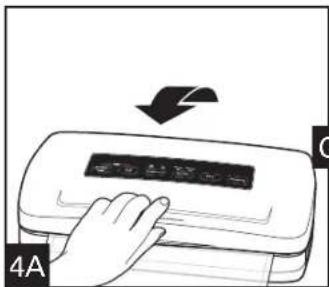

4A

Lower the lid; press and hold the lid down until vacuuming or sealing starts.

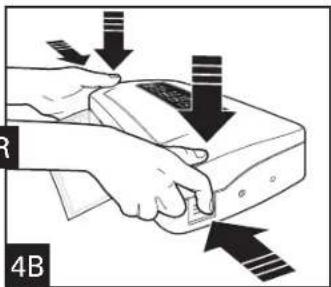

R 4B

Use locks if you do not want to hold the lid down manually. Lower the lid. Press down on both corners and push in locks on both sides to lock lid.

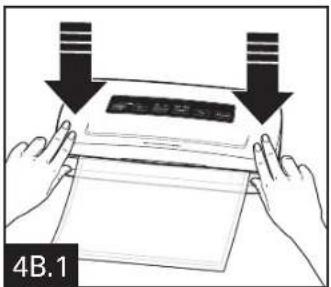

4B.1

The locks will release automatically after sealing or vacuum-sealing. If the lid remains locked, press down corners to release lid.

Making Bags From Rolls

Illustration of a hand pressing down on a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

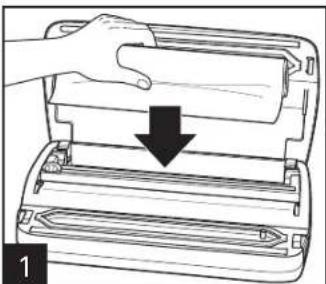

Insert heat-seal roll into roll holder with roll feeding over the top.

Illustration of a printer's paper roll being folded with a hand, showing page direction (no text or symbols)

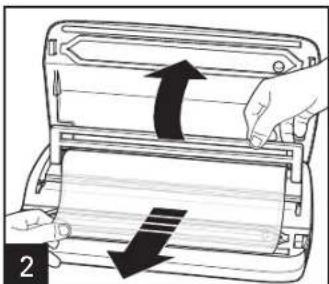

Raise roll cutter bar and pull material under bar; then lower cutter bar.

Illustration of a printer with a hand pressing down on paper, showing a downward arrow (no text or symbols present)

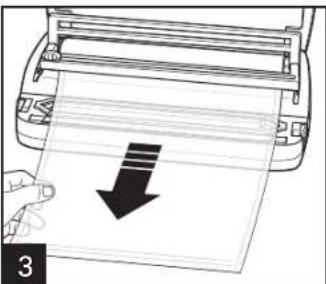

To cut material to form the bag, pull forward enough material for the item to be vacuum-sealed plus another 4 inches (10.2 cm).

CAUTION Burn Hazard.
Seal bar is hot. Avoid touching it.

Illustration of hands operating a printer with an arrow indicating motion (no text or symbols)

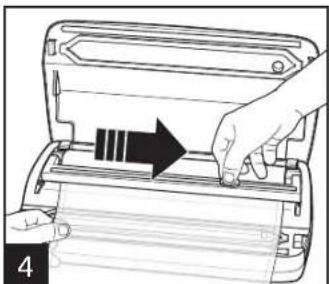

Slide cutter across to cut the bag.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

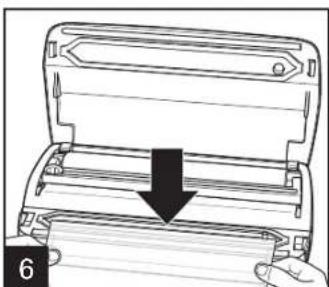

Plug into outlet. Place one open end of bag over heat seal strip and completely within vacuum chamber. For best sealing, place curl side down so end of bag points down into the chamber. Be sure there are no folds or wrinkles.

Diagram of a printer or printer with a paper roll being inserted, showing a downward arrow (no text or symbols present)

Illustration of hands pressing down on a mechanical component (no text or symbols visible)

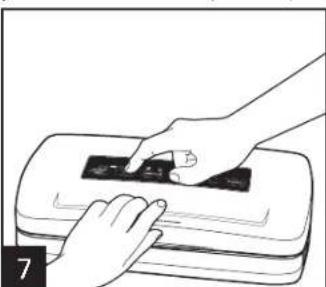

Close the vacuum sealer. Push the Seal button. Press and hold the lid down during sealing or use locks. Red light will illuminate for about 6 seconds indicating the unit is heating the seal. Then, vacuum comes on to allow slight pressure to finish the seal and release the lock.

Making Bags From Rolls (cont.)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

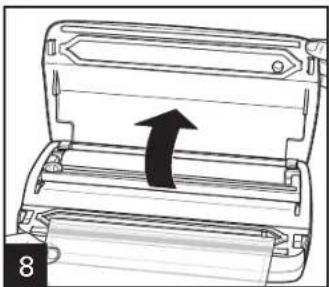

Wait to open the lid until unit beeps and light turns green.

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Unplug when finished making bags.

NOTES:

• To prevent overheating, allow 20 seconds between each bag that is sealed.
• To ensure proper seal, keep the lid closed during use.

How to Vacuum-Seal

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Plug into outlet.

Illustration of a hand placing a small object into a jar with a downward arrow (no text or symbols)

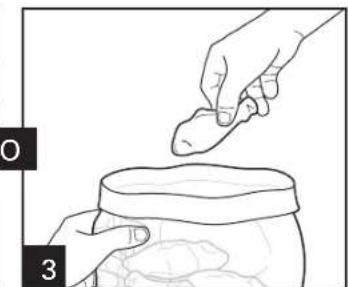

For better sealing, fold over top of bag to keep clean while adding food. Unfold top of bag after filling.

Illustration of a printer or printer being inserted into a paper holder, with a downward arrow indicating the process (no text or symbols present)

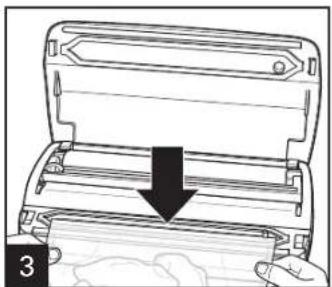

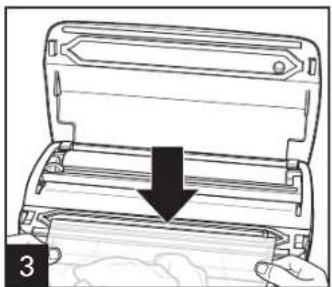

Center the open edge of bag within the vacuum chamber. Ensure entire edge of bag is inside the chamber and bag is flat with no folds or wrinkles.

How to Vacuum-Seal (cont.)

Hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

To begin vacuum-seal operation, lower the lid.

Line drawing of a hand pressing down on a rectangular object with a dark square base (no text or symbols)

Select Vacuum Level and Seal Time. See page 4 for recommendations.

Line drawing of hands installing or adjusting a component on a surface (no text or symbols)

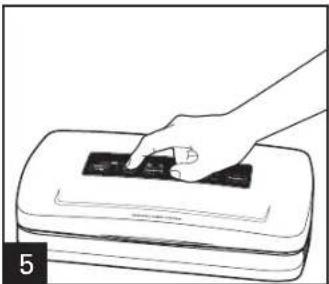

Push the Vac&Seal button. Press down and hold the lid during vacuum-sealing or use locks.

⚠️ CAUTION Burn Hazard. Seal bar is hot. Avoid touching it.

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Wait to open the lid until unit beeps and light turns green. Remove the sealed bag.

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Unplug when finished vacuum-sealing bags.

NOTES:

• To prevent overheating, allow 20 seconds between each bag that is vacuum-sealed.
• To ensure proper seal, keep the lid closed during use.
- Do not let moisture into the vacuum port. This may damage the motor.

How to Vacuum-Seal Fragile Foods or Nonfood Items

Electrical outlet with two power plugs connected to a cable, showing a black arrow pointing to the plug (no text or symbols present)

Plug into outlet.

2

Add fragile food or item to heat-seal bag. Unfold top of bag.

Diagram of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

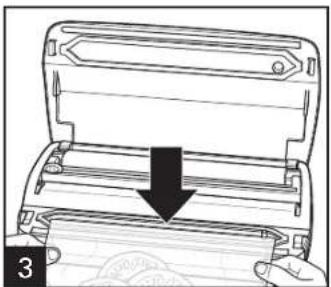

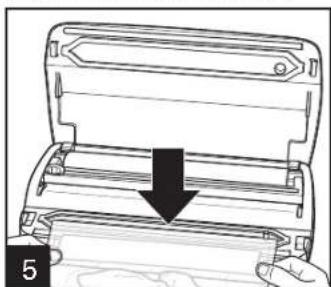

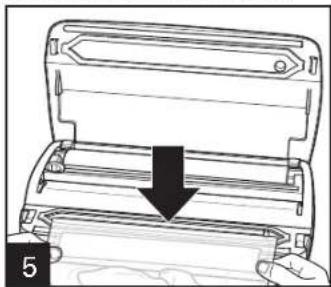

Center open edge of bag within vacuum chamber.

Illustration of a hand pressing down on a digital device with a downward arrow (no text or symbols)

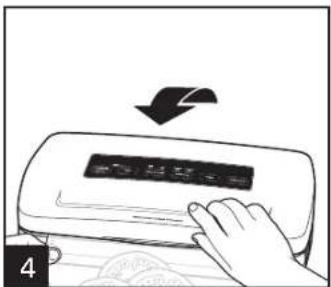

Close the lid and hold down in center or use locks.

Illustration of hands pressing down on a mechanical component (no text or symbols visible)

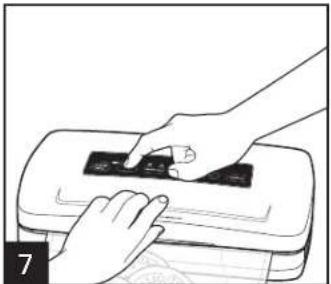

Press and hold Pulse button to vacuum air out of the bag.

Illustration of hands pressing a button on a device (no text or symbols visible)

Release Pulse button when desired amount of air is removed.

Illustration of hands pressing down on a device component (no text or symbols visible)

Press Seal button while continuing to hold the lid down. Red light comes on.

How to Vacuum-Seal Fragile Foods or Nonfood Items (cont.)

CAUTION Burn Hazard.

Seal bar is hot. Avoid touching it.

Hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

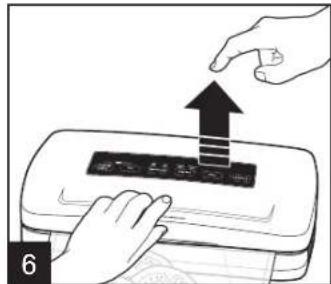

Wait to open the lid until unit beeps and light turns green. Release locks manually by pressing down on corners, if necessary.

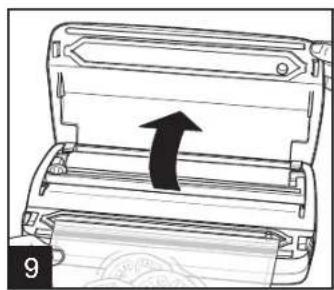

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Remove the sealed bag.

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Unplug when finished vacuum-sealing bags.

NOTES:

• To prevent overheating, allow 20 seconds between each bag that is vacuum-sealed.
• To ensure proper seal, keep the lid closed during use.
- Do not let moisture into the vacuum port. This may damage the motor.

How to Vacuum-Seal Moist Foods

PREFREEZING: For best results and to prevent accidental entry of fluids into the vacuum sealer, it is best to prefreeze meats, delicate fruits, and baked foods before vacuum-sealing. Prefreeze casseroles, sauces, and soups in plastic containers before vacuum-sealing.

Illustration of a cooking pot with three containers, no text or symbols present

Pour cooled liquids or moist food into freezer-safe containers and freeze.

Line drawing of a hand pressing down on a surface with a label 'R' and number '1' (no text or symbols in the diagram itself)

If prefreezing is not practical, dry moist foods with a paper towel before vacuum-sealing.

NOTE: If liquid is drawn into the vacuum port, the unit will no longer work.

Illustration of two hands performing a neck massage or stretching exercise (no text or symbols)

Fold over 1 1/2 inch of the top edge of bag to prevent moisture transfer from food to top surfaces of bag.

Illustration of hands pouring liquid from a container into a jar (no text or symbols)

Invert freezer container to remove frozen food. Place frozen food in heat-seal bag. Unfold top of bag.

Line drawing of a hand placing a small object into a jar (no text or symbols)

Add food to heat-seal bag. Wipe

Illustration of hands installing a jar onto an electrical outlet with a power plug (no text or symbols)

d dry top 2-inch interior surfaces of the bag with another paper towel. Unfold top of bag after filling. Plug into outlet.

Diagram of a printer or printer being inserted into a paper holder, showing a downward arrow (no text or symbols present)

Center open edge within the vacuum chamber. Ensure entire edge of bag is inside the chamber and bag is flat with no folds or wrinkles.

How to Vacuum-Seal Moist Foods (cont.)

CAUTION Burn Hazard.

Seal bar is hot. Avoid touching it.

Hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

Lower the lid. Press Seal Time button to select Extended Seal Time. This slows and extends the sealing time which is better when sealing moist foods. NOTE: If liquid is drawn into the vacuum port, the unit will no longer work.

High Low Normal Extended Vacuum Level Seal Time 7

Illustration of hands holding a rectangular object with a dark top, no visible text or symbols

Push the Vac&Seal button. Press down and hold the lid during operation or use locks.

Illustration of a hand pressing down on a device with a downward arrow (no text or symbols)

Hand pressing down on a mechanical component with an upward arrow (no text or symbols)

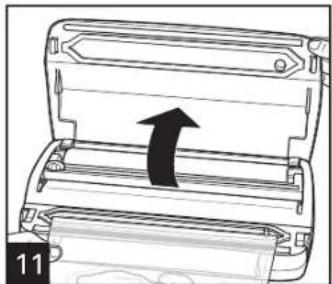

Wait to open the lid until unit beeps and light turns green.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Remove the sealed bag. Unplug when finished vacuum-sealing bags. Store sealed bag in freezer or refrigerator.

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

NOTES:

• To prevent overheating, allow 20 seconds between each bag that is vacuum-sealed.
• To ensure proper seal, keep the lid closed during use.
- Do not let moisture into the vacuum port. This may damage the motor.

Care and Cleaning

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Unplug. Let unit cool completely before cleaning.

Illustration of a hand cleaning a rectangular object with a small object on top (no text or symbols)

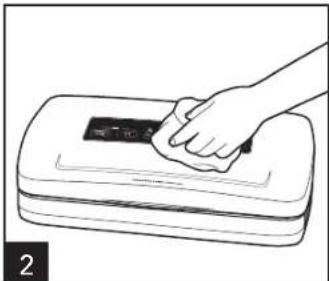

Wipe the outside of the vacuum sealer and vacuum chamber with a damp cloth or paper towel.

WARNING Electrical Shock Hazard:

Before cleaning, assembling, or disassembling the vacuum sealer, make sure the vacuum sealer is unplugged.

Line drawing of a car's side panel with a handle and ventilation slots (no text or symbols)

Do not use the locks when storing. Using the locks for an extended time will damage the vacuum sealer.

Vacuum-Sealing Tips

• Avoid sharp items around heat-seal bags or rolls when vacuum-sealing. Punctured bags will not seal properly.
• Buy foods in bulk and vacuum-seal to save time and money.
• Wash and dry all fruit and vegetables before vacuum-sealing.
• Washed leafy vegetables can be quickly dried with salad spinners.
  • To avoid crushing berries when vacuum-sealing, freeze them first. To freeze, wash, dry, and freeze on cookie sheets. Then vacuum-seal frozen berries.
• Vegetables such as broccoli, brussels sprouts, carrots, cabbage, cauliflower, green beans, kale, onions, peas, peppers, snap peas, and squash need to be blanched and frozen before vacuum-sealing.
  • After defrosting vacuum-sealed meats, poultry, and seafood, cook to a safe internal temperature.
• Always cook foods to a safe internal temperature. Foods vacuum-sealed in Hamilton Beach NutriFresh™ Bags can be used in sous vide cooking and in water on the stovetop. Contact manufacturer for safety of other bags.
• For food safety information, visit http://www.foodsafety.gov/.

Sous Vide

• Sous vide is a no-fail method of cooking vacuum-sealed food in a precisely temperature-controlled water bath, ensuring that food is evenly cooked throughout and reducing chance of over- or undercooking.
• Use only heat-seal bags made especially for sous vide cooking.
• Follow directions for vacuum-sealing moist foods when preparing meats, fish, and poultry for sous vide. Juices from meat cannot be drawn into the vacuum port or the unit will no longer work.
• Follow recommended sous vide cooking times to ensure optimal results. Visit hamiltonbeach.com and search "sous vide" for more information.

Nonfood Tips

• Nonfood items, such as batteries, boating licenses, matches, and passports, can be vacuum-sealed to keep safe when boating, camping, or traveling.
• Keys, utensils, and other sharp or pointed objects can be vacuum-sealed. Make sure to wrap the item in paper towels or some type of cushion before vacuum-sealing.
• For camping, boating, or hiking, be sure to take scissors to open your nonfood items.

Vacuum-Sealing Tips (cont.)

Food Storage Tips

• Always defrost frozen vacuum-sealed foods in the refrigerator.
- Store all vacuum-sealed cooked foods in the refrigerator or freezer.
• Vacuum-sealed bags of coffee beans, crackers, cereal, granola, and nuts can be stored at room temperature.

Troubleshooting

PROBLEM

My vacuum sealer shut off and won't turn on again.

The sealing bar melts through the bag.

The bag seal pulls apart.

The vacuum pump starts, but no air is being removed from the heat-seal bag.

PROBABLE CAUSE/SOLUTION

- Check power at outlet and then call Customer Service.

- Only heat-seal bags should be used. DO NOT USE PLASTIC HOUSEHOLD BAGS with the vacuum sealer.

- Bag cut at an angle does not seal. Ensure bag is cut perpendicular to sides.

- Unit stored with the lid locked down, gaskets deformed, or overcompressed. Do not store with the lid locked.

- Check the condition of the seal bar tape strips. Replace if needed.

- Open the lid and allow the sealing bar to cool for 5–10 minutes. Always leave the lid open between bags, and allow at least 20 seconds between cycles.

- The seal of the bag may be incomplete. If the seal has a crease in it, or if a liquid or powder has been trapped between the layers of the bag, the layers may not have been welded together properly. Cut off the seal and wipe the inside of the bag clean. Then, try to vacuum-seal the bag again.

- Be sure you are either pushing down throughout the vacuum-sealing process or using the locks.

- For best results, use Hamilton Beach heat-seal bags.

- Be sure the bag is inserted properly. The open end of the bag should be centered within the vacuum chamber. Be sure the vacuum port is not blocked.

- The bag may have a leak. If there is a leak in the bag, air will be pulled into the bag from the outside. Check for tears or punctures. If you are using a bag that was made from a roll of material, double-check that the end of the bag is sealed.

- Bag cut at an angle does not seal. Ensure bag is cut perpendicular to sides.

- Unit stored with the lid locked down, gaskets deformed, or overcompressed. Do not store with the lid locked.

Troubleshooting (cont.)

PROBLEM

Locks will not engage.

Lid will not open.

No seal was formed.

Seal button is pressed but nothing happens.

PROBABLE CAUSE/SOLUTION

• Be sure to push down firmly on both corners while attempting to engage latches.
• Lid may not have released automatically. Press down on the front lid corners to release locks.
• If too many seals were made in rapid succession, the unit may be too hot. Wait 2 minutes and retry.
• Once Seal button is pressed, the red light comes on indicating that the vacuum sealer is heating to seal the bag. Wait about 6 seconds. The vacuum will come on briefly to finish the seal and release the locks.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Bouton Accessory (Accessoires) :

Illustration of a hand pressing down on a mechanical device with a downward arrow indicating compression (no text or symbols)

Illustration of a printer's lid with an arrow indicating rotation and compression (no text or symbols)

Illustration of a printer with a hand pressing down on paper, showing a downward arrow (no text or symbols present)

Illustration of hands operating a printer with a paper roll, showing a black arrow indicating motion (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Diagram of a printer or printer with a paper roll being inserted, showing no text or symbols.

Illustration of hands pressing down on a mechanical component (no text or symbols visible)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of a hand placing a finger into a jar with a downward arrow (no text or symbols)

Diagram of a printer or printer being inserted into a paper, showing the printer's internal structure and the printer's base (no text or symbols present)

Hand pressing down on a digital device with a downward arrow (no text or symbols visible)

Line drawing of a hand pressing down on a rectangular object with a dark square base (no text or symbols)

Line drawing of hands installing or adjusting a component on a surface (no text or symbols)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of a hand pouring a small object into a jar with a downward arrow (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand pressing down on a digital device with a downward arrow (no text or symbols)

Line drawing of hands pressing a black object on a white surface (no text or symbols)

Illustration of hands pressing down on a device with an upward arrow (no text or symbols)

Illustration of hands pressing down on a device component (no text or symbols visible)

Hand pressing down on a mechanical component with an upward arrow (no text or symbols visible)

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

Illustration of a container with liquid and two smaller containers, no text or symbols present

OU

Line drawing of a hand holding a piece of meat, with no text or symbols present

Illustration of two hands performing a gentle neck massage or stretching exercise (no text or symbols)

Illustration of hands pouring liquid from a container into a jar (no text or symbols)

OU

Line drawing of a hand placing a small object into a jar (no text or symbols)

Illustration showing hands installing a jar onto an electrical outlet with a power plug (no text or symbols)

Diagram of a printer or printer being inserted into a paper holder, showing the printer's internal structure and the printer's base (no text or symbols present)

Hand pressing down on a device with a black arrow indicating downward motion (no text or symbols)

High Low Vacuum Level Normal Extended Seal Time 7

Line drawing of hands pressing down on a device component (no text or symbols visible)

Hand pressing down on a device with a downward arrow (no text or symbols visible)

Hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Diagram of a mechanical component with an arrow indicating rotation or movement (no text or symbols present)

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Illustration of a hand cleaning a rectangular object with a small object on top (no text or symbols)

Line drawing of a car's side panel with a handle and ventilation slots (no text or symbols)

Two hand-drawn sketches: a rolled-up sheet and a blank sheet, both without any text or symbols.

Illustration of a hand pressing down on a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a printer's paper roll being folded with a black arrow indicating the motion (no text or symbols present)

Illustration of a printer with a hand pressing down on paper, showing a black downward arrow (no text or symbols present)

Illustration of hands operating a printer or scanner device with a black arrow indicating the process (no text or symbols present)

Illustration of hands operating a printer or scanner device with a black arrow indicating the process (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Diagram of a printer or printer with a paper roll being inserted, showing a downward arrow (no text or symbols present)

Illustration of hands pressing down on a device component (no text or symbols visible)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of a hand placing a finger into a jar with a downward arrow (no text or symbols)

NOTAS:

Illustration of a hand placing a finger into a jar with a downward arrow (no text or symbols)

Diagram of a printer or printer being inserted into a paper, showing the printer's internal structure and the printer's base (no text or symbols present)

Hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand pressing down on a rectangular object with a black button (no text or symbols)

Line drawing of hands using a tool to press or install a rectangular object (no text or symbols visible)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of a hand pouring a small object into a jar with a downward arrow (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand pressing down on a digital device with a downward arrow (no text or symbols)

Illustration of hands pressing down on a device (no text or symbols visible)

Illustration of hands pressing down on a device with an upward arrow (no text or symbols)

Line drawing of hands pressing down on a mechanical component (no text or symbols)

Hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Illustration of a cooking pan with three containers, no text or symbols present

Line drawing of a hand pressing down on a piece of dough (no text or symbols)

Illustration of two hands performing a fold or press operation on a surface, with arrows indicating direction (no text or symbols)

Illustration of hands pouring liquid from a container into a jar (no text or symbols)

Line drawing of a hand placing a small object into a jar (no text or symbols)

Illustration of hands installing a jar onto an electrical outlet with a power plug (no text or symbols)

Diagram of a printer or printer being inserted into a paper sheet, showing a downward arrow (no text or symbols present)

Hand pressing down on a device with a downward arrow indicating motion (no text or symbols)

High Low Vacuum Level Normal Extended Seal Time 7

Illustration of hands installing or adjusting a component on a surface (no text or symbols visible)

Hand pressing down on a device with a black downward arrow (no text or symbols visible)

Hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Diagram of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram showing a cable being inserted into an electrical socket (no text or symbols present)

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Illustration of a hand cleaning a rectangular object with a small object on top (no text or symbols)

Line drawing of a car's side panel with a handle and vent (no text or symbols)

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon
