Product Type	Electric Slow Cooker
Brand	Hamilton Beach
Model	33602
Capacity	6 quarts (5.67 liters)
Power Supply	120 V, 60 Hz
Cooking Functions	Slow cooking: High, Low, Warm settings
Compatible Accessory	Air Fryer Lid (sold separately, compatible with listed models)
Pot Material	Removable stoneware (ceramic)
Lid	Glass lid (included); optional air fryer lid
Handles	Side handles on base
Power Cord	Short (to prevent tripping hazard), detachable
Care and Cleaning	Pot and glass lid are dishwasher safe; wipe base with damp cloth; do not immerse base
Safety	Hot surface; do not move with air fryer lid; air fryer lid automatically shuts off if lifted
Warranty	1 year (USA) / 5 years (Canada) against defects in materials and workmanship
Spare Parts and Repairability	Parts available at hamiltonbeach.ca/parts; repairs by manufacturer or authorized agent
Intended Use	Household use only, for preparing, cooking, and serving food
Maximum Ambient Temperature	Not specified
Dimensions (approx.)	Not provided by manufacturer
Weight (approx.)	Not provided by manufacturer

Frequently Asked Questions - 33602 HAMILTON BEACH

What are the available cooking settings?

The slow cooker has three settings: High, Low, and Warm. Use High for fast cooking (3-4 hours) and Low for slow cooking (6-10 hours). The Warm setting keeps food at the right temperature after cooking.

Can I use an air fryer lid with this slow cooker?

Yes, this slow cooker is compatible with the Hamilton Beach air fryer lid (models listed in the manual). The lid can air fry, broil, bake/roast, or keep warm. Ensure the lid is properly positioned and the handle is lowered to operate.

How do I clean the slow cooker?

Unplug the appliance and let it cool. The stoneware pot and glass lid can be washed in the dishwasher or with warm soapy water. The base should be wiped with a damp cloth. Never immerse the base, cord, or plug.

What if the slow cooker doesn't heat up?

Check that the appliance is plugged in and the outlet works. Make sure the temperature selector is set to High or Low. If the problem persists, contact Hamilton Beach customer service.

Can I leave the slow cooker unattended?

It is not recommended to leave the appliance unattended for long periods, especially on High. However, the slow cooker is designed for safe slow cooking. Keep the appliance out of reach of children and do not let the cord hang.

How to use the air fryer function after slow cooking?

After slow cooking, unplug the slow cooker and remove the glass lid. Place the air fryer lid on the pot, plug it in, select the mode (Air Fry, Broil, Bake/Roast) and set the time/temperature. Never move the entire unit; use the provided stand to place the hot lid.

What types of food can I cook in the slow cooker?

The slow cooker is suitable for meats, poultry, stews, soups, vegetables, and desserts. Avoid frozen meats without prior thawing. For pasta and dairy products, add them at the end of cooking.

How do I adjust cooking times for recipes?

In general, 1 hour of cooking on High equals 2-3 hours on Low. If you fill the pot halfway, check the cooking 1 to 2 hours before the end. Do not remove the lid unnecessarily to avoid heat loss.

The air fryer lid turns off by itself, is that normal?

Yes, the air fryer lid automatically shuts off after cooking and beeps 5 times. The display shows 'COOL' then '---'. Unplug it and let it cool on its stand.

Where can I find spare parts?

Spare parts (pot, lid, etc.) are available at hamiltonbeach.ca/parts. For after-sales service, contact customer service in the USA or Canada at the addresses indicated in the warranty.

USER MANUAL 33602 HAMILTON BEACH

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
5. To protect against electric shock, do not immerse cord, plug, or lid assembly in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.

11. Do not place on or near a hot gas or an electric burner, or in a heated oven.

12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

13. To disconnect appliance, turn OFF (⊙); then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. CAUTION! To prevent damage or shock hazard, do not cook in base. Cook only in removable crock.
15. Avoid sudden temperature changes, such as adding refrigerated foods into a heated removable crock.
16. Intended for countertop use only.
17. WARNING! Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter, never use outlet below counter, and never use with an extension cord.
18. Vessel may remain hot after unit is turned off.
19. Do not use appliance for other than intended use.
20. CAUTION! HOT SURFACE. The temperature of accessible surfaces may be high during and after operation.
21. Never rest air fry lid directly on countertop or supporting surface; always rest on provided stand.
22. Always read and understand the Important Safeguards provided with the slow cooker approved for use with the air fry lid.
23. Do not clean air fry lid with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
24. Do not operate the appliance by means of an external timer or separate remote-control system.
25. Do not place air fry lid on crock when slow cooker is plugged in.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This appliance is provided with a grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

A short power-supply cord is used to reduce the risk resulting from it being grabbed by children, becoming entangled in, or tripping over a longer cord.

Lid: Precautions and Information

• Please handle Lid carefully to ensure long life.
• Avoid hitting Lid against hard surfaces.
• Do not use Lid if cracked or otherwise damaged.
• Do not use abrasive cleansers or metal scouring pads.
• Lid can become very hot. Use caution. Do not place directly on any unprotected surface or countertop.
• Do not place Air Fryer Lid in a microwave oven, conventional oven, refrigerator, or on stove top.

Removing Lid

When removing the Air Fry Lid from Crock, lift using the Air Fry Lid Handle. Lid gets very warm because the heating elements are located here. Place Lid on Air Fry Lid Stand before stirring or turning food, and after cook cycle ends.

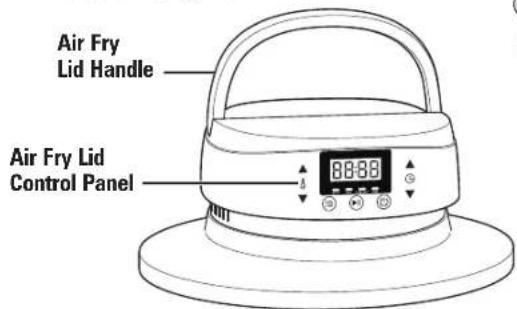

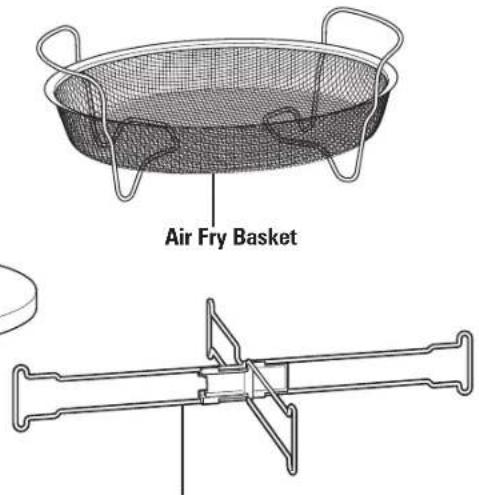

Parts and Features

To order parts, visit :

hamiltonbeach.com/parts

Air Fry Lid Stand

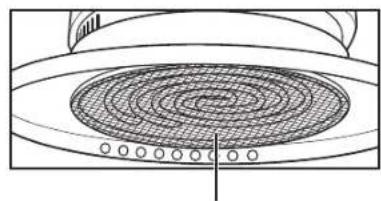

Heating Element
(on bottom of Lid)

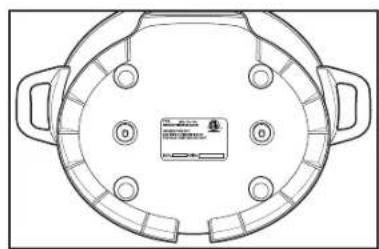

Rating Label

Air Fry Lid is compatible with the following Hamilton Beach Slow Cookers (Type and Model Number can be found on the Slow Cooker Rating Label on Base):
SC53 - All models SC67 - 33660 SC71 - 33861 SC81 - 33561 SC76 - All models
SC07 - All models SC24 - All models SC26 - All models SC83 - 33768 SC82 - 33868
Air Fryer Lid is compatible with the following Crock-Pot® Slow Cookers*:
SCV600 SCCPVP600 SCCPVL600 SCCPVL610

*Crock-Pot is a registered trademark of Sunbeam Products, Inc. Use of the Crock-Pot trademark does not imply any affiliation with or endorsement by Sunbeam Products, Inc.

Air Frying

Before first use: Wash Air Fry Basket in hot, soapy water. Rinse and dry. Wipe top and bottom side of Air Fry Lid with damp cloth.

Air Fry Lid has 4 Modes:

AIR FRY: use for creating crispy foods

BROIL: cook meats, poultry, fish, vegetables and fruits

BAKE/ROAST: make desserts, cook whole chickens, beef or pork roasts

WARM: keeps already slow-cooked or cooked foods warm

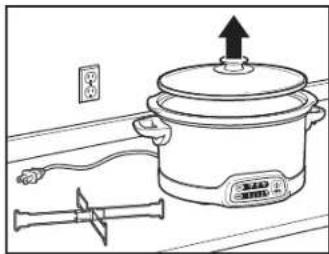

1. Set up Lid Stand on a heatproof countertop.

2. Place Slow Cooker Base with Crock on countertop and remove Lid. Do not plug Slow Cooker into outlet.

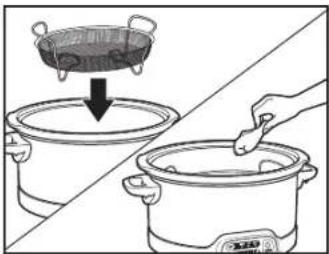

1. Place Air Fry Basket into Crock.

2. If desired, lightly spray Air Fry Basket with nonstick cooking spray. Add even layer of food to Basket.

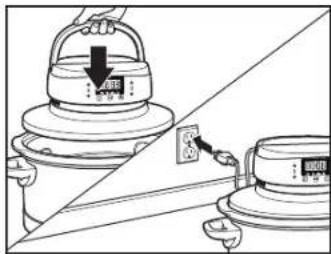

1. Using Air Fry Lid Handle, place Air Fry Lid onto Crock, with Control Panel facing front.

2. Plug Air Fry Lid into outlet. Display will show - - - -

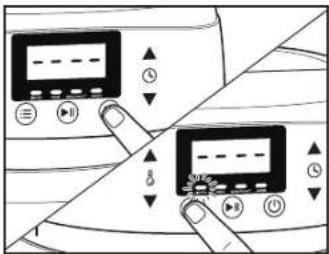

1. Press and hold ON/OFF (按钮 to turn Air Fry Lid o

2. Press button to select mode. Display toggles between default temperature and time for each mode. Mode flashes before selecting.

Air Frying (cont.)

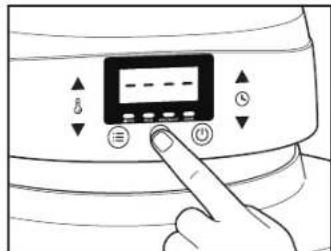

1. Press button to change default cook time and temperature. After time and temperature is selected, press button to begin cooking. Selected mode turns solid and cooking starts. Time and temperature can be changed at any time during cooking time.

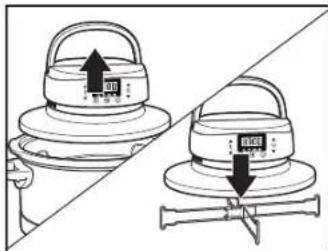

1. Lift Air Fry lid Handle to remove Air Fry Lid and place Lid on Lid Stand before checking, stirring or turning food. Cooking will automatically stop when Handle is lifted.

1. Place Air Fry Lid back onto Slow Cooker and push Handle down to click in place. Press to continue cooking.

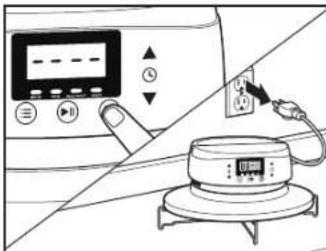

2. When cooking is complete, Lid beeps 5 times and display shows COOL. Air Fry Lid will automatically shut off and display shows - - - -

1. Unplug. Place Lid on Lid Stand to cool completely.
2. Use oven mitts to carefully remove Air Fry Basket.

MODE DEFAULT TIME TIME RANGE DEFAULT TEMPERATURE TEMPERATURE RANGE

AIR FRY	20 min 1 to 60 min 400°F (204°C) 150°F-400°F (65°C-204°C [25° increments])
BROIL	8 min 1 to 60 min 400°F (204°C) 150°F-400°F (65°C-204°C [25° increments])
BAKE/ROAST	30 min 1 to 60 min 350°F (177°C) 150°F-400°F (65°C-204°C [25° increments])
WARM 30 min 5 min to 2 hours 150°F (65°C) 150°F-250°F (65°C-121°C [25° increments])
6

Using Air Fry Lid after Slow Cooking

WARNING Burn Hazard.

• Never move the slow cooker with the air fry lid on top.
• Only lift or move the air fry lid using the air fry lid handle.

Before first use: Wash Air Fry Basket in hot, soapy water. Rinse and dry. Wipe top and bottom side of Air Fry Lid with damp cloth.

1. Set up Lid Stand on a heatproof countertop.

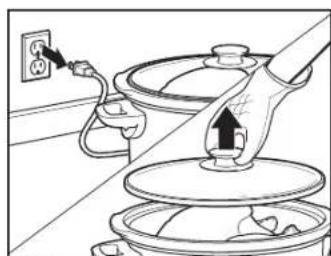

2. Turn Slow Cooker with cooked food to OFF (0) 3. Unplug. Remove Lid.

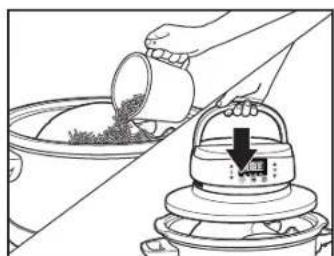

4. Using Air Fry Handle, place Air Fry Lid on Slow Cooker Crock with Control Panel facing front. Use Lid to brown and crisp a cooked whole chicken or roast; or before placing Lid, sprinkle casseroles or cobblers with topping for melting, browning or crisping.

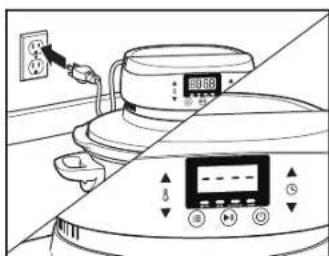

5. Plug Air Fry Lid into outlet. Display will show - - - .

Using Air Fry Lid after Slow Cooking (cont.)

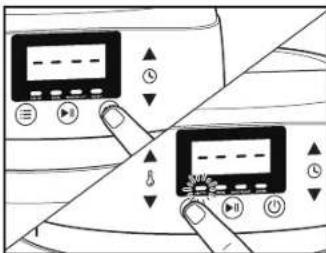

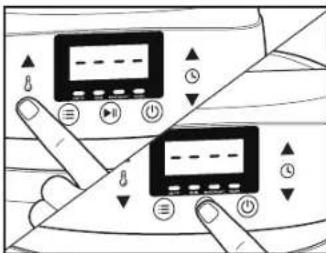

1. Press and hold ON/OFF button to turn Air Fry Lid on. Press button to scroll modes and select. Display toggles between default temperature and time for each mode. Mode flashes before selecting.

1. Press button to change default cook time and temperature. After time and temperature is selected, press button to begin cooking. Selected mode turns solid and cooking starts. Time and temperature can be changed at any time during cooking cycle.

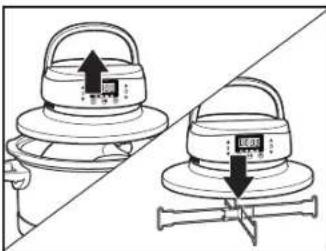

1. Lift Air Fry Handle to remove Air Fry Lid and place Lid on Lid Stand before checking, stirring or turning food. Cooking will automatically stop when Handle is lifted.

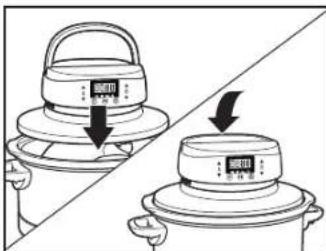

1. Place Air Fry Lid back onto Slow Cooker and push Handle down to click in place. Press to continue cooking.

8

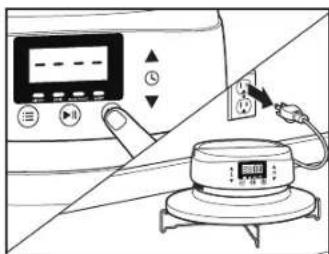

1. When cooking is complete, Lid beeps 5 times and display shows COOL. Air Fry Lid will automatically shut off and display shows ---- Unplug. Place Lid on Lid Stand to cool completely.

Air Fry Cooking after Slow Cooking

Step 1: Slow cook following suggested setting and time.
Step 2: Unplug Slow Cooker and remove Glass Lid.
Step 3: Plug in Air Fry Lid. Cook following suggested temperature and time or until browned.
Step 4: Remove Air Fry Lid and place on Air Fry Lid Stand. Unplug.

FOOD

SLOW COOK

SETTING

SLOW COOK

TIME

AIR FRY LID

SETTING

AIR FRY LID

TEMPERATURE

AIR FBY

LID TIME NOTES

Slow Cooker/Air Fryer Combo

Chicken, whole, 5 pounds	HIGH 3 hours LOW 5 hours	AIR FRY 400°F (204°C) 10 min			Chicken should reach 165°F (73°C) before browning.
Pot Roast, 3 pound rump roast	HIGH 3 hours LOW 6 hours	BROIL 400°F (204°C) 10 min			For meat to be sliced, brown when meat reaches 160°F (71°C). For meat to be shredded, add 2 hours cooking time.
Chicken wings, 5 pounds, cut at joint, tips trimmed	HIGH 2 hours LOW 4 hours	AIR FRY 400°F (204°C) 15 min			Turn wings every 5 minutes during Air Frying.
Pork, Boston Butt HIGH 5 hours	LOW 10 hours	AIR FRY 400°F (204°C)		15 to 20 min	Turn every 5 minutes.
Macaroni and Cheese	HIGH 2 hours AIR FRY 400°F (204°C) 5 min				Can brown top with extra cheese or add a crumb topping.
Coffee Cake/Cobbler Desserts	HIGH 1 1/2 to 3 hours	BAKE/ ROAST	350°F (177°C)	5 to 10 min	Cakes should test done before adding topping to brown.

Air Fry Lid Chart

Use Air Fry Lid to crisp foods or brown using little or no added oil. Foods may need to be flipped, stirred, or rotated halfway during cooking. Foods that cannot be flipped might need to be lightly covered with foil, if getting too brown. Check food for doneness before recommended packaging cook time.

FOOD

AIR FRY LID SETTING

AIR FRY LID TEMPERATURE AIR FRY LID TIME NOTES

Air Fryer Only

Frozen French Fries	AIR FRY 400°F (204°C) 12 to 14 min
Fresh Potato Fries	AIR FRY 400°F (204°C) 20 to 25 min Toss potatoes with oil before cooking.
Chicken Nuggets	AIR FRY 400°F (204°C) 8 to 10 min
Cauliflower Bites AIR FRY 400°F (204°C) 10 to 15 min Toss cauliflower with oil before cooking.
Brussels Sprouts AIR FRY 400°F (204°C) 15 to 20 min Stir every 5 minutes.
Zucchini Fries	AIR FRY 400°F (204°C) 10 to 12 min	Coat zucchini fries with crumb coating before cooking.
Hamburgers 75% lean, 6 oz. patties	BROIL 350°F (177°C) 10 to 15 min Turn hamburgers halfway through cooking.
Salmon BAKE/ROAST 400°F (204°C) 10 to 15 min
Pork Tenderloin Sheet Pan Dinner	BAKE/ROAST 375°F (191°C) 25 to 30 min	Glaze should be added during the last 5 minutes of cooking.

NOTES:

• Review manufacturer suggested cook times for these and other foods.
• If cooking with a removable aluminum slow cooker cooking pot, reduce the Air Fry Lid Temperature by 25^ or reduce cooking time by 2 to 3 minutes.

10

Care and Cleaning

1. Unplug. Set up Lid Stand.
2. Lift Air Fry Lid by Handle and place on Lid Stand. Cool completely. NOTE: Leave Crock in Slow Cooker Base to cool due to high temperatures when air frying. Letting Crock cool guards against rapid cooldown that may cause damage.

Tips for Slow Cooking

• Removable Crock should be at least half-filled for best results. If only half-filled, check for doneness 1 to 2 hours earlier than recipe.
• Stirring is not necessary when slow cooking. Removing Glass Lid results in major heat loss and cooking time may need to be extended. However, if cooking on HIGH, you may want to stir occasionally.
• If cooking soups or stews, leave a 2-inch (5-cm) space between top of Removable Crock and food so recipe can come to a simmer.
• Many recipes call for cooking all day. If your morning schedule doesn't allow time to prepare a recipe, prepare it the night before. Place all ingredients in Removable Crock, cover with lid, and refrigerate overnight. In the morning, simply place Removable Crock in Slow Cooker.

WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, air fry lid or slow cooker base in any liquid

1. Wipe top of Air Fry Lid with a damp towel and dry.
2. Wipe underside of Air Fry Lid with a damp, soapy cloth. Then wipe with a clean damp cloth and dry.

3. DO NOT immerse Air Fry Lid in water or use any abrasive cleansers or pads.

4. Some foods are not suited for extended cooking in a Slow Cooker. Pasta, seafood, milk, cream, or sour cream should be added 2 hours before serving. Evaporated milk or condensed soups are perfect for slow cooking.

5. The higher the fat content of meat, less liquid is needed. If cooking meat with a high fat content, place thick onion slices underneath so meat will not sit on (and cook in) fat.
6. Slow cookers allow for very little evaporation. If making your favorite soup, stew, or sauce, reduce liquid called for in original recipe. If too thick, liquid can be added later.
7. If cooking a vegetable-type casserole, there will need to be liquid in recipe to prevent scorching on sides of Removable Crock.

Food Safety Tips

• Do not use frozen, uncooked meat in Slow Cooker. Thaw any meat or poultry before slow cooking.
• Visit www.foodsafety.gov for more information on safe internal cooking temperatures.

Troubleshooting

Air Fry Lid does not work.

• Appliance is not plugged in. Plug into outlet.
  Buttons were pressed and Air Fry Lid isn't working.
  Air Fry Lid Handle is not down in closed position. Ensure Handle is fully in closed position.

• Air Fry Lid is not positioned correctly on Crock. Air Fry Lid has an internal position sensor that will pause or prevent cooking if not upright and level. Ensure Air Fry Lid is positioned upright and level on Crock.
  Air Fry Lid is in standby mode. Press and hold ON/OFF (O) button to turn on Air Fry Lid.

• To store leftovers after cooking, do not place entire Removable Crock in refrigerator since contents will take too long to cool. Instead, divide leftovers into smaller containers and place into refrigerator.

• Never allow undercooked or raw meat to sit at room temperature in Slow Cooker. Once meat is placed into Removable Crock, it should be cooked immediately (unless prepping Slow Cooker the night before, where Crock should be placed into refrigerator).

Food is not cooked.

• Too much food was added to Air Fry Basket. Flip, stir or rotate food if needed; then add more time and continue cooking.
• Temperature was too low. Increase temperature and continue cooking.

Food is not cooked evenly.

• Food should be flipped, stirred or rotated halfway through cooking time, or more frequently if needed.
  Smoke coming from Air Fry Lid.
• Excessive oil or food has splattered onto heating coil. Unplug and cool completely. Wipe away excess oil or food from heating coil with a damp cloth.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRECAUTIONS IMPORTANTES
