USER MANUAL 38560 HAMILTON BEACH

hamiltonbeach.com For recipes, tips and product information.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use oven mitts when contact with cooktop handles is necessary.
5. To protect against risk of electrical shock, do not immerse base, power cord, or plug in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
11. Do not place appliance on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. Use extreme caution when removing drip tray or disposing of hot grease.
13. To disconnect, turn any control to OFF (and remove plug from wall outlet.
14. Do not use appliance for other than intended use.
15. Do not use without drip tray in place. Clean after each use.
16. Do not leave the appliance unattended when in use.
17. Always use the appliance on a dry level surface.
18. Do not operate the appliance by means of an external timer or separate remote-control system.
19. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
20. Do not clean base assembly with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
21. Only use removable cast iron cooktop with provided base.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit into the outlet, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a

longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. The extension cord must be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

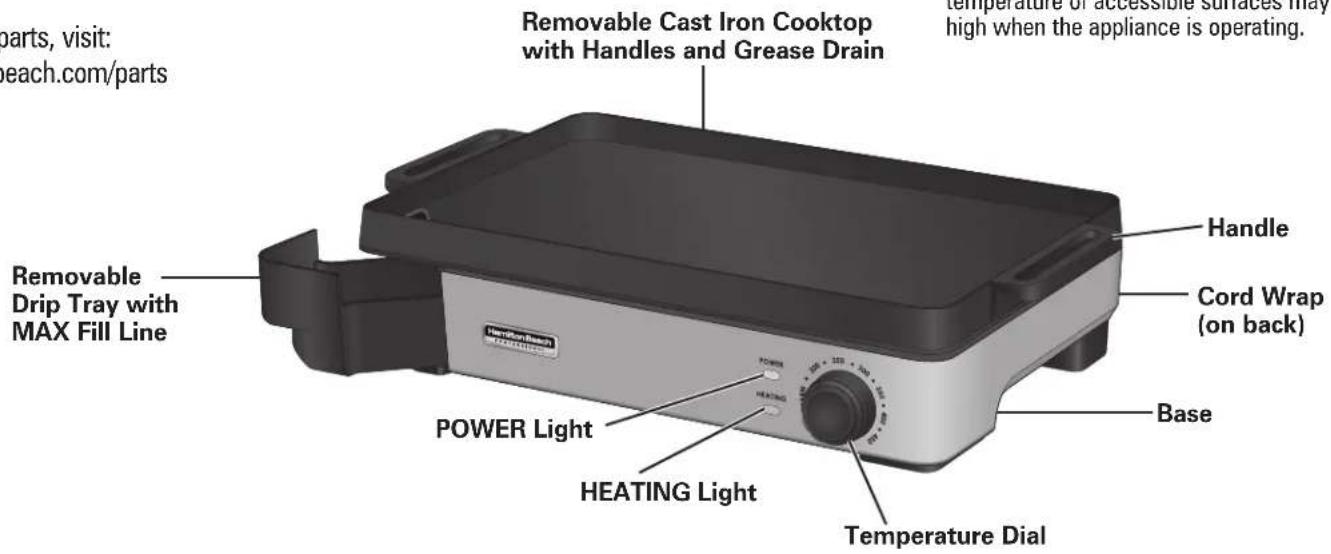

Parts and Features

To order parts, visit: hamiltonbeach.com/parts

1. Removable Cast Iron Cooktop with Handles and Grease Drain: Use oven mitts to hold Handles. Grease Drain directs grease to Removable Drip Tray.
2. Removable Drip Tray with MAX Fill Line: Slides out from under Cooktop for easy cleanup.

3. Temperature Dial: Temperature ranges from WARM to 450^ (232^) . Turn Dial to right to increase or left to decrease temperature.

4. HEATING Light: Green light turns on while heating and turns off when desired temperature is reached. Light will continue to cycle on and off during cooking.

5. POWER Light: Red light turns on when plugged into an outlet and stays on until unplugged.
6. Cord Wrap: Holds cord for easy storage. NOTE: This Cast Iron Cooktop has been preseasoned and is ready to use. Before cooking, wash using a small amount of soap and rinse. Use a lint-free cloth to dry thoroughly. During the first few uses, add a small amount of oil. For more information on how to use and care for cast iron, visit hamiltonbeach.com/cast-iron.

Using Your Cooktop

NOTES:

• Always use oils that have a high smoke point, such as canola, olive, peanut, vegetable or nonstick cooking spray on the Cooktop.
• Use metal, wooden, or plastic heat-resistant utensils (450^ [232^])
• Use oven mitts when touching hot Cast Iron Cooktop or Drip Tray.

• Make sure Removable Drip Tray is in place before heating. Drip Tray should be emptied after every use or if grease reaches MAX Fill Line.

• With flat side up and holding Handles, place Removable Cast Iron Cooktop onto Base with opening over Drip Tray.

• Always use Cooktop on a dry, level, heat-resistant surface.
• Plug into outlet. Red POWER Light will turn on and stay steady until appliance is unplugged.
• Turn Temperature Dial to desired temperature. See Temperature Guide. Green HEATING Light will cycle on and off during cooking and turn off when desired temperature is reached. Make sure Cooktop is preheated before cooking.
• Add oil, or spray Cast Iron Cooktop with nonstick cooking spray on preheated Cooktop. Add food to preheated Cooktop.
• When finished cooking, turn Temperature Dial to OFF and unplug. Allow to cool completely before attempting to move Cooktop or remove Drip Tray to empty and clean.

Temperature Guide

TEMPERATURE SETTING/FOODS

WARM-225°F (107°C)	Keep Warm Hold cooked foods at serving temperature
225°-325°F (107°-163°C)	Warming/Frying Warming foods, scrambled eggs, fried eggs, omelets
325°-375°F (163°-191°C)	Sauté/Grilling French toast, pancakes, grilled sandwiches, fish, bacon, vegetables
375°-400°F (191°-204°C)	Searing Pork chops, lamb steaks, sausage, boneless chicken, hot dogs
400°-450°F (204°-232°C)	Browning/Blackening Steaks, burgers, scallops, browning large cuts of meat, stir fry

Visit foodsafety.gov for more information on safe internal cooking temperatures.

Care and Cleaning

WARNING Electrical Shock Hazard.

• Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.
• Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts, causing a risk of electric shock.

NEVER clean Cast Iron Cooktop in dishwasher as rusting will occur.

1. Turn Temperature Dial to OFF (and unplug. Immediately use a metal or heat-resistant spatula to move excess grease and food particles into Drip Tray.
2. Cool completely. If additional cleaning is needed, wash Removable Cast Iron Cooktop in hot, water with a nylon brush on sponge. Rinse and thoroughly dry. Rust spots will appear if cast iron isn't completely dried when stored. Before storing, always wipe Cooktop with a little oil.
3. Empty cooled grease and food particles from Removable Drip Tray. Wash in hot, soapy water. Rinse and dry.
4. Use a clean, damp cloth to wipe Base.

Storing Cooktop: Store on a flat, level surface with Cast Iron Cooktop flat side up on Base and wrap cord around Cord Wrap on back of Base.

How to Season Cast Iron Cooktop

Seasoning cast iron forms a protective layer that helps maintain an easy-release cooking surface and prevents rusting. Depending on frequency of use and types of food cooked, follow steps below to re-season Cast Iron Cooktop. Vegetable shortening or oils such as canola, peanut and vegetable are recommended for re-seasoning.

1. Clean Cast Iron Cooktop as recommended.

2. Rub top only of Cooktop with a thin layer of oil. Wipe off any excess.

3. Place Cooktop upside down on top rack in oven.

4. Add a long piece of heavy-duty (18-inches wide) aluminum foil directly under Cooktop onto lower rack to catch any drips.
5. Bake at 450^ (232^) for 1 hour.
6. Allow to cool completely in oven.

For Stubborn Spots

1. With Cooktop plugged into outlet and Drip Tray in place, preheat to 300^ (149^) . Over top of preheated Cooktop, pour about 1/4 cup water. Water will bubble up to dislodge food particles. When bubbles subside, use a spatula to scrape water and residue into opening of Drip Tray.
2. Hold a lint-free cloth with metal tongs to wipe Cooktop surface dry. Repeat if necessary.
3. Before storing, always wipe Cooktop with a little oil.

NOTES:

• Do not leave in sink to soak, put in dishwasher, allow to air dry, or store in a moist area. Any of these will cause rust since preseasoned layers have been disturbed and moisture has been in contact with your cast iron.
• For more information on how to use and care for cast iron, visit hamiltonbeach.com/cast-iron.

Troubleshooting

POWER Light is not on.

• Check if Cooktop is securely plugged into a working outlet.
• Cooktop may have tripped the circuit breaker. Make sure it is the only item plugged into the circuit.

Cast Iron Cooktop is smoking.

• Most heating appliances produce an odor and/or smoke when used for the first time. Wash Cooktop surface before using. Plug into outlet. Turn Temperature Dial to 450^ (232^) . Heat until HEATING Light illuminates. The odor should not be present after this initial preheating.
• To reduce the buildup of smoke, use Cooktop in a well-ventilated area.

Cooking performance is uneven.

• To ensure that you are getting even cooking performance, allow Cooktop to heat until HEATING Light illuminates.

Grease is collecting on countertop.

• Turn Temperature Dial to OFF ( and unplug. Make sure grease has completely cooled before attempting to clean up.
• Before next use, ensure Removable Drip Tray is fully inserted into unit.
• Clean Removable Drip Tray after every use.
• Use cooking utensils to push grease into Removable Drip Tray.

Food is sticking to Cast Iron Cooktop.

• Make sure that Cooktop is cleaned properly after each use. See Care and Cleaning.
• Spray with nonstick cooking spray or add oil before cooking.
• Season Cast Iron Cooktop. Follow How to Season directions in Care and Cleaning.

Cast Iron Cooktop has rust spots.

• Rust spots will appear if cast iron isn't completely dried when stored. It is easy to fix. Remove Cast Iron Cooktop from Base. Wash in hot, soapy water while scrubbing with steel wool. Rinse and dry with a lint-free cloth. Follow How to Season directions in Care and Cleaning.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and three (3) years from the date of original purchase in the U.S. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
