38532 - Grill plate HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Griddle
Brand	Hamilton Beach
Model	38532
Griddle Material	Non-stick Coating
Lid Material	Glass
Power Supply	120 V, 60 Hz
Plug Type	Polarized Plug
Temperature Control	Dial Temperature Control
Indicator Light	Yes, to indicate when temperature is reached
Cleaning	Dishwasher safe for griddle and lid
Coating Care	Use wooden or plastic utensils
Assembly Required	Yes, handle and legs to screw on
Safety	Do not immerse cord; do not use if damaged
Warranty	5 years in Canada, 1 year in USA
Intended Use	Household use only

Frequently Asked Questions - 38532 HAMILTON BEACH

How to assemble the handle and legs?

Use a Phillips screwdriver. Screws and washers are pre-installed. Remove them, place the handle/legs, then tighten without over-tightening. Ensure the appliance is stable on a flat surface.

How to use the griddle for the first time?

Wash the griddle and lid in hot soapy water, rinse and dry. Plug in the temperature control, turn to OFF, then plug into outlet. Preheat for 5-10 minutes without lid.

What temperature setting for hamburgers?

Recommended setting: 180 °C (350 °F) for 15-20 minutes. Adjust to your preference.

Can I use metal utensils?

No, to preserve the non-stick coating, use only wooden or plastic utensils.

How to clean the griddle?

Let cool. Clean the griddle and lid in hot soapy water with a nylon pad. Avoid metal pads. The temperature control should only be wiped with a damp cloth.

Are the griddle and lid dishwasher safe?

Yes, the griddle and glass lid are dishwasher safe. Do not put the temperature control in the dishwasher.

What if the plug does not fit into the outlet?

The plug is polarized (one blade wider). Try reversing it. If it still doesn't fit, have an electrician check the outlet. Do not modify the plug.

Can I use the griddle on a stove or in the oven?

No, the griddle is not designed for use on a stove or in an oven. Place only on a dry, flat, heat-resistant surface.

What is the warranty period?

The warranty is 5 years in Canada and 1 year in the USA from the date of purchase, against defects in materials and workmanship.

Where to find customer service?

In the USA: hamiltonbeach.com/customer-service. In Canada: hamiltonbeach.ca/customer-service. You can also write to Hamilton Beach Brands, Inc., 4421 Waterfront Dr., Glen Allen, VA 23060.

USER MANUAL 38532 HAMILTON BEACH

Line drawing of a square-shaped cooking pot with a lid and electrical plug (no text or symbols)

READ BEFORE USE LIRE AVANT UTILISATION LEA ANTES DE USAR

ENTER TO WIN \$100 TO SPEND ON WEBSITE.

Scan code or visit register.hamiltonbeach.com.

Open to US customers only

PARTICIPEZ POUR COURIR LA CHANCE DE GAGNER UN MONTANT DE 100 \$ À DÉPENSER SUR NOTRE SITE WEB

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs, which may be warm. Use oven mitts.
5. Be sure that Handle/Feet are assembled and fastened properly. See detailed assembly instructions.
6. To protect against electrical shock, do not immerse cord, plug, or temperature control in water or other liquid.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.

12. Do not place on or near a hot gas or electric burner, or in a heated oven.

13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

14. Always attach plug to appliance first; then plug cord into wall outlet. To disconnect, turn any control to OFF and then remove plug from wall outlet.
15. Do not use appliance for other than intended use.
16. Never leave appliance unattended while in use.
17. This appliance is not intended for deep frying foods.
18. Use only temperature-controlling plug provided by manufacturer. Use of other temperature-control plug may cause injury.
19. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

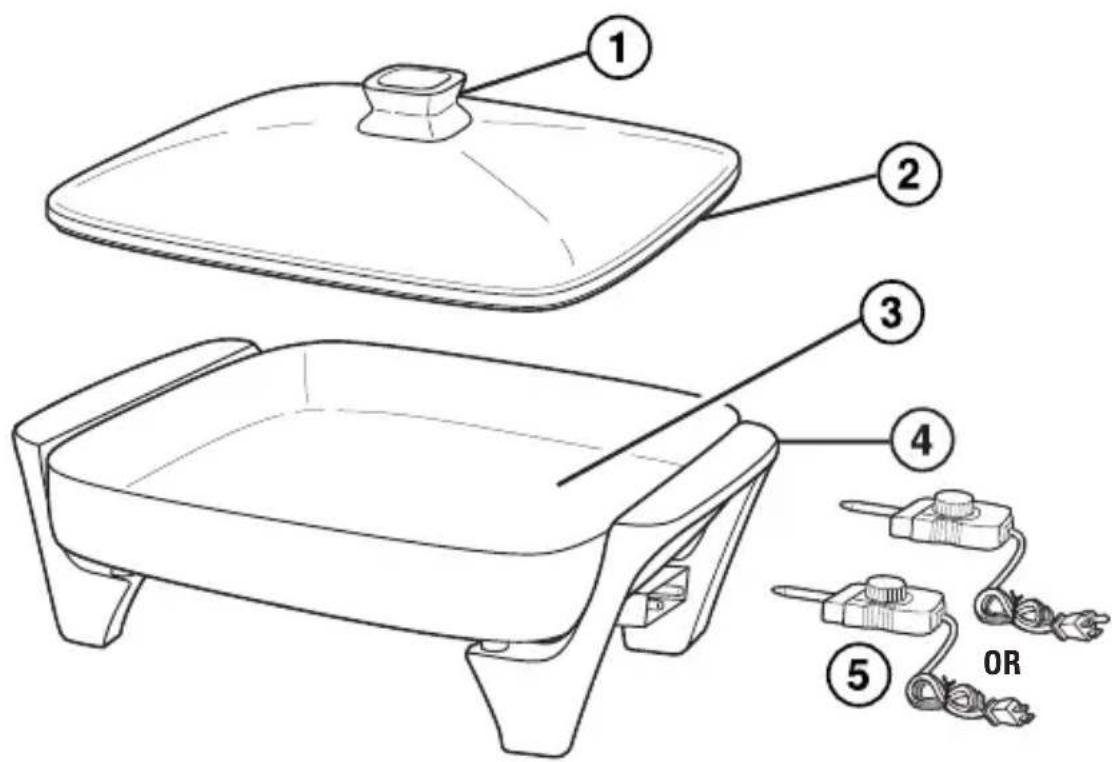

Parts and Features

To order parts: hamiltonbeach.com

1. Lid Handle
2. Glass Lid
3. Nonstick Skillet
4. Handle/Feet
5. Temperature Control

Assembly

Assembly of handle/feet to base is required. See below.

1. Long Screw
2. Split Lock Washer
3. Flat Washer

Tools Required: Phillips-head screwdriver. Do NOT overtighten.

NOTE: Screws and washers may be partially screwed into base for shipping purposes. Remove them to assemble handle/feet to base. After assembly the handles/feet should feel secure. If the handles/feet are loose, or the unit rocks when on a flat surface, the handles are not installed properly. Loosen the screws and realign handles; then retighten as shown. Periodically check screws and retighten as necessary.

How to Use

WARNING Burn Hazard.

• To reduce the risk of burns, do not carry or move the skillet when it contains hot oil or food.
• To reduce the risk of burns due to oil splatter, do not put a large amount of oil in a hot skillet. When frying, pour oil in skillet and then preheat unit.

BEFORE FIRST USE: Wash skillet and lid in hot, soapy water. Rinse and dry thoroughly.

1. Always use skillet on a dry, level, heat-resistant surface.
2. Plug the temperature control into the skillet. Set temperature control dial to OFF; then plug cord into wall outlet.
3. Refer to the Cooking Chart that follows for selecting the correct heat setting.
4. Preheat skillet, uncovered, 5 to 10 minutes until desired temperature is reached.
5. When the indicator light on the temperature control goes out, the cooking temperature has been reached. Food may now be added. Heat may be increased or decreased, depending upon personal preference and the type or amount of food being prepared.
6. When finished cooking, remove food, turn temperature control to OFF, and unplug unit from wall outlet.

NOTES: Only use wooden or plastic cooking utensils to prolong the life of the nonstick coating.

Never use the skillet and the cover in the oven or microwave oven, or on the range top.

Cooking Chart

FOOD TEMPERATURE TIME
Hamburgers (1⁄3 lb. [151 g] each)	350°F (180°C) 15 to 20 minutes
Bacon 350°F (180°C) 10 to 15 minutes
Sausage links and patties	350°F (180°C) 15 minutes
Fried Chicken 375°F	(190°C) 20 to 30 minutes
Pork Chops 325°F	(160°C) 20 to 30 minutes

Cooking times are based on fresh ingredients.

Care and Cleaning

WARNING Electrical Shock Hazard.

To reduce the risk of electrical shock, do not immerse the cord, plug, or temperature control in water or any other liquid.

1. When finished cooking, turn temperature control to OFF; unplug from outlet and then from skillet.
2. Let skillet cool completely.
3. Clean skillet and lid with hot, soapy water, using a nylon scouring pad. Rinse; then dry. Skillet and lid may also be washed in a dishwasher.

NOTE: Do not use metal scouring pads or abrasive cleansers. This will damage the nonstick coating.

1. If necessary, wipe the temperature control and cord with a damp cloth and then wipe dry.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/ customer-service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
