USER MANUAL 25380 HAMILTON BEACH

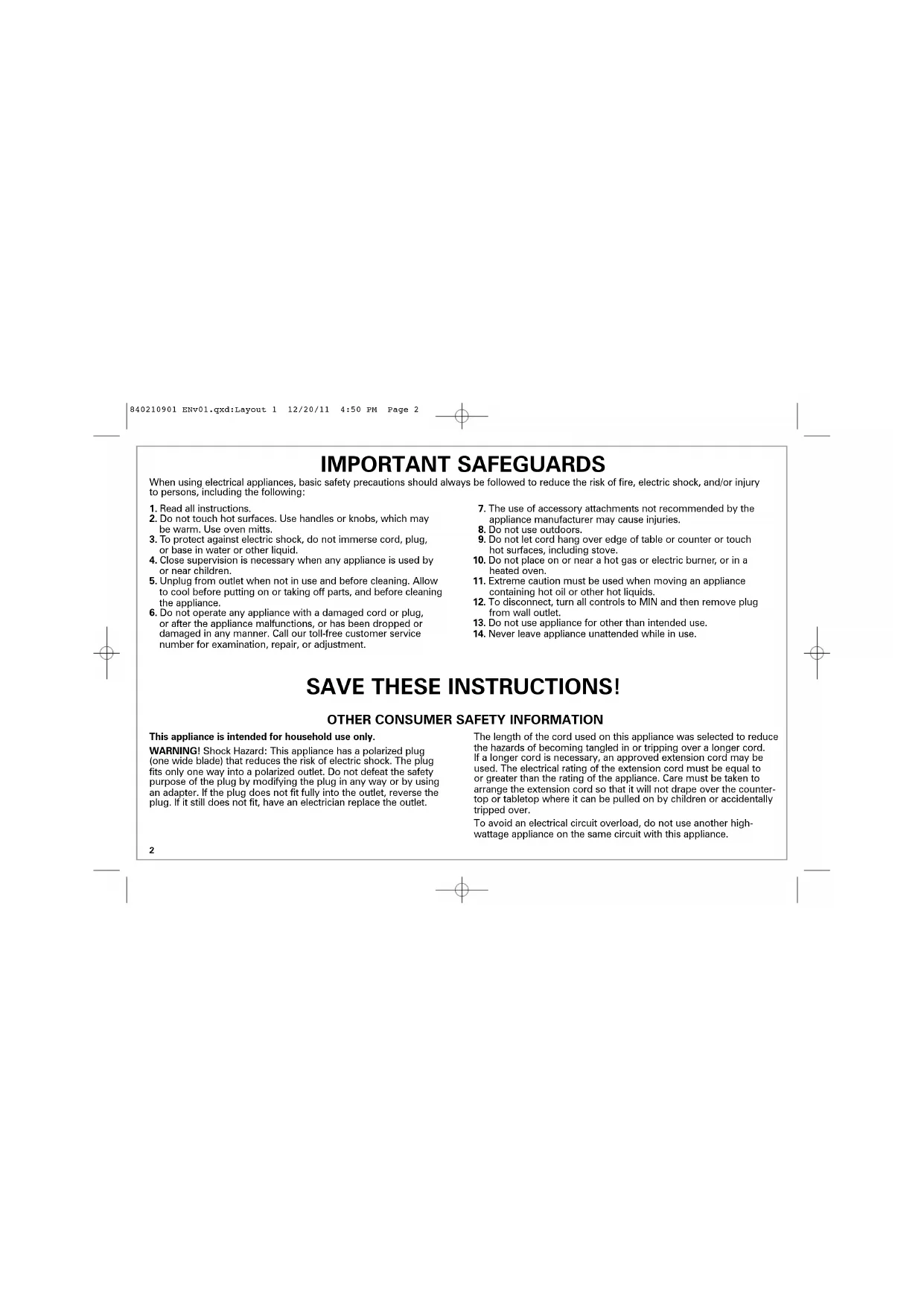

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs, which may

be warm. Use oven mitts.

3. To protect against electric shock, do not immerse cord, plug,

or base in water or other liquid.

4. Close supervision is necessary when any appliance is used by

5. Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions, or has been dropped or damaged in any manner. Call our toll-free customer service number for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

10. Do not place on or near a hot gas or electric burner, or in a

11. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

12. To disconnect, turn all controls to MIN and then remove plug

13. Do not use appliance for other than intended use.

14. Never leave appliance unattended while in use.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

OTHER CONSUMER SAFETY INFORMATION

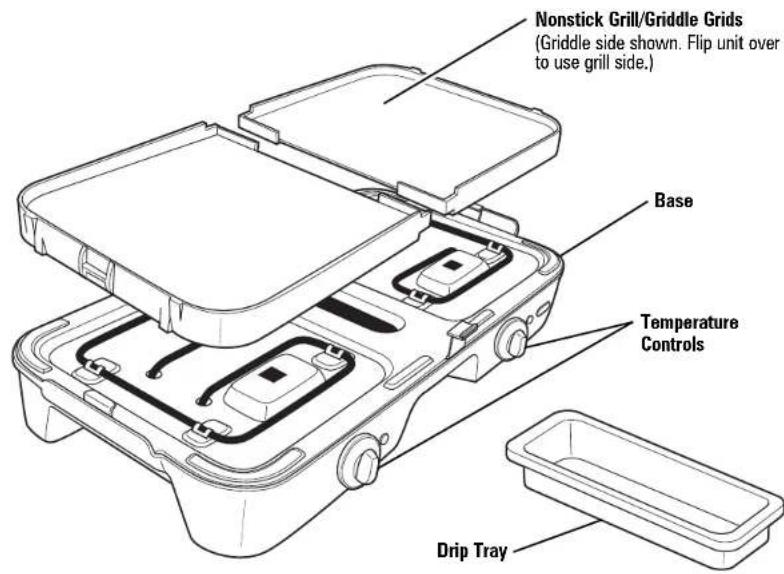

This appliance is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the counter- top or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high- wattage appliance on the same circuit with this appliance. 840210901 ENv01.qxd:Layout 1 12/20/11 4:50 PM Page 23 Parts and Features Nonstick Grill/Griddle Grids (Griddle side shown. Flip unit over to use grill side.) Drip Tray BEFORE FIRST USE: Wash nonstick grill/griddle and drip tray in hot, soapy water before use. Rinse and dry thoroughly. Temperature Controls Base Left Knob Right Knob 840210901 ENv01.qxd:Layout 1 12/20/11 4:50 PM Page 34

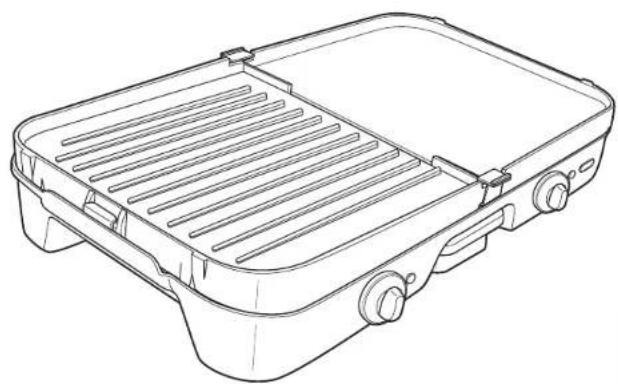

How to Use the Grill/Griddle

To insert and remove grids, pull clips away from the unit to release. OR OR

Insert end of grid into fixed latch, and rest grid on center latches. Spread center latches to allow grids to fall into place. 840210901 ENv01.qxd:Layout 1 12/20/11 4:50 PM Page 45 How to Use the Grill/Griddle (cont.) When finished, turn all controls to “MIN” before unplugging unit from the outlet.

Use only utensils which are high- heat resistant (~450°F/232°C) and safe for nonstick surfaces. This will help prolong the life of the nonstick coating.

In grill mode, grease will drain in center into the drip tray. Make sure the drip tray is in place.

Use nonstick cooking spray before heating. Power ON light will turn on as soon as the unit is plugged in. The READY light (one per cooking surface) will turn on as soon as the desired temperature is reached on each side. 840210901 ENv01.qxd:Layout 1 12/20/11 4:55 PM Page 56 Cooking Charts GRILL FOOD TEMPERATURE INTERNAL TEMP.* APPROX. COOKING TIME** Chicken Breasts, Boneless (6 oz. [170 g] each) 375°F (190°C) 170°F (77°C) 20 to 30 minutes Hamburgers (1/4 lb [113.4 g] each) 350°F (180°C) 145°F (63°C) 15 to 20 minutes Pork Chops (3/4”–1” [1.9–2.5 cm] thick) 350°F (180°C) 145°F (63°C) 20 to 30 minutes Sausage Links and Patties (1/2” [1.3 cm] thick) 350°F (180°C) 160°F (72°C) 8 to 12 minutes Turkey Burgers (1/4 lb [113.4 g] each) 350°F (180°C) 165°F (74°C) 10 to 15 minutes GRIDDLE FOOD TEMPERATURE INTERNAL TEMP.* APPROX. COOKING TIME** Fried Eggs 350°F (180°C) 160°F (72°C) 10 minutes (no turning) French Toast 350°F (180°C) ––––––– 8 to 10 minutes Grilled Cheese Sandwiches 375°F (190°C) ––––––– 4 to 5 minutes Pancakes 375°F (190°C) ––––––– 4 to 5 minutes GRILL/GRIDDLE FOOD TEMPERATURE INTERNAL TEMP.* APPROX. COOKING TIME** Bacon 350°F (180°C) crisp 10 to 15 minutes Hot Dogs 350°F (180°C) ––––––– 15 minutes *Visit foodsafety.gov for more information on safe internal cooking temperatures. **All temperatures are based on fresh, NOT frozen foods. IF YOU LIVE IN A HIGH-ALTITUDE AREA: The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/. 840210901 ENv01.qxd:Layout 1 12/20/11 4:50 PM Page 67 Care and Cleaning

Turn all controls to “MIN” before unplugging unit. Unplug; allow to cool completely. Remove and empty drip tray. Do not use metal scouring pads or abrasive cleansers. Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

WARNING Troubleshooting PROBLEM Low, poor, or slow heating. Cooking too slow. Grease not draining properly from grill grid. Food sticks to the grill grids. PROBABLE CAUSE

• Allow grill/griddle to heat for 10 to 15 minutes before use.

• Ensure grids are fully installed.

• Ensure grids are fully installed.

• Use nonstick cooking spray before heating.

Wash all parts EXCEPT base in hot, soapy water or place in dishwasher. Dry throroughly. Grill/Griddle Drip Tray

To clean base, allow base to cool completely. Clean with damp, soapy cloth and dry thoroughly. 840210901 ENv01.qxd:Layout 1 12/20/11 4:50 PM Page 7This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty
