USER MANUAL 35073 HAMILTON BEACH

Visit hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online.

For recipes, tips, product information and registration: hamiltonbeach.com

Pour des questions:

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electrical shock, do not immerse cord, plug, or air fryer in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. To disconnect, press ON/OFF button then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
14. Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
15. Do not use appliance for other than intended use.
16. Clean air fryer interior carefully. Do not scratch or damage heating element tube.
17. Do not operate the appliance by means of an external timer or separate remote control system.
18. CAUTION! Hot Surface. The temperature of accessible surfaces may be high when the appliance is operating.
19. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
20. Oversize foods or metal utensils must not be inserted in an oven as they may create a fire or risk of electrical shock.
21. Do not store any materials, other than manufacturer-recommended accessories, in this oven when not in use. wattage appliance on the same circuit with this appliance.
22. Do not cover any part of the oven with metal foil. This will cause overheating of the oven.
23. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
24. Do not operate unattended.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord

must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

Parts and Features

To order parts:

US: hamiltonbeach.com

Removable Mesh Tray (3)

Drip/Baking Pan

Rotisserie Lift with Hooks

Rotisserie Forks with Skewer

Rotisserie Insert (left side) and Rotisserie Bracket (right side)

Door with Window

CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating.

Air Vents (on back)

Control Panel

Symbol Setting	Default Temperature	Default Cook Time
	French Fries 375°F (191°C) 20 minutes
	Meat 375°F (191°C) 20 minutes
	Chicken 375°F (191°C) 30 minutes
	Fish 350°F (177°C) 18 minutes
	Shrimp 325°F (163°C) 12 minutes
	Rotisserie 400°F (204°C) 40 minutes
	Vegetables 350°F (177°C) 18 minutes
	Dehydrating 175°F (79°C) 4 hours

Symbol Use
	Fan On
	Temperature
	Time
	Heat On
	Temperature Up/Down Arrows
	Light On when Flashing
	Menu
	ON/OFF Button
	Rotisserie On when Flashing
	Time Up/Down Arrows

How to Use

CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating. Before first use: Wash removable parts in hot, soapy water. Rinse and dry.

CAUTION Burn Hazard. Hot air and steam exit from the rear vents during use.
Accessible surfaces may be hot during use.

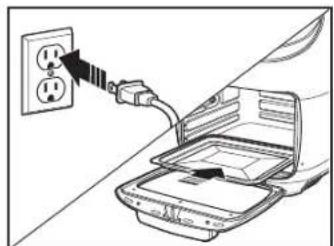

1. Place the Air Fryer in a location where the air vents on the back of the unit are not blocked. Plug into outlet. Slide Drip/Baking Pan into bottom of Air Fryer. Place food onto Mesh Tray(s). Slide Tray(s) into position. NOTES:

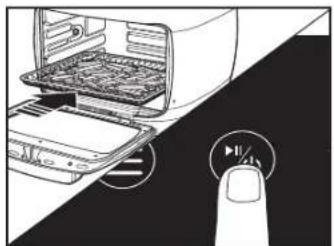

1. Tap ON/OFF (to turn Air Fryer on. Tap MENU to select desired mode. Temperature and time can be adjusted at any time by tapping Temperature or Time Up/Down Arrows. Then tap ON/OFF (to start cooking. See Cooking Guide or recipe for recommended temperatures.

2. Timer will sound when desired cook time is reached. Check food for doneness.

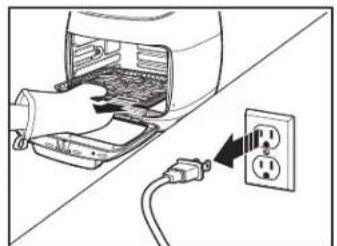

1. Using oven mitts, carefully remove Tray(s). Place Pan on a flat, heat-proof surface. Unplug.

2. Foods may need to be flipped, stirred, or rotated during cooking. Cooking times are suggestions. Cook food until crisp and golden brown. Foods that can't be flipped might need to be lightly covered with foil, if getting too brown.

3. Lightly mist fresh food with oil before air frying to produce crispy results.
   Do not overcrowd.
4. Drip/Baking Pan should always be on bottom of Air Fryer to catch drippings and for easy cleanup.

Rotisserie Cooking

WARNING Fire Hazard.

• If contents ignite, do not open air fryer door. Unplug air fryer and allow contents to stop burning and cool before opening door.
• Do not use oven cooking bags.
• Always allow at least 1 inch (2.5 cm) between food and heating element.
  Always unplug air fryer when not in use.

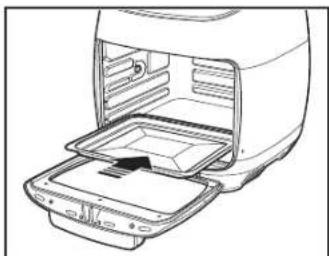

1. Slide Drip/Baking Pan onto bottom of Air Fryer to catch drippings. Truss chicken and tie large pieces of meat tightly with cotton string. Go to https://everydaygoodthinking.com/2013/09/17/the-ulimate-guide-to-trussing-a-chicken-and-a-rotisserie-chicken-recipe/ for instructions.

1. Insert Rotisserie Skewer into center of chicken. Place Rotisserie Forks on Skewer with Forks inserted into bottom side of chicken. Center lengthwise on Skewer. Tighten screws on Forks.

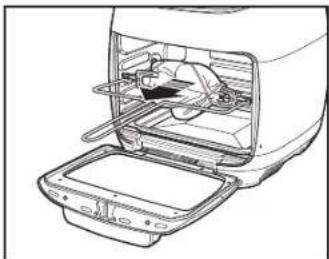

1. Manually insert end of Skewer into Rotisserie Insert on left side of Air Fryer, rotating skewer if necessary to fit. Place other end of Skewer into slot in Rotisserie Bracket on right side.

1. Tap MENU several times until ROTISSERIE is in display. Default temperature is 400^ (204^) and default time is 40 minutes. Adjust time by tapping Time Up/Down Arrows.

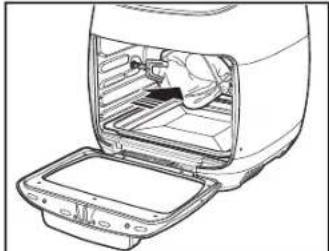

1. Timer will sound when desired cook time is reached. Check food for doneness. To remove cooked meat from Air Fryer, place Rotisserie Lift with Hooks under skewer. Lift and slide skewer to right and lift up and out to remove from Air Fryer.

CAUTION Burn Hazard. Avoid contact with interior of air fryer.

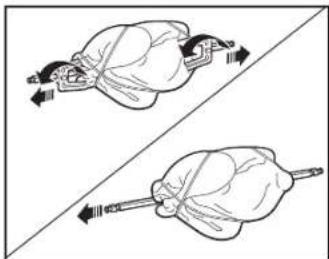

1. Place chicken on a clean surface to cool slightly. Using oven mitts, unscrew Forks from Skewer. Slide meat onto a serving tray or cutting surface. Remove Skewer and ties before carving. Visit food safety. gov for more safe cooking temperature information.

How to Dehydrate

1. Prepare food as desired. Pat dry and place in an even layer on Mesh Tray(s).
2. Plug into outlet. Slide Drip/Baking Pan onto bottom of Air Fryer. Tap ON/OFF (%) to turn on Air Fryer. Tap MENU () to select Dehydrating function. Adjust temperature and time following chart below. Tap ON/OFF (·) to start the Air Fryer.
3. Check dryness of food and rotate Tray(s) occasionally.
4. When food is dry, let cool completely before storing. Tap and hold ON/OFF (%) to turn off Air Fryer.
5. Unplug.

Dehydrating Tips

Food Preparation

• Choose in-season fruits and vegetables for best flavor. Discard any with bruises or mold.
• Cut foods the same thickness, size, or shape to ensure even drying.

Pretreatment

• Most fruits and vegetables require pretreatment before drying. Blanch vegetables to prevent color loss or to break skins to shorten the drying process. Dip fruits or potatoes in a solution of equal parts of lemon juice and water or use a fruit preservative following package directions.
• Drain and completely pat dry food before dehydrating.
• Marinate meat for jerky in refrigerator or season with jerky seasoning.

Determining Dryness

• Top Tray in Air Fryer will dehydrate faster. Switch Trays occasionally during dehydration. Check all Trays for doneness at the minimum recommended time on chart below.
  All fruits should be able to bend and be slightly soft but not tacky, except for apples and bananas, which should be crisp.
• All vegetables should be crisp and easily broken.
• Jerky is dry when it cracks without breaking when bent.

For more information on dehydrating, food safety, and storage of dehydrated foods, visit foodsafety.gov or your local University Cooperative Extension Service office.

Food Preparation Temperature Time
Herbs	Wash, dry thoroughly.	100°F (38°C) 3-5 hours
Vegetables	Blanch for 2 minutes, drain, pat dry.	125°F (52°C) 5-9 hours
Fruits	Dip pieces in a solution of equal parts lemon juice or water. Or, use a fruit preservative following package directions. Drain, pat dry.	135°F (57°C) 6-12 hours
Jerky	Slice thin, marinate, or season with jerky seasoning. Pat dry.	160°F (71°C) 4-8 hoursAfter dehydrating, bake at 275°F (135°C) for 10-12 minutes.

Cooking Guide

NOTES:

Cooking times listed below are based on cooking one Tray of food in the middle position.
- Foods may need to be flipped or rotated during cooking. Cooking times are suggestions. Cook food until crisp and golden brown. Foods that can't be flipped might need to be lightly covered with foil, if getting too brown.
- If cooking foods in more than one Tray, cooking times will increase. Rotate Trays to brown and crisp evenly.
If using Rotisserie, follow directions in "Rotisserie Cooking" section. Use Rotisserie Lift with Hooks to remove Rotisserie Skewer from Air Fryer.

Food Amount Setting Temperature Time
Frozen Fries and Snacks
Frozen regular French fries	1/4 package (8 ounces [227 g])	French fries	375°F (191°C) 18-20 minutes
Frozen chicken nuggets	1/2 package (16 ounces [454 g])	French fries	375°F (191°C) 10-12 minutes
Frozenbreaded chicken tenders	about 15 strips (16 ounces [454 g])	Chicken 375°F (191°C) 14-16	minutes
Vegetables
Cauliflower	1 small head, cut in florets, sprayed with olive oil	Vegetables	350°F (177°C) 22-24 minutes
Fresh potato wedges	16 pieces, 2 large potatoes, sprayed with olive oil	Vegetables	350°F (177°C) 18-20 minutes
Meat & Poultry
Fresh whole chicken wings	4 wings Chicken 375°F (191°C) 16-18 minutes
Fresh chicken tenders	1 pound (16 ounces [454 g]) Chicken 375°F (191°C) 12-14 minutes
Whole chicken	about 3 1/2 pounds (56 ounces [1.6 kg]) Rotisserie 400°F (204°C) 60 minutes
Hamburger (3/4" [1.9 cm] thick) 80% lean, 20% fat	4 hamburgers (4 ounces [113 g] each)	Meat 375°F (191°C) 20-22 m	minutes
Ribeye steak (1" [2.5 cm] thick)	2 steaks (1 pound, 7.5 ounces [666 g] combined)	Air Fry 375°F (191°C) 20-24	minutes
Fish & Seafood
Fresh fish fillets	4 fillets (6 oz. [170 g] each)	Fish	350°F (177°C)	12-14 minutes
Fresh shrimp	1 pound (16 oz. [454 g])	Shrimp	325°F (163°C)	12-14 minutes
Bakery & Desserts
Refrigerated biscuits	8 biscuits	Manual	325°F (163°C)	8-10 minutes
Sheet Pan Dinner
Pork tenderloin and vegetables	Times based on 1 pound (16 ounces [454 g]) pork tenderloin, 2 medium carrots, 2 small red potatoes, 1/2 onion cut in pieces, salt, pepper and 1 tablespoon (15 ml) olive oil	Meat 375°F (191°C) 30 minutes

NOTE: Review manufacturer-suggested cook times for these and other foods.

Care and Cleaning

AWARNING Electrical Shock Hazard. Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

Your air fryer should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

1. Unplug. Allow to cool before cleaning.
2. Clean inside of Air Fryer with a damp, soapy cloth. Repeat with a damp, clean cloth. For stubborn stains, use a plastic scouring pad.
3. All removable parts are dishwasher-safe.
4. Wipe outside of Air Fryer with a damp cloth. Do not use abrasive cleaners or metal scouring pads.

Troubleshooting

Air Fyer doesn't work.

• The appliance isn't plugged in. Plug into outlet.
• The timer has not been set. Follow "How to Use" to set timer.

Food isn't cooked.

• Too much food in or Mesh Trays. Increase cooking time and continue to cook.
• The temperature was set too low. Increase temperature and continue to cook.
• Cooking time was too short. Increase cooking time and continue to cook.

Food cooked unevenly.

• If cooking foods in more than one Mesh Tray, cooking times will increase. Rotate Trays to brown and crisp evenly.

Food is not crisp enough.

• Cooking time was too short. Increase cooking time and continue to cook.
• Temperature is too low. Increase temperature and continue to cook.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
