USER MANUAL 35326 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Exterior view of a Hamilton Beach electric grill (no signage or text visible on device body)

English 2

Français.... 14

Español 26

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against risk of electric shock, do not immerse cord, plugs, or heating element assembly in water or other liquid.
6. Be sure handle is properly assembled to basket and locked into place. See detailed assembly instructions.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of accessory attachments not recommended or sold by the appliance manufacturer for use with this model may cause injuries.
10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot surfaces.

12. Do not place on or near a hot gas or electric burner, or in a heated oven.

13. Never move deep fryer containing hot oil.
14. Always attach plug to appliance first; then plug cord in the wall outlet. To disconnect, turn any control to MIN, or OFF (☐) when provided, and remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. To reduce the risk of injury, NEVER fill oil above MAX fill mark.
17. Always ensure removable pot is filled to at least MIN level when using oil.
18. Never leave appliance unattended while in use.
19. Always dry foods and remove ice before frying.
20. Always dry deep fryer components thoroughly after cleaning and before frying.
21. Always fry with lid in place.
22. Do not use refrigerated oil.
23. Never block vent on lid. Be aware of steam emitting from vent.
24. Escaping steam may cause burns to hands or fingers. Open the lid carefully.
25. Always raise basket, rest on drain bracket, and allow food to drain before removing food basket.
26. Warm or loose-fitting plugs/outlets can indicate an unsafe condition in the outlet that may cause a fire. Have such outlets replaced by a licensed electrician.
27. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This product is intended for household use only.

This product is only intended for the preparation, cooking, and serving of foods. This product is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This product is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

WARNING Burn Hazards:

Hot liquid will splash if you miss the drain bracket and accidentally drop the frying basket into the hot liquid. Do not lean over the deep fryer when the lid is off.

Serious hot-oil burns may result from a deep-fat fryer being pulled off a countertop. Do not allow the cord to hang over the edge of the counter where it may be grabbed by children or become entangled with the user. Do not use with an extension cord.

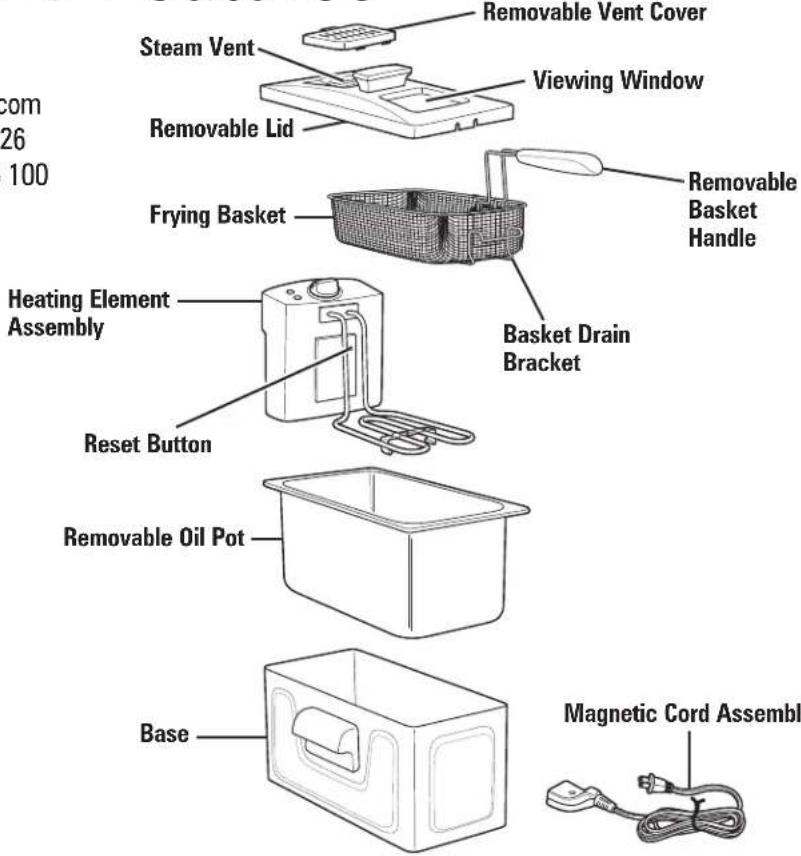

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

Com 26 100 Steam Vent Removable Vent Cover Viewing Window Removable Lid Frying Basket Removable Basket Handle Basket Drain Bracket Heating Element Assembly Reset Button Removable Oil Pot Base Magnetic Cord Assembl

Pure electrical circuit lines without any symbols

Reset Button

Press Reset on heating element assembly by inserting a small pointed item (such as a paper clip) into the opening labeled RESET.

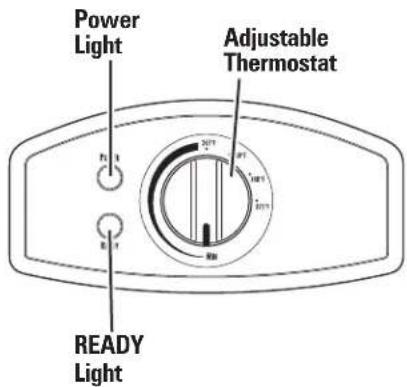

Power Light Adjustable Thermostat READY Light

How to Assemble the Fryer

Diagram of a box with a downward arrow indicating compression or disassembly (no text or symbols)

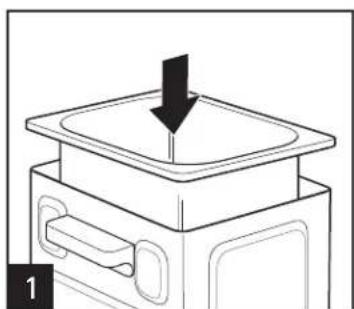

Place base on a stable, flat surface. Insert oil pot into base.

Diagram of a washing machine with a sink and piping, showing a downward force (no text or symbols)

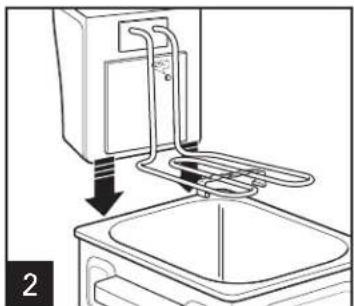

Align grooves of heating element assembly with grooves on base. Push down on heating element assembly to connect it to the base.

3

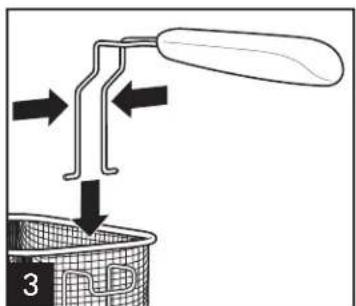

To assemble handle, squeeze tines of handle together. Align tines with round holes on metal bracket inside basket.

Line drawing of a basket with a handle and arrow indicating direction (no text or symbols)

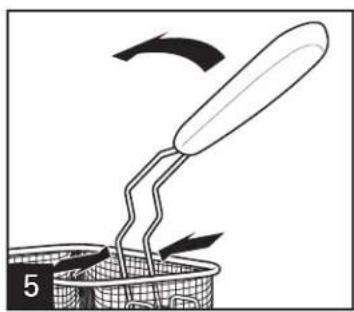

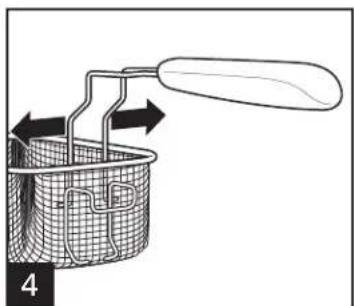

Release tines to allow them to spread and then pull handle back to lock into metal bracket.

Illustration of a fish being lifted from a basket using a long rodent (no text or symbols)

NOTE: Heater cannot be turned on unless correctly installed on base.
For storage: Push handle into basket and squeeze tines together to remove handle.

Line drawing of a kitchen appliance with a downward arrow indicating a drop or action (no text or symbols present)

Align vent cover and vent of lid toward heating element assembly. Lid snaps into place.

Frying

WARNING Burn Hazard.

Never fill oil above MAX fill mark.

Never move fryer when it is in operation or when fryer contains hot oil.

Never leave fryer unattended while in use.

Remove as much moisture from food as possible.

Do not add water or ice to oil.

Escaping steam may cause burns to hands or fingers. Open lid carefully.

Failure to follow these instructions may result in serious burns since hot oil may spill from fryer.

BEFORE FIRST USE: Thoroughly clean and dry fryer. See "Cleaning Your Fryer" on page 9.

NOTE: Never operate unit without oil in tank or unit will exceed temperature limit and will require resetting. See "How to Reset" on page 11 for details.

Diagram showing a kitchen appliance with labeled parts and directional arrows indicating process flow or assembly.

Place assembled fryer on a stable, level, heat-resistant surface out of reach of children. Lift lid to open.

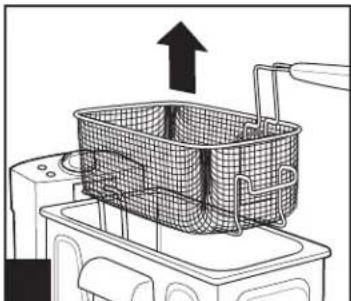

Line drawing of a kitchen appliance with a basket and upward arrow indicating motion (no text or symbols)

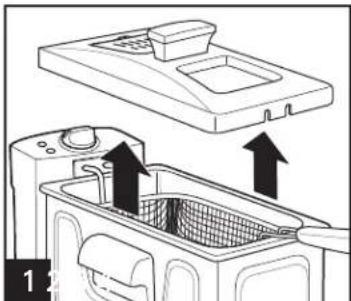

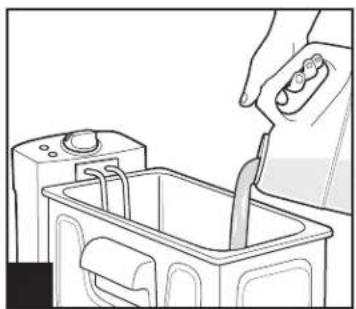

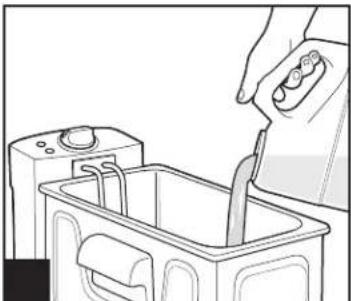

Remove basket from fryer. Fill fryer with oil. Maximum amount of oil is 8 cups (1.9 L) to top indicator mark on the removable oil pot and no less than 4 cups (946 ml).

Line drawing of a hand pouring liquid into a rectangular kitchen grater (no text or symbols)

Line drawing of a computer monitor with an attached cable and a switch (no text or symbols)

Make sure fryer is turned to MIN. Attach magnetic end of cord assembly to fryer socket. Magnetic end of cord will only go in one way. Be careful not to disturb magnetic connection when plugging cord into electrical outlet.
NOTE: The low magnetic force allows the cord to "break away" which prevents unit from accidentally being pulled off a countertop.

Frying (cont.)

5

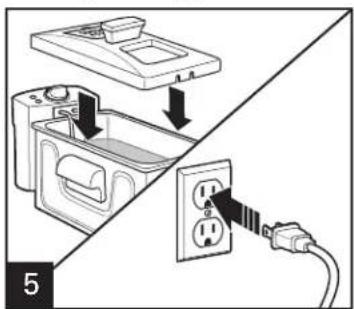

Replace lid. Plug in unit. Set thermostat to desired setting. Preheat fryer until READY light comes on (6 to 10 minutes). For more information on temperature selection, check food package or Frying Chart. READY light will come on when oil has reached preset temperature. Remove lid before frying.

Illustration of a kitchen grater with a downward arrow indicating a drop, no text or symbols present

Illustration of a toaster oven with steam rising, showing a downward arrow (no text or symbols)

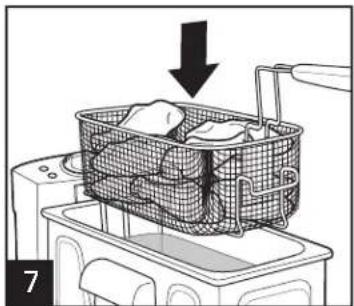

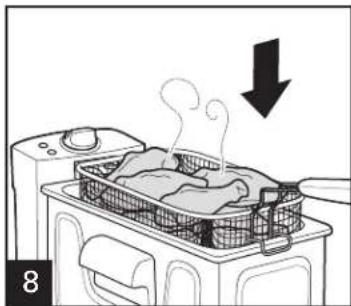

Carefully place basket in fryer. Replace lid.

NOTE: Never operate unit without oil in pot or unit will exceed temperature limit and will require resetting.

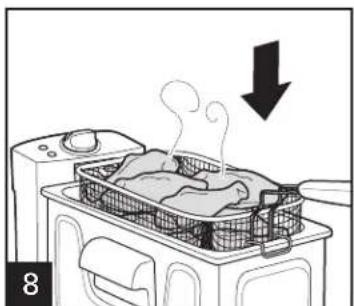

When frying is done, remove lid, raise basket, and hook over removable oil pot to drain.

NOTE: Do not allow condensation to drain into oil pot while removing lid or while unit is off.

FRYING TIP: READY light may go out after frying a batch of food. When oil has reached selected temperature, READY light will come back on. Unit is now ready to fry next batch of food.

Line drawing of a hand placing food into a wire mesh basket (no text or symbols)

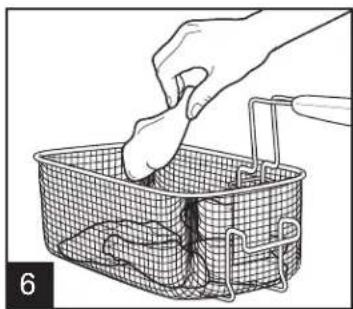

TO FRY UNBATTERED FOOD: Place food in basket and proceed with Step 7.

TO FRY BATTERED FOOD (such as tempura batter): Lower basket into oil; then carefully place food directly into oil. Replace lid; proceed to Step 8.

NOTE: Do not overfill basket. Follow packaging directions and Frying Tips on page 10.

Line drawing of a woven basket and steaming bowl with food items (no text or symbols)

FRYING TIP: READY light may go out after frying a batch of food. When oil has reached selected temperature, READY light will come back on. Unit is now ready to fry next batch of food.

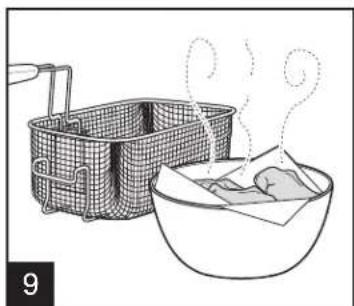

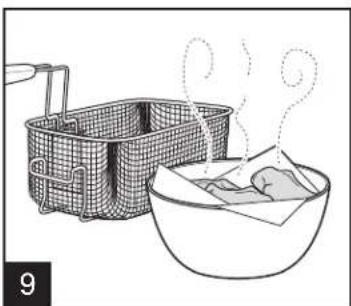

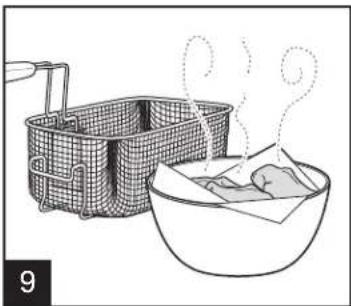

Carefully empty food from basket and place in a bowl, colander, or tray lined with paper towel. Fill basket and repeat as needed to complete frying. Turn adjustable thermostat to MIN and unplug appliance after use. Place lid on removable oil pot and allow to cool.

Frying Chart

FOOD FRYING TEMPERATURE COOKING TIME INTERNAL TEMP/DONENESS

Frozen French Fries 375°F (191°C) 2 to 3 minutes Brown and crisp

Fresh-Cut French Fries 375°F (191°C) 7 to 8 minutes Brown and crisp

Frozen Onion Rings 375°F (191°C) 2 to 3 minutes Brown and crisp

Frozen Fish Sticks 350°F (177°C) 2 to 3 minutes 145°F (63°C)

Frozen Butterflied Shrimp 350°F (177°C) 3 to 4 minutes 145°F (63°C)

Frozen Chicken Tenders 375°F (191°C) 3 to 5 minutes 165°F (74°C)

Frozen Chicken Wing Pieces 375°F (191°C) 8 to 10 minutes 165°F (74°C)

Fresh Chicken Wing Pieces 375°F (191°C) 7 to 9 minutes 165°F (74°C)

NOTES:

Length of cooking time and temperature may vary based on batch size and weight.

For best results, fry a single layer of food for each batch.

Frozen, uncooked chicken should be thawed, excess water removed, and patted dry with paper towel prior to cooking.

See "Frying Tips" on page 10 for more information to obtain best results.

Always follow package directions.

When cooking meat, poultry, or fish, use cooking thermometer to determine internal temperatures.

Visit foodsafety.gov for more information on safe internal cooking temperatures.

Cleaning Your Fryer

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

Unplug from wall outlet. Wait until oil has cooled. This can take several hours.

Diagram showing two views of a washing machine with internal components and upward arrows indicating motion (no text or symbols)

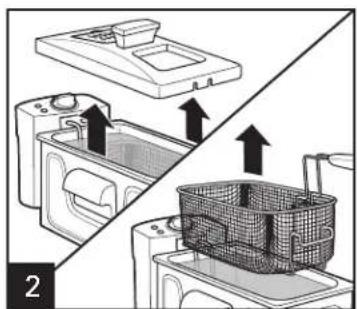

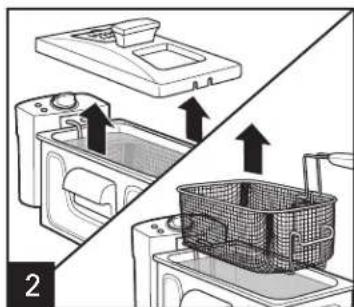

Remove lid and remove basket from fryer.

WARNING Burn Hazard.

To avoid eruptions and/or spatter of hot oil, dry all fryer components thoroughly before using.

Diagram showing a kitchen appliance with liquid droplets and a downward arrow indicating flow or discharge (no text or symbols)

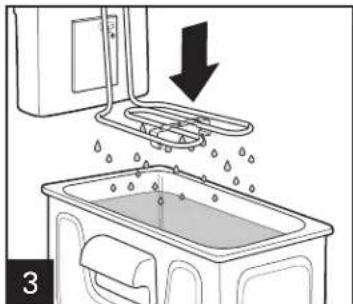

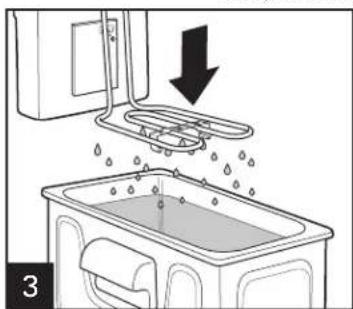

Lift heating element assembly from base and hook onto oil pot to drain.

Do not immerse heating element assembly in water.

NOTE: To avoid damaging fryer, use care when cleaning heating element assembly. Gently wipe with soft cloth dampened with hot, soapy water.

Pure diagram of a curved pipe or duct without any text, numbers, or symbols

Lift oil pot from base and pour out oil. Wipe all excess oil or oil film from oil pot.

Basket Oil Pot Base Lid Vent Cover 5

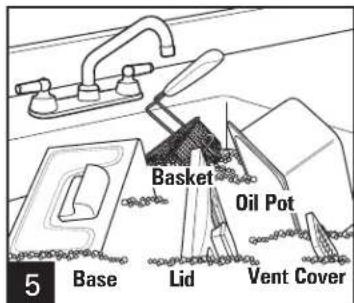

Clean base, oil pot, vent cover, lid, and basket with hot, soapy water. Dry thoroughly. Position lid vertically to drain and allow to dry thoroughly.

Line drawing of two rectangular storage bins with handles, one larger and one smaller, shown without any text or symbols.

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Frying Tips

SELECTING AND CHANGING THE FRYING OIL:

Use a good quality vegetable or peanut oil.

Frying foods in butter, margarine, olive oil, or animal fat is NOT recommended because of low-temperature smoke point.

DO NOT mix two types of oil.

Change oil regularly to maintain optimum frying and flavor quality.

Oil used for french fries can be used 10 to 12 times before changing if oil is filtered after each use. Oil used for food that is high in protein (such as meat or fish) should be changed more often.

To filter oil, allow oil to completely cool. Cheesecloth or paper towel may be used as a filter to strain oil.

Always follow food package directions.

DO NOT add fresh oil to used oil.

Always change the oil if it starts to foam when heated, when it has a strong smell or taste, or when it turns dark and/or syrupy.

BEFORE FRYING:

Excess water or ice particles can cause hot oil to splatter or foam. Remove any excess water from fresh food by blotting with a paper towel. Remove any ice chunks or buildup from frozen foods.

GENERAL TIPS:

DO NOT use plastic utensils in hot oil.

Season food AFTER frying.

If food is not as crisp as desired, reduce batch size.

DISPOSING OF OIL:

Pour cool oil into its original (resealable) empty plastic bottle.

BASKET USAGE WITH FRESHLY BATTERED FOODS:

Freshly battered foods should be carefully placed directly into oil. First, lower basket completely and then carefully place each piece of battered food into hot oil. Use basket to remove fried battered foods.

STORAGE:

Basket handle can be disengaged and rotated into basket. Place oil pot in base and then place basket and power cord in oil pot. It is best to store all oils in a cool, dark, dry place for up to six months.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Troubleshooting

HOW TO RESET:

If your unit is not heating or will not turn on, your unit may need to be reset.

1. Make sure fryer and oil are cool.
2. Turn temperature control to MIN.
3. Unplug magnetic cord from the wall outlet.
4. Remove removable control panel and heater element.
5. Use a thin pointed object such as a wooden skewer or thin screwdriver to push in RESET button.

Pure mechanical diagram showing pipe connection with a black arrow indicating direction (no text or symbols)

PROBLEM PROBABLE CAUSE/SOLUTION

Fried food does not have a golden-brown color and/or is not crispy.	Selected temperature is too low or food has not been fried long enough. Check food package or Frying Chart on page 8 for correct temperature or preparation time.There is too much food in basket. Never fry too much food at one time. See recipe for correct frying amount. Food pieces may be too thick to fry adequately.Volume of oil is too low.
Fryer gives off a strong, unpleasant odor.	Oil isn't fresh. Change oil. Filter oil regularly to keep it fresh longer.When frying food with a high moisture content (such as chicken or fries), change oil frequently.Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different types of oil or fat.
Unit does not heat.	Ensure magnetic cord assembly is properly attached to fryer socket.Ensure electrical cord assembly is plugged into electrical outlet.Heating element assembly not correctly assembled. Make sure heating element assembly is properly installed on base. See “How to Assemble the Fryer” on page 5.Press Reset button on heating element assembly. Make sure fryer has recommended amount of oil in oil pot.

Troubleshooting (cont.)

PROBLEM PROBABLE CAUSE/SOLUTION

During frying, the oil spills over the edge of the fryer.	There is too much oil in fryer. Make sure that oil does not exceed maximum level mark.Basket/food immersed too quickly. Carefully raise basket out of oil.Food contains too much liquid or coated with ice crystals. Dry food thoroughly before placing it in fryer. Follow instructions in “Frying” section on page 6.When frying food with a high moisture content (such as chicken or fries), change oil frequently.There is too much food in frying basket. Do not fry more food at one time than quantities indicated on food package.
Oil foams too much during frying.	Food contains too much liquid or coated with ice crystals. Dry food thoroughly before placing it in fryer.When frying food with a high moisture content (such as chicken or fries), change oil frequently.Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different types of oil or fat.Basket/food immersed too quickly. Carefully raise basket out of oil.The use of refrigerated oil may cause excessive splattering. Use room-temperature oil.Oil pot has not been cleaned properly. See instructions in the “Cleaning Your Fryer” section on page 9.
Condensation forms on viewing window.	Water vapor from food collects on window. When unit is cold, wipe a small amount of oil on inside of viewing window to prevent condensation buildup.
Oil film buildup on oil pot.	Use plastic scouring pad to clean.To clean oil residue from oil pot, use a household degreaser.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Pure electrical circuit lines without any symbols

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a kitchen appliance with a drain and a downward arrow indicating a process (no text or symbols)

Illustration of a woven basket with a handle and directional arrows indicating flow or movement (no text or symbols)

Illustration of a fish being lifted from a basket using a net, with arrows indicating the process (no text or symbols)

Line drawing of a kitchen appliance with a downward arrow indicating a drop or change (no text or symbols present)

Diagram showing a kitchen appliance with labeled parts and directional arrows indicating process flow or assembly.

Diagram of a microwave oven with a basket being placed on top, showing an upward arrow (no text or symbols present)

Line drawing of a hand using a tool to clean or prepare a kitchen grater (no text or symbols)

Line drawing of a computer monitor with an attached cable and a small plug (no text or symbols)

Line drawing of a hand placing food into a basket with a handle (no text or symbols)

Illustration of a kitchen appliance with a basket being lifted by a downward arrow (no text or symbols)

Illustration of a toaster oven with steam rising, showing a downward arrow (no text or symbols)

Line drawing of a basket and bowl with steam rising (no text or symbols)

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

Diagram showing two views of a washing machine with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a kitchen sink with water droplets and a downward arrow indicating flow (no text or symbols)

Pure diagram of a curved pipe or duct without any text, numbers, or symbols

Pure technical line drawing of a mechanical component with no text or symbols

PROBLÈME CAUSE PROBABLE/SOLUTION

Pure electrical circuit lines without any symbols

Botón de Reinicio

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

Line drawing of a kitchen appliance with a downward arrow indicating a process or movement (no text or symbols present)

Line drawing of a basket with a handle and directional arrows indicating flow or movement (no text or symbols)

Illustration of a basket being lifted with a funnel, showing motion and shading (no text or symbols)

Line drawing of a kitchen appliance with a downward arrow indicating a drop or action (no text or symbols present)

Diagram showing a kitchen appliance with labeled parts and directional arrows indicating process flow or assembly.

Line drawing of a kitchen appliance with a basket and upward arrow indicating process (no text or symbols)

Saque la canasta de la freidora.

Line drawing of a hand using a tool to clean or prepare a kitchen grater (no text or symbols present)

Line drawing of a computer monitor with an attached cable and a switch (no text or symbols)

Line drawing of a hand placing food into a basket (no text or symbols)

Illustration of a kitchen appliance with a bag being lifted by a net, showing a downward arrow (no text or symbols)

Illustration of a toaster oven with steam rising, showing a downward arrow (no text or symbols)

Line drawing of a woven basket and bowl with steam rising (no text or symbols)

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

Diagram showing two views of a washing machine with internal components and directional arrows indicating movement (no text or symbols)

Diagram showing a kitchen sink with water droplets and an outlet, no text or symbols present

Pure diagram of a pipe or pipe joint without any text, numbers, or symbols

Pure technical line drawing of a mechanical component with no text or symbols
