USER MANUAL DVD-S97 PANASONIC

Illustration of a modern electronic device with a front panel and buttons (no text or symbols visible)

Illustration of a family watching TV, with no visible text or symbols

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

AUDIO / VIDEO

DIGITAL VIDEO

COMPATIBLE

PLAYER

HIGH-DEFINITION MULTIMEDIA INTERFACE

Region number/Code régional

The player plays DVD-Video marked with labels containing the region number "1" or "ALL".

This manual was printed with soy based ink.

Panasonic has determined that

this product meets the ENERGY STAR® guidelines for energy efficiency.

ENERGY STAR®, Panasonic a

*For Canada only: The word "Participant" is used in place of the word "Partner".

For U.S.A. only

The warranty can be found on page 21.

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying with the appliance.

CAUTION	- LASER RADIATION WHEN OPEN.DO NOT STARE INTO BEAM.	FDA 21 CFR / Class II
CAUTION	- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN,AVOID EXPOSURE TO BEAM.	IEC60825-1/Class 3b
ATTENTION	-RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE,EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL	-SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.UNDGÅ UDSÄTTEELSE FOR STRÅLING.
VARO!	- AVATTAESSA OLET ALTITIINA NÄKYVÄÄ JA NÄKYMÄTÖNLASERSÄTEILYLLIE, ÄLA KATSÖ SÄTEESEEN.
VARNING	-SYNLIG OCH OSYNLIG LASERSTRÅLING NÄR DENNA DELÄR ÖPPNAD, BETRAKTA EJ STRÅLEN.
ADVARSEL	-SYNLIG OG USYNLIG LASERSTRÅLING NÄR DEKSEL ÅPNES.UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT	-SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNGGEÖFNET, NICHT DEM STRAH, AUSSETZEN.
注意	- 打开时有可见及不可见激光辐射,避免激光束照射。
注意	- ここを聞くと可视及び不可視レーザー光が出ます。ビームを見たり, 触触したりないでください.	RQLCA0141

(Inside of product)

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

This product is licensed under the MPEG-4 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA. See http://www.mpegla.com.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

HighMAT ^™ and the HighMAT logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

HDCD ^® , HDCD ^® , High Definition Compatible Digital ^® and Pacific Microsonics ^™ are either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries.

HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following: In the USA : 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311, 5,872,531, and in Australia: 669114, with other patents pending.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ATTENTION!

CET APPAREIL EST DOTÉ D'UN LECTEUR AU LASER. L'UTILISATION DE COMMANDES OU LE RECOURS À DES RÉGLAGES AUTRES QUE CEUX INDIQUÉS DANS CE MANUEL PEUVENT PRÉSENTER DES RISQUES D'EXPOSITION À DES RADIATIONS.

NE PAS OUVRIR LE BOÎTIER. TOUTE RÉPARATION DOIT ÊTRE FAITE PAR UN PERSONNEL QUALIFIÉ ET NON PAR L'USAGER.

MISE EN GARDE:

AFIN DE PRÉVENIR TOUT RISQUE D'INCENDIE OU DE CHOCS ÉLECTRIQUES, AINSI QUE TOUT DOMMAGE À L'APPAREIL, NE PAS L'EXPOSER À LA PLUIE, À DES ÉCLABOUSSURES OU À UNE HUMIDITÉ EXCESSIVE. ÉVITER ÉGALEMENT DE PLACER DES CONTENANTS AVEC DU LIQUIDE, TEL UN VASE, SUR L'APPAREIL.

ATTENTION

RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

ATTENTION: AFIN DE PRÉVENIR LE RISQUE DE CHOCS ÉLECTRIQUES, NE PAS RETIRER LES VIS. TOUTE RÉPARATION DEVRAIT ÊTRE CONFIÉE À UN PERSONNEL QUALIFIÉ.

Designed for Windows Media™

(Only for U.S.A.) To order accessories, refer to "Accessory Purchases" on page 21. (Only for Canada) To order accessories, call the dealer from whom you have made your purchase.

Use numbers when asking for replacement parts.

□ 1 Remote control

(EUR7720KG0)

☐ 1 AC power supply cord

(K2CB2CB00016)

1 Audio/video cable

(K2KA2CA00009)

1 HDMI cable

(K1HA19DA0001)

2 Remote control batteries

( )

Note

The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

DVD-S97

SERIAL NUMBER

Table of contents

Getting started

Accessories 4

IMPORTANT SAFETY INSTRUCTIONS....4

Discs that can be played/Disc handling. 5

STEP 1 Connection to a television ....6

Enjoying higher quality audio and video (HDMI connection)

Enjoying multi-channel surround sound

STEP 2 The remote control ....7

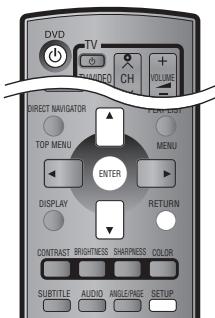

STEP 3 QUICK SETUP ....7

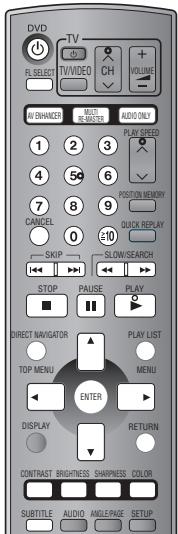

STEP 4 Television operation ....7

Operations

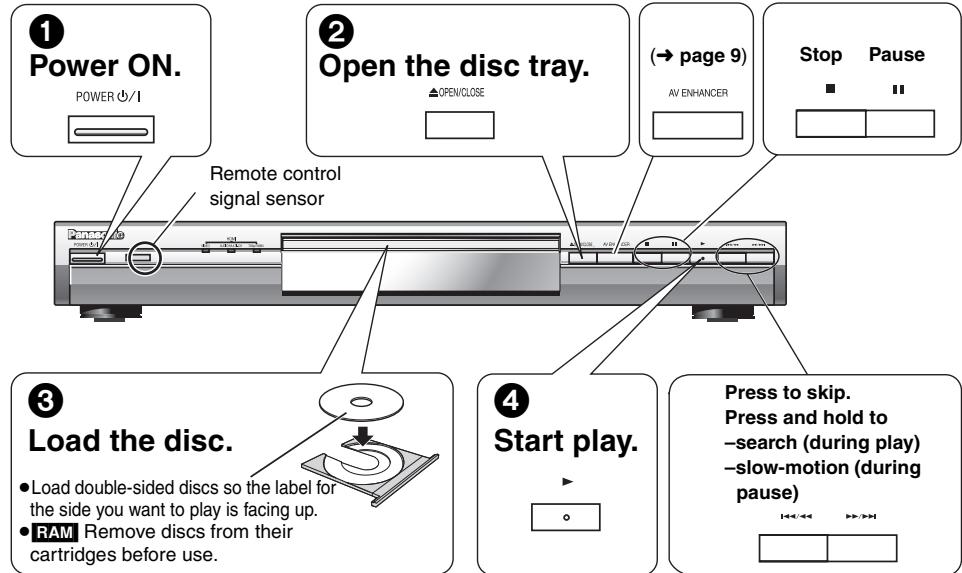

Basic play 8

Enjoying higher quality audio and video .....9

Recalling recommended audio/video setting—AV Enhancer ..... 9

Reproducing more natural audio—Multi Re-master ..... 9

Enjoying even higher quality sound—AUDIO ONLY 9

Adjusting picture mode 9

Changing the play sequence .....10

All group/Program/Random play 10

Convenient functions .....10

Changing play speed 10

Starting play from a selected group 10

Quick replay 10

Position memory 11

Changing soundtracks 11

Changing subtitles 11

Angle select and Still picture rotation/advance 11

Changing the zoom ratio 11

Reducing noise in pictures 11

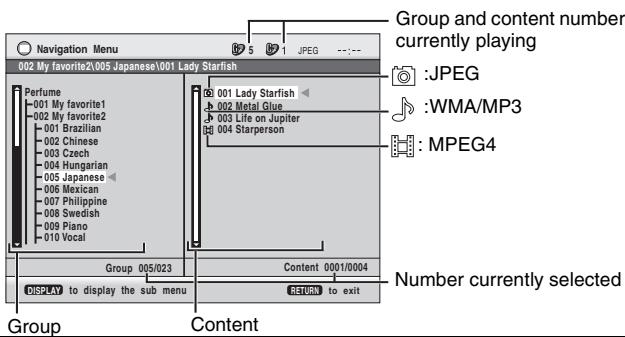

Using navigation menus 12

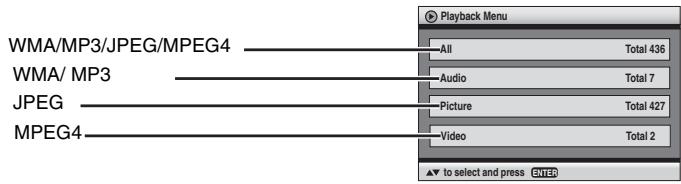

Playing WMA/MP3/JPEG/MPEG4 discs 12

Playing CD 13

Playing HighMAT™ discs 13

Playing RAM discs 13

Using On-Screen Menus 14

Main Menus/Other Settings 14

Changing the player settings.... 16

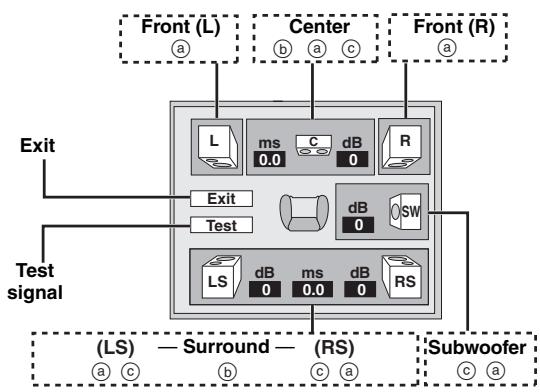

Changing the speaker setting to suit your speakers ..... 17

Reference

Troubleshooting guide 18

Maintenance 19

Specifications 20

Product Service....20

Limited Warranty (ONLY FOR U.S.A.) 21

Main feature index ....Back cover

Glossary....Back cover

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc	Logo	Indication in these operating instructions	Remarks
DVD-RAM		RAM	Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc.
		JPEG	Recorded using the DCF (Design rule for Camera File system) standard Vesion 1.0.	●To play JPEG or MPEG4 files, select “Play as Data Disc” (→ page 15, Other Menu).
		MPEG4	Recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system].
DVD-Audio		DVD-A	Some multi-channel DVD-Audio will prevent down-mixing (→ Back cover, Glossary) of all or part of their contents if this is the manufacturer's intention. When playing such discs, or such parts of the disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly (e.g. part of the audio is missing, multi-channel audio cannot be selected and audio is played in two channels). Refer to the disc's jacket for more information.
		DVD-V	Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video” (→ page 15, Other Menu).
DVD-Video	, VIDEO	DVD-V	—
DVD-R	......		Panasonic DVD-R recorded and finalized* on Panasonic DVD-Video recorders or DVD-Video cameras are played as DVD-Video on this unit.
Video CD		VCD	—
SVCD			Conforming to IEC62107
CD		CD	This unit is compatible with HDCD (→ Back cover, Glossary), but does not support the Peak Extend function (a function which expands the dynamic range of high level signals).●During HDCD play, “HDCD” lights on the unit's display.
CD-RCD-RW	—	[SH50][A506][D556]	●This unit can play CD-R/RW recorded with the formats on the left. Close the sessions or finalize* the disc after recording.●HighMAT discsWMA, MP3 or JPEG files only.To play without using the HighMAT function, select “Play as Data Disc” (→ page 15, Other Menu).●WMA This unit is not compatible with Multiple Bit Rate (MBR: a file that contains the same content encoded at several different bit rates).

• This unit can play CD-R/RW recorded with the formats on the left. Close the sessions or finalize* the disc after recording.
  ●HighMAT discs
  WMA, MP3 or JPEG files only. To play without using the HighMAT function, select "Play as Data Disc" ( page 15, Other Menu).
• WMA This unit is not compatible with Multiple Bit Rate (MBR: a file that contains the same content encoded at several different bit rates).

* A process that allows play on compatible equipment.

- It may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.

■ Discs that cannot be played

DVD-ROM, CD-ROM, CDV, CD-G, DVD+R, +RW, DVD-RW, SACD, Divx Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and 5.2-GB DVD-RAM, PAL discs* and "Chaoji VCD" available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

*You can play DVD-Audio, however still pictures may be displayed enlarged.

■ Audio format of DVDs

You can play discs with these symbols.

DIGITAL
DOLBY

Disc handling

■ To clean discs

DVD-Audio, DVD-Video, Video CD, SVCD and CD

Wipe with a damp cloth and then wipe dry.

DVD-RAM and DVD-R

- Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1, where available).

- Never use cloths or cleaners for CDs etc.

■ Handling precautions

• Do not attach labels or stickers to discs (This may cause disc warping, rendering it unusable).
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.
• Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels (rented discs etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.

• Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.
• Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not display properly.
• Turn off all equipment before connection and read the appropriate operating instructions.
• Connect the terminals of the same color.

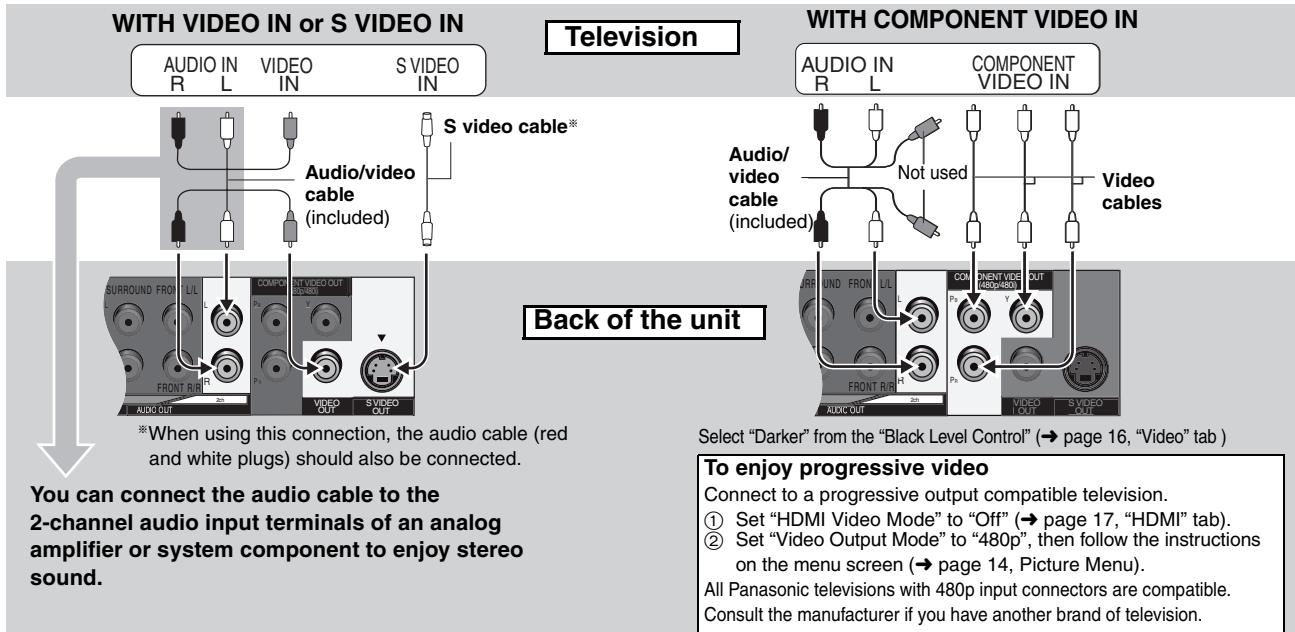

WITH VIDEO IN or S VIDEO IN Television AUDIO IN R L VIDEO IN S VIDEO IN Audio/video cable (included) S video cable* Back of the unit *When using this connection, the audio cable (red and white plugs) should also be connected. You can connect the audio cable to the 2-channel audio input terminals of an analog amplifier or system component to enjoy stereo sound. Select "Darker" from the "Black Level Control" (→ page 16, "Video" tab) To enjoy progressive video Connect to a progressive output compatible television. ① Set "HDMI Video Mode" to "Off" (→ page 17, "HDMI" tab). ② Set "Video Output Mode" to "480p", then follow the instructions on the menu screen (→ page 14, Picture Menu). All Panasonic televisions with 480p input connectors are compatible. Consult the manufacturer if you have another brand of television.

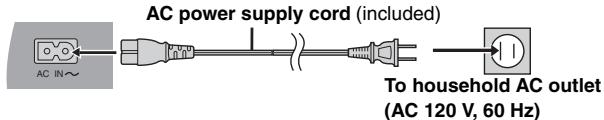

■ Connect the AC power supply cord last

AC power supply cord (included) AC IN~ To household AC outlet (AC 120 V, 60 Hz)

Conserving power

This unit consumes a small amount of power, even when it is turned off (1 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.

Enjoying higher quality audio and video (HDMI connection) ( Back cover, Glossary)

By connecting to an HDMI compatible high-definition television, video recordings can be converted to, and output as, high-definition video (720p, 1080i). You can also enjoy multi-channel surround sound by connecting to an HDMI compatible amplifier with multi-channel output terminals.

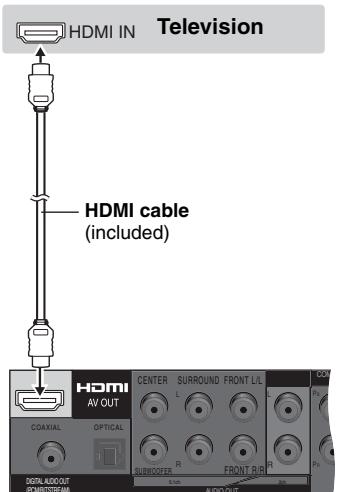

With HDMI compatible television

To enjoy digital high-definition video and high quality audio with a single cable.

- You can enjoy multi-channel surround sound by connecting an amplifier with other audio terminals (→ page 7).

HDMI IN Television HDMI cable (included) HDMI AV OUT COAXIAL OPTICAL DIGITAL ADO OUT HOMBSTREAM CENTER L SURROUND R FRONT L/L L P1 R P2 ADO OUT

Back of the unit

- Set “HDMI Video Mode” to “On” and “HDMI Audio Output” to “On”

(→ page 17, "HDMI" tab).

With HDMI compatible television and amplifier

To enjoy digital multi-channel surround sound in addition to digital high definition video.

Back of the unit

- Set "HDMI Video Mode" to "On" and "HDMI Audio Output" to "On"

(→ page 17, “HDMI” tab).

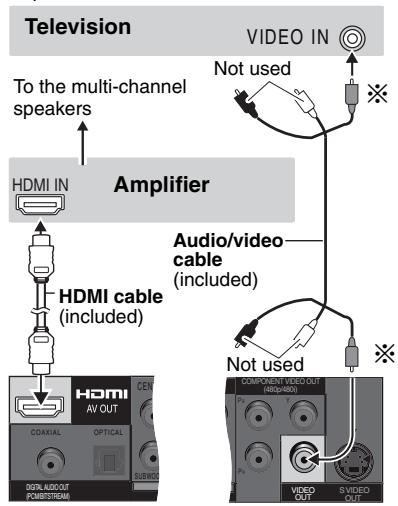

With HDMI compatible amplifier

You can still enjoy multi-channel surround sound when your television is not HDMI compatible by connecting an HDMI compatible amplifier.

Television To the multi-channel speakers HDMI IN Amplifier HDMI cable (included) VIDEO IN Not used Audio/video cable (included) HDMI AV OUT CEN COAXIAL OPTICAL SUBHOO DUTA-AUDOUT (FOUSTSTREAM) VIDEO OUT SVIDEO OUT

Back of the unit

- Set “HDMI Video Mode” to “Off” and “HDMI Audio Output” to “On” (→ page 17, “HDMI” tab).

※You can also use the S VIDEO and COMPONENT VIDEO terminals.

• To enjoy high-definition video, connect to an HDMI compatible high-definition television and set “Video Output Mode” (→ page 14, Picture Menu).
  ●This unit has HDMI Ver 1.1 (EDID Ver 1.3, up to 512 Bytes). It is not compatible with the HDMI Control Function (CEC).
• Should you connect equipment that does not support CPPM (→ Back cover, Glossary), the audio from the CPPM copy protected DVD-Audio cannot be output from HDMI AV OUT terminal. Connect the audio cable (L, R) of the Audio/Video cable to an HDMI compatible AUDIO IN terminal.

Enjoying multi-channel surround sound

- Select "Off" in "HDMI Audio Output" (→ page 17, "HDMI" tab).

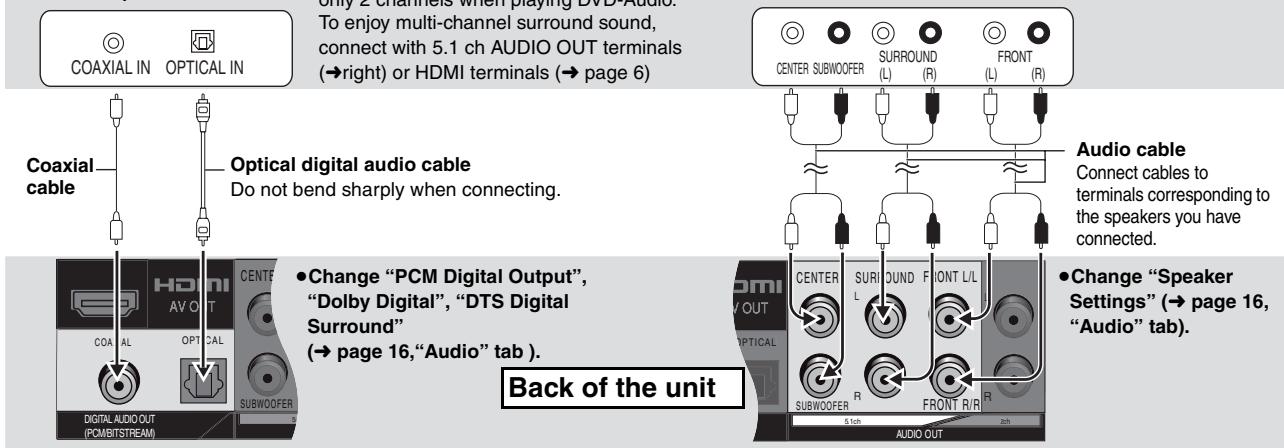

WITH COAXIAL IN or OPTICAL IN

Amplifier

Amplifier with a built-in decoder or a decoder-amplifier combination

• You cannot use DTS Digital Surround decoders not suited to DVD.
• Even if using this connection, output will be only 2 channels when playing DVD-Audio. To enjoy multi-channel surround sound, connect with 5.1 ch AUDIO OUT terminals (→right) or HDMI terminals (→page 6)

WITH AUDIO IN 5.1ch

To obtain maximum performance of DVD-Audio multi-channel linear PCM sound, this connection is recommended. To enjoy digital multi-channel surround sound, connect to an amplifier with HDMI terminals. ( page 6)

Only 2 channels when playing DVD Audio. To enjoy multi-channel surround sound, connect with 5.1 ch AUDIO OUT terminals (→right) or HDMI terminals (→ page 6) Coaxial cable Optical digital audio cable Do not bend sharply when connecting. Back of the unit • Change "PCM Digital Output", "Dolby Digital", "DTS Digital Surround" (→ page 16,"Audio" tab). • Change "Speaker Settings" (→ page 16, "Audio" tab).

STEP 2 The remote control

■ Batteries

R6/LR6, AA, UM

• Insert so the poles (+ and -) match those in the remote control.
• Do not use rechargeable type batteries.

Do not:

- mix old and new batteries.

- use different types at the same time.

- heat or expose to flame.

●take apart or short circuit.

- attempt to recharge alkaline or manganese batteries.

- use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Use

Aim at the remote control signal sensor ( page 8), avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

STEP 3 QUICK SETUP

DVD TV VOLUME DIRECT NAVIGATOR TOP MENU MENU ENTER DISPLAY RETURN CONTRAST BRIGHTNESS SHARPS COLOR SUBTITLE AUDIO ANGLE-PAGE SETUP

Turn on the television and select the appropriate video input on the television.

1 DVD Power ON.

2 SETUP Shows QUICK SETUP screen.

3 ENTER RETURN Follow the message and make the settings.

4 ENTER Press to finish QUICK SETUP.

5 SETUP Press to exit.

To change these settings later

Select "QUICK SETUP" ( page 17, "Others" tab).

STEP 4 Television operation (You can use this unit's remote control to operate your television.)

Point the remote control at the television

While pressing [⏻ TV], enter the code with the numbered buttons.

e.g., 01: [0] → [1]

TV operation

Manufacturer and Code No.

Panasonic National QUASAR	01, 02	HITACHI	12	RCA	05	THOMSON	05
		JVC	11	SAMSUNG	14, 18, 19	TOSHIBA	09
		LG	15, 16, 17	SANYO	10	ZENITH	04
FISHER	10	MAGNAVOX	03	SHARP	06, 07
GE	05	MITSUBISHI	13	SONY	08
GOLDSTAR	15, 16, 17	PHILIPS (RC-5)	03	SYLVANIA	03

Test by turning on the television and changing channels. Repeat the procedure until you find the code that allows correct operation.
- If your television brand is not listed or if the code listed for your television does not allow control of your television, this remote control is not compatible with your television.

DVD TV SL SELECT TV/VIDEO CH VOLUME #1 2 3 4 5 6 7 8 9 CANCEL 0 ±10 SKIP SLOW/SEARCH STOP PAUSE PLAY DIRECT NAVIGATOR PLAY LIST TOP MENU MENU ENTER DISPLAY RETURN CONTRAST BRIGHTNESS SHAPNESS COLOR SUBTITLE AUDIO ANGLEPAGE SETUP

① Power ON. POWER ⏻/I ② Open the disc tray. △OPEN/CLOSE (→ page 9) AV ENHANCER Stop Pause Remote control signal sensor Penset to Load the disc. ● Load double-sided discs so the label for the side you want to play is facing up. ● RAM Remove discs from their cartridges before use. ③ Load the disc. Start play. Press to skip. Press and hold to –search (during play) –slow-motion (during pause)

Stop

STOP

The position is memorized when "▷" flashes on the display.●Press [▶] (PLAY) to resume.DVD-V To review the previous chapters (→ page 11, Position memory).●Press [■] to clear the position.

Pause

PAUSE

●Press [▶] (PLAY) to restart play.

Skip

SKIP

Skips items.●RAM Can also skip to the markers [→ page 14, Marker (VR)].

Group skip

WMA MP3 JPEG MPEG4Skips groups.● Does not work while paused.

Search(during play)Slow-motion(during pause)

SLOW/SEARCH

● Up to 5 steps.● Press [▶] (PLAY) to start play.● VCD Slow motion:Forward direction only.● MPEG4 Slow motion :Does not work.

Frame-by-frame(during pause)		RAM	DVD-V	VCD	• VCD forward direction only.
		←	→
		+

On-screen item select	Select
	ENTER
	Register

Note

● “D.MIX” on the display indicates that a soundtrack with three or more channels can be down-mixed to two channels. ( → Back cover, Glossary)

● Discs continue to rotate while menus are displayed. Press [■] when you finish to preserve the unit’s motor and your television screen.

Enter number	1 2 34 53 67 6 9CANCEL ○ 0 150	RAM DVD-A DVD-V VCD CDe.g. To select 12:[≥10] → [1] → [2]
		WMA MP3 JPEG MPEG4e.g. To select 123:[1] → [2] → [3] → [ENTER]●Press [CANCEL] to cancel the number(s).

Disc menu	DIRECT NAVIGATORTOP MENU	DVD-A DVD-VShows a disc top menu.RAMPlays the programs (→ page 13).
	PLAY LISTMENU	DVD-VShows a disc menu.RAMPlays a play list (→ page 13).
	RETURN	VCD with playback controlShows a disc menu.

Return to previous screen

RETURN

Main unit display

FL SELECT

Number display↑↓Time display

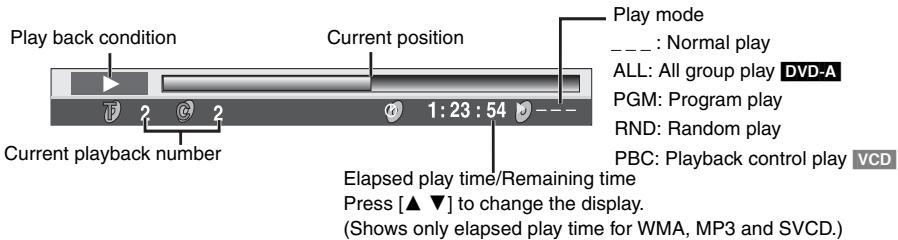

Information screen

SUBTITLE

RAMTurns subtitle on/off ( → page 11).DVD-V VCD (SVCD only)Selects the subtitle languages ( → page 11).WMA MP3 JPEG MPEG4CD (CD text only)Turns the information screen on/off.

■ Standby/on switch (POWER ⏻/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

AV ENHANCER (Main unit)

AV ENHANCER

Press [AV ENHANCER] to select "Auto", "User1", "User2" or "User3"

Menu

AV Enhancer Auto

Off: Cancelled

Auto: The best audio and video settings are configured.

User1*: Suitable for video (DVD-V) (factory preset).

User2*: Suitable for audio (factory preset).

User3*: Suitable for video (RAM) (factory preset).

* You can change the settings for User1–3 to your preference (→ page 15, "AV Enhancer" in Other Menu).

When AV Enhancer (Auto) is on, you cannot change the individual settings indicated below.

Audio settings:

Multi Re-master ( below)

Advanced Surround/Dialogue Enhancer/Dolby Pro Logic II ( page 15)

Video settings:

Picture Mode ( page 14)

Gamma/Depth Enhancer ( page 14)

Contrast/Brightness/Sharpness/Color ( right)

MPEG DNR/3D-NR ( page 11, Reducing noise in pictures)

Reproducing more natural audio—Multi Re-master

RAM DVD-V (Discs recorded with 48 kHz only)

DVD-A (Discs recorded with 44.1 kHz and 48 kHz only)

VCD CD

- During multi-channel output of these discs, this feature reproduces the frequencies lost during recording to give you a sound closer to the original.

- During 2 ch output of these discs, this feature gives you a more natural sound by adding higher frequency signals not recorded on the disc, for example, playing DVD-Video recorded with 48 kHz at 96 kHz.

(→ Back cover, "Sampling frequency" in Glossary)

WMA MP3 (Disc recording is other than 8 kHz, 16 kHz, 32 kHz)

This feature reproduces the higher frequencies lost during recording to give you a sound closer to the original.

Press [MULTI RE-MASTER] to select "1", "2" or "3".

Off ✓1 96kHz —— Output sampling frequency 2 3 Level ◀ 0 dB► Re-master level

Setting	DVD-A DVD-V CD (LPCM/PPCM)Type of music	Other discsEffect level
1	High tempo (e.g., pop and rock)	Light
2	Various tempos (e.g., jazz)	Medium
3	Low tempo (e.g., classical)	Strong
Off	Off	Off

Adjusting the Re-master level DVD-A DVD-V CD (LPCM/PPCM)

Press [◀▶] to adjust the level (-6 to +6 dB).

- This feature may not work when connected with DIGITAL AUDIO OUT or HDMI AV OUT terminals.

AV Enhancer and Multi Re-master may not work depending on the discs recording.

AUDIO ONLY

Enjoying even higher quality sound—AUDIO ONLY

You can enjoy higher quality audio by stopping the video output.

During play

Press [AUDIO ONLY].

- AUDIO ONLY is canceled if you press [AUDIO ONLY] again or switch the unit to standby.

●There may be output to the screen when:

—the disc is stopped.

—performing operations such as searching.

— on screen display or the menu screen appears.

- Audio and video will not be output from HDMI AV OUT terminal while this function is on.

CONTRAST	BRIGHTNESS	SHARPNESS	COLOR	Adjusting picture mode

Contrast

Increases the contrast between light and dark parts of the picture.

1. Press [CONTRAST].

1. Press [◀▶] to adjust (-7 to +7).

Brightness

Brightens the picture.

1. Press [BRIGHTNESS].

2. Press [◀▶] to adjust (0 to +15).

Sharpness

Adjusts the sharpness of the edges of the horizontal lines.

1. Press [SHARPNESS].

2. Press [◀▶] to adjust (-7 to +7).

Color

Adjust the shade of the picture's color.

1. Press [COLOR].

2. Press [◀▶] to adjust (−7 to +7).

All group/Program/Random play

DVD-A DVD-V VCD CD WMA MP3 JPEG MPEG4

While stopped, press [PLAY MODE].

Each time you press the button:

All group (DVD-A) → Program → Random ↑——Off (Normal play)←

- Disable HighMAT disc play to use random and program play. Select "Play as Data Disc" (→ page 15, Other Menu).

■ All Group play

Press [▶] (PLAY).

■ Program play (up to 32 items)

1 Press the numbered buttons to select the items. ( page 8, Enter number)

Repeat this step to program other items.

2 Press [▶] (PLAY).

e.g. DVD-V

Selecting all the items

(on the disc or in the title or group)

Press [ENTER] and [▲ ▼] to select "ALL", then press [ENTER] again to register.

Changing the program

Press [▲ ▼] to select an item.

-To change an item, repeat step 1.

-To clear an item, press [CANCEL] (or select "Clear" and press [ENTER]).

- Press [ANGLE/PAGE] to skip page by page.

Clearing the whole program

Select “Clear all” and press [ENTER]. The whole program is also cleared when the unit is turned off or the disc tray is opened.

■ Random play

1 (DVD-A DVD-V WMA MP3 JPEG MPEG4)

e.g. DVD-V

Press the numbered buttons to select a group or a title.

(→ page 8, Enter number)

2 Press [▶] (PLAY).

To exit the all group, program or random mode

Press [PLAY MODE] several times while stopped.

Changing play speed

RAM DVD-V

e.g. RAM

Press [∧, PLAY SPEED]

or [v, PLAY SPEED].

-from ×0.6 to ×1.4 (in 0.1 units)

DVD-VR

×0.9 ▶

• Press [▶] (PLAY) to return to the normal play.

• After you change the speed

• Multi Re-master (→ page 9), Advanced Surround and Dolby Pro Logic II (→ page 15, Audio Menu) do not work.
  – Audio output switches to 2ch.
  – Sampling frequency of 96 kHz is converted to 48 kHz.

• This function may not work depending on the discs recording.

Starting play from a selected group

DVD-A WMA MP3 JPEG MPEG4

A folder on WMA/MP3, JPEG and MPEG4 discs is treated as a "Group".

While stopped

1 Press [GROUP].
2 Press [▲ ▼] or the numbered buttons to select a group and press [ENTER].

Menu

Group Search ⇧1

DVD-A To play all groups ( left, All Group play)

Quick replay

(Only when the elapsed play time can be displayed)

MPEG4 : Does not work.

Press [QUICK REPLAY] to skip back a few seconds.

This function may not work depending on the discs recording.

Position memory

(Only when the elapsed play time can be displayed

JPEG: Works with all JPEG content.)

This position is memorized even after turning off the unit or changing the disc.

Press [POSITION MEMORY].

Position memorized

• Up to 5 discs.
• When the sixth disc is memorized, the earliest position is replaced.
• It may not always be possible for parts of a disc to be stored.

When the unit is turned on or the disc is inserted, “▷” flashes on the display.

Press [▶] (PLAY) to start play from that position.

(At this point, the memory is erased.)

To review the previous chapters DVD-V (Within a title only)

Press [▶] (PLAY) while the following message is displayed.

Press PLAY to preview chapters

Do not press [▶] (PLAY) if you want to cancel review.

To cancel

Press [■] while “▷” is flashing.

Changing soundtracks

DVD-A DVD-V (with multiple soundtracks) RAM VCD

Press [AUDIO] several times to select the soundtrack.

RAM VCD

You can use this button to select "L", "R" or "LR".

DVD-V (Karaoke discs)

Press [◀▶] to select “On” or “Off” of vocals. Read the disc’s instructions for details.

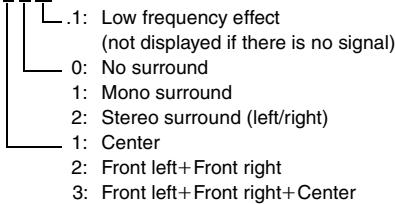

Signal type/data

LPCM/PPCM/☐ Digital/DTS/MPEG: Signal type kHz (Sampling frequency)/bit/ch (Number of channels)

Example: 3/2 .1ch

.1: Low frequency effect (not displayed if there is no signal) 0: No surround 1: Mono surround 2: Stereo surround (left/right) 1: Center 2: Front left+Front right 3: Front left+Front right+Center

Changing subtitles

DVD-V (with subtitles) VCD (SVCD only)

Press [SUBTITLE] several times to select the subtitle language.

To clear/display the subtitles

Press [◀▶] to select "On" or "Off".

RAM (On/Off only with discs that contain subtitle on/off information)

Press [SUBTITLE] to select "On" or "Off".

- Subtitle on/off information cannot be recorded using Panasonic DVD Recorders. (Subtitle on/off information is also not recordable on Panasonic DVD-R finalized with a Panasonic DVD Recorder.)

ANGLE/PAGE

Angle select and Still picture rotation/ advance

Press [ANGLE/PAGE] several times to select the angle or rotate/advance the still picture.

DVD-V (with multiple angles)—Angle select

DVD-A – Still picture advance

JPEG –Still picture rotation

JPEG Still picture rotation is cancelled when you open the disc tray or switch the unit to standby.

ZOOM	Changing the zoom ratio

RAM DVD-V VCD MPEG4

This feature expands the letterbox picture to fit the screen.

Press [ZOOM] several times to select the aspect ratio (Just Fit Zoom).

RAM DVD-V VCD

Auto → 4:3 Standard → European Vista → 16:9 Standard

MPEG4

Standard → Original

Fine adjustments (Manual Zoom)

Press [◀▶].

-from ×1.00 to ×1.60 (in 0.01 units)

- Press and hold to alter in 0.05 units.

-from ×1.60 to ×2.00 (in 0.02 units)

- Press and hold to alter in 0.1 units.

MPEG4 only

-from ×2.00 to ×4.00 (in 0.05 units)

• Press and hold to alter in 0.25 units.
• It may not be possible to zoom up to X4.00 depending upon the connected television and its settings.

DNR	Reducing noise in pictures

MPEG DNR: Smoothes block noise and reduces the smudging that appears around contrasting sections of the picture.

3D-NR: Reduces overall noise.

1 Press [DNR] to select the item.
2 Press [◀▶] to adjust (MPEG DNR: 0 to +3, 3D-NR: 0 to +4).

TOP MENU

MENU

Playing WMA/MP3/JPEG/MPEG4 discs WMA MP3 JPEG MPEG4

You can play JPEG and MPEG4 content on DVD-RAM or play HighMAT discs without using the HighMAT function ( page 15, “Play as Data Disc” in Other Menu).

Playing items in order (Playback Menu)

While the menu is displayed

Press [▲ ▼] to select "All", "Audio", "Picture" or "Video" and press [ENTER].

WMA/MP3/JPEG/MPEG4 WMA/ MP3 JPEG MPEG4 All Total 436 Audio Total 7 Picture Total 427 Video Total 2 ▲ to select and press ENTER

- To display/exit the screen

Press [TOP MENU].

Playing from the selected item (Navigation Menu)

1 Press [MENU].
2 Press [▲▼◀▶] to select the group and press [ENTER].
3 • To play content in the group in order Press [ENTER].
- To start play from the selected content Press [▲▼◀▶] to select and press [ENTER]

Navigation Menu 002 My favorite\005 Japanese\001 Lady Starfish Perfume 001 My favorite1 002 My favorite2 001 Brazilian 002 Chinese 003 Czech 004 Hungarian 005 Japanese 006 Mexican 007 Philippine 008 Swedish 009 Piano 010 Vocal Group and content number currently playing :JPEG :WMA/MP3 : MPEG4 Group 005/023 Content 0001/0004 DISPLAY to display the sub menu RETURN to exit Number currently selected Content

• Press [ANGLE/PAGE] to skip page by page.
• To enjoy listening to WMA/MP3 while showing a JPEG image on the screen
  Select a JPEG first, and then select WMA/MP3. (The opposite order is not effective.)

- To exit the screen Press [MENU].

■ Using the submenu

1 Press [MENU].

2 Press [DISPLAY].

3 Press [▲▼] to select an item and press [ENTER].

Multi	Groups and content
List	Content only
Tree	Groups only
Thumbnail	Thumbnail images JPEG
Next group	To the next group
Previous group	To the previous group
All	WMA/MP3, JPEG and MPEG4
Audio	WMA/MP3 only
Picture	JPEG only
Video	MPEG4 only
Help display	To switch between guide messages and the elapsed play time indicator
Find	To search by content or group title (→ see right)

■ Searching by a content or group title

Highlight a group title to search a group, or a content title to search its content.

1 Press [MENU].
2 Press [DISPLAY].
3 Press [▲▼] to select "Find" and press [ENTER].

4 Press [▲ ▼] to select a character and press [ENTER].

- Repeat to enter another character.

●Lower case is also searched.

- Press [◀◀▶▶] to skip between A, E, I, O and U.

- Press [◀] to erase a character.

- Erase the asterisk (*) to search for the titles starting with that character.

5 Press [▶] to select "Find" and press [ENTER]. The search result screen appears.

6 Press [▲▼] to select the content or group and press [ENTER].

MENU

Playing CD CD

Titles appear with CD text playback.

1 Press [MENU].
2 Press [▲ ▼] to select the track and press [ENTER].
- Press [ANGLE/PAGE] to skip page by page.

- To exit the screen

Press [MENU]

e.g. CD text

CD Text Disc Title: All By Artist Disc Artist: Prit Island Track Title: Lang John Platinum Track Artist: SHIPWRECKED 1. Athley of Front 2. SIRI Acquille 3. Formura one 4. Scicer 5. Baseball 6. Neanderthal 7. Carloos 8. Triobites 9. White Dwarf 10. Discovery ▲ to select and press ENTER RETURN to exit

Playing HighMAT™ discs

WMA MP3 JPEG

While the menu is displayed

Press [▲▼◀▶] to select then press [ENTER].

New Playlist Item Long Name Display To PAGE 1/3 Menu1 Play list1 Menu2 Play list2 Menu3 Play list3 Pres Return Next

Menu: Takes you to the next menu which shows play lists or another menu

Play list: play starts

• To return to the menu screen
  Press [TOP MENU] then press [RETURN] several times.
• To change the menu background
  Press [DISPLAY].
  The background changes to the one recorded on the disc.
• To display/exit the screen
  Press [TOP MENU].

Selecting from the list

While playing

1 Press [MENU].
2 Press [◀] then [▲ ▼] to switch among “Playlist”, “Group” and “Content” lists.
3 Press [▶] then [▲ ▼] to select an item and press [ENTER].

- Press [ANGLE/PAGE] to skip page by page.

Playlist All By Artist Pink Island No. Content title 1 Few times in summer 2 Less and less 3 And when I was born 4 Quatre gymnopedies 5 You've made me sad 6 I can't quit him 7 Evening glory 8 Wheeling spin 9 Velvet Cuppentine 10 Giggy starfish AT+4 → 5 → to select SELECT TO PLAY RETURN TO EXIT

- To exit the screen

Press [MENU].

Tips for making WMA/MP3/JPEG and MPEG4 discs (For CD-R/CD-RW)

●Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
- This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
- When there are more than 8 groups, the eighth group onwards will be displayed on one vertical line in the menu screen.
- There may be differences in the display order on the menu screen and computer screen.
- This unit cannot play files recorded using packet write.

Naming folders and files

(Files are treated as content and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of digits, and should be done in the order you want to play them (this may not work at times).

Files must have the extension:
".WMA" or ".wma"
".MP3" or ".mp3"
".JPG", ".jpg", ".JPEG" or ".jpeg"
".ASF" or ".asf"

e.g. MP3

Playing RAM discs RAM

• Titles appear only if you have entered them.
• You cannot edit play lists and titles.

Playing the programs

1 Press [DIRECT NAVIGATOR].
2 Press [▲▼] or the numbered buttons to select the program.

- Press [ANGLE/PAGE] to skip page by page.

• To select a 2-digit number e.g. 23: [≥10] → [2] → [3]

3 Press [ENTER].

Direct Navigator No. Date On Title Contents 1 11/1 (WED) 0:05 AM Monday feature 2 1/1 (MON) 1:05 AM Auto action 3 2/2 (TUE) 2:21 AM Cinema 4 3/3 (WED) 3:37 AM Music 5 4/10 (THU) 11:05 AM Baseball ▲▼ 0 ~ 3 to select RETURN to exit

- Press [▶] to show the contents of the program.

Playing a play list

(Only when the disc contains a play list)

1 Press [PLAY LIST].

2 Press [▲▼] or the

numbered buttons to select the play list.

• Press [ANGLE/PAGE] to skip page by page.
• To select a 2-digit number e.g. 23: [≥10] → [2] → [3]

3 Press [ENTER].

Playlist No. Date Length Title Contents 1 11/1 0:00:01 City Penguin 2 0/1 0:01:20 Ashley at Poom 3 2/2 1:00:04 Formula one 4 3/3 0:10:20 Soccer 5 4/10 0:00:01 Baseball ▲▼○—○—to select and press ENTER RETURN to exit

Playing a scene

1 Do the steps 1–2 ( above, Playing a play list).
2 Press [▶].
3 Press [▲▼] to select "Scene List" and press [ENTER].

• Select "Contents" to show the contents of the program.
  4 Press [▲▼◀▶] to select a scene and press [ENTER].

WMA

• You cannot play WMA files that are copy protected.
  ●This unit is not compatible with Multiple Bit Rate (MBR).
  MP3
  ●This unit is not compatible with ID3 tags.
• Compatible sampling rate: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1, and 48 kHz

JPEG

●To view JPEG files on this unit:

• Take them on a digital camera that meets the DCF Standard (Design rule for Camera File system) Version 1.0. Some digital cameras have functions that are not supported by the DCF Standard Version 1.0 like automatic picture rotation which may render a picture unviewable.
• Do not alter the files in any way or save them under a different name.
• This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures other than JPEG (e.g. TIFF) or play pictures with attached audio.

MPEG4

- You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system] recorded with the Panasonic SD multi cameras or DVD video recorders with this unit.

1

DISPLAY

Press once.

(When pressed twice, the elapsed play time indicator appears. → below)

2

Select
    E["Select the menu."]

3

Select ENTER Register Make the settings.

4

RETURN

Press to exit.

■ Elapsed play time indicator

Play back condition Current position Play mode _ : Normal play ALL: All group play DVD-A PGM: Program play RND: Random play PBC: Playback control play VCD Current playback number 1:23:54 Elapsed play time/Remaining time Press [▲▼] to change the display. (Shows only elapsed play time for WMA, MP3 and SVCD.)

The items displayed will depend on the actual connection and disc.

Main Menus

Program/Group Title/Chapter Track/Playlist Content		To start from a specific item
Time	To skip incrementally or decrementally (Time Slip for play only)1. Press [ENTER] twice to show Time Slip indicator.2. Press [▲▼] to select the time and press [ENTER].●Press and hold [▲▼] to alter faster.To start from a specific time (Time Search)To change remaining/elapsed time display
Video	To display pixel number

Audio	(→ page 11)
	To display the current bitrate or sampling frequency
Still Picture	To switch still picture
Thumbnail	To show thumbnail images
Subtitle	(→ page 11)
Marker (VR)	To recall a marker recorded on DVD-Video recorders
Angle	(→ page 11)
Rotate picture
Slideshow	To turn on/off slideshowTo change the slideshow timing (0–30 sec)
Other Settings	(→ below)

Other Settings

Play Speed	(→ page 10)
■ Play Menu(Only when the elapsed play time can be displayedJPEG: The Repeat and Marker functions can be used.)
Repeat	Select an item to be repeated.
A-B Repeat	To repeat a specified sectionPress [ENTER] at the starting and ending points. Press [ENTER] again to cancel.●RAM (still picture part): Does not work
Marker Except RAM	To mark up to 5 positions to play againPress [ENTER]. (The unit is now ready to accept markers.)To mark a position: [ENTER] (at the desired point)To mark another position: [◀▶] to select “*”→ [ENTER]To recall a marker: [◀▶] → [ENTER]To erase a marker: [◀▶] → [CANCEL]●This feature doesn’t work during program and random play.●Markers you add clear when you open the disc tray or switch the unit to standby.
■ Picture Menu
Picture Mode	NormalCinema1: Mellows images and enhances detail in dark scenes.Cinema2: Sharpens images and enhances detail in dark scenes heads AnimationDynamicUser (Press [ENTER] to select “Picture Adjustment”) (→ below)
	Picture AdjustmentContrast/Brightness/Sharpness/Color (→ page 9)Gamma (Adjusts the brightness of dark parts.)Depth EnhancerReduce the rough noise in the background to give a greater feeling of depth.MPEG DNR/3D-NR (→ page 11, Reducing noise in pictures)

Video Output Mode	With HDMI connection (When “HDMI Video Mode” is set to “On”) (→ page 17, “HDMI” tab)Video recordings will be converted to, and output as, high definition video. The picture quality will vary depending on the connected equipment. Choose the picture quality to your preference.480p (progressive) 720p (progressive)1080i (interlace)●“*” will be displayed next to those video outputs possible with the connected equipment. Selecting an item without “*” can result in the picture being distorted.Should the picture be distorted, press and hold [CANCEL] until the picture is displayed correctly.The setting will return to “480p”.●Output from the COMPONENT VIDEO OUT terminal will be “480i”.With HDMI connection (When “HDMI Video Mode” is set to “Off”) (→ page 17, “HDMI” tab) or other connections 480i (interlace) 480p (progressive)When you select “480p”and a confirmation screen appears, select “Yes” only if connecting to a progressive output compatible television.
Transfer Mode	If you have chosen “480p”, “720p” or “1080i” (→ above),select the method of conversion for video output to suit the type of material.Auto1 (normal): Detects 24 frame-per-second film content and appropriately converts it.Auto2: Compatible with 30 frame-per second film content in addition to 24 frame-per-second film content.Video: Select when using Auto1 and Auto2, and the video content is distorted.
HDMI Color Space	With HDMI connection (When “HDMI Video Mode” is set to “On”) (→ page 17, “HDMI” tab)The picture quality will vary depending on the connected equipment. Choose the picture quality to your preference.Should one of the items below not be possible with the connected equipment it will not be displayed.RGB YCbCr (4:4:4) YCbCr (4:2:2)●“HDMI RGB Range” (→ page 17, “HDMI” tab) is available when “RGB” is selected.

■ Audio Menu

Dolby Pro Logic II	Dolby Pro Logic II is an advanced decoder that derives 5 channel surround (Left and Right Front, Center, Left and Right Surround) from any stereo program material.OffMovie: Movie software, recorded in Dolby Surround.Music: Stereo sources.This does not work when playing multi-channel audio.This does not work when audio is output from HDMI AV OUT terminal.
Advanced Surround	RAM DVD-V VCD (2 or more channels)Enjoy a surround-like effect when using 2 front speakers (SP) or headphones(HP) (connect the unit to equipment that has a headpphone jack).SP (Speaker) 1 Natural SP 2 Enhanced HP (Headphone) 1 Natural HP 2 Enhanced OffWhen using discs recorded with surround sound, sound seems to come from speakers on either side of you.When using headphones from the connected equipment, select “HP 1” or “HP 2”.Optimum seating position is 3 to 4 times the distance between the front left and right speakers or the width of the television if using the television’s speakers.Do not use in combination with surround effects on other equipment.
Dialogue Enhancer	To make the dialogue in movies easier to hearDVD-V (Dolby Digital, DTS, 3-channel or over, with the dialogue recorded in the center channel)On Off
Multi Re-master	( page 9)
Digital Filter	When audio is output from 2 ch or 5.1ch AUDIO OUT terminals ( page 6, 7) Normal: A clear timbre.Slow: Gives music atmosphere, with softness and a feeling of depth.
Attenuator	When audio is output from 2 ch or 5.1ch AUDIO OUT terminals ( page 6, 7) Switch on if sound is distorted.On Off

■ Display Menu

Information	On Off(JPEG MPEG4: Off, Date, Details)
Subtitle Position	0 to -60 (in 2 units)
Subtitle Brightness	Auto, 0 to -7
4:3 Aspect	To select how to show images made for 4:3 aspect screens on a 16:9 aspect television.Normal: Laterally stretches images.Auto: The standard setting is “Shrink”. However this automatically changes to “Zoom” with a Letterbox picture.Shrink: Images appear in the center of the screen.Zoom: Expands to 4:3 aspect ratio.
Just Fit Zoom	(→ page 11, Changing the zoom ratio)
Manual Zoom	(→ page 11, Changing the zoom ratio)
Bit Rate Display	RAM DVD-V VCD MPEG4On Off
GUI See-through	On Off
GUI Brightness	-3 to +3
HDMI Status	Indicates various information when connected with HDMI AV OUT terminal.(→ below, Confirming HDMI information)

■ Other Menu

Sleep	Auto*↔30 min↔60 min↔90 min↔120 min↑→Off←↑* Auto:Turns the unit off 5 minutes after play finishes.- Also works with DVDs that show a menu after play finishes.- Does not work if you stop play or show a disc menu. It is activated again when you restart play.●When “30 min”-“120 min” is set, the remaining time will be displayed.
AV Enhancer	To preset the settingsYou can preset your favorite video/audio effects onto “User1”, “User2” and “User3”.PreparationAdjust the settings indicated below to your preference. (When “Auto” is selected,this is not available.)Audio settings:Multi Re-master (→ page 9)Advanced Surround/Dialogue Enhancer/Dolby Pro Logic II (→ left)Video settings:Picture Mode (→ page 14)Gamma/Depth Enhancer (→ page 14)Contrast/Brightness/Sharpness/Color (→ page 9)MPEG DNR/3D-NR (→ page 11, Reducing noise in pictures)1. Select “Save Settings” and press [ENTER].2. Press [▲▼] to select the setting location (User1, User2 or User3) and press [ENTER].3. Follow the instructions on the menu screen and press [ENTER] last.To recall the settings (→ page 9, Recalling recommended audio/video setting—AV Enhancer)To confirm the settings1. Press [▲▼] to select “User1”, “User2” or “User3” and press [ENTER].2. Select “Save Settings” and press [ENTER] twice.To exit the screen, select “No” and press [ENTER].
Setup	(→ page 16)
Play as DVD-Video or Play as DVD-Audio	●Select “Play as DVD-Video” to play DVD-Video contents on DVD-Audio.
Play as DVD-VR Play as HighMAT or Play as Data Disc	●Select “Play as Data Disc” to play JPEG or MPEG4 content on DVD-RAM or to play a HighMAT disc without using the HighMAT function.

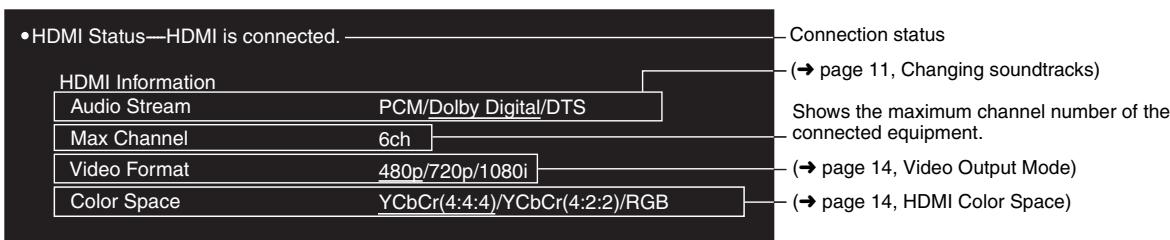

■ Confirming HDMI information

•HDMI Status—HDMI is connected. HDMI Information Audio Stream PCM/Dolby Digital/DTS Max Channel 6ch Video Format 480p/720p/1080i Color Space YCbCr(4:4:4)/YCbCr(4:2:2)/RGB Connection status (→ page 11, Changing soundtracks) Shows the maximum channel number of the connected equipment. (→ page 14, Video Output Mode) (→ page 14, HDMI Color Space)

●All possible outputs are displayed.
- The current output for “Audio Stream”, “Video Format” and “Color Space” will be underlined.
- When “Off” is selected in “HDMI Audio Output” (→ page 17, “HDMI” tab) “-- -” will be displayed in “Audio Stream” and “Max Channel”.

●All possible outputs are displayed.

- The current output for “Audio Stream”, “Video Format” and “Color Space” will be underlined.

- When “Off” is selected in “HDMI Audio Output” (→ page 17, “HDMI” tab) “-- -” will be displayed in “Audio Stream” and “Max Channel”.

|1

Shows Setup menu.

2

3

4

5

Press to exit.

- The settings remain intact even if you switch the unit to standby.

●Underlined items are the factory preset.

The QUICK SETUP enables successive settings of the items in the shaded area.

"Disc" tab

AudioChoose the audio language.	●English ●French ●Spanish ●Original*1 ●Other*****2
SubtitleChoose the subtitle language.	●Automatic*3 ●English ●French ●Spanish ●Other*****2
MenusChoose the language for disc menus.	●English ●French ●Spanish ●Other*****2●Changing the menu language from QUICK SETUP also changes this setting.
RatingsSet a ratings level to limit DVD-Video play.●Follow the on-screen instructions.	Setting ratings (When level 8 is selected)●8 No Limit ●1 to 7 ●0 Lock All: To prevent play of discs without ratings levels.When setting a ratings level, a password screen is shown.Follow the on-screen instructions.Do not forget your password.A message screen will be shown if a DVD-Video exceeding the ratings level is inserted in the unit. Follow the on-screen instructions.

"Video" tab

TV AspectChoose the setting to suit your television and preference.	4:3 Pan&Scan: Regular aspect television (4:3)The sides of the widescreen picture are cut off so it fills the screen (unless prohibited by the disc).4:3 Letterbox: Regular aspect television (4:3)Widescreen picture is shown in the letterbox style.
	16:9: Widescreen television (16:9)
TV TypeSelect to suit the type of television.	Standard (Direct View TV)CRT ProjectorLCD TV/ProjectorProjection TVPlasma TV
Time DelayWhen connected with an AV amplifier and Plasma display, adjust if you notice the audio is out of sync with the video.	0ms20ms40ms60ms80ms100ms
Still ModeSpecify the type of picture shown when paused.	AutomaticField: The picture is not blurred, but picture quality is lower.Frame: Overall quality is high, but the picture may appear blurred.
Black Level ControlChange the black level of the picture if you connected a television through the COMPONENT VIDEO OUT terminals.	Lighter:When connected through VIDEO OUT or S VIDEO OUT.Darker:When connected through COMPONENT VIDEO OUT.

"Audio" tab

PCM Digital OutputCheck the digital input limitations of the equipment you connect using COAXIAL or OPTICAL terminal and select the maximum sampling frequency of PCM digital output.	Off: When not connected with COAXIAL or OPTICAL terminal.Up to 48 kHz: When connected to equipment compatible with 44.1 or 48 kHz.Up to 96 kHz: When connected to equipment compatible with 88.2 or 96 kHz.Up to 192 kHz: When connected to equipment compatible with 176.4 or 192 kHz.•Signals from copy-protected discs are converted to 48 or 44.1 kHz.•Some equipment cannot handle sampling frequencies of 88.2 kHz, even if they can handle 96 kHz.Read your equipment's operating instructions for details.
Dolby DigitalWith COAXIAL, OPTICAL or HDMI AV OUT connections (→ page 6, 7)	Bitstream • PCM	Select “Bitstream” when the equipment can decode the bitstream (digital form of multi-channel data). Otherwise, select “PCM”.•If the bitstream is output to the equipment without a decoder, high levels of noise can be output and may damage your speakers and hearing.When audio is output from HDMI AV OUT terminal, and the connected equipment does not support the item selected, the actual output will depend on the performance of this connected equipment.
DTS Digital SurroundWith COAXIAL, OPTICAL or HDMI AV OUT connections (→ page 6, 7)	Bitstream • PCM
Dynamic Range Compression	Off• On: Adjusts for clarity even when the volume is low through compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)
Audio during Search	On • Off
Speaker SettingsChoose the settings to suit your audio system and the listening environment.(→ page 17, Changing the speaker setting to suit your speakers)	Speaker TypeMulti-channel: when 3 or more speakers are connected.2-channel: when 2 speakers are connected.Multi-channel Setting (If you select “Multi-channel”)Speaker presence and sizeDelay time •Channel balance

■ “HDMI” tab

HDMI RGB RangeSet “HDMI Color Space” to “RGB” (→ page 14, Picture Menu).	●Standard●Enhanced: When the black and white images are not distinct.
HDMI Video Mode	●On: When video output is from HDMI AV OUT terminal.●Off: When video output is from COMPONENT VIDEO OUT terminal (output is 480p from HDMI AV OUT terminal).
HDMI Audio Output	●On: When audio output is from HDMI AV OUT terminal.●Off: When audio output is not from HDMI AV OUT terminal.

■ "Display" tab

Menu Language	● English	● Français	● Español
On-Screen Messages	● On	● Off
Background during PlaySelect background during JPEG and MPEG4 playback.	● Black	● Gray

■ “Others” tab

FL DimmerChanges the brightness of the unit's display.	●Bright ●Dim●Auto:The display is dimmed during play, but brightens when you perform some operations.
Auto Power Off	●On: The unit switches to standby mode after about 30 minutes in the stop mode, irrespective of the SLEEP setting.●Off
QUICK SETUP	●Yes ●No
Re-initialize SettingThis returns all values in the Setup menus to the default settings.	●Yes: The password screen is shown if “Ratings” (→ page 16) is set. Please enter the same password.After “INIT” on the display disappears, turn the unit off and on again.●No

※1 The original language designed on the disc is selected.
※2 Input a code number referring to the table on page 20.

*3 If the language selected for "Audio" is not available, subtitle appear in that language (If available on the disc).

Changing the speaker setting to suit your speakers

If you select “Multi-channel” (→ page 16, “Speaker Settings” in “Audio” tab), the following setting (a) is required. (Select settings b) to suit your preference if desirable.)

Speaker presence and size (a)

1. Press [▲ ▼ ◀ ▶] to select an item and press [ENTER].
2. Press [▲▼] to change the content and press [ENTER].

Icon examples:

Surround speaker (LS)

• Large: Select when the speaker supports low-frequency (under 100 Hz) reproduction.
• Small: Select when the speaker does not support low-frequency reproduction.

If the subwoofer is set to "No", the front speakers will automatically be set to "Large". (In this case, we recommend connecting a speaker that can reproduce bass below 100 Hz.)

Delay time (b)

(Effective when playing multi-channel audio)

If either distance ⓓ or ⓕ is less than ⓔ, find the difference in the relevant table and change to the recommended setting.

1. Press [▲▼◀▶] to select an item and press [ENTER].
2. Press [▲▼] to change the content and press [ENTER].

☐ : Recommended placement

(d) Center speaker

Difference	Setting
Approx. 34 cm ( 1110 feet)	1.0 ms
Approx. 68 cm ( 215 feet)	2.0 ms
Approx. 102 cm ( 3310 feet)	3.0 ms
Approx. 136 cm ( 425 feet)	4.0 ms
Approx. 170 cm ( 512 feet)	5.0 ms

f Surround speakers

Difference	Setting
Approx. 170 cm ( 512 feet)	5.0 ms
Approx. 340 cm (11 feet)	10.0 ms
Approx. 510 cm ( 1612 feet)	15.0 ms

Channel balance (©)

This does not work when connected with HDMI terminals and “HDMI Audio Output” ( above, “HDMI” tab) is set to “On”.

1. Select "Test" and press [ENTER].

A test signal is output.

1. While listening to the test signal, press [▲▼] to adjust the volume of the center and surround speakers so they are the same apparent volume as the front speakers (-6 to +6dB). (The front speakers cannot be adjusted here.)

2. Press [ENTER].

The test signal stops.

- No signal is output for the subwoofer. To adjust its volume, play something, then return to this screen to adjust to suit your taste.

To finish the speaker setting

Press [▲ ▼ ◀ ▶] to select "Exit" and press [ENTER].

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the “Customer Services Directory” on page 21 if you reside in the U.S.A., or refer to the “Product information” on page 20 if you reside in Canada.

Power
Page

No power.	●Insert the AC power supply cord securely into the household AC outlet.	6
The unit is automatically switched to the standby mode.	●When “Auto Power Off” is set to “On”, the unit automatically switches to standby after approximately 30 minutes in the stop mode.	17
	●The Sleep timer functioned.	15

No operation

No response when any buttons pressed.	●This unit cannot play discs other than the ones listed in these operating instructions.●The unit may not be operating properly due to lightning, static electricity or some other external factor. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.●Condensation has formed: Wait 1 to 2 hours for it to evaporate.	5-
No response when remote control buttons pressed.	●Check that the batteries are installed correctly.●The batteries are depleted: Replace them with new ones.●Point the remote control at the remote control sensor and operate.	778
Cannot operate the television.	●Re-enter the remote control code after you change batteries.	7
No picture or sound.	●Check the video or audio connection.●Check the power or input setting of the connected equipment.●Check that the DVD-RAM has something recorded on it.	6, 7-
You have forgotten your ratings password.Reset all the settings to Factory Preset.	●While stopped, press and hold [◀◀/◀◀] and [■] on the unit and then also press and hold [▲OPEN/CLOSE] on the unit until “Initialized” disappears from the television. Turn the unit off and on again. All settings will return to the default values.	-

Specific operation impossible or incorrect

It takes time before play starts. MP3	●Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed, however this is normal.	-
The program and random play functions do not work. DVD-V	●These functions do not work with some DVD-Videos.	-
A menu screen appears during skip or search. VCD	●This is normal for Video CDs.	-
Playback control menu doesn’t appear. VCD with playback control	●Press [■] twice and then press [▶] (PLAY).	-
The on-screen menu shows “2” as a soundtrack option when [AUDIO] is pressed, but the audio does not change. DVD-A	●Even if a second soundtrack isn’t recorded, two numbers will normally be shown.	-
Play restarts from the beginning of the track when soundtrack is changed. DVD-A	●This is normal on DVD-Audio.	-

Subtitle

Subtitle position is wrong.	●Adjust the position. (“Subtitle Position” in Display Menu)	15
No subtitles.	●Display the subtitles.	11
The subtitles overlap closed captions recorded on discs.	●Clear the subtitles.	11

A-B repeat

Point B is automatically set.	●The end of an item becomes point B when it is reached.	-
A-B repeat is automatically canceled.	●A-B repeat is canceled when you press [QUICK REPLAY].	-

Picture incorrect

Picture distorted.	●Ensure that the unit is not connected through a video cassette recorder.●Make sure that progressive output has not been selected when the connected television is not progressive compatible. Press and hold [CANCEL] until the picture displays correctly. The settings will return to 480i .	6-
Picture size doesn’t fit the screen.	●Change “TV Aspect” in “Video” tab.●Use the television to change the aspect. If your television does not have that function, change “4:3 Aspect” in Display Menu.●Change the Zoom setting.	161511
The television may display incorrectly or colors appear faded.	●PAL discs cannot be played. (You can play DVD-Audio, however still pictures may be displayed enlarged.)●This may happen when turning AUDIO ONLY on or off, but this is normal.●Connect to a progressive output compatible television to enjoy progressive video.●Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices.	--9--
Menu not displayed correctly.	●Restore the zoom ratio to ×1.00.●Set “Subtitle Position” in Display Menu to “0”.●Set “4:3 Aspect” in Display Menu to “Normal”.	111515
Auto zoom function does not work well.	●Turn off TV’s zoom function.●Use the other preset aspect ratios or manual adjustment.●Zoom function may not work well, especially in dark scenes and may not work depending on the type of disc.	--11--
No picture	●When AUDIO ONLY is on, video and audio cannot be output from HDMI AV OUT terminal. Set this function to “Off”.	9

Progressive video
Page

There is ghosting when progressive or HDMI output is on.	●This problem is caused by the editing method or material used on DVD-Video, but should be corrected if you use interlace output. Change “Video Output Mode” in Picture Menu to “480i”. When connecting with HDMI AV OUT terminal, connect with the other terminals and change the settings in the following order:1. Select “HDMI Video Mode” to “Off”.2. Select “Video Output Mode” to “480i”.	141714
Pictures not in progressive output.	●If the unit is connected to the television through VIDEO OUT or S VIDEO OUT, output will be interlace.	-
Closed captions not displayed.	●When progressive output or HDMI output is on, closed captions will not be displayed.	-

Sound incorrect

Sound distorted.	●Set “Advanced Surround” in Audio Menu to “Off”.●Set “Attenuator” in Audio Menu to “On” if it causes distortion with 2 ch or 5.1ch AUDIO OUT connections.●Noise may occur when playing WMA.●The disc may have restrictions on the method of audio output. With some multi-channel discs, unless the number of connected speakers is the same as the disc’s channel specification, audio will not be output properly. Refer to the disc’s jacket for more information. DVD-A●With HDMI AV OUT connections, audio may not be output from other terminals in the way that was set.●Match the speaker settings with the connected equipment.●When connecting to an amplifier with the HDMI cable, match the speaker settings on this unit and the amplifier with the presence and size of connected speakers.	1515––
Piercing noise comes from the speakers.	●If you have connected a digital amplifier which does not include decoder, be sure to select “PCM” in “Dolby Digital” or “DTS Digital Surround” in “Audio” tab.	16
Effects do not work.	●None of the audio effects work when the unit is outputting bitstream signals from the DIGITAL AUDIO OUT or HDMI AV OUT terminal.●Some audio effects do not work or have less effect with some discs.●With HDMI AV OUT connections:– Dolby Pro Logic II does not work.– Plays HDCD discs as normal CDs.– AUDIO ONLY does not work.	16––
No sound	●Audio may not be heared when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices.●When AUDIO ONLY is on:– Audio may not be output depending on the type of television.– Video and audio cannot be output from HDMI AV OUT terminal. Set this function to “Off”.●There may be a pause in sound when you change the play speed.	––910

Recording

Cannot record to digital recording equipment. (Incorrect sound recorded.)	●You cannot record WMA/MP3. ●You cannot record DVDs that have protection preventing digital recording. ●You cannot record DVDs if the recording equipment cannot handle signals with a sampling frequency of 48 kHz. ●Make the following settings: - Advanced Surround: Off - PCM Digital Output: Up to 48 kHz - Dolby Digital/DTS Digital Surround: PCM	- - -
		15 16 16

Unit displays

“NOPLAY”	●You inserted a disc the unit cannot play; insert one it can.	5
	●You inserted a blank disc.	-
“U11”	●The disc may be dirty.	5
“U15”	●You inserted a DVD-R that has not been finalized.	5
“H□□”□□ stands for a number.	●Trouble may have occurred. The number following “H” depends on the status of the unit. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.	-
	●If the service numbers fail to clear, note the service number and contact a qualified service person.	-
“NODISC”	●You haven’t inserted a disc: Insert one.	-
	●You haven’t inserted the disc correctly: Insert it correctly.	8
“U70-1”	●The connected equipment is not HDMI compatible.	-
“U70-□”□ stands for a number.The actual number following “U70-”will depend on the state of this unit.	●The HDMI connection acts unusually.- The connected equipment is not HDMI compatible.- The HDMI cable is too long.- The HDMI cable is damaged.	-

Television displays

“☒”	●The operation is prohibited by the unit or disc.	-
“Cannot display group xx, content xx”	●You are trying to play incompatible groups or content.	13
“Cannot play audio”	●Audio has not been recorded, or recorded in a format this unit cannot playback. Video playback only is possible.	5
“No audio”
“Check the disc”	●This disc may be dirty.	5
“Due to copyright protection, audio cannot be output from HDMI”	●Should you connect equipment that does not support CPPM (→ Back cover, Glossary), the audio from the CPPM copy protected DVD-Audio cannot be output from HDMI AV OUT terminal. Connect the audio cable of the Audio/Video cable (L, R) to a HDMI compatible AUDIO IN terminal.	6
While “HDMI Status” displayed, any items are not underlined.	●If you select an item without an “*” in the “Video Output Mode” in Picture Menu, it will not be underlined.	14
“This disc may not be played in your region”	●You can only play DVD-Video if their region number is “1”, “ALL” or multiple region number including “1”.	Cover
No on-screen display.	●Select “On” in “On-Screen Messages” in “Display” tab.	17
When setting “Video Output Mode”, “*” is not displayed next to a video output possible with the connected equipment.	●If the connected equipment is compatible, selecting an item without an “*” will not distort the picture.	14

Maintenance

Clean this unit with a soft, dry cloth.

- Never use alcohol, paint thinner or benzine to clean this unit.

- Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Signal system:

NTSC

Operating temperature range:

+5 to +35 °C (+41 to +95 °F)

Operating humidity range:

5 to 90 % RH (no condensation)

Discs played [8 cm (3") or 12 cm (5")]:

(1) DVD-RAM (DVD-VR compatible, JPEG, MPEG4 formatted discs)

(2) DVD-Audio

(3) DVD-Video

(4) DVD-R (DVD-Video compatible) (5) CD-Audio (CD-DA)

(6) Video CD

(7) SVCD (Conforming to IEC62107)

(8) CD-R/CD-RW

(CD-DA, Video-CD, SVCD, MP3, WMA, JPEG, MPEG4 formatted discs)

(9) MP3/WMA*

- Compatible compression rate:

MP3: between 32 kbps and 320 kbps

WMA: between 48 kbps and 320 kbps

(10) JPEG※

● Exif Ver 2.1 JPEG Baseline files

●Picture resolution: between 320×240 and 6144×4096 pixels

(sub sampling is 4:2:2 or 4:2:0)

(11) MPEG4*

- MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system]

(12) HighMAT Level 2 (Audio and Image)

Video output:

Output level: 1 Vp-p (75 Ω)

Output connector: Pin jack (1 system)

S-video output:

Y output level: 1 Vp-p (75 Ω)

C output level: 0.286 Vp-p (75 Ω)

Output connector: S terminal (1 system)

Component video output:

Vp-p (75 Ω)

Y output level: 1 Vp-p (75 Ω) P_B output level: 0.7 Vp-p (75 Ω)

P_R output level: 0.7 Vp-p (75 Ω)

Output connector: Pin jack (Y: green, P_B : blue, P_R : red) (1 system)

Audio output:

Output level: 2 Vrms (1 kHz, 0 dB)

Output connector: Pin jack

Number of connectors: 2 channel: 1 system

5.1channel discrete output: 1 system

Audio performance:

(1) Frequency response:

●DVD (linear audio): 4 Hz–22 kHz (48 kHz sampling)

4 Hz–44 kHz (96 kHz sampling)

●DVD-Audio: 4 Hz–88 kHz (192 kHz sampling)

- CD Audio: 4 Hz–20 kHz

(2) S/N ratio:

- CD Audio: 115 dB

(3) Dynamic range:

●DVD (linear audio): 110 dB

- CD Audio: 100 dB

(4) Total harmonic distortion:

- CD Audio: 0.002 %

Digital audio output:

Optical digital output: Optical terminal

Coaxial digital output: Pin jack

HDMI AV output:

Pickup:

Wave length: 662 nm/785 nm

Laser power: U.S.A. CLASS IIa/CLASS I

Canada CLASS 2/CLASS 3A

AC 120 V, 60 Hz

17 W

Power supply:

Power consumption:

Power consumption in standby mode:

Dimensions (W×D×H): 430 mm×249 mm×59 mm

[16^15 / 16'' × 9^13 / 16'' × 2^5 / _16'']

2.5 kg (5.6 lb.)

Mass:

Note

Specifications are subject to change without notice. Mass and dimensions are approximate.

*The total combined maximum number of recognizable audio, picture and movie contents and groups: 4000 audio, picture and movie contents and 400 groups.

Language code list

Abkhazian:	6566	Chinese:	9072	Hausa:	7265	Lithuanian:	7684	Rhaeto-Romance:	8277	Tatar:	8484
Afar:	6565	Corsican:	6779	Hebrew:	7387	Macedonian:	7775	Romanian:	8279	Telugu:	8469
Afrikaans:	6570	Croatian:	7282	Hindi:	7273	Malagasy:	7771	Russian:	8285	Thai:	8472
Albanian:	8381	Czech:	6783	Hungarian:	7285	Malay:	7783	Samoan:	8377	Tibetan:	6679
Ameharic:	6577	Danish:	6865	Icelandic:	7383	Malayalam:	7776	Sanskrit:	8365	Tigrinya:	8473
Arabic:	6582	Dutch:	7876	Indonesian:	7378	Maltese:	7784	Scots Gaelic:	7168	Tonga:	8479
Armenian:	7289	English:	6978	Interlingua:	7365	Maori:	7773	Serbian:	8382	Turkish:	8482
Assamese:	6583	Esperanto:	6979	Irish:	7165	Marathi:	7782	Serbo-Croatian:	8372	Turkmen:	8475
Aymara:	6588	Estonian:	6984	Italian:	7384	Moldavian:	7779	Shona:	8378	Twi:	8487
Azerbaijani:	6590	Faroese:	7079	Japanese:	7465	Mongolian:	7778	Sindhi:	8368	Ukrainian:	8575
Bashkir:	6665	Fiji:	7074	Javanese:	7487	Nauru:	7865	Singhalese:	8373	Urdu:	8582
Basque:	6985	Finnish:	7073	Kannada:	7578	Nepali:	7869	Slovak:	8375	Uzbek:	8590
Bengali; Bangla:	6678	French:	7082	Kashmiri:	7583	Norwegian:	7879	Slovenian:	8376	Vietnamese:	8673
Bhutani:	6890	Frisian:	7089	Kazakh:	7575	Oriya:	7982	Somali:	8379	Volapük:	8679
Bihari:	6672	Galician:	7176	Kirghiz:	7589	Pashto,		Spanish:	6983	Welsh:	6789
Breton:	6682	Georgian:	7565	Korean:	7579	Pushto:	8083	Sundanese:	8385	Wolof:	8779
Bulgarian:	6671	German:	6869	Kurdish:	7585	Persian:	7065	Swahili:	8387	Xhosa:	8872
Burmese:	7789	Greek:	6976	Laotian:	7679	Polish:	8076	Swedish:	8386	Yiddish:	7473
Byelorussian:	6669	Greenlandic:	7576	Latin:	7665	Portuguese:	8084	Tagalog:	8476	Yoruba:	8979
Cambodian:	7577	Guarani:	7178	Latvian, Lettish:	7686	Punjabi:	8065	Tajik:	8471	Zulu:	9085
Catalan:	6765	Gujarati:	7185	Lingala:	7678	Quechua:	8185	Tamil:	8465

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.

1. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
2. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same

characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

1. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation:

In the U.S.A., refer to "Customer Services Directory" on page 21.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.,

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic DVD Player Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name	Parts	Labor
DVD Player	One (1) Year	Ninety (90) Days
Rechargeable Batteries(in exchange for defective item)	Ten (10) Days	Not Applicable

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as hotel, office, restaurant, or other business), rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/support

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.)

Panasonic Services Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company

Factory Servicenter:

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone], Fax [phone]

F1003

ÉTAPE 1 Raccordement

• Modifier “Haut-parleurs” (→ page 16, Onglet “Audio”

Auto → 4/3 standard → European Vista → 16/9 standard

↑ Cinémascope2 ← Cinémascope1 ← American Vista ↓

MPEG4

Standard → Original ↑ Plein écran ←

Réglages fins (Zoom manuel)

Appuyer sur [◀▶]

Liste lect. All By Artist Pink Island Liste lect. Groupe Contenu N° Titre de contenu Few times in summer Less and less And when I was born Quatre gymnopsides You made me sad I can't quit him Evening glory Wheeling spin Velvet Cuppermine Ziggy starfish

ex.: 23: [≥10] → [2] → [3]

(→ page 14, Format HDMI)

Avant [L(G)] → Centre → Avant [R(D)] ↑ Ambiophonique [LS(G)] ← Ambiophonique [RS(D)]

Faisceau laser: CLASS 2/CLASS 3A

CPPM (Content Protection for Prerecorded Media)

A copy protection system used for DVD-Audio files. This unit supports CPPM.

Down-mixing

This is a process of remixing the multi-channel audio (surround sound) on some discs into two channels. When you want to listen to the audio on a DVD with a 5.1 channel digital surround track through your television speakers, the down-mixed audio will be output.

Some DVD-Audio prevent down-mixing of all or part of their contents. When playing such discs, or such parts of disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly.

HDCD (High-Definition Compatible Digital)

HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.

HDMI (High-Definition Multimedia Interface)

HDMI is a next-generation digital interface for consumer electronic products. Unlike conventional connections, it transmits uncompressed digital video and audio signals on a single cable. This unit supports high-definition video output (720p,1080i) from HDMI AV OUT terminal. To enjoy high-definition video a high definition compatible television is required.

MPEG4

A compression system for use on mobile devices or a network, that allows highly efficient recording at a low bit rate.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

CPPM (Content Protection for Prerecorded Media)

HDMI (High-Definition Multimedia Interface)

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus,

New Jersey 07094

http://www.panasonic.com

© 2004 Matsushita Electric Industrial Co., Ltd.

Printed in China

Imprimé en Chine

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

www.panasonic.ca

En Cf Sp

RQT7584-Y

F0804TJ0
