USER MANUAL Starker XPG

ADATA Technology Co., Ltd.

2F, No. 258, Liancheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan

Product Name: XPG STARKER

產品類別：PC 機殼/PC 机壳

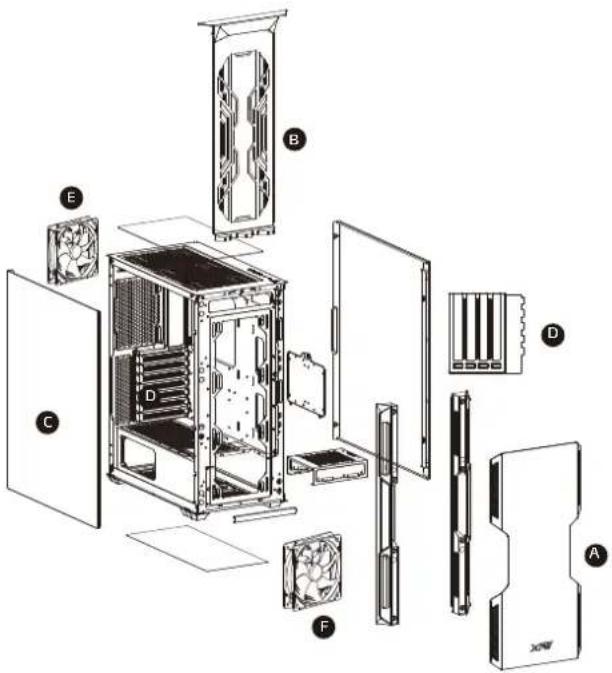

XPG STARKER COMPACT MID-TOWER CHASSIS

A Magnetic Front Panel
B "Removable-on-Rail" Dust Filter
C Glass Panel
D Replaceable VGA Brackets
E 1x XPG VENTO ARGB 120mm Fan Included
F 1x XPG VENTO 120mm Fan Included

03

SPECIFICATIONS

Color	Black / White
Form Factor	Mini-ITX, Micro-ATX, ATX
Dimensions (H x W x D) 465 x 215 x 400mm
PCI-E Slots	7 Horizontal / 4 Vertical(Transformable for Vertical GPU Support)
3.5" Drive Bay 2+1 (Combo 3.5" / 2.5")
2.5" Drive Bay	2+1 (Combo 3.5" / 2.5")
Fan Mounts	FRONT 120mm x 3 / 140mm x 2TOP 120mm x 2 / 140mm x 2REAR 120mm x 1
Fan Pre-Installed	FRONT XPG VENTO 120 x 1REAR XPG VENTO 120 ARGB x 1
Radiator Support	FRONT 360 / 280 / 240mm x 1TOP 280 / 240 / 120mm x 1REAR 120mm x 1
I/O Ports	2 x USB 3.0 / 1 x Hybrid Audio Port1 x LED Button /*1 x Power Button1 x Reset Button
Compatibility	VGA : 350mmCPU Cooler : 165mmPSU : 160mm

04

FRONT I/O BUTTONS and PORTS DIMENSIONS and COMPATIBILITY

Power Button

Reset Button

LED Button

Hybrid Audio Port

USB 3.0 x 2

FRONT I/O CABLES

Please consult your user manual of motherboard manufacturer, then connect these leads to the panel header on the motherboard.

USB 3.0 Connection : Please refer to the motherboard manual for more information on the USB 3.0 connection.

Audio Connection : Please refer to the motherboard installation to avoid the device error and cause the motherboard sound device to be damaged.

PRE-SET LIGHTING EFFECTS

MODE DESCRIPTIONS
Mode 1 Mode 2 Mode 3 Mode 4 Mode 5
Red Green Blue Purple Yellow
Mode 6 Mode 7 Mode 8 Mode 9-12 Mode 13
White Orange Neon Green			Lighting effectNo. 1-4	Otr

05

VGA Length Limitation 350mm

CPU Cooler Height Limitation 165mm

PSU Length Limitation 160mm

06

REMOVING THE FRONT PANEL and THE DUST FILTER REMOVING THE GLASS SIDE PANEL

1. Detach the Magnetic Front Panel
2. Pull Up the Removable-on-Rail Dust Filter

07

Manually unscrew the glass side panel, and pull backward with care.

Technical line drawing of a computer tower case showing internal components and exterior panel (no text or symbols)

08

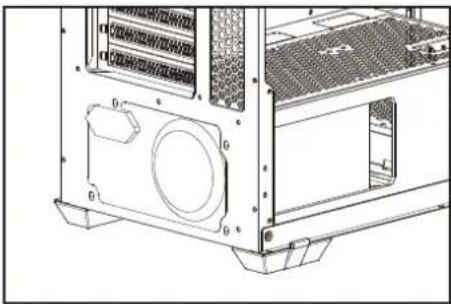

POWER SUPPLY INSTALLATION FAN LOCATIONS and RADIATOR COMPATIBILITY

Technical line drawing of a computer tower case with an external unit and cable, no text or symbols present

Technical line drawing of a server rack unit with mounting holes and ventilation slots (no text or symbols)

09

Technical line drawing of a computer tower case with internal compartments and ventilation slots (no text or labels)

Compatibility Chart: Fan
Location	Quantity
	140mm	120mm
Front	x2	x3
Top	x2	x2
Rear	—	x1
x2 Per installed Fars:XFG VENTO 120 at FrontXFG VENTO 120 ARCB at Rear

Technical line drawing of a computer case with visible internal components and ventilation slots (no text or labels)

Competitally Chel : Radiator
Radiator Size (mm)	Location
	Front	Top Roof
350	V
250	V	V	-
240	V	V	-
140	V	V	-
120	V	V	V

STORAGE LOCATIONS : 3.5" HDD and 2.5" HDD/SSD

10

DRIVES INSTALLATION INSTALLING COMBO STORAGE

Included Drive plate can install x1 3.5" HDD on top of PSU compartment, or x2 2.5" HDD/SSD at the back of the chassis.

STORAGE
3.5" HDD	2+1(Combo 3.5"/2.5")
2.5" HDD/SSD	2+1(Combo 3.5"/2.5")

.Support up to x2 2.5" HDD/SSD

- Secure the drives to the plate with screws

11

Place x2 3.5" HDD on the tray and beneath it, and secure both with screws.

Or

12

INSTALLING PCI-E CARD

Horizontal Installation Vertical Installation

Technical line drawing of a multi-chamber computer case with visible internal components (no text or labels)

Technical line drawing of a computer tower case showing internal components and ventilation duct (no text or labels)

INSTALLING PCI-E CARD : Horizontal

Technical line drawing of a computer tower case with internal compartments and ventilation slots (no text or labels)

Technical line drawing of a computer tower case showing internal partitioning (no text or labels)

13

INSTALLING PCI-E CARD : Vertical

Remove the pre-installed Horizontal VGA bracket, and replace it with the included Vertical bracket.

14

EN

CLEANING INSTRUCTIONS

Please use a clean damp cloth to clean the product properly.

Do not apply any soap or solvent agent on the surface to preserve its integrity.

SAFETY INSTRUCTIONS

For a proper use of the product, and to ensure your safety, please follow the following instructions:

1. Keep the device away from liquids, excess humidity or moisture to avoid any shock hazards. Should the device come into contact with liquids, please make sure to unplug the device immediately, store it in a dry place, and contact support for assistance.
2. Operate the device only within the specific temperature range of 0^ C ( 32^ F) to 40^ C ( 104^ F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
3. Should you have any other trouble operating the device properly and normal troubleshooting does not work, please unplug the device and contact our service for support.
4. Do not attempt to service or fix the device by yourself at any time.

DURATION OF WARRANTY

ADATA Technology Co., Ltd. provides a two-year warranty period for this product unless regional laws and regulations state otherwise.

LIMITATION OF WARRANTY

This limited warranty covers only repairs or replacements of products manufactured by ADATA Technology Co. Ltd. and its authorized partners. Please note that ADATA is responsible for providing free repairs except for the following reasons:

1. The warranty label is altered, damaged or missing.
2. Product serial number does not conform to our original system.
3. Products purchased from an unauthorized agent.

4. Damage caused by natural calamity

5. Any abuse outside the intended product operation.

ONLINE CUSTOMER SERVICE

For frequently asked questions, additional information and service instruction please visit the product page at www.xpg.com
