Operating Instructions

DVD/CD PLAYER

Model No. DVD-S52

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

If you have any questions contact

1-800-561-5505

Region number

The player plays DVD-Video marked with labels containing the region number "1" or "ALL".

Example:

Panasonic®

MULTI-FORMAT PLAYBACK

See page 4 for details

Illustration of a family watching television, with no visible text or symbols

AUDIO/VIDEO

DIGITAL VIDEO

COMPATIBLE
PLAYER

HIGH-DEFINITION MULTIMEDIA INTERFACE

The warranty can be found on page 27.

Table of contents

Getting started

IMPORTANT SAFETY INSTRUCTIONS....2

Accessories....3

Discs that can be played 4

STEP 1 Connection....6

STEP 2 The remote control ....8

STEP 3 QUICK SETUP ....8

Operations

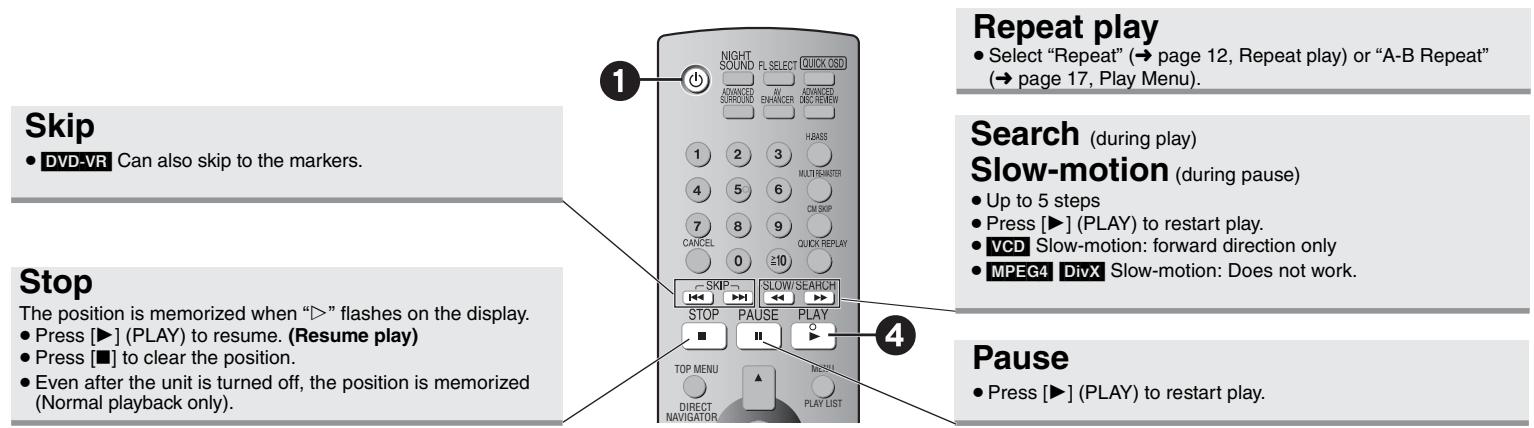

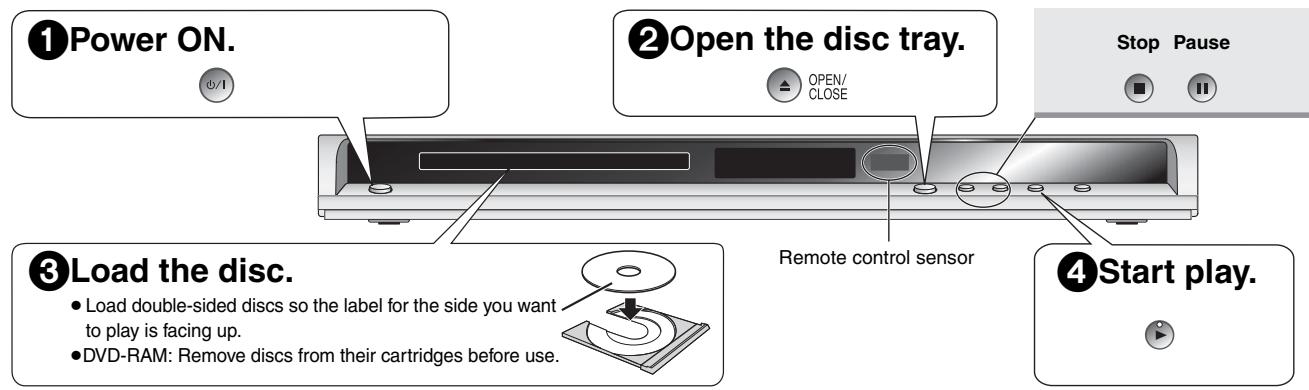

Basic play 9

Changing the play sequence....10

All group/Program/Random play....10

Convenient functions....11

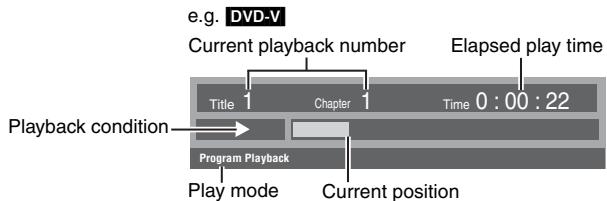

Displaying current playback condition (Quick OSD)/

Reviewing titles/programs to play (Advanced Disc Review)/

Recalling recommended audio/video setting (AV Enhancer)/

Controlling louder portions of audio (Night Sound Mode)/

Enjoying heavy bass with the speakers (H.Bass) 11

Enjoying virtual surround (Advanced Surround)/

Reproducing more natural audio (Multi Re-master)/

Repeat play/Quick replay/Skipping a minute forward/

Changing play speed 12

Changing subtitles/Changing soundtracks/Starting play from a selected group/

Zoom/Angle select/Still picture rotation/advance 13

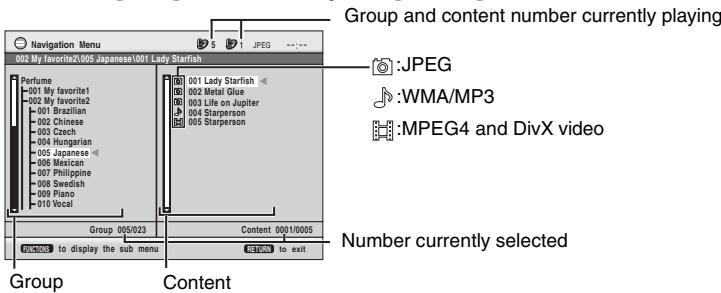

Using navigation menus ....14

Playing programs/playlist/Playing CD/Playing HighMAT™ discs .....14

Playing data discs....15

About DivX VOD content 16

Using On-Screen Menus 17

Main menus/Other Settings 17

Changing the player settings 20

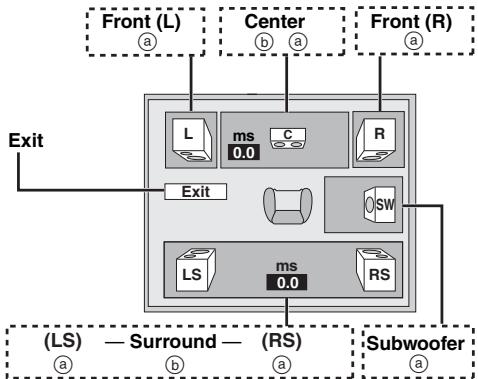

Changing the speaker setting to suit your speakers....22

Reference

Troubleshooting guide....23

Maintenance 25

Specifications/Glossary 26

Limited Warranty/Product Service 27

Index 28

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Accessories

To order accessories, call the dealer from whom you have made your purchase.

Use numbers when asking for replacement parts. (Product numbers correct as of February 2006.

These may be subject to change.)

□ 1 Remote control (EUR7631190R)
□ 2 Remote control batteries
□ 1 Audio/video cable (K2KA6BA00004)
☐ 1 AC power supply cord (K2CB2CB00020)

Note

For use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit.

User memo:

DATE OF PURCHASE ____

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

DVD-S52

SERIAL NUMBER

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable.

To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

Discs that can be played

Commercial discs

DiscLogo	Indicated in these instructions by	Remarks
DVD-Video[IMAGE]	DVD-V	High quality movie and music discs
DVD-Audio[IMAGE]	DVD-A	High fidelity music discs ^*1
Video CD[IMAGE]	VCD	Music discs with video Including SVCD (Conforming to IEC62107)
CD[IMAGE]	CD	Music discs ^*2

*1 Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video” (→ page 19, Other Menu).
^*2 This unit is compatible with HDCD ( page 26, Glossary), but does not support the Peak Extend function (a function which expands the dynamic range of high level signals). (During HDCD play, “HDCD” lights on the unit’s display.)

Regarding DVD-Audio

Some multi-channel DVD-Audio will prevent down-mixing ( page 26, Glossary) of all or part of their contents if this is the manufacturer's intention. When playing such discs, or such parts of the disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly (e.g. part of the audio is missing, multi-channel audio cannot be selected and audio is played in two channels). Refer to the disc's jacket for more information.

Recorded discs (Yes: Available, No: Not available)

DiscLogo	Recorded on a DVD video recorder, etc.		Recorded on a personal computer, etc.					Necessity of finalize*6
	DVD-VR *2	DVD-V *4	WMA	MP3	JPEG	MPEG4	DivX
DVD-RAMRAM4.7	Yes	—	No	Yes	Yes	Yes	Yes	Not necessary
DVD-R/RWDVD R DVD R WR4.7	Yes	Yes	No	Yes	Yes	Yes	Yes	Necessary
DVD-R DLDR DL	Yes*3	Yes	No	No	No	No	No	Necessary
+R/+RW—	No	(Yes)*5	No	No	No	No	No	Necessary
+R DL—	No	(Yes)*5	No	No	No	No	No	Necessary
CD-R/RW*1—	—	—	Yes	Yes	Yes	Yes	Yes	Necessary*7

• It may not be possible to play the above discs in all cases due to the type of discs, the condition of the recording, the recording method and how the files were created (→ page 5, Tips for making data discs).
  ※1 This unit can play CD-R/RW recorded with CD-DA or Video CD format.
  WMA MP3 JPEG This unit also plays HighMAT discs.
  ^2 Discs recorded on DVD video recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unified video recording standard).
  *3 Discs recorded on DVD video recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unified video recording standard).
  ※4 Discs recorded on DVD video recorders or DVD video cameras using DVD-Video Format.
  ※5 Recorded using a format different from DVD-Video Format, therefore some functions cannot be used.
  ^6 A process that allows play on compatible equipment. To play a disc that is displayed as “Necessary” on this unit, the disc must first be finalized on the device it was recorded on.
  ^*7 Closing the session will also work.

■ Tips for making data discs

Format	Disc	Extension	Reference
WMA	CD-R/RW	“.WMA”“.wma”	Compatible compression rate: between 48 kbps and 320 kbpsYou cannot play WMA files that are copy protected.This unit is not compatible with Multiple Bit Rate (MBR: a file that contains the same content encoded at several different bit rates).
MP3	DVD-RAMDVD-R/RWCD-R/RW	“.MP3”“.mp3”	Sampling frequency: DVD-RAM, DVD-R/RW :11.02, 12, 22.05, 24, 44.1 and 48 kHzCD-R/RW :8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48 kHzCompatible compression rate: between 32 kbps and 320 kbpsThis unit is not compatible with ID3 tags.
JPEG	DVD-RAMDVD-R/RWCD-R/RW	“.JPG”“.jpg”“.JPEG”“.jpeg”	JPEG files taken on a digital camera that conform to DCF Standard Version 1.0 are displayed.- Files that have been altered, edited or saved with computer picture editing software may not be displayed.This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures other than JPEG (e.g. TIFF) or play pictures with attached audio.
MPEG4	DVD-RAMDVD-R/RWCD-R/RW	“.ASF”“.asf”	You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system] recorded with the Panasonic SD multi cameras or DVD video recorders with this unit.The recording date may differ from that of the actual date.
DivX	DVD-RAMDVD-R/RWCD-R/RW	“.DIVX”“.divx”“.AVI”“.avi”	Plays all versions of DivX video (including DivX® 6) [DivX video system/MP3, Dolby Digital or MPEG audio system] with standard playback of DivX® media files.Functions added with DivX Ultra are not supported.GMC (Global Motion Compensation) is not supported.DivX files greater than 2GB or have no index may not play properly on this unit.This unit supports all resolutions up to maximum of 720 ×480 .You can select up to 8 types of audio and subtitles on this unit.

- If groups were created away from the root like “002 group” in the illustration right, the eighth one onwards is displayed on the same vertical line in the menu screen.

● There may be differences in the display order on the menu screen and computer screen.

●This unit cannot play files recorded using packet write.

Naming folders and files (Files are treated as contents and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of digits, and should be done in the order you want to play them (this may not work at times).

DVD-RAM

- Discs must conform to UDF 2.0.

DVD-R/RW

• Discs must conform to UDF bridge (UDF 1.02/ISO9660).
• This unit is not compatible with multi-session. The default session only is played.

e.g. MP3
root

CD-R/RW

• Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
• This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

■ Discs that cannot be played

Version 1.0 of DVD-RW, DVD-ROM, CD-ROM, CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be removed from their cartridges, 2.6-GB and 5.2-GB DVD-RAM, PAL discs ^® and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

*You can play DVD-Audio; however, still pictures may be displayed enlarged.

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.

■ Handling precautions

• Do not attach labels or stickers to discs (This may cause disc warping, rendering it unusable).
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.
• Do not use the following discs:
  – Discs with exposed adhesive from removed stickers or labels (rented discs etc).
  – Discs that are badly warped or cracked.
  – Irregularly shaped discs, such as heart shapes.

STEP 1 Connection

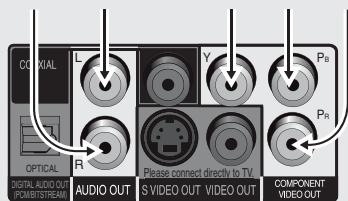

■ Connection to a television

• Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.
• Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not display properly.
• Turn off all equipment before connection and read the appropriate operating instructions.
• Connect the terminals of the same color.

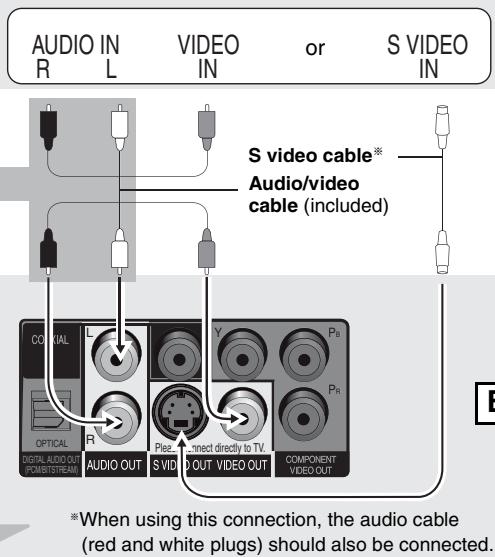

With VIDEO IN or S VIDEO IN

AUDIO IN R L VIDEO IN or S VIDEO IN S video cable* Audio/video cable (included) OPTICAL DIGITAL AUDIO OUT (ICOMBISTSTREAM) AUDIO OUT PIEC S VIDEO OUT Connect directly to TV VIDEO OUT COMPONENT VIDEO OUT *When using this connection, the audio cable (red and white plugs) should also be connected.

You can connect the audio cable to the 2-channel audio input terminals of an analog amplifier or system component to enjoy stereo sound.

Television
Back of the unit
With COMPONENT VIDEO IN
Audio/video cable (included)
AUDIO IN R L
COMPONENT VIDEO IN

Not used

Video cables

OPTICAL DIGITAL AUDIO OUT COMBISTSTREAM AUDIO OUT S VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT Please connect directly to TV

Select "Darker" from the "Black Level Control" ( page 20, "Video" tab).

To enjoy progressive video

Connect to a progressive output compatible television.

Set "Video Output Mode" to "480p", then follow the instructions on the menu screen ( page 18, Picture Menu).

All Panasonic televisions with 480p input connectors are compatible. Consult the manufacturer if you have another brand of television.

■ Enjoying higher quality audio and video (HDMI connection) (→ Page 26, Glossary)

By connecting to an HDMI compatible high-definition television, video recordings can be converted to, and output as, high-definition video (720p,1080i).

You can also enjoy multi-channel surround sound by connecting to an HDMI compatible amplifier with multi-channel output terminals.

With HDMI compatible television

To enjoy digital high-definition video and high quality audio with a single cable.

- You can enjoy multi-channel surround sound by connecting an amplifier with COAXIAL or OPTICAL terminal (→ page 8).

Television HDMI IN HDMI cable HDMI AV OUT

Back of the unit

- Set "Video Output" to "On" and "Audio Output" to "On" (→ page 21, "HDMI" tab).

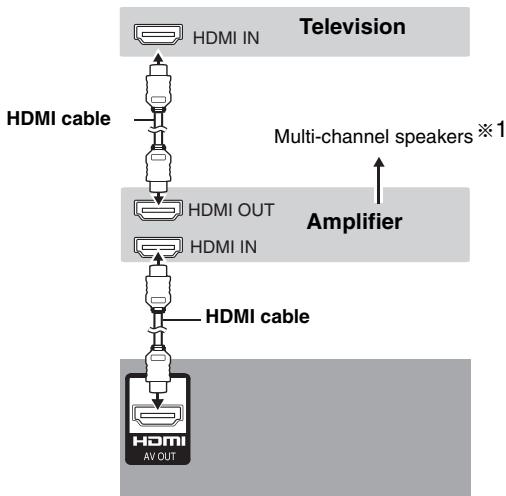

With HDMI compatible television and amplifier

To enjoy digital multi-channel surround sound in addition to digital high-definition video.

Back of the unit

- Set “Video Output” to “On” and “Audio Output” to “On” (→ page 21, “HDMI” tab).

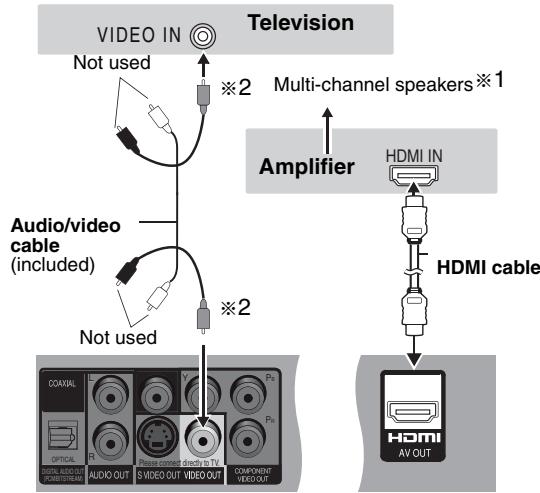

With HDMI compatible amplifier

You can still enjoy multi-channel surround sound when your television is not HDMI compatible by connecting an HDMI compatible amplifier.

Back of the unit

- Set “Audio Output” to “On”. When you connect to a television through the COMPONENT VIDEO terminal only, set “Video Output” to “Off”, too (→ page 21, “HDMI” tab).

※1 DVD-V Audio will be output in 2 channels when output as PCM.

Change “Dolby Digital” and “DTS Digital Surround” ( page 21, “Audio” tab).

※2You can also use the S VIDEO and COMPONENT VIDEO terminals.

• To enjoy high-definition video, connect to an HDMI compatible high-definition television and set “Video Output Mode” (→ page 18, Picture Menu).
• For stable operation and preventing deterioration of video quality, please purchase an HDMI cable 5 m (16 ^2/5 feet) or less in length with the HDMI logo.
• If the speaker setup cannot be completed on the amplifier, then use the "Speaker Settings" setting (→ page 21, "HDMI" tab).
• It is not compatible with the HDMI Control Function (CEC).
• Should you connect equipment that does not support CPPM ( page 26, Glossary), the audio from the CPPM copy protected DVD-Audio cannot be output from HDMI AV OUT terminal. Connect the audio cable (L, R) of the Audio/Video cable to an HDMI compatible AUDIO IN terminal.

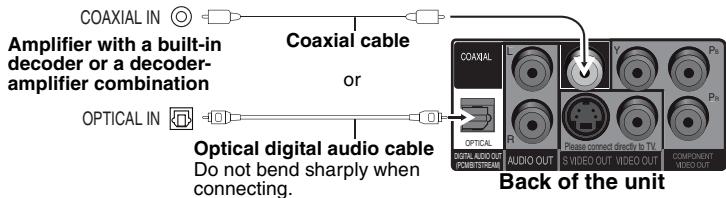

■ Enjoying multi-channel surround sound with COAXIAL IN or OPTICAL IN

COAXIAL IN Amplifier with a built-in decoder or a decoder-amplifier combination OPTICAL IN Coaxial cable or Optical digital audio cable Do not bend sharply when connecting. Back of the unit

• You cannot use DTS Digital Surround decoders not suited to DVD.
• Even if using this connection, output will be only 2 channels when playing DVD-Audio.
  To enjoy multi-channel surround sound, connect with HDMI terminals ( page 7).

Set “Audio Output” to “Off” ( page 21, “HDMI” tab), and change “PCM Digital Output”, “Dolby Digital” and “DTS Digital Surround” ( page 21, “Audio” tab).

■ Connect the AC power supply cord last

AC power supply cord (included) AC IN~

To household AC outlet (AC 120 V, 60 Hz)

Conserving power

This unit consumes a small amount of power even when it is turned off (1 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.

STEP 2 The remote control

■ Batteries

R6/LR6, AA

• Insert so the poles (+ and −) match those in the remote control.
• Do not use rechargeable type batteries.

Do not:

• mix old and new batteries.
• use different types at the same time.
• heat or expose to flame.
• take apart or short circuit.
• attempt to recharge alkaline or manganese batteries.
• use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Use

Aim at the remote control sensor ( page 9), avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

STEP 3 QUICK SETUP

MIGHT SOUND PL SELECT BACK/RESET OFFICE REFERENCE REFERENCE CHECK/RESET BASE TOP MENU DIRECT NAVIGATOR ENTER MENU PLAY LIST FUNCTIONS RETURN SUBTITLE AUDIO WELT PAGE SETUP PLAY MODE PLAY SPEED ZOOM GROUP

Turn on the television and select the appropriate video input on the television.

1

Power ON.

2

Shows QUICK SETUP screen.

3

Follow the message and make the settings.

4

Press to finish QUICK SETUP.

5

Press to exit.

Basic play

①Power ON. ②Open the disc tray. Stop Pause ③Load the disc. • Load double-sided discs so the label for the side you want to play is facing up. • DVD-RAM: Remove discs from their cartridges before use. Remote control sensor ④Start play.

Skip • DVD-VR Can also skip to the markers. Stop The position is memorized when "▶" flashes on the display. • Press [▶] (PLAY) to resume. (Resume play) • Press [■] to clear the position. • Even after the unit is turned off, the position is memorized (Normal playback only). 1 NIGHT SOUND FL SELECT QUICK OSD ADVANCED SURROUND IN ENHANCER ADVANCED INC REVIEW 1 2 3 HJASS 4 5 6 MULTI-REMASTER 7 8 9 CM SKIP CANCEL 0 ≥10 QUICK REPLAY SKIP SLOW/SEARCH STOP PAUSE PLAY TOP MENU RESULT DIRECT NAVIGATOR PLAY LIST Repeat play • Select "Repeat" (→ page 12, Repeat play) or "A-B Repeat" (→ page 17, Play Menu). Search (during play) Slow-motion (during pause) • Up to 5 steps • Press [▶] (PLAY) to restart play. • VCD Slow-motion: forward direction only • MPEG4 DivX Slow-motion: Does not work. Pause • Press [▶] (PLAY) to restart play.

Standby/on switch (⏻/l)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

• To play MP3, JPEG, MPEG4 or DivX contents on DVD-RAM that contain both DVD-VR and another format (e.g. JPEG), select "Play as Data Disc" (→ Page 19, Other Menu).
• “D.MIX” on the display indicates that a soundtrack with three or more channels can be down-mixed to two channels ( Page 26, Glossary).
• Discs continue to rotate while menus are displayed. Press [■] when you finish to preserve the unit's motor and your television screen.
• Total title number may not be displayed properly on +R/+RW.

Basic play

Group skip WMA MP3 JPEG MPEG4 DivX		Does not work while paused.
Frame-by-frame (during pause) DVD-VR DVD-V VCD		VCD forward direction only
On-screen item select	Select Register	Return to previous screen	RETURN
Enter number	1 2 3 4 5 6 7 8 9 0 30	DVD-VR DVD-A DVD-V VCD CDE.g. To select 12: [≥10] → [1] → [2] WMA MP3 JPEG MPEG4 DivXe.g. To select 123: [1] → [2] → [3] → [ENTER]
Disc menu	TOP MENU DIRECT NAVIGATOR	DVD-A DVD-VShows a disc top menu. DVD-VRPlays the programs (→ page 14). WMA MP3 JPEG MPEG4 DivXPlays data discs (→ page 15).
	MENU PLAY LIST	DVD-VShows a disc menu. DVD-VRPlays a playlist (→ page 14). WMA MP3 JPEG MPEG4 DivXPlays data discs (→ page 15).
	RETURN	VCD with playback controlShows a disc menu.
Main unit display	FL SELECT	Number display↑↓Time display	Information screen JPEG	SUBTITLE

Changing the play sequence

PLAY MODE

All group/Program/Random play Except DVD-VR

Disable HighMAT disc play to use random and program play. Select "Play as Data Disc" in Other Menu ( page 19).

■ All group play DVD-A

1 While stopped, press [PLAY MODE] several times.
2 Press [▶] (PLAY).

■ Program play (up to 32 items)

1 While stopped, press [PLAY MODE] several times.
2 Press the numbered buttons to select the items ( left, Enter number).

Repeat this step to program other items.

3 Press [▶] (PLAY).

Selecting all the items (on the disc or in the title or group)

Press [ENTER] and [▲▼] to select "ALL", then press [ENTER] again to register.

e.g. DVD-V Choose a title and chapter. No. Title Chapter Time 1 Play Clear Clear all

Changing the program

Press [▲ ▼] to select an item.

-To change an item, repeat step 2.
-To clear an item, press [CANCEL] (or select "Clear" and press [ENTER]).
- Press [ANGLE/PAGE] to skip page by page.

Clearing the whole program

Select “Clear all” and press [ENTER]. The whole program is also cleared when the unit is turned off or the disc tray is opened.

■ Random play

1 While stopped, press [PLAY MODE] several times.
2 DVD-A DVD-V WMA MP3 JPEG MPEG4 DivX

Press the numbered buttons to select a group or a title ( left, Enter number).

3 Press [▶] (PLAY).

Random Playback Choose a title. Title 1 ▲▼0 ~ 9 to select PLAY to start

To exit the all group, program or random mode

Press [PLAY MODE] several times while stopped.

Convenient functions

QUICK OSD	QUICK OSD(Main unit)	Displaying current playback condition
		Quick OSD

Press [QUICK OSD].

Basics → Details

Basics

e.g. DVD-V Current playback number Elapsed play time Title 1 Chapter 1 Time 0:00:22 Playback condition Program Playback Play mode Current position

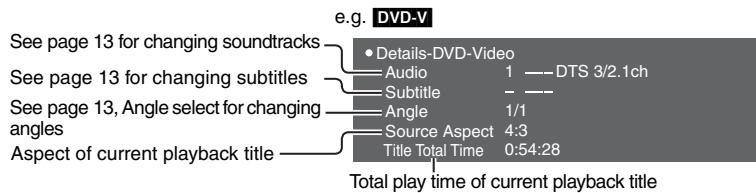

Details

e.g. DVD-V See page 13 for changing soundtracks • Details-DVD-Video Audio 1 —— DTS 3/2.1ch Subtitle —— Angle 1/1 Source Aspect 4:3 Title Total Time 0:54:28 See page 13 for changing subtitles See page 13, Angle select for changing angles Aspect of current playback title Total play time of current playback title

- MPEG4 DivX "Video" and "Audio" information is not displayed during search.

ADVANCEDDISC REVIEW

Reviewing titles/programs to play Advanced Disc ReviewDVD-VR DVD-V (Except +R/+RW)(Normal playback only)

1 Press [ADVANCED DISC REVIEW].

Reviews each title/program.

2 Press [▶] (PLAY) when you find a title/program to play.

• You can also review each 10 minutes. Select “Interval Mode” ( page 20, “Advanced Disc Review” in “Disc” tab).
• This may not work depending on the play position.
  • DVD-VR Does not work:
  – with still picture part.
  – when playing a playlist.

Time 1 Chapter 1 Time 0 : 00 : 22

AV ENHANCER

Recalling recommended audio/video settingAV Enhancer

By pressing just one button the disc type is automatically determined and the best audio and video settings are configured.

Press [AV ENHANCER] to select "Auto", "User1", "User2" or "User3".

Off: Cancelled

Auto: The best audio and video settings are configured.

User1*: Suitable for video (DVD-V).

User2*: Suitable for music.

User3*: Suitable for video (DVD-VR).

*You can change the settings for User1–3 to your preference ( page 19, “AV Enhancer” in Other Menu).

When AV Enhancer(Auto) is on, you cannot change the individual settings indicated below.

Audio settings:

Night Sound Mode, H.Bass ( below), Multi Re-master, Advanced Surround ( page 12), Dialogue Enhancer( page 18), Sound Enhancement ( page 19)

Video settings:

Picture Mode ( page 18)

This may not work depending on the disc's recording.

NIGHT SOUND

Controlling louder portions of audioExcept JPEG MPEG4 DivX Night Sound Mode

You can enjoy movies and music late at night because the quieter parts of the audio are accentuated.

Press [NIGHT SOUND] to select "On".

Functions Night Sound Mode On

• This may not work depending on the disc's recording.
• This does not work with MP3 on DVD-RAM or DVD-R/RW.

H.BASS	Enjoying heavy bass with the speakers
	DVD-V	H.Bass

Press [H.BASS] to select "On".

• This is effective on 5.1 channel DVD video discs.
  This is also effective on some portions of 2 channel discs as well.
• This may not work depending on the disc's recording.
• If the sound is distorted or there is noise, set to "Off".
• This does not work when Night Sound Mode (→ above) is on.

ADVANCED SURROUND

Enjoying virtual surround Advanced SurroundMotion pictures with 2 or more channels

Press [ADVANCED SURROUND] to select "SP 1", "SP 2", "HP 1" or "HP 2".

Functions

Advanced Surround SP1

SP (Speaker) 1 (Natural) SP 2 (Enhanced) HP (Headphone) 1 (Natural) HP 2 (Enhanced) Off

• When using discs recorded with surround sound, sound seems to come from speakers on either side of you.
• When using headphones from the connected equipment, select "HP 1" or "HP 2".
• Optimum seating position is 3 to 4 times the distance between the front left and right speakers or the width of the television if using the television's speakers.
• Do not use in combination with surround effects on other equipment.
• This does not work when Night Sound Mode or H.Bass (→ page 11) is on.

MULTI RE-MASTER

Reproducing more natural audio

Multi Re-master

DVD-VR DVD-V (Discs recorded with 48 kHz only)

DVD-A (Discs recorded with 44.1 kHz and 48 kHz only)

VCD CD

• During multi-channel output of these discs, this feature reproduces the frequencies lost during recording to give you a sound closer to the original.
• During 2 ch output of these discs, this feature gives you a more natural sound by adding the higher frequency signals not recorded on the disc, for example, playing DVD-Video recorded with 48 kHz at 96 kHz. (→ page 26, “Sampling frequency” in Glossary)

WMA MP3 (Disc recording is other than 8 kHz, 16 kHz, 32 kHz)

This feature reproduces the higher frequencies lost during recording to give you a sound closer to the original.

Press [MULTI RE-MASTER] to select "1", "2" or "3".

Setting	DVD-A DVD-V CD (LPCM/PPCM)Type of music	Other discsEffect level
1	High tempo (e.g., pop and rock)	Light
2	Various tempos (e.g., jazz)	Medium
3	Low tempo (e.g., classical)	Strong
Off	Off	Off

• When connecting with DIGITAL AUDIO OUT terminal, the actual output sampling frequency depends on “PCM Digital Output” setting in “Audio” tab ( page 21).
• This may not work depending on the disc's recording.
• This does not work when Night Sound Mode, H.Bass ( page 11) or Advanced Surround ( above) is on.
• This does not work with MP3 on DVD-RAM or DVD-R/RW.

FUNCTIONS

Repeat play(Only when the elapsed play time can be displayedJPEG: you can use even if there is no elapsed time display.)

1 Press [FUNCTIONS].
2 Press [▲▼] to select "Other Settings" and press [▶].
3 Press [▲ ▼] to select "Play Menu" and press [▶].
4 Press [▲ ▼] to select "Repeat" and press [▶].
5 Press [▲▼] to select an item to be repeated and press [ENTER].

- Depending on the disc, the items that can be selected will differ.

QUICK REPLAY	Quick replay (Only when the elapsed play time can be displayed)
	DVD-A DVD-VR DVD-V WMA MP3 VCD CD

Press [QUICK REPLAY] to skip back a few seconds.

• This may not work depending on the disc's recording.
• This does not work with +R/+RW.

CM SKIP

Skipping a minute forwardDVD-VR DVD-V (Except +R/+RW)

Convenient when you want to skip commercials etc. During play, press [CM SKIP].

• This may not work depending on the play position.
• DVD-VR Does not work:
• with still picture part.
• when playing a playlist

PLAY SPEED

Changing play speed DVD-VR DVD-V

During play, press [PLAY SPEED] to select "Fast", "Normal" or "Slow".

Fine adjustments

While the menu is displayed Press [◀▶] to increase or decrease the playing speed from ×0.6 to ×1.4 in 0.1 units.

Functions Play Speed x1.4

• Press [▶] (PLAY) to return to the normal play.
• After you change the speed
  – Night Sound Mode, H.Bass ( page 11), Advanced Surround ( left), Multi Remaster ( left) and Sound Enhancement ( page 19) do not work.
• When using this function, digital audio output switches to PCM-2 ch.
• 96 kHz sampling frequency is converted to 48 kHz.
• This may not work depending on the disc's recording.

SUBTITLE

Changing subtitlesDiscs with subtitles

DVD-V DivX

Press [SUBTITLE] to select the subtitle language.

To clear/display the subtitles

Press [◀▶] to select "On" or "Off".

- On +R/+RW, a subtitle number may be shown for subtitles that are not displayed.

DVD-VR (with subtitle on/off information)

Press [SUBTITLE] to select "On" or "Off".

• On or Off only can be selected.
• Subtitle on/off information cannot be recorded using Panasonic DVD Recorders.

AUDIO	Changing soundtracks
	DVD-A	DVD-V	DivX (with multiple soundtracks)
	DVD-VR	VCD

Press [AUDIO] to select the soundtrack.

DVD-VR VCD

You can use this button to select "L", "R" or "LR".

DivX

While the menu is displayed

Press [◀▶] to select "L", "R" or "LR".

DVD-V (Karaoke discs)

While the menu is displayed

Press [◀▶] to select “On” or “Off” of vocals. Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/□□ Digital/DTS/MP3/MPEG: Signal type

kHz (Sampling frequency)/bit/ch (Number of channels)

Example: 3/2 .1ch

1: Low frequency effect (not displayed if there is no signal)
0: No surround
1: Mono surround
2: Stereo surround (left/right)
1: Center
2: Front left+Front right
3: Front left+Front right+Center

- DivX It may take some time for play to start if you change the audio on a DivX video disc.

GROUP	Starting play from a selected group
	DVD-A	WMA	MP3	JPEG	MPEG4	DivX

A folder on WMA/MP3, JPEG, MPEG4 and DivX video discs is treated as a "Group".

1 While stopped, press [GROUP].
2 Press [▲▼] or the numbered buttons to select a group and press [ENTER].

- DVD-A To play all groups (→ page 10, All group play)

ZOOM	ZoomMotion pictures

This feature expands a letterbox picture to fit the screen.

Press [ZOOM] to select the preset aspect ratio or "Auto". (Just Fit Zoom)

DVD-VR DVD-V VCD

Auto → 4:3 Standard → European Vista → 16:9 Standard ↑ Cinemascope2 ←— Cinemascope1 ←— American Vista

- Depending on the disc, the preset aspect ratio may not be displayed.

MPEG4 DivX

Standard → Original ↑ Full ←

Fine adjustments (Manual Zoom)

Press [◀▶] while the menu is displayed. (Press and hold to alter faster.)

-from ×1.00 to ×1.60 (in 0.01 units), from ×1.60 to ×2.00 (in 0.02 units)

MPEG4 DivX only

-from ×2.00 to ×4.00 (in 0.05 units)

- It may not be possible to zoom up to × 4.00 depending upon the connected television and its settings.

ANGLE/PAGE

Angle select DVD-V with multiple anglesStill picture rotation JPEG /advance DVD-A

Press [ANGLE/PAGE] to select the angle or rotate/advance the still picture.

e.g. DVD-V

Using navigation menus

DIRECT NAVIGATOR PLAY LIST

Playing programs/playlistSDVD-VR

• Titles appear only if they have been entered.
• You cannot edit playlists and titles.

Playing the programs

1 Press [DIRECT NAVIGATOR].
2 Press [▲ ▼] or the numbered buttons to select the program.

• Press [ANGLE/PAGE] to skip page by page.
• To select a 2-digit number

$$ \text { e.g. 23: } [ \geq 1 0 ] \rightarrow [ 2 ] \rightarrow [ 3 ] $$

- Press [▶] to show the contents of the program.

3 Press [ENTER].

Direct Navigator No. Date On Title Contents 1 1/1 (WED) 0:05 AM Monday feature 2 1/1 (MON) 1:05 PM Auto action 3 2/2 (TUE) 2:21 PM Cinema 4 3/3 (WED) 3:37 PM Music 5 4/10 (THU) 11:05 AM Baseball ▼ 8 - 1 to select 返回 to exit

Playing a playlist (Only when the disc contains a playlist)

1 Press [PLAY LIST].
2 Press [▲ ▼] or the numbered buttons to select the play list.

• Press [ANGLE/PAGE] to skip page by page.
  ●To select a 2-digit number

$$ e. g. 2 3: [ \geq 1 0 ] \rightarrow [ 2 ] \rightarrow [ 3 ] $$

3 Press [ENTER].

Playlist No. Date Total Time Title Contents 1 1/1 0:00:01 City Penguin 2 1/1 0:01:20 Ashley at Prom 3 2/2 1:10:04 Formula one 4 3/3 0:10:20 Soccer 5 4/10 0:00:01 Baseball ▼①→② to select and press ALTER CREATE to exit

Playing a scene

1 Do steps 1–2 ( above, Playing a playlist).
2 Press [▶].
3 Press [▲▼] to select "Scene List" and press [ENTER].

- Select "Contents" to show the contents of the program.

4 Press [▲▼◀▶] to select a scene and press [ENTER].

MENU	Playing CD CD

Titles appear with CD text playback.

1 Press [MENU].
2 Press [▲ ▼] to select the track and press [ENTER].

- Press [ANGLE/PAGE] to skip page by page.

- To exit the screen, press [MENU].

e.g. CD text

CD Text Disc Title: All By Artist Disc Artist: Pink Island Track Title: Ashley at From Track Artist: Spectral/CECD 1. 3. Ashley at From 2. Off-By Artist 3. Foren one 4. Soccer 5. Baseball 6. Nonverbal 7. Carbons 8. Tensions 9. White Drout 10. Discovery AV to select and press 注释: 关闭到: exit

Press [FUNCTIONS] to switch between guide messages and the playback condition indicator.

TOP MENU MENU

Playing HighMATTM discs WMA MP3 JPEG

While the menu is displayed

Press [▲ ▼ ◀ ▶] to select items then press [ENTER].

Menu:

Takes you to the next menu which shows playlists or another menu.

Playlist:

Play starts.

• To return to the menu screen, press [TOP MENU] then press [RETURN] several times.
• To change the menu background, press [FUNCTIONS].

The background changes to the one recorded on the disc.

- To display/exit the screen, press [TOP MENU].

Selecting from the list

1 Press [MENU].
2 Press [◀] then [▲ ▼] to switch among "Playlist", "Group" and "Content" lists.
3 Press [▶] then [▲ ▼] to select an item and press [ENTER].

• Press [ANGLE/PAGE] to skip page by page.
• To exit the screen, press [MENU].

Playlist All By Artist Pink Island No. Content title 1 Few times in summer 2 Less and less 3 And when I was born 4 Quite gymnasprizes 5 You've made me sad 6 I can't quit him 7 Evening glory 8 Wheeling spin 9 Velvet Cappermint 10 Ziggs starfish *+ - 8 - 9 to select ENTER to play

TOP MENU

MENU

Playing data discs WMA MP3 JPEG MPEG4 DivX

Select "Play as Data Disc" ( page 19, Other Menu) in the following cases:

-To play HighMAT discs without using the HighMAT function
-To play MP3, JPEG, MPEG4 or DivX on DVD-RAM that contain both DVD-VR and another format (e.g. JPEG)

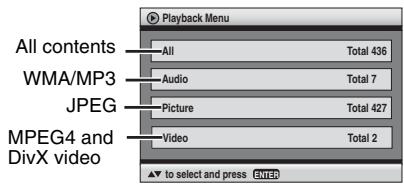

Playing items in order (Playback Menu)

While the menu is displayed Press [▲ ▼] to select

"All", "Audio", "Picture" or "Video" and press [ENTER].

- To display/exit the screen, press [TOP MENU].

Playback Menu All contents All Total 436 WMA/MP3 Audio Total 7 JPEG Picture Total 427 MPEG4 and DivX video Video Total 2 to select and press

Playing from the selected item (Navigation Menu)

1 Press [MENU].
2 Press [▲ ▼ ◀ ▶] to select the group and press [ENTER].
3 ●To play content in the group in order Press [ENTER].
- To start play from the selected content Press [▲ ▼] to select and press [ENTER].

Navigation Menu 002 My favorite2:005 Japanese\001 Lady Starfish Perfume 001 My favorite1 002 My favorite2 001 Brazilian 002 Chinese 003 Czech 004 Hungarian 005 Japanese 006 Mexican 007 Philippine 008 Swedish 009 Piano 010 Vocal Group 005/023 Content 0001/0005 #N/C#N to display the sub menu JPEG JPEG WMA/MP3 MPEG4 and DivX video Number currently selected Content to exit

• Press [ANGLE/PAGE] to skip page by page.
• To listen to WMA/MP3 while showing a JPEG image on the screen Select a JPEG first, and then select WMA/MP3.

(The opposite order is not effective.)

- To exit the screen, press [MENU].

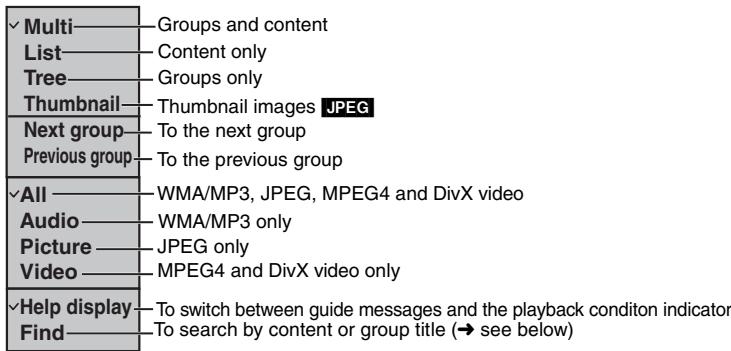

■ Using the submenu

1 Press [MENU].
2 Press [FUNCTIONS].
3 Press [▲▼] to select an item and press [ENTER].

✓ Multi——Groups and content List——Content only Tree——Groups only Thumbnail——Thumbnail images JPEG Next group——To the next group Previous group——To the previous group ✓ All——WMA/MP3, JPEG, MPEG4 and DivX video Audio——WMA/MP3 only Picture——JPEG only Video——MPEG4 and DivX video only ✓ Help display——To switch between guide messages and the playback condition indicator Find——To search by content or group title (→ see below)

■ Searching by a content or group title

1 Press [MENU].
- Press [◀▶] to highlight a group title to search a group, or a content title to search its content.
2 Press [FUNCTIONS].
3 Press [▲ ▼] to select "Find" and press [ENTER].
4 Press [▲▼] to select a character and press [ENTER].

• Repeat to enter another character.
• Lower case is also searched.
• Press [◀◀▶▶] to skip between A, E, I, O and U.
• Press [◀] to erase a character.
• Erase the asterisk (*) to search for the titles starting with that character.

5 Press [▶] to select "Find" and press [ENTER].

The search result screen appears.

6 Press [▲▼] to select the content or group and press [ENTER].

About DivX VOD content

DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit.

Follow the on line instructions for purchasing DivX VOD content to enter the unit's registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod.

Display the unit's registration code

(→ page 21, "DivX Registration" in "Others" tab)

Setup DivX Registration DivX Video-on-Demand Your registration code is XXXXXXXXX To learn more visit www.divx.com/vod Press ENTER to continue

8 alphanumeric characters

• We recommend that you make a note of this code for future reference.
• After playing DivX VOD content for the first time, another registration code is then displayed in “DivX Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no longer be able to play any content that you purchased using the previous code.
• If you purchase DivX VOD content using a registration code different from this unit's code, you will not be able to play this content. ("Authorization Error" is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. (“Rental Expired” is displayed.)

When playing this content

• The number of remaining plays is reduced by one if –you press [⏻] or [SETUP].
  -you press [■] (STOP). [Press [■■] (PAUSE) to stop play.]
  -you press [◀◀ ▶▶] (SKIP) or [◀◀ ▶▶] (SEARCH) etc. and arrive at another content or the start of the content being played.
  Resume ( page 9, Stop) and Marker ( page 17, Play Menu) functions do not work.

Official DivX® Certified product.

Plays all versions of DivX ^® video (including DivX ^® 6) with standard playback of DivX ^® media files.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS 2.0 + Digital Out” are trademarks of Digital Theater Systems, Inc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

This product is licensed under the MPEG-4 Visual patent portfolio license for the personal and non-commercial use of a consumer for (i) encoding video in compliance with the MPEG-4 Visual Standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed by MPEG LA to provide MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information including that relating to promotional, internal and commercial uses and licensing may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

HighMAT ^™ and the HighMAT logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

HDCD

, HDCD ^ , High Definition Compatible Digital ^ and Pacific Microsonics ^TM

are either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries.

HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following: In the USA : 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311, 5,872,531, and in Australia: 669114, with other patents pending.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Using On-Screen Menus

1

FUNCTIONS

Press.

2

Select the menu.

3

Select ENTER Register ① ② ③ ④ ⑤⑥ ⑦ ⑧ ⑨ ⑩ Ⓛ10

Make the settings.

4

RETURN

Press to exit.

Items shown differ depending on the type of software.

Main menus

Program, Group, Title Chapter, Track Playlist, Content		To start from a specific item• Press [▲▼] to select and press [ENTER].• Press and hold [▲▼] to alter faster.
Time	To skip incrementally or decrementally* (Time Slip for play only)1. Press [ENTER] twice to show Time Slip indicator.2. Press [▲▼] to select the time and press [ENTER].•Press and hold [▲▼] to alter faster.To start from a specific time* (Time Search)To change remaining/elapsed time display
Video	To display pixel number.DivX fps (frame per second) is also displayed.
Audio	(→ page 13, Changing soundtracks)
	To display the current bitrate or sampling frequency
Still Picture	To switch still picture
Thumbnail	To show thumbnail images
Subtitle	(→ page 13, Changing subtitles)
Marker (VR)	To recall a marker recorded on DVD-Video recorders
Angle	(→ page 13, Angle select)
Rotate Picture	(→ page 13, Still picture rotation)
Slideshow	To turn on/off slideshowTo change the slideshow timing (1 Fast ↔ 5 Slow)• When using Slideshow, Skip/Rotate picture may not work correctly depending on the play position.
Other Settings	(→ right)

* Except +R/+RW

Other Settings

Play Speed	(→ page 12, Changing play speed)
■ Play Menu(Only when the elapsed play time can be displayed, JPEG The Repeat and Marker functions can be used.)
Repeat	(→ page 12, Repeat play)
A-B Repeat	To repeat a specified sectionPress [ENTER] at the starting and ending points.Press [ENTER] again to cancel.•DVD-VR(still picture part): Does not work.
Marker Except DVD-VR	To mark up to 5 positions to play againPress [ENTER] (The unit is now ready to accept markers.)To mark a position: [ENTER] (at the desired point)To mark another position:[◀▶] to select “*”→ [ENTER]To recall a marker: [◀▶] → [ENTER]To erase a marker: [◀▶] → [CANCEL]• This feature doesn’t work during program and random play.• Markers you add clear when you open the disc tray or switch the unit to standby.
Advanced Disc Review	(→ page 11)

■ Picture Menu

Picture Mode	Normal: Normal imagesCinema1: Mellows images and enhances detail in dark scenes.Cinema2: Sharpens images and enhances detail in dark scenes lakes Animation: Suitable for animationDynamic: Enhances the contrast for powerful images.User (Press [ENTER] to select “Picture Adjustment”) (→ below)
	Picture AdjustmentContrast: Increases the contrast between light and dark parts of the picture ( -7 to +7 ).Brightness: Brightens the picture ( 0 to +15 ).Sharpness: Adjusts the sharpness of the edges of the horizontal lines ( -7 to +7 ).Color: Adjust the shade of the picture’s color ( -7 to +7 ).Gamma: Adjusts the brightness of dark parts ( 0 to +5 ).Depth Enhancer: Reduce the rough noise in the background to give a greater feeling of depth ( 0 to +4 ).MPEG DNR: Smoothes block noise and reduces the smudging that appears around contrasting sections of the picture ( 0 to +3 ).
Video Output Mode	With HDMI connection (When “Video Output” is set to “On”) (→ page 21, “HDMI” tab)Video recordings will be converted to, and output as, high definition video.The picture quality will vary depending on the connected equipment. Choose the picture quality to your preference. 480p (progressive) 720p (progressive) 1080i (interlace)●“*” will be displayed next to those video outputs possible with the connected equipment. Selecting an item without “*” can result in the picture being distorted.Should the picture be distorted, press and hold [CANCEL] until the picture is displayed correctly.The setting will return to “ 480p ".●Output from the COMPONENT VIDEO OUT terminal will be “ 480p ".With HDMI connection (When “Video Output” is set to “Off”) (→ page 21, “HDMI” tab) or other connections 480i (interlace) 480p (progressive)When you select “ 480p ”and a confirmation screen appears, select “Yes” only if connecting to a progressive output compatible television.

Transfer Mode	If you have chosen “480p”, “720p” or “1080i” (→ left), select the method of conversion to suit the type of material.● When the tray is opened, the setting will return to Auto1.Auto1 (normal): Automatically detects the film and video content, and appropriately converts it.Auto2: In addition to Auto1, automatically detects film contents with different frame rates and appropriately converts it.Video: Select when using Auto1 and Auto2, and the content is distorted.
Source Select DivX	When you select “Auto” the constructing method of the DivX contents is automatically distinguished and output. If the picture is distorted, select “I (Interlace)” or “P (Progressive)” depending on which constructing method was used when the contents were recorded to disc.Auto I (Interlace) P (Progressive)
HD Picture Enhancer	With HDMI connection (When “Video Output” is set to “On”) (→ page 21, “HDMI” tab)Makes the quality of HDMI video output(720p,1080i) sharp.Off, 1 (weakest) to 3 (strongest)
HDMI Color Space	With HDMI connection (When “Video Output” is set to “On”) (→ page 21, “HDMI” tab)The picture quality will vary depending on the connected equipment. Choose the picture quality to your preference.Should one of the items below not be possible with the connected equipment it will not be displayed.RGB YCbCr (4:4:4) YCbCr (4:2:2)●“RGB Range” (→ page 21, “HDMI” tab) is available when “RGB” is selected.

■ Audio Menu

Night Sound Mode	(→ page 11)
H.Bass	(→ page 11)
Advanced Surround	(→ page 12)
Dialogue Enhancer	To make the dialogue in movies easier to hearDVD-V(Dolby Digital, DTS, 3-channel or over, with the dialoguerecorded in the center channel)DivX(Dolby Digital, 3-channel or over, with the dialogue recorded inthe center channel)On ←→ Off
Multi Re-master	(→ page 12)
Sound Enhancement	You can enjoy comfortable, analog-like sound.DVD-VR DVD-V (Discs recorded with 48 kHz only)DVD-A (Discs recorded with 44.1 kHz and 48 kHz only)VCD CDWMA MP3 (Disc recording is other than 8 kHz, 16 kHz or 32 kHz)On OffThis does not work when Night Sound Mode, H.Bass( page 11), Advanced Surround or Multi Re-master ( page 12) is on.This may not work depending on the disc's recording.This does not work with MP3 on DVD-RAM or DVD-R/RW.
Attenuator	With AUDIO OUT connections ( page 6)Switch on if sound is distorted.On Off

■ Display Menu

Information		On Off
Subtitle Position		0 to -60 (in 2 units)
Subtitle Brightness		Auto, 0 to -7
4:3 Aspect	To select how to show images made for 4:3 aspect screens on a 16:9 aspect televisionNormal: Laterally stretches images.Auto: The standard setting is “Shrink”. However, this automatically changes to “Zoom” with a letterbox picture.Shrink: Images appear in the center of the screen.Zoom: Expands to 4:3 aspect ratio.
Just Fit Zoom		(→ page 13, Zoom)
Manual Zoom		(→ page 13, Zoom)
Bit Rate Display		Motion pictures On Off
GUI See-through		Off, On, Auto (Switches on automatically when the images appear on the display.)
GUI Brightness		-3 to +3
HDMI Status		Indicates various information when connected with HDMI AV OUT terminal. (→ below, Confirming HDMI information)
Quick OSD		(→ page 11)

■ Other Menu

AV Enhancer	To preset the settingsYou can preset your favorite video/audio effects onto “User1”, “User2” and “User3”.PreparationAdjust the settings indicated below to your preference. (When “Auto” is selected, this is not available.)Audio settings:Night Sound Mode/H.Bass (→ page 11)Advanced Surround/Multi Re-master (→ page 12)Dialogue Enhancer (→ page 18, Audio Menu)Sound Enhancement (→ left)Video settings:Picture Mode (→ page 18, Picture Menu)1. Select “Save Settings” and press [ENTER].2. Press [▲▼] to select the setting location (User1, User2 or User3) and press [ENTER].3. Follow the instructions on the menu screen and press [ENTER] last.To recall the settings (→ page 11)To confirm the settings1. Press [▲▼] to select “User1”, “User2” or “User3” and press [ENTER].2. Select “Save Settings” and press [ENTER] twice.To exit the screen, select “No” and press [ENTER].
Setup	(→ page 20, Changing the player settings)
Play as DVD-VideoorPlay as DVD-Audio	Select “Play as DVD-Video” to playDVD-Von DVD-Audio.
Play as DVD-VRPlay as HighMATorPlay as Data Disc	Select “Play as Data Disc” to playMP3JPEGMPEG4orDivXon DVD-RAM that contain bothDVD-VRand another format (e.g.JPEG) or to play HighMAT discs without using the HighMAT function.

■ Confirming HDMI information

• HDMI Status—HDMI is connected.

HDMI Information

Audio Stream

Max Channel

Video Format

Color Space

PCM/Dolby Digital/DTS

6ch

480p/720p/1080i

YCbCr(4:4:4)/YCbCr(4:2:2)/RGB

Connection status

(→ page 13, Changing soundtracks)

Shows the maximum channel number of the connected equipment.

(→ page 18, Video Output Mode)

(→ page 18, HDMI Color Space)

●All possible outputs are displayed.

- The current output for “Audio Stream”, “Video Format” and “Color Space” will be underlined.

- When “Off” is selected in “Audio Output” (→ page 21, “HDMI” tab) “-- -” will be displayed in “Audio Stream” and “Max Channel”.

Changing the player settings

|1

Shows Setup menu.

2

Select the tab.

|3

Select the item.

4

Make the settings.

5

Press to exit.

• Referring to pages 20 to 22, change as required.
• The settings remain intact even if you switch the unit to standby.
• Underlined items are the factory preset.

QUICK SETUP enables successive settings of the items in the shaded area.

■ “Disc” tab

AudioChoose the audio language.	English French Spanish Original*1Other****2
SubtitleChoose the subtitle language.	Automatic*3 English French Spanish Other****2
MenusChoose the language for disc menus.	English French Spanish Other****2● Changing the menu language from QUICK SETUP also changes this setting.
Advanced Disc ReviewSelect how to review (→ page 11).	Intro Mode: Reviews each title/program.Interval Mode: Reviews each 10 minutes.
RatingsSet a ratings level to limit DVD-Video play.● Follow the on-screen instructions.	Setting ratings (When level 8 is selected)8 No Limit1 to 7: To prohibit play of DVD-Video with corresponding ratings recorded on them.0 Lock All: To prevent play of discs without ratings levels.When setting a ratings level, a password screen is shown.Follow the on-screen instructions.Do not forget your password.A message screen will be shown if a DVD-Video exceeding the ratings level is inserted in the unit. Follow the on-screen instructions.

※1 The original language designated on the disc is selected.
※2 Input a code number referring to the table (→ page 22).
※3 If the language selected for "Audio" is not available, subtitles appear in that language (If available on the disc).

■ "Video" tab

TV AspectChoose the setting to suit your television and preference.	4:3 Pan&Scan: Regular aspect television (4:3)The sides of the widescreen picture are cut off so it fills the screen (unless prohibited by the disc).4:3 Letterbox: Regular aspect television (4:3)Widescreen picture is shown in the letterbox style.
	16:9: Widescreen television (16:9)
TV TypeSelect to suit the type of television.	Standard (Direct View TV)LCD TV/ProjectorPlasma TV		CRT ProjectorProjection TV
Time DelayWhen connected with an AV amplifier and Plasma display, adjust if you notice the audio is out of sync with the video.	0ms80ms	20ms100ms	40ms	60ms
Still ModeSpecify the type of picture shown when paused.	AutomaticField:The picture is not blurred, but picture quality is lower.Frame:Overall quality is high, but the picture may appear blurred.
Black Level ControlChange the black level of the picture if you connected a television through the COMPONENT VIDEO OUT terminals.	Lighter:When connected through VIDEO OUT or S VIDEO OUT.Darker:When connected through COMPONENT VIDEO OUT.This setting is irrelevant when connected through the HDMI AV OUT terminal.

■ "Audio" tab

PCM Digital Output*Check the digital input limitations of the equipment you connect using COAXIAL or OPTICAL terminal and select the maximum sampling frequency of PCM digital output.	Off: When not connected with COAXIAL or OPTICAL terminalUp to 48 kHz: When connected to equipment compatible with 44.1 or 48 kHzUp to 96 kHz: When connected to equipment compatible with 88.2 or 96 kHzUp to 192 kHz: When connected to equipment compatible with 176.4 or 192 kHzSignals from copy-protected discs are converted to 48 or 44.1 kHz.Some equipment cannot handle sampling frequencies of 88.2 kHz, even if they can handle 96 kHz. Read your equipment's operating instructions for details.
Dolby Digital*With COAXIAL, OPTICAL or HDMI AV OUT connections (→ page 7, 8)	BitstreamPCM	Select “Bitstream” when the equipment can decode the bitstream (digital form of multi-channel data). Otherwise, select “PCM”. (If the bitstream is output to the equipment without a decoder, high levels of noise can be output and may damage your speakers and hearing.)
DTS Digital Surround*With COAXIAL, OPTICAL or HDMI AV OUT connections (→ page 7, 8)	BitstreamPCM
Dynamic Range Compression	OffOn: Adjusts for clarity even when the volume is low through compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)

* When audio is output from HDMI AV OUT terminal, and the connected equipment does not support the item selected, the actual output will depend on the performance of this connected equipment.

■ “HDMI” tab

RGB RangeSet “HDMI Color Space” to “RGB” (→ page 18, Picture Menu) .

StandardEnhanced: When the black and white images are not distinct.

Video Output(This setting isirrelevant whenconnected throughthe VIDEO or SVIDEO OUTterminal.)	On: Select this when connected through the HDMI terminal.Video is output from the HDMI terminal. Video is alsooutput from the COMPONENT VIDEO OUT terminal,but only in 480p (progressive).Off: Select this when connected through the COMPONENTVIDEO OUT terminal. Video is not output from theHDMI terminal, but from the COMPONENT VIDEOOUT terminal according to the setting of the“VideoOutput Mode” (→ page 18, Picture Menu).
Audio Output	On: When audio output is from HDMI AV OUT terminal.(Depending on the capabilities of the connected equipment,audio output may differ from the audio settings.)Off: When audio output is not from HDMI AV OUT terminal.(The audio is output using the settings of this unit.)
Speaker SettingsChoose the settings tosuit your audio systemand the listeningenvironment(→ page 22, Changingthe speaker setting tosuit your speakers).	Speaker TypeMulti-channel: when 3 or more speakers are connected.2-channel: when 2 speakers are connected.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

■ "Display" tab

Menu Language	English	Français	Español
On-Screen Messages	On	Off
Background during PlaySelect background during JPEG,MPEG4 and DivX video playback.	Black	Gray

■ “Others” tab

FL DimmerChanges the brightness of the unit's display.	Bright DimAuto: The display is dimmed, but brightens only when you perform some operations.
Auto Power Off	On: The unit switches to standby mode after about 30 minutes in the stop mode.Off
DivX RegistrationDisplays the unit's registration code.	You need this registration code to purchase and play DivX Video-on-Demand (VOD) content. (→ page 16, About DivX VOD content)
QUICK SETUP	Yes No
Re-initialize SettingThis returns all values in the Setup menus to the default settings.	Yes: The password screen is shown if “Ratings” (→ page 20) is set. Please enter the same password and press [ENTER].No

Changing the player settings

Changing the speaker setting to suit your speakers

When connecting with an HDMI cable to an amplifier, use the following settings on this unit if you cannot set the speaker delay effect on the amplifier.

Speaker presence and size (a)

1. Press [▲ ▼ ◀▶] to select an item and press [ENTER].
2. Press [▲▼] to change the content and press [ENTER].

Icon examples:

Surround speaker (LS)

Large

Small

No

• Large: Select when the speaker supports low-frequency (under 100 Hz) reproduction.
• Small: Select when the speaker does not support low-frequency reproduction.

If the subwoofer is set to “No”, the front speakers will automatically be set to “Large”. (In this case, we recommend connecting a speaker that can reproduce bass below 100 Hz.)

Delay time (b)

(Effective when playing multi-channel audio)

If either distance ⓒ or ⓔ is less than ⓓ, find the difference in the relevant table and change to the recommended setting.

1. Press [▲ ▼ ◀▶] to select an item and press [ENTER].
2. Press [▲▼] to change the content and press [ENTER].

☐: Recommended placement

Difference	Setting
Approx. 34 cm ( 1^1/_10 feet)	1.0 ms
Approx. 68 cm ( 2^1/_5 feet)	2.0 ms
Approx. 102 cm ( 3^3/_10 feet)	3.0 ms
Approx. 136 cm ( 4^2/_5 feet)	4.0 ms
Approx. 170 cm ( 5^1/_2 feet)	5.0 ms

© Surround speakers

Difference	Setting
Approx. 170 cm (5 12 feet)	5.0 ms
Approx. 340 cm (11 feet)	10.0 ms
Approx. 510 cm (16 12 feet)	15.0 ms

To finish the speaker setting

Press [▲ ▼ ◀ ▶] to select "Exit" and press [ENTER].

Language code list

Abkhazian:	6566	Lithuanian:	7684
Afar:	6565	Macedonian:	7775
Afrikaans:	6570	Malagasy:	7771
Albanian:	8381	Malay:	7783
Ameharic:	6577	Malayalam:	7776
Arabic:	6582	Maltese:	7784
Armenian:	7289	Maori:	7773
Assamese:	6583	Marathi:	7782
Aymara:	6589	Moldavian:	7779
Azerbaijani:	6590	Mongolian:	7778
Bashkir:	6665	Nauru:	7865
Basque:	6985	Nepali:	7869
Bengali; Bangla:	6678	Norwegian:	7879
Bhutani:	6890	Oriya:	7982
Bihari:	6672	Pashto, Pushto:	8083
Breton:	6682	Persian:	7065
Bulgarian:	6671	Polish:	8076
Burmese:	7789	Portuguese:	8084
Byelorussian:	6669	Punjabi:	8065
Cambodian:	7577	Quechua:	8185
Catalan:	6765	Rhaeto-Romance:	8277
Chinese:	9072	Romanian:	8279
Corsican:	6779	Russian:	8285
Croatian:	7282	Samoan:	8377
Czech:	6783	Sanskrit:	8365
Danish:	6865	Scots Gaelic:	7168
Dutch:	7876	Serbian:	8382
English:	6978	Serbo-Croatian:	8372
Esperanto:	6979	Shona:	8378
Estonian:	6984	Sindhi:	8368
Faroese:	7079	Singhalese:	8373
Fiji:	7074	Slovak:	8375
Finnish:	7073	Slovenian:	8376
French:	7082	Somali:	8379
Frisian:	7089	Spanish:	6983
Galician:	7176	Sundanese:	8385
Georgian:	7565	Swahili:	8387
German:	6869	Swedish:	8386
Greek:	6976	Tagalog:	8476
Greenlandic:	7576	Tajik:	8471
Guarani:	7178	Tamil:	8465
Gujarati:	7185	Tatar:	8484
Hausa:	7265	Telugu:	8469
Hebrew:	7387	Thai:	8472
Hindi:	7273	Tibetan:	6679
Hungarian:	7285	Tigrinya:	8473
Icelandic:	7383	Tonga:	8479
Indonesian:	7378	Turkish:	8482
Interlingua:	7365	Turkmen:	8475
Irish:	7165	Twi:	8487
Italian:	7384	Ukrainian:	8575
Japanese:	7465	Urdu:	8582
Javanese:	7487	Uzbek:	8590
Kannada:	7578	Vietnamese:	8673
Kashmiri:	7583	Volapük:	8679
Kazakh:	7575	Welsh:	6789
Kirghiz:	7589	Wolof:	8779
Korean:	7579	Xhosa:	8872
Kurdish:	7585	Yiddish:	7473
Laotian:	7679	Yoruba:	8979
Latin:	7665	Zulu:	9085
Latvian, Lettish:	7686
Lingala:	7678

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, refer to the “Product information” on page 27. (Reference pages are shown in parentheses.)

Power

No power.	● Insert the AC power supply cord securely into the household AC outlet. (8)
The unit is automatically switched to the standby mode.	● When “Auto Power Off” is set to “On”, the unit automatically switches to standby after approximately 30 minutes in the stop mode. (21)

No operation

No response when any buttons pressed.	This unit cannot play discs other than the ones listed in these operating instructions. (4)The unit may not be operating properly due to lightning, static electricity or some other external factor. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.Condensation has formed: Wait 1 to 2 hours for it to evaporate.
No response when remote control buttons pressed.	Check that the batteries are installed correctly. (8)The batteries are depleted: Replace them with new ones. (8)Point the remote control at the remote control sensor and operate. (9)
No picture or sound.	Check the video or audio connection. (6-8)Check the power or input setting of the connected equipment.Check that the disc has something recorded on it.
You have forgotten your ratings password. Reset all the settings to Factory Preset.	While stopped, press and hold [QUICK OSD] and [I I] on the unit and then also press and hold [▲OPEN/CLOSE] on the unit until “Initialized” disappears from the television. Turn the unit off and on again. All settings will return to the default values.

Specific operation impossible or incorrect

It takes time before play starts.	● Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed; however, this is normal. ● This is normal on DivX video.
The program and random play functions do not work.	● These functions do not work with some DVD-Videos.
Menu doesn’t appear. VCD with playback control	● Press [■] twice and then press [▶] (PLAY).

The on-screen menu shows “2” as a soundtrack option when [AUDIO] is pressed, but the audio does not change.Play doesn’t start.	●This is normal on DVD-Audio. Even if a second soundtrack isn’t recorded, two numbers will be shown.
	●This unit may not play WMA and MPEG4 that contains still picture data.●If playing DivX VOD content, refer to the homepage where you purchased the DivX VOD content. (Example: www.divx.com/vod)●If a disc contains CD-DA and other formats, proper playback may not be possible.
Play restarts from the beginning of the track when soundtrack is changed.	●This is normal on DVD-Audio.
Subtitle position is wrong.	●Adjust the position. (“Subtitle Position” in Display Menu) (19)
No subtitles.	●Display the subtitles. (13)
The subtitles overlap closed captions recorded on discs.	●Clear the subtitles. (13)
In A-B Repeat, point B is automatically set.	●The end of an item becomes point B when it is reached.
Repeat play is automatically canceled.	●A-B Repeat is canceled when you press [QUICK REPLAY].●Repeat play may be canceled when you press [CM SKIP] or [ADVANCED DISC REVIEW].

Troubleshooting guide

Picture incorrect

Picture distorted.	● Ensure that the unit is not connected through a video cassette recorder. (6)● Have you selected an item in “Video Output Mode” (→ page 18, Picture Menu) that is incompatible with the connected equipment? Depending on the current connection status, perform corresponding steps.—When connecting to a television that is incompatible with progressive output using the COMPONENT VIDEO OUTPUT terminal:Press and hold [CANCEL] until the picture displays correctly. The settings will return to “480i”.—When connecting to a television with an HDMI cable:Press and hold [CANCEL] until the picture displays correctly. The settings will return to “480p”.—When connecting to an amplifier with an HDMI cable, and to a television that is incompatible with progressive output using the COMPONENT VIDEO OUTPUT terminal:1.Disconnect the HDMI (remove the cable/switch off the amplifier).2.Press and hold [CANCEL] until the picture displays correctly. The settings will return to “480i”.3.Set “Video Output” to “Off” in the “HDMI” tab. (21)4.Connect the HDMI (connect the cable/switch on the amplifier).
Picture size doesn’t fit the screen.	● DivX Change “Source Select” in Picture Menu. (18)● Change “TV Aspect” in “Video” tab. (20)● Use the television to change the aspect. If your television does not have that function, change “4:3 Aspect” in Display Menu. (19)● Change the Zoom setting. (13)
Picture stops.	● Picture may stop if the DivX files are greater than 2GB.
The television may display incorrectly or colors appear faded.	●PAL discs cannot be played. (You can play DVD-Audio; however, still pictures may be displayed enlarged.)●Connect to a progressive output compatible television to enjoy progressive video.●Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices.
Menu not displayed correctly.	●Restore the zoom ratio to ×1.00. (13)●Set “Subtitle Position” in Display Menu to “0”. (19)●Set “4:3 Aspect” in Display Menu to “Normal”. (19)
Auto zoom function does not work well.	●Turn off TV’s zoom function.●Use the other preset aspect ratios or manual adjustment. (13)●Zoom function may not work well, especially in dark scenes and may not work depending on the type of disc.
Video is not output from HDMI AV OUT.	●Change the HDMI video output settings by using either of the procedures below.– Connect the television using VIDEO OUT or S VIDEO OUT terminal, then set “Video Output” to “On” in the “HDMI” tab. (21)– Press and hold [CANCEL] until the picture is displayed. The settings will change to “On”.

Progressive video

There is ghosting when progressive output is on.

This problem is caused by the editing method or material used on DVD-Video, but should be corrected if you use interlace output. Change “Video Output Mode” in Picture Menu to “480i”. (18)When connecting with HDMI AV OUT terminal, connect with the other terminals and change the settings in the following order:Select “Video Output”(“HDMI” tab) to “Off”. (21)Select “Video Output Mode”(Picture Menu) to “480i”. (18)

Pictures not in progressive output.Closed captions not displayed.

If the unit is connected to the television through VIDEO OUT or S VIDEO OUT, output will be interlace.When progressive output or HDMI output is on, closed captions will not be displayed.

Sound incorrect

Sound distorted.	Select “Off” in “Advanced Surround”. (12)Set “Attenuator” in Audio Menu to “On” if it causes distortion with AUDIO OUT connections. (19)Noise may occur when playing WMA files.DVD-A The disc may have restrictions on the method of audio output. With some multi-channel discs, unless the number of connected speakers is the same as the disc’s channel specification, audio will not be output properly. Refer to the disc’s jacket for more information.With HDMI AV OUT connections, audio may not be output from other terminals in the way that was set.Match the speaker settings with the connected equipment. (21)
Piercing noise comes from the speakers.	If you have connected a digital amplifier which does not include decoder, be sure to select “PCM” in “Dolby Digital” or “DTS Digital Surround” in “Audio” tab. (21)
Effects do not work.	None of the audio effects work when the unit is outputting bitstream signals from the DIGITAL AUDIO OUT or HDMI AV OUT terminal. (7, 8)Some audio effects do not work or have less effect with some discs.Night Sound Mode, H.Bass, Advanced Surround, Multi Re-master and Sound Enhancement do not work if you have changed the play speed.With HDMI AV OUT connections, HDCD discs are played as normal CDs.
No sound	There may be a pause in sound when you change the play speed.Audio may not be heard when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices.DivX Audio may not be output due to how files were created. (5)

Recording

Cannot record to digital recording equipment. (Incorrect sound recorded.)

● You cannot record WMA/MP3. ● You cannot record DVDs that have protection preventing digital recording. ● You cannot record DVDs if the recording equipment cannot handle signals with a sampling frequency of 48 kHz. ● Make the following settings: - Advanced Surround: Off (12) - PCM Digital Output: Up to 48 kHz (21) - Dolby Digital/DTS Digital Surround: PCM (21)

Unit displays

“noPLAy”	● You inserted a disc the unit cannot play; insert one it can. (4)● You inserted a blank disc.● You inserted a disc that has not been finalized. (4)
“U11”	● The disc may be dirty. (right)
“H☐☐”or“F7☐☐”(☐☐ stands for a number.)	● Trouble may have occurred. The number following “H” and “F7” depends on the status of the unit. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.● If the service numbers fail to clear, note the service number and contact a qualified service person.
“nodISC”	● You haven’t inserted a disc: Insert one.● You haven’t inserted the disc correctly: Insert it correctly. (9)
“U70-1”	●The connected equipment is not HDMI compatible.
“U70-☐”(☐ stands for a number.)The actual number following “U70-” will depend on the state of this unit.	●The HDMI connection acts unusually.- The connected equipment is not HDMI compatible.- The HDMI cable is too long.- The HDMI cable is damaged.

Television displays

“ ”	● The operation is prohibited by the unit or disc.
“Cannot play group xx, content xx”“Cannot display group xx, content xx”	● You are trying to play incompatible group or content. (5)
“Group xx, content xx is protected”	● You are trying to play protected group or content. You cannot play it.

“Cannot play audio” “No audio”	● Audio has not been recorded, or recorded in a format this unit cannot playback. Video playback only is possible. (5)
“Check the disc”	● This disc may be dirty. (below)
“Due to copyright protection, audio cannot be output from HDMI”	● Should you connect equipment that does not support CPPM (26), the audio from the CPPM copy protected DVD-Audio cannot be output from HDMI AV OUT terminal. Connect the audio cable of the Audio/Video cable (L, R) to a HDMI compatible AUDIO IN terminal. (7)
While “HDMI Status” displayed, any items are not underlined	● If you select an item without an “*” in the “Video Output Mode” in Picture Menu, it will not be underlined. (18)
“This disc may not be played in your region”	● You can only play DVD-Video if their region number is “1”, “ALL” or multiple region numbers including “1”. (cover)
No on-screen display.	● Select “On” in “On-Screen Messages” in “Display” tab. (21)
“Authorization Error”	● You are trying to play the DivX VOD content that was purchased with a different registration code. You cannot play the content on this unit. (16)
“Rental Expired”	● The DivX VOD content has zero remaining plays. You cannot play it. (16)

Maintenance

■ Clean this unit with a soft, dry cloth

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
• Cleaning of the lens is generally not necessary although this depends on the operating environment.
• Do not use commercially available lens cleaners as they may cause malfunction.

■ Clean discs

Wipe with a damp cloth and then wipe dry.

Specifications

Signal system: NTSC

Operating temperature range:

$$ + 5 \text { to } + 3 5 ^ {\circ} \mathrm{C} (+ 4 1 \text { to } + 9 5 ^ {\circ} \mathrm{F}) $$

Operating humidity range:

$$ 5 \text { to } 90 \% \text { RH (no condensation) } $$

Discs played [8 cm (3") or 12 cm (5")]:

(1) DVD (DVD-Video, DVD-Audio, DivX※6, 7)
(2) DVD-RAM (DVD-VR, JPEG ^4,7 , MP3 ^2,7 , MPEG4 ^5,7 , DivX ^6,7 )
(3) DVD-R (DVD-Video, DVD-VR, JPEG ^4,7 , MP3 ^2,7 , MPEG4 ^5,7 , DivX ^6,7 )
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG ^4,7 , MP3 ^2,7 , MPEG4 ^5,7 , DivX ^6,7 )
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW [CD-DA, Video-CD, SVCD ^1 , MP3 ^2,7 , WMA ^3,7 , JPEG ^4,7 , MPEG4 ^5,7 , DivX ^6,7 , HighMAT Level 2 (Audio and Image)]

Video output:

Output level: 1 Vp-p (75 Ω)

Output connector: Pin jack (1 system)

S-video output:

Y output level: 1 Vp-p (75 Ω)

C output level: 0.286 Vp-p (75 Ω)

Output connector: S terminal (1 system)

Component video output: (480p/480i)

Y output level: 1 Vp-p (75 Ω)

P_B output level: 0.7 Vp-p (75 Ω)

P_R output level: 0.7 Vp-p (75 Ω)

Output connector: Pin jack (Y: green, P_B : blue, P_R : red)

(1 system)

Audio output:

Output level: 2 Vrms (1 kHz, 0 dB)

Output connector: Pin jack

Number of connectors: 2 channel: 1 system

Audio performance:

(1) Frequency response:
●DVD (linear audio): 4 Hz to 22 kHz (48 kHz sampling) 4 Hz to 44 kHz (96 kHz sampling)
●DVD-Audio: 4 Hz to 88 kHz (192 kHz sampling)
- CD Audio: 4 Hz to 20 kHz

(2) S/N ratio: - CD Audio: 115 dB

(3) Dynamic range: ●DVD (linear audio): 102 dB ●CD Audio: 98 dB

(4) Total harmonic distortion: •CD Audio: 0.0025 %

Digital audio output:

Optical digital output: Optical terminal

Coaxial digital output: Pin jack

HDMI AV output 19 pin

HDMI Ver.1.2a (EDID Ver.1.3)

Pickup:

Wave length: 662 nm/785 nm

Laser power: CLASS 2/CLASS 3A

Power supply: AC 120 V, 60 Hz

Power consumption: 11 W

Power consumption in standby mode: 1 W

Dimensions (W×D×H): 430 mm×251 mm×43 mm

(16^15/16''×9^14/16''×1^11/_16'')

Mass: approx. 2.2 kg (4.8 lb)

Note

Specifications are subject to change without notice. Mass and dimensions are approximate.

^1 Conforming to IEC62107
^2 MPEG-1 Layer 3, MPEG-2 Layer 3
^*3 Windows Media Audio Ver.9.0 L3 Not compatible with Multiple Bit Rate (MBR)

*4 Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160×120 and 6144×4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4) Extremely long and slender pictures may not be displayed.

^*5 MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system.

^*6 Plays all versions of DivX ^® video (including DivX ^® 6) with standard playback of DivX ^® media files. Certified to the DivX Home Theater Profile. GMC (Global Motion Compensation) is not supported.

^*7 The total combined maximum number of recognizable audio, picture and video contents and groups: 4000 audio, picture and video contents and 400 groups.

Glossary

CPPM (Content Protection for Prerecorded Media)

A copy protection system used for DVD-Audio files. This unit supports CPPM.

DivX

DivX is a popular media technology created by DivX, Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively small file size.

Down-mixing

This is a process of remixing the multi-channel audio (surround sound) on some discs into two channels. When you want to listen to the audio on a DVD with a 5.1 channel digital surround track through your television speakers, the down-mixed audio will be output. Some DVD-Audio prevent down-mixing of all or part of their contents. When playing such discs, or such parts of the disc, unless the number of connected speakers is the same as the disc's channel specification, audio will not be output properly.

Film and video

DVD-Videos are recorded using either film or video. This unit can determine which type has been used, then uses the most suitable method of progressive output.

Film: Recorded at 24 frames per second. (Recorded at 30 frames per second as well). Generally appropriate for motion picture films.

Video: Recorded at 30 frames/60 fields per second. Generally appropriate for TV drama programs or animation.

HDCD (High-Definition Compatible Digital)

HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.

HDMI (High-Definition Multimedia Interface)

HDMI is a next-generation digital interface for consumer electronic products. Unlike conventional connections, it transmits uncompressed digital video and audio signals on a single cable. This unit supports high-definition video output (720p,1080i) from HDMI AV OUT terminal. To enjoy high-definition video a high definition compatible television is required.

MPEG4

A compression system for use on mobile devices or a network, that allows highly efficient recording at a low bit rate.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

Panasonic Canada Inc.

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Technics Audio Product

Panasonic Portable / Clock Radio (without Tape, CD, MD)

Panasonic Audio / SD Audio Product

Panasonic DVD Product

Panasonic Combination DVD Player / VCR

Panasonic Combination DVD Recorder / VCR

Accessories including rechargeable batteries

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

Ninety (90) days

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

FOR PRODUCT OPERATION ASSISTANCE, please contact:

Our Customer Care Centre:

Telephone #: [phone]

1-800 #: 1-800-561-5505

Fax #: [phone]

Email link: "Customer support" on www.panasonic.ca

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :

Link : "Servicentres™ locator" under "Customer support"

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.

1. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

2. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

3. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation:

Contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

Index

A-B Repeat ..... 17

Advanced Disc Review .....11

Advanced Surround.....12

Advance still picture .....13

All group play....10

Angle select ....13

AV Enhancer....11

©CD text playback .....14

CM SKIP 12

DDialogue Enhancer....18

DIRECT NAVIGATOR....14

DivX....16

Dolby Digital....13, 21

DTS 13,21

EEnter number 10

Finalize 4

Functions ..... 17

H.Bass....11

HighMAT....14

Just Fit Zoom 13

Manual Zoom 13

Marker....17

Menu 10, 15

Multi Re-master 12

Navigation Menu....15

Night Sound Mode ..... 11

On-Screen Menus....17

PPicture Mode....18

Playlist....14

Play speed 12

Playback Menu....15

Program play 10

Programs 14

@Quick OSD....11

Quick Replay 12

QUICK SETUP 8

RRandom play....10

Re-initialize Setting ..... 21

Repeat....12

Resume play....9

Rotate Picture....13

Setup 20

Sound Enhancement....19

Soundtrack....13

Subtitle 13

Time Slip for play only....17

Top Menu 10,15

Zoom 13

-If you see this symbol-

Information on Disposal in other Countries outside the European Union

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

CAUTION	- LASER RADIATION WHEN OPEN.DO NOT STARE INTO BEAM.	FDA 21 CFR / Class II
CAUTION	- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.AVOID EXPOSURE TO BEAM.	EC60825-/I-/Class 3b
ATTENTION	- RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE.EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL	-SYNLIG OU USYNLIG LASERSTRÅLING VED ÅBNING.UNDGÅ UDSÄTTELSE FOR STRÅLING.
VARO!	- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN LASERSATEILYLE, ÄLÄ KATO SÄTEESEEN.
VARNING	-SYNLIG OCH OSYNLIG LASERSTRÅLING NÄR DENNA DEL AR ÖPPNAD, BETRAKTA EJ STRÅLEN.
ADVARSEL	-SYNLIG OU USYNLIG LASERSTRÅLING NÄR DEKSEL ÄPNES.UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT	-SICHTBARE UND USICSHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFNET, NICHT DEM STRAHL AUSSETZEN.
注意	- 打开时有可见及不可见激光辐射,避免激光束照射。
注意	- ここを聞くと可视及び不可視レーザー光が出ます。ビームを見たり,触れたしひないでください.	RQLCA0141

(Inside of product)

ENERGY STAR

As an ENERGY STAR®

Participant, Panasonic has

determined that this product

meets the ENERGY STAR®

guidelines for energy efficiency.

PRINTED WITH

SOYINK

TM

Front view of a silver remote control with keypad and buttons (no text or symbols visible)

Illustration of a desktop computer monitor with control buttons (no text or symbols)

Illustration of a family watching television, with no visible text or symbols

AUDIO/VIDEO

DIGITAL VIDEO

PLAYER

HIGH-DEFINITION MULTIMEDIA INTERFACE

ÉTAPE 1 Raccordement....6

ÉTAPE 1 Raccordement

ÉTAPE 1 Raccordement

R6/LR6, AA

Liste lect. All By Artist Pink Island New Item Liste lect. Groupe Contenu N° Titre de contenu 1 Few times in summer 2 Less and less 3 And when I was born 4 Quatre gemopedies 5 You're made me sad 6 I can't quit him 7 Evening glory 8 Wheeling spin 9 Velvet Cupermine 10 Ziggs starfish

Faisceau laser: CLASSE 2/CLASSE 3A

CPPM (Content Protection for Prerecorded Media)

HDMI (High-Definition Multimedia Interface)

Panasonic Canada Inc.

©Configuration....20

DDivX 16

Dolby Digital .....13, 21

DTS....13,21

FFinalisation ....4

H.Bass ....11

HighMAT 14

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.ca

© 2006 Matsushita Electric Industrial Co., Ltd.

Imprimé en Chine

PRINTED WITH

SOYINK

MC
