Product Type	Soundbar
Brand	Paradigm
Model	Soundplay
Audio Features	Decodes Dolby Digital and DTS Digital Surround
Connectivity	Bluetooth, 2 digital optical inputs, 2 analog RCA inputs, subwoofer output, Ethernet, IR outputs
Acoustic Correction	Anthem Room Correction (ARC) with included microphone
Sound Modes	Night, Bass+, Normal
Mounting	On shelf or wall (bracket and template included)
Display	OLED backlit adjustable
Remote Control	Yes, with ability to program a second remote
Power	AC mains (100-240 V)
Package Contents	Soundbar, remote control, AAA batteries, power cable, USB cable, ARC microphone, wall mount bracket, mounting template, 3.5 mm cable, shoulder bolts
Maintenance	Clean with a dry, soft cloth
Safety	Do not open, risk of electric shock; do not expose to moisture; do not block ventilation openings
Warranty	1 year (defects in materials and workmanship)
Repairability	Repairs by a qualified technician only
Compatibility	TV, Blu-ray/DVD players, game consoles, computers
Power Consumption	Auto standby mode after 20 minutes without signal
Standards	Compliant with FCC Part 15, CE, WEEE

Frequently Asked Questions - Soundplay Paradigm

Can I use the soundbar as a dedicated center channel?

No, the soundbar is designed to operate as a 2-channel stereo or multi-channel surround audio playback device. It cannot serve as a standalone center channel.

Why does the soundbar not reproduce multi-channel (surround) sound?

Several possible causes: check that the source sends a Dolby Digital or DTS encoded signal (not PCM), that the connection is digital optical and not analog, and that the soundbar is set to the correct mode. Refer to the "Connection" section of the manual.

Does the soundbar decode Dolby TrueHD or DTS-HD Master Audio formats?

No, it only decodes basic formats: Dolby Digital and DTS Digital Surround. For Blu-ray sources, configure the audio output to the compatible format.

Can I mount the soundbar on a swiveling wall mount?

Paradigm does not provide a swiveling mount with the soundbar. Although there are options on the market, we do not recommend or guarantee any particular model.

How to clean the soundbar?

Use a clean, dry cloth (microfiber) or a soft brush to dust the speakers. Do not spray any cleaning product on or near the speakers.

Is there a risk of interaction with my TV?

Yes, only with CRT (cathode ray tube) televisions: since the soundbar is not magnetically shielded, it must be placed at least 60 cm (2 feet) from a CRT screen. LCD and plasma screens are not affected.

How to remove the grille from the soundbar?

The grille is not removable. It is factory-attached and cannot be removed without risk of damage.

No sound from the soundbar: what to do?

Check that the soundbar is on, not muted, volume not at zero, and the correct input is selected. Ensure the audio source is working and cables are properly connected. Unplug and reconnect power after 30 seconds.

How to program a second remote control?

In the menu, go to "Learn Remote". Select the command to learn (volume, mute, etc.). Place the second remote 30 cm from the soundbar and press the corresponding button four times. The soundbar confirms with "Saved".

The external subwoofer produces no sound: what to do?

Check that the subwoofer is on and the soundbar is configured for a wired subwoofer (menu Subwoofer > Wired Sub). Ensure the RCA cable is connected to the Sub Out of the soundbar and the LFE input of the subwoofer. Restart the soundbar.

USER MANUAL Soundplay Paradigm

P Paradigm®

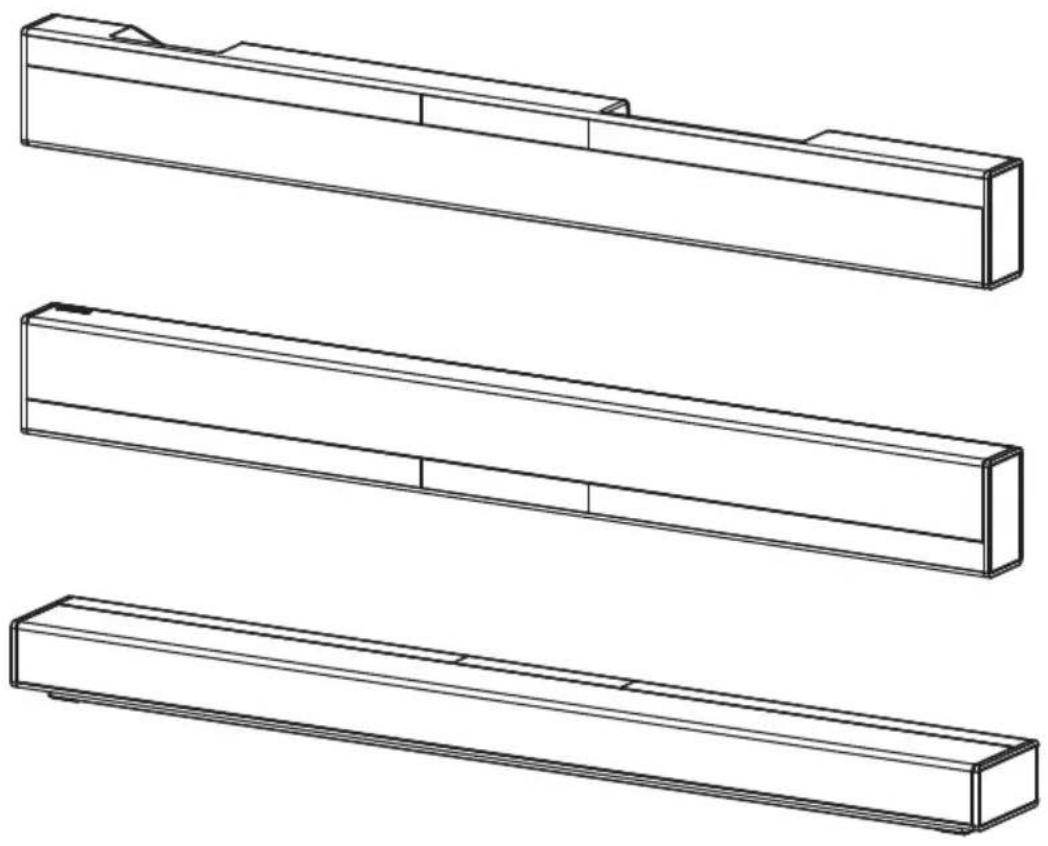

Three technical line drawings of rectangular metal components with notches, shown from different angles (no text or symbols)

soundplay™

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. To prevent fire or shock hazard, do not expose this module to moisture.

The lightning bolt flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

SOUNDPLAY

Tested to comply with FCC standards. FOR HOME OR OFFICE USE

IMPORTANT SAFETY INSTRUCTIONS!

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ combination to avoid injury from

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. To completely disconnect this equipment from the AC mains, disconnect the power supply cord plug from the AC receptacle.

4. The mains plug of the power supply cord shall remain readily accessible.

5. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type (AAA). Dispose of dead batteries in accordance with local regulation.

6. To prevent overheating, do not cover the apparatus. Install in accordance with the manufacturer's instructions.

7. No naked flame sources, such as candles, should be placed on the product.

8. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

9. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, or the like.

10. For apparatus mounted to wall, the apparatus shall be installed on solid wood, bricks, concrete or solid wood columns and battens.

11. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.

12. Minimum distances around the apparatus for sufficient ventilation.

13. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

14. Do not ingest the battery, Chemical Burn Hazard.

15. Keep new and used batteries away from children.

16. If the battery compartment does not close securely, stop using the product and keep it away from children.

17. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

18. The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

19. Risk of leakage. Only use the specified type of Batteries. Never mix new and used batteries. Observe correct polarity. Remove batteries from

products that are not in use for extended periods of time. Store batteries in a dry place.

1. Do not recharge non-rechargeable batteries.

2. Avoid exposure to extreme heat or cold.

3. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical e

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. (The remote control supplied with) This product contains a AAA battery. If the AAA battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

3. Do not handle leaking or damaged AAA batteries.

4. THIS PRODUCT CONTAINS A AAA BATTERY. IF MISUSED OR ABUSED THIS CAN RESULT IN:

5. Smoke or gas hazard

6. Heat hazard
7. Fire hazard
8. Explosion hazard

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the product warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATIONS COMMISSION

INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Approved under the verification provision of FCC Part 15 as a Class B Digital Device.

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

RF EXPOSURE INFORMATION: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

CANADA, INDUSTRY CANADA (IC) NOTICES: This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

RADIO FREQUENCY (RF) EXPOSURE INFORMATION:

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

2. CAUTION

• Comply with FCC RF exposure compliance requirement, separation distance of at least 20 cm must be maintained between this product and all persons.
• This product and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this product may not cause harmful interference, and
(2) this product must accept any interference received, including interference that may cause undesired operation.

Paradigm Electronics Inc.

205 Annagem Blvd. Mississauga, ON L5T 2V1

MODEL NUMBER: SOUNDPLAY

FCC ID: MBBSOUNDPLAY

IC Information (For Canadian customers)

MODEL NUMBER: SOUNDPLAY

IC NO: 11657A-SOUNDPLAY

1. PRODUCT CONTAINS TRANSMITTER MODULE IC:

This Class B digital apparatus complies with Canadian CAN ICES-3(B) / NMB-3(B). Operation is subject to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive 2002/96/EC effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Paradigm has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you. To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.paradigm.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

2. CAUTION

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Hereby, Paradigm Electronics Inc., declares that this Paradigm SOUNDPLAY is in compliance with the essential requirements and other relevant provisions of:

1995/5/EC - R&TTE

2014/30/EU - EMC

2014/35/EU - LVD

2011/65/EU - ROHS2

WARNING/CAUTION!

• Hazardous voltages exist inside—do not remove cover.
  • Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.

• Unplug speaker should any abnormal conditions occur.
• Turn speaker off before making or breaking any signal connections!
• The power cord should not be installed, removed, or left detached from the speaker while the other end is connected to an AC power source.
• No candles or other sources of open flame should be placed on the speaker.
• No liquids either in glasses or vases should be placed on speaker.
• Speaker should not be exposed to dripping or splashing liquids.
• The terminals marked with the lightning bolt symbol should be connected by an instructed person or by way of ready made terminals.
• The power cord should remain readily operable should any abnormal conditions occur.
• Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/ark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Paradigm Electronics Inc. is under license.

Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.may be registered in one or more jurisdictions.

Other trademarks and trade names are those of their respective owners.

Introduction and Overview....7

Placement and Mounting 7

Location....7

Installing on a Flat Surface 7

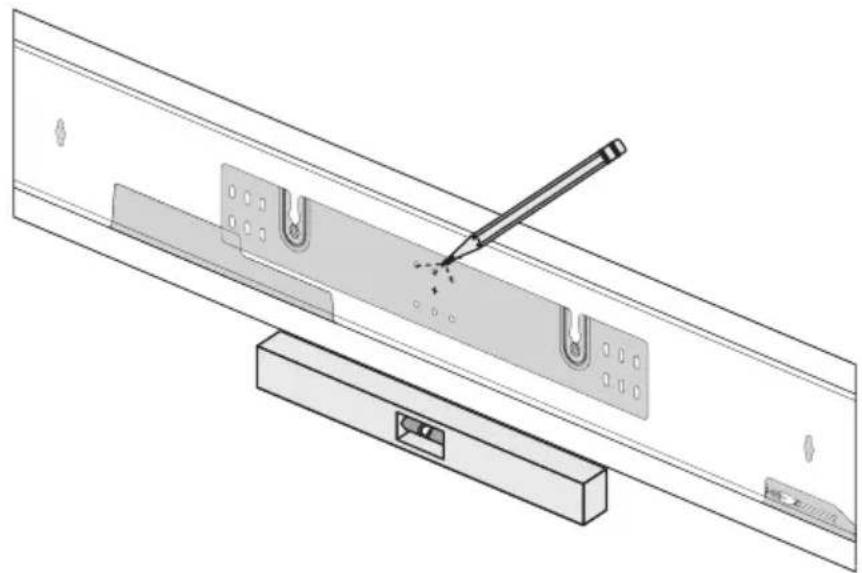

On-Wall Installation 8

Connection....10

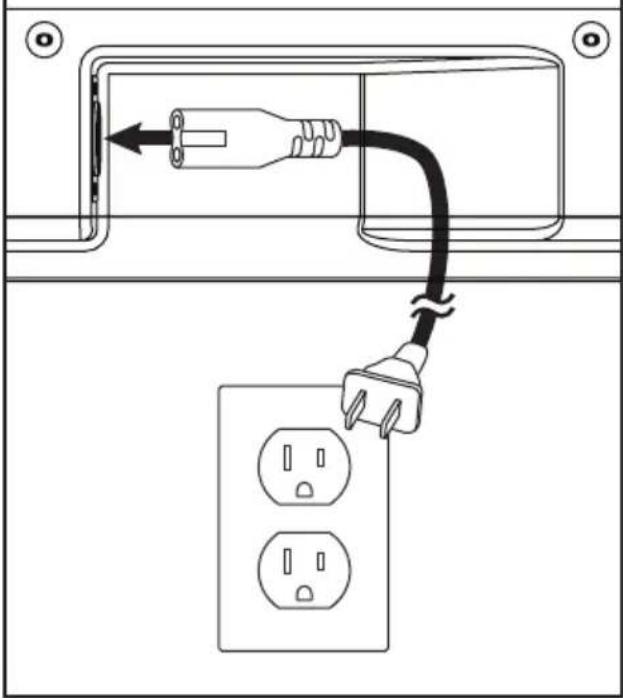

Power Connection 10

Signal Connection 11

Subwoofer Connection....12

No Subwoofer....12

Wired Subwoofer Connection....12

IR Output....12

Control Panel....14

Remote Control 14

Changing the Remote's Battery 15

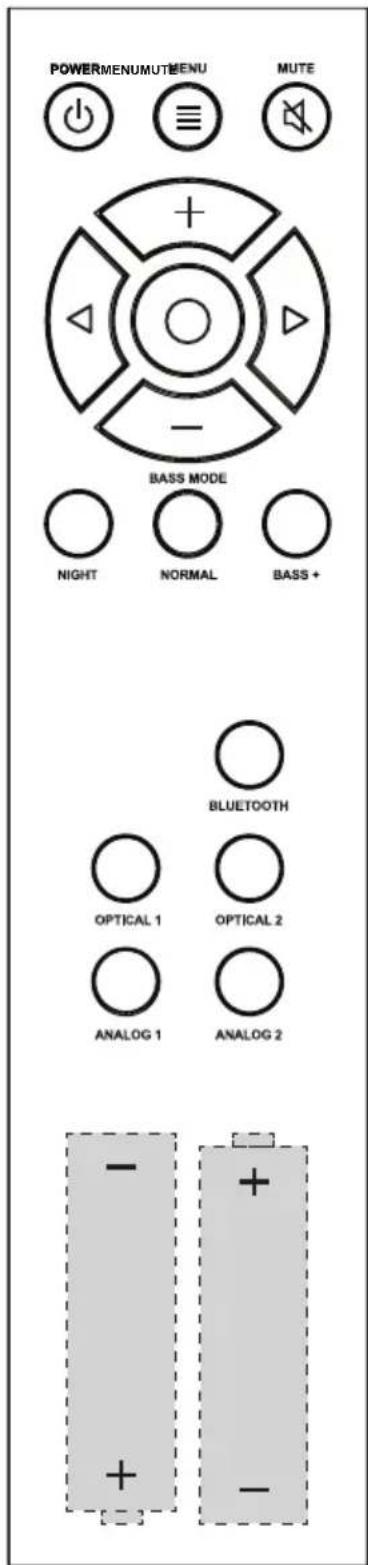

Programming a Second Remote....15

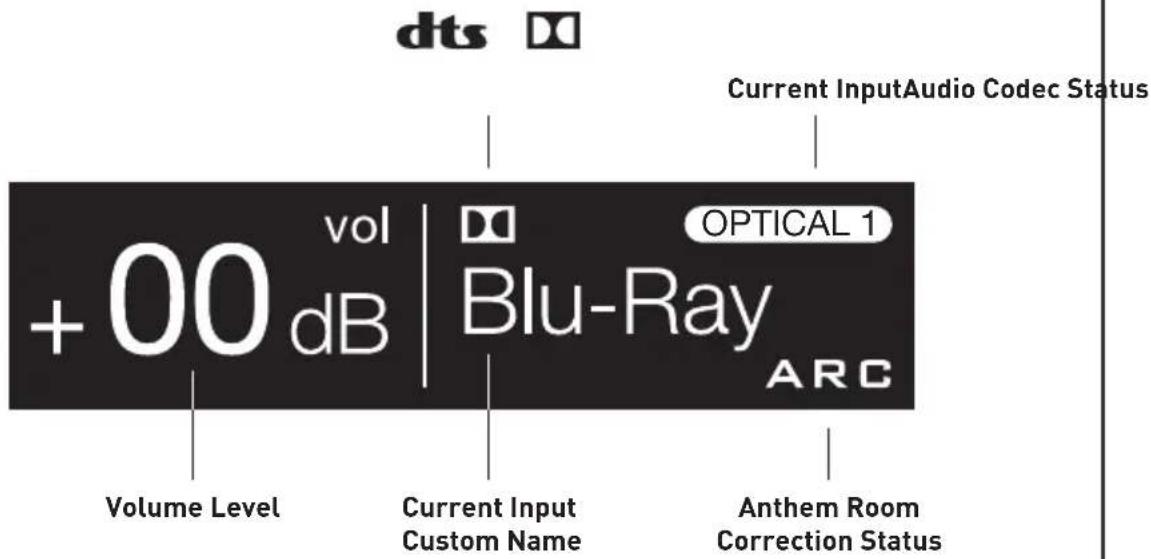

Display 16

Audio Codec Status 16

Volume Level 16

Current Input Custom Name....16

Anthem Room Correction Status 16

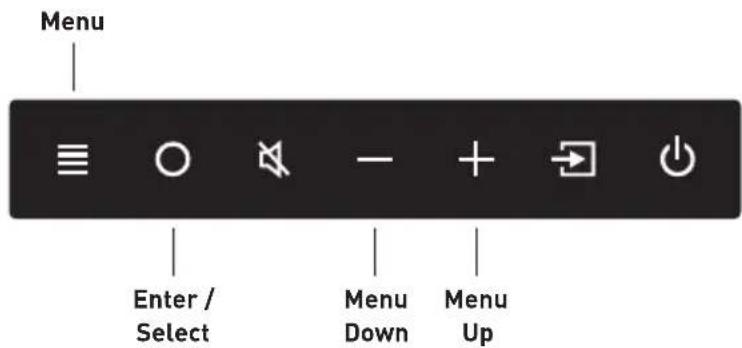

The Menu System 17

Entering and Exiting the Menu 17

Navigating the Menu 17

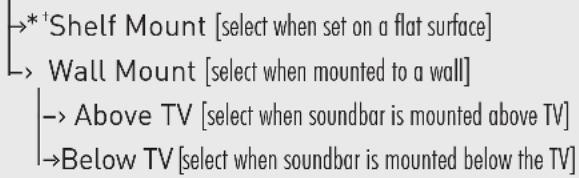

Menu Option: Installation 17

Menu Option: Subwoofer 18

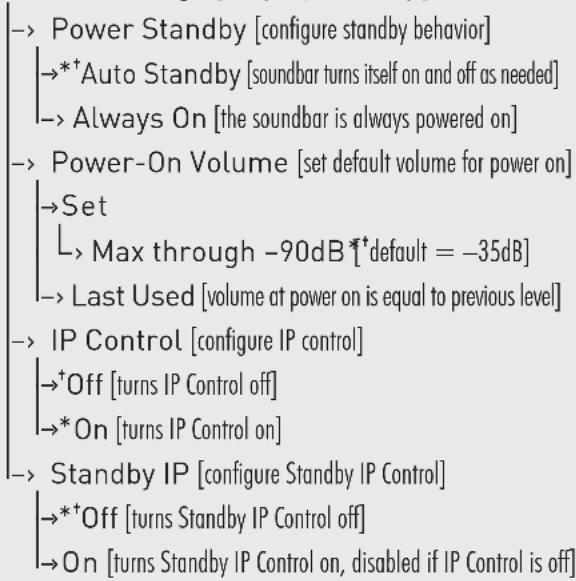

An Overview of the Menu Structure ..... 18

Menu Option: Bass Level....20

Menu Option: Surrounds 20

Menu Option: Stereo Mode 20

Menu Option: Bass Mode....20

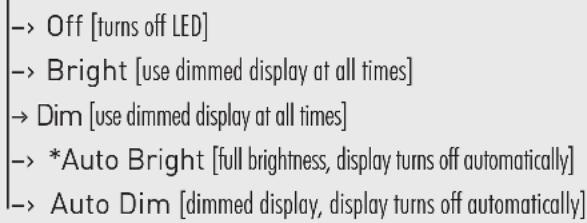

Menu Option: Display....21

Menu Option: Anthem Room Correction ..... 21

Menu Option: Power Settings ..... 21

Menu Option: Wireless Setup 22

Bluetooth Pairing 22

Menu Option: Learn Remote 22

Menu Option: Source Name....23

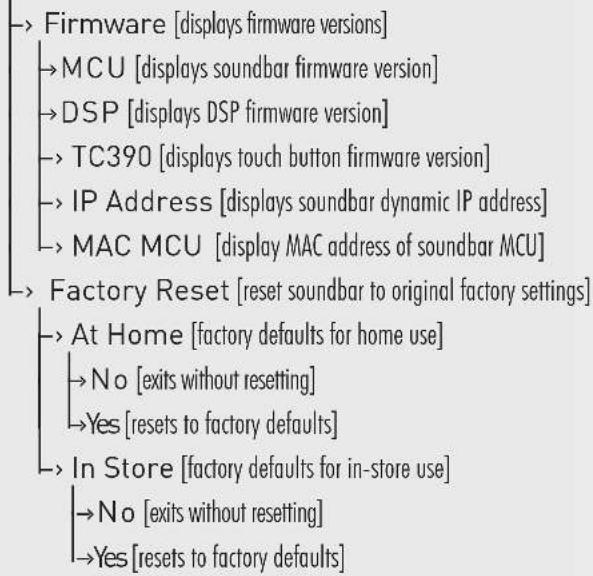

Menu Option: Service 24

Menu Option: USB Upgrade....25

Surround Sound Decoding 26

Digital Input (Digital Optical) 26

Analog Input (RCA) 26

Updates and Rebooting 26

Rebooting Your Soundbar 26

Soundbar Firmware Update 26

ARC™ (Anthem Room Correction) 27

Limited Warranty....28

Frequently Asked Questions ....29

Troubleshooting....30

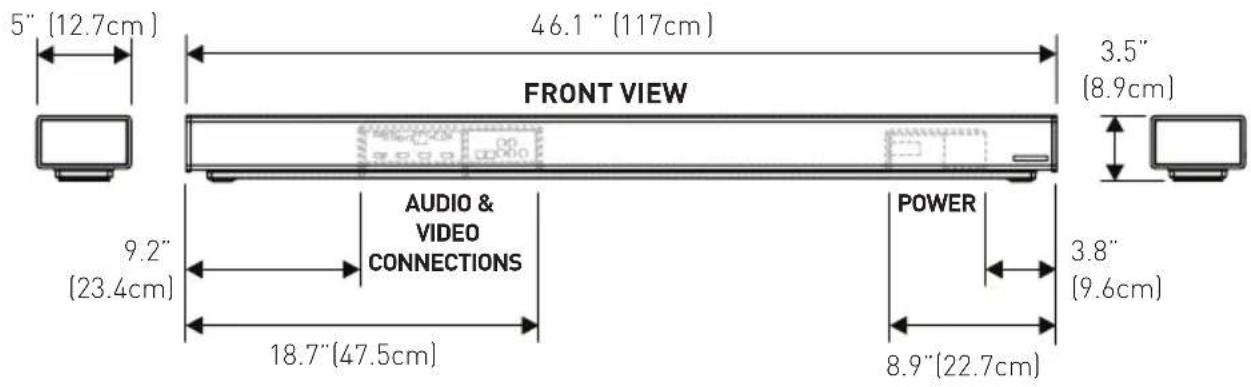

Dimensional Drawings....32

Serial Number: ____

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located on the back of the soundbar and on the product carton.

Technical line drawing of a mechanical assembly with plates and mounting holes (no text or symbols)

wall mount installation template

Pure diagram of two U-shaped components with dot patterns, no text or symbols present

wall bracket

soundbar power cord

Front view of a remote control with buttons and dials (no text or symbols visible)

ARC™ calibrated

shoulder bolts

USB cable for ARC™

remote control

AAA batteries

IR emitter

USB cable for ARC ^™

Pure diagram of two connected audio/video cables without any text or symbols

3.5 mm to 3.5 mm cable (for use with ARC ^™ mobile)

INTRODUCTION AND OVERVIEW

Thank you—the Paradigm owner, for loving what we do, and making it possible for us to do what we love.

Paradigm's dedicated in-house engineering and design team developed the SOUNDPLAY to deliver exceptional multi-channel performance from a single system that easily integrates and installs in a diverse variety of environments—whether table or wall mounted. The SOUNDPLAY produces an enveloping field of richly detailed audio for both music and movies via nine high-performance drivers and seven channels of dedicated amplification representing 100 watts of total system power.

Advanced digital signal processing technology allows Paradigm to replace five dedicated home theater speakers with a one piece solution capable of reproducing multi-channel recordings with unflinching accuracy, resolution, and detail—the inspiration behind every Paradigm design. The SOUNDPLAY reproduces front left, right, and center channels via the system's dedicated

tweeters and woofers. Surround channels are simulated using sophisticated digital signal

processing that directs sound from the system's tweeters and woofers throughout the room.

Bluetooth ^® wireless streaming technology, guarantees compatibility with wireless streaming devices.

Anthem® Room Correction (ARC) allows you to analyze the acoustic response of your listening environment and adjust output of the soundbar for optimal performance.

The simple remote control quickly adjusts volume and selects inputs. The remote also allows you to easily switch between three discrete acoustic modes—'Night' mode (to dial down the bass), 'Bass+' mode (for those moments requiring a little extra thunder), and a 'Normal' mode that restores normal levels.

PLACEMENT AND MOUNTING

LOCATION

We recommend locating the soundbar centered directly above or below your video display. The soundbar menu allows you to optimize acoustic performance for either 'on-wall' or 'on-shelf' installations. You will learn more about accessing these options in the "Controls" section of this manual.

INSTALLING ON A FLAT SURFACE

If you have a surface that provides a wide, level, and stable platform (such as a table or audio/video rack), the soundbar can be placed directly on top.

When installing the system in this configuration, use the soundbar's menu system to choose 'Installation > Shelf Mount'.

Please note: This speaker is not magnetically shielded and should not be placed directly beneath or on top of a CRT television. The magnetic field will not affect plasma and LCD style televisions.

ON-WALL INSTALLATION

The soundbar can be mounted above or below a television with the feedback display and rear connection panels orientated towards the bottom or top of the soundbar (depending on your specific installation requirements). The information shown on the soundbar display can be flipped to match your installation orientation.

Note: These instructions assume the mounting surface is standard wood frame and sheetrock construction. If you wish to mount to another type of surface, consult a bonded contractor.

Note: When installing the system in this configuration, use the soundbar's menu system to choose 'Installation > Wall Mount'. For more information, see page 18 for details.

Required tools (not included):

• Stud finder
• Level
  • Electric drill and drill bits
  • Phillips screwdriver

WARNING! We strongly recommend locating the wall bracket so at least one of the screw locations attaches

to a stud. WARNING! To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Required hardware (included):

• (1) Installation template
• (1) Wall bracket

Required hardware (not included):

• (5) Screws appropriate for mounting surface
• (5) Sheet rock anchors (sized for screws)

1. Locate mounting location using a level and the installation template (fig. 1).
2. Mark the three central pilot hole locations and remove the installation template (fig. 1).

Fig. 1

Technical line drawing of a mechanical assembly with a tool interacting with a U-shaped component (no text or symbols)

1. Using a stud finder, determine if there is a wall stud directly behind one of the three center screw locations (fig. 2a). If no stud is found: use the center most screw location and drill a pilot hole for the wall anchor. Install a wall anchor at this location. If a wall stud is found: drill a pilot hole into the stud.

2. Using a screw, attach the wall bracket to the wall. DO NOT tighten (fig. 2b).

3. Using a stud finder, determine if a wall stud is directly behind any of the remaining screw locations (fig. 2a).

If no stud is found: use the top and bottom center-most screw locations. If a wall stud is found: use the top and bottom screw locations with a stud behind them.

Use a level to square the wall bracket and mark the remaining pilot hole locations (fig. 2b).

1. Remove the wall bracket or pivot to access the remaining screw locations (fig. 2b).

If no stud is found: drill pilot holes and install wall anchors. If a wall stud is found: drill pilot holes into the stud.

1. Using the screws, attach the wall bracket to the wall. DO NOT fully tighten.

2. Use a level to square the wall bracket. Tighten all screws (fig. 2b).

3. Attach audio and power cables as needed. Refer to the 'Connection' section of this manual.

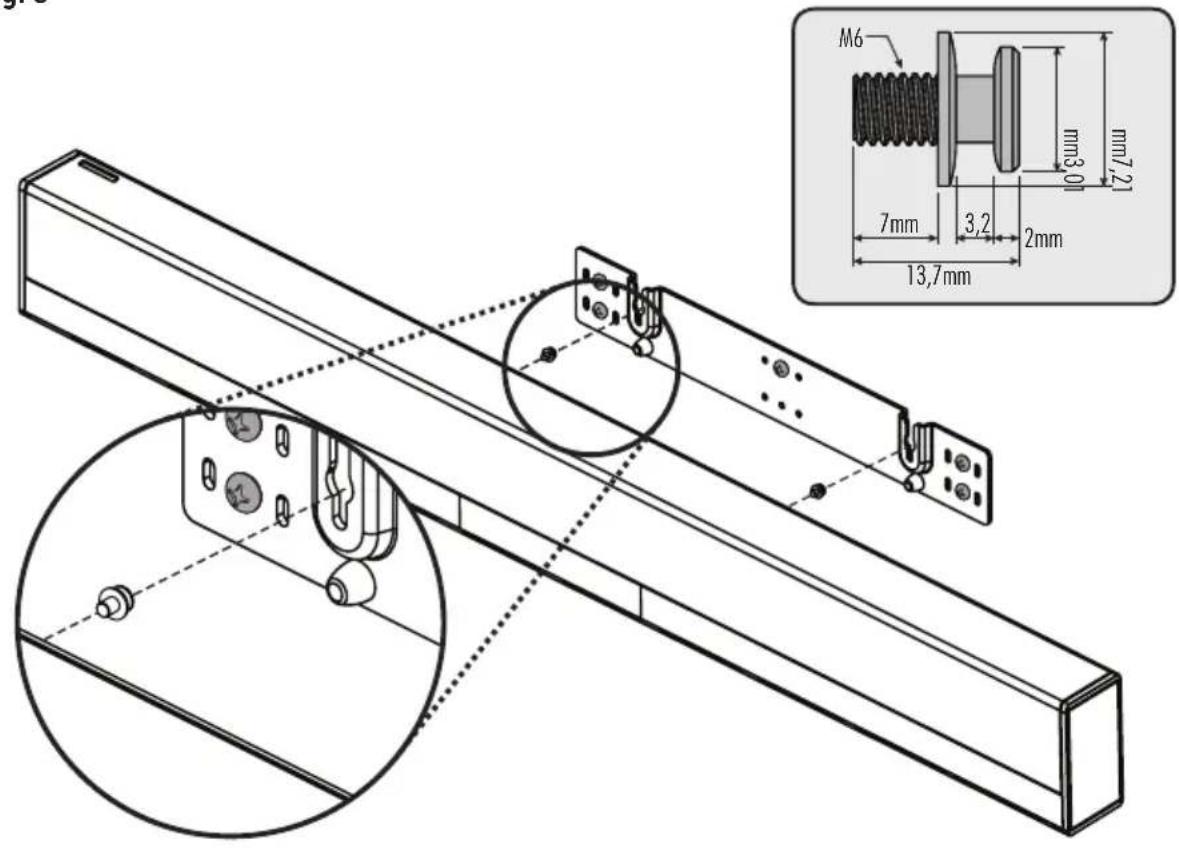

4. Move the soundbar into place and drop the shoulder bolts into the wall bracket keyholes. Before releasing, make sure the soundbar has dropped fully into the keyholes and is held firmly in place (fig. 3).

Fig. 2a

or or

Fig. 2b

Technical line drawing of three sequential structural assembly with vertical posts and mounting brackets (no text or symbols)

Fig. 3

M6 mm3.0 mm7.21 7mm 3.2 2mm 13.7mm

CONNECTION

Turn your soundbar off before making or breaking any signal connections! WARNING! The power cord should not be installed, removed, or left detached soundbar while the other end is co an AC power source.

POWER CONNECTION

The power cord should be firmly inserted into the AC power receptacle on the rear connection panel of the soundbar, then to any convenient AC wall outlet. The soundbar also integrates a signal sensing power supply that automatically switches into standby mode after sensing no audio signal for approximately 20 minutes (this will only occur when the menu's power setting is set to 'Auto Standby').

Fig. 4

Diagram showing a plug inserted into an outlet with a cable, illustrating electrical connection or power system.

If you remove your soundbar from the country of original sale, be certain that AC power supplied in any subsequent location is suitable before connecting and operating the soundbar. Substantially impaired performance or severe damage may occur to the soundbar if operation is attempted from an incorrect AC power source.

SIGNAL CONNECTION

When utilizing the soundbar to reproduce audio, a television's audio output should be defeated. Some televisions will allow you to turn off the internal speaker via the television's menu system. Other televisions may require you to turn the television's volume to "zero" or "mute".

Additionally, if you're connecting your television audio output using a Digital Optical connection, your television may require you to activate the output and configure it to 5.1 surround sound. Please refer to your television's manual.

Connections are made at the signal input section on the rear electronics panel of the soundbar. Your soundbar features four wired inputs:

• 2 x Digital Optical inputs (audio only)
- 2 x Left/Right Analog (RCA) inputs (audio only)

Please note, if your soundbar is being used in an on-wall installation you may find it helpful to use 90° Digital Optical or RCA adapters when making signal connections.

When connecting your system, there are any variety of configurations that will work, and these methods will vary based on user preference.

Some users will choose to route all sources (such as DVD player, cable box, game console, media streamer, etc.) to their television via a Digital Optical or Left/Right Analog (RCA) connection and use the television to switch between audio/video sources. The advantage of this connection method is that only one audio cable (either Digital Optical, or Left/Right Analog (RCA) needs to connect between the television and the soundbar—and changing the input on your television will change the audio signal being sent to the soundbar (without having to change the input setting on the soundbar itself). Please note: Many televisions are not capable of passing multi-channel encoded audio signals, as a result they will down-mix these signals to a 2-channel stereo mix before sending them to the television's Digital Optical, or RCA output.

Fig. 5 IR Out IR Out LAN Factory MCU Update Optical In 1 Optical In 2 Analog In 2 Sub Out Analog In 1 Left (White) (White) Right (Red) Right (Red)

We recommend running cables directly from the source components to the soundbar and run a Digital Optical cable from the soundbar to the TV to pass along the audio signal. This allows the soundbar to receive multi-channel encoded material. Depending on your number of sources, the TV may be used for switching some sources while the primary source devices may be directly connected to the soundbar for guaranteed multi-channel sound.

A few important points to remember when connecting your soundbar:

• A Digital Optical connection will provide the highest audio fidelity when connected to the soundbar.
• If your soundbar is not producing sound or surround sound from your Blu-ray player, DVD player, or other multi-channel audio capable source, you may need to set the player's digital audio output to "Bitstream" (also called "Raw", "Direct Digital", or "High Bit Rate"). If "PCM" is selected you'll lose the multi-channel encoded sound. Some players only require you to turn PCM off to configure for multi-channel encoded sound. Please refer to your player's manual.
• Audio-only sources capable of only stereo output (such as portable media player docks or CD player) will often connect directly to the soundbar via the Analog Input.

SUBWOOFER CONNECTION

You may choose to employ a separate subwoofer to reproduce the LFE (low frequency effects) channel information in multi-channel recordings and/or reinforce bass performance of stereo recordings. A Paradigm subwoofer or an alternative brand subwoofer can be connected via the soundbar's "Sub Out" RCA connection.

No Subwoofer (Default)

For systems not using a separate subwoofer, use the soundbar's menu system and choose "Subwoofer > No Sub". This sets the soundbar to reproduce the entire frequency range when playing content.

Wired Subwoofer Connection

Using a high-quality RCA style cable designed for subwoofer connection, connect "Sub Out" from the soundbar to the "LFE In/Sub In" on the subwoofer.

Use the soundbar's menu system and choose 'Subwoofer > Wired Sub'.

Reference your subwoofer's manual to learn how to properly adjust the sub's level and phase controls to achieve proper blending with the soundbar. The subwoofer's crossover should be set to "bypass", "LFE". For sub-woofers that do not have a "bypass" or "LFE" crossover setting, we recommend adjusting the crossover to its highest setting.

IR OUTPUT

These jacks accept IR emitters with 3.5mm mono-style connectors. One IR emitter is included with the soundbar. Plug the IR emitter into either of the soundbar's IR Out jacks and place the other end of the IR emitter over the IR sensor on anther piece of equipment. The use of an IR emitter allows the soundbar to pass IR signals from any remote control to a tethered device—allowing control of equipment in locations a remote would not normally reach.

Fig. 6

CONTROL PANEL

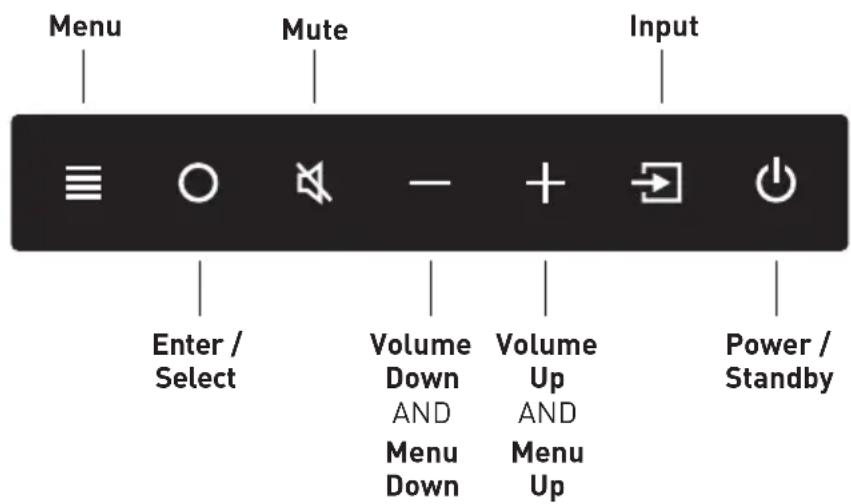

Your soundbar features seven buttons that control the following functions:

MENU: Activates the setup menu. When the menu is activated the menu button will take you back one level, the volume buttons will function as up/down, and the Enter/Select button will allow you to select a menu item. Exit the menu by repeatedly pressing the Menu button.

ENTER/SELECT: When the menu is activated the Enter/Select button will allow you to select a menu item.

MUTE: Mutes the soundbar. When muted, the soundbar will display a Mute icon ( ). Pressing

this button a second time or pressing either volume button will restore the previous volume setting.

VOL+/VOL-: Adjusts volume. When the menu is activated the volume buttons will function as up/down buttons.

INPUT: Cycles through the inputs. The order of the inputs is: Bluetooth > Optical 1 > Optical 2 > Analog 1 > Analog 2

POWER/STANDBY: Turns the soundbar on. Press and hold for 2 seconds to turn the soundbar off.

Fig. 8

Menu Mute Input ≡ ○ × — + → ⬤ Enter / Select Volume Down AND Volume Up AND Power / Standby AND Menu Down And Menu Up

REMOTE CONTROL

Your soundbar remote controls these functions:

POWER: Turns the soundbar on and off.

MENU: Enters and exits the soundbar menu.

MUTE: Mutes the soundbar. When muted, the soundbar will display 'MUTE'. Pressing this

button a second time or pressing either volume button will restore the previous volume setting.

VOL+/VOL-: Adjusts volume level.

BASS MODE – NIGHT: Reduces bass output and compresses the dynamic range.

BASS MODE - BASS+: Increases bass output.

BASS MODE - NORMAL: Restores normal levels.

INPUT: Activates the selected input.

CHANGING THE REMOTE'S BATTERY

Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

The remote control for your speaker uses two AAA type batteries. Access the battery compartment by using a Phillips screwdriver to remove the screw located on the bottom of the remote.

PROGRAMMING A SECOND REMOTE

This soundbar can be programmed to respond to a second remote. See "The Menu System" section of this manual for programming instructions.

Please note: There may be remote controls that the soundbar cannot learn or that the soundbar can not learn correctly. Due to the number of available remote controls, it is impossible to advise which will or will not work.

Please note: When learning from a second remote, you will likely find it does not have buttons that directly correspond with all available soundbar commands. Not all soundbar commands have to be programmed. Some remote controls offer 'function' buttons (F1, F2, etc.) that can be used to program unique soundbar commands such as 'NITE.MD' or 'OPTIC'.

Please note: Some remote controls offer discrete 'power on' and 'power off' buttons. Some offer only a single button to toggle power on and off. The learning function of the soundbar allows you to program for either scenario.

Fig. 9

POWERMENUMUTMENU MUTE BASS MODE NIGHT NORMAL BASS + BLUETOOTH OPTICAL 1 OPTICAL 2 ANALOG 1 ANALOG 2 - + - + -

DISPLAY

Fig. 10

dts Current InputAudio Codec Status + 00 vol dB | Vol OptICAL 1 Blu-Ray ARC Volume Level Current Input Custom Name Anthem Room Correction Status

Your soundbar displays the following information:

Audio Codec Status: If an audio signal with surround sound encoding is detected this icon will indicate Dolby® Digital or DTS Digital Surround™.

Volume Level: Displays the current volume level. Current Input: This icon indicates the input that is currently active using its standard input name. This field is not customizable.

Current Input Custom Name: This indicates the input that is currently active using its custom user defined name.

Anthem Room Correction Status: This icon indicates that Anthem Room Correction is active. This icon will not display if an Anthem Room Correction has been manually turned off or an adjustment curve has not been uploaded to the soundbar. For information on setting up ARC, please refer to the “[ARC™] Anthem Room Correction” section of this manual.

THE MENU SYSTEM

Fig. 11

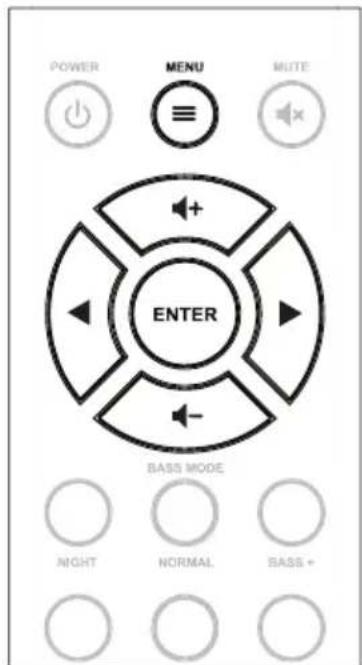

Menu Enter / Select Menu Down Menu Up

Fig. 12

POWER MENU MUTE ENTER BASS MODE NIGHT NORMAL BASS +

ENTERING AND EXITING THE MENU

To access the menu from the remote, press 'Menu'. To exit the menu from the remote, press 'Menu' again.

To access the menu from the control panel press the menu button. To exit, press the menu button again.

The menu auto exits after 30 seconds.

NAVIGATING THE MENU\*\*

The menu is navigated using the 'up/down/left/right/enter' navigation system. Up and

Down are used to cycle through the menu and submenu options. Right or Select are used to access a submenu or to select an option. With the remote, left is used to exit a submenu and go back one level. With the control panel, the menu button is used to go back one level.

MENU OPTION: INSTALLATION

Installation: Enter the submenu by pressing the enter button. The settings in this menu will adjust the soundbar's equalization and voicing for optimal performance in shelf mount or wall mount installations.

Installation > Shelf Mount (Default): This option configures the soundbar's audio output to sound best in shelf mount installations. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Installation > Wall Mount: This option configures the soundbar's audio output to sound best in wall mount installations. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

MENU OPTION: SUBWOOFER

Subwoofer: Enter the submenu by pressing the enter button. Here you may configure external subwoofer integration. It is possible to connect multiple wired subwoofers if you utilize a 'Y' splitter attached to the subwoofer cable, or if your subwoofer offers an output designed to daisy chain multiple subs.

Subwoofer > No Sub (Default): This option

configures the soundbar to handle all bass information and will not output information via the subs wired connection. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Subwoofer > Wired Sub: This option configures the soundbar to use an external subwoofer connected via a cable to the soundbar's Sub Out RCA connection. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

AN OVERVIEW OF THE MENU STRUCTURE\*\*

Installation [select installation location]

→*+ Shelf Mount [select when set on a flat surface] → Wall Mount [select when mounted to a wall] → Above TV [select when soundbar is mounted above TV] → Below TV [select when soundbar is mounted below the TV]

Subwoofer [select subwoofer configuration]

→*†No Sub [select when not using a subwoofer] → Wired Sub [select when attaching a sub via a cable]

Bass Level [adjust bass level in 2dB increments]

Surrounds [configure surround options for 5.1-channel sources]

→ Off [turns off simulated surrounds] → *On [use simulated surrounds at normal level] → +6dB [increases level of simulated surrounds +6dB]

Stereo Mode [configure options for 2-channel stereo sources]

→ Wide [creates a wider stereo image] → *Voice+ [simulates a center channel for stereo sources] - *Normal [use original stereo signal]

Bass Mode [select EQ listening mode for bass]

→*Bass+ [sets bass EQ mode for enhanced bass] ->*Normal [returns bass EQ to normal levels] ->Night [sets bass EQ mode for reduced bass]

Display [select display mode]

→⁺Bright [use display at full brightness at all times] →Dim [use dimmed display at all times]

→*Auto Bright [full brightness, display turns off automatically] -> Auto Dim [dimmed display, display turns off automatically]

Touch Display [select touch display mode]

-→ Off [turns off LED] -> Bright [use dimmed display at all times] -> Dim [use dimmed display at all times] -> *Auto Bright [full brightness, display turns off automatically] -> Auto Dim [dimmed display, display turns off automatically]

ARC [configure Anthem Room Correction]

-*+ On [turns Anthem Room Correction on, if loaded] -> Off [turns Anthem Room Correction off]

Power Settings [configure power settings]

- Power Standby [configure standby behavior] ->*†Auto Standby [soundbar turns itself on and off as needed] ->Always On [the soundbar is always powered on] -> Power-On Volume [set default volume for power on] ->Set L->Max through -90dB*[default = -35dB] ->Last Used [volume at power on is equal to previous level] ->IP Control [configure IP control] ->†Off [turns IP Control off] ->*On [turns IP Control on] ->Standby IP [configure Standby IP Control] ->*†Off [turns Standby IP Control off] ->On [turns Standby IP Control on, disabled if IP Control is off]

AN OVERVIEW OF THE MENU STRUCTURE (CONTINUED)

Wireless Setup [setup wireless]

→Bluetooth Pairing [Bluetooth Pairing]

Learn Remote [learn remote codes for second remote control]

Volume +

Volume -

→Mute

→ Next Input

→ Previous Input

→ Up

→ Down

→ Left

→ Right

→ Enter

→ Bass Mode: Night

→ Bass Mode: Normal

→ Bass Mode: Bass+

→ Stereo Mode: Wide

→ Stereo Mode, Voice+

→ Stereo Mode: Normal

→ Power Toggle

→ Power On

→ Power Off

→ Menu

→ Input: Bluetooth

→ Input: Optical 1

→ Input: Optical 2

→ Input: Analog 1

→ Input: Analog 2

→ ARC On

→ ARC Off

L-> Reset Remote [clear codes for second remote]

→No [exits without clearing codes for second remote] →Yes [clears codes for second remote]

Source Name [assign custom names to inputs]

→ Optical 1

→ Optical 2

→ Analog 1

L> Analog 2

Service [advanced controls]

USB Upgrade (updates firmware)

- Upgrade DSP [updates DSP firmware] ->Upgrade TC390 [updates touch button firmware] ->Upgrade MCU [updates MCU firmware] ->Upgrade ALL [updates all USB upgrades]

*HOME: Factory default setting, home use.

^+ STORE: Factory default setting, retail store use.

MENU OPTION: BASS LEVEL

Bass Level: Enter the submenu by pressing the enter button. Here you can configure bass output by ±10dB in increments of 2dB.

Bass Level > -10dB to +10dB: Using the up/down directional buttons, choose the desired bass level (from -10dB to +10dB). Bass level output will be automatically set to match the value currently displayed.

MENU OPTION: SURROUNDS

Surrounds: Enter the submenu by pressing the enter button. This menu allows you to turn simulated surround channels on or off when the soundbar detects a multi-channel source.

Surrounds > Off: This option configures the soundbar (when it detects 5.1-channel encoded content) to down-mix to 3.1-channel output (left/ center/right channels + subwoofer) and does not utilize simulated surround channels. All content originally intended for the surround channels is routed to the left/center/right channels. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Surrounds > On (Default): This option configures the soundbar (when it detects 5.1-channel encoded content) to fully reproduce all 5.1-channels of information including simulated surround channels. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Surrounds > +6dB: This option configures the soundbar (when it detects 5.1-channel encoded content) to fully reproduce all 5.1-channels of information including simulated surround channels with 6dB of extra output. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

MENU OPTION: STEREO MODE

Stereo Mode: Enter the submenu by pressing the enter button. Here, you may set how the soundbar reproduces audio from 2-channel (stereo) sources.

Stereo Mode > Wide: This option configures the soundbar to create a wider stereo image. Activate by pressing the enter button, and the soundbar will respond with 'Saved'.

Stereo Mode > Voice+: This option configures the soundbar to reproduce the left and right channels with a simulated center channel. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Stereo Mode > Normal (Default): This option configures the soundbar to reproduce the content using only the left and right channels. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

MENU OPTION: BASS MODE

Bass Mode: Enter the submenu by pressing the enter button. Here you may adjust the bass equalization of the soundbar. These options can also be activated directly from the soundbar's remote control.

Bass Mode > Bass+: This mode enhances bass output. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Bass Mode > Normal (Default): This mode returns the bass to normal levels. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Bass Mode > Night: This mode decreases bass output. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

MENU OPTION: DISPLAY

Display: Enter the submenu by pressing the enter button. The settings in this menu allow you to adjust the brightness of the display and configure the display to automatically turn on and off.

Display > Bright: This option configures the soundbar's display to be on at full brightness when the soundbar is on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Display > Dim: This option configures the soundbar's display to be on at a reduced brightness when the soundbar is on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Display > Auto Bright (Default): This option configures the soundbar's display to be on at full brightness when a setting (such as volume or input) is changed. After a few seconds, the display will turn off. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Display > Auto Dim: This option configures the soundbar's display to be on at a reduced brightness when a setting (such as volume or input) is changed. After a few seconds the display will turn off. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

MENU: ANTHEM ROOM CORRECTION

Anthem Room Correction: Enter the submenu by pressing the enter button. Here you may turn Anthem Room Correction on and off. Using proprietary processes, a microphone, and the power of your PC, the ARC system analyzes

your soundbar's in-room sound, then computes the required correction to yield optimal performance within your acoustic environment.

Anthem Room Correction > Off or On: This option turns the Anthem Room Correction feature on or off. Activate by pressing the enter button and the soundbar will respond with 'Saved'. Please note, turning ARC on and off only makes a difference if ARC corrections have not been loaded on the soundbar.

MENU OPTION: POWER SETTINGS

Power Settings: Enter the submenu by pressing the enter button. Here you may adjust the soundbar's power options.

Power Settings > Power Standby: Enter the submenu by pressing the enter button. Here you choose whether the subwoofer is always on or turns itself on and off automatically.

Power Settings > Power Standby > Auto

Standby (Default): This option configures the soundbar to turn itself off after no audio signal is detected for approximately 20 minutes. When the soundbar detects an audio signal, it will immediately turn itself on. Activate by pressing the enter button and the soundbar will respond with 'Saved'. Please note: When set to Auto Standby, if the soundbar is manually turned off (using the power button on the control panel or remote control), the soundbar will not respond to an incoming audio signal and will not turn on automatically. In this situation, turn the soundbar on using the power button on the control panel or remote control and the soundbar will resume automatic power handling.

Power Settings > Power Standby > Always On:

This option configures the soundbar to remain on at all times until it is manually turned off using

the power button on the control panel or remote control. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Power Settings > Power-On Volume: Enter the submenu by pressing the enter button. Here you can configure the default volume of the soundbar when it powers on or comes out of standby.

Power Settings > Power-On Volume > Set:

Enter the submenu by pressing the enter button. Here you choose set the power-on volume.

Power Settings > Power-On Volume > Set >

-90dB to +10dB: Using the up/down directional buttons, choose the desired volume level. Once set the soundbar will always be set to this level when it powers on or comes out of standby. The default level is -35dB.

Power Settings > Power-On Volume > Last

Used: When Power Standby is set to "Last Used", the soundbar will power on or come out of standby at a volume level matching the volume setting when it was powered off or went into standby.

Power Settings > IP Control: Enter the submenu by pressing the enter button. Here you can turn IP Control off or on. IP Control allows the soundbar to respond to incoming IP commands from networked home control systems connected via Ethernet or Wi-Fi.

Power Settings > IP Control > Off or On: This option turns the IP Control feature off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

Power Settings > Standby IP > Off or On: Enter the submenu by pressing the enter button. Here you can turn Standby IP Control off or on. This allows you to configure how the soundbar responds to incoming IP commands when it is in standby mode.

Power Settings > Standby IP > Off or On: This option turns the Standby IP Control feature off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'. When this setting is set to "Off" the soundbar will not respond to incoming IP command when it is powered off or in standby mode. If IP Control is set to Off, Standby IP Control is disabled.

MENU OPTION: WIRELESS SETUP

Wireless Setup: Enter the submenu by pressing the enter button. Here you may setup a Bluetooth connection.

Wireless Setup > Bluetooth Pairing: Enter the submenu by pressing the enter button. Here you may setup a Bluetooth connection.

MENU OPTION: LEARN REMOTE

Please note: There may be remotes that the soundbar cannot learn or that the soundbar can not learn correctly. Due to the number of available remotes, it is impossible to advise which remotes will or will not work.

Please note: When learning from a second remote, you will likely find it does not have buttons that directly correspond with all available soundbar commands. Not all commands have to be programmed. Some remotes offer 'function' buttons (F1, F2, etc.) that can be used to program unique soundbar commands such as 'Bass Mode: Night' or 'Input: Optical 1'.

Please note: Some remote controls offer discrete 'power on' and 'power off' buttons. Some offer a single button to toggle power on and off.

The learning function of the soundbar allows you to program either scenario.

Learn Remote: Enter the submenu by pressing the enter button. The settings in this menu program the soundbar to respond to a second remote control. The factory supplied remote control will always work with the soundbar, even if the soundbar is programmed to respond to a second remote.

Using the up/down directional buttons, you can select and program the following commands:

• Volume +
• Volume -
• Mute
• Next Input
• Previous Input

- Up

- Down

- Left

- Right

- Enter

- Bass Mode: Night

- Bass Mode: Normal

- Bass Mode: Bass+

- Stereo Mode: Wide

- Stereo Mode: Voice+

- Stereo Mode: Normal

- Power Toggle

- Power On

- Power Off

- Menu

- Input: Bluetooth

- Input: Optical 1

- Input: Optical 2

- Input: Analog 1

- Input: Analog 2

• ARC On [Anthem Room Correction On]

• ARC Off [Anthem Room Correction Off]

Choose the command you want to program and press the enter button. The soundbar will respond with 'Push Button'. Hold the second remote approximately 12 inches (30cm) from the soundbar and press the appropriate button four times. If the new command is learned successfully, the soundbar's display will display "Saved". If the new command is not learned, the soundbar will display "Failed". Repeat the process if learning fails.

Learn > Reset Remote: Enter the submenu by pressing the enter button. Erasing will clear programming for the second remote. The Reset function requires confirmation.

Learn > Reset Remote > No: Activate by pressing the enter button. Choosing this option will exit without erasing the remote programming.

Learn > Reset Remote > Yes: Activate by pressing the enter button. The soundbar will respond with 'Resetting'. After codes are reset, there is no way to recover the previous settings.

MENU OPTION: SOURCE NAME

Source Name: Enter the submenu by pressing the enter button. The settings in this menu will allow you to assign new names to display on the soundbar when changing inputs. For example, you can program the 'Optical 1' input to display 'DVD'. Using the up/down directional buttons, you can select and program the following input names:

• Optical 1
• Optical 2
• Analog 1
• Analog 2

Choose the input name you want to reprogram and press the enter button. The soundbar display will display the current name.

Pressing the up/down directional buttons will cycle through the available alpha-numeric characters. Pressing the left/right directional

buttons will move to the next/previous space. To finish programming an input name, use the left/right buttons to move all the way to the left or right.

MENU OPTION: SERVICE

Service: Enter the submenu by pressing the enter button.

Service > Firmware: Enter this submenu by pressing the enter button.

Service > Firmware > MCU: Pressing the enter button will display the current firmware version for the soundbar's MCU (microcontroller unit).

Service > Firmware > DSP: Pressing the enter button will display the current firmware version for the soundbar DSP module.

Service > Firmware > TC390: Pressing the enter button will display the current firmware version for the soundbar's touch button module.

Service > Firmware > IP Address: Pressing the enter button will display the current firmware version for the soundbar's dynamic IP.

Service > Firmware > MAC MCU: Pressing the enter button will display the current firmware version for the mac address of the soundbar's MCU.

Service > Factory Reset: Enter the submenu by pressing the enter button. Resetting the soundbar will restore all settings to the factory defaults settings. This will erase all user-configured presets, and Anthem Room Correction data. This function requires confirmation to reduce risk of performing an accidental reset.

Service > Factory Reset > At Home: Enter the submenu by pressing the enter button.

Service > Factory Reset > At Home > No:

Activate by pressing the enter button. Choosing this option will exit without performing a reset.

Service > Factory Reset > At Home > Yes:

Activate by pressing the enter button. The soundbar will respond with 'Resetting'. Once complete, your soundbar will be reset to factory default Home settings. After a reset has been performed, there is no way to recover the previous settings.

Service > Factory Reset > In Store Enter the submenu by pressing the enter button.

Service > Factory Reset > In Store > No:

Activate by pressing the enter button. Choosing this option will exit without performing a reset.

Service > Factory Reset > In Store > Yes:

Activate by pressing the enter button. The soundbar will respond with 'Resetting'. Once complete, your soundbar will be reset to factory default Home settings. After a reset has been performed, there is no way to recover the previous settings.

MENU OPTION: USB UPGRADE

USB Upgrade: Enter the submenu by pressing the enter button.

USB Upgrade > Upgrade DSP > No or Yes:

This option turns the DSP Upgrade off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

USB Upgrade > Upgrade TC390 > No or Yes:

This option turns the TC390 Upgrade off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

USB Upgrade > Upgrade MCU > No or Yes:

This option turns the MCU Upgrade off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

USB Upgrade > Upgrade ALL > No or Yes:

This option turns the ALL Upgrade off or on. Activate by pressing the enter button and the soundbar will respond with 'Saved'.

This soundbar is capable of detecting and automatically decoding multi-channel audio formats, such as those found on DVD and Blu-ray movies.

When utilizing a digital connection, the soundbar can process the following formats: Dolby® Digital, DTS Digital Surround™, and digital stereo.

Digital Surround

DOLBY

AUDIO

ANALOG INPUT (RCA)

Digitally encoded sound information cannot be transmitted to an analog input. This connection method is adequate for most devices that only offer two channels of output (such as VCRs, CD players, older game consoles, or portable media player docks). Although most surround sound capable devices, such as DVD and Blu-ray players, offer both analog and digital connections, the digital connection should always be employed. If a source device is connected via an analog left/right RCA connection, the 5.1-channel encoded audio content will not be sent to the soundbar.

UPDATES AND REBOOTING

To completely reboot your soundbar, disconnect the power cord, wait 30 seconds, and plug it back in. Press the power button to turn the soundbar on. This reboot will cycle the power off and on.

SOUNDBAR FIRMWARE UPDATE

Your soundbar Microcontroller (MCU) may occasionally require firmware updates. Please check www.paradigm.com for the latest firmware updates.

ARC ^TM (ANTHEM ROOM CORRECTION)

Even when the finest speakers are perfectly positioned, the room itself still has a dramatic impact on any system's sound, an impact more profound than that of any individual component. Various solutions have fallen in and out of favor over the years, but none has solved the problem of "the room." Until ARC.

Using proprietary processes and the power of your PC, the ARC system analyzes each speaker's in-room sound, then computes the required correction to yield optimal performance from every speaker. It's a process that takes approximately 15 minutes. Anthem's approach is a true audiophile solution to the problems of the room.

IMPORTANT! The listening space must be silent while performing ARC. A noisy computer fan, a dishwasher or microwave running, etc. can negatively affect ARC's measurements.

How to Use ARC Technology:

1. Ensure that your soundbar is connected to your home network and is powered on.

2. IP Control must be "On". To activate, or to verify that it is "On", navigate the menu system to the following location:

IP Control: Power Settings > IP Control > On

1. Download the latest version of ARC-2 software from www.anthemav.com and install it. Follow the on-screen instructions.
2. Using the USB cable, connect the ARC microphone to a Windows PC. The USB cable and ARC microphone are provided with your wireless product.
3. Look for the icon on your desktop and launch the ARC program. Follow the prompts on your computer screen to successfully run the ARC software; the entire process should take approximately 15 minutes.
4. Hold the ARC microphone with your arm fully extended, the ARC microphone tip must point towards the ceiling and it must be positioned at ear level (Fig. 13).
5. For best results, hold the microphone in 5 different positions around the room.

TIP! Once the ARC process is complete, the audio will be played back reflecting these corrections. To turn ARC correction on and off, use the menu and navigate to 'Anthem Room Correction'.

Fig. 13

Ear Level

LIMITED WARRANTY

Paradigm® SOUNDPLAY covered in this manual are warranted to be and remain free of manufacturing and/or material defects for a period of one (1) year from the date of original purchase.

Within the time periods specified, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge to the original owner.

Thermal or Mechanical Abuse/Misuse Is Not Covered Under Warranty.

Limitations:

• Warranty begins on date of original retail purchase. It is not transferable;
• Warranty applies to product in normal home use only. If product is subjected to any of the conditions outlined in the next section, warranty is void;
• Warranty does not apply if the product is used in professional or commercial applications.

Warranty is Void if:

• The product has been abused (intentionally or accidentally);
• The product has been used in conjunction with unsuitable or faulty equipment;
• The product has been subjected to damaging signals, derangement in transport, mechanical damage or any abnormal conditions;
• The product (including cabinet) has been tampered with or damaged by an unauthorized service facility;
• The serial number has been removed or defaced.

Owner Responsibilities:

• Provide normal/reasonable operating care and maintenance;
• Provide or pay for transportation charges for product to service facility;
• Provide proof of purchase (your sales receipt given at time of purchase must be retained for proof-of-purchase date).

Should servicing be required, contact us using the information below, to arrange, bring in or ship prepaid, any defective unit. Visit our website, www.paradigm.com for more information.

Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured.

This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.

Retain this manual and your sales receipt for proof of warranty term and proof of purchase.

For additional product support, call Paradigm at 905-696-2868 or email [e-mail]

FREQUENTLY ASKED QUESTIONS

Can my soundbar be used as a dedicated center channel?

No. The soundbar is designed to work as a 2-channel stereo or multi-channel surround sound playback device.

Why is my soundbar not reproducing multi-channel (surround sound) audio?

This could be caused by any number of things. Review the “Connection” section of this manual for a better understanding of recommended connection methods and possible options that might impact the soundbar’s ability to receive multi-channel encoded audio from your television and other audio/video source components.

Will this soundbar decode Dolby® TrueHD or DTS-HD Master Audio™?

No. This soundbar will not decode Dolby TrueHD or DTS-HD Master Audio™. If your audio source (most likely a Blu-ray player) supports either of these formats, you should configure it to default to the Dolby Digital or DTS Digital Surround™ encoded sound track.

How do I connect the soundbar if my television does not have a digital optical output?

If your television has analog outputs these can be used instead. For a digital connection connect the digital audio output of your cable box (or DVD, Blu-ray, game console, etc.) directly to the soundbar using a digital optical cable. A direct digital connection with a source component is always ideal.

How do I clean my soundbar?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Can I mount this soundbar on the wall with a mounting bracket that pivots?

Paradigm does not provide a pivoting wall-bracket for this soundbar. Aftermarket options may exist, but we can not recommend or guarantee a specific brand or model.

Could you suggest a list of suitable electronics and cables ideal for Paradigm speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes, but only with CRT televisions. This soundbar is not magnetically shielded and should be kept at least 2 feet away from a CRT television. LCD and plasma televisions will not be affected.

How can I remove the metal perforated grille from the soundbar?

The soundbar's metal perforated grille is not removable.

TROUBLESHOOTING

Soundbar does not turn on.

- Check that the soundbar's AC power cord is firmly attached to the AC Power In input and plugged into a working AC outlet.

No output from the soundbar

• Check that the soundbar is turned on.
• Check that the soundbar is not muted.
• Check that the soundbar's volume is not turned all the way down.
• Check that the soundbar is set to the proper input.
• Check that all system components are turned on and source material is playing.
• Turn the soundbar off and on using the remote control or the control power button.
• Unplug the soundbar, wait 30 seconds, and plug it back in.
• Check that all interconnecting cables are connected at both ends.
• If necessary, try connecting an alternate source component to make sure the original source component isn't the problem.

No surround sound

- Review the “Connection” section of this manual for a better understanding of recommended connection methods and possible options that might impact the soundbar’s ability to receive multi-channel encoded audio from your television and other audio/video source components.

Sound is coming from both my soundbar and my television

- When utilizing the soundbar to reproduce audio, the television's audio output should be defeated. Some televisions will allow you to turn off the internal speaker via the television's menu system. Other televisions may require you to turn the television's volume to "zero" or to "mute" the television.

The soundbar is too quiet even when the soundbar is turned up

- Check that the output on your television or other source components are not connected via a variable level output. Sometimes this option may be configured in your source components menu. Please refer the manual for the source component in question.

Soundbar won't learn remote codes from aftermarket remote

• Review the “Menu Option: Learn” section of this manual.
• Hold the remote 12 inches (30 cm) from the soundbar during the learning process.
• Press the appropriate button on the second remote four times.
• If the soundbar has already learned a remote code and you are attempting to program the same code to a second function the soundbar will respond with "Fail".
• There may be remote controls that the soundbar cannot learn or that the soundbar can not learn correctly. Due to the number of available remote controls, it is impossible to advise which will or will not work.
• Check the user manual and/or manufacturer's website for your aftermarket remote to see if Paradigm is supported. If so, instead of 'learning' with the soundbar, use the code provided by the manufacturer to program the aftermarket remote itself.

Soundbar remote won't work

• Replace the remote control's batteries with matching batteries.
• Make sure the batteries are installed in the proper orientation.
• If new batteries do not fix the problem, you may have a faulty remote. Call Paradigm customer service at 905-696-2868 for details.

When using an aftermarket remote, the soundbar turns off when the television turns on

- Turn the television on. Manually press the Power button on the soundbar so that both the soundbar and television are both on at the same time.

No sound coming from external sub

• Check that the external sub is turned on.
• Check that the soundbar is configured for a wired subwoofer connection. Refer to the "Subwoofer Connection" section of this manual.
• If utilizing a wired connection, check that the subwoofer cables are attached to the Sub Out connection on the soundbar and to the appropriate input on the subwoofer.
• Turn the soundbar off and on using the remote control or control panel power button.
• Unplug the soundbar, wait 30 seconds, and plug it back in.

External sub is too quiet

• Turn up the volume on the subwoofer.
• Adjust the bass level setting in the soundbar menu system.
• Try moving the subwoofer to a different location in the listening room.

My soundbar is not behaving as expected.

• Turn the soundbar off and on using the remote control or control panel power button.
• Unplug the soundbar, wait 30 seconds, and plug it back in.

DIMENSIONAL DRAWINGS

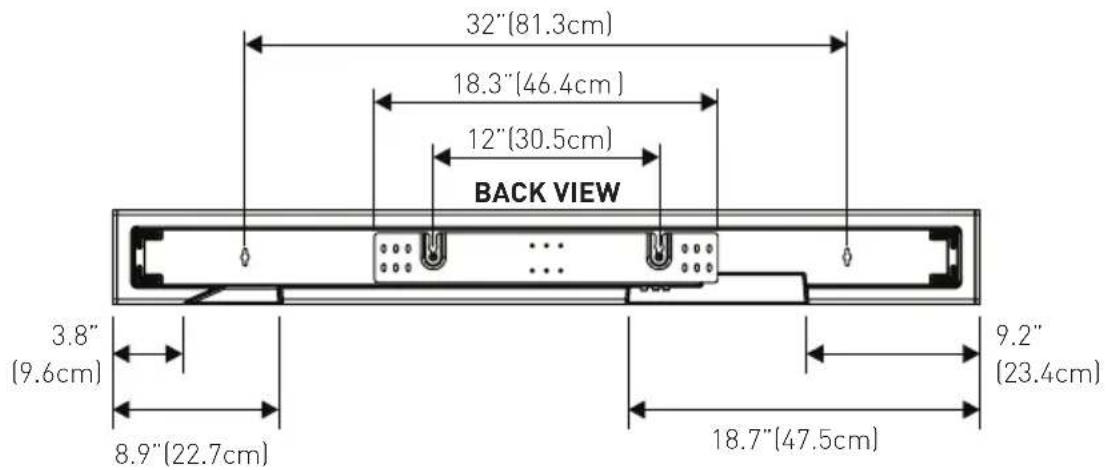

WALL MOUNT CONFIGURATION

5" (12.7cm) 46.1"(117cm) FRONT VIEW 3.9" (9.9cm) 0.4" (1.1cm) 9.2" (23.4cm) AUDIO & VIDEO CONNECTIONS POWER 3.8" (9.6cm) 18.7"(47.5cm) 8.9"(22.7cm)

32"(81.3cm) 18.3"(46.4cm) 12"(30.5cm) BACK VIEW 3.8" (9.6cm) 8.9"(22.7cm) 9.2" (23.4cm) 18.7"(47.5cm)

DIMENSIONAL DRAWINGS

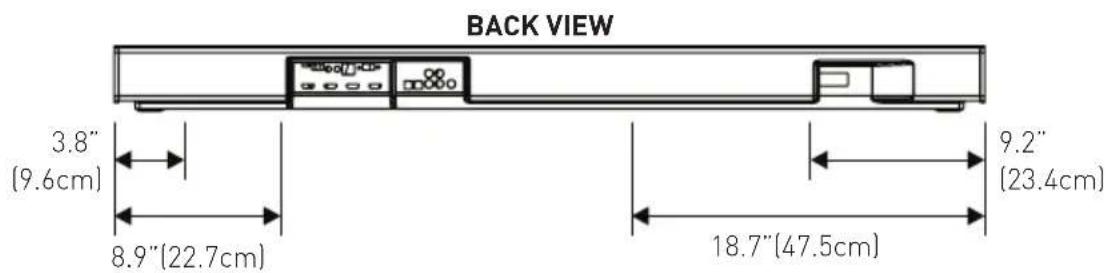

TABLE MOUNT CONFIGURATION

5" (12.7cm) 46.1" (117cm) 3.5" (8.9cm) FRONT VIEW AUDIO & VIDEO CONNECTIONS POWER 9.2" (23.4cm) 18.7"(47.5cm) 3.8" (9.6cm) 8.9"(22.7cm)

BACK VIEW 3.8" (9.6cm) 8.9"(22.7cm) 9.2" (23.4cm) 18.7"(47.5cm)

NOTES

NOTES

MANUEL D'UTILISATION

P Paradigm®

Three technical line drawings of rectangular metal components with notches, shown from different angles (no text or symbols)

soundplay™

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Paradigm Electronics Inc. 205 Annagem Blvd.

Mississauga, ON L5T 2V1

MODEL NUMBER: SOUNDPLAY

FCC ID: MBBSOUNDPLAY

IC Information (For Canadian customers)

MODEL NUMBER: SOUNDPLAY

IC NO: 11657A-SOUNDPLAY

1. CE PRODUIT CONTIENT UN MODULE DE TRANSMETTEUR IC :

Bass mode (mode graves)....22

Display (affichage) 22

Touch Display (affichage tactile) 22

Anthem Room Correction 23

Power settings (paramètres d'alimentation) ..... 23

Wireless Setup (configuration sans fil)....25

Bluetooth Pairing (Appairage Bluetooth) ..... 25

Technical line drawing of a mechanical assembly with mounting brackets and a base plate (no text or symbols)

Pure diagram of two U-shaped objects with dot patterns, no text or symbols present

support mural

cordon d'alimentation

Pure diagram of two connected audio/video cables without any text or symbols

Technical line drawing of a mechanical assembly with a tool inserted into a component, no text or symbols present

Technical line drawing of three mechanical assembly components mounted on a wooden post (no text or symbols)

Fig. 3

M6 mm3,0 mm7,2 7mm 3,2 2mm 13,7mm

RACCORDEMENT

Diagram showing a cable being inserted into an electrical outlet, with labeled components and connection arrows.

BASS MODE - NIGHT (MODE GRAVES - NUIT)

Installation > Wall Mount (Installation > Montage

→ Bass Mode: Night [mode graves : nuit]

→ Bass Mode: Normal [mode graves : normal]

→ Bass Mode: Bass+ [mode graves : graves + ]

→ Stereo Mode: Wide [mode stéréo : large]

Wireless Setup > Bluetooth Pairing (Configuration Sans
