USER MANUAL CK 1907 ADE

CK 1907 | 1908 | 1909

Operating instructions | Instrucciones de operación Mode d'emploi | Istruzioni per l'uso | Instrukcja obslugi

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. With this alarm clock, you always have a precise time in view. The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you easy timing at any time!

Your ADE Team

Scope of delivery

Quartz alarm clock
2 batteries R6 (AA), 1.5 V
- Operating manual

Table of Contents

Scope of delivery 14
General information 16
Intended use 17
Safety 17
Technical data. 19
Overview 20
Starting up 21
Setting the time 22
Alarm 22
Cleaning. 23
Fault/Remedy 23
Declaration of Conformity 24
Warranty 24
Disposal 24

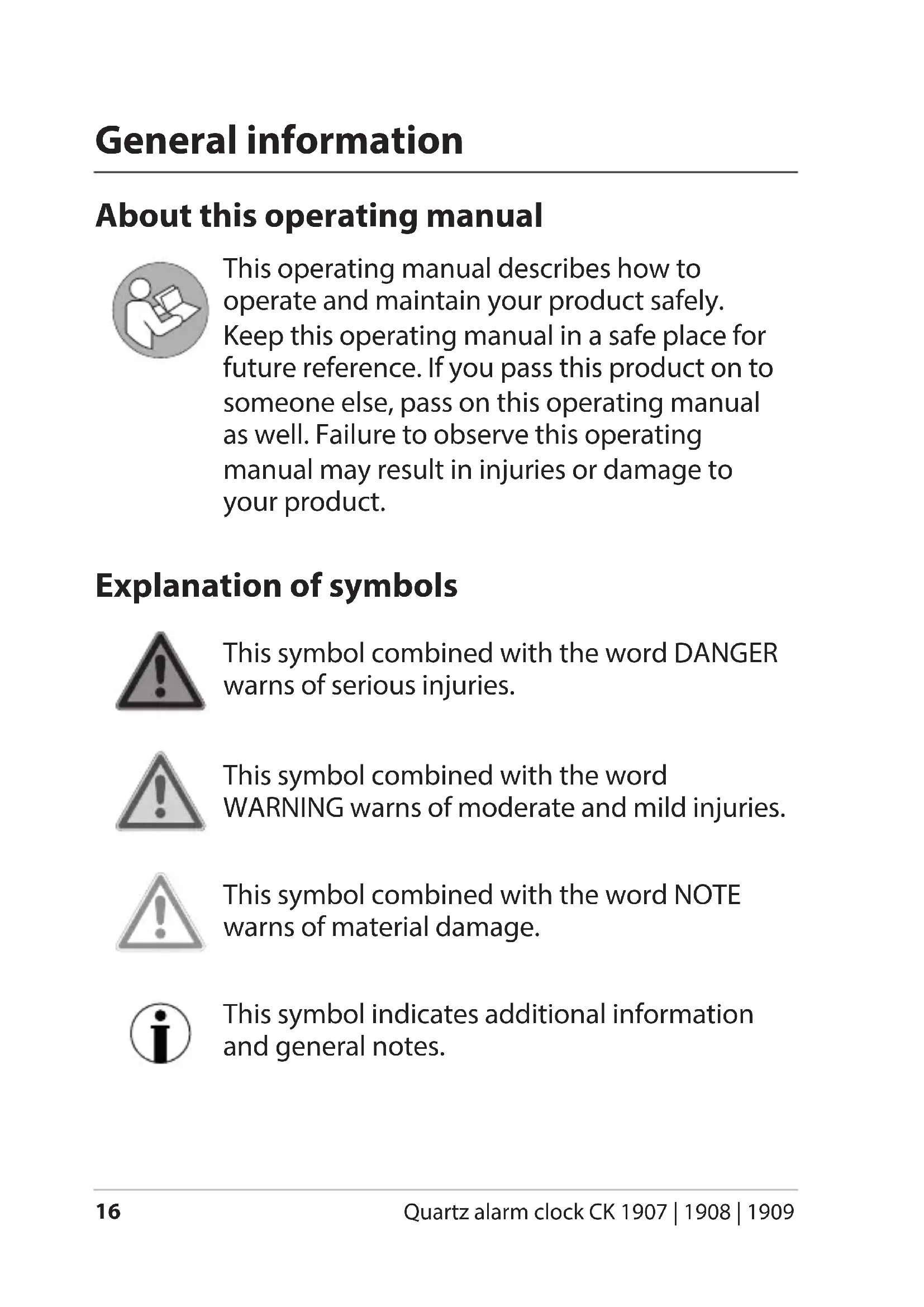

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word. WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Intended use

This alarm clock is designed for private use in dry indoor environments.

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
  Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. Keep the product and batteries out of reach of small children.
  If a battery has been swallowed, seek medical help immediately.

DANGER for children

• Keep packaging material away from children. There is a risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or an equivalent battery type. Observe the "Technical data".

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

NOTE on preventing material damage

• Protect the alarm clock from strong shocks, vibrations, and moisture.

• Remove the batteries from the device when they are depleted or when the alarm clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.

• When inserting and changing batteries, pay attention to the correct polarity (+/-) .

• Do not expose the batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Only use batteries of the same type.
• Do not make any changes to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.

Technical data

Model: Quartz alarm clock CK 1907 (pink),

CK 1908 (blue), CK 1909 (light blue)

Battery: 2x R6 (AA), 1.5 V

Rated current: 220mA

Distributor: Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

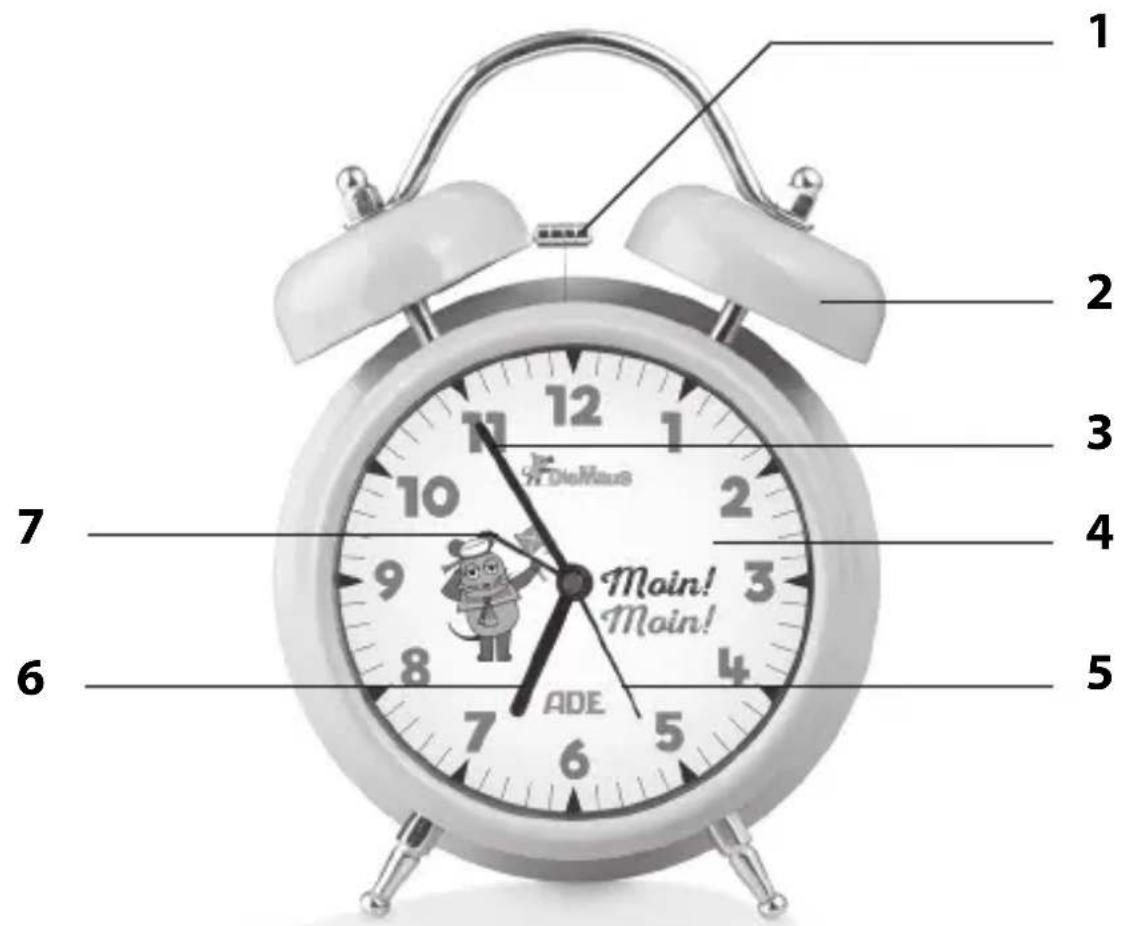

Overview

1 Clapper
2 Bell
3 Minute hand
4 Dial
5 Second hand
6 Hour hand
7 Alarm hand
8 Alarm knob
9 On/off switch for alarm function ON/OFF
10 Battery compartment for 2x R6 (AA)
11 Time knob

Starting up

1. Push the locking tab towards the battery compartment cover and remove the battery compartment cover.
2. Insert the batteries as indicated at the bottom of the battery compartment. Pay attention to the correct polarity (+ / -) .
3. Replace the battery compartment cover. The locking tab must snap audibly into place.

Notes on changing the battery:

• When the hands stop, the batteries must be changed.
• Only use the battery type specified in the "Technical data".
• Dispose of old batteries in an environmentally appropriate way (see "Disposal").

Setting the time

• Use the time knob to set the time. Turn the knob only in the direction of the arrow shown.

Alarm

Setting and enabling the alarm time

1. Use the alarm knob to set the time. Turn the knob only in the direction of the arrow shown.
2. Set the on/off switch for the alarm function to ON to enable the alarm function.

Waking up

At the set time, you will wake up to the twin bell ringing.

Auto-stop function

If you do not switch off the alarm, it will turn off automatically after approx. 30 minutes.

After 12 hours, the next alarm will be triggered automatically.

Disabling the alarm function

• Set the on/off switch for the alarm function to OFF to disable the alarm function.

Cleaning

• Remove dust from the alarm clock with a soft, dry cloth, if necessary.
• More stubborn dirt can be removed with a slightly damp cloth.

Fault/Remedy

Fault Possible cause
No function. • Are the batteries empty or inserted the wrong way around?
The alarm clock does not trigger.	• Is the on/off switch to enable the alarm function pushed to ON?

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the quartz alarm clock CK 1907, 1908, and 1909 complies with EU directives 2014/30/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, february 2019

Waagen-Schmitt GmbH

Warranty

Dear Customer, Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.
