Product Type	Oscillating Sprinkler
Brand	Aqua Joe
Model	AJ-OSPR20
Max. Watering Area	394.8 m²
Watering Width	9 m - 18 m
Max. Spray Range	11 m
Number of Adjustable Widths	4
Settings	Width, range, flow, 360° rotation
Max. Pressure	150 psi
Connector Size	15.9 mm (compatible with standard hoses)
Weight	0.5 kg
Nozzle Material	Rubber (20 nozzles)
Sprinkler Type	Oscillating
Warranty	2 years (residential use)
Customer Service	1-866-SNOWJOE (1-866-766-9563)
Assembly	Screw the sprinkler head onto the base (clockwise)
Maintenance	Drain water before freezing, clean nozzles
Storage	Drain and store frost-free

Frequently Asked Questions - AJOSPR20 Aqua Joe

How to assemble the Aqua Joe AJ-OSPR20 oscillating sprinkler?

Connect the sprinkler head into the base by turning it clockwise until it is tight (Fig. 1 of the manual).

How to adjust the watering width?

Use the two watering width adjusters on the sides to choose from 4 different configurations, from wide to narrow (Fig. 2 and 3).

How to adjust the spray range?

Turn the spray range adjusters (one on each side) to adjust the spray length to the right and left (Fig. 4 and 5).

How to control the water flow?

Turn the flow control knob on the sprinkler to increase or decrease the flow (Fig. 6 and 7).

Can the sprinkler be oriented 360°?

Yes, turn the adjustable collar clockwise or counterclockwise to orient the covered area 360° (Fig. 8 and 9).

How to connect the garden hose?

Attach your hose to the hose connector. Make sure a rubber washer is inside to prevent leaks (Fig. 10).

What is the maximum watering area?

The maximum watering area is 394.8 m², with adjustable width from 9 m to 18 m and spray range up to 11 m.

How to maintain the sprinkler in winter?

Completely drain the water from the sprinkler and hose before the temperature drops below 0°C to prevent freeze damage (Fig. 11).

What is the warranty of the Aqua Joe AJ-OSPR20?

Snow Joe offers a limited 2-year warranty against defects in material and workmanship for normal residential use, from the date of purchase.

How to contact customer service?

Call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for any questions or repairs.

USER MANUAL AJOSPR20 Aqua Joe

Line drawing of a 3D printer with a circular base and mechanical components (no text or symbols)

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

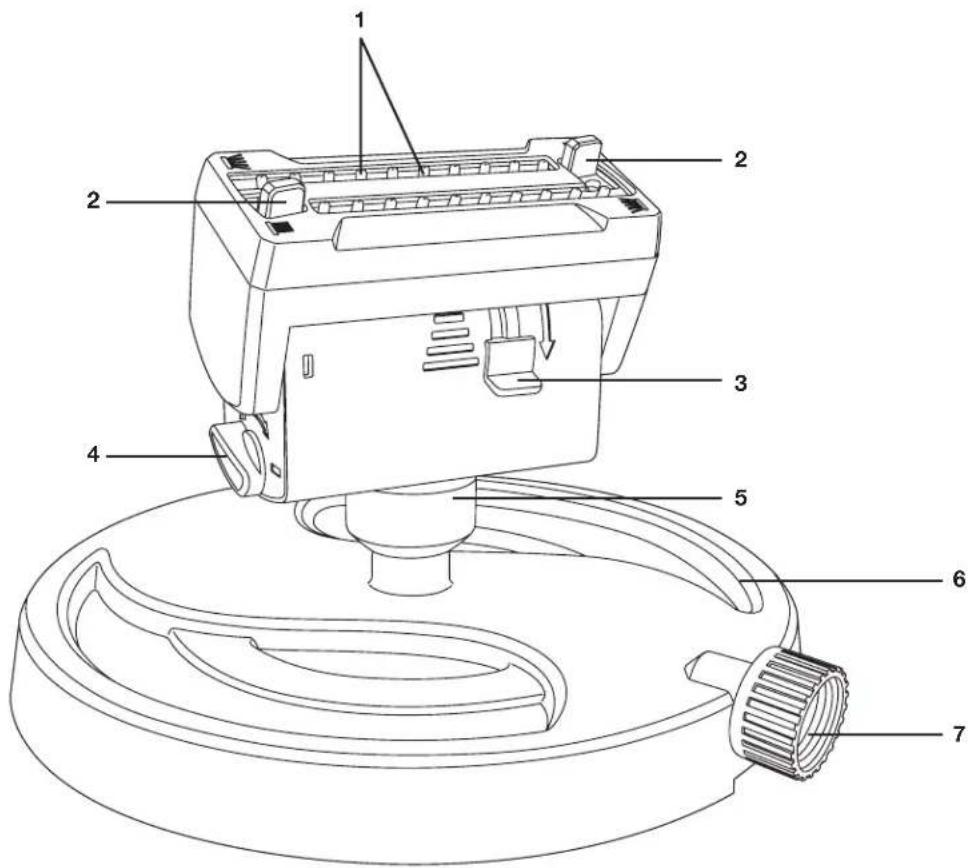

Read the owner's manual and safety instructions carefully before using the oscillating sprinkler. Compare the illustration below to the oscillating sprinkler in order to familiarize yourself with the various parts and components. Save this manual for future reference and reread it at the start of the season to familiarize yourself with the use, handling and features.

1. Rubber spray nozzle (20)
2. Spray width adjuster (2)
3. Spray range adjuster (2)
4. Water flow control
5. 360° adjustable neck
6. Base
7. Hose-end

Technical diagram of a cleaning or cleaning device with numbered parts labeled 1 through 7

Technical Data

Coverage Area Max.... 4250 sq ft (394.8 sq m²)

Number of Spray Width Patterns 4

Spray Width (Min.- Max.)....29.5 ft - 59 ft (9 m -18 m)

Spray Distance Max....36.1 ft (11 m)

Adjustable....Width, Range, Water Flow, Rotation

Max Pressure....150 PSI

Fitting Size....Fits standard 5/8 in. (15.9 mm) garden hose

Sprinkler Type....Oscillating

Weight 1.1 lbs (0.5 kg)

Assembly

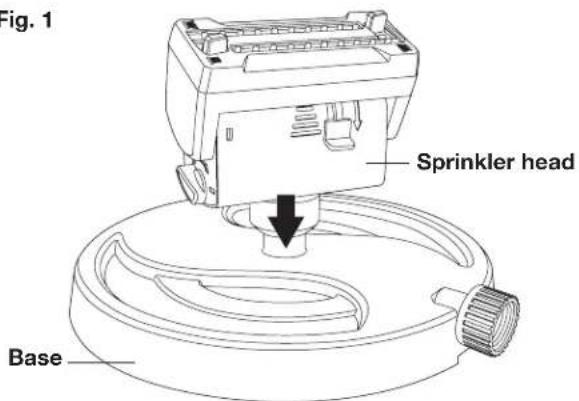

Connect the sprinkler head to the base by rotating it clockwise until tight (Fig. 1).

Fig. 1

Fig. 1 Sprinkler head Base

Operation

Width Control

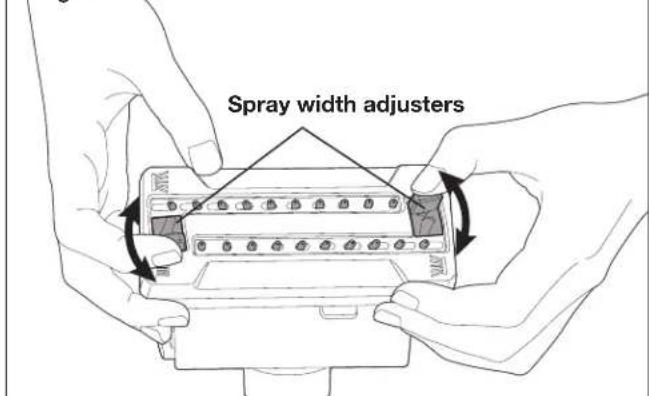

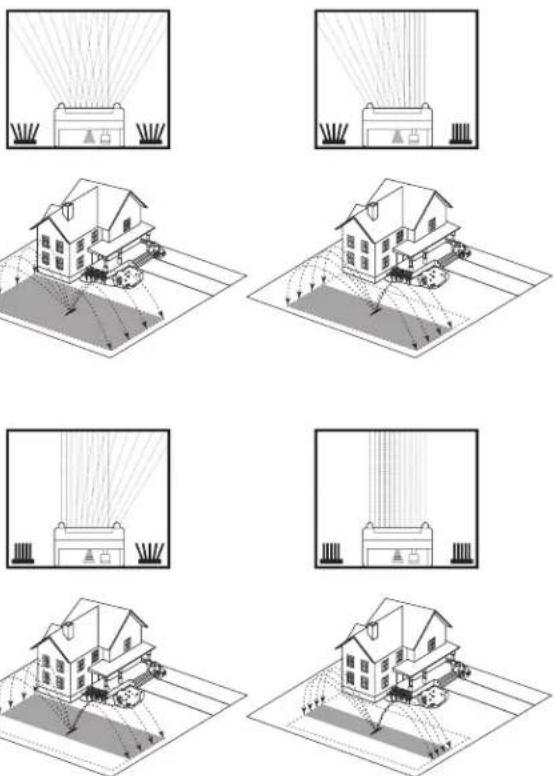

Use the spray width adjusters to select desired position and take advantage of the sprinkler's adjustable range control (Fig.2). Refer to (Fig. 3) to see the different sprinkler options.

Fig. 2

Spray width adjusters

Fig. 3

Isometric diagram of a house with roof and stairs, showing ground-level structure and water flow direction (no text or labels)

Isometric architectural diagram of a two-story house with surrounding ground and structural elements (no text or labels)

Spray Width Patterns

Wide Narrow

Range Control

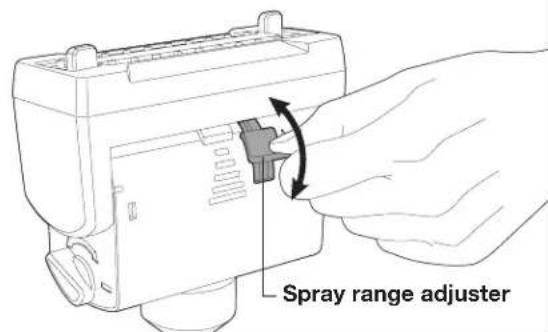

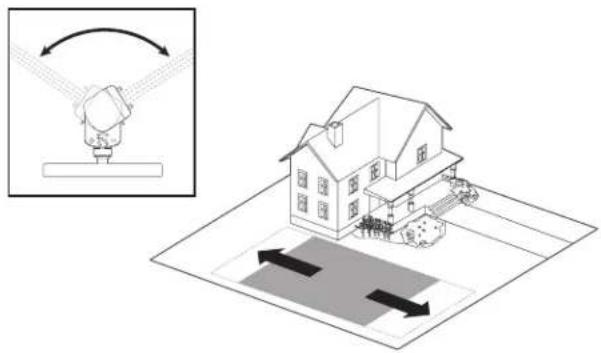

Use the spray range adjusters to adjust the length of the spray. There is one on each side of the sprinkler to adjust the range of travel to each side (Figs 4 & 5).

Fig. 4

Spray range adjuster

Fig. 5

Isometric diagram of a house with directional arrows indicating movement, no text or symbols present

Flow Control

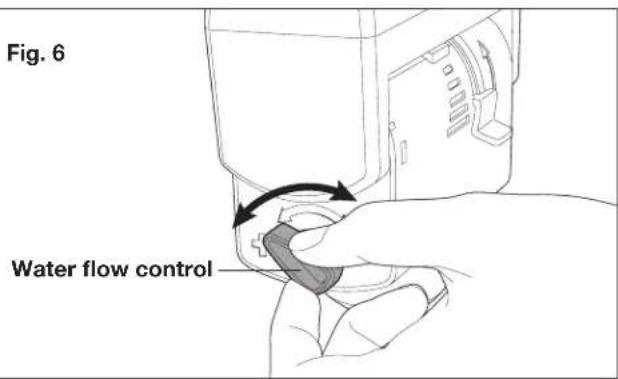

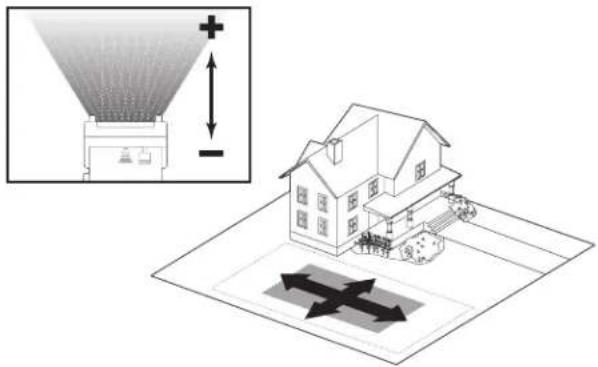

Turn the water flow control to increase or decrease water flow through the sprinkler (Figs. 6 & 7).

Fig. 6 Water flow control

Fig. 7

Illustration of a house with solar panels and directional arrows, no text or symbols present

360° Adjustability

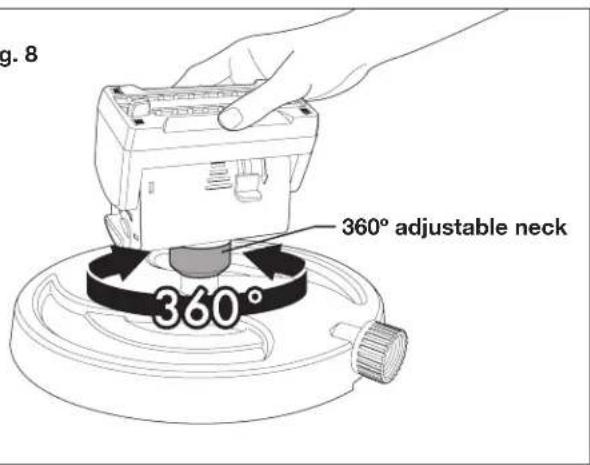

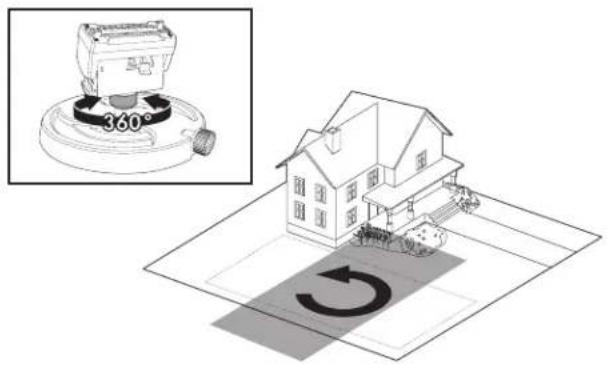

Rotate 360° adjustable neck clockwise or counterclockwise as desired to adjust spray coverage area (Figs. 8 & 9).

Fig. 8

g. 8 360° adjustable neck 360°

Fig. 9

360°

To Use

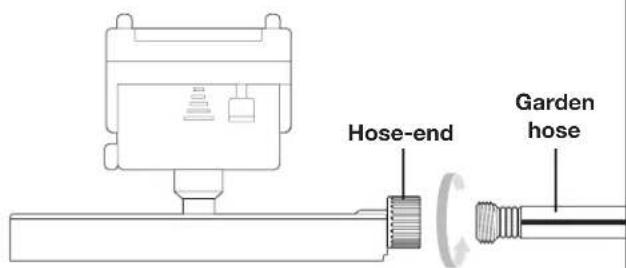

Attach your garden hose to the hose-end. There should be a rubber washer inside the hose-end (Fig. 10).

Fig. 10

Hose-end Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).

Storage

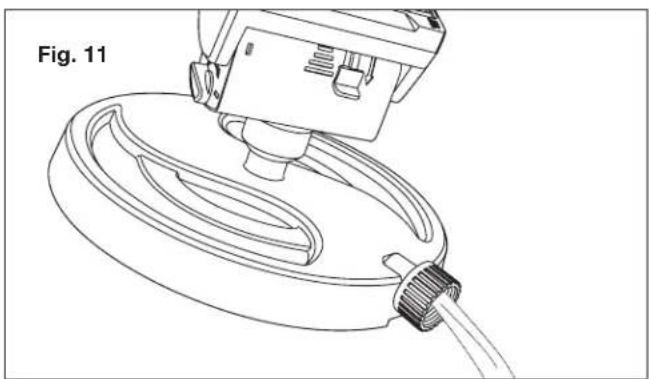

Drain the oscillating sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 11).

Line drawing of a medical device with attached tubing, labeled 'Fig. 11' (no text or symbols on the diagram itself)

Service + Support

If your Aqua Joe® AJ-OSPR20 oscillating sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the housing of your new product: Model #: A | J | - | O | S | P | R | 2 | 0 | Serial #:

Abstract gray logo design with a stylized S-like shape inside an oval (no text or symbols)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
