SJBZ18W - Pest control Sun Joe - Free user manual and instructions

Brand	Sun Joe
Model	SJBZ18W
Product Type	Pest Control (Electric Bug Zapper)
Rated Power	18 W
Input Voltage	120 V AC | 60 Hz
Electric Grid Voltage	1500 V DC ± 100 V DC
Attraction Range	360°
Housing Material	ABS
Power Cord Length	1.75 m
Net Weight	0.9 kg
Lamp Type	UV Black Light Lamp (Replacement Model: BZ18W-BLB)
Recommended Use	Residential, Outdoor
Recommended Hanging Height	Between 1.8 m and 2.4 m above ground
Minimum Distance from Walls/Objects	0.3 m
Recommended Distance from Human Area	Approximately 8 m
Box Contents	Bug Zapper, Cover (2 pieces), Cleaning Brush, Manual, and Registration Card
Tray Maintenance	Empty frequently, clean with brush and rinse with water (tray only)
Grid Cleaning	Use only the included brush, no water or solvents
Lamp Replacement	User-replaceable, replace each season, use gloves
Protection Rating	Resists moderate rain, store indoors in severe weather
Warranty	2 years for residential use (parts and labor)
Customer Service	1-866-SNOWJOE (1-866-766-9563)

Frequently Asked Questions - SJBZ18W Sun Joe

Where to install the Sun Joe SJBZ18W Bug Zapper?

Install it at least 1.8 m from the ground and 0.3 m from any wall or object. Place it about 8 m from human activity areas, between the insect source (woods, swamps) and the area to protect. For best results, use in a dark or shaded area.

How to clean the electric grid?

Unplug the unit, wait 30 seconds for the charge to dissipate, then gently brush the grid through the housing slots with the included brush. Never use water or solvents. Debris falls into the collection tray.

How to empty the collection tray?

Unplug the unit, turn the tray counterclockwise to remove it, empty it with the brush, rinse with water and dry. Replace by turning clockwise to lock.

How to replace the UV black light lamp?

Unplug the unit, wait 30 seconds. Remove the tray, unscrew the two base screws, remove the base and rubber tube guard. With gloves, gently pull out the old lamp and insert the new one (model BZ18W-BLB). Reassemble and test.

What to do if the unit does not work?

Check the outlet and extension cord. If the lamp does not light, ensure it is properly inserted. If the grid does not sizzle, clean it with the brush. If the problem persists, contact customer service at 1-866-SNOWJOE.

Can the bug zapper be used in the rain?

It resists moderate rain, but in severe weather, store it indoors. Never immerse it in water and do not clean it with water (except the tray).

What is the grid voltage? Is it dangerous?

The electric grid delivers 1500 V DC. It is designed to kill insects but can cause electric shock. Never touch the grid, do not insert metal objects, and always unplug before cleaning.

How to maintain the unit for a long lifespan?

Empty the tray regularly, clean the grid with the brush, replace the lamp each season, store the unit indoors out of reach of children, and do not use harsh chemicals.

What accessories and replacement parts are available?

Replacement UV black light lamp (model BZ18W-BLB) is available. Use only Snow Joe® + Sun Joe® approved parts. Order at sunjoe.com or by phone at 1-866-SNOWJOE.

What does the warranty of the Sun Joe SJBZ18W cover?

Snow Joe® warrants this product against defects in material and workmanship for 2 years for residential use. The warranty does not cover commercial use, wear parts, or purchases from unauthorized dealers.

USER MANUAL SJBZ18W Sun Joe

18-WATT | 1500V | 360° COVERAGE | UV LIGHT

Model SJ-BZ18W

Line drawing of a sunflower-based storage unit with labeled 'SUNJOE' and decorative wings (no text or symbols on the structure itself)

If you have any questions or comments,

please call the Snow Joe ^® + Sun Joe ^® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

When using electrical appliances, basic safety precautions should always be followed, to reduce the risk of fire, electric shock, and personal injury, including the following:

1. Read all instructions.
2. This device is for household use only.
3. Do not insert foreign objects into this device.
4. Use only extension cords which have plugs and receptacles which accept the product's plug.
5. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.

Before use, check that the electrical rating of the extension cord is at least as great as the electrical rating of the product.

1. Replace or repair damaged cords.

2. Don't abuse cord – Never carry the device by the cord or yank it to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges.

3. Disconnect the device from the power supply when not in use, before servicing, when changing the black light, cleaning, or other similar actions.

4. Use only a UL-, CSA- or ETL-rated extension cord for outdoor, all-weather use.

5. When using an extension cord, keep the connection dry and off the ground.

6. Do not touch the device or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

7. Store the device indoors and out of the reach of children when not in use.

8. Do not clean this device with cleaning agents or solvents.
9. Do not spray water, wash or immerse this device (other than the collection tray) in water. Do not use with wet hands or in damp environments.
10. Do not use in inflammable or explosive environments, and the like.
11. Do not touch the electric grid or place any metallic objects inside during operation.
12. Hang or place the device out of the reach of children.
13. Never remove any fixed part of the device to make internal adjustments to avoid electric shock.
14. Clean the electric grid at frequent intervals. Unplug the device before cleaning the high voltage electric grid with the provided cleaning brush. Empty the collection tray every week.
15. If the device is malfunctioning, unplug it and contact Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).
16. Do not place the device in an area where it can fall into water or near flammable materials.
17. Avoid looking directly into the UV light. Skin or eye damage may result from gazing directly at the black light.
18. Dead insects accumulating in base of the device may catch on fire. Clean dead insects from device frequently as noted in this manual.
19. The UV black light is replaceable by the user. See the Replacing the UV Black Light section of this manual for reference.

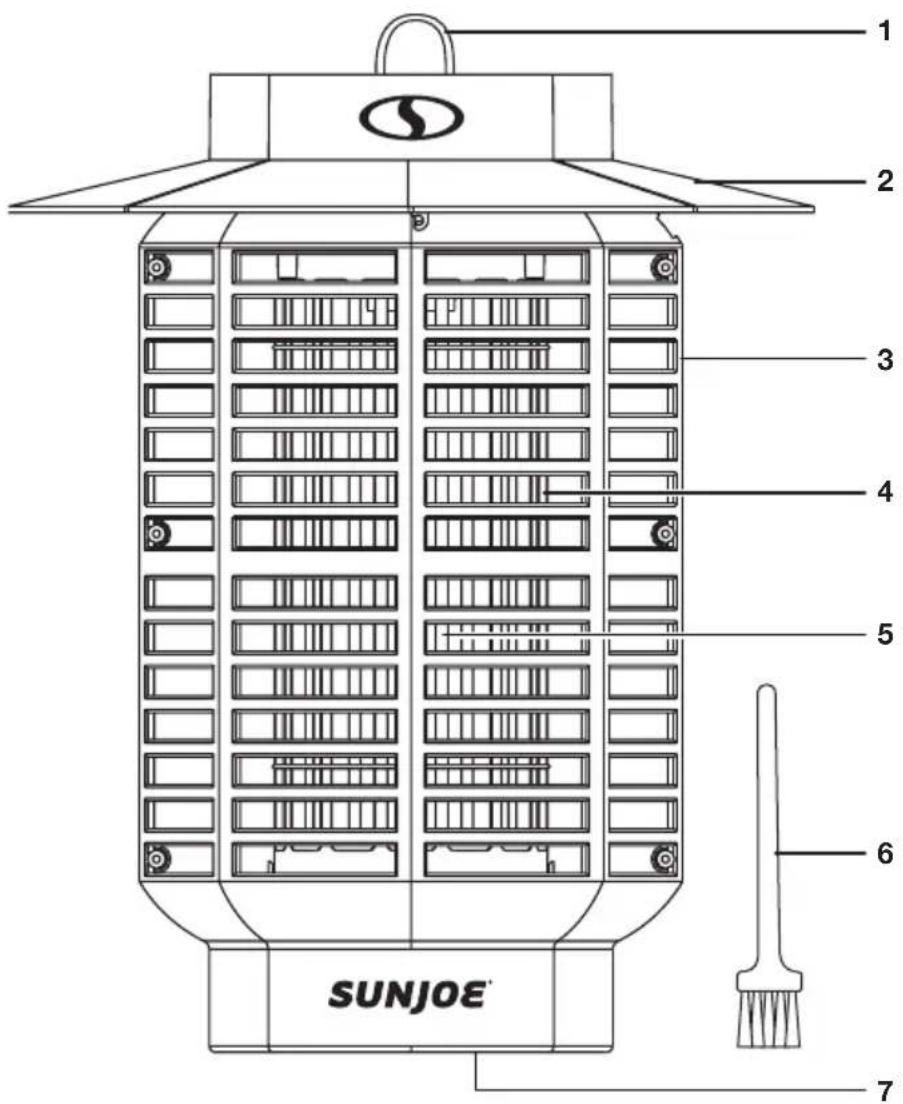

Know Your Electric Bug Zapper

Read the owner's manual and safety rules carefully before using your electric bug zapper. Save this manual for future reference.

1 2 3 4 5 6 7 SUNJOE®

1. Metal hanging ring
2. Cover
3. Housing

4. Electric grid

5. UV black light

6. Cleaning brush
7. Removable collection tray

Technical Data

Rated Power 18W

Input Voltage 120V AC | 60 Hz

Electric Grid....1500V DC ± 100V DC

Coverage 360°

Housing Material ....ABS

Power Cord Length 5.7 ft (1.75 m)

Net Weight 1.9 lbs (0.9 kg)

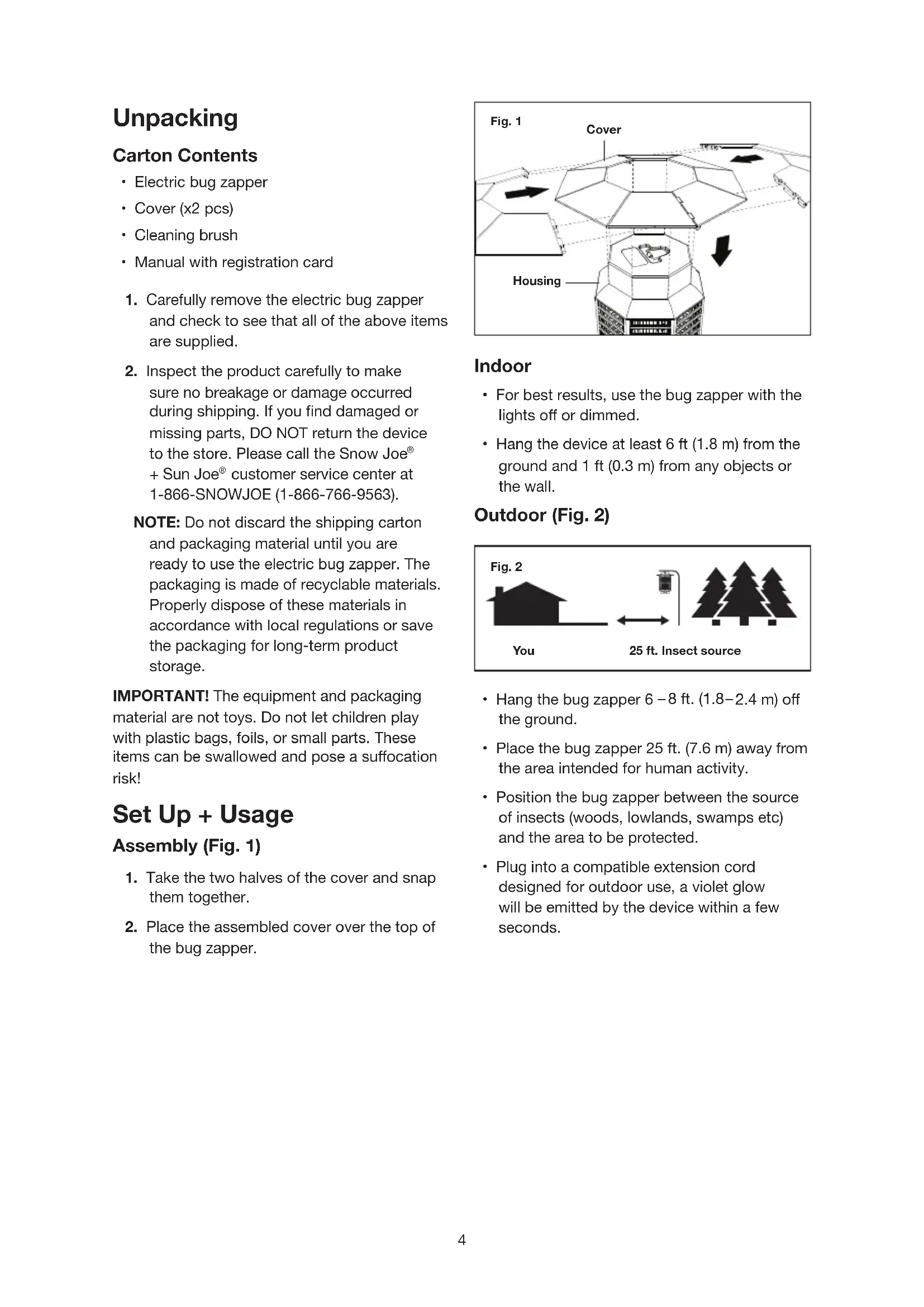

Unpacking

Carton Contents

• Electric bug zapper
- Cover (x2 pcs)
- Cleaning brush
- Manual with registration card

1. Carefully remove the electric bug zapper and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the device to the store. Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric bug zapper. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Set Up + Usage

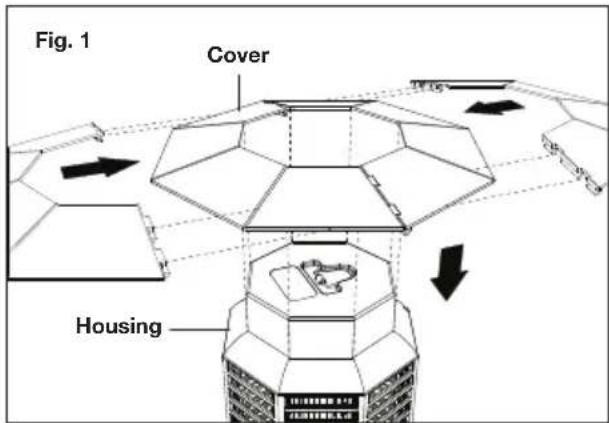

Assembly (Fig. 1)

1. Take the two halves of the cover and snap them together.
2. Place the assembled cover over the top of the bug zapper.

Fig. 1 Cover Housing

Indoor

• For best results, use the bug zapper with the lights off or dimmed.
• Hang the device at least 6 ft (1.8 m) from the ground and 1 ft (0.3 m) from any objects or the wall.

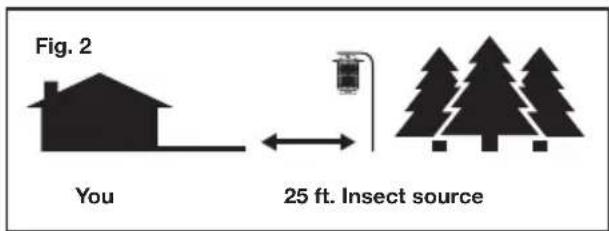

Outdoor (Fig. 2)

Fig. 2 You 25 ft. Insect source

• Hang the bug zapper 6–8 ft. (1.8–2.4 m) off the ground.
• Place the bug zapper 25 ft. (7.6 m) away from the area intended for human activity.
• Position the bug zapper between the source of insects (woods, lowlands, swamps etc) and the area to be protected.
• Plug into a compatible extension cord designed for outdoor use, a violet glow will be emitted by the device within a few seconds.

Operation

1. Select the proper location and plug the cord into an appropriate extension cord if needed.

2. Once plugged into an outlet, the device is active. The black light should illuminate and the bug zapper is ready for use.

3. Unplug device when not in use.

CAUTION! The device is only designed to withstand moderate rain. If severe weather is expected, take the device down and store indoors until the severe weather has passed.

Maintenance

WARNING! Always unplug the bug zapper before cleaning to avoid electric shock.

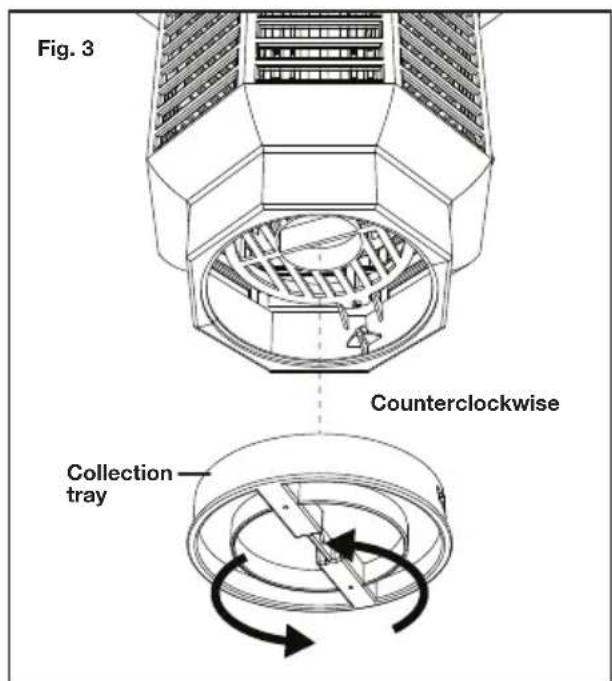

Cleaning the Collection Tray

The collection tray should be emptied frequently. Use caution when opening the tray as some dead insects may fall out upon removal.

1. Unplug the bug zapper and rotate the collection tray counterclockwise to remove it from the housing (Fig. 3).

Fig. 3 Counterclockwise Collection tray

1. Empty tray with the cleaning brush, then rinse and dry it. Avoid touching insect remains by hand.

2. Return the collection tray back into the bottom of the housing. Rotate clockwise to lock it in place.

WARNING! The exterior housing of bug zapper does not require cleaning. Do not attempt to clean the housing with water, solvents or any other liquids.

Electric Grid Cleaning

If excess amounts of dead insects begin to accumulate on the grid, the function of the device may be compromised. To ensure the effectiveness of this device, clean the grid periodically.

WARNING! When cleaning the electric grid, only use the included cleaning brush to avoid any risk of shock or injury. Ignoring this warning may result in death or serious injury.

1. Unplug the device and un-hang the bug zapper. Allow it to sit for 30 seconds for the electrical charge to dissipate.

2. Gently brush loose the dead insects on the electric grid through the open slits in the housing with the cleaning brush.

NOTE: Never use water to clean the grid as this can damage the electronics.

1. After brushing, the dead insects should collect in the collection tray below. Empty it as shown in (Fig. 3).

2. Hang the bug zapper back up and plug it in to get back to zapping.

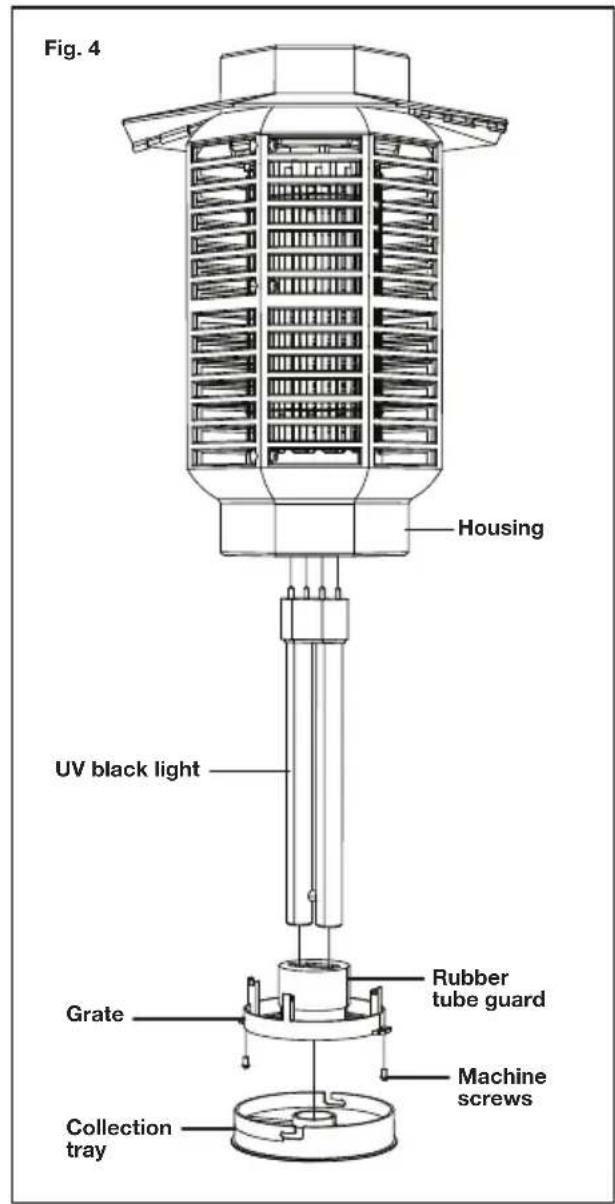

Replacing the UV Black Light (Fig. 4)

The brightness of the florescent UV black light diminishes over time. Replace it every season to maintain optimal bug zapping efficacy.

Fig. 4 Housing UV black light Grate Rubber tube guard Machine screws Collection tray

1. Unplug the device and un-hang the bug zapper. Allow it to sit for 30 seconds for the electrical charge to dissipate.
2. Remove the collection tray (Fig. 3).
3. Unscrew both machine screws securing the grate.
4. Remove the grate and the rubber tube guard.

5. Wearing gloves, gently pull the black light out of the housing.

6. Wearing gloves, insert the replacement black light making sure that the four pins are properly seated into the socket.

NOTE: Replace the black light only with an official Sun Joe® replacement UV black light (model BZ18W-BLB).

1. Place the grate and the rubber tube guard on the end of the new black light. Secure them into position with the two machine screws.
2. Return the collection tray back into the bottom of the housing. Rotate clockwise to lock it in place.
3. Plug it in to test it out.

NOTE: If the bug zapper fails to light up after replacing the UV black light, unplug device and follow the instructions above to ensure that it is correctly installed.

Storage + Maintenance

• Store the bug zapper indoors and out of the reach of children.
• Do not clean the bug zapper with harsh chemicals, solvents (such as acetone), or strong cleaning agents.

Service + Support

If your Sun Joe ^® SJ-BZ18W Electric Bug Zapper requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the registration card. Copy these numbers into the space provided below.

Record the following numbers from the registration card of your new product: Model #: S | J | - | B | Z | 1 | 8 | W | Serial #:

Troubleshooting

WARNING! Always unplug the bug zapper before servicing to avoid electric shock.

WARNING! Do not try to adjust or repair the bug zapper yourself. Component parts shall be faced with like components. Servicing shall be done by factory authorized service personnel to minimize the risk of possible ignition due to incorrect parts or improper service.

Problem Possible Cause Remedy
Both the black light and electric grid are not working	No electrical power	Make sure the device is properly plugged into a working outletCheck the circuit breaker or the surge protection on the extension cord
The black light works, but not the electric grid	The grid is shortedThe transformer is defective	Unplug and examine the grid. Clean debris with the included brushRequest a replacement from the manufacturer
The electric grid works, but not the black light	The black light is not properly seatedBlack light is burnt out	Make sure the black light is properly seated into the socketUnplug the device and replace the black light. Refer to theReplacing the UV Black Lightsection of this manual for reference.
Intermittent or continuous sparking from the grid	The electric grid is bent out of shape, causing a shortGrid is clogged with foreign objects	Request a replacement from the manufacturerUnplug and examine the grid. Clean debris with the included brush
The black light no longer attracts insects	Low UV output due to aging of the black lightBug zapper is positioned incorrectly or operated at suboptimal times	Unplug the device and replace the black light. Refer to theReplacing the UV Black Lightsection of this manual for reference.Move the device to a different location, operate it at night.

Replacement Parts

WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this power station. Contact Snow Joe ^® + Sun Joe ^® if you are unsure whether it is safe to use a particular replacement part or accessory with your power station. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Replacement Parts Item Model
	UV Black Light BZ18W-BLB

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

SUNJOE®

ES

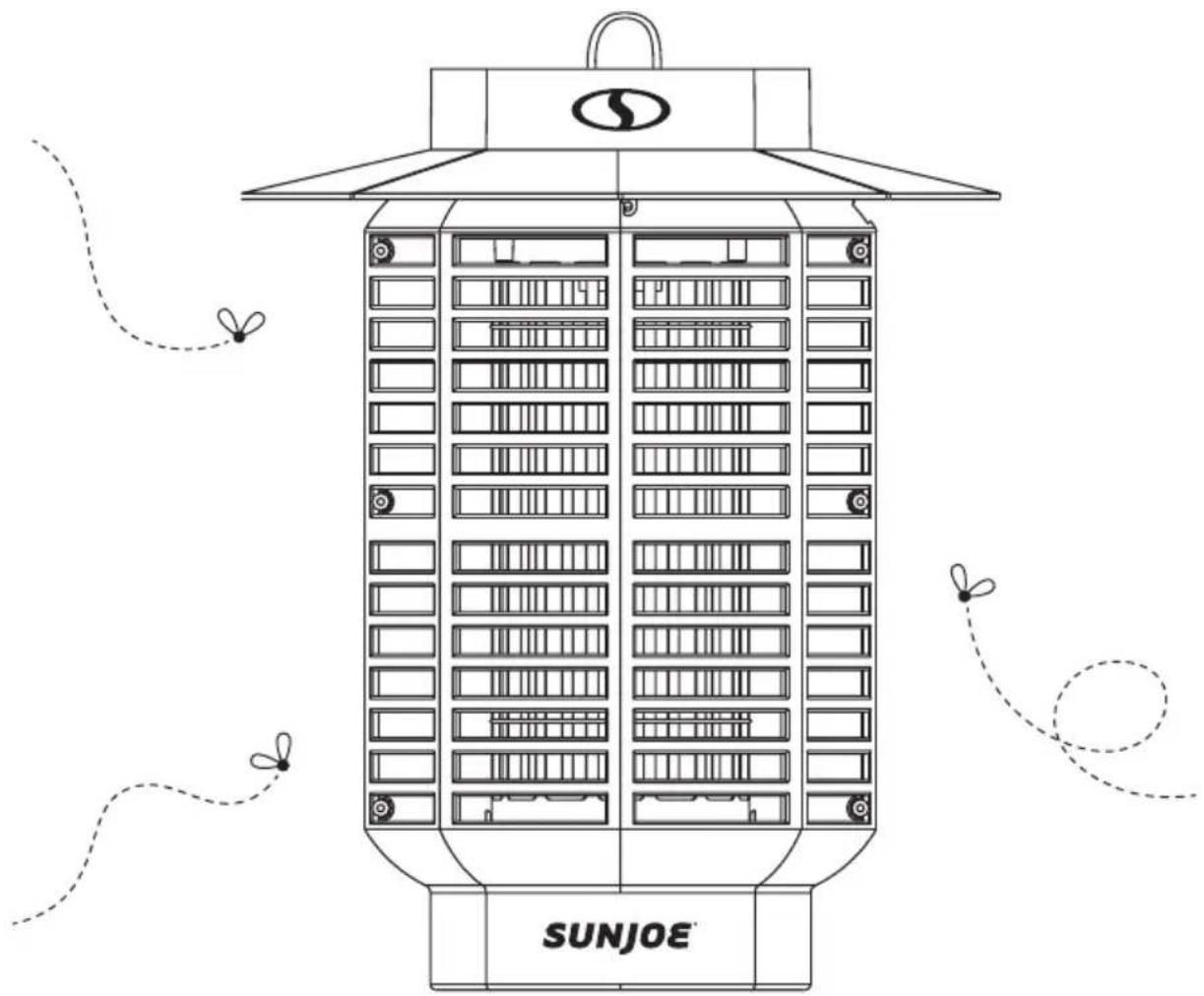

ELIMINADOR DE INSECTOS ELÉCTRICO

18 W | 1,500 V | COBERTURA DE 360° | LUZ UV

Modelo SJ-BZ18W

Line drawing of a SunJOE industrial building with ventilation grilles and a top roof, no text or symbols present.
