Mercury CR6255A - Turntable Crosley - Free user manual and instructions

Product Type	Turntable
Brand	Crosley
Model	Mercury CR6255A
Power Supply	AC adapter, DC output 12V 0.5A
Power Consumption	9W
Built-in Speakers	4Ω, 5W x 2
Playback Speeds	33⅓, 45, 78 RPM
Speed Adjuster	±10%
Auto Stop	Yes (switchable)
Bluetooth	Version 5.1 (output only)
Audio Outputs	RCA jack (line), 3.5mm headphone jack
Auxiliary Input	3.5mm jack
Replacement Stylus	Crosley NP-15
Drive Belt	Yes (replaceable)
Stylus Cleaning	With a soft brush, forward motion
Cabinet Cleaning	Slightly damp microfiber cloth
Safety Warning	Do not expose to water, do not open, unplug during storms
Customer Service	www.crosleyradio.eu, [phone]
Energy Saving Function	Auto power off after 20 minutes without audio

Frequently Asked Questions - Mercury CR6255A Crosley

How do I replace the stylus on the Mercury CR6255A?

Gently hold both sides of the stylus and pull it forward to remove it. To install the new stylus (ref. Crosley NP-15), align the back of the stylus with the cartridge, tip pointing down, then push gently until it clicks into place.

Why isn't the turntable platter spinning?

Several possible causes: the drive belt has slipped, an Aux input cable is plugged in (unplug it), or auto stop is activated. Also check that the unit is powered on.

How do I connect the Mercury CR6255A via Bluetooth?

Set the function selector to Bluetooth (ON). The indicator flashes blue. Enable Bluetooth on your device, search for 'CROSLEY CR6255A' and pair. Once connected, the indicator becomes solid blue.

What to do if there is no sound or the sound is too low?

Check that the stylus protection has been removed, that the tonearm is not lifted by the lever, and that no headphones are plugged in. Make sure the volume is high enough.

How do I use the Auxiliary input?

Plug a 3.5mm cable between your audio device and the Aux input jack on the turntable. The Aux function automatically overrides vinyl and Bluetooth modes. To return to those modes, unplug the cable.

Why does the turntable turn off by itself?

To save energy, the unit enters standby after 20 minutes without an audio signal. To reactivate it, turn the unit off and on again.

How do I adjust the playback speed?

Use the speed selector to choose between 33⅓, 45, or 78 RPM. For fine adjustment, turn the speed adjuster: clockwise to speed up, counterclockwise to slow down (up to ±10%).

Can I connect passive speakers directly to the RCA outputs?

No, the RCA outputs deliver a line-level signal, not amplified. Connect them to active (powered) speakers or to an amplifier input. On passive speakers, the volume will be very low.

How do I clean my Mercury CR6255A turntable?

Clean the stylus with a soft brush, from back to front only. Use a brush and special record cleaning solution. For the cabinet and cover, use a slightly damp microfiber cloth. Avoid alcohol, benzene, or other harsh chemicals.

What accessories are included with the turntable?

The turntable comes with a 45 RPM adapter, a 3.5mm to RCA cable, and a power adapter. If an accessory is missing, contact Crosley customer service.

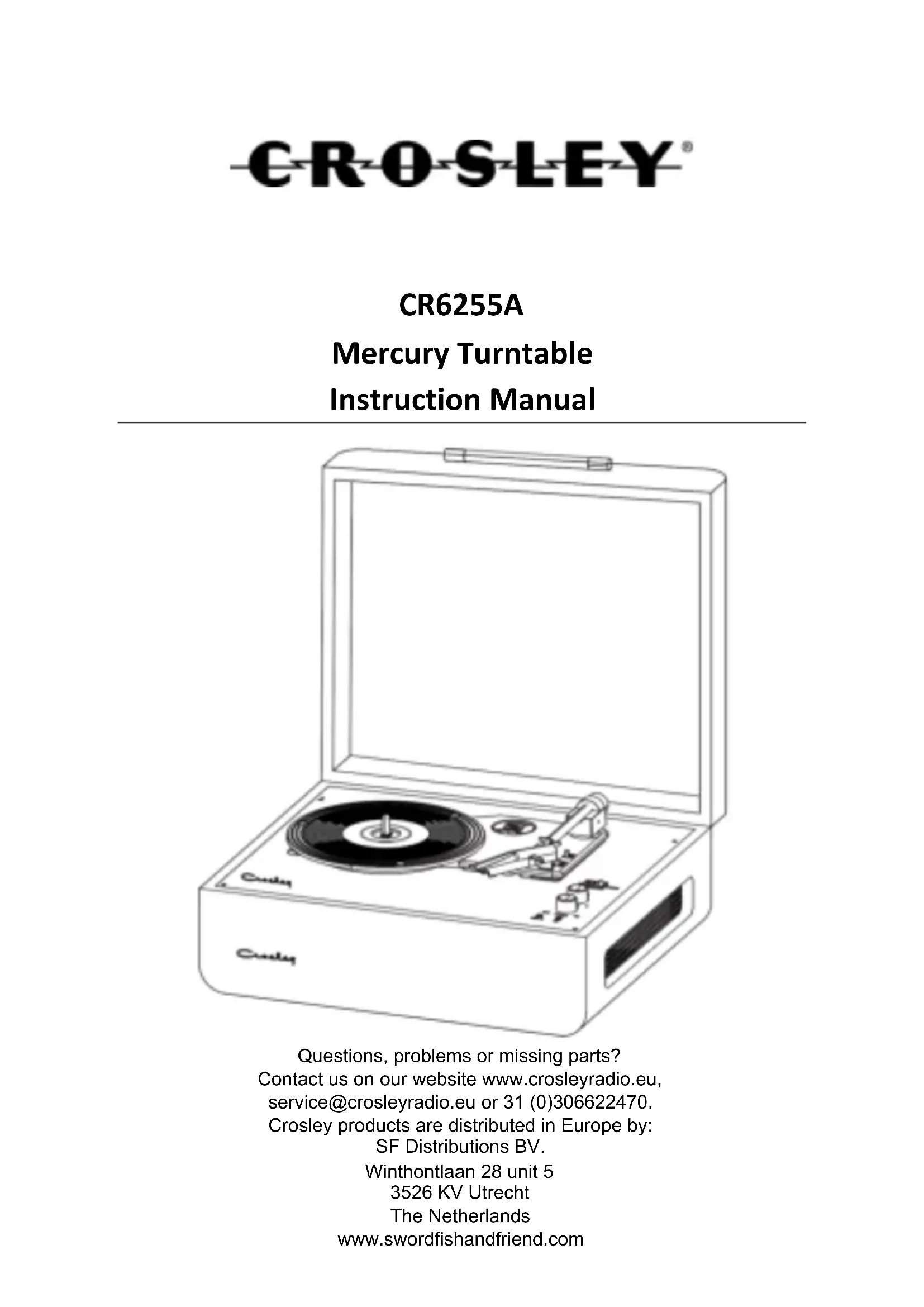

USER MANUAL Mercury CR6255A Crosley

Questions, problems or missing parts?

Contact us on our website www.crosleyradio.eu,

[e-mail] or 31 (0)306622470.

Crosley products are distributed in Europe by:

SF Distributions BV.

Winthontlaan 28 unit 5

3526 KV Utrecht

The Netherlands

www.swordfishandfriend.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
  45 RPM adapter
• 3.5mm to RCA cable
  Power adaptor

Please contact Crosby customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC power adaptor, DC output 12V 0.5 A

Power consumption 9W

Speaker 4Ω, 5W x 2

Turntable speed 33 1 / 3 ,45,78 RPM

Replacement needle Crosley NP-15

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

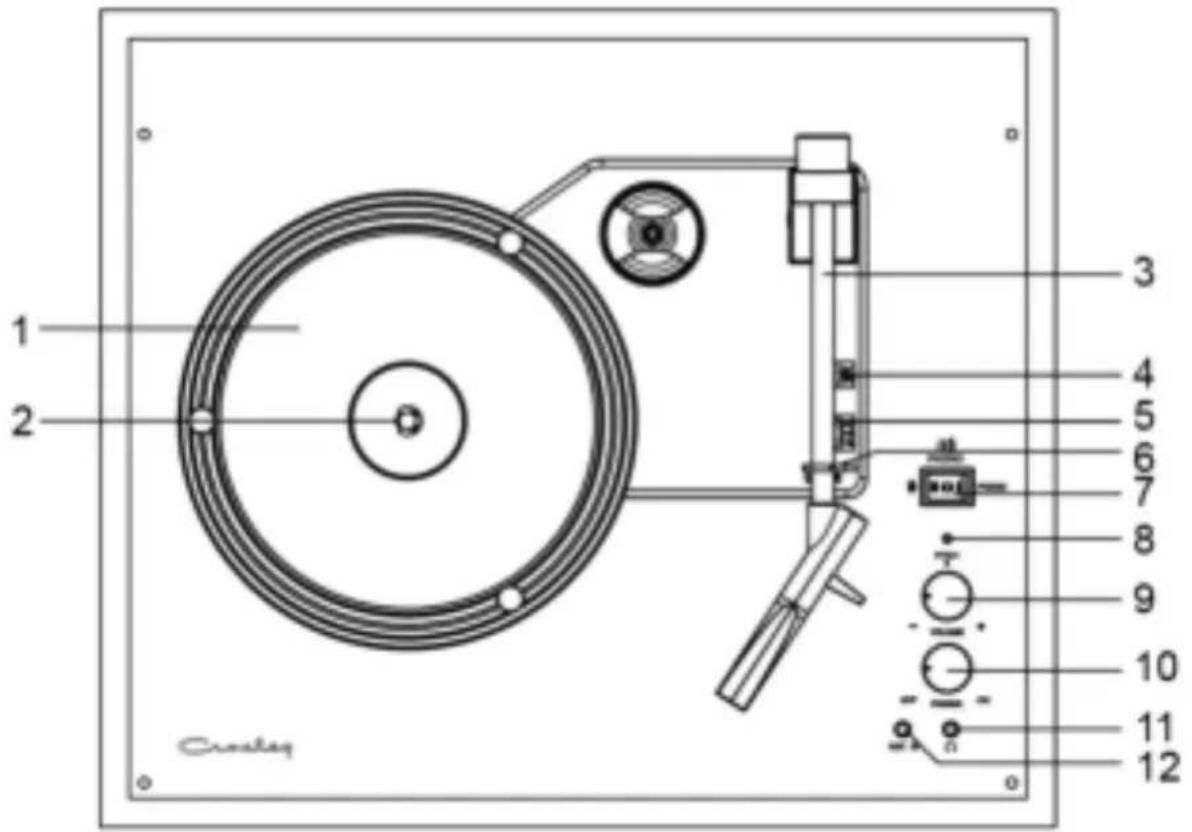

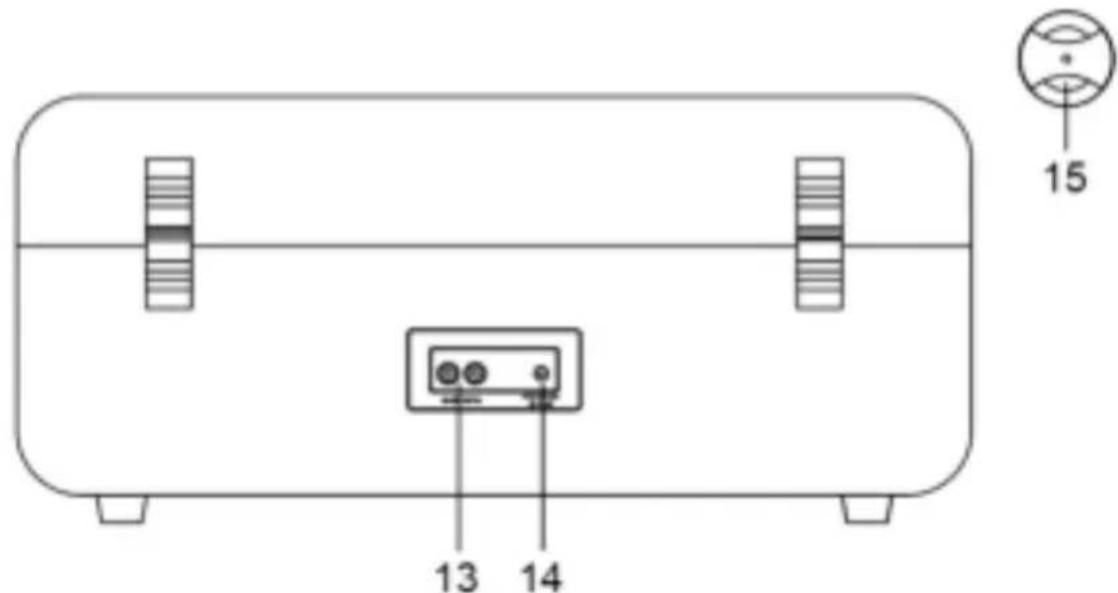

Product Description

1. Turntable Platter
2. Turntable Spindle
3. Tonearm
4. Auto-stop Switch
5. Speed Switch
6. Tonearm Clip
7. Function Switch

8. Function Indicator

9. Pitch Control

10. On/Off Volume Knob
11. Headphone Jack
12. Aux In Jack
13. RCA Jacks
14. Power Jack
15. 45 RPM Adapter

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Connect AC adaptor to the Power Jack of the unit.

Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Stereo System Connection

RCA Jacks

• The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing the music.

Note:

The aux in connection will automatically override the turntable and Bluetooth functions. To resume using the turntable or Bluetooth functions, unplug the auxiliary cable from the aux in jack.

The Function Indicator will be purple.

Bluetooth Output Operation

This turntable features Bluetooth output which is a device that transmits audio from this turntable to another Bluetooth device such as wireless Bluetooth headphones, Bluetooth speakers, or other Bluetooth receiving devices.

1. Place the audio device that supports Bluetooth technology as close to your turntable as possible.
2. Set the turntable's function switch to the ON position for Bluetooth output. Note: The function indicator will slowly flash blue.
3. Set the device that you would like to connect to pairing mode.
4. Your turntable will connect automatically to your audio device once they are both in pairing mode.
5. When the pairing is complete, the function indicator will be solid blue.

Note: If pairing is unsuccessful, make sure your audio device is not paired/connected to another Bluetooth device.

Turntable Operation

1. Rotate the On/Off Volume Knob to turn on the power.
2. Set the Function Switch to PHONO position. Note: The Function Indicator will be red
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly. Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.
6. Release the Tonearm Clip. Note: when the turntable is not in use, remember to lock back hold down clip.
7. Lift up the Tonearm and move it over the record where play is desired to begin. Gently put down the Tonearm and begin the playback.
8. When the record is finished playing, gently lift up the Tonearm and move it back to the Tonearm Rest. To suspend the playback, repeat the same steps.
9. Lock the Tonearm Clip to secure the tonearm.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

Pitch Control

The turntable speed can be increased or decreased by approximately 10% by rotating the Pitch Control Knob. To increase the speed, turn the Pitch Control Knob clockwise. To decrease the speed, turn the knob counter-clockwise.

Needle Replacement

Removing Needle

1. Gently hold both sides of the needle.
2. Gently pull the needle forward and remove.

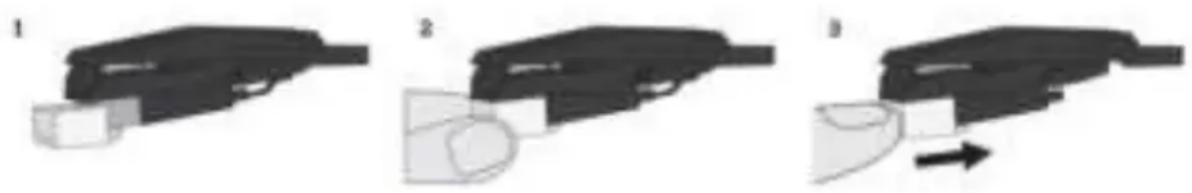

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Push the needle back into place.

Bluetooth Operation

1. Turn the Function Switch to Bluetooth mode

Note: The function indicator will be flashing blue.

1. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR6255A" and pair.
2. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue.
3. Play and stream music from your device to the unit.

Note: Bluetooth version - 5.1

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.

Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• Turntable's drive belt has slipped off.
• An aux in cable is plugged into the aux in jack, unplug it.

Turntable is spinning, but there is no sound, or sound not loud enough

Stylus protector is still on.
- Tone arm is lift up by the lever.
- Headphone is plugged in.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20~cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosby Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://crosleybrands.com/euDoC
