Rohe CR6235A - Turntable Crosley - Free user manual and instructions

Brand	Crosley
Model	Rohe CR6235A
Category	Turntable
Product Type	Vinyl turntable with built-in speakers
Power Supply	6V DC 1.5A AC adapter
Power Consumption	9W
Playback Speeds	33 1/3, 45, 78 RPM
Speakers	2 x 3 inches, 4 ohms
Bluetooth Connectivity	Bluetooth 5.0 (input and output)
Auxiliary Input	3.5mm jack
Headphone Output	3.5mm jack
RCA Output	Yes (left/right channels)
Auto Stop	Yes (switchable)
Replacement Stylus	Crosley NP16
Box Contents	Turntable, 45 RPM adapter, AC adapter, 4 feet
Stylus Care	Soft brush, back-to-front motion
Cabinet Cleaning	Slightly damp microfiber cloth
Safety Instructions	Do not use near water, do not repair yourself, unplug during a storm
Customer Service	1-888-CROSLEY (Mon-Fri, 8am-6pm EST)

Frequently Asked Questions - Rohe CR6235A Crosley

How to turn on the device?

Turn the ON/OFF volume knob clockwise to power on the device. Make sure the AC adapter is plugged in.

Why doesn't the platter spin?

Check that the function selector is set to PHONO. If the problem persists, the drive belt may have slipped. Refer to the manual for more details.

How to connect a device via Bluetooth?

Set the function switch to Bluetooth mode. Enable Bluetooth on your device and search for "CROSLEY CR6235A". Pair the devices. A steady blue light confirms connection.

How to replace the stylus?

Gently pull down the front edge of the stylus, then forward to remove it. To install a new stylus (ref. Crosley NP16), align it and snap it in by lifting the front.

How to clean the stylus?

Use a soft brush and clean only in a back-to-front motion. Avoid touching the tip of the stylus with your fingers.

What to do if the sound is low or absent?

Make sure the stylus guard has been removed. Check the volume and input setting of your amplifier if using the RCA output.

How to use the auxiliary input?

Connect a 3.5mm cable between your audio device and the AUX IN jack on the turntable. Turn the function switch to Aux. The indicator light turns purple.

What do the function indicator light colors mean?

Red: Phono mode. Steady blue: Bluetooth connected. Flashing blue: Bluetooth searching. Purple: Aux mode.

How to activate the auto stop?

The auto stop switch is located near the tonearm. Set it to ON for the platter to stop automatically at the end of the record.

Where to find spare parts like the stylus?

Contact Crosley customer service at 1-888-CROSLEY or visit www.crosleyradio.com. The replacement stylus is the NP16.

USER MANUAL Rohe CR6235A Crosley

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• 45 RPM adapter
• Power adaptor
• 4 Legs

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC power adaptor, DC output 6V 1.5A

Power consumption 9W

Speaker 3", 4Ω, x 2

Turntable speed 33 ^1/_3 , 45, 78 RPM

Replacement needle Crosley NP16

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

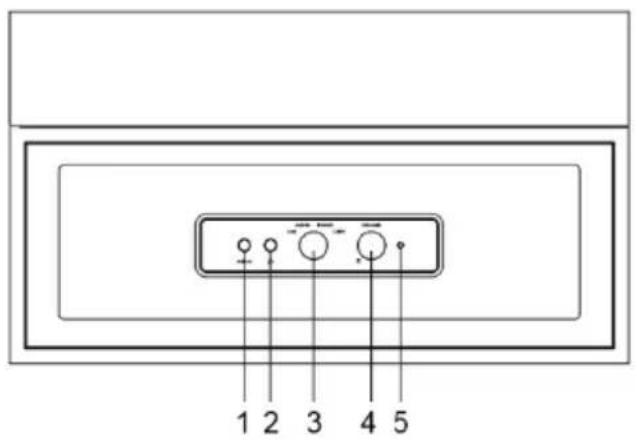

Product Description

1 2 3 4 5

6 7

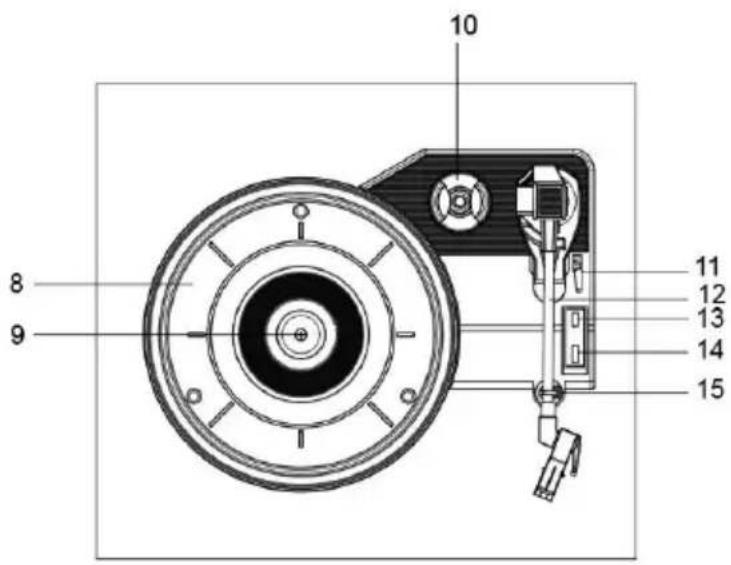

8 9 10 11 12 13 14 15

1. Line In Jack
2. Headphone Jack
3. Function Knob
4. On/Off-Volume Knob
5. Function Indicator
6. RCA Jacks
7. Power Jack

8. Turntable Platter

9. Turntable Spindle

10. 45 RPM Adapter
11. Tonearm Lever
12. Tonearm
13. Auto-stop Switch
14. Speed Switch
15. Tonearm Clip

Initial Setup

Essential Setup

1. Turn the turntable on its side and remove plastic pieces from the underside.
2. Insert the legs into the underside of the turntable and tighten.
3. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
4. Remove the tie-wrap that is holding the tonearm.
5. Connect AC adaptor to the Power Jack of the unit.

Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Stereo System Connection

RCA Jacks

• The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, rotate the Function Knob Aux In mode, connect a 3.5mm auxiliary cable (not included) between your audio device and the Aux In Jack of this unit and start playing.

Note: The Function Indicator will be purple.

Turntable Operation

1. Rotate the On/Off Volume Knob to turn on the power.
2. Rotate the Function Knob to PHONO position.
   Note: The Function Indicator will be red
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.

Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.

1. Release the Tonearm Clip.
   Note: when the turntable is not in use, remember to lock back hold down clip.
2. Use the Tonearm Lever to lift the tonearm.
3. Gently move the tonearm over the record where play is desired to begin. Set the Tonearm Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.
4. When the record is finished playing, use the Tonearm Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.
5. Lock the Tonearm Clip to secure the tonearm.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.

Diagram of a mechanical component with a red highlighted section and a downward arrow, no text or symbols present.

Diagram of a mechanical tool with a red component and black directional arrow (no text or symbols)

Diagram of a mechanical component with a red component and black directional arrow (no text or symbols)

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

Technical illustration of a mechanical component with a red base (no text or symbols)

Mechanical component diagram showing a red clamped part inserted into a housing (no text or symbols)

3 SNAP!

Bluetooth Operation

1. Turn the Function Knob to Bluetooth ✝ in, you will hear an activation sound from the unit.
   Note: The function indicator will be flashing blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR6235A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue.
4. Play and stream music from your device to the unit.

Note: Bluetooth version - 5.0

Bluetooth Output Operation

This turntable features Bluetooth output which is a device that transmits audio from this turntable to another Bluetooth device such as wireless Bluetooth headphones, Bluetooth speakers, or other Bluetooth receiving devices.

1. Place the audio device that supports Bluetooth technology as close to your turntable as possible.
2. Set the turntable's function switch to the right position for Bluetooth output.
3. Set the device that you would like to connect to pairing mode.
4. Your turntable will connect automatically to your audio device once they are both in pairing mode.
5. When the pairing is complete, you will hear a short confirmation sound from the unit.

Note: If pairing is unsuccessful, make sure your audio device is not paired/connected to another Bluetooth device.

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.
   Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• Turntable mode is not selected.
• Turntable's drive belt has slipped off.

Turntable is spinning, but there is no sound or sound not loud enough

• Stylus protector is still on.
• The input gain of the amplified speaker or similar device may be too low.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC

CROSLEY®

CR6235A

Rohe Tocadiscos

Diagram of a mechanical component with a red highlighted section and a downward arrow, no text or symbols present.

Diagram of a mechanical tool with red and black components, no visible text or symbols

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Instalar la aguja

Technical line drawing of a mechanical component with a red base (no text or symbols)

Technical illustration of a mechanical component with a red clamped part (no text or symbols)

3 SNAP!

Diagram of a mechanical component with a red highlighted section and a downward arrow, no text or symbols present.

Diagram of a mechanical tool with red component and black directional arrow (no text or symbols)

Diagram of a mechanical component with a red and black arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a red base and gray housing (no text or symbols)

2

Technical illustration of a mechanical tool or bracket with red clamping element (no text or symbols)

3

SNAP!
