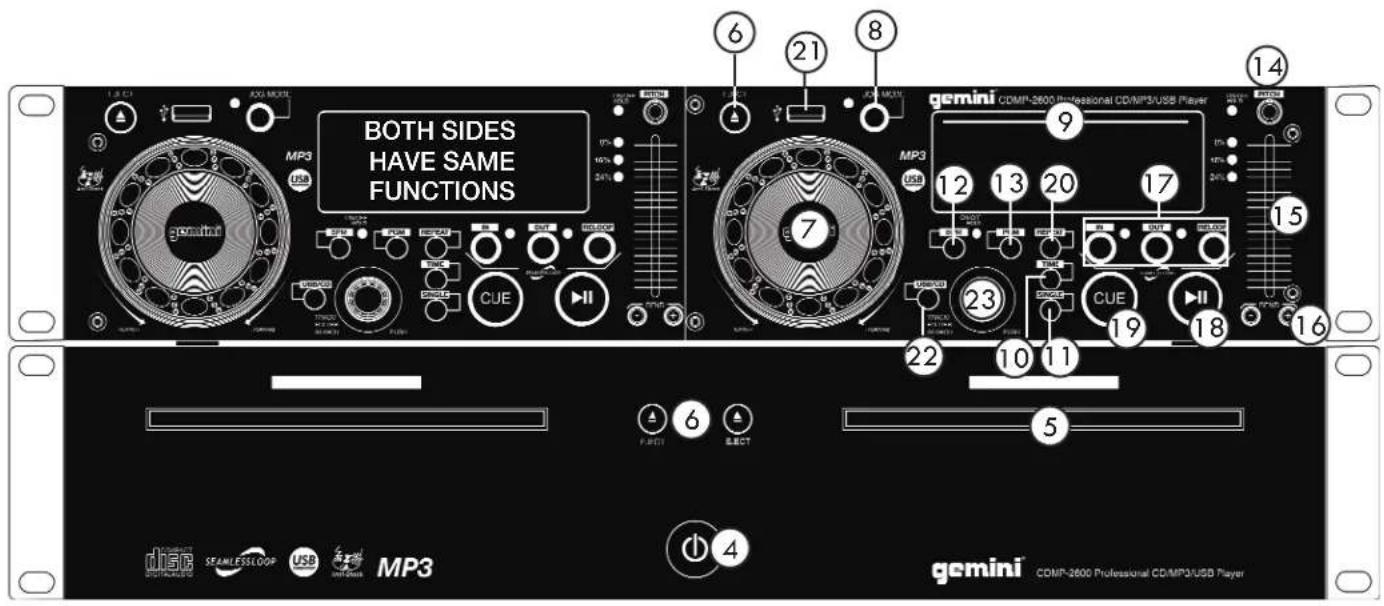

Fig.B

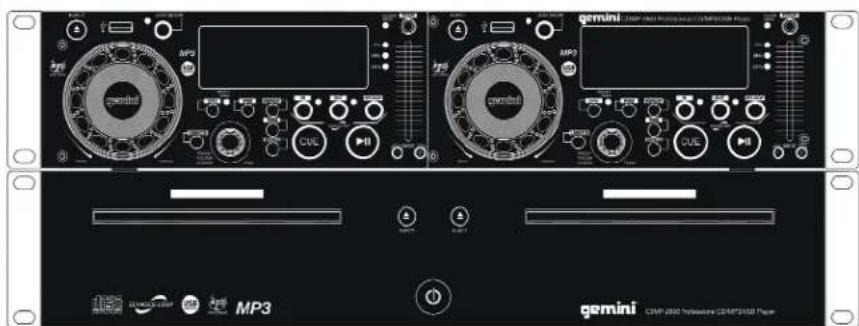

FRONT

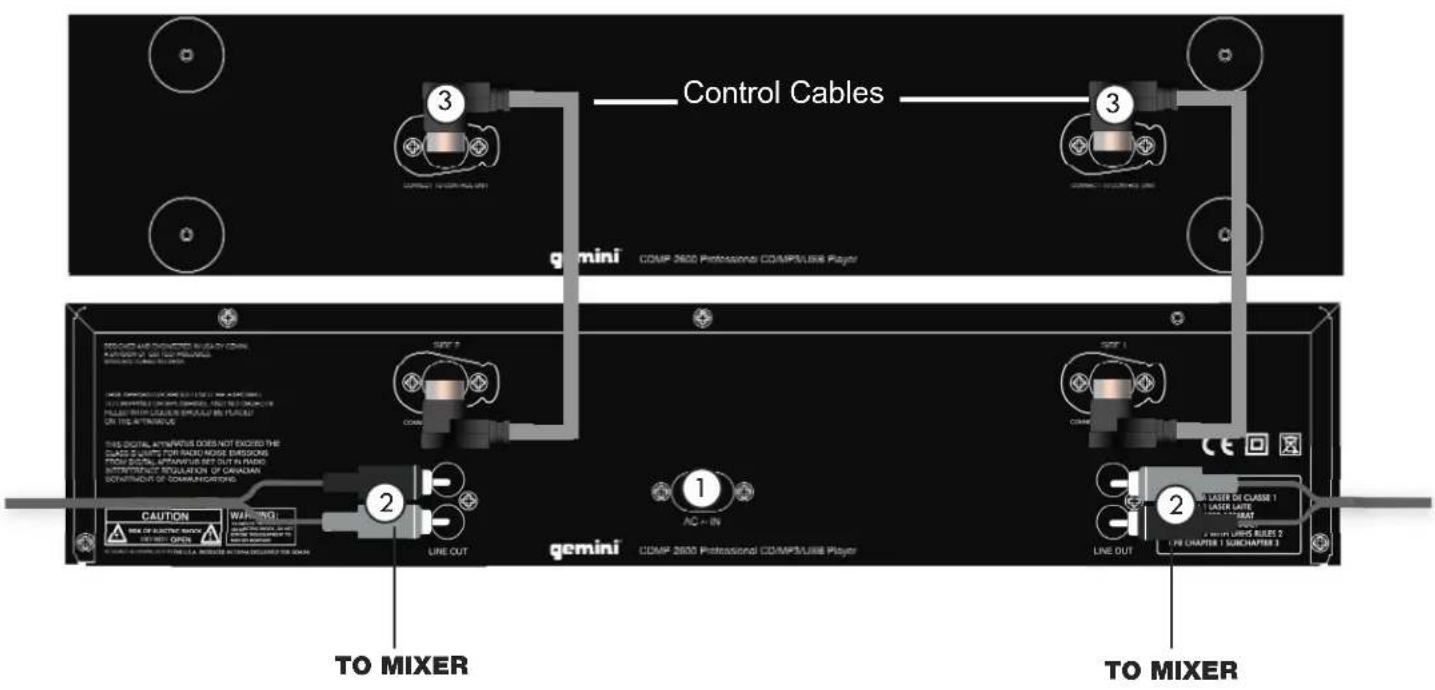

BACK

gemini

CDMP-2600

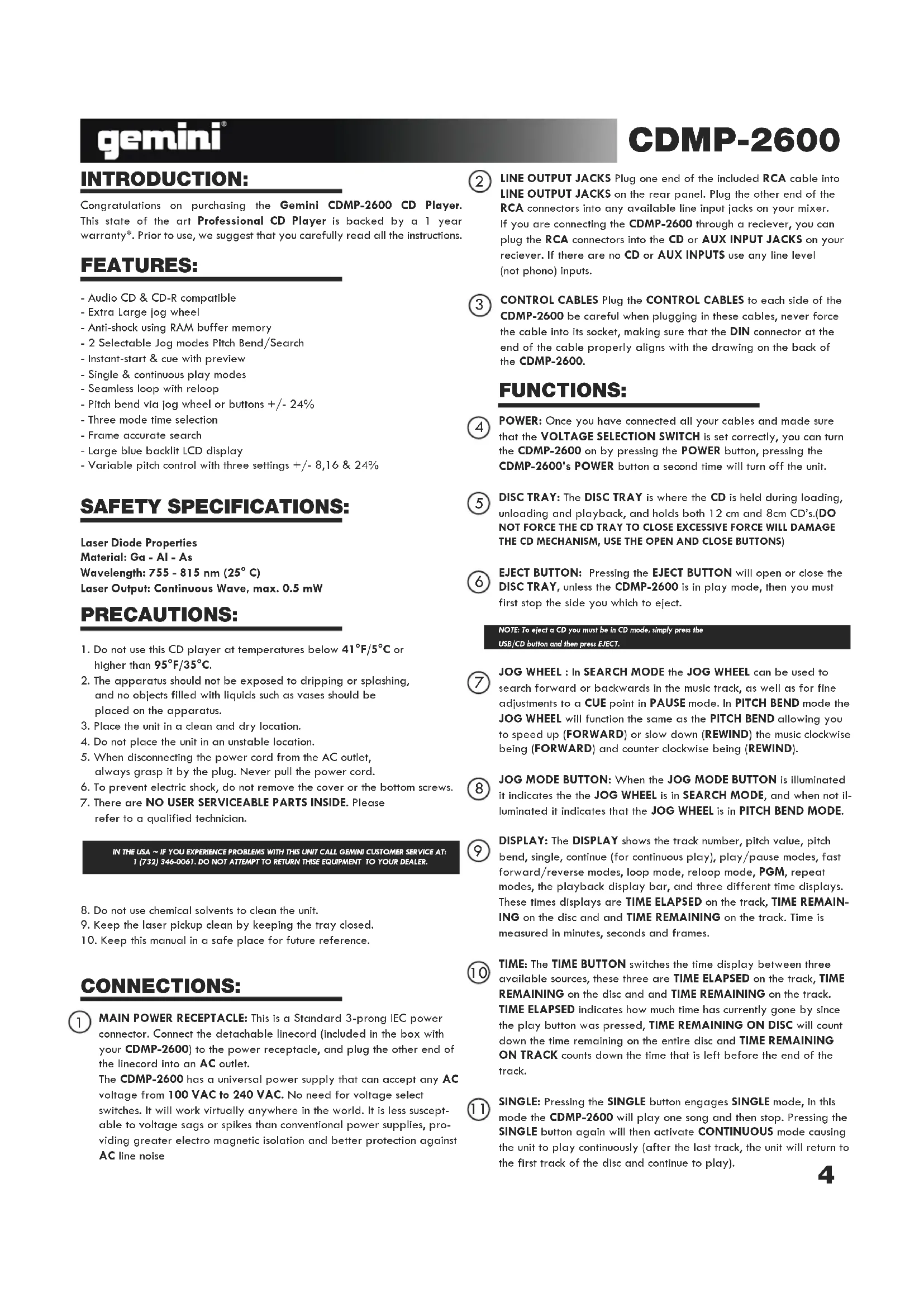

INTRODUCTION:

Congratulations on purchasing the Gemini CDMP-2600 CD Player. This state of the art Professional CD Player is backed by a 1 year warranty*. Prior to use, we suggest that you carefully read all the instructions.

FEATURES:

• Audio CD & CD-R compatible
  -Extra Large jog wheel
• Anti-shock using RAM buffer memory
• 2 Selectable Jog modes Pitch Bend/Search
• Instant-start & cue with preview
• Single & continuous play modes
• Secmless loop with reloop
• Pitch bend via jog wheel or buttons +/- 24%
• Three mode time sele
• Frame accurate search
  Large blue backlit LCD display
  -Variable pitch control with three settings + / - 8,16 & 24 %

SAFETY SPECIFICATIONS:

Laser Diode Properties

Material: Ga - Al - As

Wavelength: 755 - 815 nm (25° C)

Laser Output: Continuous Wave, max. 0.5 mW

PRECAUTIONS:

1. Do not use this CD player at temperatures below 41^ / 5^ or higher than 95^ / 35^ .
2. The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids such as vases should be placed on the apparatus.
3. Place the unit in a clean and dry location.
4. Do not place the unit in an unstable location.
5. When disconnecting the power cord from the AC outlet, always grasp it by the plug. Never pull the power cord.
6. To prevent electric shock, do not remove the cover or the bottom screws.
7. There are NO USER SERVICEABLE PARTS INSIDE. Please refer to a qualified technician.

IN THE USA - IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT CALL GEMINI CUSTOMER SERVICE AT: 1 [phone], DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.

1. Do not use chemical solvents to clean the unit.
2. Keep the laser pickup clean by keeping the tray closed.
3. Keep this manual in a safe place for future reference.

CONNECTIONS:

1 MAIN POWER RECEPTACLE: This is a Standard 3-prong IEC power connector. Connect the detachable linecord (included in the box with your CDMP-2600) to the power receptacle, and plug the other end of the linecord into an AC outlet. The CDMP-2600 has a universal power supply that can accept any AC voltage from 100 VAC to 240 VAC. No need for voltage select switches. It will work virtually anywhere in the world. It is less susceptible to voltage sags or spikes than conventional power supplies, providing greater electro magnetic isolation and better protection against AC line noise

LINE OUTPUT JACKS Plug one end of the included RCA cable into LINE OUTPUT JACKS on the rear panel. Plug the other end of the RCA connectors into any available line input jacks on your mixer. If you are connecting the CDMP-2600 through a reciever, you can plug the RCA connectors into the CD or AUX INPUT JACKS on your reciever. If there are no CD or AUX INPUTS use any line level (not phono) inputs.
CONTROL CABLES Plug the CONTROL CABLES to each side of the CDMP-2600 be careful when plugging in these cables, never force the cable into its socket, making sure that the DIN connector at the end of the cable properly aligns with the drawing on the back of the CDMP-2600.

FUNCTIONS:

4 POWER: Once you have connected all your cables and made sure that the VOLTAGE SELECTION SWITCH is set correctly, you can turn the CDMP-2600 on by pressing the POWER button, pressing the CDMP-2600's POWER button a second time will turn off the unit.
DISC TRAY: The DISC TRAY is where the CD is held during loading, unloading and playback, and holds both 12 cm and 8cm CD's.(DO NOT FORCE THE CD TRAY TO CLOSE EXCESSIVE FORCE WILL DAMAGE THE CD MECHANISM, USE THE OPEN AND CLOSE BUTTONS)
EJECT BUTTON: Pressing the EJECT BUTTON will open or close the DISC TRAY, unless the CDMP-2600 is in play mode, then you must first stop the side you which to eject.

NOTE: To eject a CD you must be in CD mode, simply press the

USB/CD button and then press EJECT.

JOG WHEEL: In SEARCH MODE the JOG WHEEL can be used to search forward or backwards in the music track, as well as for fine adjustments to a CUE point in PAUSE mode. In PITCH BEND mode the JOG WHEEL will function the same as the PITCH BEND allowing you to speed up (FORWARD) or slow down (REWIND) the music clockwise being (FORWARD) and counter clockwise being (REWIND).
JOG MODE BUTTON: When the JOG MODE BUTTON is illuminated it indicates the JOG WHEEL is in SEARCH MODE, and when not illuminated it indicates that the JOG WHEEL is in PITCH BEND MODE.

DISPLAY: The DISPLAY shows the track number, pitch value, pitch bend, single, continue (for continuous play), play/pause modes, fast forward/reverse modes, loop mode, reloop mode, PGM, repeat modes, the playback display bar, and three different time displays. These times displays are TIME ELAPSED on the track, TIME REMAINING on the disc and and TIME REMAINING on the track. Time is measured in minutes, seconds and frames.

TIME: The TIME BUTTON switches the time display between three available sources, these three are TIME ELAPSED on the track, TIME REMAINING on the disc and and TIME REMAINING on the track. TIME ELAPSED indicates how much time has currently gone by since the play button was pressed, TIME REMAINING ON DISC will count down the time remaining on the entire disc and TIME REMAINING ON TRACK counts down the time that is left before the end of the track.
11 SINGLE: Pressing the SINGLE button engages SINGLE mode, in this mode the CDMP-2600 will play one song and then stop. Pressing the SINGLE button again will then activate CONTINUOUS mode causing the unit to play continuously (after the last track, the unit will return to the first track of the disc and continue to play).

FUNCTIONS: (CONTINUED)

BPM: Press and hold the BPM button to turn on the BPM read out, once on you may TAP the button to the beat of the music, after a few TAPS the display will read out the average BEATS PER MINUTE of the track.
PGM: Allows you to create a set playlist. To program a set list into the CDMP-2600 memory, begin by stopping the unit from play and pressing PGM to begin the set list. Select a track by using the track selection button to scan to the first track to be placed in the set list. When you have selected the proper track press PGM and the CDMP-2600 will be ready to set your next selection. Repeat the previous steps until you have completed your playlist, then press play to begin the set list.
PITCH: Pushing the PITCH button activates the PITCH CONTROL SLIDE. The PITCH button has three settings 8% , 12% and 24% and can be toggled by pressing the PITCH button once for each setting. Push the PITCH button again to deactivate this mode.
15 PITCH CONTROL SLIDE: Moving the PITCH CONTROL SLIDE up or down will lower or raise the pitch percentage up to + or - 24% depending on the PITCH BUTTON setting.
PITCH BEND: Pushing the PITCH BEND BUTTONS will automatically bend the pitch up to +26% or bend the pitch down to -26% depending on the setting of the PITCH BUTTON. Releasing the buttons will return the pitch to the original pitch setting. You can use this function to match the beat when mixing from one song to another.
17 LOOP SECTION: A LOOP repeats the section between the entry point (IN) and the exit point (OUT). To set a loop while the unit is playing, start by pressing the IN BUTTON (it will light up) and when you reach the desired end loop point press the OUT BUTTON (it will also light up). The loop will continue playing until you press the OUT BUTTON again allowing the music to continue from that point on, to re-engage the loop you must press the RELOOP BUTTON. When you have released your loop the OUT BUTTON will turn OFF and the IN BUTTON will remain lit to indicate that your loop is stored in the CDMP-2600 memory. Pressing the IN BUTTON again while the unit is playing will erase the previously saved loop while saving your new loop entry point. Press OUT to exit the loop and save a new complete loop. Press RELOOP to return to the beginning of the previously saved loop from normal play. Press RELOOP repeatedly to cause the loop to stutter.

NOTE: THE FIRST LOOP WILL HAVE A PAUSE AT THE EXIT POINT, WHILE ALL OTHERS WILL BE SEAMLESS.

PLAY/PAUSE: Each press of the PLAY/PAUSE BUTTON causes the operation to change from PLAY to PAUSE or from PAUSE back to PLAY. The PLAY/PAUSE BUTTON remains lit when in PLAY mode, while it blinks in PAUSE mode.
CUE: While the unit is playing and after the cue point has been programmed, pressing CUE will cause the CD player to enter the PAUSE mode (PLAY/PAUSE BUTTON blinks) at the programmed cue point (the CUE LED is lit). Holding down the CUE button changes the function to preview, and allows you to stutter start or play from the programmed CUE POINT Releasing the CUE button will return the CD to the preset CUE point.
REPEAT: Press the repeat button once to engage 1 or repeat the selected track. Press REPEAT again to engage ALL setting which will repeat all the tracks on the CD. Press REPEAT again to disengage the repeat function.

21 USB PORT The USB port allows the connection of any USB mass storage device*.
USB/CD SELECT BUTTON The USB/CD select button allows you to toggle from the CDMP-2600 internal CD drive and the mass storage device connected to the USB port.
23 TRACK SELECTION ROTARY: The TRACK SELECTION ROTARY allows you to navigate through folders or search through tracks depending on weather you are in USB mode or CD mode.

In CD mode the rotary can search through cd tracks, turning the rotary to the right or clock-wise advances the selection, and turning the rotary to the left or counterclock-wise decreases the selection.

In USB mode the ROTARY knob allows you to search through folders and navigate through music libraries on your USB device.

TO CHOOSE A FOLDER: Press and hold the TRACK SELECTION ROTARY and turn it clockwise or counterclockwise to the folder you wish to search through, once you have found the disordered folder, release the TRACK SELECTION ROTARY and the display will show the first song in that folder. Once in a folder you can turn the TRACK SELECTION ROTARY to the song you wish to play and the CDMP-2600 will either automatically load the song when in single mode or play the song when in continuous mode.

NOTE: ONCE YOU HAVE SKIPPED TO ANOTHER TRACK, YOU MAY NOT GO BACK TO YOUR PROGRAMMED CUE POINT. YOU MUST BEGIN YOUR CUE SELECTION OVER AGAIN, THE CUE WILL BE PRESET TO THE BEGINNING OF THE NEWLY SELECTED TRACK.

We recommend that you use a MASS STORAGE DEVICE that is no larger than 2 gb and that only has less than 100 folders with less than 1000 songs in any one folder. Larger drives will work but they will greatly affect the time in which it takes to search and or load a song.

SPECIFICATIONS:

GENERAL:

Type............Compact Disc Player & USB Mp3 Reader
Disc Type............Standard Compact discs (12 cm & 8 cm)
Time Display..........Track Elapsed, Track Remain, or Total remain
Variable Pitch.. ± 24% Slider with Resume Switch
Pitch Bend.. ± 26% Maximum
Instant Start.......Within 0.03 seconds
Installation.....19" each
Dimensions.........Main unit: 19^ × 3.5^ × 10^ (482.6 x 88.9 x 254mm) .Remote unit: 19^ × 3.5^ × 3.5^ (482.6 x 88.9 x 88.9 mm)
Weight Per Unit.......Main unit: 5.5 lbs. (2.5 kg) .Remote unit: 3.85 lbs.(1.74kg)

AUDIO SECTION:

Quantization. 1 Bit Linear/Channel, 3 Beam Laser Oversampling Rate. 8 Times Sampling Frequency. 44.1 kHz Frequency Response. 20 Hz to 20 kHz Total Harmonic Distortion. Less Than 0.05% Signal to Noise Ratio. .85 dB Dynamic Range. .85 dB Channel Separation. .85 dB (1 KHz) Output Level. .2.0 +/- 0.2V R.M.S. Power Supply. AC 115/230V, 60/50 Hz

SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE FOR PURPOSE OF IMPROVEMENT.
