USER MANUAL PS626EFX GEMINI
10” 3 Channel Mixer With Effects
PS-626EFX
OPERATIONS MANUAL
MANUEL D'INSTRUCTIONS
BEDIENUNGSHANDBUCH
FOR ENGLISH READERS
Page 2~Page 5
PARALECTORES EN ESPANOL
Pagina 6\~ Pagina 9
UTILISATEURS FRANCAIS
Page 10~Page 13
FÜR DEUTSCHE LESER
Seite 14\~Seite 17

PLEASE READ BEFORE USING APPLIANCE IMPORTANT WARNING AND SAFETY INSTRUCTIONS!








CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
READ INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.
RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference.
HEED WARNINGS: All warnings on the product and in the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.
CLEANING: The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.
ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
WATER AND MOISTURE: Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
CART: A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. See Figure A.
ENTILATION: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
POWERSOURCES: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
LOCATION: The appliance should be installed in a stable location.
NON-USE PERIODS: The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
GROUNDING OR POLARIZATION:

Fig. A
-
If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
-
If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
POWOR-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure B.
Lightning: For added protection for this product during a lightening storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightening and power-line surges.
POWERS: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
OVERLOADING: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
OBJECT AND LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
SERVICING: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
DAMAGE REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions
- When the power-supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water.
- If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
If the product has been dropped or damaged in any way.
- When the product exhibits a distinct change in performance, this indicates a need for service.
REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
WALL OR CEILING MOUNTING: The product should not be mounted to a wall or ceiling.
HEAT: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Fig.B

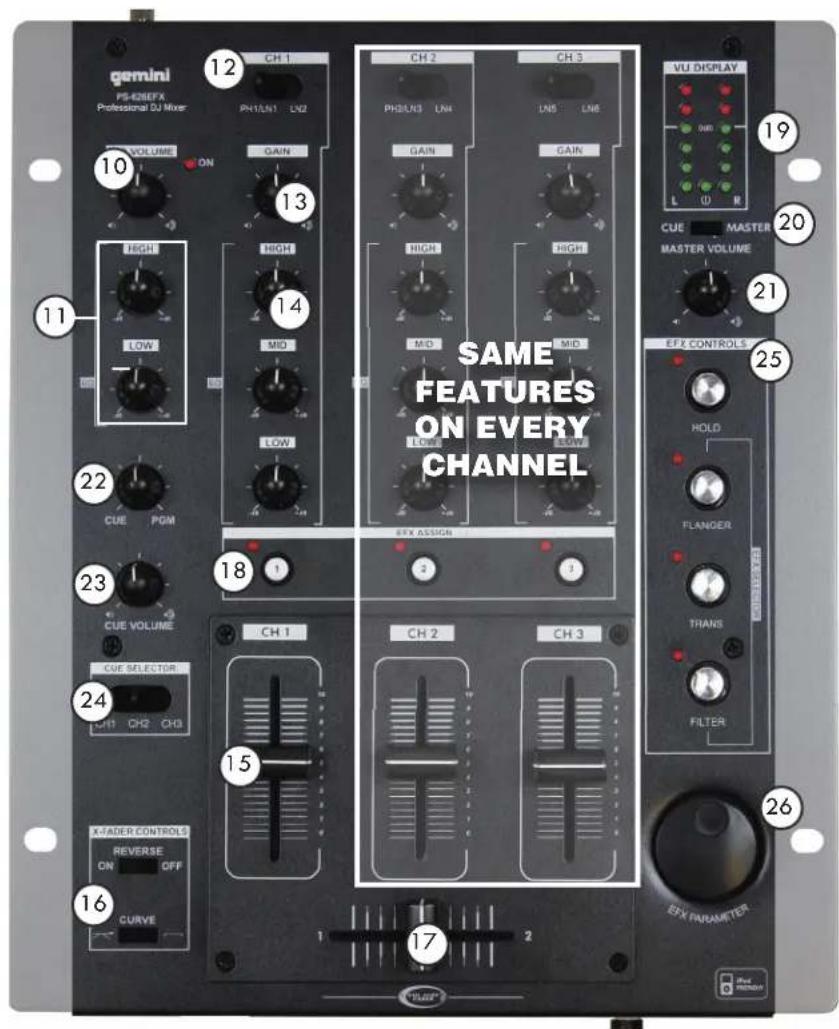

TOP

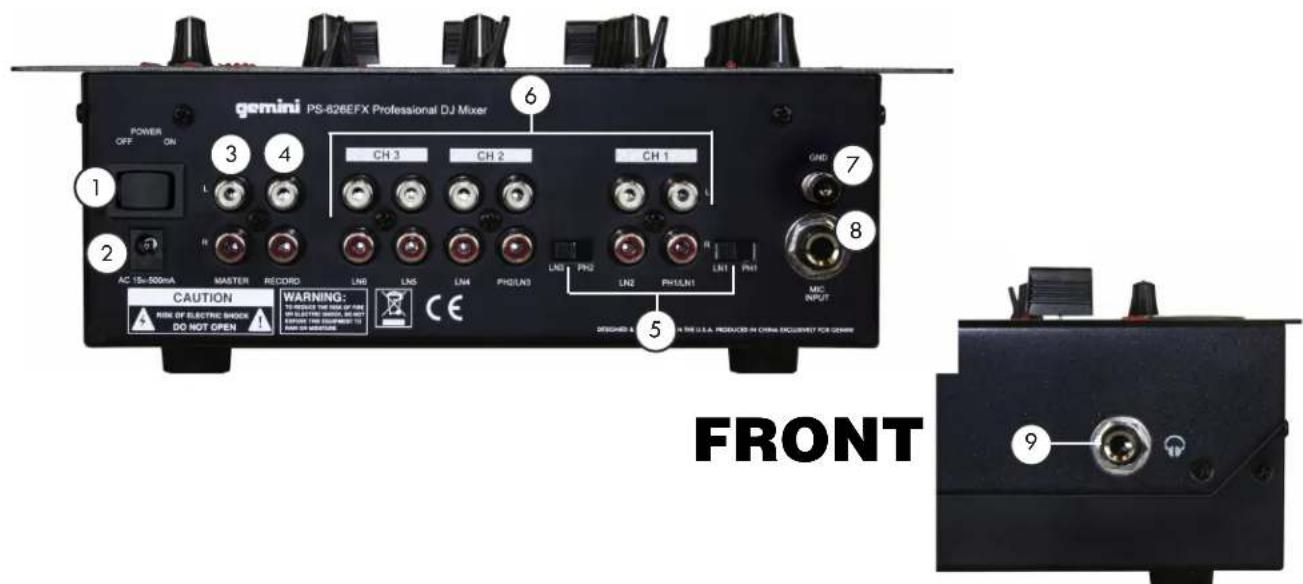

BACK

INTRODUCTION:

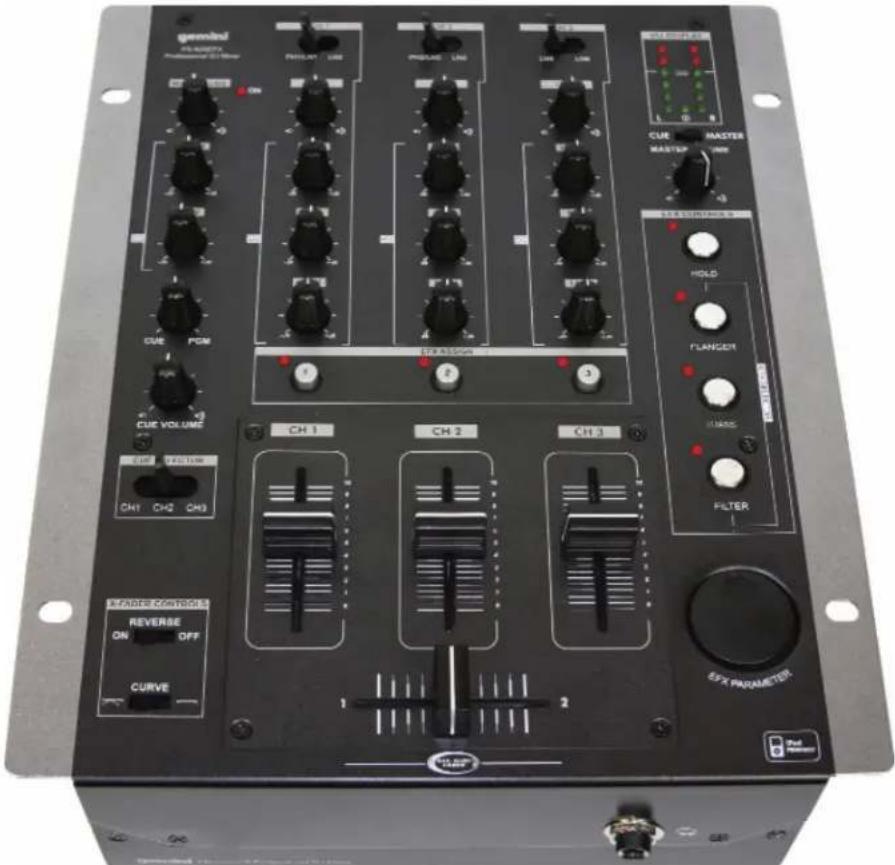

Congratulations on your purchase of Gemini PS-626EFX 10"3 channel stereo mixer. This-state-of-the-art mixer features the latest technological advances and is backed by a 1 year warranty, excluding the cross fader. The cross fader is backed by a separate 90 day warranty. Prior to use we suggest that you carefully read all the instructions.
FEATURES:
- 10" 3 Stereo channel mixer
-6line,2Phono - 3 band rotary line EQ with cut feature & rotary gain channel control
- Sperate Cue Switch for each channel
- Rotary cue volume, CUE/PGM rotary knob
-VU meter - 3 effects with parameter control
- Removable face plate for user replaceable Rail Glide cross fader
PRECAUTIONS:
- All instructions should be read before using this equipment.
- To reduce the risk of electrical shock, do not open the unit. Please refer all servicing needs to a Gemini-qualified service technician.
- Do not expose this unit to direct sunlight or a heat source such as a radiator or stove.
- This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents.
- When moving this equipment it should be placed in its original carton and packaging. This will reduce the risk of damage during transit.
- DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
- DO NOT USE SPRAY CLEANERS OR LUBRICANTS ON CONTROLS, SURFACES OR SWITCHES.
IN THE USA ~ IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT CALL GEMINI CUSTOMER SERVICE AT: 1 (732) 346-0067. DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.
CONNECTIONS:
Ensure that the POWER SWITCH
is in the OFF position prior to making any connections.
2 POWER SUPPLY
This unit comes with a POWER SUPPLY. Plug in to the rear panel. POWER SUPPLY socket before plugging it in to a proper power source.
The MASTER RCA OUTPUT
connects the mixer to your main amplifier using standard audio cables with RCA-type connectors.
The RECORD RCA OUTPUT
The RECORD output jacks can be used to connect the mixer to the record input of your recording unit, thus enabling you to record your mix with RCA cables.
CONVERTIBLE PHONO/LINE INPUTS
The PS-626EFX has 2 CONVERTIBLE PHONO/LINE (PH/LN) RCA INPUTS These small switches which are located to the right of the RCA inputs for channels 1 and 2 allow you to choose between a PHONO (Turntable) input or a LINE level (Mp3, CD, Tape player etc..) and require the proper switching. When switched to the PH position you may use any Turntable with a magnetic cartridge, remember to connect your ground wire (see GROUNDING SCREW) or there may be a system hum.
CHANNEL INPUTS
Now you may plug the RCA's from your playable medium into each input to be connected to their respective CHANNELS (CH).
NOTE: CONNECTING A LINE LEVEL DEVICE TO A PH INPUT MAY CAUSE THAT MIXER CHANNEL TO OVERLOAD AND OR DISTORT.
GROUNDING SCREW
When using a turntable(s), you will need to ground the RCA cable(s) by screwing in the grounding fork(s) to the GROUNDING SCREW located on the rear panel of the PS-626EFX mixer.
MIC (MICROPHONE) INPUT
The main MIC or Microphone input is located in back right hand corner of the PS-626EFX and will accept a standard 1/4^ connector. You can control the gain and even set the low's and the high's for the mic (See CONTROLS).
HEADPHONE OUTPUT
The HEADPHONE OUTPUT located at the front of the PS-626EFX will accept any headphone with a standard 1 / 4^ connector and or adapter and will allow you to CUE your music program before you play it, you can adjust the volume and PGM mix of the HEADPHONE (see CONTROLS).
Then when all of your connections have been made turn on the mixer by pressing the POWER SWITCH.
CONTROLS:
MICROPHONE VOLUME
Allows you to adjust the volume of the microphone signal.
MICROPHONE EQ
The MICROPHONE EQ Let's you to control the low frequency and the high frequency of the microphone signal.
MIXER CHANNEL
(NOTE: ALL 3 CHANNELS HAVE THE SAME FEATURES)
CHANNEL INPUT SELECTOR
The CHANNEL INPUT SELECTOR switches allow you to choose which input will be controlled by that channels corresponding volume FADER.
For example on CHANNEL (1) the INPUT SELECTOR allows you to choose between PHONO 1/LINE 1 and LINE 2, and also on CHANNEL (2) the INPUT SELECTOR SWITCH will let you choose between PHONO 2/LINE 3 and LINE 4 and on CHANNEL (3) you can choose between LINE 5 and LINE 6 input.
CHANNEL ROTARY GAIN
The CHANNEL ROTARY GAIN allows you to boost the signal of each individual channel depending on how low or high its input level is.
3 BAND EQUALIZER
The 3 BAND EQUALIZER adjust the tone of each CHANNEL by giving you a choice 3 frequencies (BANDS) to adjust, from LOW, MIDRANGE (MID) and HIGH's, you can use the adjustment knobs to higher or lower the 3 separate frequencies till the sound of the music program is appropriate for your listening environment.
CHANNEL VOLUME FADER
After you have chosen which input you will use with the INPUT SE-LECTOR the corresponding CHANNEL FADER will allow you to adjust the volume for that particular CHANNEL.
CONTROLS: (CONTINUED)

FADER ADJUSTMENT SWITCHES
The fader adjustment switches allow you to change the functionality of the fader. The REVERSE switch when in the ON position will flip the fader so it works in REVERSE ie. channel (2) on the left and channel (1) on the right. The CURVE selector lets you choose between two fader CURVE settings, positioning the switch to the left will give you a gradual CROSSFADE and positioning the switch to the right will give you a quick CROSSFADE.

CROSSFADER
The CROSSFADER allows you to mix evenly from one source to another. On the PS-626EFX the CROSSFADER blends the audio between channels (1) and (2) either quickly or slowly depending on the position of the fader adjustment switch (see above).
The CROSS FADER on the PS-626EFX is also removable and if the need arises can be replaced. The RG-45 (RAILGLIDE™)
DUAL-RAIL CROSS FADER, which has internal dual stainless steel rails that allow the slider to ride smoothly and accurately from end to end can be purchased from your local GEMINI dealer.
NOTE: WHEN USING THE CROSS FADER LIGHTLY GUIDE THE FADER BACK AND FORTH. PRESSING DOWN ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF SOUND.

EFFECTS ASSIGN
The PS-626EFX has an EFX SEND on each channel that allows you to SEND that channels signal individually to the effect section of the mixer, any combination of the three can be applied and all can send at once.

When sending more than one channel to the effects section make sure you adjust your gains accordingly to reduce the risk of distorting the input of the effects section.

VUMETER
The PS-626EFX has a VU METER that allows you to monitor the decibel levels of the LEFT and RIGHT MASTER output.

CUE MASTER SWITCH
The VU METER has two display modes, in CUE mode it will display the level of the channel you are cueing, in MASTER mode it displays the main MASTER output.

MASTER VOLUME ROTARY
The MASTER VOLUME ROTARY knob adjust the volume of the MAIN output

CUE/PGM ROTARY
The CUE/PGM ROTARY determines the mix between the chosen CHANNEL CUE SELECTOR and the MAIN OUTPUT mix.

CUE VOLUME ROTARY KNOB
The CUE VOLUME ROTARY KNOB adjusts your HEADPHONE MONITOR OUTPUT'S volume.

CHANNEL CUE SELECTOR
The CHANNEL CUE SELECTOR allows you to choose which channel you wish to monitor in your headphones.
EFFECTS:

EFX CONTROLS
The PS-626EFX has three effects and any one effect can be chosen by pressing its respective button, once an effect is chosen a red LED light will illuminate indicating the effect is engaged you may then change its parameters with the EFX PARAMETER jog wheel. Each effect only engages momentarily then defaults back to (0) effect, you can keep the effect from defaulting by pressing the HOLD button located above the effects buttons, the HOLD button will hold the effect indefinitely until you either disengage the button or engage a new effect. The HOLD LED will illuminate when HOLD is engaged.
EFFECTS:
EFXPARAMETERJOGWHEEL
The EFX PARAMETER JOG WHEEL allows you to adjust either the depth and speed of an effect like with the FLANGER and TRANS or what the effect does like with the FILTER.
FILTER
With the FILTER the EFX PARAMETER JOG WHEEL controls how much the filter will cut, for example if you spin the JOG WHEEL all the way to the left the filter will cut off all the HIGH frequencies leaving only the LOW'S, and if you spin it all the way to the right, the filter will cut off all the LOW'S leaving just the HIGH end frequencies
FLANGER
With the FLANGER the EFX PARAMETER WHEEL controls how deep the flanger will sound. Turn the wheel either way just a little and the FLANGER is barely audible, the more you turn the wheel in either direction, the FLANGER will get deeper sounding and give you the tunnel or jet plane sound effect.
TRANS
Or TRANSFORMER effect will turn the volume of the track off and on fast or slow depending where the EFX PARAMETER WHEEL is, giving you a TRANSFORMER sounding effect. Turn the wheel in either direction just a little and the effect will cut the music volume up and down slowly, keep turning the wheel in either direction and the effect will cut the music volume up and down quickly, you can then adjust the speed of the transform effect to match the tempo of your music.
FADER REPLACEMENT:
-
UNSCREW THE FADER (B) SCREWS. DO NOT TOUCH INSIDE SCREWS (C) CAREFULLY REMOVE OLD CROSS FADER AND UNPLUG CABLE (D)
-
PLUG IN THE NEW CROSS FADER INTO CABLE (D) AND PLACE BACK INTO MIXER.
-
SCREW THE CROSS FADER TO MIXER WITH THE FADER PLATE SCREWS (B)
-
REPLACE THE FACE OF THE MIXER AND SCREW THE FOUR SCREWS BACK IN AND REPLACE THE FADER KNOBS.

SPECIFICATIONS:
INPUTS:
Phono. 3mV,47 K Ohm Line. 150 mV,27 K Ohm MIC. 1.5 mV, 1k Ohm Balanced
OUTPUTS:
Max. 20V Peak-to Peak Rec. 150 mV, 5 K Ohm
GENERAL:
Frequency Response. 20Hz - 20KHz +/- 2dB Distortion. < 0.02% S/N Ratio. Better than 85 dB Headphone impedance. .32 Ohm Power Source AC 15V 500mA Unit dimensions. 10^ × 3.3^ × 12^ (254 x 84 x 304 mm) Weight. .6.5 lbs (2.94 kg)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION
FOR IMPROVEMENT
ASSIGNATION DES EFFETS
Poids. 6.5 lbs (2.94 Kgs)
SPECIFICATIONS ET CONCEPTION PEUVENT CHANGER SANS PREAVIS DANS LE CADRE D'UN SOUCI CONSTANT D'AMELIERATION DE NOS PRODUITS.
In the event that you need service on your Gemini product under warranty, simply write a letter describing the problem, along with your contact information. Make sure to enclose a copy of your receipt for proof of warranty information. A return number is not required. You will be responsible for shipping charges to Gemini UK, and Gemini UK will pay to return the unit to you if it is considered under warranty.
IN SPAIN
Save postage and register your product online at www.geminidj.com and automatically be registered for great prize giveaways!
If you do not have internet access, fill out the form below and mail to the appropriate address listed at the right side of this page.


USA
GEMINI SOUND PRODUCTS
Worldwide 1Headquarters
1 Mayfield Ave
Edison, NJ 08837 USA
Tel: (732) 346-0061
Fax: (732) 346-0065
FRANCE
GCI TECHNOLOGIES S.A.R.L
1, Allcc d'Effiat,
GEMINI SOUND PRODUCTS
Unit C4
Hazleton Industrial Estac, P08
9JU Waterloovillc, UK
Tel:08708700880
Fax:08708700990
SPAIN
GEMINI SOUND PRODUCTS
S.A.
Roscllo, 516
08026 Barcelona, Spain
Tel:3493-4363700
Fax: 3493-347-6961
WARRANTY AND REPAIR:
All Gemini products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will provide years of reliable service.
LIMITED WARRANTY
A. Gemini warrants its products to be free from defects in materials and workmanship for One (1) year from the original purchase date.
Exceptions: Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.
B. This limited warranty does not cover damage or failure caused by abuse, misuse, abnormal use, faulty installation, improper maintenance or any repairs other than those provided by an authorized Gemini Service Center.
C. There are no obligations of liability on the part of Gemini for consequential damages arising out of or in connection with the use or performance of the product or other indirect damages with respect to loss of property, revenues, of profit, or costs of removal, installation, or reinstallation. All implied warranties for Gemini, including implied warranties for fitness, are limited in duration to One (1) year from the original date of purchase, unless otherwise
mandated by local statutes.
RETURN/REPAIR
A. In the U.S.A., please call our helpful Customer Service Representatives at (732)738-9003, and they will be happy to give you a Return Authorization Number (RA#) and the address of an authorized service center closest to you.
B. After receiving an RA#, include a copy of the original sales receipt, with defective product and a description of the defect. Send by insured freight to: Gemini Sound Products Corp, and use the address provided by your customer service representative. Your RA# must be written on the outside of the package, or processing will be delayed indefinitely!
C. Service covered under warranty will be paid for by Gemini and returned to you. For non-warrantied products, Gemini will repair your unit after payment is received. Repair charges do not include return freight. Freight charges will be added to the repair charges.
D. On warranty service, you pay for shipping to Gemini, we pay for return shipping within the Continental United States. Alaska, Hawaii, Puerto Rico, Canada, Bahamas, and the Virgin Islands will be charged for freight.
E. Please allow 2-4 weeks for return of your product. Under normal circumstances your product will spend no more than 10 working days at Gemini. We are not responsible for shipping times.
IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT, CALL 1-732-346-0061 FOR GCI TECHNOLOGIES CUSTOMER SERVICE. DO NOT ATTEMPT RETURN THIS EQUIPMENT TO YOUR DEALER.
Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. GCI Technologies Corp. shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express written permission of GCI Technologies Corp. It is recommended that all maintenance and service on this product is performed by GCI Technologies Corp. or its authorized agents. GCI Technologies Corp. will not accept liability for loss or damage caused by maintenance or repair performed by unauthorized personnel.
Worldwide Headquarters • 1 Mayfield Ave, Edison, NJ 08837 • USA Tel: (732) 346-0061 • Fax: (732) 346-0065
© GCI Technologies Corp. 2007 All Rights Reserved.
